Product Description

Basic Info.

Model NO. LFP-PW

Rechargeable Yes

Size Medium

Nominal Voltage 12V

Product Name Lifep04 Battery LFP-Pw

Cycle Life 6000 Times

Wide Operation Temperature -20-60

Display LED or LCD

Transport Package Seaworthy Packing

Specification 100-200AH

HS Code 8507600090

Production Capacity 50000PCS/Yer

Packaging & Delivery

Package Size 570.00cm * 460.00cm * 500.00cm

Package Gross Weight 72.000kg

Product Description

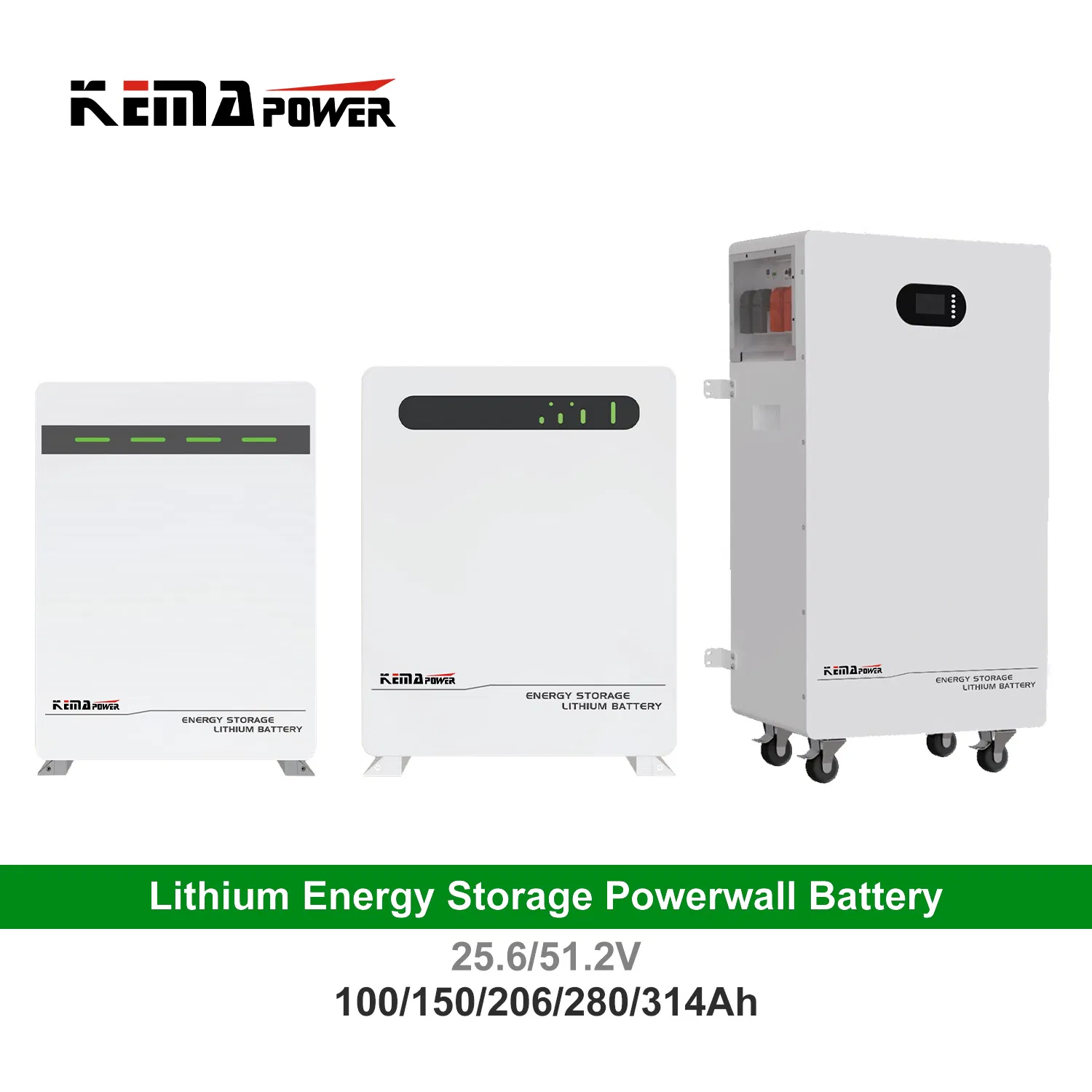

LiFePo4 Lithium Energy Storage Powerwall Battery

LFP-PW Series

KEY FEATURES

LiFePo4 lithium energy storage powerwall battery 2.56KWH/5.12KWH/7.68KWH/8.04KWH/10.34KWH/14.34KWH/16.07KWH
4K-8K times Cycle life(80% DOD@25ºC), 10 times more than AGM battery
Usable Energy Ratio upto 95%, 25-50% more than AGM battery
Compact Size and light weight, over 50% less than AGM battery
Wide Operation temperature -20-60ºC
RS485 and CAN communication interface to Inverter
LED and LCD display For Cell / Pack / BMS / SET
Wide Compatibility, Cooperate With Most Inverters
Embedded BMS, Full protection and Balance
Max 15 Modular recommend 2-8 PCS Parallel, with parallel power and communication cable
WiFi App communication is option

TECHNICAL SPECIFICATIONS

MODEL		LFP256100-PW	LFP256314-PW	LFP512100-PW	LFP512150-PW	LFP512206-PW	LFP512280-PW	LFP512314-PW	LFP512314W-PW
Battery Pack Module	Rated Voltage	25.6V	25.6V	51.2V	51.2V	51.2V	51.2V	51.2V	51.2V
	Rated Capacity Ah	100Ah	314Ah	100Ah	150Ah	206Ah	280Ah	314Ah	314Ah
	Rated Energy	2.56KWH	8.04KWH	5.12KWH	7.68KWH	10.34KWH	14.34KWH	16.07KWH	16.07KWH
	Cycle Life @ 80% DOC.25ºC	4000 times		6000 times			8000 times
	Design Life Time	Over 10 years
	DOD	> 95%
	IP Grade	IP21, Indoor

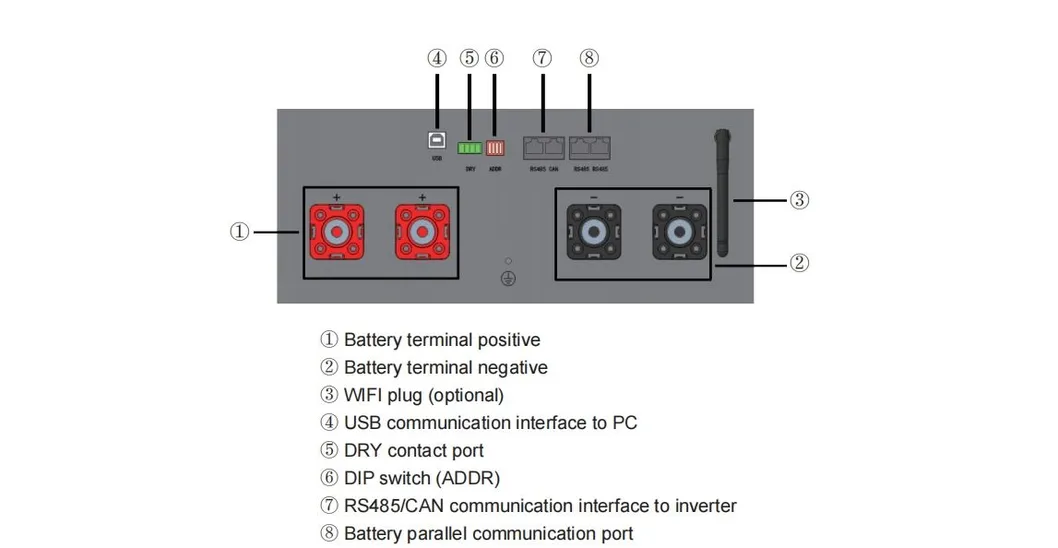

	Communication	RS485 / CAN communication interface to inverter; USB interface to PC; RS485/RS485 for parallel Communication
	Parallel Connection	Max 15 Modular, recommend 2-8 PCS Parallel, with parallel power cable
	DC Output Connector	M8 bolt
Display	LED	Standby/charge/discharge/fault/ Capacity
Display	LCD	Cell/Pack Vdc/ Amp/ Ah/Temp, BMS Status and also Parallel and System set
Protection Function	BMS	Over charge /Over Discharge/Over Temperature/ Over Current /internal Short Circuit protection and Balance Modular and Cell Charge and discharge ( Option ), by Embedded BMS
Protection Function	Over-current Fuse	150A	150A	120A	180A	180A	220A	220A	220A

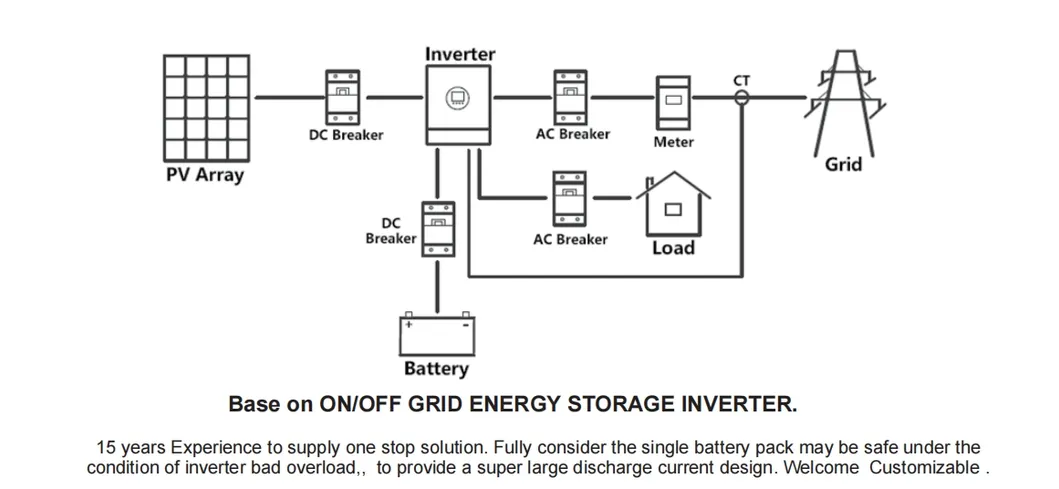

Battery Pack Charge/Discharge (Base on 3KW/24VDC 5KW/48VDC Inverter. Customizable by customer)	Recommended Charge Current	20A	20A	20A	40A	40A	40A	40A	40A
	Max. Continue Charge Current	100A	100A	100A	150A	150A	150A	200A	200A
	Recommended Discharge Current	20A	20A	20A	40A	40A	40A	40A	40A
	Max. Continue Discharge Current	100A	100A	100A	150A	150A	150A	200A	200A
	Recommended Charge Voltage	28.2V	28.2V	56.4V	56.4V	56.4V	56.4V	56.4V	56.4V
	Recommended Over Discharge Voltage	22.4V	22.4V	44.8V	44.8V	44.8V	44.8V	44.8V	44.8V
Battery Cell	Cell Type	Prismatic, LiFepo4
	Rated Capacity Ah	100Ah	314Ah	100Ah	150Ah	206Ah	280Ah	314Ah	314Ah
	Rated voltage V	3.2V
	Pack Connection	8S1P	8S1P	16S1P	16S1P	16S1P	16S1P	16S1P	16S1P
BMS Parameter (Customizable)	Charge Method	CC To 3.65V, CV to 0.05C and then Cut off
	Max Pulse Charge Current	120% * Max. continue Charge Current
	Over Charge Protection Voltage	29.2V	29.2V	58.4V	58.4V	58.4V	58.4V	58.4V	58.4V
	Over Charge Voltage Return	27.6V	27.6V	55.2V	55.2V	55.2V	55.2V	55.2V	55.2V
	Max Pulse Discharge Protection Current	300% * Max. Continue Discharge Current
	Over Discharge Protection Voltage	16A	16V	32V	32V	32V	32V	32V	32V
	Over Discharge Return Voltage	20V	20V	40V	40V	40V	40V	40V	40V
	Over Current Protection Delay Time	20 ±5 ms
	Short protection delay time	200-600 us
	Reset For BMS	yes. Inclued the RST switch. Wakeup function
Battery Standard		IEC62619, CE, UN38.3, MSDS
Installation		Wall/Ground
Operation temperature		-20-60ºC
Storage Temperature		0-45ºC
Product Size ( Around mm) Customizable		556555300	556555300	480600150	480680180	673618.5193	673618.5193	490840242	490840242
Product Weight ( Around Kg)		26	26	47	80	85	85	130	130

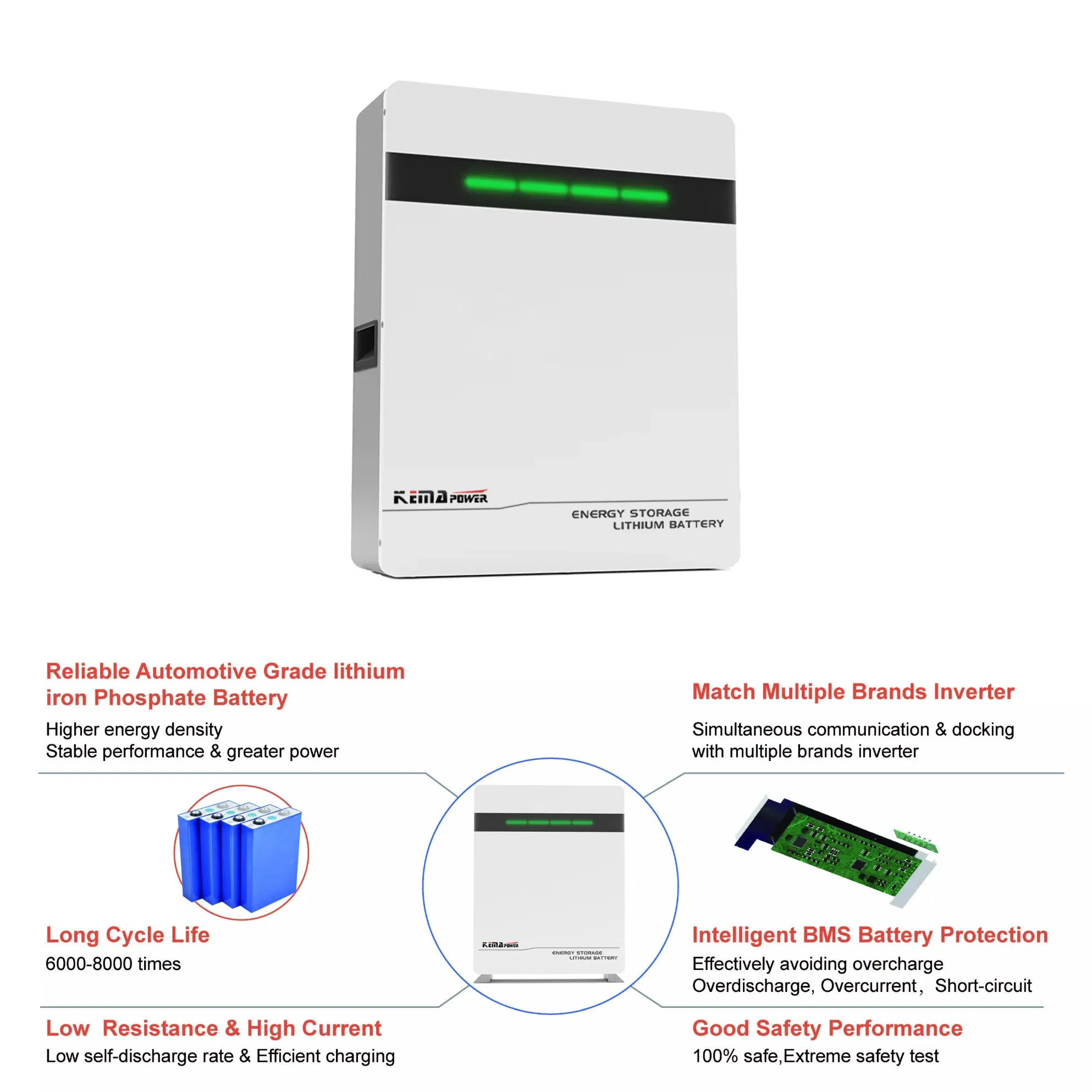

PRODUCT DISPLAY

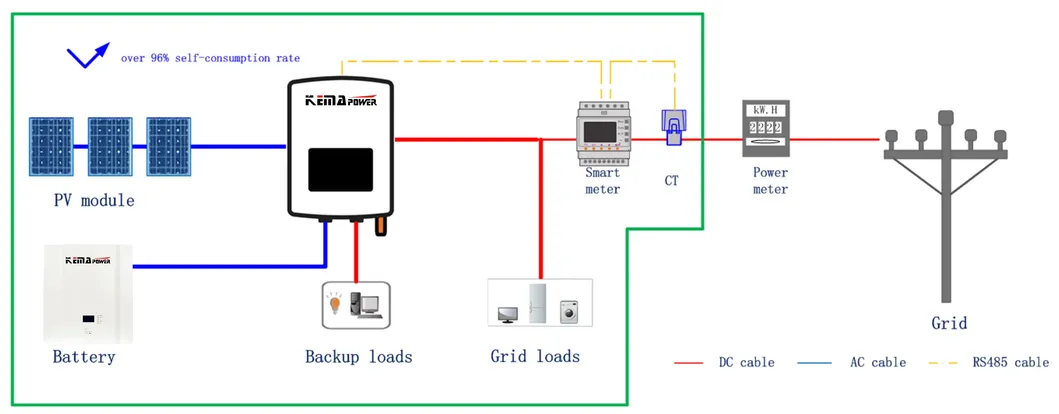

Wall Mounted Solar Battery 51.2V 100ah LiFePO4 Energy Storage System 5.12kwh Home Powerwall

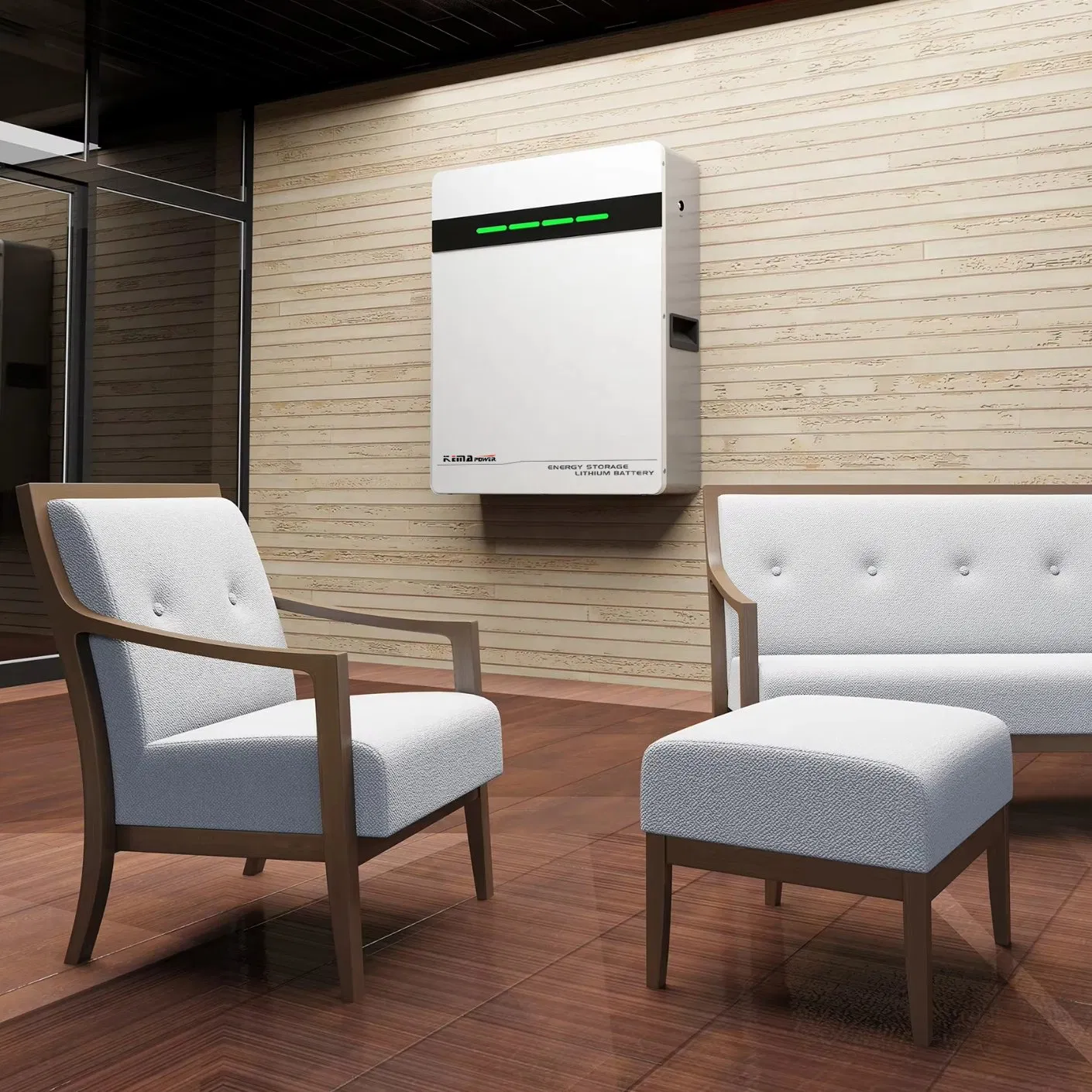

Wall Mounted Solar Battery 51.2V 100ah LiFePO4 Energy Storage System

Frequently Asked Questions

Q1. What is the cycle life of the LFP-PW series LiFePO4 battery?

The LFP-PW series battery offers an outstanding cycle life ranging from 4,000 to 8,000 cycles (at 80% DOD @ 25ºC). This lifespan is up to 10 times longer than standard AGM batteries, ensuring long-term reliability and lower cost of ownership.

Q2. How many battery modules can I connect in parallel?

You can connect up to a maximum of 15 modules in parallel. For optimal performance, we recommend connecting 2 to 8 units in parallel. The package includes the necessary parallel power and communication cables.

Q3. What are the protection features of the built-in Battery Management System (BMS)?

The embedded BMS provides comprehensive safety features including protection against over-charging, over-discharging, over-temperature, over-current, and internal short circuits. It also manages cell balancing to extend overall battery health.

Q4. What type of communication protocols do these batteries support?

The LFP-PW series is designed with RS485 and CAN communication interfaces to link directly with your inverter. It also features a USB interface for PC connectivity and RS485/RS485 for multi-module parallel communication.

Q5. What is the operating and storage temperature range for this battery pack?

The battery pack operates in a wide temperature range of -20ºC to 60ºC, making it highly resilient in various climates. For storage, it is recommended to keep the battery in an environment between 0ºC and 45ºC.

Q6. Is remote monitoring available for the LFP-PW series?

Yes, WiFi App communication is supported as an optional feature, allowing you to monitor the status of individual cells, packs, BMS parameters, and system settings directly via a mobile application.
