Basic Info.
Capacity
100ah 200ah 300ah 400ah 500ah 600ah 700ah 800ah
Energy
5kwh, 10kwh, 15kwh, 20kwh, 30kwh, 40kwh, 50kwh
Certification
CE/RoHS/Un38.3/MSDS
Communication
Can/RS485/RS232
Parallel Connection
Available
Features
Stackable/Wall Mounted
Application 1
Home Energy Storage, Residential Energy Storage
Application 2
Solar Energy Storage, Back up Power

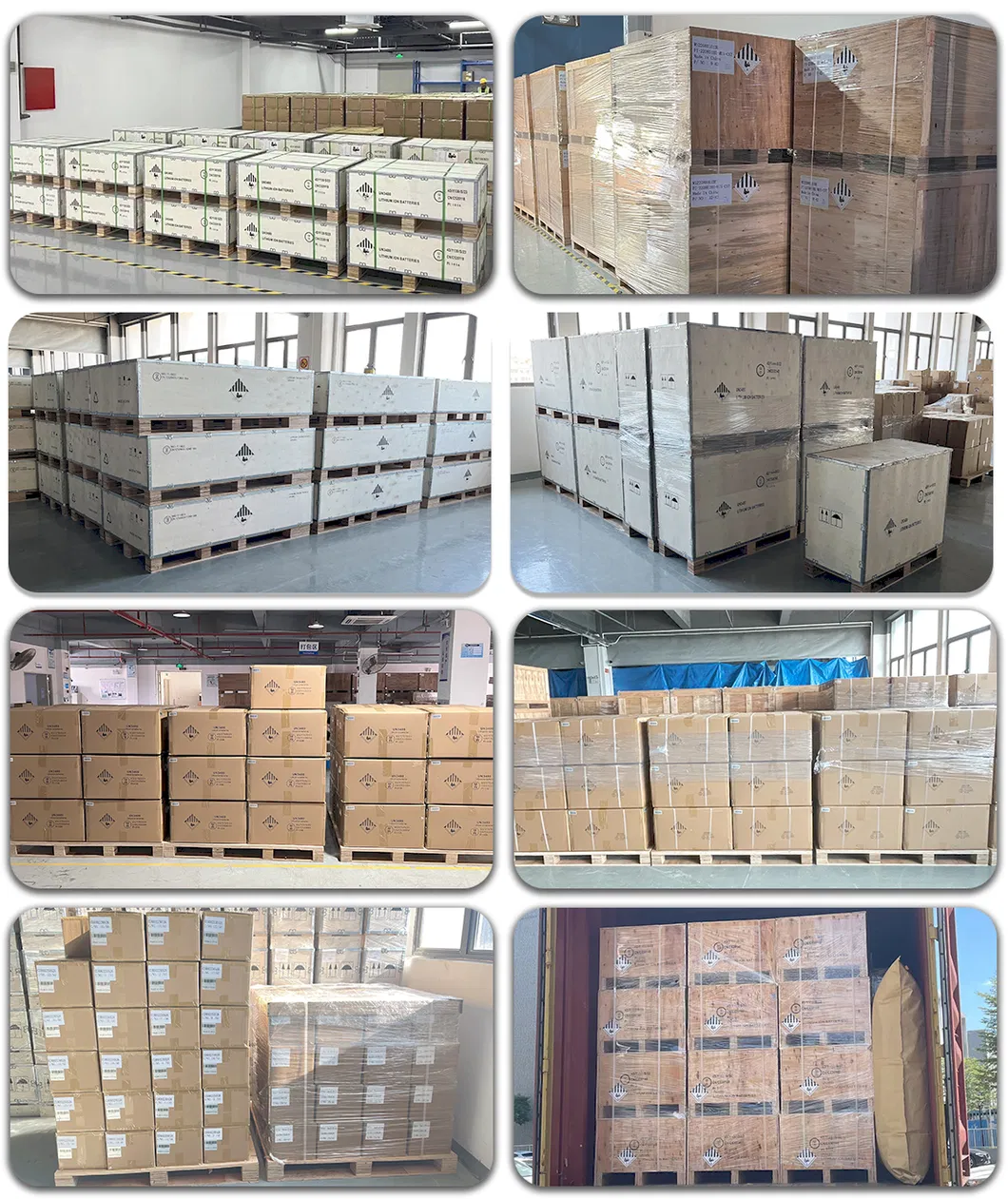

Transport Package
Carton Box
Production Capacity
100000PCS/Month
Packaging & Delivery
Package Size
65.00cm * 45.00cm * 25.00cm
Package Gross Weight
48.000kg
Product Description

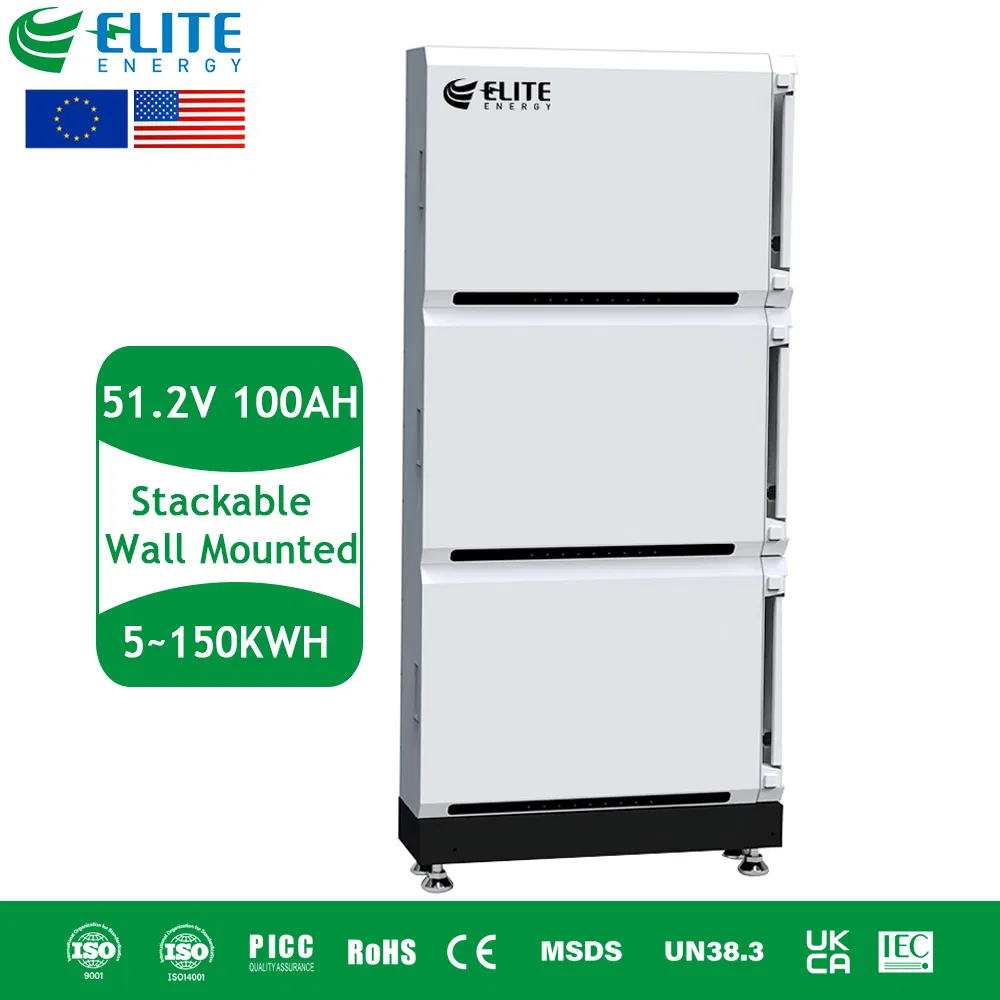

We are an Original Lithium Ion LiFePO4 Battery Pack Manufacturer with 15+ years Experience in Energy Storage System (ESS) and Motivation Power System Industry. Our offerings include High Voltage, 48V 100Ah Stackable Low Voltage Battery Packs, PowerWall Li-ion Battery Pack, All-in-One Home Storage Solar System Battery, and Lithium Power Battery for Solar and Golf Cart DIY Modification Conversion Kits.

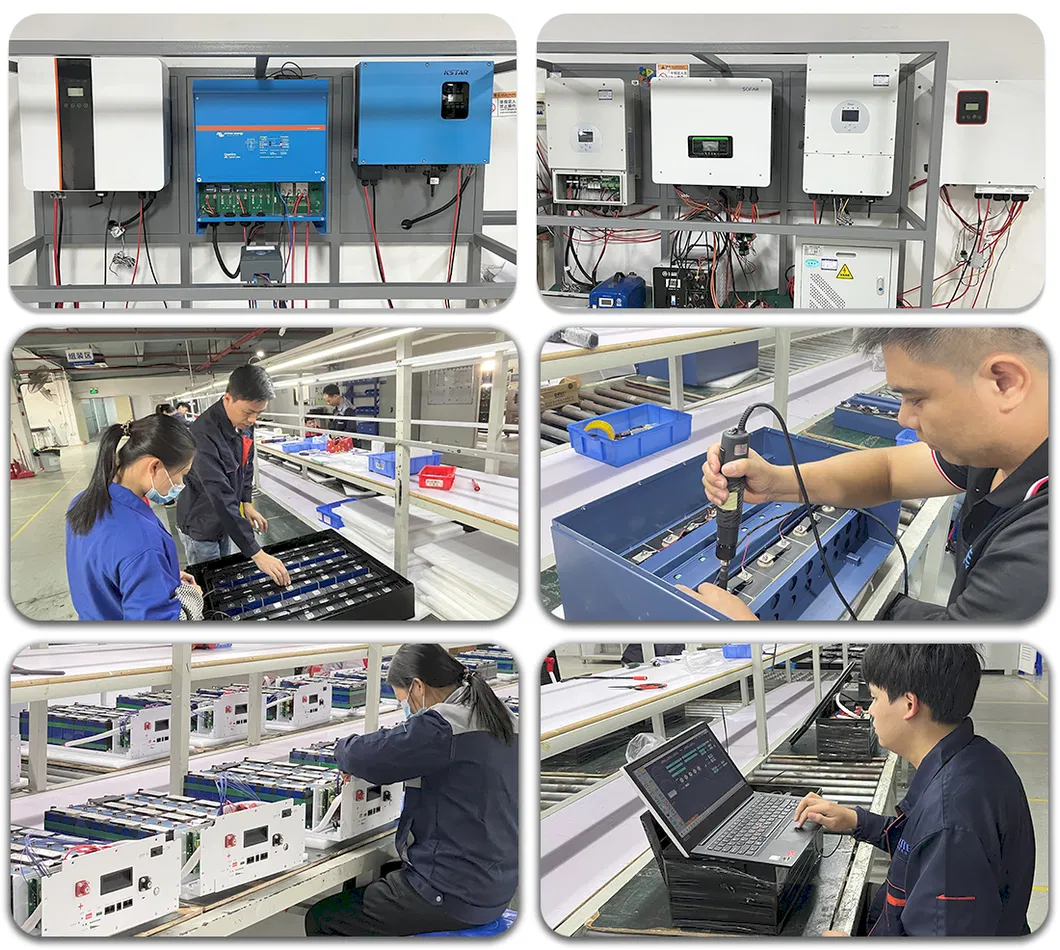

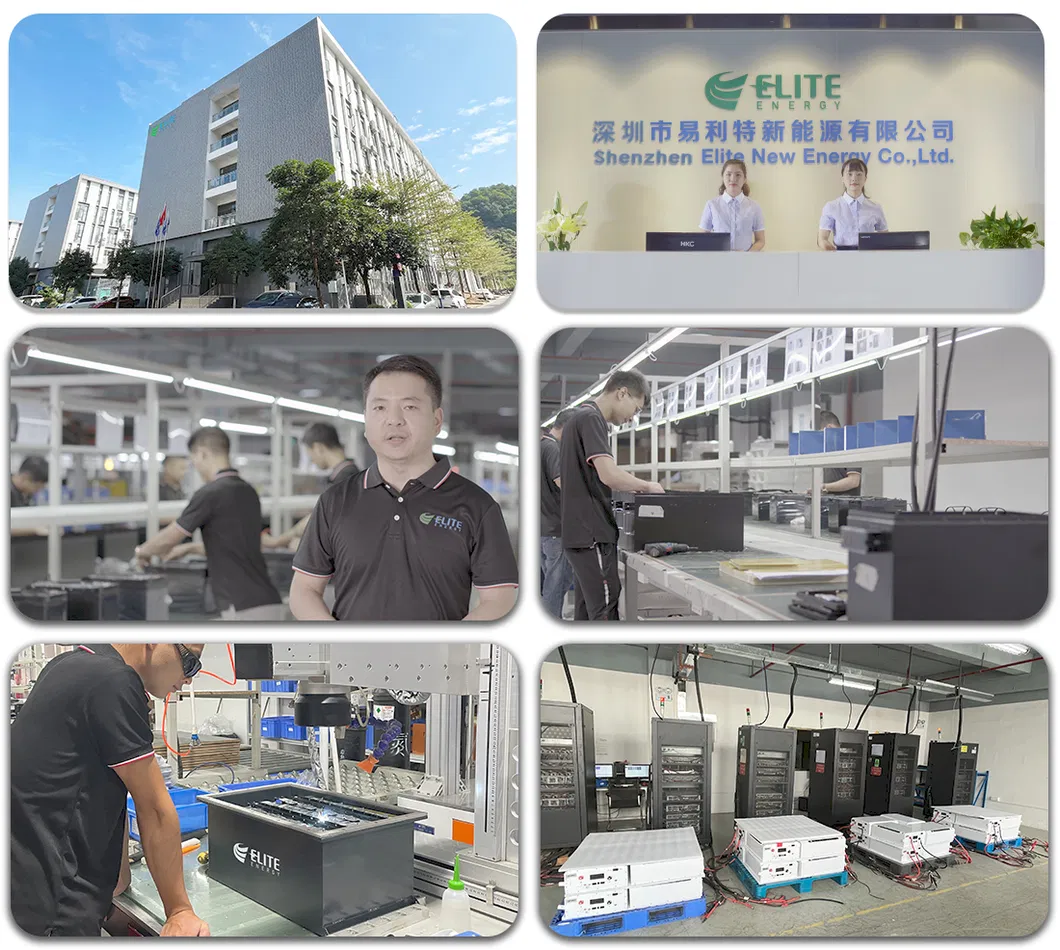

Our factory covers an area of 10,000 square meters with an annual production capability of 1GWH. Equipped with state-of-the-art facilities and equipment, certified with ISO9001, ISO14001, and ISO45001, and compliant with up-to-date certifications including CE, RoHS, BIS, MSDS, and UN38.3. The products perfectly meet international standards with excellent performance and safety compliance, and are fully qualified for high-end OEM/ODM markets.
- Performs 6000+ cycles;

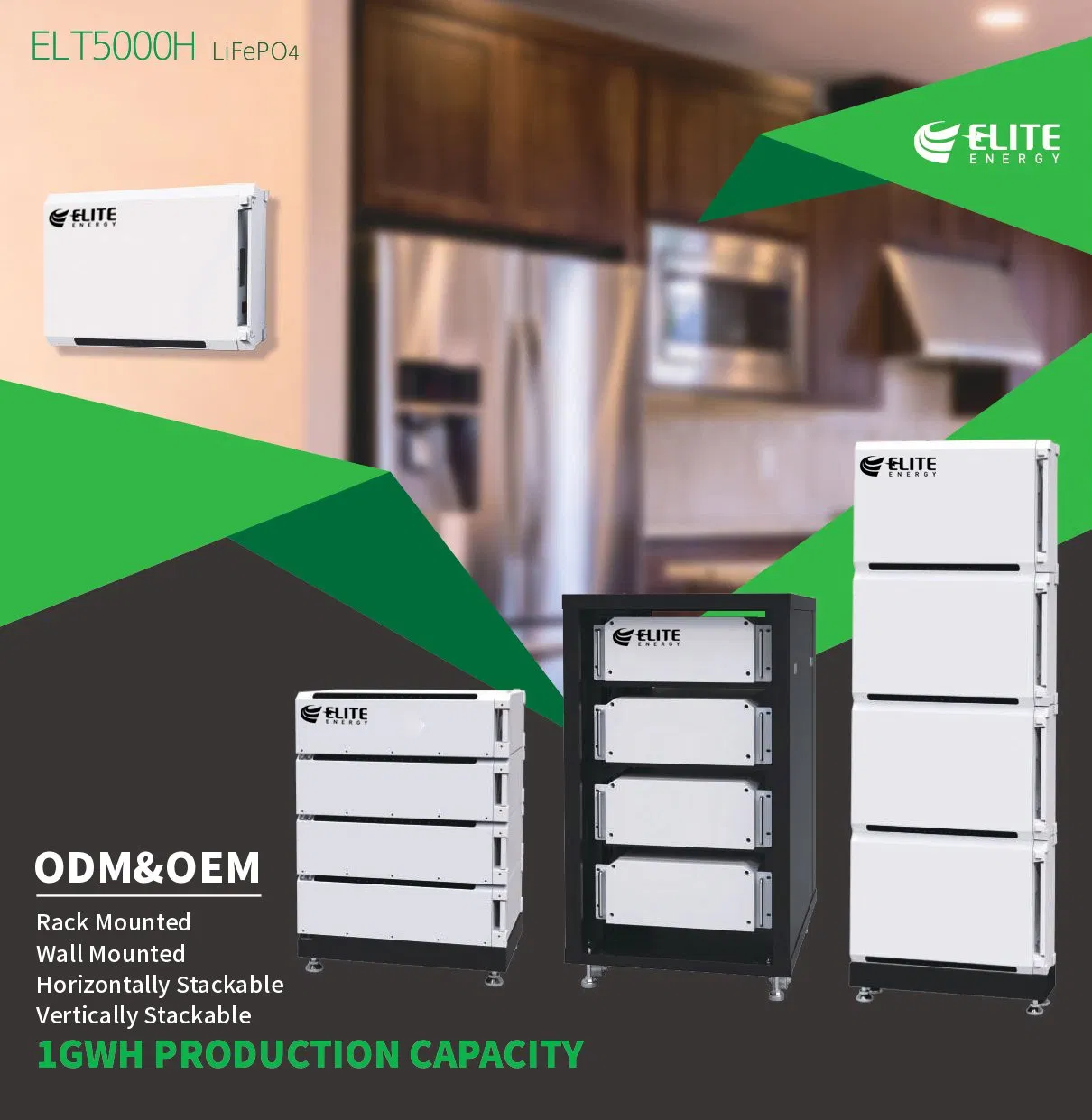

- Flexible connection and 4 different installation ways by option (Side stackable, Flat stackable, Rack mounted or Wall mounted);
- Support max. 30pcs in parallel to increase capacity up to 150kWh;
- Wide compatible with main brand inverters, BMS with multiple communication protocols;
- Widely applicable to residential, commercial and industrial energy storage systems;
- With Bluetooth function, battery real-state can be monitored on Phone Bluetooth App;

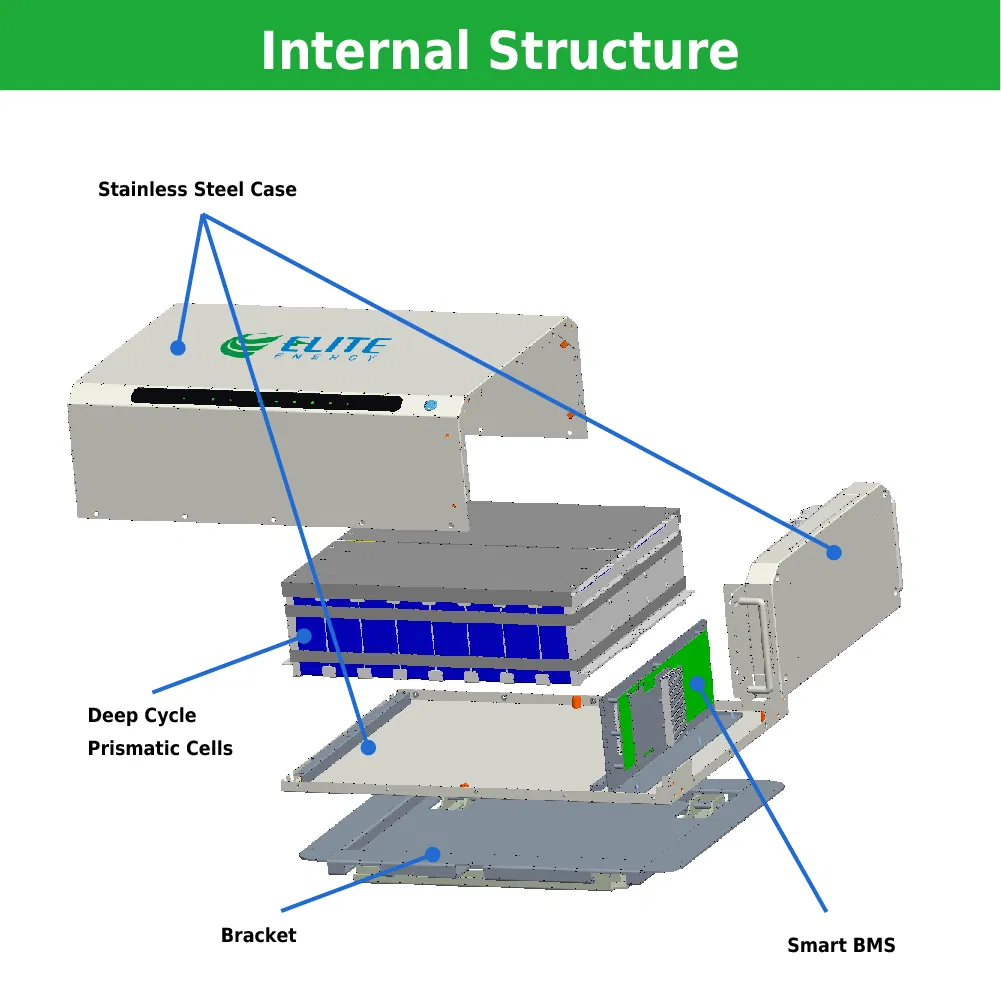

- Excellent high temperature and safety performance, with built-in smart BMS to carry on protection;

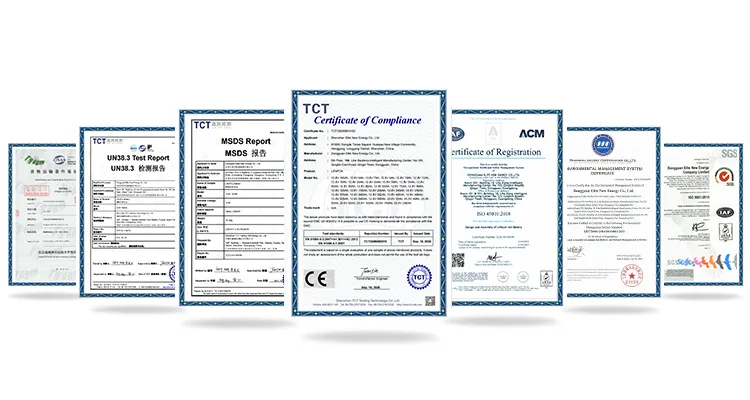

- With CE BIS, MSDS, UN38.3 approved, etc.
| No. |
Parameters |
System Parameters Details (ELT5000H) |
| 1 | Typical Model | ELT5000H |
| 2 | Parallel Connection | Max. 30pcs (Up to 150kWh) |
| 3 | Maximum Mounting Height | <200CM |
| 4 | Battery Type | LiFePO4 Battery Cell |
| 5 | Battery Module | 51.2V 100Ah |
| 6 | Nominal Energy | 5120Wh |
| 7 | Nominal Voltage | 51.2V |
| 8 | Operating Voltage | 40V - 58.4V |
| 9 | Max. Continuous Charging/Discharging Current | 100A |
| 10 | Max. Peak Charging/Discharging Current | 150A (5s) |
| 11 | Display | SOC LED Indicator |
| 12 | Bluetooth | Yes, Built-in BT5.0 |
| 13 | Communication Interface | CAN/RS485/RS232 |
| 14 | Cycle Life | ≥ 6000 cycles |

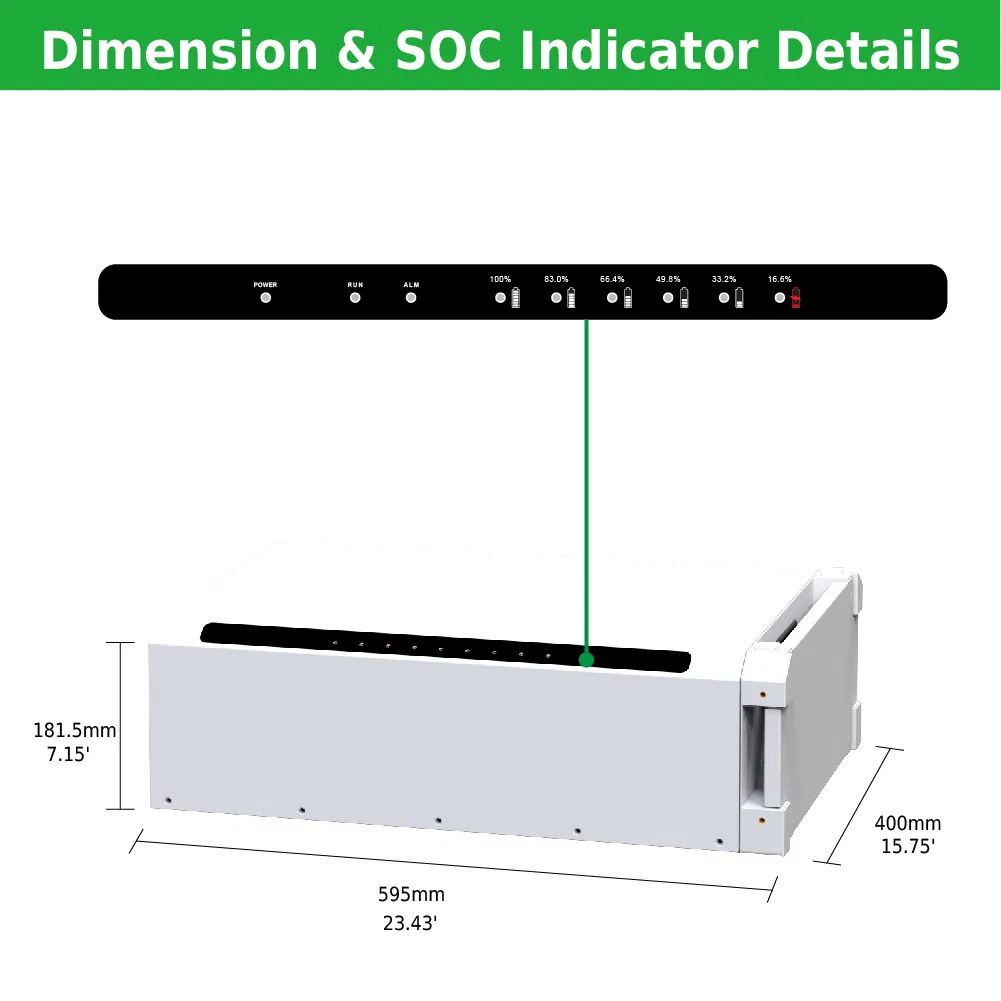

| 15 | Dimensions (W*H*D) | 592*400*176mm / 23.43" * 15.75" * 7.15" |
| 16 | Weight | 47kg / 103.62lbs |
| 17 | Mounting Method | Stackable, Wall Mounted or Rack Mounted |
| 18 | Operating Ambient Temperature Range | Charge: 0~55ºC / Discharge: -20~65ºC |
| 19 | Allowable Relative Humidity Range | 0% to 95% (non-condensing) |
| 20 | Cooling Method | Natural Convection |
| 21 | Warranty | 5 Years |
Frequently Asked Questions
Do you have a Minimum Order Quantity (MOQ) limit?
No, we do not have an MOQ limit. A 1-piece sample order or small quantities are available.
What about the Lead Time?
Standard product lead times: Samples take 3-5 days, while bulk orders take 3-4 weeks. Customized products require 3-4 weeks for both sample and bulk orders. Products in our warehouses are ready to ship immediately once payment is confirmed.
How do you ship the goods and how long does it take?
We offer multiple shipping methods: By air door-to-door (6-12 days via FEDEX, UPS, or DHL) for urgent small orders; by sea door-to-door (25-50 days) for bulk shipments; by sea to the delivery port (20-35 days); or by air to the airport (3-5 days).
Does the BMS have low temperature charging disconnect protection?
Yes. Our built-in BMS features low-temperature cut-off protection to shield the battery from damage and extend its lifespan. Low-temperature charging cut-off triggers at 0ºC ± 4ºC (32°F ± 39.2°F), and discharging cut-off triggers at -20ºC ± 4ºC (-4°F ± 39.2°F).
What options are available for charging LiFePO4 batteries?
We recommend using a specialized lithium iron phosphate 4-string (14.6V) charger. Alternatively, you can charge using photovoltaic solar panels via an MPPT controller, or use an inverter equipped with a built-in AC to DC charging function.
Are your LiFePO4 batteries safe?
Yes, our batteries are highly safe. They are made with automotive-grade cells that feature a stable lithium iron phosphate chemical structure, making them resistant to burning or exploding even under high temperatures, short circuits, or impacts. They include integrated BMS protections against overcharge, deep discharge, overload, overheating, and short circuits, including a high-temperature automatic disconnect at 75°C (167°F). They are CE certified and do not contain heavy or rare metals, making them eco-friendly green batteries.
