Basic Info
Model NO.BRW-48200
RechargeableYes
SizeLarge
Back ColourWhite, Black
Net Weight100kg
Junction BoxLp65 Rated/Pass The TUV
LifespanMore Than 25 Years
Maximum Power9600wh
DisplayLCD Indicator
Optional PartStorage Battery
Battery Cell3.2V 50ah Prismatic Cell
Inverter MatchedSolax, Deye, Goodwe, Growatt, Sofar, Gmde
Nominal Capacity5/7.5/10kwh
Cycle LifeMore Than 6000 Times
BMS ControlYes
Nominal Voltage48V
Max. Continuous Current100A
Charge Cut-off Voltage56.0V
Transport PackageWooden Box and Pallet
Specification680*485*220
OriginJiangsu, China
HS Code8507600090
Production Capacity139000 Pieces/Year
Packaging & Delivery
Package Size80.00cm * 50.00cm * 30.00cm
Package Gross Weight50.000kg
Product Description

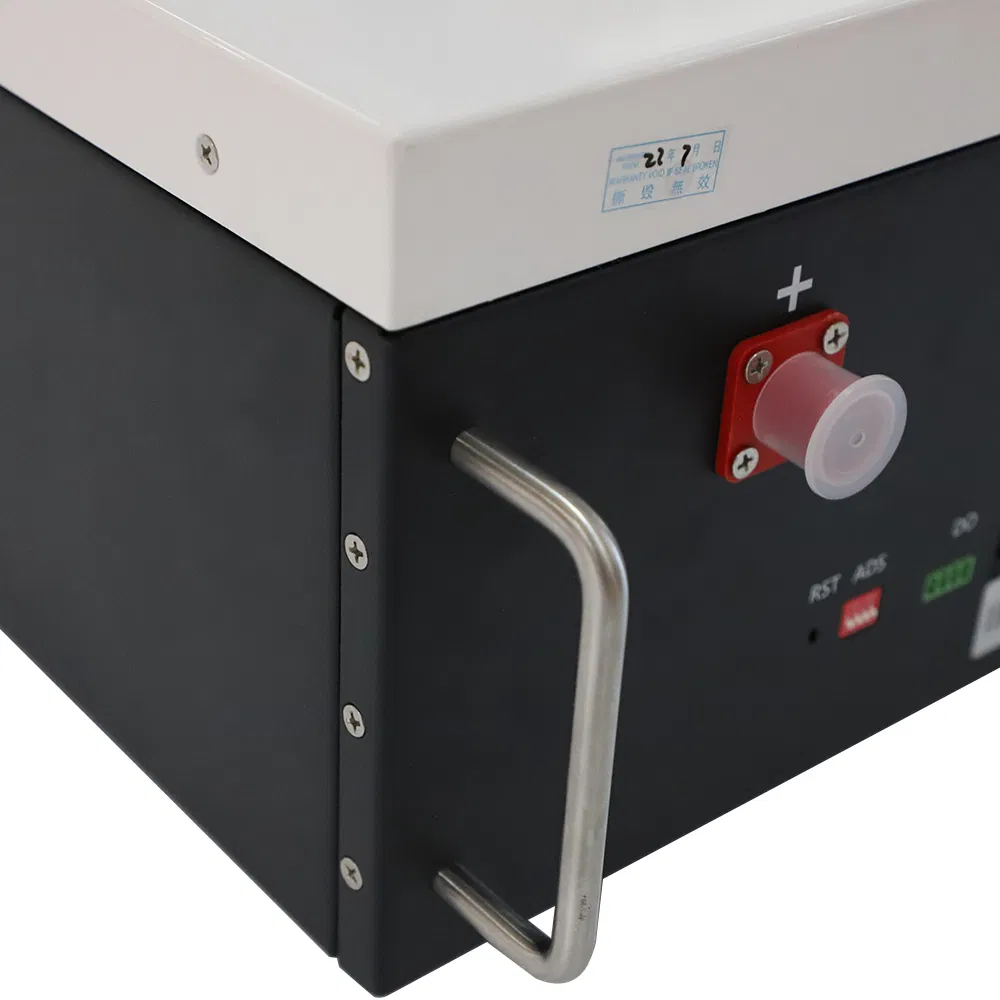

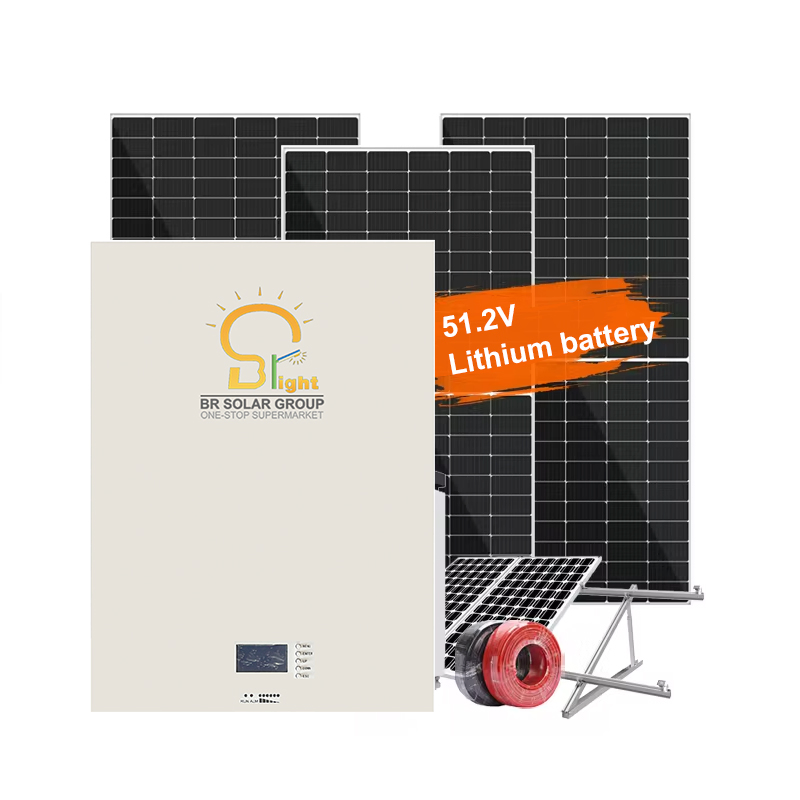

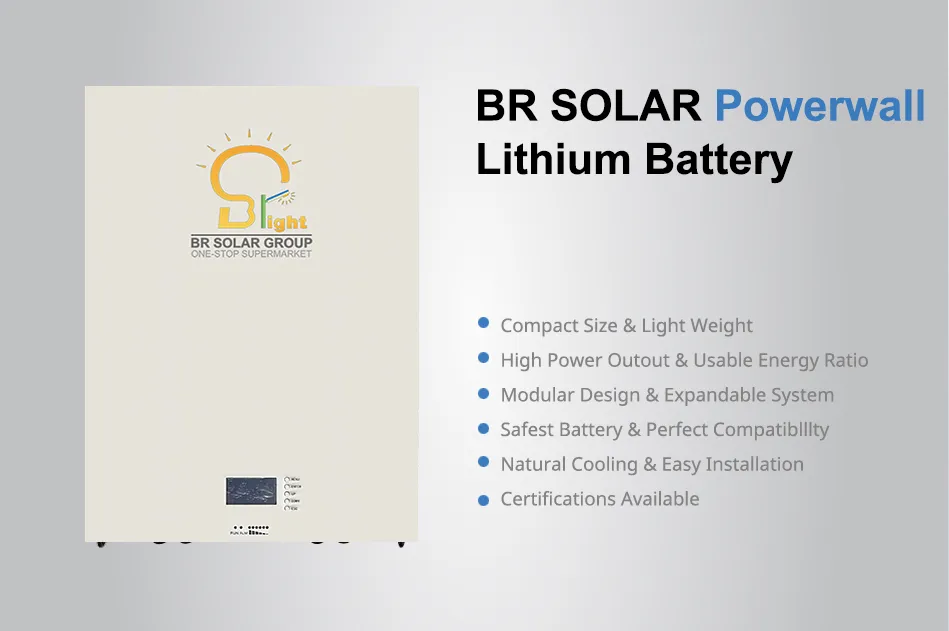

10kwh 15kwh 20kwh Power Wall Mounted Lithium LiFePO4 Ion Battery 48V 100ah 200ah 300ah for Solar Power Home System Energy Storage Battery
Specification For Lithium Battery
| Model |
BLH-4800W |
BLH-7200W |
BLH-9600W |
| Nominal Voltage |
48V (15 series) |
| Capacity |
100Ah |
150Ah |
200Ah |
| Energy |
4800Wh |
7200Wh |
9600Wh |
| Internal Resistance |
≤30mΩ |
| Cycle Life |
≥6000 cycles @ 80% DOD, 25ºC, 0.5C
≥5000 cycles @ 80% DOD, 40ºC, 0.5C
|
| Design Life |
≥10 years |
| Charge Cut-off Voltage |
56.0V±0.5V |
| Max. Continuous Work Current |
100A/150A (Can choose) |
| Discharge Cut-off Voltage |
45V±0.2V |
| Charge Temperature |
0°C~60°C (Under 0°C extra heating mechanism) |
| Discharge Temperature |
-20°C~60°C (Under 0°C work with reduced capacity) |
| Storage Temperature |
-40°C~55°C @ 60% ± 25% relative humidity |
| Dimensions |
680 x 485 x 180(220)mm |
| Battery Maximum Parallel Number |
15PCS |
| Weight |
Approx: 50kg |
Approx: 82.5kg |
Approx: 110kg |
| Protocol (optional) |
RS232-PC, RS485(B)-PC, RS485(A)-Inverter, Canbus-Inverter |
| Certification |
UN 38.3, MSDS, UL 1973 (Cell), IEC62619 (Cell) |
- The whole module is non-toxic, non-polluting and environmentally friendly.
- Cathode material is made from LiFePO4 with safety performance and long cycle life.
- Battery management system (BMS) has protection functions including over-discharge, over-charge, over-current and high/low temperature.
- Small size and light weight, comfortable for installation and maintenance.

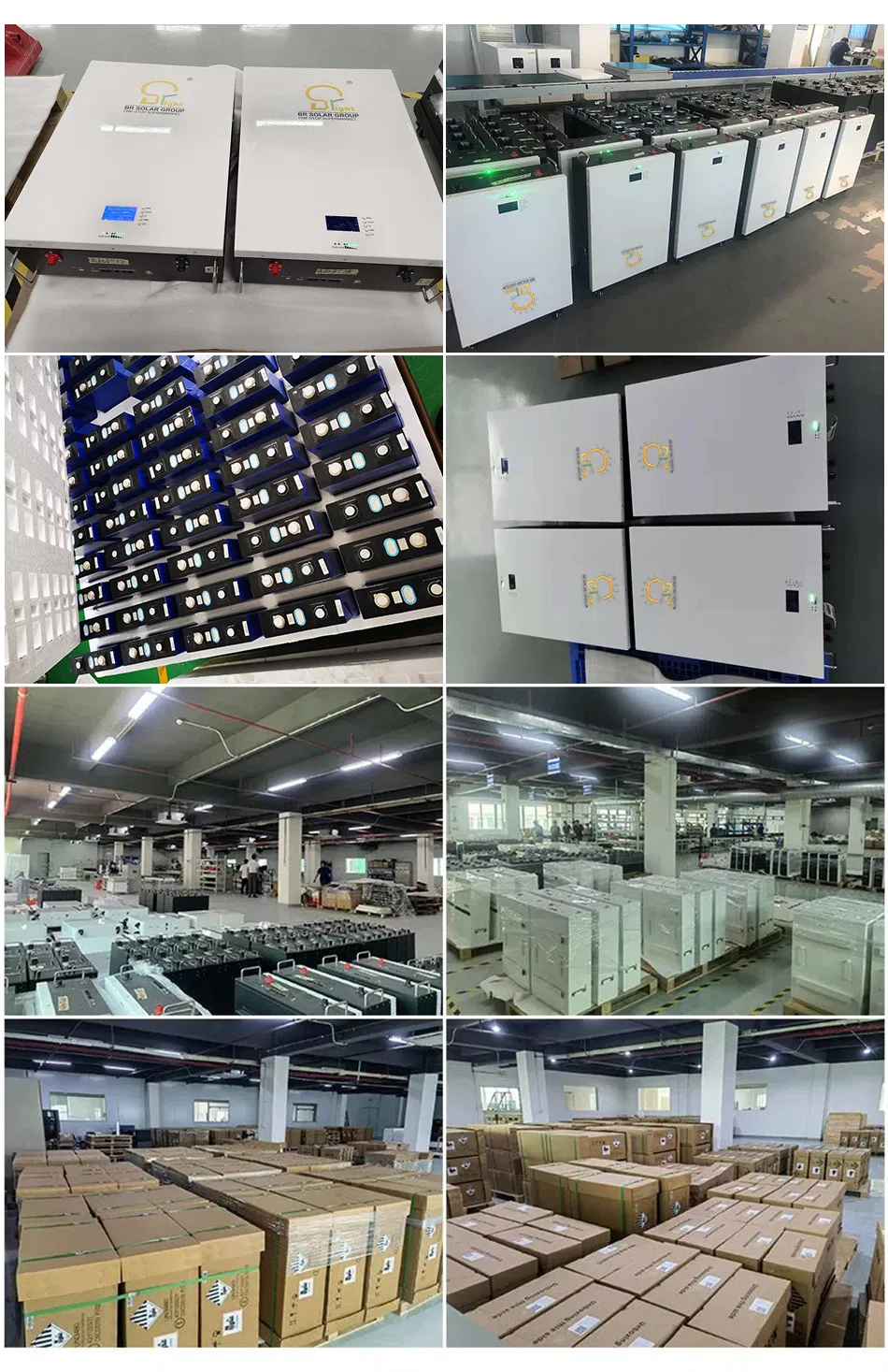

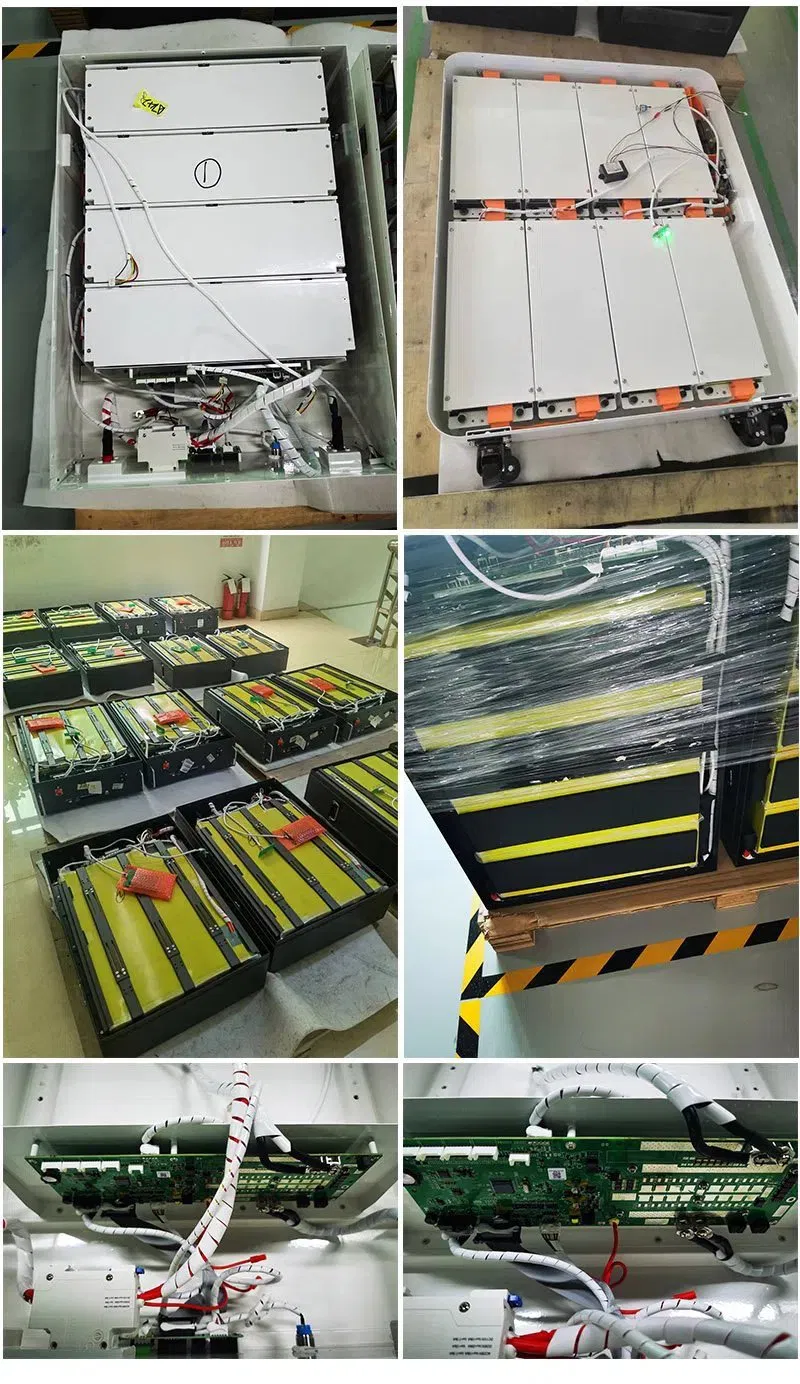

Packing & Shipping
Global Projects
Our Projects are applied all around the World. We Choose Quality Materials, Quality Is Our Culture. So Our Solar Products Have Been Successfully Applied In More Than 110 Countries Including UN Projects and NGO Projects.
Product Certificates

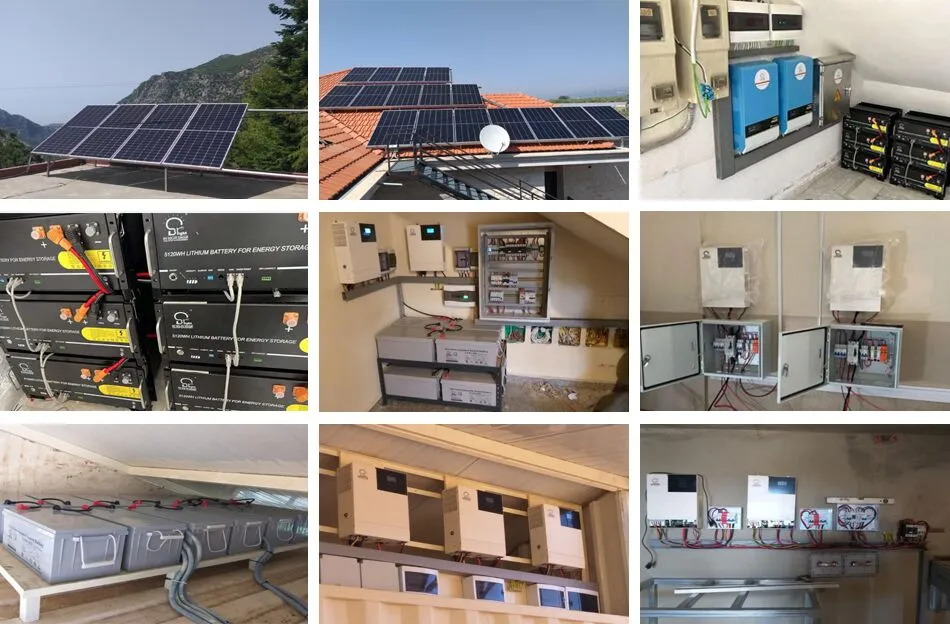

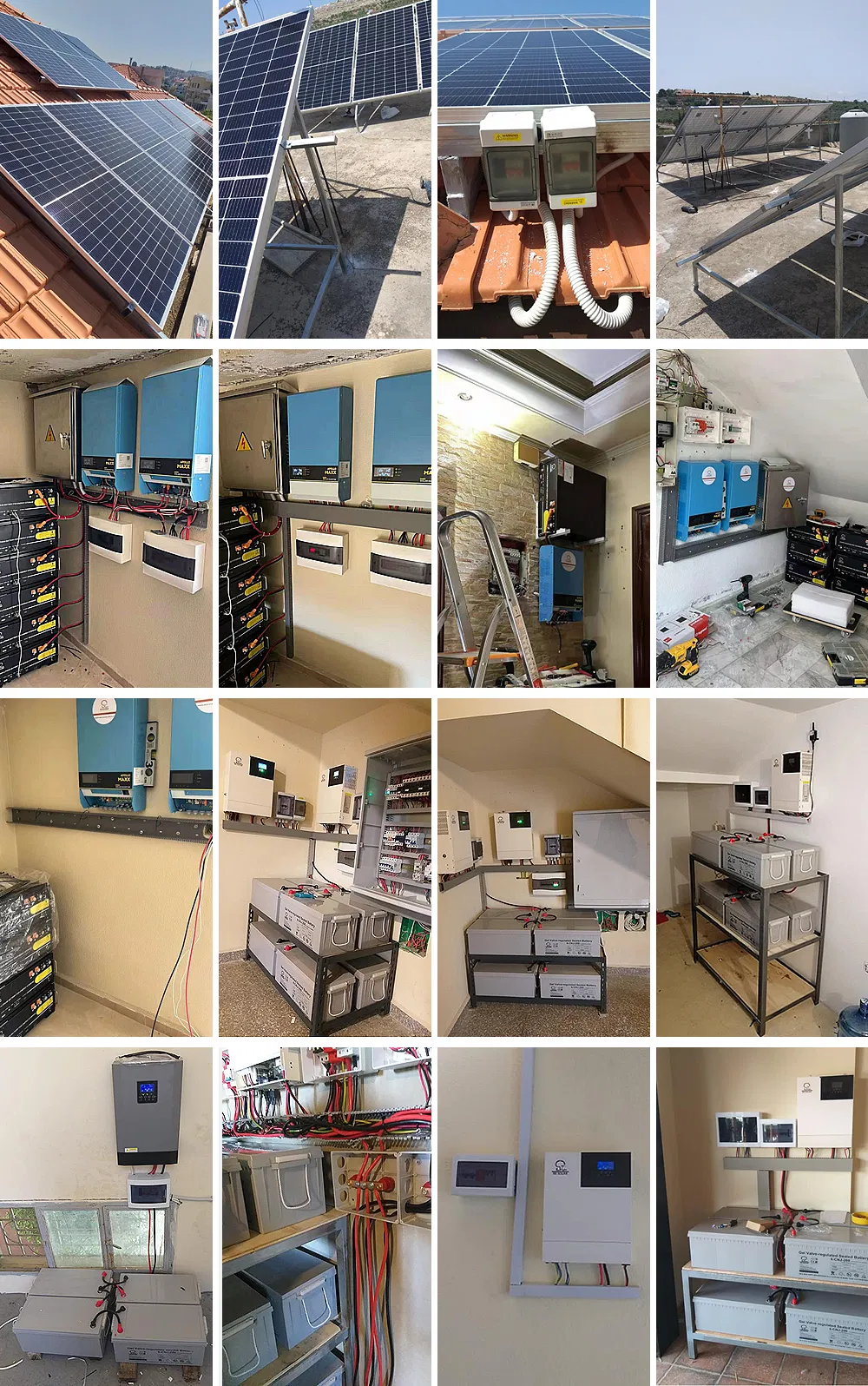

Projects Of Solar Power Systems
We Choose Quality Materials, Quality Is Our Culture. So Our Solar Products Have Been Successfully Applied In More Than 128 Countries Including UN Projects and NGO Projects.

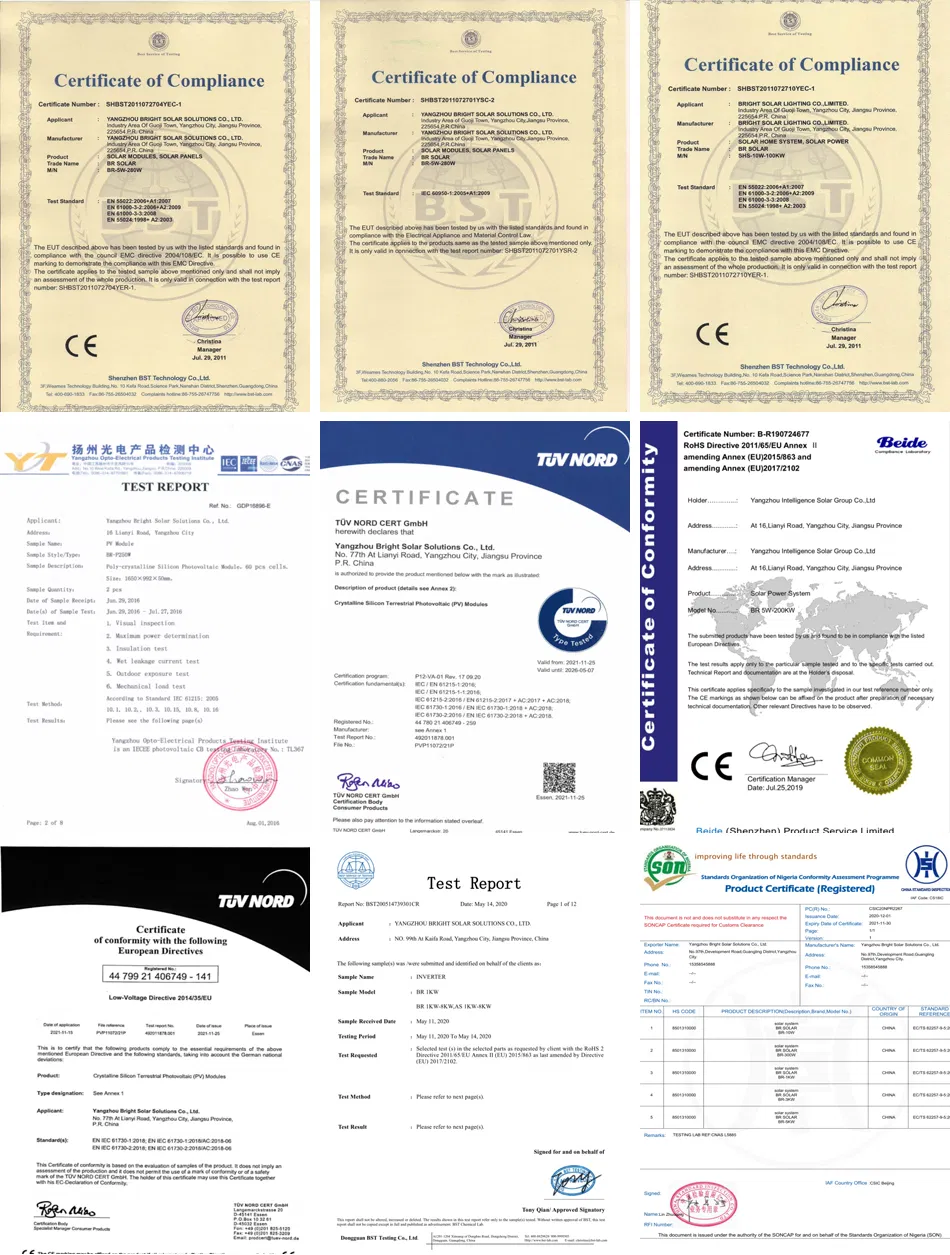

Official Certificates
Why Choose Us — Exclusive One-Stop Service
- Fantastic services: Fast response, Professional design solutions, Careful guidance and Perfect after-sales support.
- Diverse ways of cooperation: OBM, OEM, ODM, etc.
- Fast delivery: Standardized Products: within 7 working days; Conventional Products: within 15 working days.
- Certificates: ISO 9001:2000, CE & EN, RoHS, IEC, IES, FCC, TUV, SONCAP, PVOC, SASO, CCPIT, CCC, AAA, etc.
- 14 Years Manufacturing & Exporting Experience: Applied in more than 114 countries including UN & NGO & WB projects. We know the solar markets well for every country.
- Tailored Solutions: We can make suitable designs to meet the local markets with 1-3 solutions to choose from.
- Quality Assured: 3T Method to Control Quality.
- Installation Support: Installing Video and Site Guiding Installation Service is Available if you place container orders.

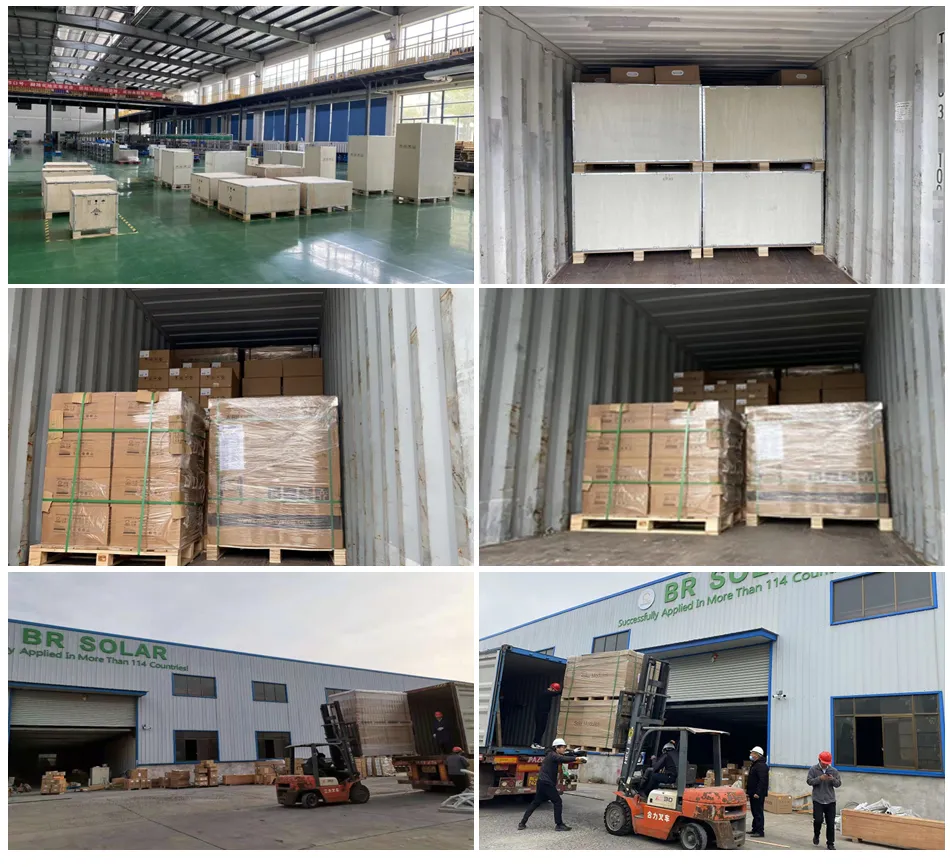

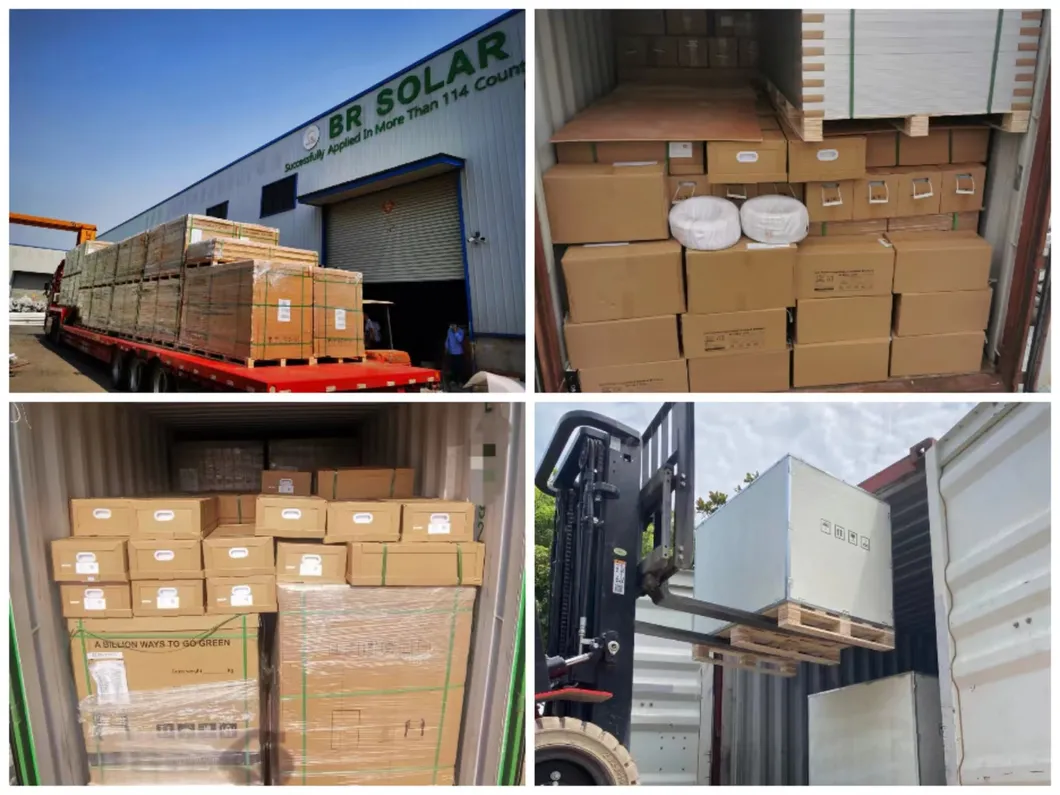

Loading, Packaging & Shipping
Frequently Asked Questions
Can I have a sample order for solar products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
What about the lead time?
A: Sample needs 5-7 days. Mass production depends on the quantity.
Are you a factory or a trading company?
A: We are the factory with high production capacity and product range of solar products in China. Welcome to visit us anytime.
How do you ship the goods and how long does it take to arrive?
A: Sample shipped by DHL, UPS, FedEx, TNT etc. It usually takes 7-10 days to arrive. Airline and sea shipping are also optional.
What is your Warranty Policy?
A: We offer 3 to 5 years warranty for the entire system and replace with new ones for free in case of quality problems.
What is the lifespan and cycle capability of these Lithium batteries?
A: The battery packs feature a design lifespan of more than 25 years (or over 10 years design life depending on working specifications) and provide more than 6000 cycles at 80% Depth of Discharge (DOD).
