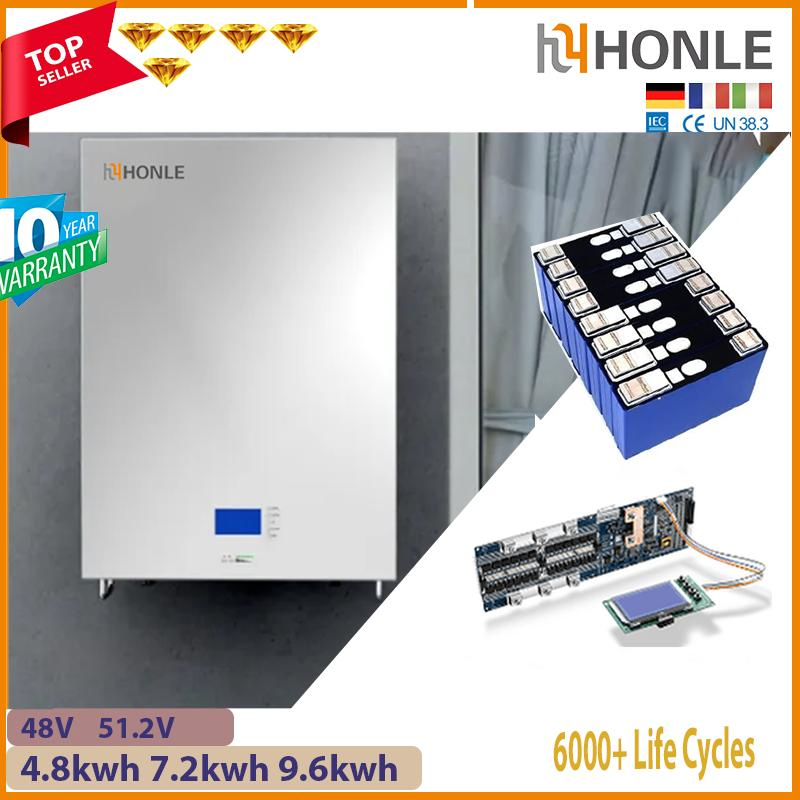

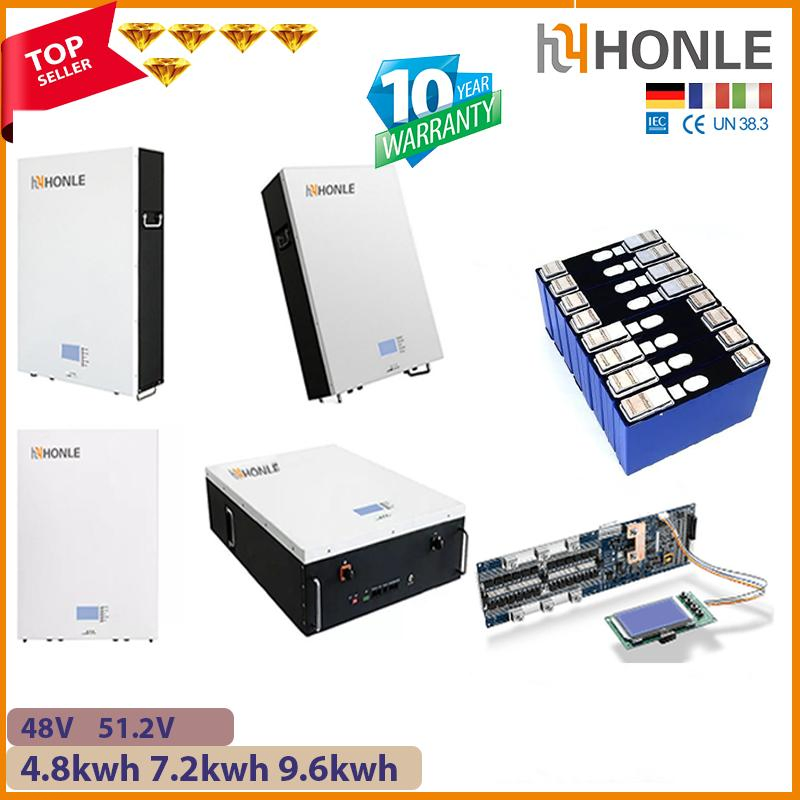

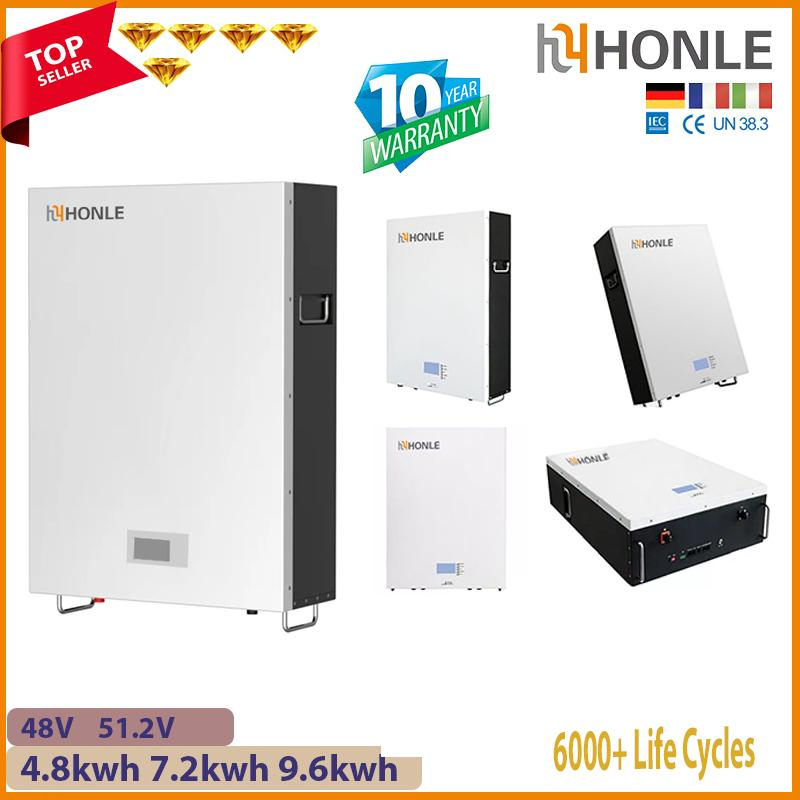

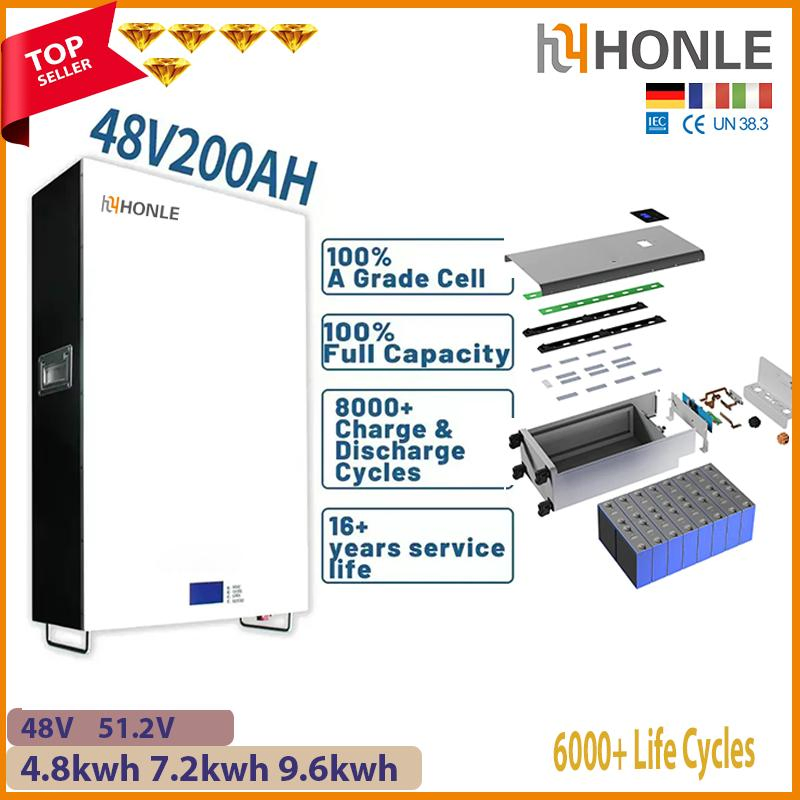

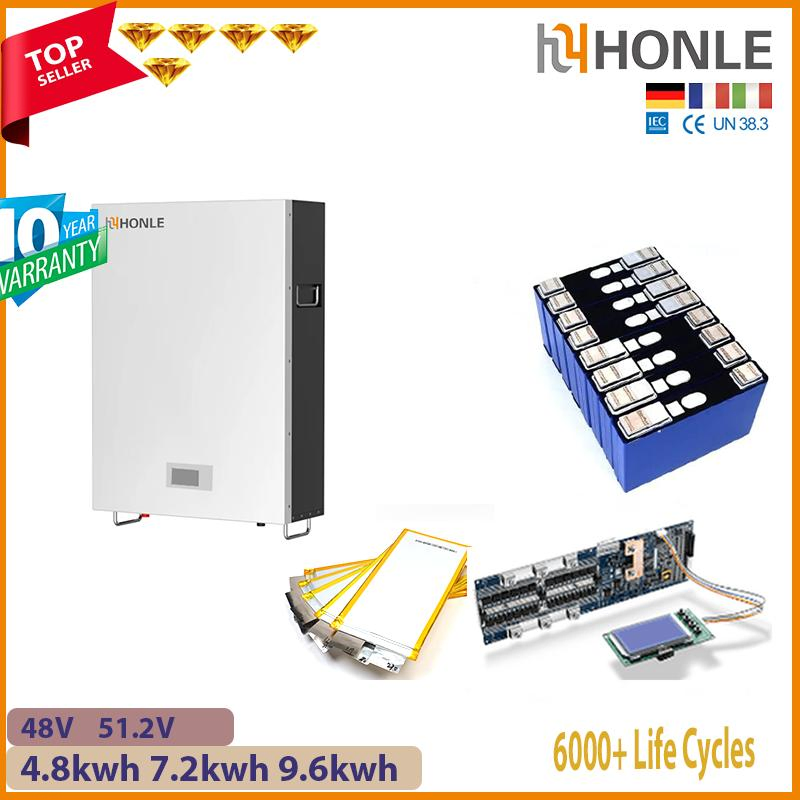

2025 Advance Solar Energy Storage Battery 48V 2.4kwh 5kwh 10kwh 5oah 100ah 200ah Home Power Wall Battery LiFePO4 Wall Mounted Lithium Battery Pack

Customization: Available
Weight: 35 Kgs
Warranty: 5 Years

Product Description

Overview
Basic Info.
Model NO.HLB-4850
Cycle Life6000 Cycles
Nominal Capacity50ah
Standard Voltage48VDC
Voltage37.5-54.75VDC
Rated Capacity2.4kwh
Communication ProtocolCan/RS485/WiFi/4G/Bluetooth
Efficiency (at 0.5c)98%
Cell Self-Discharge<5% / Month
Maximum Allowed Modules15 (72kwh) in Parallel
Depth of Dischargeup to 100%
Useful Life8-10 Years
ProtectionOver Temperature, Over Current, Short Circuit
CertificationsCE, FCC, CCC, UN 38.3, UN 3480, Class 9
Case MaterialIndustrial Grade Iron
Enclosure ProtectionIP20
InstallationCabinet or Wall Installation
ChemistryLiFePO4
OriginChina
HS Code33039639
Production Capacity5000000
Packaging & Delivery
Package Size69.00cm * 53.50cm * 32.50cm
Package Gross Weight35.000kg
Transport Package690*535*325mm
Specification588*430*228mm
Product Description

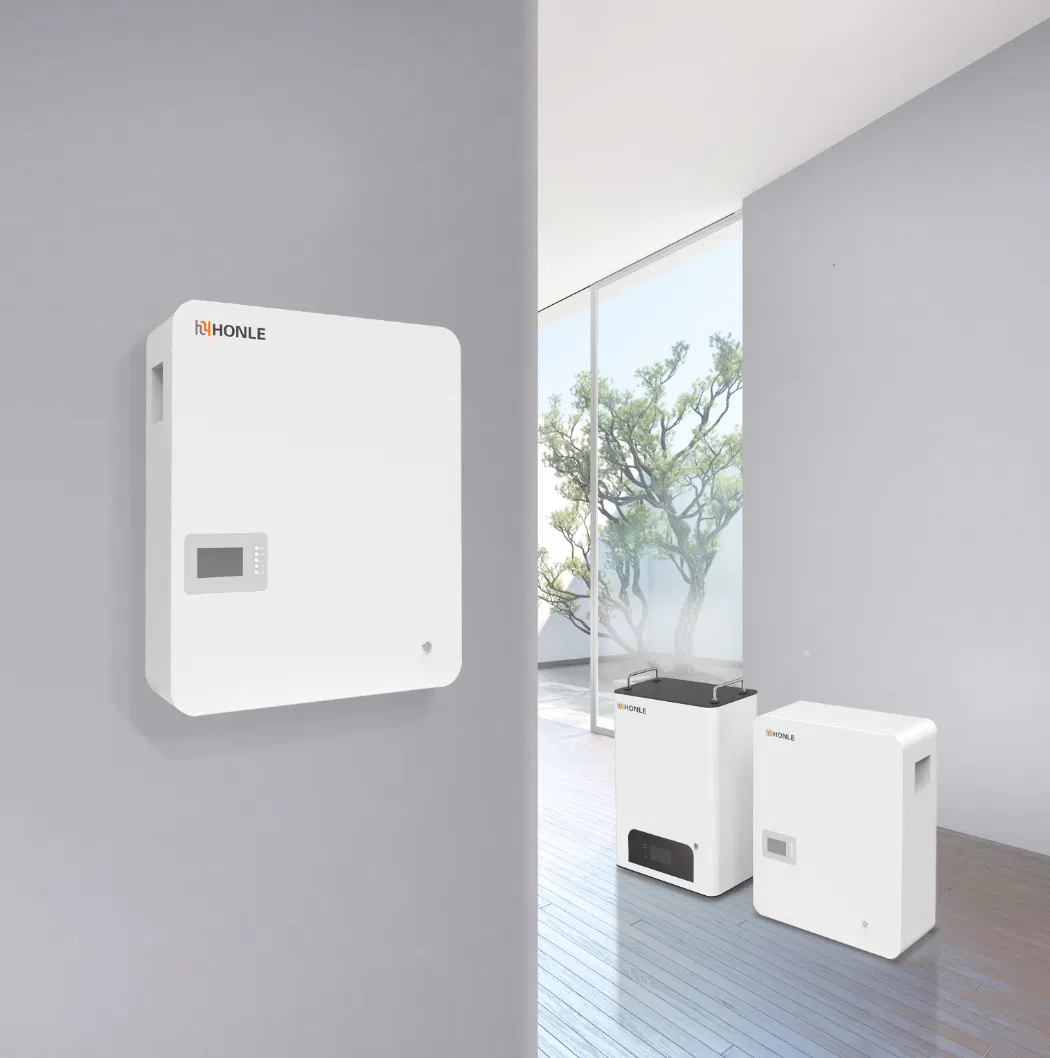

Powerwall Energy Storage (Residential)

A lightweight and convenient option for household energy storage, powerwall energy storage systems boast a compact size and an integrated body design. With plug-and-play functionality, they are easy to install and offer a space-saving energy storage solution for homeowners.
Key Features:
1. Long Cycle Life
2. Lightweight & Portable
3. Compact Design
4. Plug-and-Play Installation
5. Space-Optimized Solution
Our Advantages
Lithium Battery Pack Advantages
Product Parameters
Model HLB-48100 HLB-48150 HB-48200
Standard Voltage 48VDC
Voltage 37.5-54.75VDC
Nominal Capacity 100Ah 150Ah 200Ah
Rated Capacity 4.8kWh 7.2kWh 9.6kWh
Communication Protocol CAN/RS485/WIFI/4G/Bluetooth
Efficiency (at 0.5C) 98%
Cell Self-Discharge <5% / Month
Maximum Allowed Modules in Parallel 15(72kWh) 15(108kWh) 15(144kWh)
Depth of Discharge Up to 100%
Useful Life 8-10 Years
Cycle Life 6000 (@ 80% DoD)
Protection Over temperature, Over current, Short circuit, Over-charging, Over-discharging, Low voltage
Charge Specifications
Recommended Charge Current 25A 50A 50A
Maximum Charge Current 50A 100A 100A
Recommended Charge Voltage 54V 54V 54V
Maximum Charge Voltage 54.75V 54.75V 54.75V
Discharge Specifications
Recommended Discharge Current 25A 50A 50A
Maximum Discharge Current 50A 100A 100A
Recommended Low Voltage Disconnect 41.25V
Battery Low Voltage Protection 39.75V
Battery Recovery Voltage 45V
Mechanical Specifications
Dimensions 510*440*220mm 690*530*215mm 690*530*215mm
Weight 50kg 70kg 90kg
Terminal Type M6
Case Material Industrial Grade Iron
Enclosure Protection IP20
Installation Cabinet or Wall installation
Cell Type Chemistry LiFePO4
Compliance Specifications
Certifications CE, FCC, CCC
Shipping Classification UN 38.3, UN 3480, Class 9
Temperature Specifications
Discharge Temperature -20-65°C -20-65°C -20-65°C
Charge Temperature 0-55°C 0-55°C 0-55°C
Storage Temperature -20-45°C -20-45°C -20-45°C

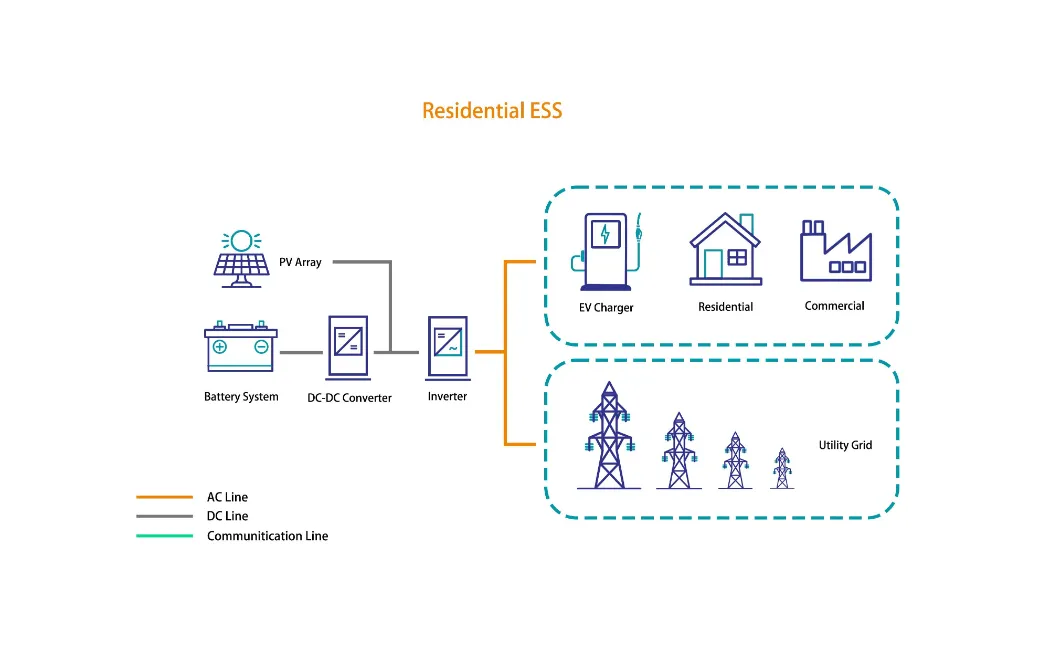

Application
Company Profile

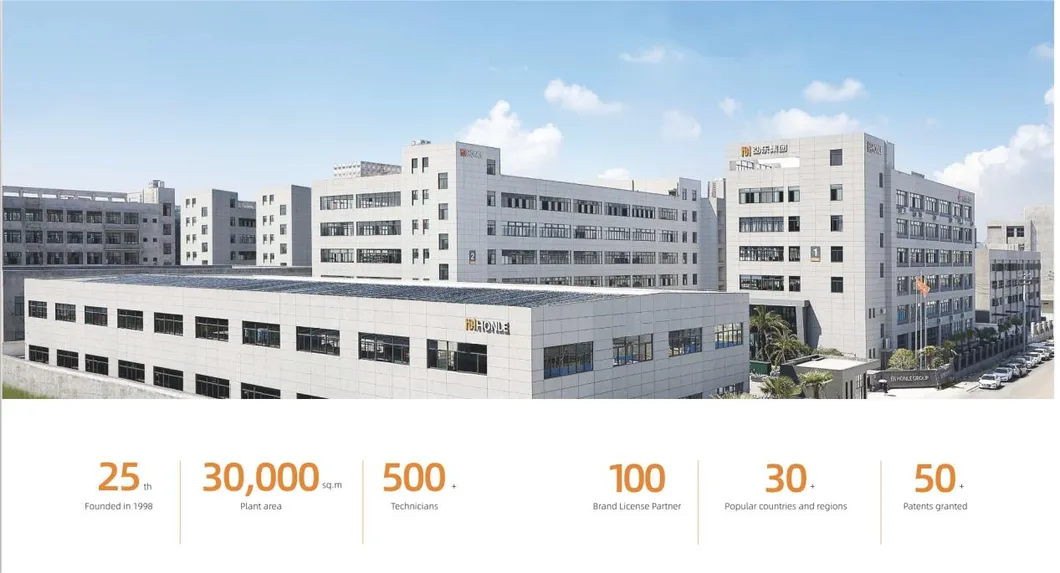

Global Supplier of Energy Storage Solutions
Our manufacturing group is a globally recognized and dependable supplier of sustainable, eco-friendly energy storage solutions. With more than two decades of experience in electric and new energy industry, we have established branches and global operations. With protracted and stable products and services, we are solidifying our reputation as a renowned supplier worldwide.

Our state-of-the-art international production equipment boasts an annual production capacity of 30,000 square meters, and we are open to negotiating maximum capacities for our power solutions. Our new energy power solutions and battery products find wide applications in various traditional household energy storage, power walls, commercial energy storage systems, and other dynamic information power fields.
Global Network Office
We have established more than 100 agents, alongside our specialized international branches.

At the same time, offices and general agents have been established in more than 30 countries and regions worldwide, extending our reliable local support and power wall installations across the globe.
Powerwall Production Environment
Production Line
As an innovation-oriented company, our production line is equipped with the latest technology and machinery, as well as high-level testing machines and devices. We have a team of experienced and skilled workers who oversee the production process and ensure that every product meets strict quality standards.

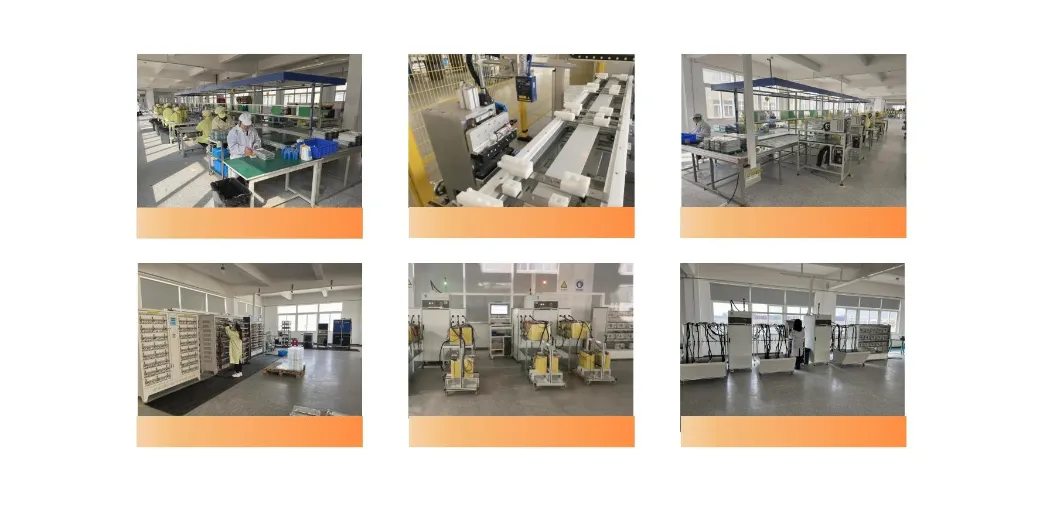

High Tech Production Machinery and Equipment
Certifications
Certifications including CE FCC UN38.3

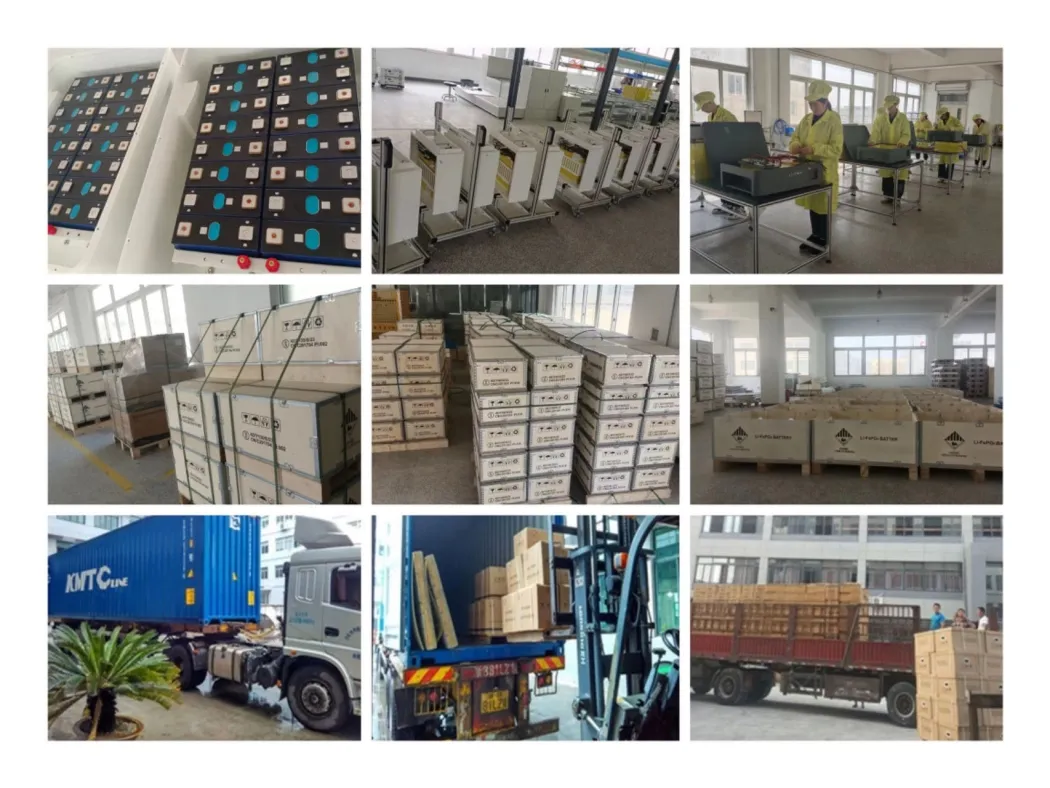

Packaging & Shipping
Wooden Box Protective Packaging
Packing List:
  • 1-meter Parallel line * 1pc
  • User instruction * 1pc
  • 2-meter inverter communication network cable * 1pc
  • Red-black 80C meters parallel positive and negative wires (Line 6) * 1 pair
  • User instruction * 1pc
Frequently Asked Questions
Q1. Do you have any MOQ limit for the energy storage batteries?
A: Yes. In general, our minimum order quantity (MOQ) is 1 set.
Q2. Are you a factory or a trading company?
A: We are a professional manufacturer specializing in lithium-ion battery production with over 20 years of manufacturing experience.
Q3. What is your estimated delivery time?
A: For large capacity orders, it takes around 25 days depending on the items and quantity. Items that are in stock typically ship within 1-2 days.
Q4. Can you provide OEM and ODM services?
A: Yes, we provide free OEM and ODM services. We are fully capable of designing customized packaging and adding logos according to your requirements.
Q5. Do you test all of your goods prior to delivery?
A: Yes, all our battery products are tested and verified before delivery to ensure quality and safety.
Q6. What packaging standards do you use for shipping?
A: We use robust wooden cases to ensure maximum safety and protection during the transport of our battery modules.
