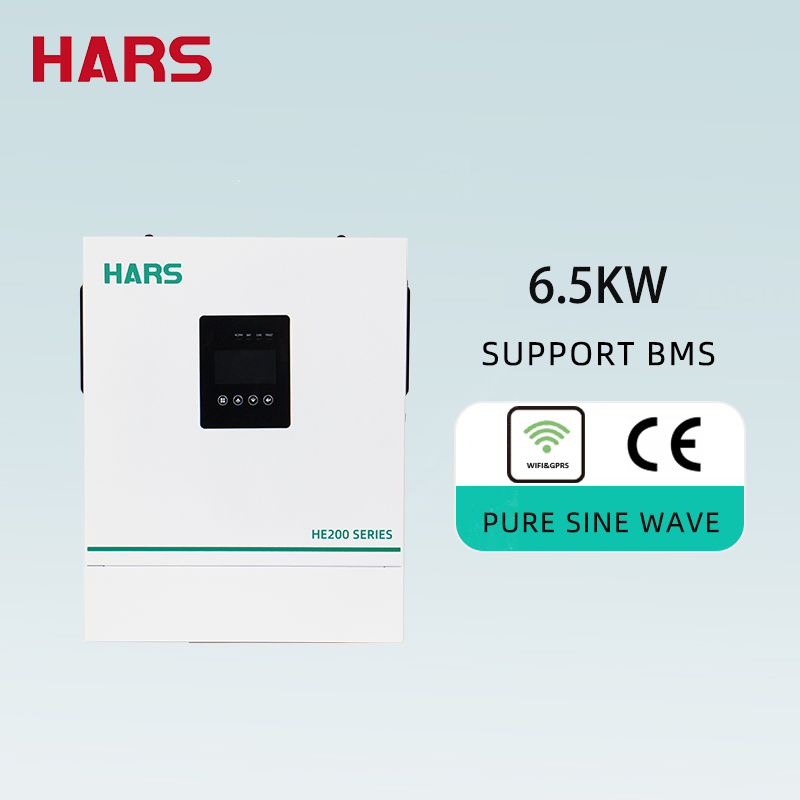

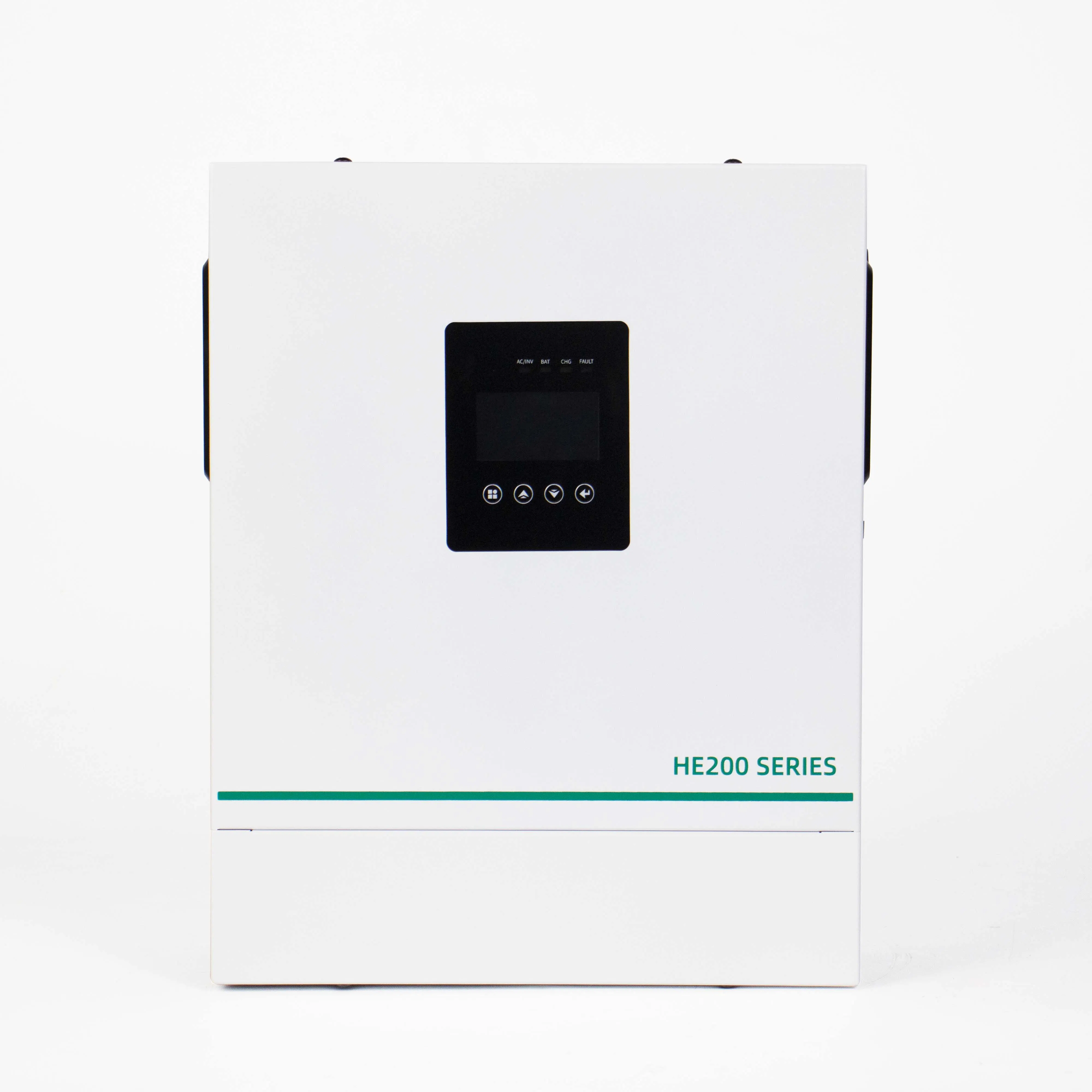

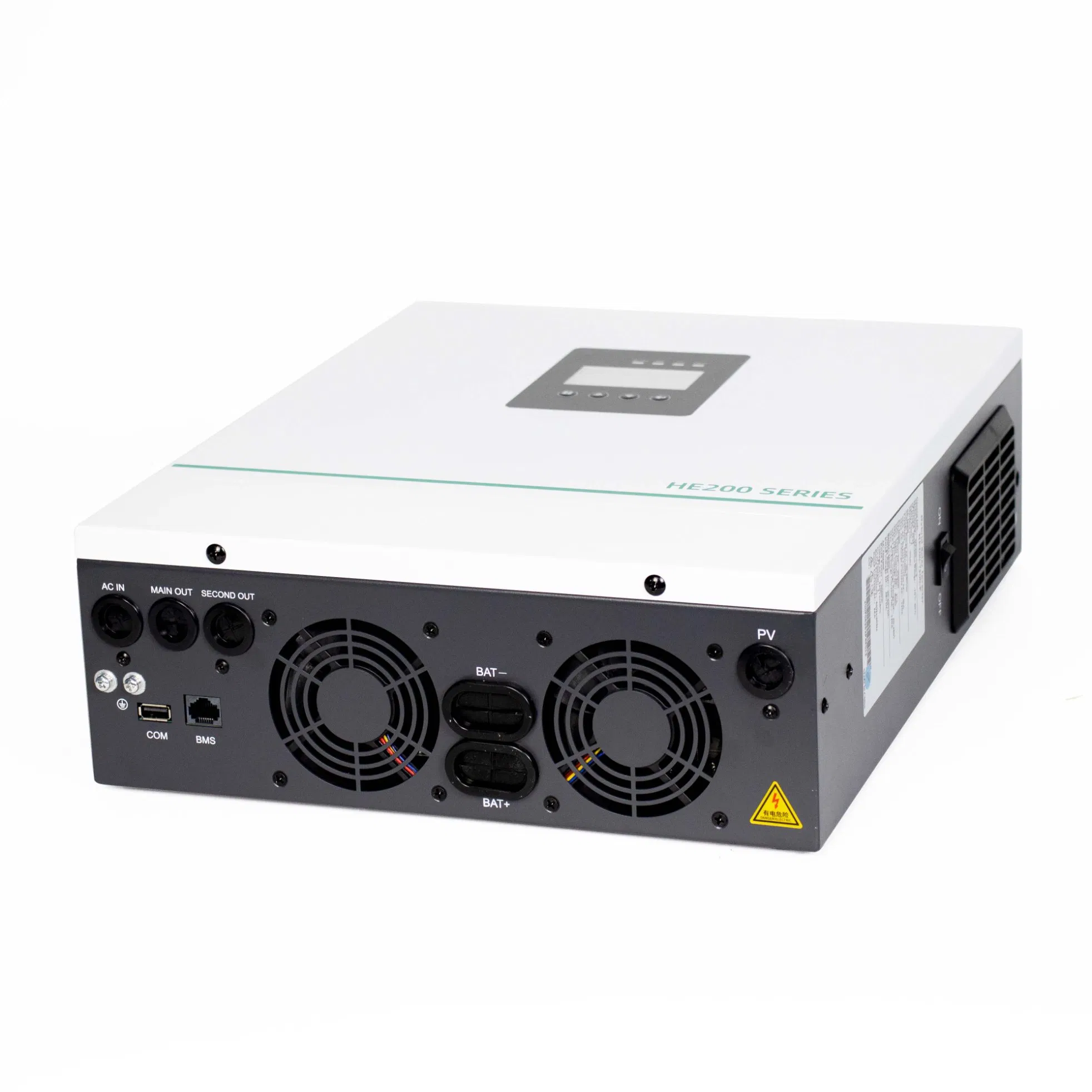

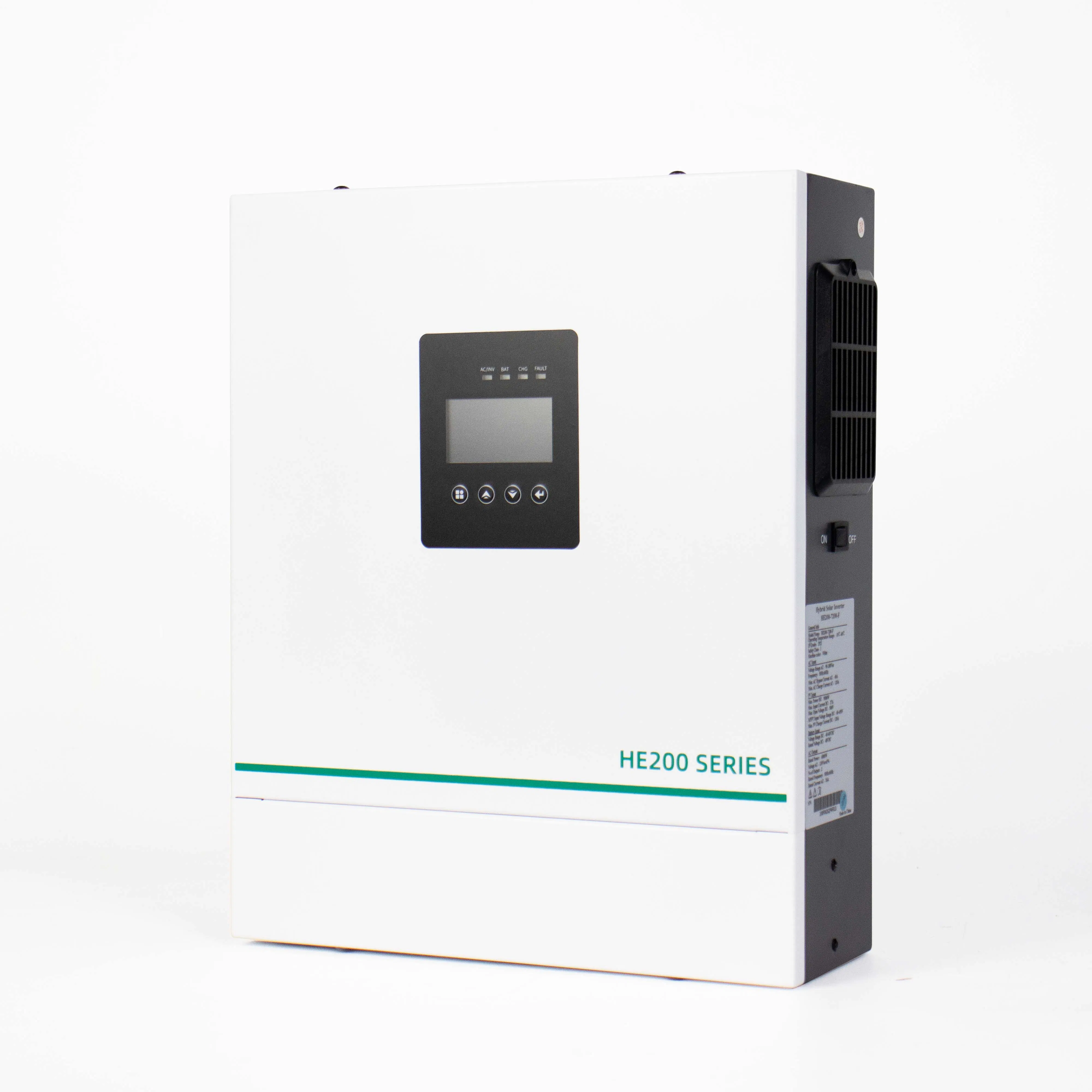

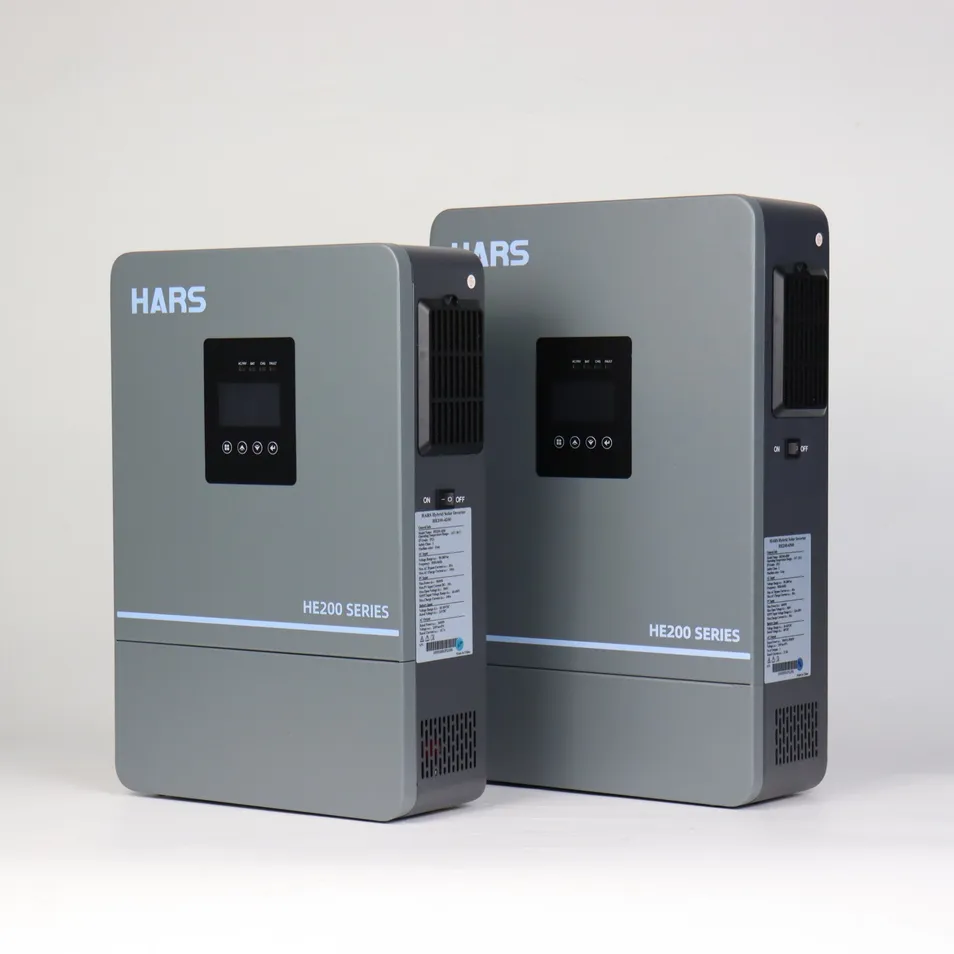

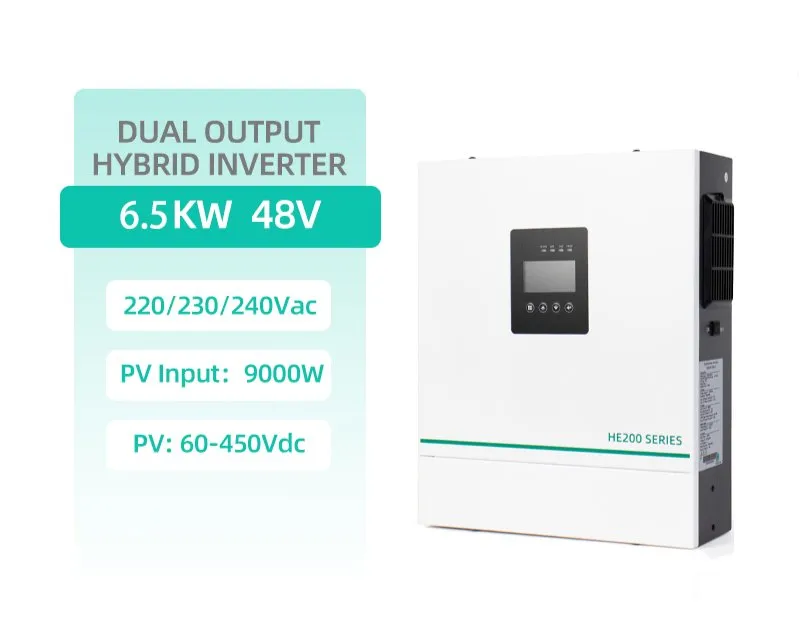

HE200 is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It adopts portable size, supports uninterruptible power supply switching, has the function of setting battery charging voltage and current, multiple power input and output priority settings, output AC voltage and frequency can be set, suitable for different power grid environments, and has a mobile phone APP for online data monitoring.
| MODEL | HE200-7200-F |
|---|---|
| Inverter output | |
| Rated Output Power | 6500W |
| Rated Output Voltage | 230Vac±5% (single phase) |
| Rated Output Current | 27A |
| Rated Output Frequency | 50/60Hz |
| Output Waveform | Pure Sine Wave |
| Output Topology | L1+N1+L2+N2+PE |
| Battery | |
| Battery Type | Lead acid/Gel/lithium battery |
| Rated Battery Voltage | 48V |
| Charging Method | Two-way/three-way/automatic setting |
| Max PV Charging Voltage | 500Vdc |
| Max PV Input Power | 9000W |
| Max PV Charging Current | 120A |
| Max PV Charging Efficiency | 99.5% |
| Max Hybrid Charging Current | 120A |
| PV Input | |
| MPPT Number | 1 |
| Max Input Power | 9000W |
| Max Open Circuit Voltage | 500Vdc |
| Max Input Current | 27A |
| Input Voltage Range | 60~450V |
| AC/Generator Input | |
| Input Voltage Range | 90~280Vac |
| Rated Input Voltage | 220Vac |
| Input Frequency | 50/60Hz |
| Max AC Bypass Current | 50A |
| General Parameters | |
| Dimensions | 395*332.4*116.2(mm) |
| Net Weight | 8.7kg |
| Gross Weight | 10.2kg |
| Protection Level | IP21 |
| Operating Temperature | -10℃~50℃ |
| Cooling Method | Intelligent air cooling |
| Humidity | 5%~95% |
| Outer Box Packaging | 465*405*192(mm) |
We are a frequency inverter manufacturer.
We accept OEM production.
We accept T/T, L/C, Paypal, Western Union, etc. The details can be discussed with us.
We have professional QA and QC teams, and 100% quality inspection is performed before goods are out of the factory.
Yes, we do 100% test.
The inverter supports Lead acid, Gel, and Lithium batteries with a rated battery voltage of 48V.
