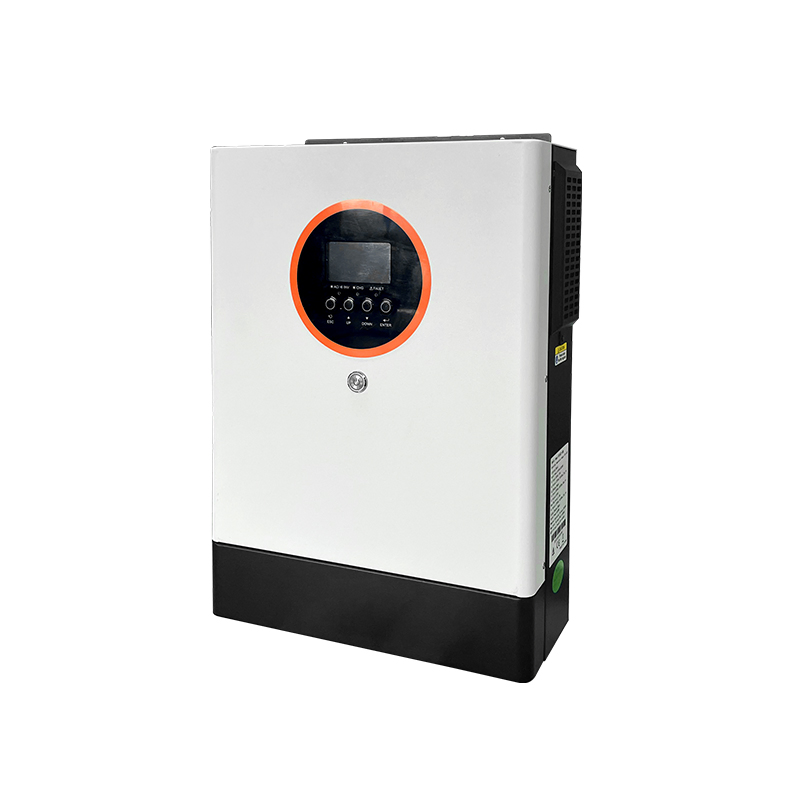

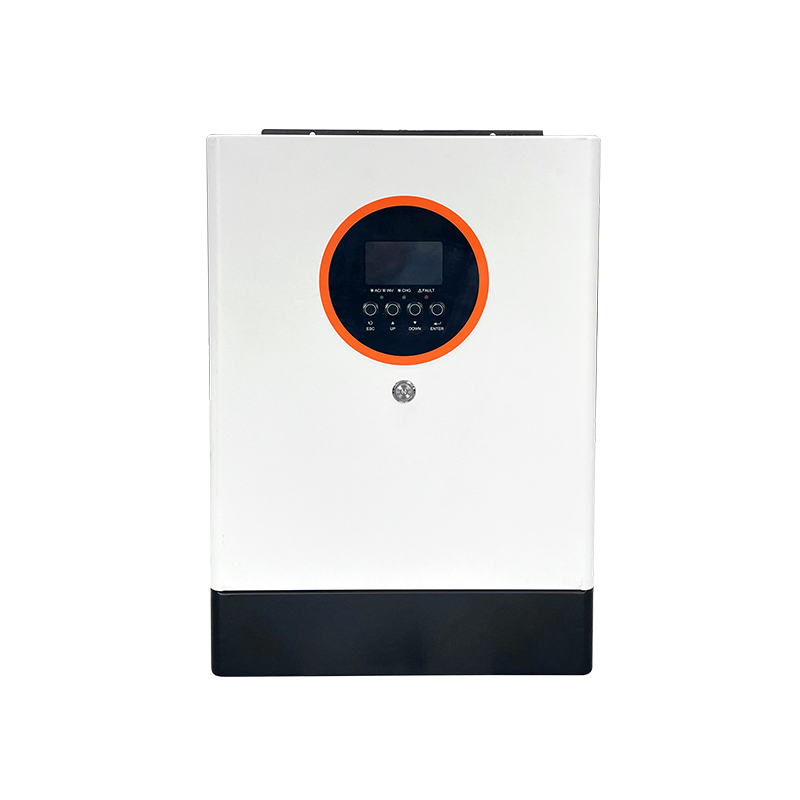

A Hybrid Inverter integrates multiple power conversion functions in a single unit for comprehensive energy management solutions. This versatile system combines various power sources and automatically switches between different energy inputs to optimize performance.
The intelligent design provides reliable backup power and reduces energy costs through efficient power management. With automatic switching capabilities and comprehensive energy optimization, these systems deliver enhanced energy savings and reliable operation across diverse applications.
MULTI-SOURCE INTEGRATION
Combines different power sources in a single unit for comprehensive energy management, eliminating the need for separate components and reducing system complexity while providing a unified control solution.
BUILT-IN CHARGE CONTROL
Incorporates charge controller functionality to optimize energy harvesting from renewable sources, maximizing system efficiency and protecting batteries through intelligent charging management.
DUAL OPERATION MODES
Supports both grid-connected and standalone operation for versatile installation options, providing flexibility for different applications and enabling energy independence in various environments.
Product Parameters
TECHNICAL PARAMETERS
Product Name
Hybrid Inverter
Keywords
Solar Inverter
Model
OLU5048VMII
OLU6248VMII
Rated power
5KVA/5kW
6.2KVA/6.2kW
System voltage
48VDC
AC Output
Voltage Battery Mode
Single Phase 220VAC/230VAC/240VAC Can Be Set, ±5%
Conversion Efficiency(Peak)
93%
Switchover Time
10ms(PC) ; 20ms(Home)
Wave
Pure Sine Wave
Battery Input
Battery Voltage
48VDC
Float Voltage
54VDC
Overvoltage Protection
63VDC
Solar Charger
Max. Input Power
5kW
6.2kW
MPPT Voltage Range
60~450VDC
Max. Input Voltage
500VDC
Solar Charger (Cont.)
Max. Input/Charge Current
40A/80A
AC Charger
AC Input Voltage
230VAC
Voltage Range
90~280VAC (Home Appliance)/170~280VAC (PC)
Frequency Range
50 Hz/60 Hz(Adaptive)
Max. Charge Current
40A/60A
General Data
Weight
9kg
Communication Interface
RS485
Operating Environment
Appearance
With LCD Screen
Operating Temperature
0℃ ~+50℃
Storage Temperature
-30℃ ~+70℃
Humidity
5%~95% Relative Humidity (Non Condensing)
Protection Level
IP20
Packaging Size
590×380×200mm

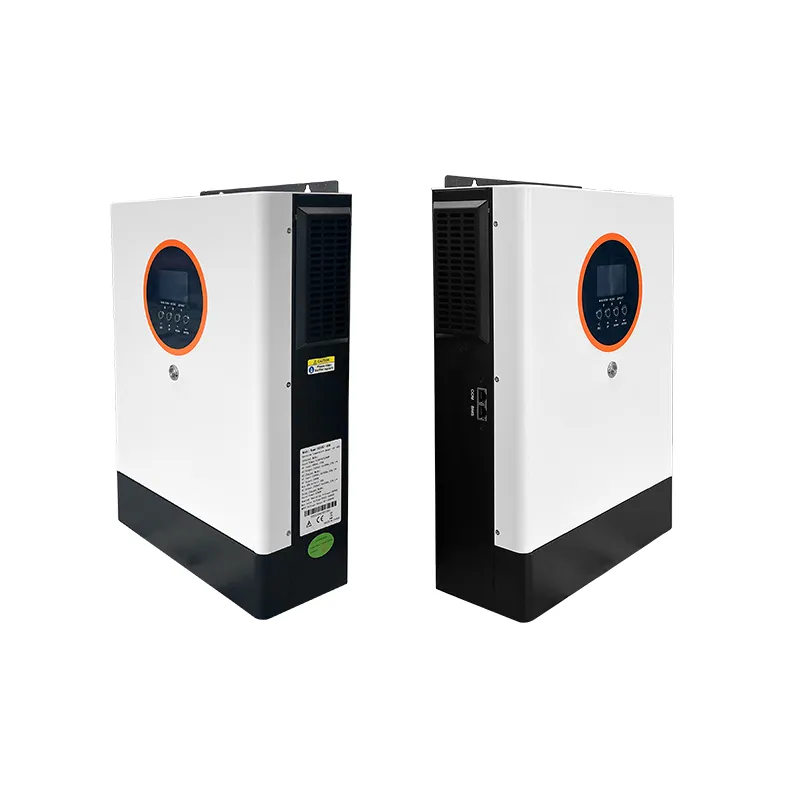

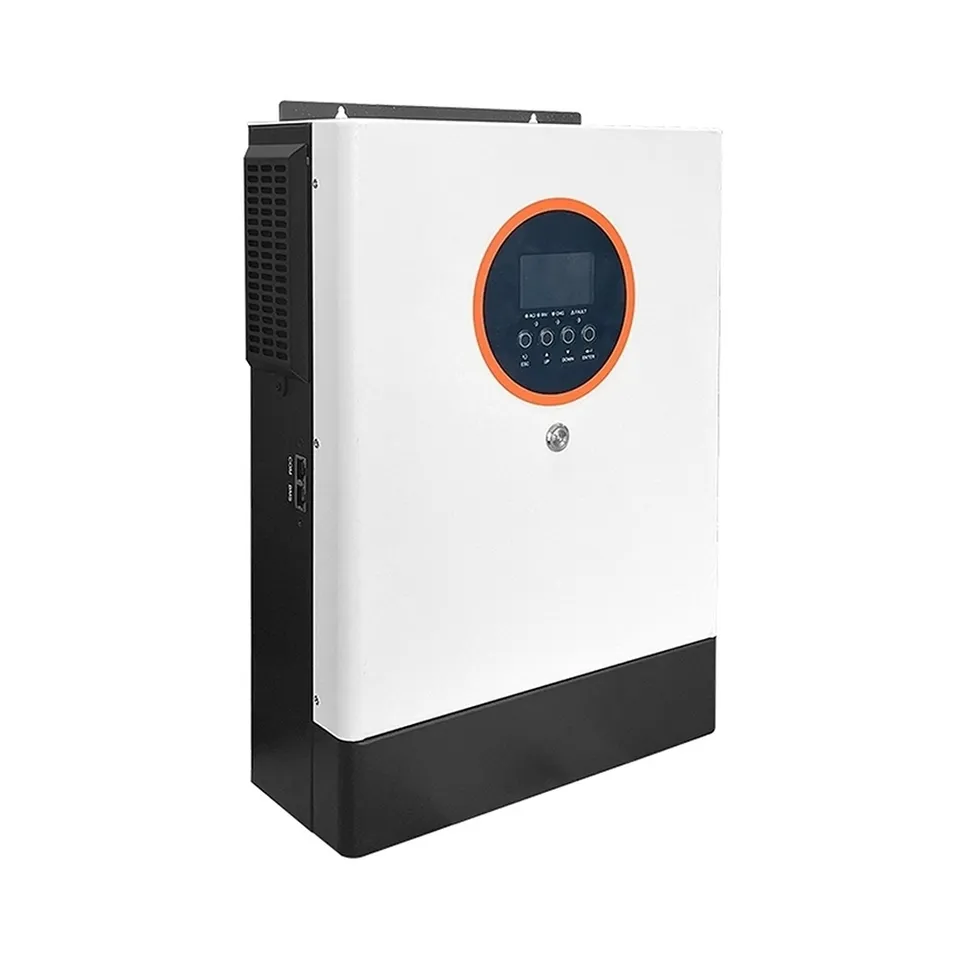

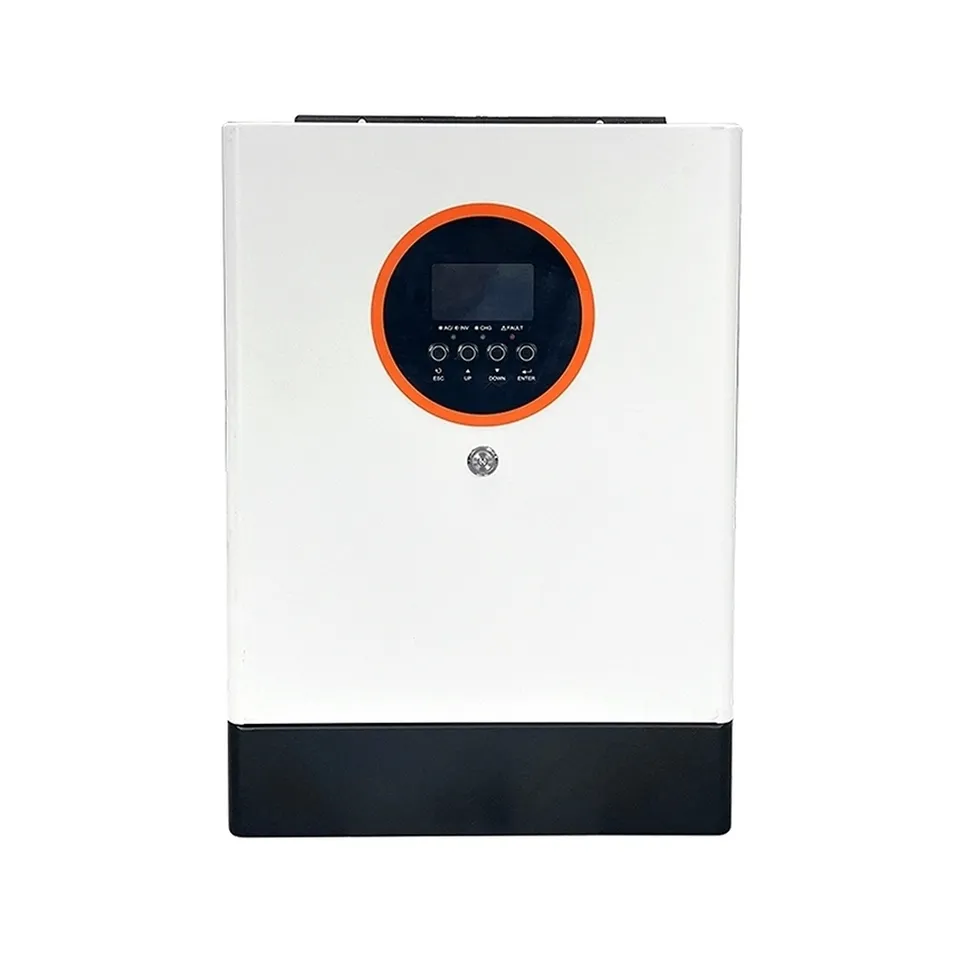

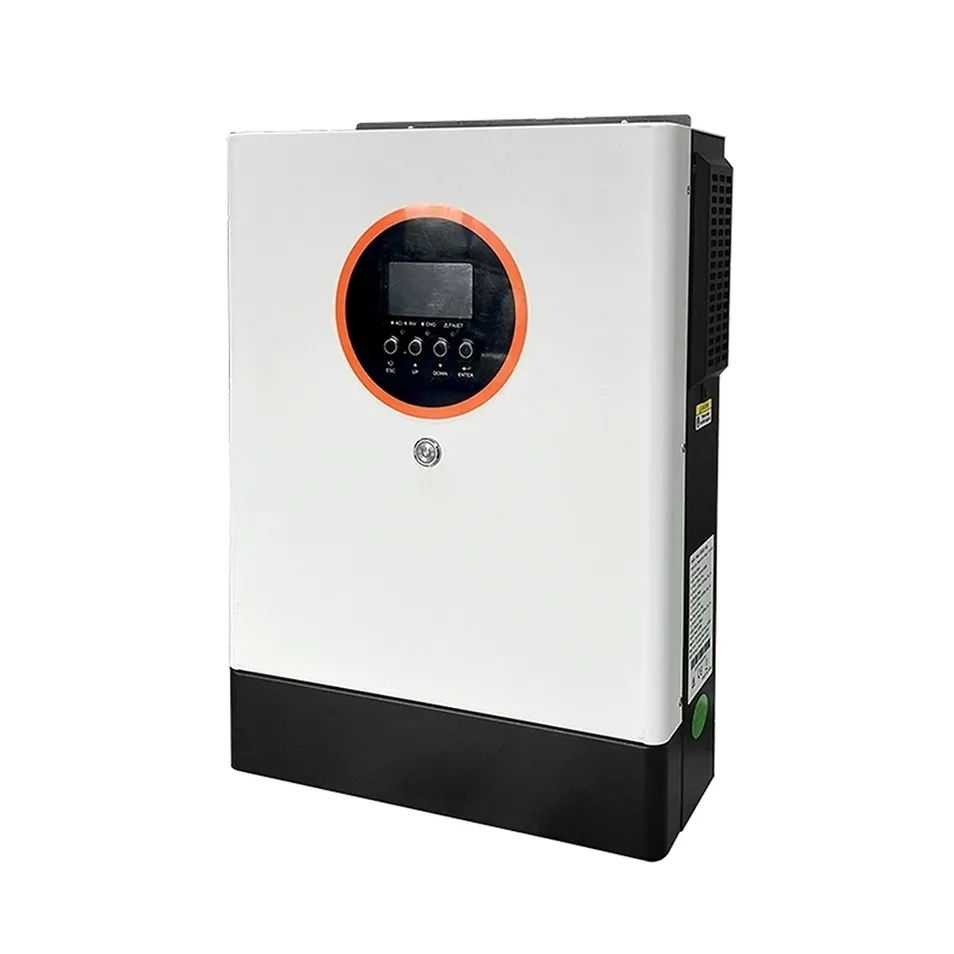

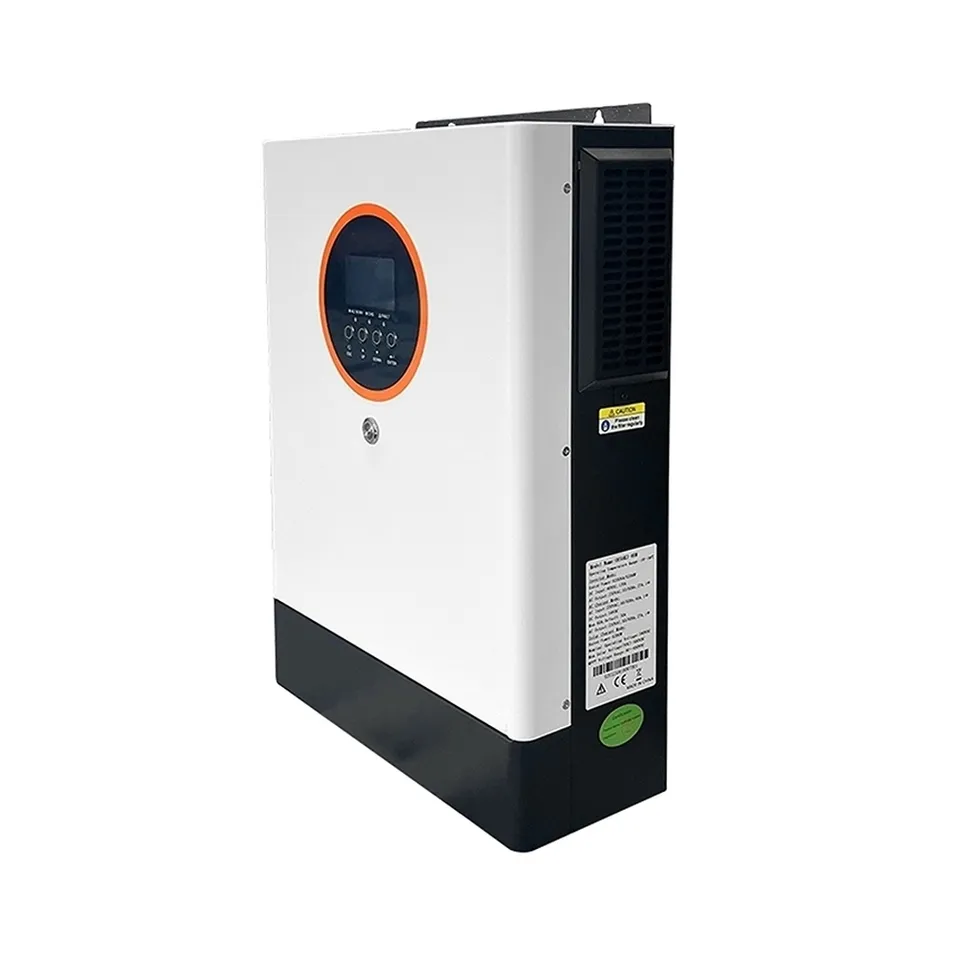

Detailed Photos
ENERGY COST SAVINGS
Reduces electricity expenses through intelligent load management and peak shaving capabilities, minimizing grid consumption during high-rate periods for enhanced economic benefits.
HIGH CONVERSION EFFICIENCY
Delivers superior power conversion performance with minimal energy loss, maximizing overall system output and ensuring optimal energy utilization across all operating conditions.
WIDE INPUT RANGE
Accommodates various source configurations with flexible input specifications, ensuring compatibility with different system designs and component selections for versatile applications.
COMPREHENSIVE SAFETY PROTECTION
Incorporates multiple protection functions, including voltage, current, and temperature safeguards, ensuring reliable operation and protecting equipment from potential damage.
Frequently Asked Questions
Q1: How do I select the appropriate model?
A: Before purchasing, please contact us to confirm the model number and detailed technical specifications to avoid any mismatches or misunderstandings.
Q2: What shipping options are available?
A: We normally arrange shipment by sea, express courier services (such as DHL, UPS, FEDEX, EMS), or air freight. We are also happy to accommodate specific customer delivery appointments.
Q3: Can I request a sample unit for testing?
A: Yes, we can provide sample units to accommodate your testing and evaluation processes.
Q4: Are OEM and ODM services supported?
A: Yes, we have a dedicated R&D department equipped to handle custom requirements through both OEM and ODM partnerships.
Q5: What is the warranty period and after-sales policy?
A: We provide a comprehensive 12-month warranty along with continuous technical support. Our technical team is always dedicated to helping resolve any operational issues.
Q6: How can we apply to become an authorized agent or distributor?
A: We warmly welcome distribution partnerships. Please contact our team for verification, and we will offer full operational support to assist you.
