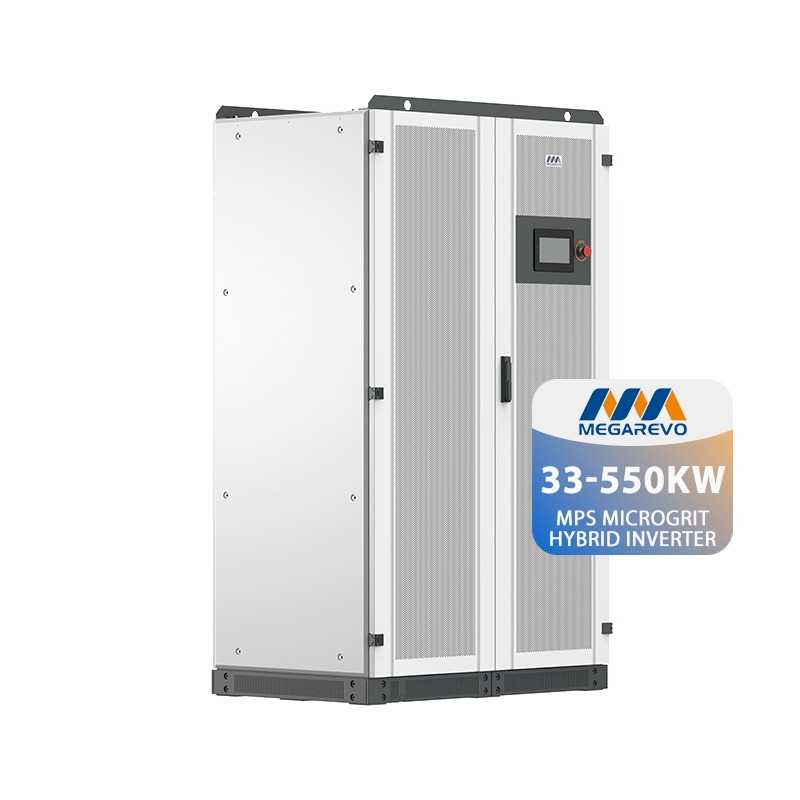

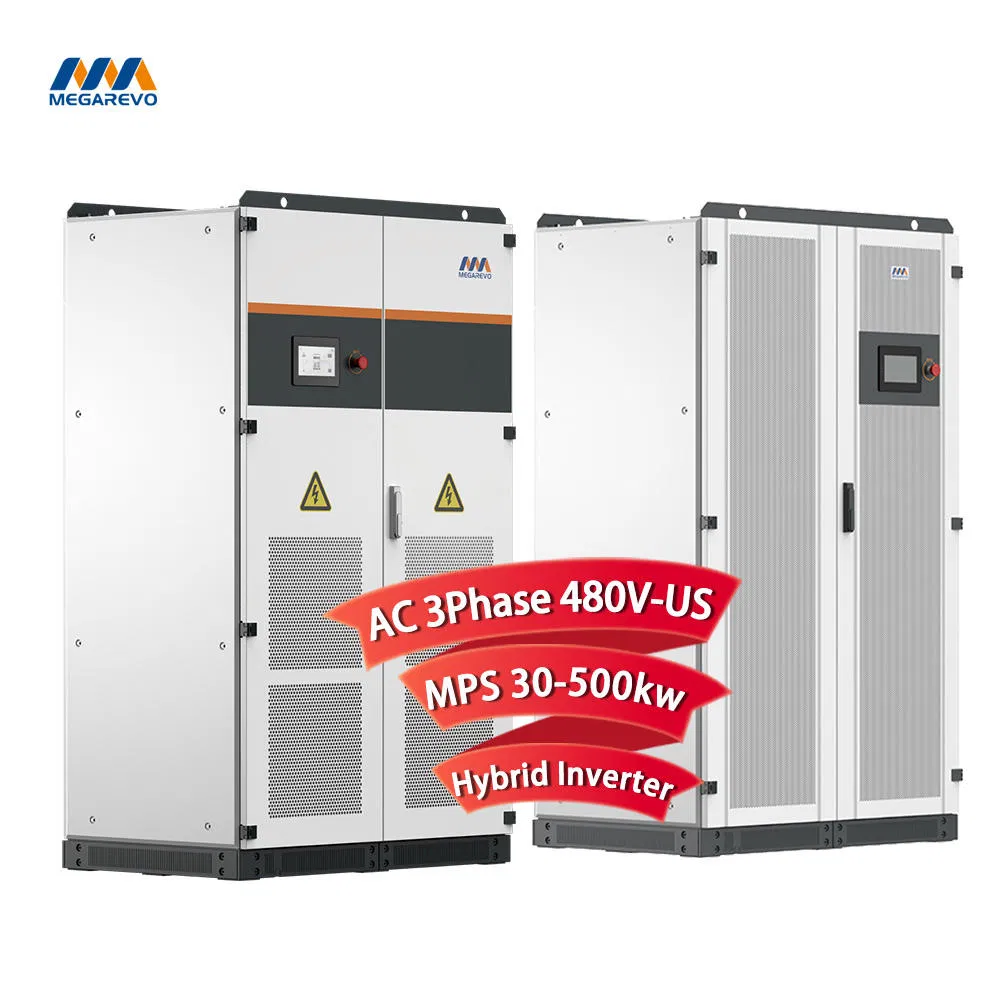

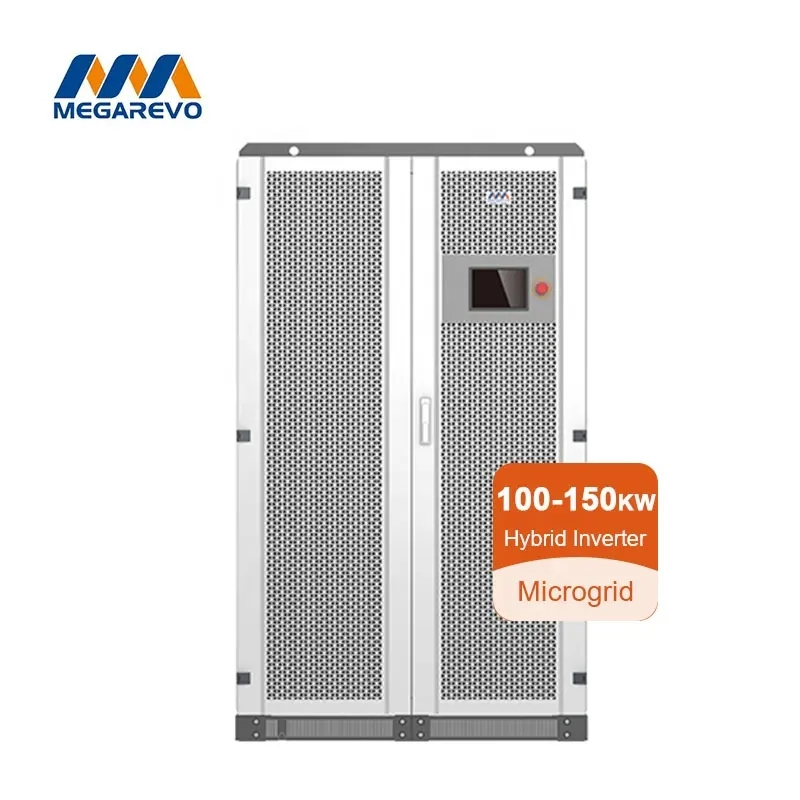

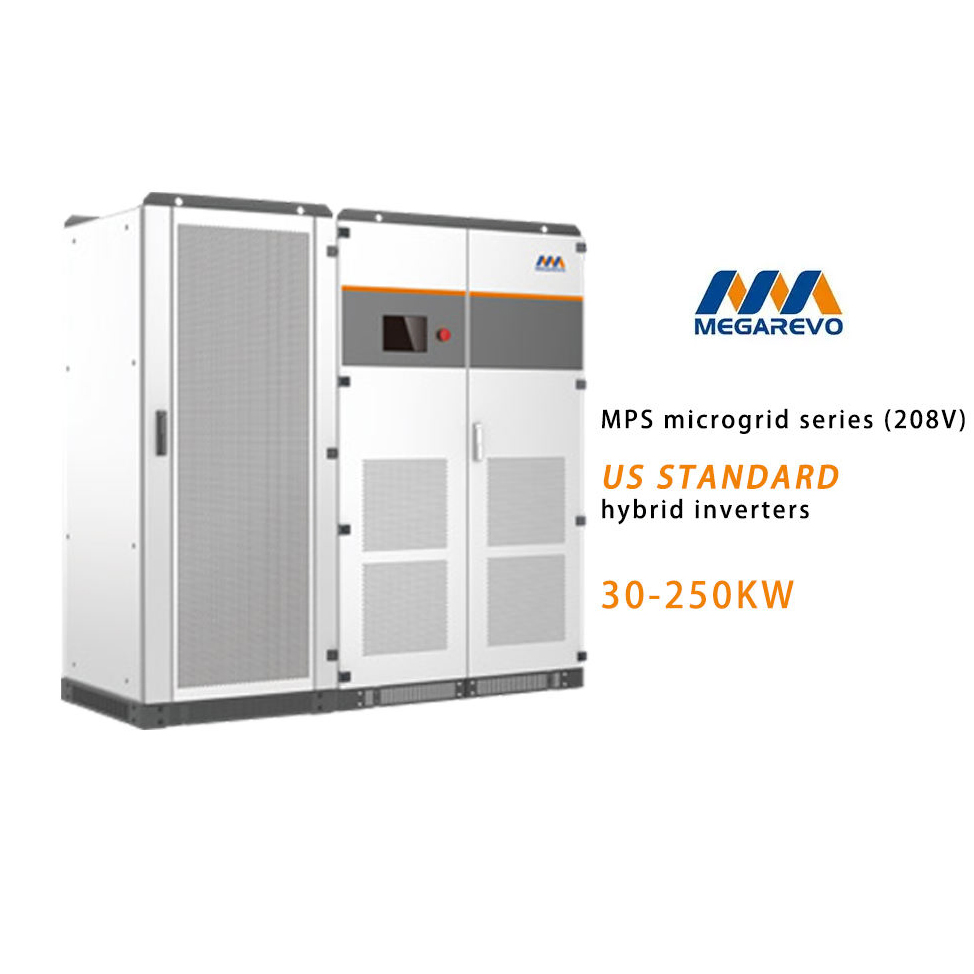

Megarevo Intelligent and Efficient 100kw 250kw 500kw PCS Hybrid Solar Inverter for Power Conversion System
Megarevo Intelligent and Efficient 100kw 250kw 500kw PCS Hybrid Solar Inverter for Power Conversion System
Megarevo Intelligent and Efficient 100kw 250kw 500kw PCS Hybrid Solar Inverter for Power Conversion System
Megarevo Intelligent and Efficient 100kw 250kw 500kw PCS Hybrid Solar Inverter for Power Conversion System
Megarevo Intelligent and Efficient 100kw 250kw 500kw PCS Hybrid Solar Inverter for Power Conversion System
1 / 5
Megarevo Intelligent and Efficient 100kw 250kw 500kw PCS Hybrid Solar Inverter for Power Conversion System
Megarevo Intelligent and Efficient 100kw 250kw 500kw PCS Hybrid Solar Inverter for Power Conversion System
Megarevo Intelligent and Efficient 100kw 250kw 500kw PCS Hybrid Solar Inverter for Power Conversion System
Megarevo Intelligent and Efficient 100kw 250kw 500kw PCS Hybrid Solar Inverter for Power Conversion System
Megarevo Intelligent and Efficient 100kw 250kw 500kw PCS Hybrid Solar Inverter for Power Conversion System

Megarevo Intelligent and Efficient 100kw 250kw 500kw PCS Hybrid Solar Inverter for Power Conversion System

Customization: Available
After-sales Service: Yes
Warranty: 5 Years
Send Inquiry

Product Description

📦 Basic Information
Nature of Source Flow
Passive inverter
Phase
Three
Output Power
30-250kw
Certification
CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Push-pull Type
Nature of Wave String
Sine Wave Inverter
MPPT Voltage Range
125-500V
Communication Interface
Can/RS485
Display
LCD Display
Battery Type
LiFePO4
Cooling
Air Cooling
Output Voltage
120V/240V/480V
🌟 Product Description
Hybrid Solar Inverter
💡
1. Hybrid Inverter is a high-quality inverter which can convert solar energy to AC energy and store energy into battery.

2. The inverter can be used to optimize self consumption, store in the battery for future use or feedin to public grid. Work mode depends on PV energy and user's preference. It can provide power for emergency use during the grid lost by using the energy from battery and inverter (generated from PV). In addition, the parallel function is available (off-grid model).
📊 Product Parameters

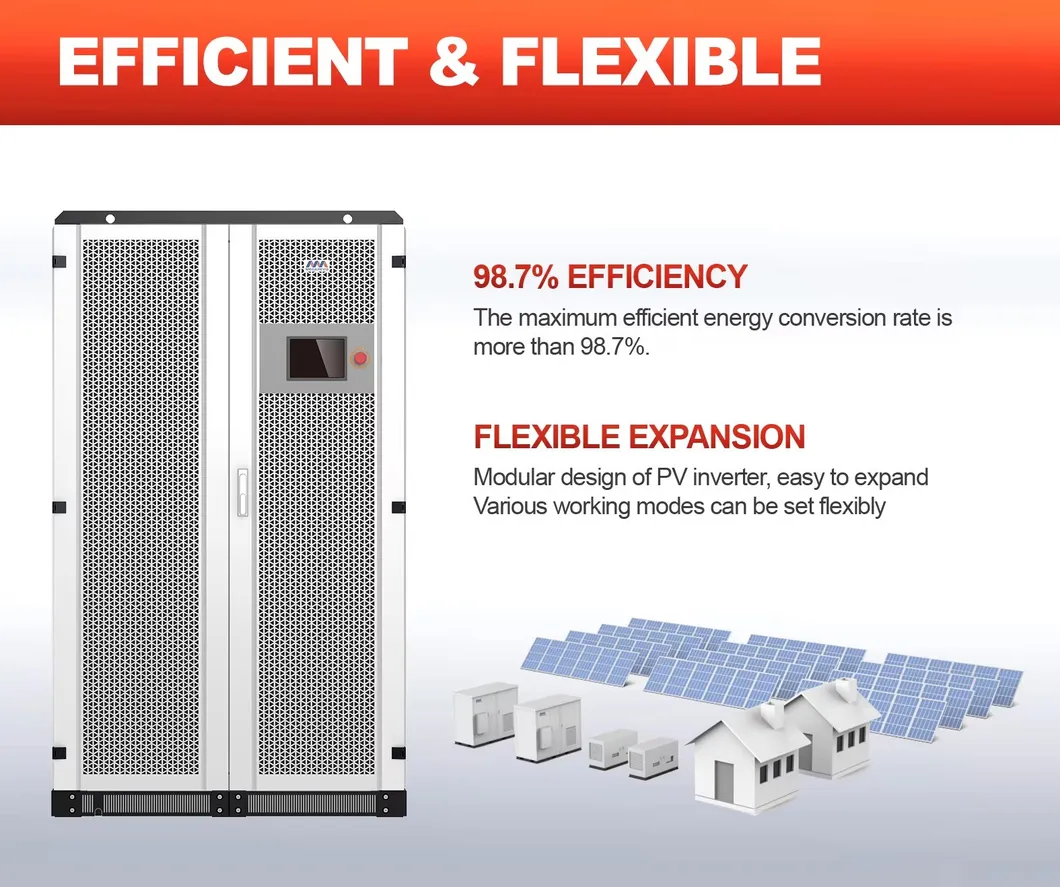

Specifications Diagram 1

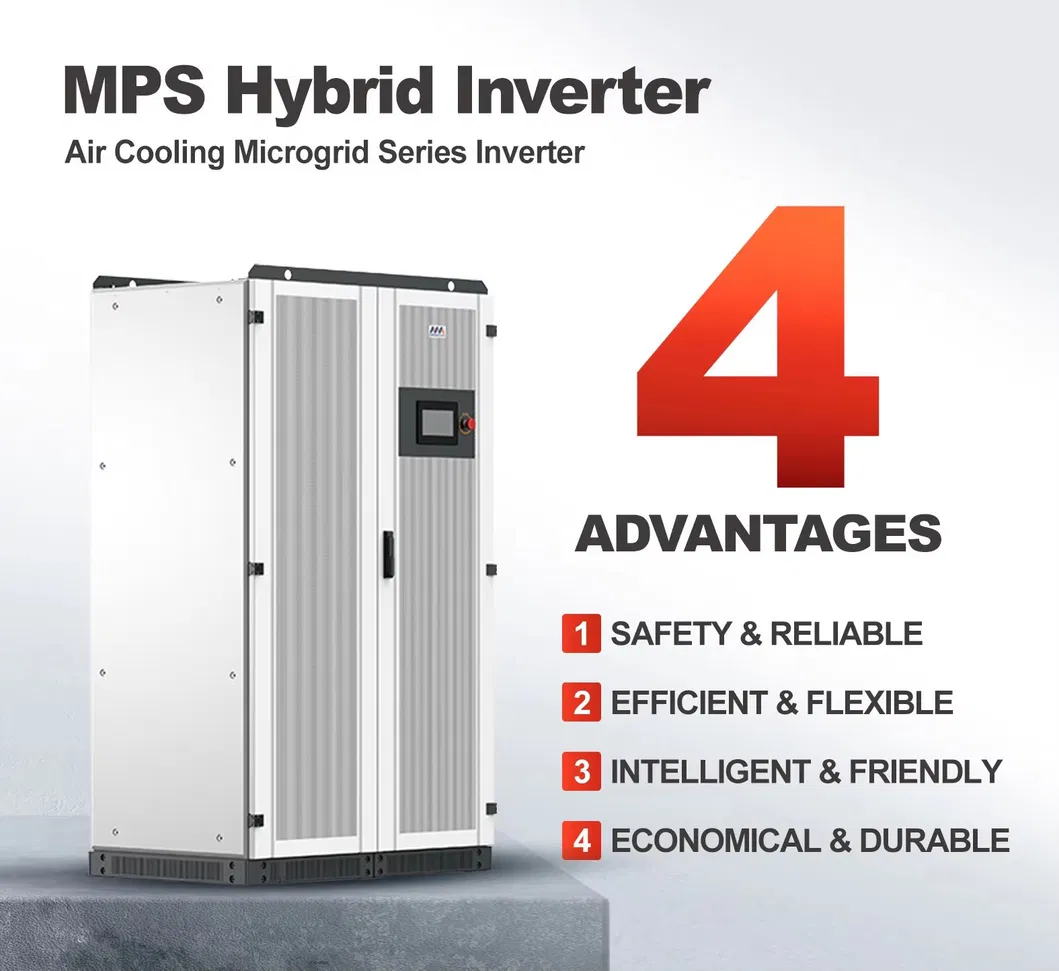

Specifications Diagram 2
Technical specification R5KLNA R6KLNA R8KLNA R10KLNA
Input (PV)
Max. power(kW)7.591213
Max. DC voltage (V)500
MPPT voltage range(V)125~500
Max.Input current (A)14
AC Output
Rated output power(kVA)56810
Max. apparent Power (kVA)5.56.68.811
AC output voltage(V)120/240(split phase), 240 (single phase)
THDi<2%
Battery
Battery voltage range(V)40~58
Max. charge/discharge(A)120/120135/135190/190210/210
Battery typeLithium / Lead-acid
General Data
Ingress protectionIP65 / NEMA 3R
Dimensions (mm)460*225*760
Weight(kg)41
🛠️ Installation Instructions

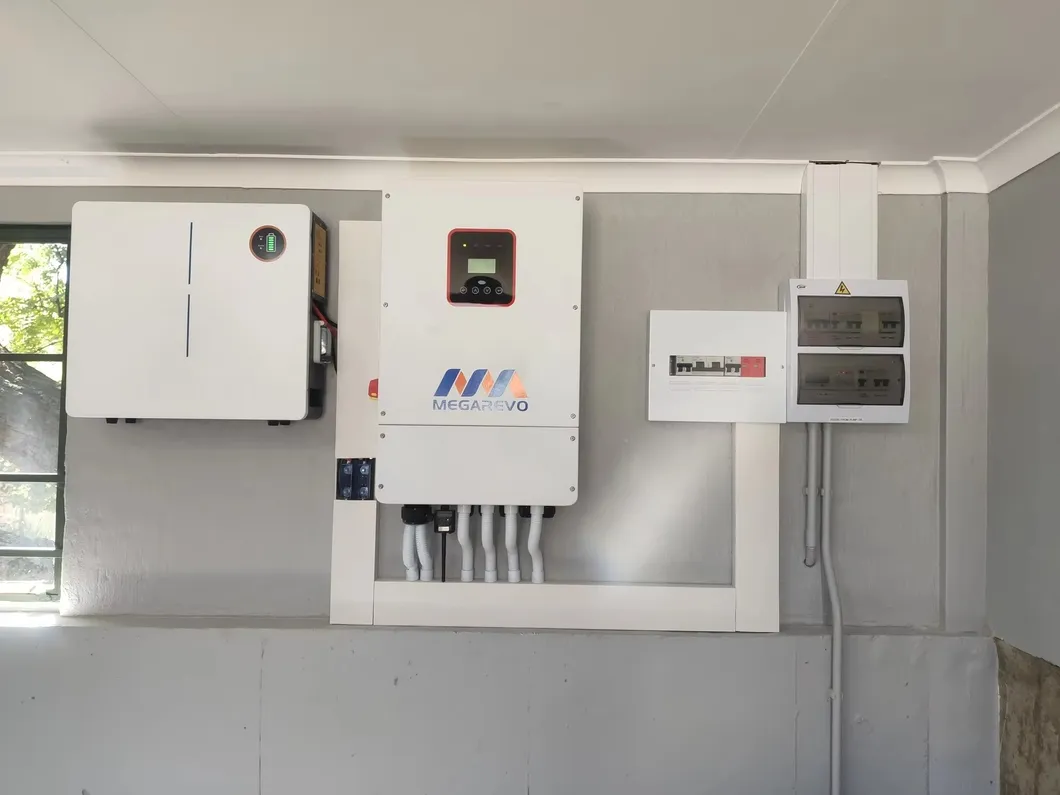

Installation Guide
🚢 Packaging & Shipping

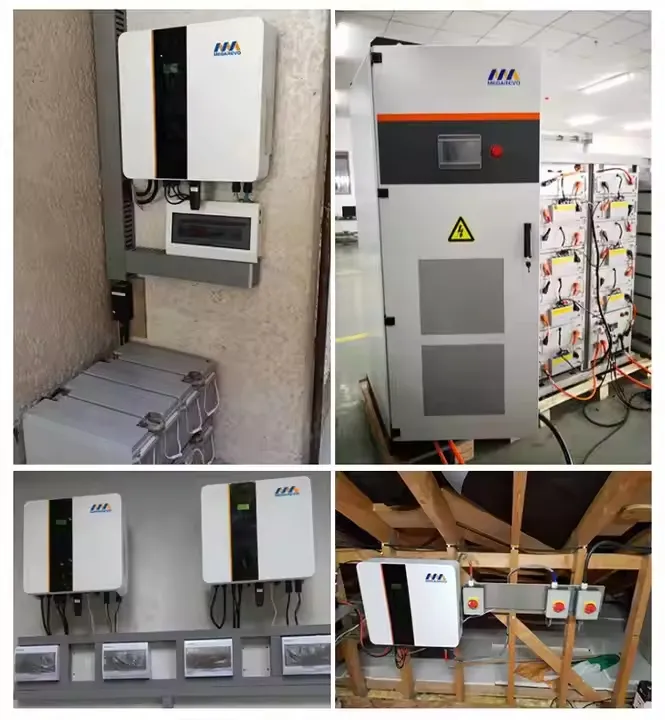

Packaging Box
Shipping Preparation
❓ Frequently Asked Questions
What are the main functions of this hybrid inverter?
The hybrid inverter converts solar DC energy into AC energy for home use while simultaneously managing battery storage. It optimizes self-consumption and provides emergency backup power during grid outages.
Does the system support parallel connection?
Yes, the off-grid models support parallel functions, allowing you to scale up the system's capacity as needed.
What types of batteries are compatible with this inverter?
This series is compatible with both Lithium (LiFePO4) and Lead-acid batteries, with a voltage range of 40V to 58V.
Can it be installed outdoors?
Yes, the inverter features an IP65/NEMA 3R rating, making it suitable for outdoor installation with excellent protection against dust and water.
What is the automatic switching time during a power failure?
The system features a rapid automatic switching time of less than 10 milliseconds, ensuring a seamless transition to battery power for critical loads.
How is the system monitored?
The inverter comes with an LCD touch screen and supports various communication interfaces including RS485, Wifi, 4G, CAN, and Bluetooth for remote monitoring.
