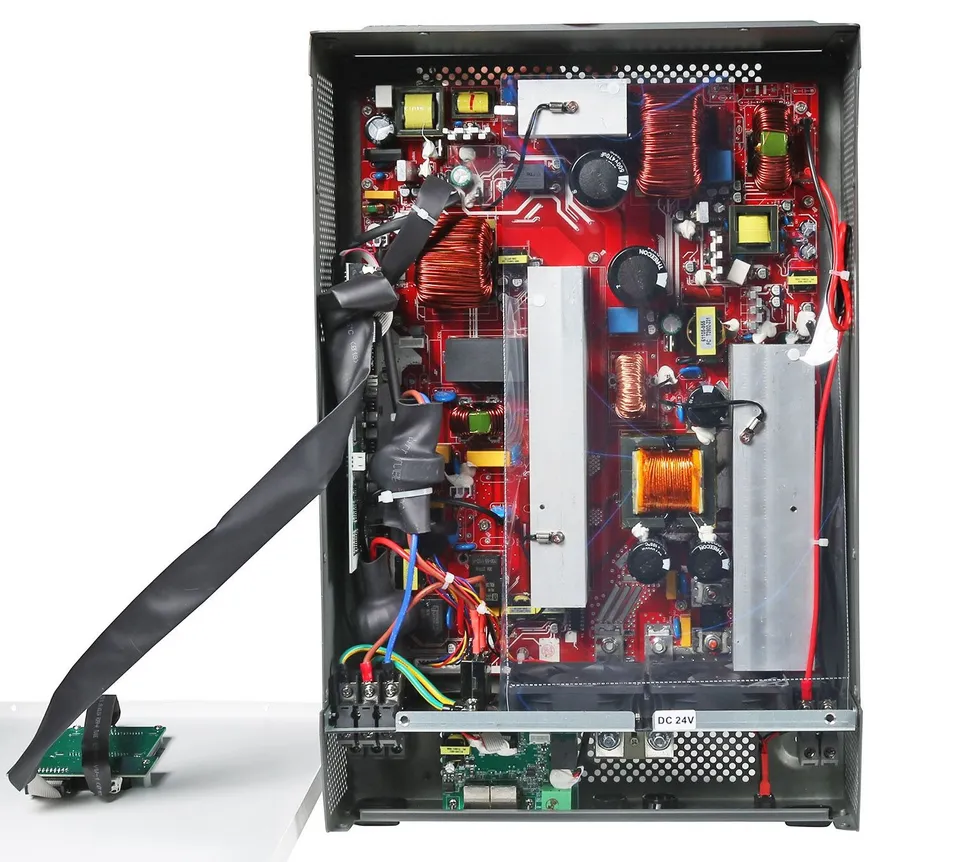

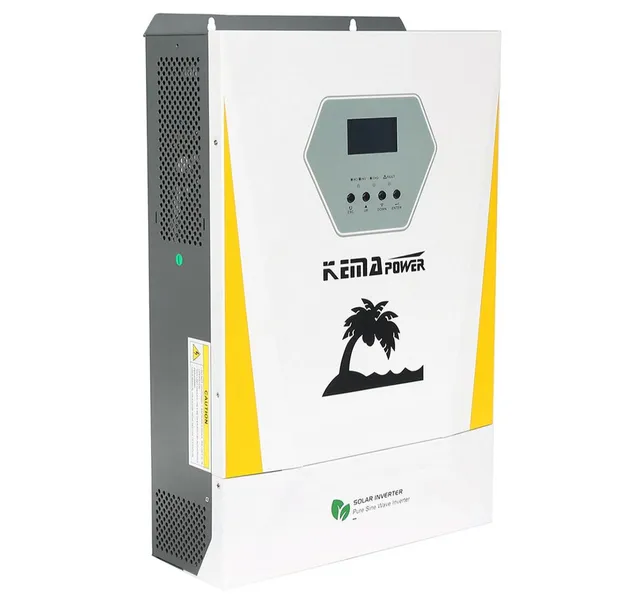

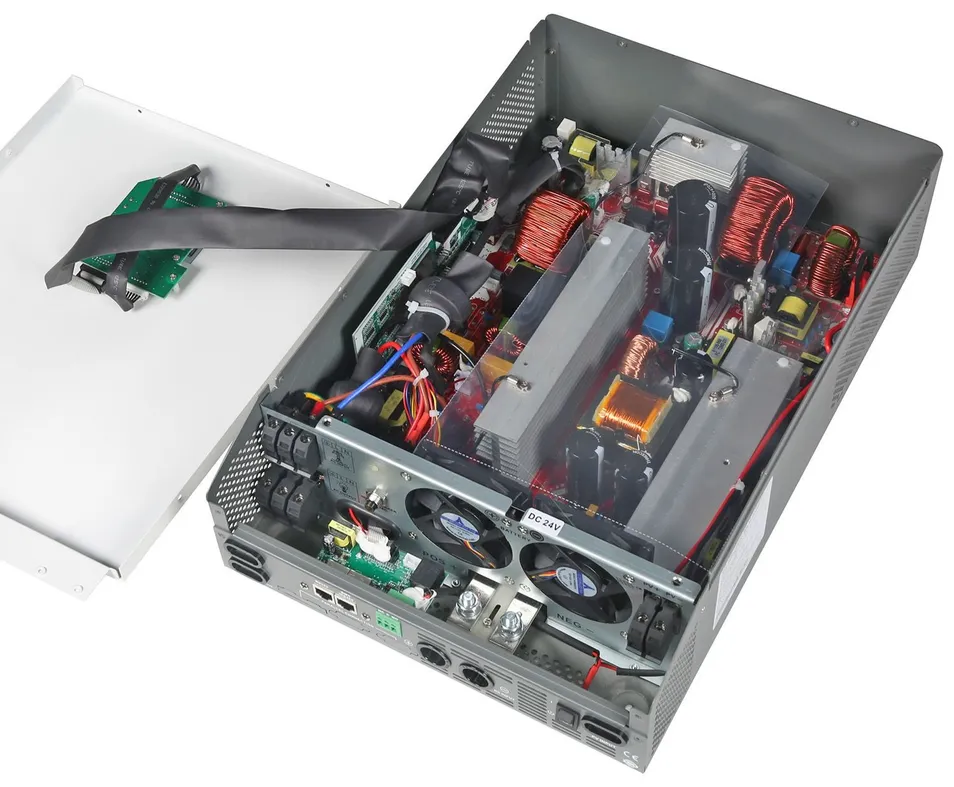

| ITEM | Model | SUB-D-E3024 | SUB-D-3624 | SUB-D-6248 | SUB-D-11048 | SUB-D-6248GP | SUB-D-11048GP |
| INPUT | RATED POWER | 3KW | 3.6KW | 6.2KW | 11KW | 6.2KW | 11KW |
| Voltage | 220/230/240VAC | ||||||
| Selectable Voltage Range | 170-280VAC±3V (For Personal Computers) | ||||||
| 90-280VAC ±3V(For Home Appliances) | |||||||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | ||||||
| OUTPUT | Voltage | 220/230/240VAC ± 5%(Bat Mode) | |||||
| Surge Power | 2 times Rated power for 5 seconds | ||||||
| Overload Protection | 21s@105%~150% Load; 11s@150%~200% Load; 400ms@>200% Load | ||||||
| Efficiency, PV to INV. | 97% (Peak) | ||||||
| Efficiency, Battery to INV. | 94%(Peak) | ||||||
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | ||||||
| Waveform | Pure sine wave | ||||||

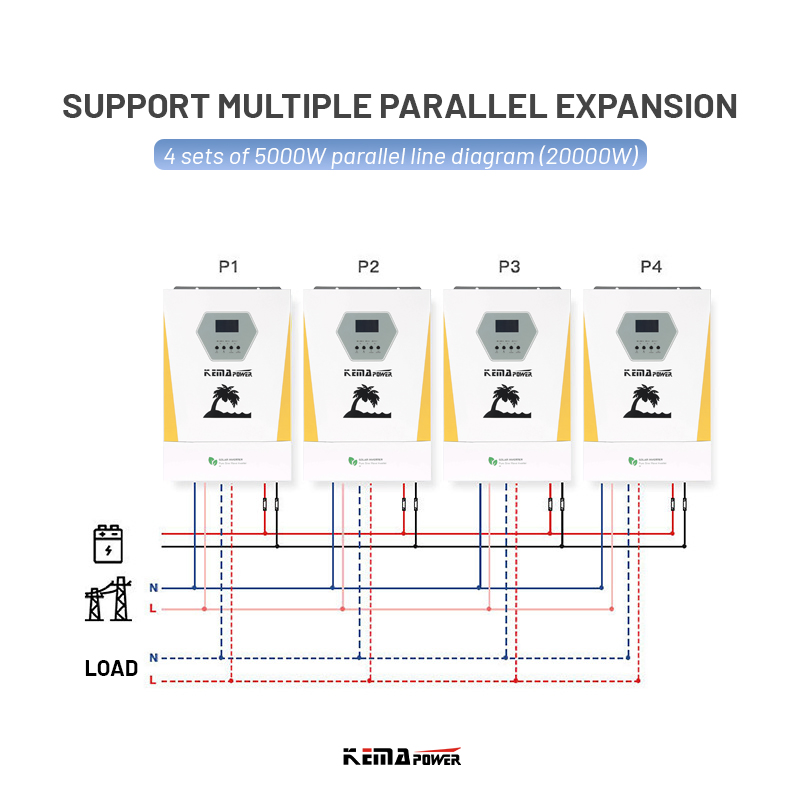

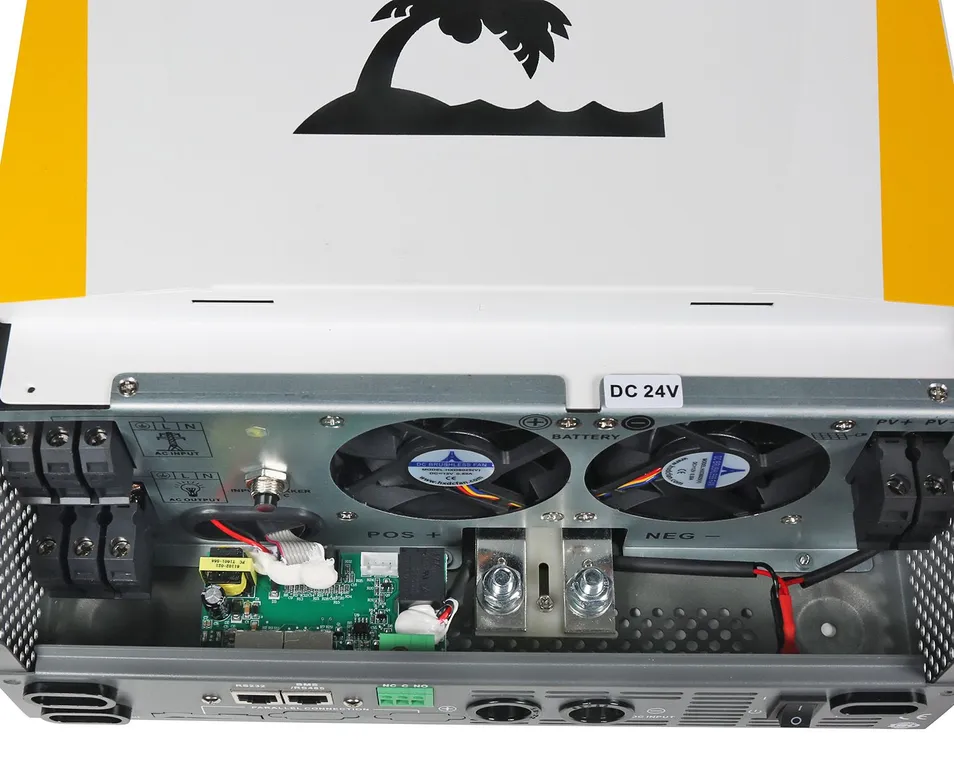

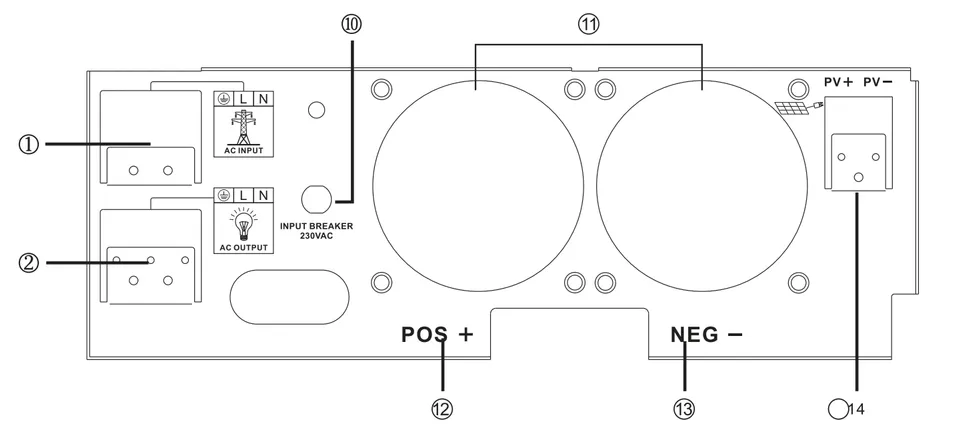

| Parallel Extension | infeasible | infeasible | infeasible | infeasible | Max 9PCS | Max 9PCS | |
| OUTPUT GRID TIE CONNECTION | Output Voltage | NO | 220/230/240VAC | ||||
| Grid Voltage Range | NO | 195-253VAC | |||||
| Grid Frequency Range | NO | 49-51±1Hz or 59-61±1Hz | |||||
| Output Current | NO | 26.9A | 47.8A | ||||
| Power Factor Range | NO | >0.99 | |||||
| Conversion Efficiency | NO | 98% | |||||
| BATTERY & AC CHARGER | Battery Voltage | 24 VDC | 48 VDC | ||||
| Constant Charging Voltage (Adjustable) | 28.2VDC | 56.4VDC | |||||
| Floating Charge Voltage (Adjustable) | 27 VDC | 54 VDC | |||||
| Overcharge Protection | 33 VDC | 63 VDC | |||||
| Charge Current (Max) | 60A | 80A | 80A | 150A | 80A | 150A | |
| SOLAR CHARGER | PV Array Power (Max) | 3KW | 4.2KW | 6.2KW | 2*5.5KW | 6.2KW | 2*5.5KW |
| MPPT Range | 50 ~ 500 VDC | 150 ~ 500 VDC | |||||
| PV Work Range | 300~400VDC | ||||||
| PV Array Voltage (Max) | 500 VDC | ||||||
| Max PV Input Current | 18A | 18A | 18A | 18A/18A | 18A | 18A/18A | |
| Max PV Charge Current | 60A | 100A | 100A | 150A | 100A | 150A | |
| Max Charge Current | 100A, AC+Solar adjustable | 120A, AC+Solar adjustable | 150A, AC+Solar adjustable | 120A, AC+Solar adjustable | 150A, AC+Solar adjustable | ||
| Display | LCD | Input/Output V/HZ; Load %, VA/W; Overload; Bat % VDC; Bat Type; PV1/PV2 V/WH; Charge/Discharge Current; Setup; Fault Code and Warning; Working Mode | |||||
| LED | AC/INV: Green Light Solid on—Output is powered by mains; Flashing—Output is powered by solar CHARGE: Green Light Solid on—Battery is fully charged; Flashing—Battery is charging FAULT: Red Light Solid on— Inverter fault; Flashing— Inverter warming |
||||||
| Setup/Adjust Parameter | Solar power /utility power/Battery priority, united Charge Current , AC Charge Amp, AC input range, VAC HZ, Bat VDC back to utility power, BAT VDC back to Bat Mode, Charge Source select ,Alarm on off , overload bypass, Bulk/ Floating Charge VDC, Bat Low Cut VDC ,equalization Charge VDC / mins / days, | ||||||

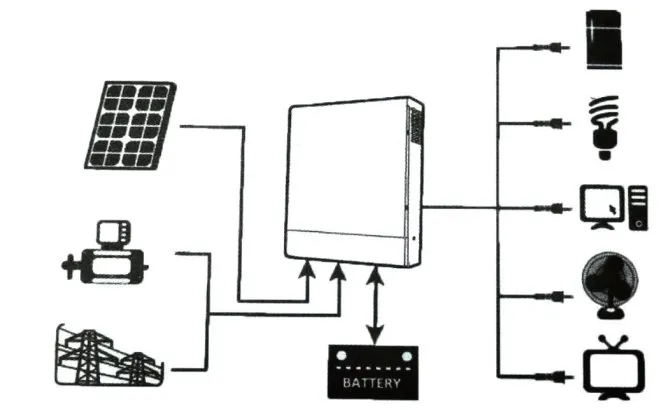

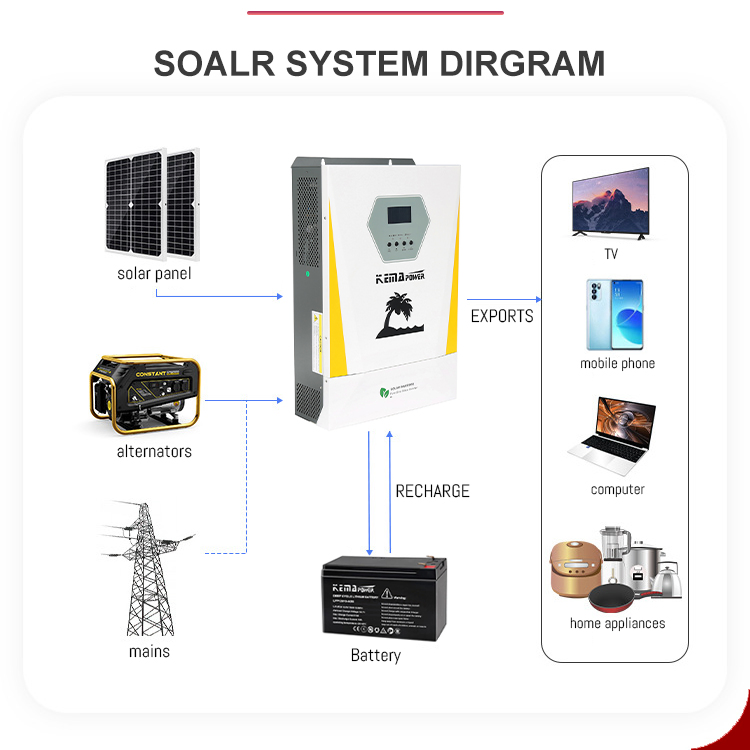

| Output Working Mode | Utility Uower Priority | default. Utility power priority, Solar and battery as backup when utility power not available | |||||
| Solar Priority (SUB Mode) | solar power priority, utility power supplement to load when solar power is not enough , utility not available, battery supplement to load. Working on daytime while No Bat | ||||||
| SBU Priority | Solar power priority, When Solar power is not enough,battery to supplement.when battery power is not enough , utility power to load. Working on daytime while No Bat | ||||||
| OPERATING ENVIRONMENT | Humidity | 20% to 95% Relative Humidity(Non-condensing) | |||||
| Altitude | No more than 1000m, lf 1000m<,Rate power will lower, MAX 4000m, Refer to lEC62040 | ||||||
| Noise | ≤50db | ||||||
| Operating Temperature | -10°C - 50°C | ||||||
| Storage Temperature | –15°C - 60°C | ||||||

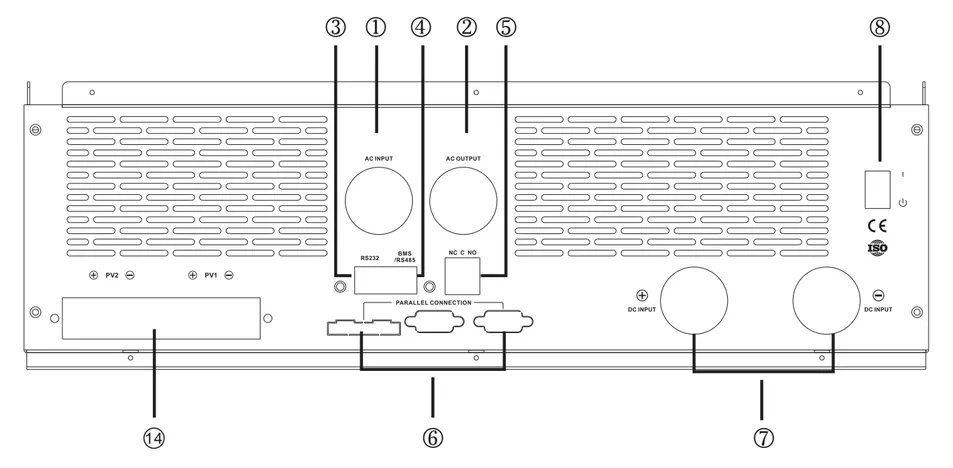

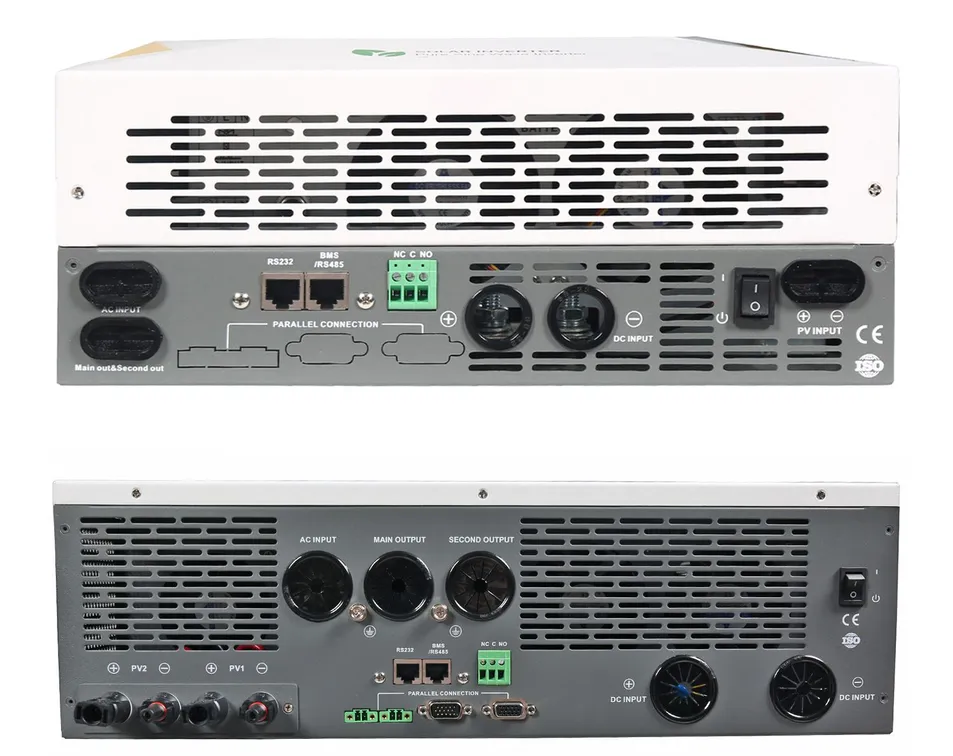

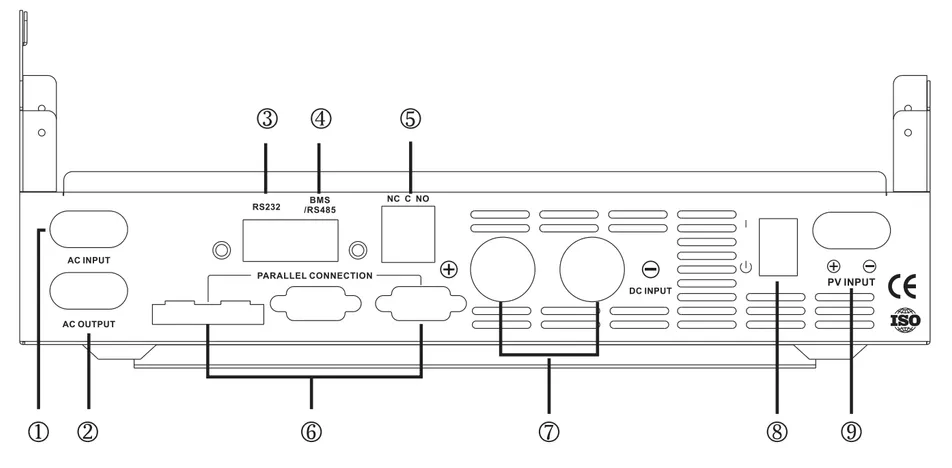

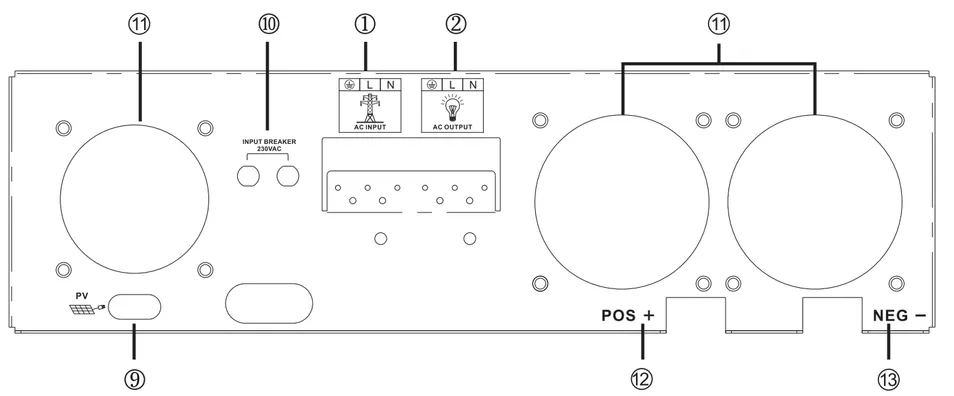

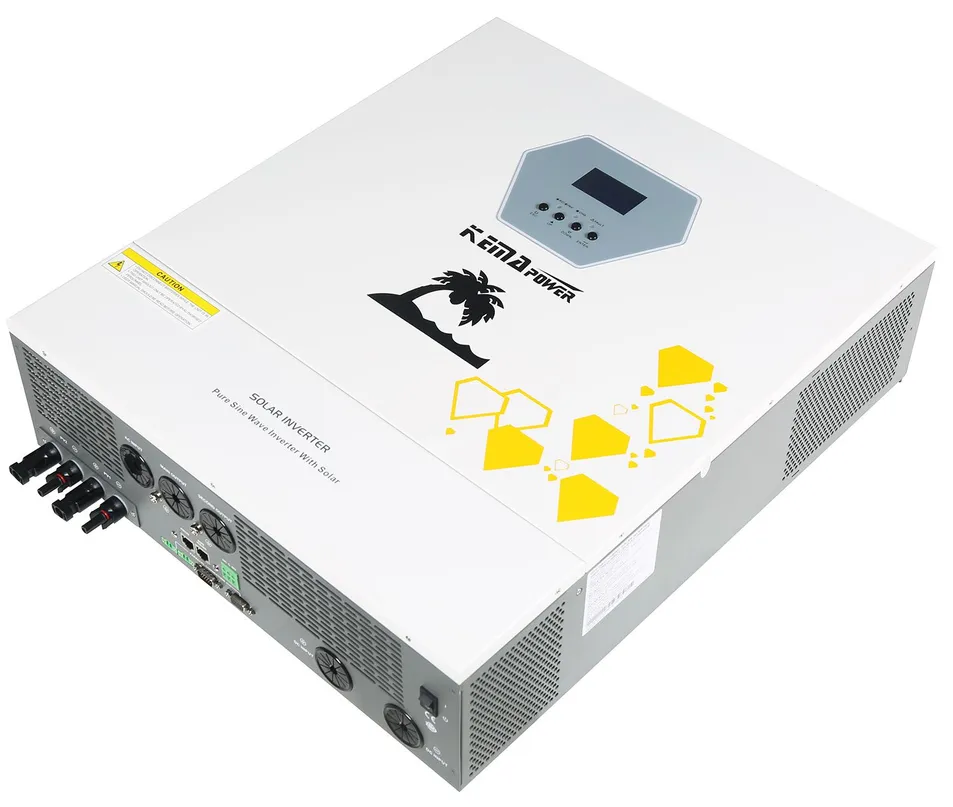

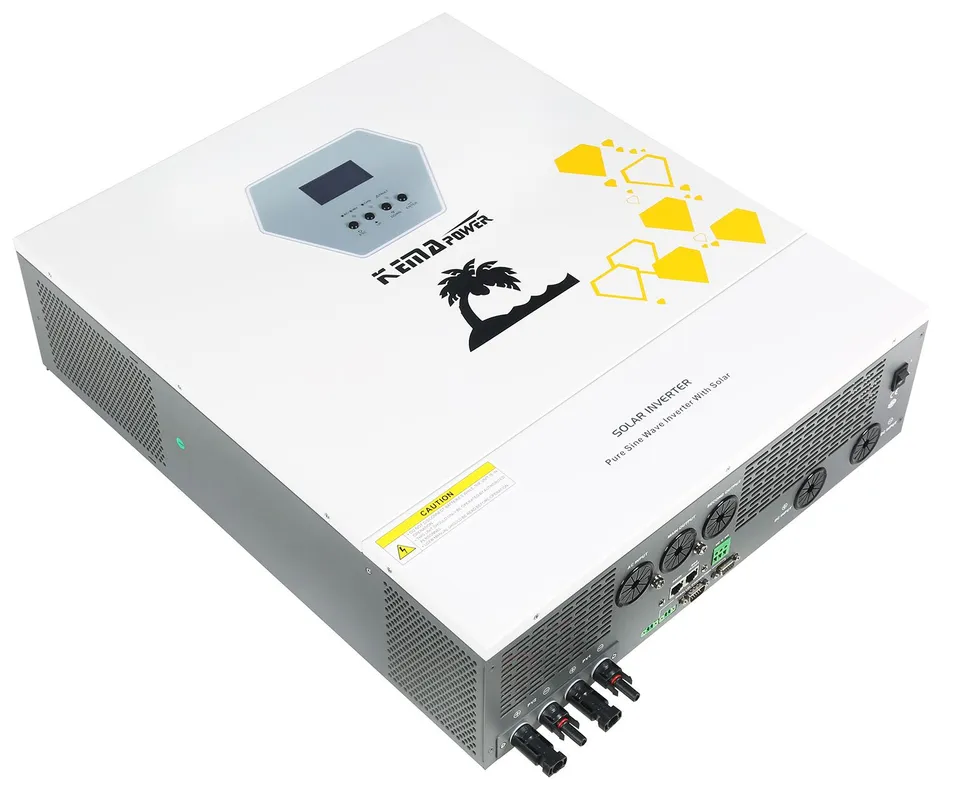

| Communication interface | N/A | RS232; BMS/RS485; WIFI Plug; Dry Contact; Parallel port for 6.2KW/11KW | |||||
| Product Size | L*W*H | 495*312*146 | 570*500*148 | 495*312*146 | 570*500*148 | ||
| Net Weight (kgs) | Kg | 9.13 | 10.52 | 10.79 | 18.99 | 10.79 | 18.99 |
| Carton Size | L*W*H | 565*385*195 | 708*570*241 | 565*385*195 | 708*570*241 | ||
| Carton Weight | Kg | 10.35 | 11.84 | 12.42 | 22.21 | 12.42 | 22.21 |
| REMARK | SUB-GP Grid Tie + Parallel | ||||||
