High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery

Customization:	Available
After-sales Service:	Yes
Warranty:	24-Month

Basic Info

Model NO.PVM 5.5kw

Nature of Source FlowActive Inverter

PhaseSingle

Output Power>1000W

CertificationSAA, CE, ROHS, ISO9001, CCC

TypeDC/AC Inverters

Power SourceSolar Power, Wind Power

Circuit TopologiesFull-Bridge Type

Nature of Wave StringSine Wave Inverter

Rated Power4kw 6kw

Voltage230VAC

Selectable Voltage Range170-280VAC ;90-280VAC

Frequency Range50Hz/60Hz(Auto Sensing)

AC Voltage Regulation230VAC±5%RMS

Efficiency(Peak)90%-93%

Work Without BatteryYes

Feedback to Grid PowerYes

Solar Charger80A 120A

PV Voltage120-500V

DC Voltage24V4kw 48V6kw

OutputMain Output ,Secondry Output

WiFiOptional

Batterywith Lithium Communication

InputAC, Solar, Generator, Battery

Transport PackageCarton & Pallet

Specification53*41*20cm

TrademarkOEM

OriginGuangdong, China

HS Code8504403090

Production Capacity5000PCS Per Year

Packaging & Delivery

Package Size53.00cm * 41.00cm * 20.00cm

Package Gross Weight15.000kg

Product Description

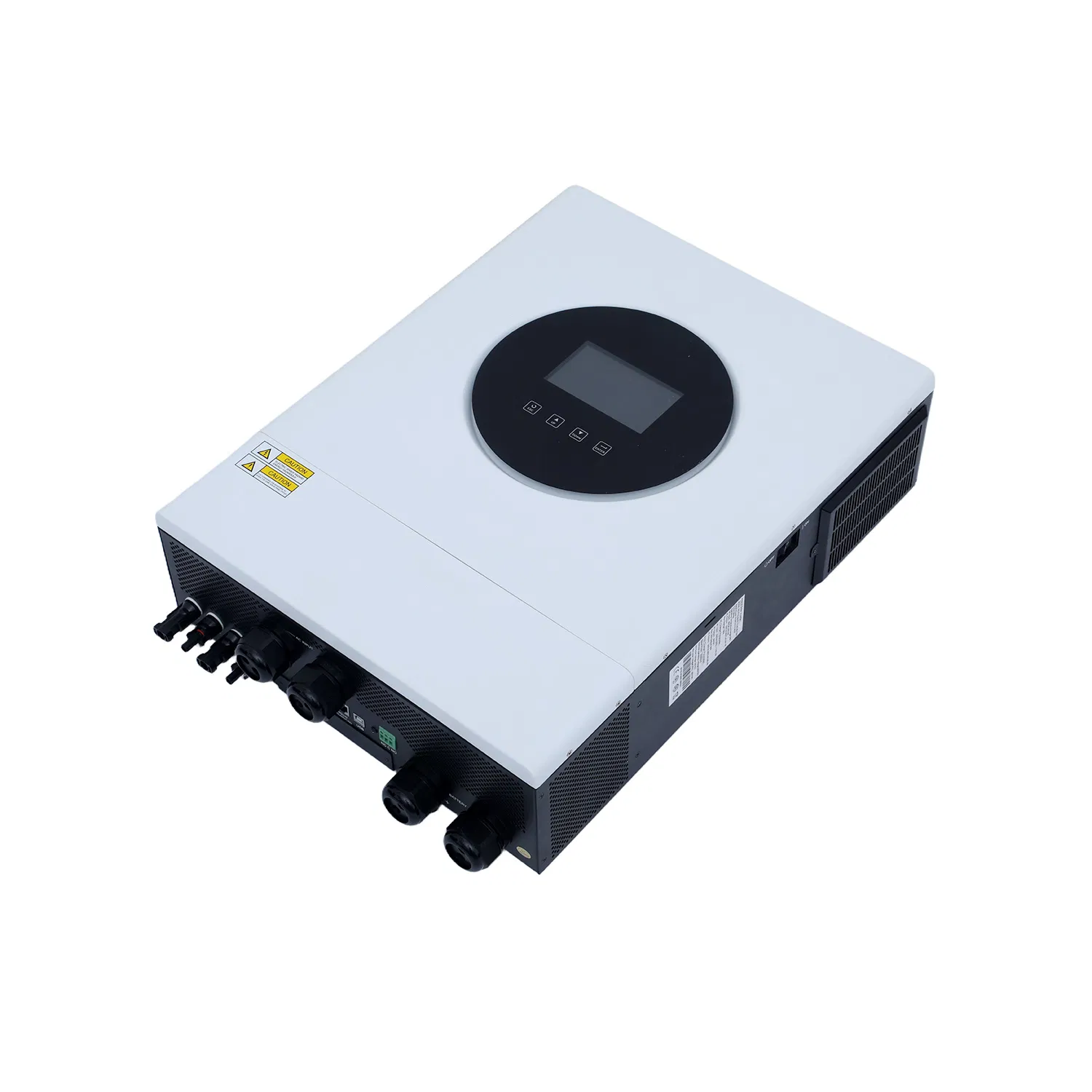

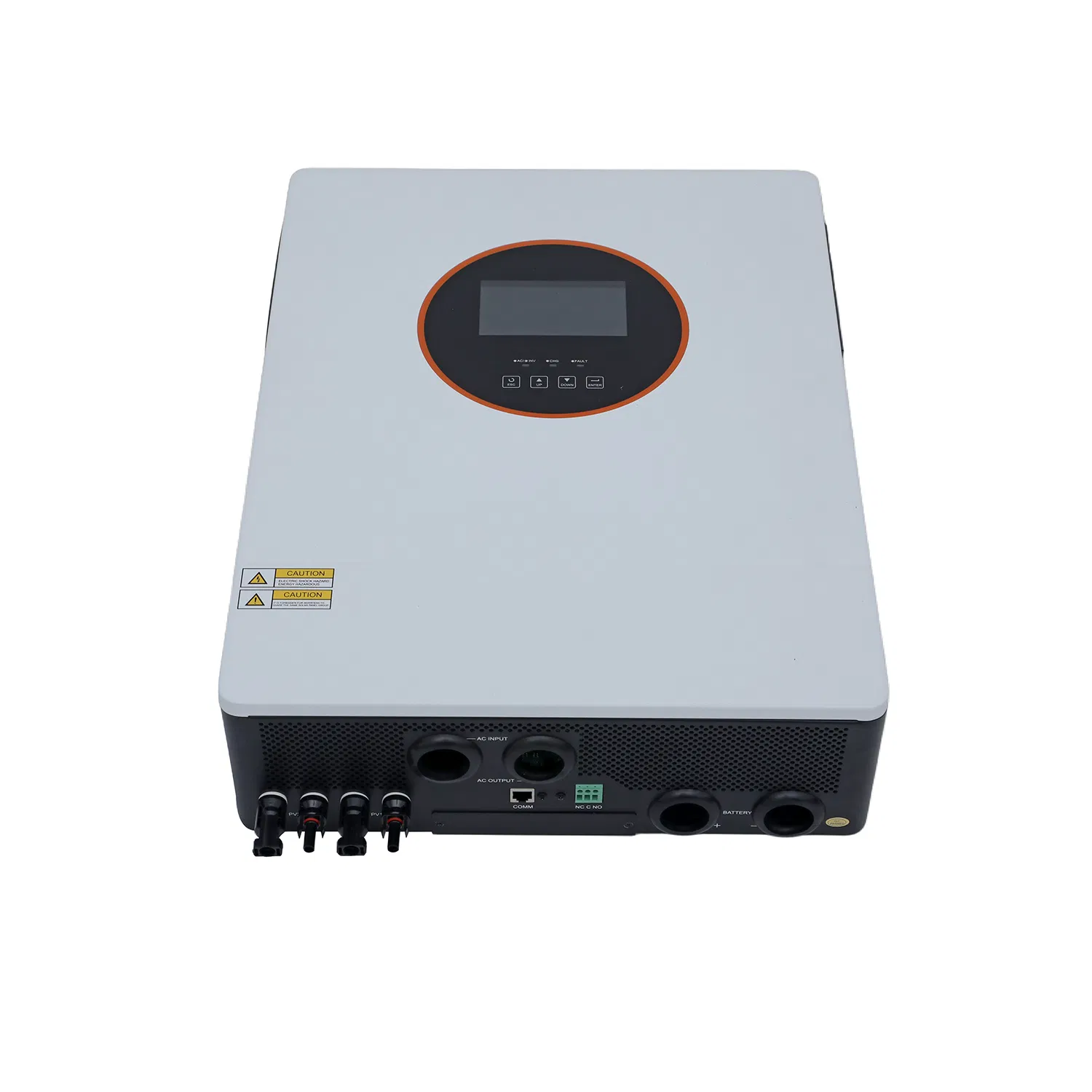

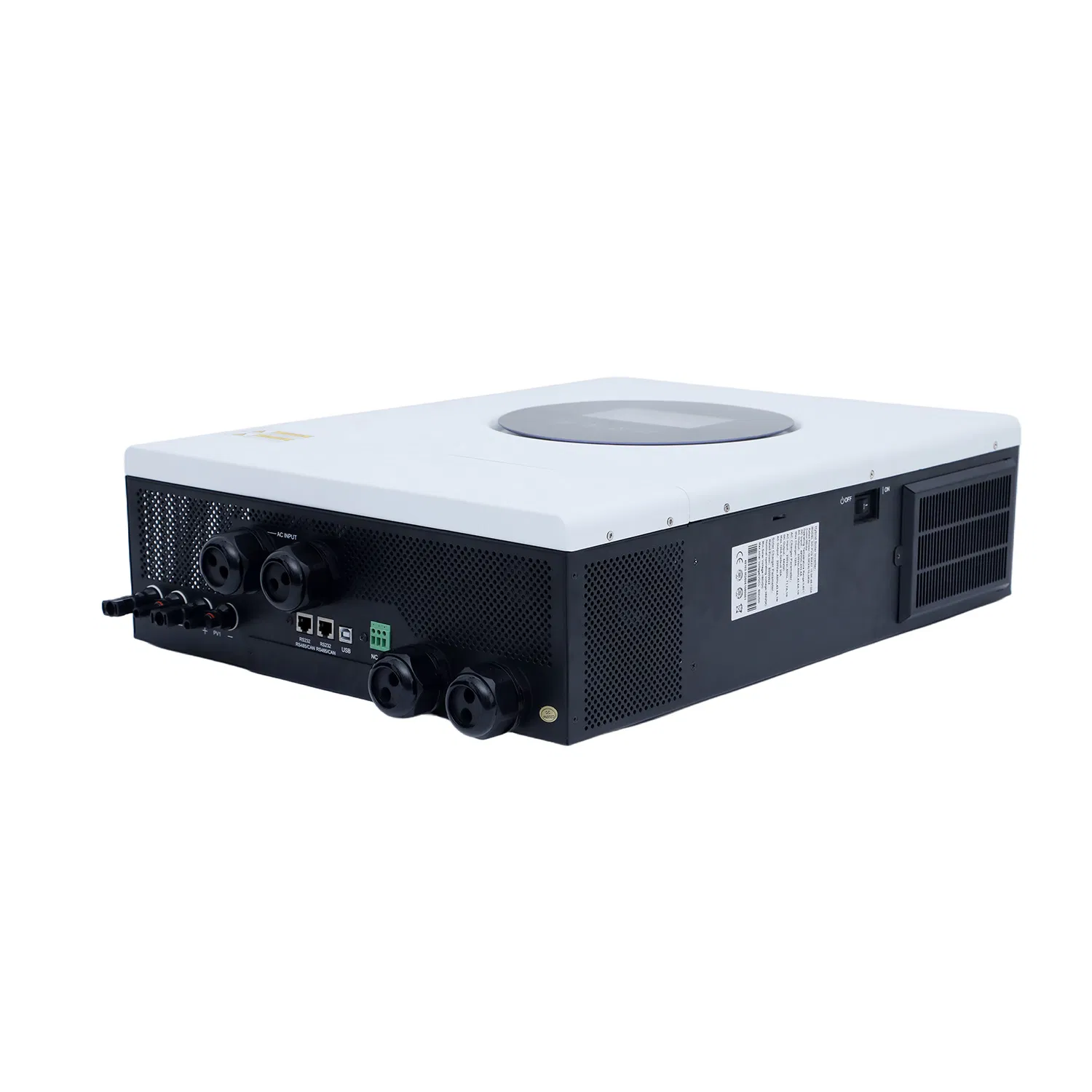

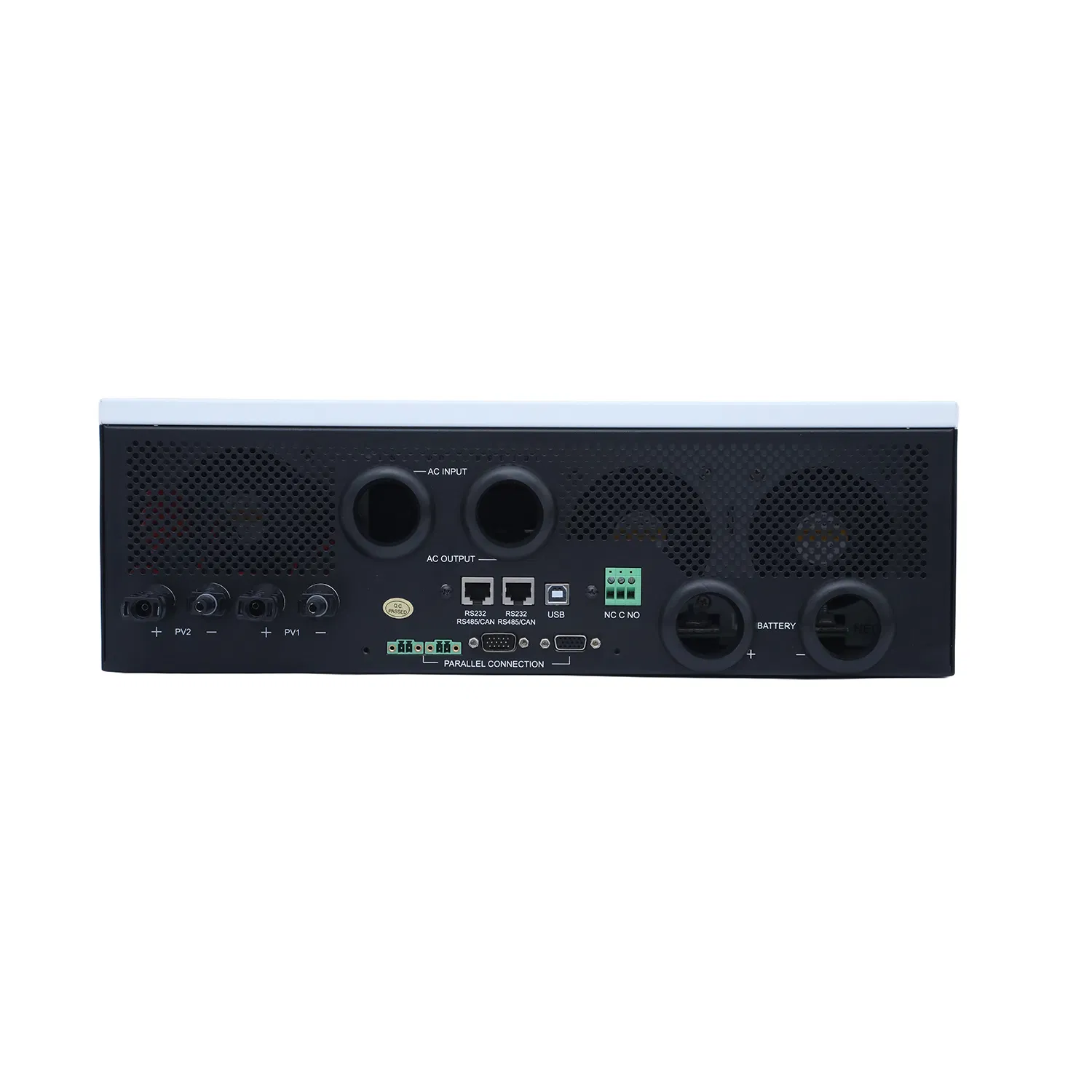

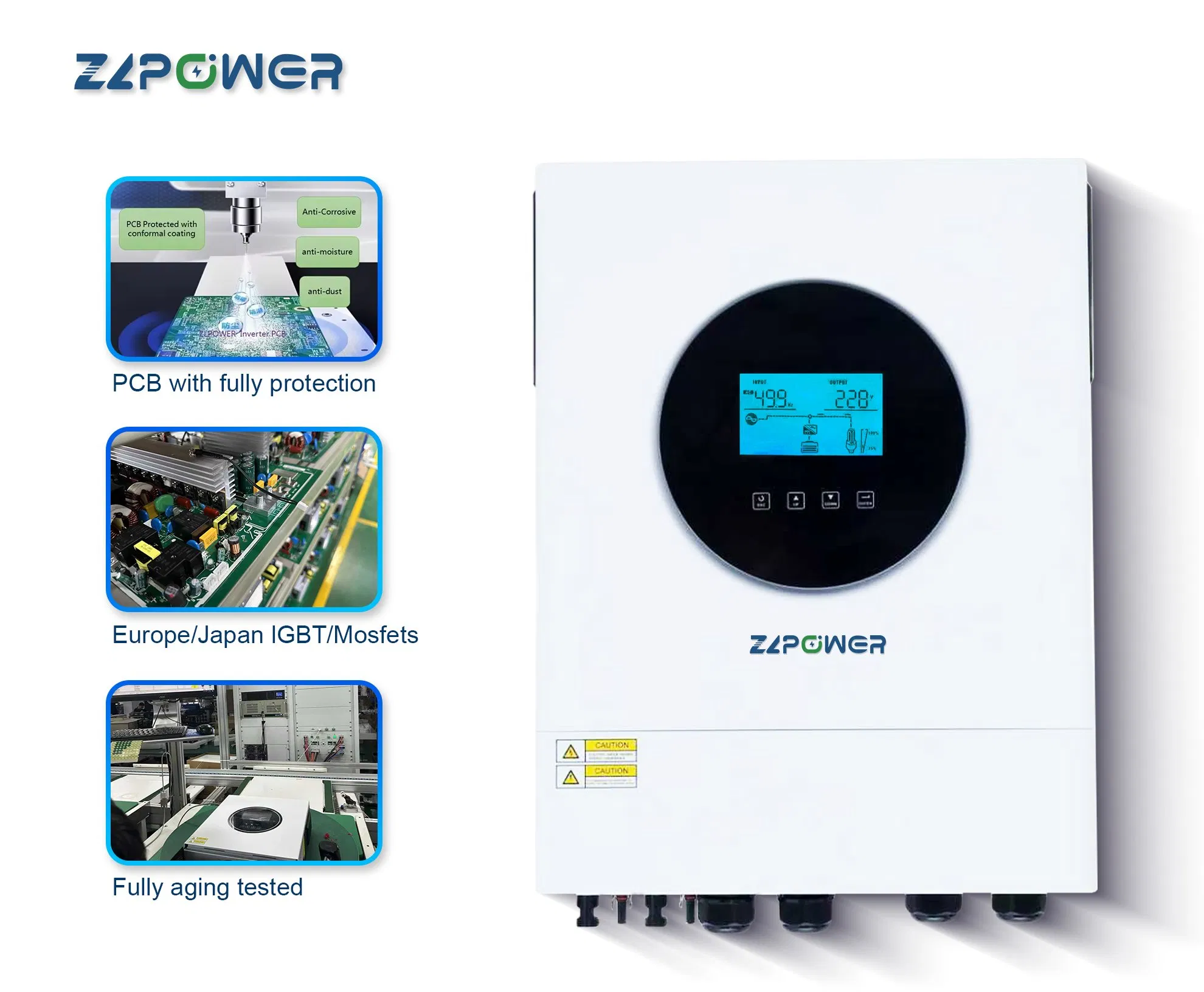

High Frequency 5500W Pure Sine Wave Power Inverter

Hybrid Solar Inverter for Lead-Acid Lithium Battery

High Frequency 4000W 5500W 6200w Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery

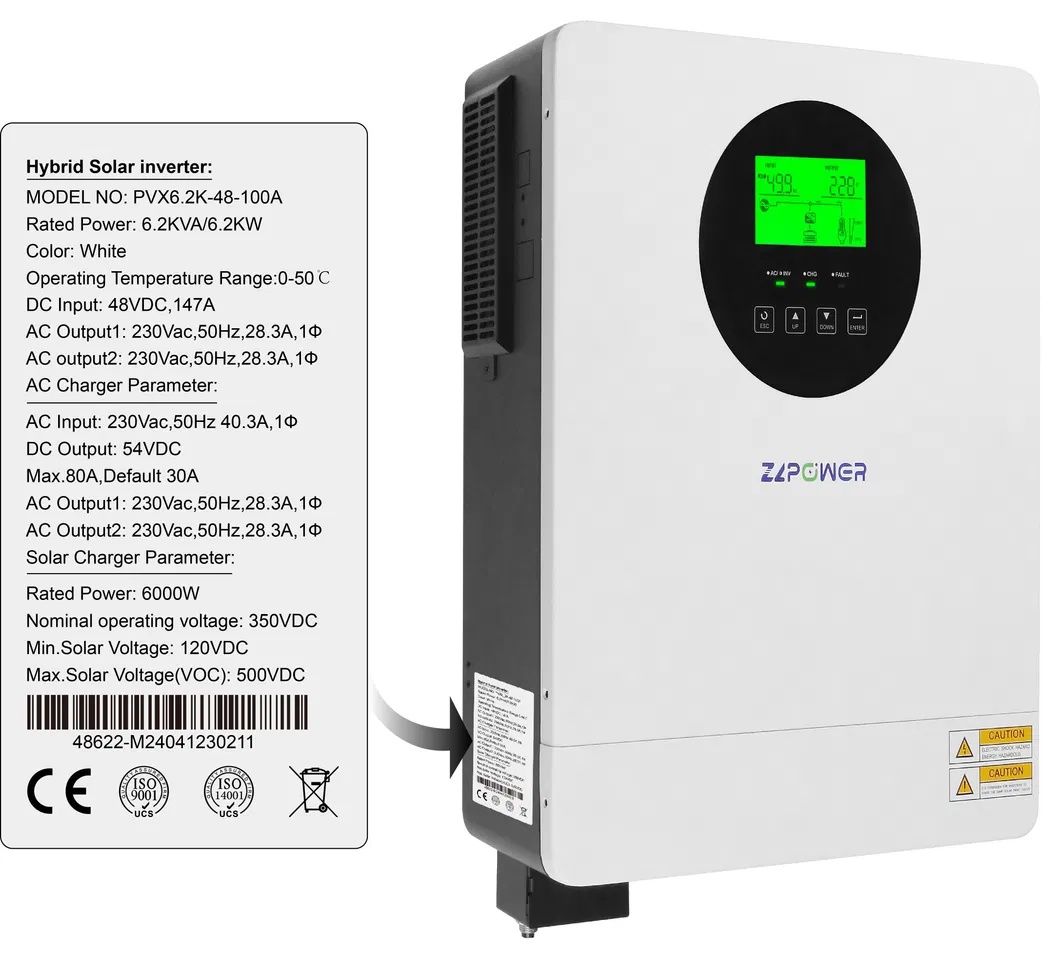

5.5KW Solar Hybrid Inverter Features

Output Voltage: 230Vac±5%, Frequency: 50Hz/60Hz, Max Charging Current: 80A; Max PV Array Open Circuit Voltage: 500VDC, PV Array MPPT Voltage Range: 120VDC~450VDC.

Multiple Battery Options

5500W Solar Inverter 48V DC to 220/230V AC, Built in 100A MPPT Charge Controller. Pure sine wave inverter compatible with 48V Lead-Acid (Seal, AGM, Gel, Flooded)/Lithium batteries and can run without a battery.

LCD & LED Display

Configurable input voltage range for home appliances and personal computers. Comprehensive LCD display offers user-configurable button operations such as battery charging current, AC/solar charger priority, and input voltage selection.

Complete Protections

Built-in Overload, Over temperature, and Short circuit protection. Smart battery charger design for optimized performance. Intelligent variable speed fan efficiently dissipates heat to extend system life.

Wide Range Of Applications

Powers household or office appliances, including motor-type loads like tube lights, fans, refrigerators, and air conditioners. Compatible with mains voltage or generator power with automatic restart upon AC restoration (no parallel support).

Specifications

MODEL	PVM4000-24	PVM6000-48
Rated Power	4000w 4200w	6000w 6200w
INPUT
Voltage	230VAC	230VAC
Selectable Voltage Range	170-280VAC (For Personal Computers) 90-280VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC±5%
Surge Power	7000VA	11000VA
Efficiency (Peak)	90%~93%
Transfer Time	10ms (For Personal Computers) 20ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage	500VDC	500VDC
Maximum PV Array Power	6000w	7000w
MPPT Operating Voltage Range	120~450VDC	120~450VDC
Maximum Solar Charge Current	80A	80A
Maximum AC Charge Current	60A	60A
Maximum Charge Current	80A	80A
PHYSICAL

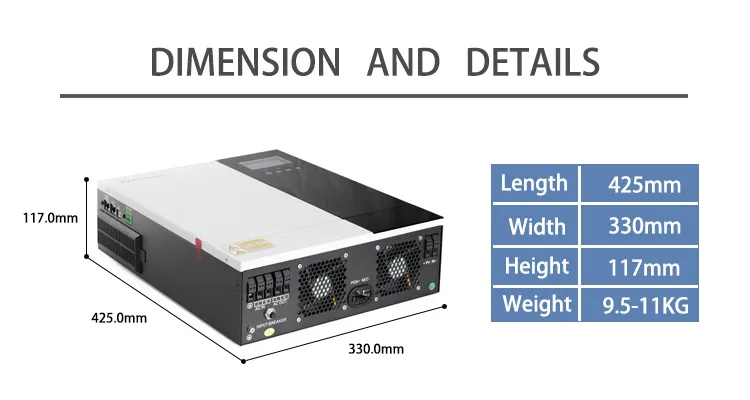

Dimension, L×W×H (mm)	425×330×117
Net Weight (kgs)	9.5	10.6
Communication Interface	USB/RS232/RS485/Dry contact
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C

Profile

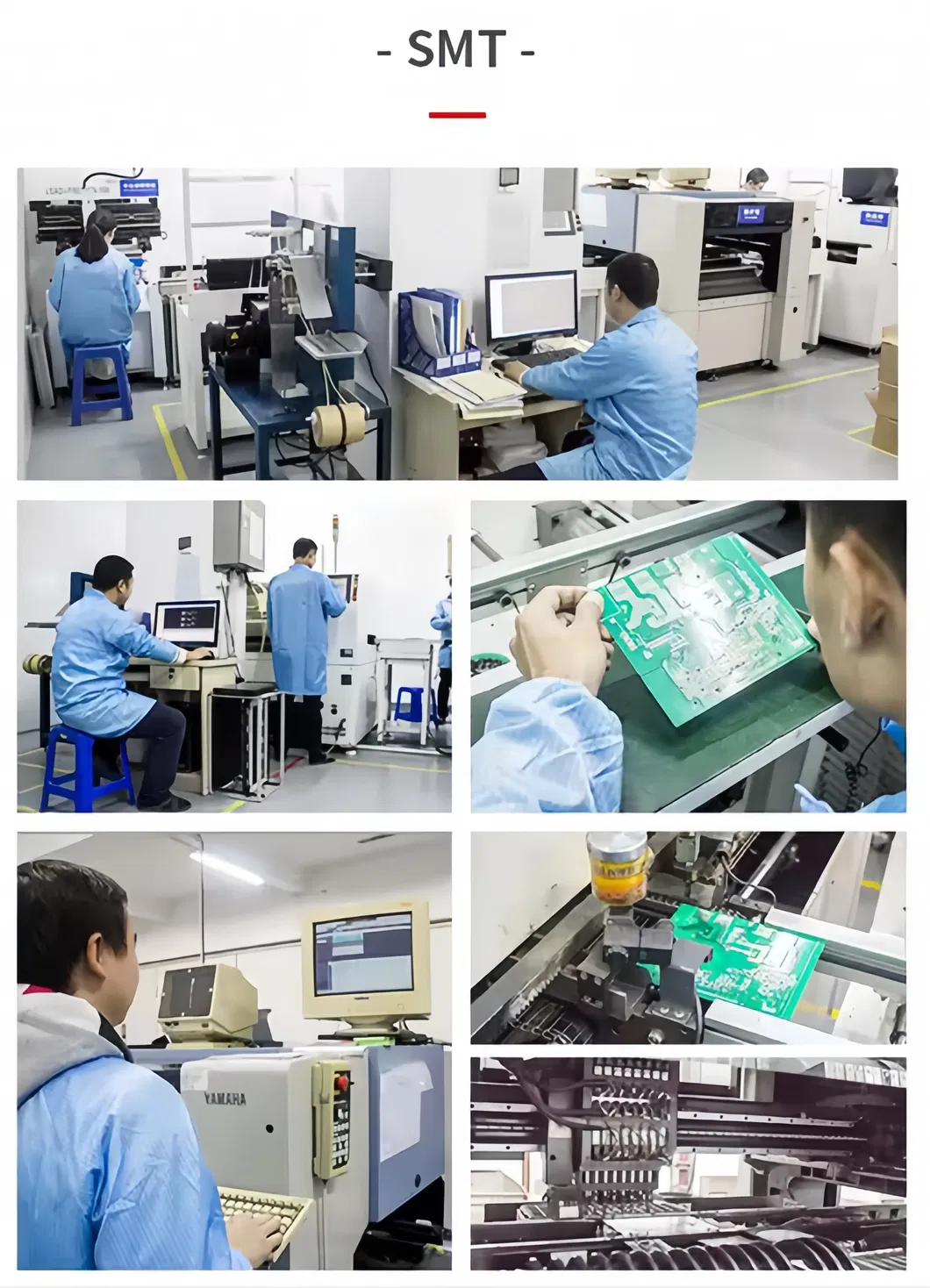

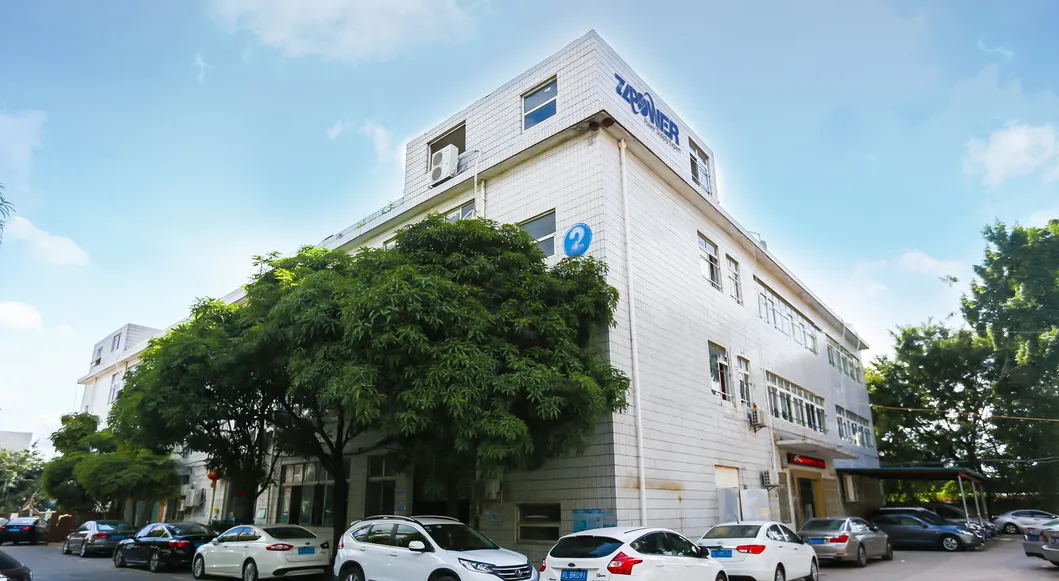

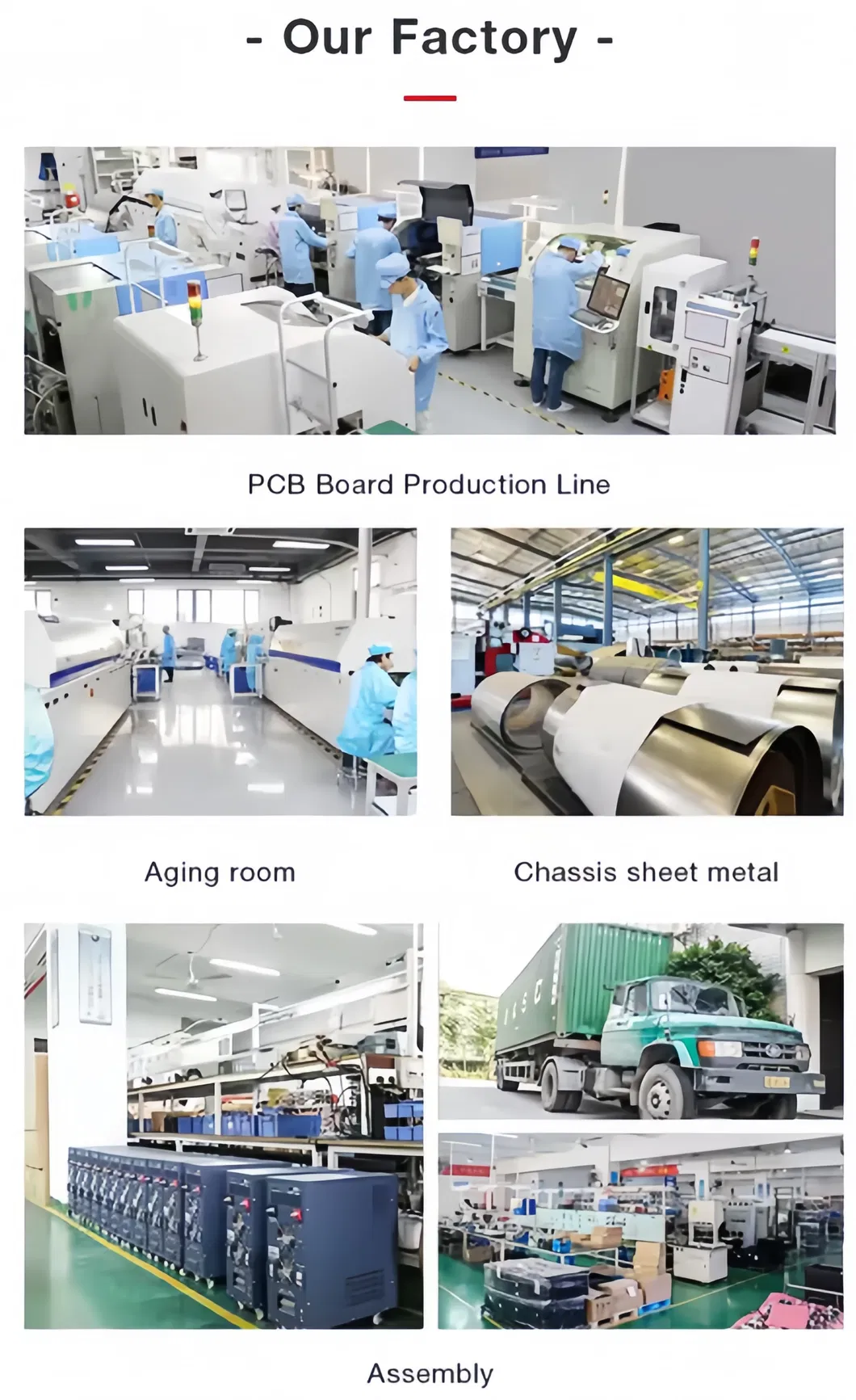

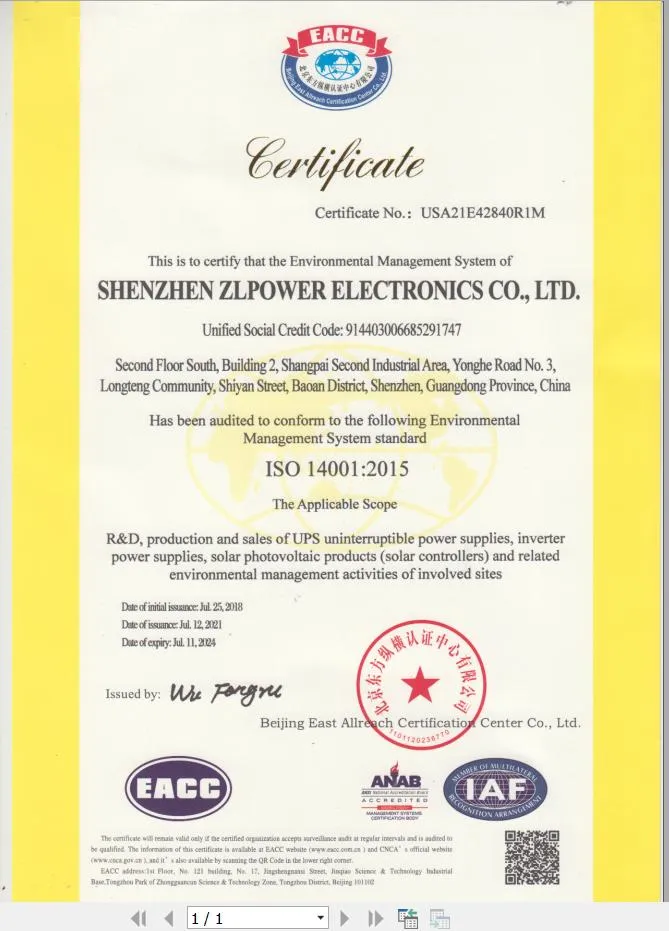

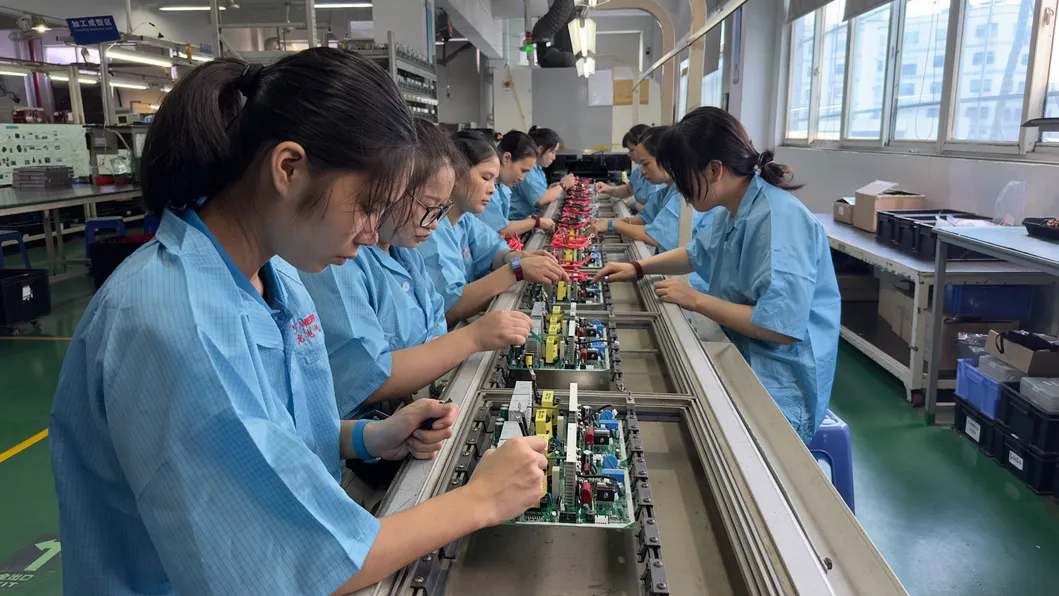

Established in 2007, our facility is a national high-tech enterprise specializing in the research, manufacture, and export of UPS, power inverters, and hybrid solar inverters. The power capacity ranges from 400VA to 400KVA parallel series, satisfying diverse customer requirements. The factory has passed ISO9001, ISO14001, CE, ETL, KC, etc. With years of development, we possess an excellent research and management team alongside advanced production testing equipment to ensure product stability and innovation. Products are mainly exported to Europe, Africa, the Middle East, Asia, and the Americas, widely applied in finance, communication, medical treatment, industry, public security, and civil power solutions.

Exhibitions

Frequently Asked Questions

What is a hybrid solar inverter?

A hybrid solar inverter combines the functionalities of a traditional solar inverter and a battery inverter. It manages power dynamic inputs from solar panels, batteries, and the electrical grid to prioritize and optimize your energy consumption. It provides power conversion, battery integration, grid connectivity, and smart load management.

How is the delivery time?

Usually, sample orders take approximately 3-5 days to prepare. Bulk production orders typically take 10-15 days, depending on quantity requirements.

What is the price range of the hybrid solar inverter?

The typical price range is USD 100 to USD 500, varying based on the specific features, technology requirements, and inverter capacity.

Do you accept custom branding and logo use?

Yes, we offer professional OEM production services. Customized branding, labels, and logos can be configured based on the order volume.

Does the inverter connect to the utility grid?

Yes, this is a solar and utility complementary inverter. It integrates inversion, battery charging, and an automatic AC transfer switch in a single casing, enabling utility grid and generator backup charging for the battery system.
