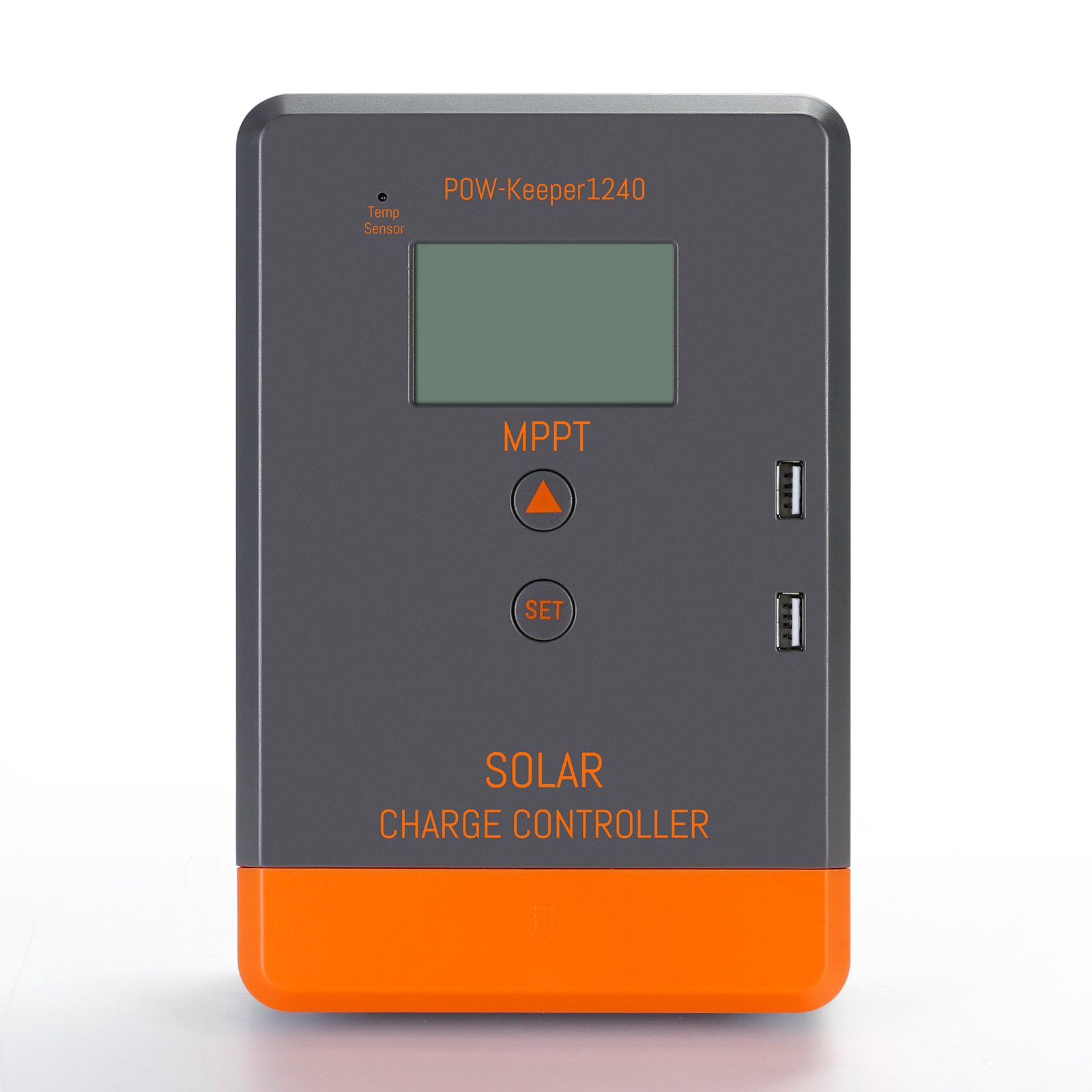

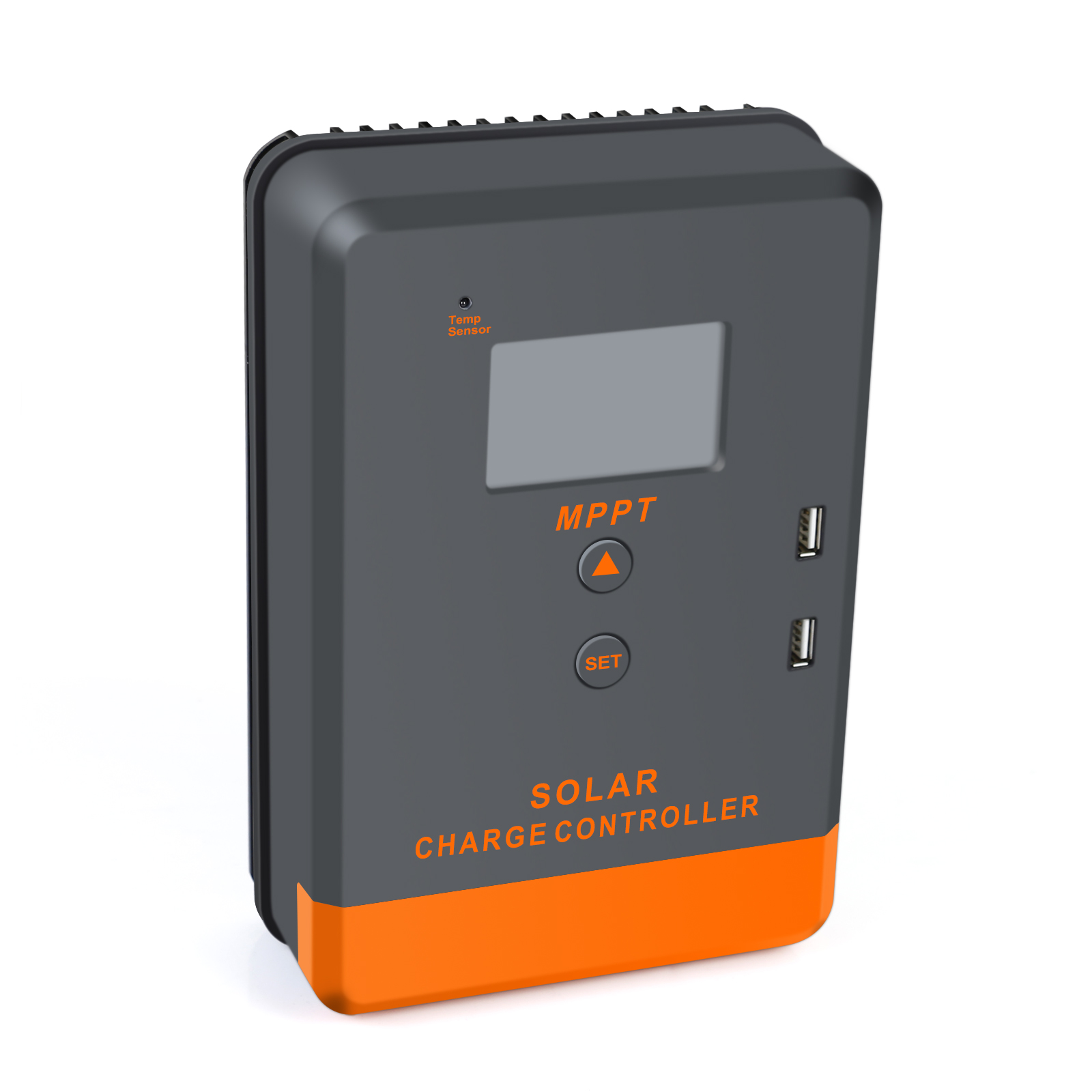

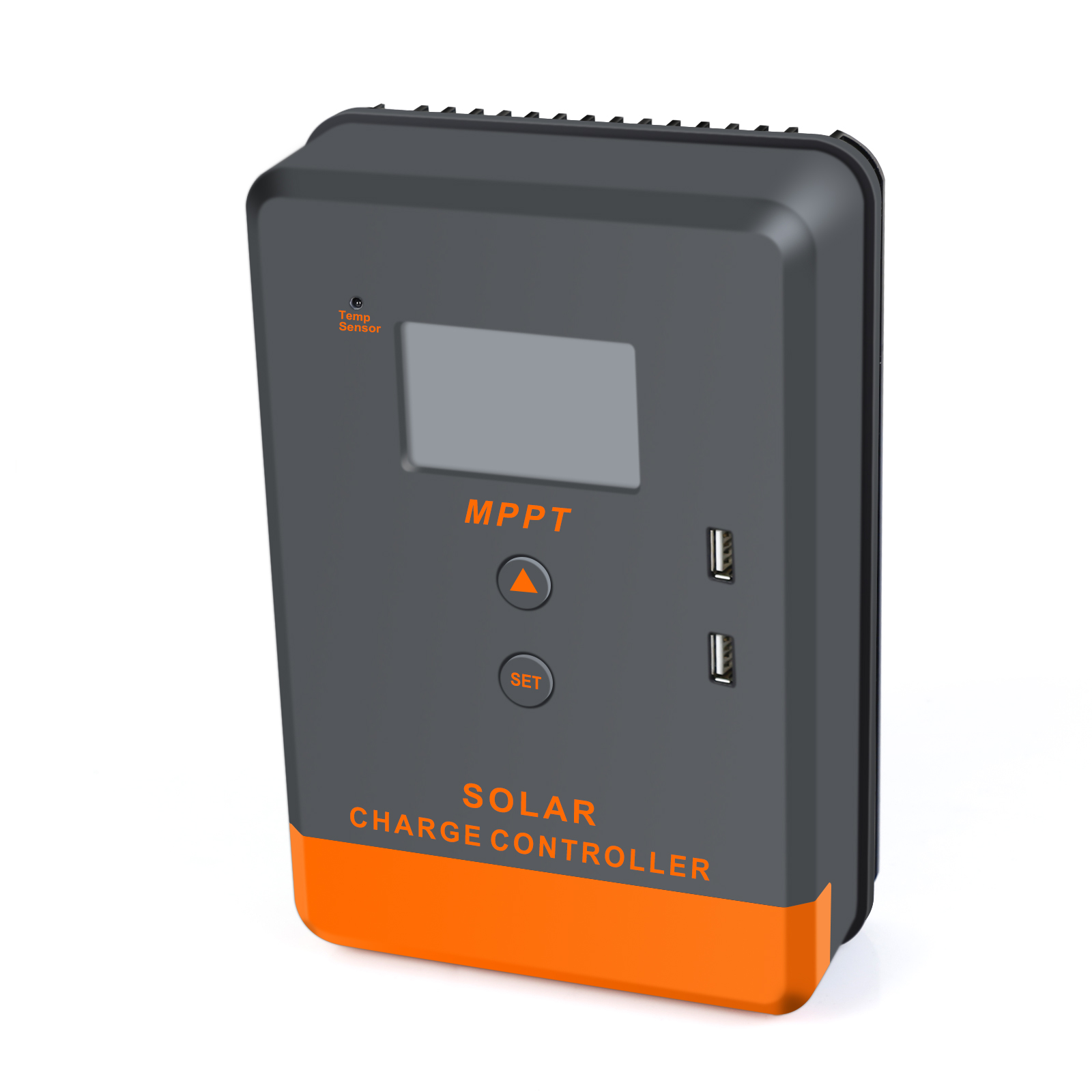

PowMr Hot Selling 12V/24V Auto 30A/40A/20A Solar Charging Controller 30A MPPT Solar Charge Controller

Product Description

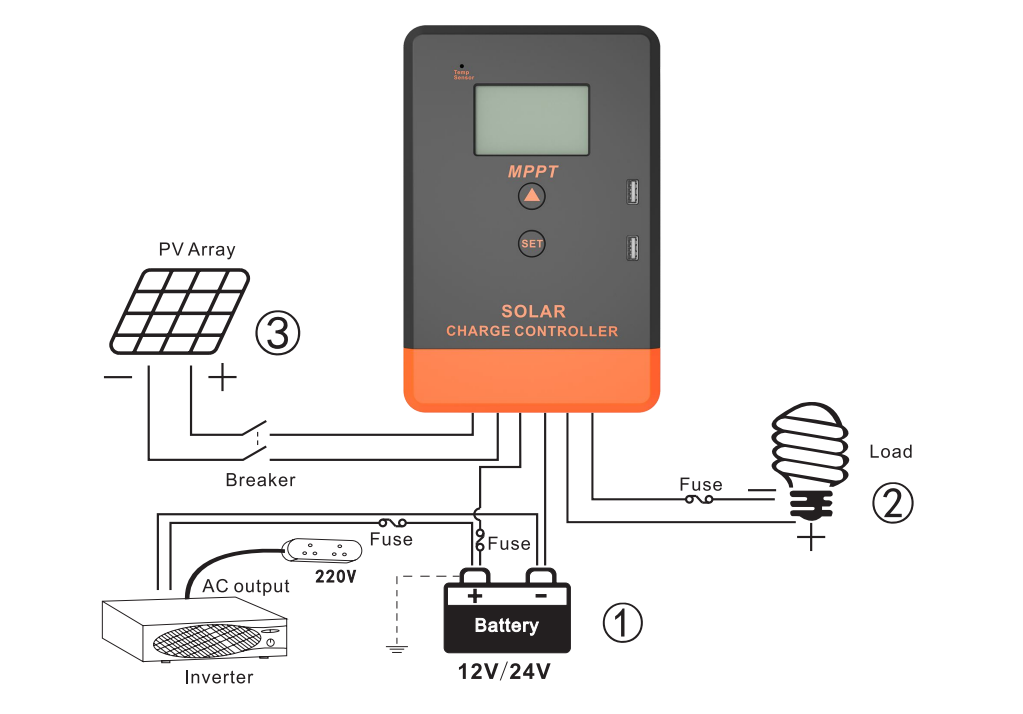

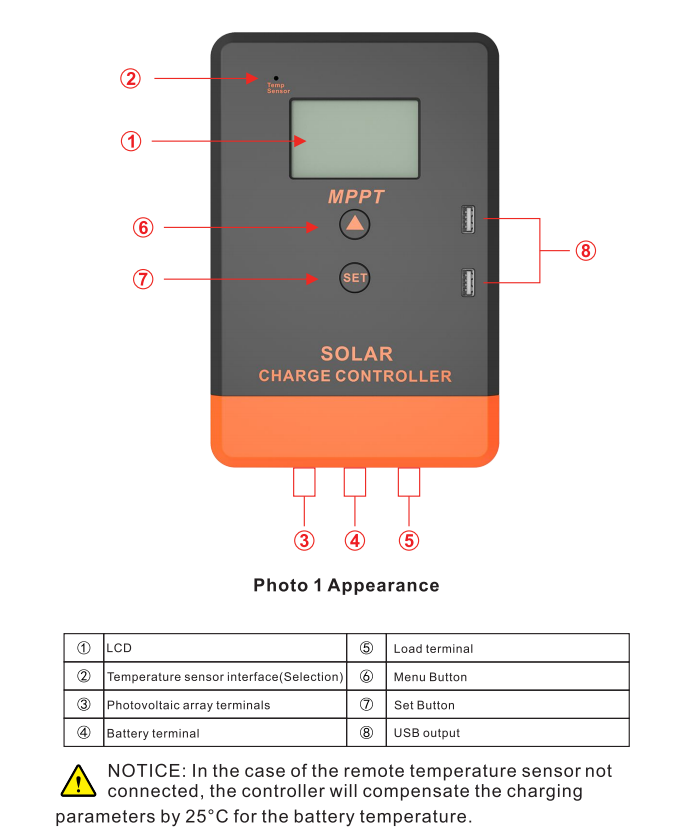

Solar Charge Controller Connection Diagram

Features

12V/24V automatic voltage recognition.
Compatible with multiple battery types: GEL, SLD, FLD, and LiFePO4 lithium batteries.
Multiple load control modes: General mode, Light control mode, Light & Time control mode, and Reverse Light Control Mode.
Equipped with battery temperature compensation function.
Ultra-fast maximum power point tracking speed while ensuring tracking accuracy.
Two 5V/1A USB ports can provide power for mobile devices.
The LCD screen dynamically displays the device’s operating data and working status.

Product Parameters

Controller Model	POW-Keeper1220	POW-Keeper1230	POW-Keeper1240
Rated charging current	20A	30A	40A
System rated voltage	12/24V (Auto recognized)
Voltage range of the battery	8~32V
Max. open voltage of PV module	<60V	<75V	<100V
Battery type	User-define, Sealed, Flooded, GEL, LiFePO4
Light control voltage	5V/10A
LCD Temperature	-20°C ~ +70°C
Operating Temperature	-20°C ~ +55°C
Working humidity	≤ 90% No condensation
Protection class	IP30
Dimension	12317848mm	13519555mm	15022067mm

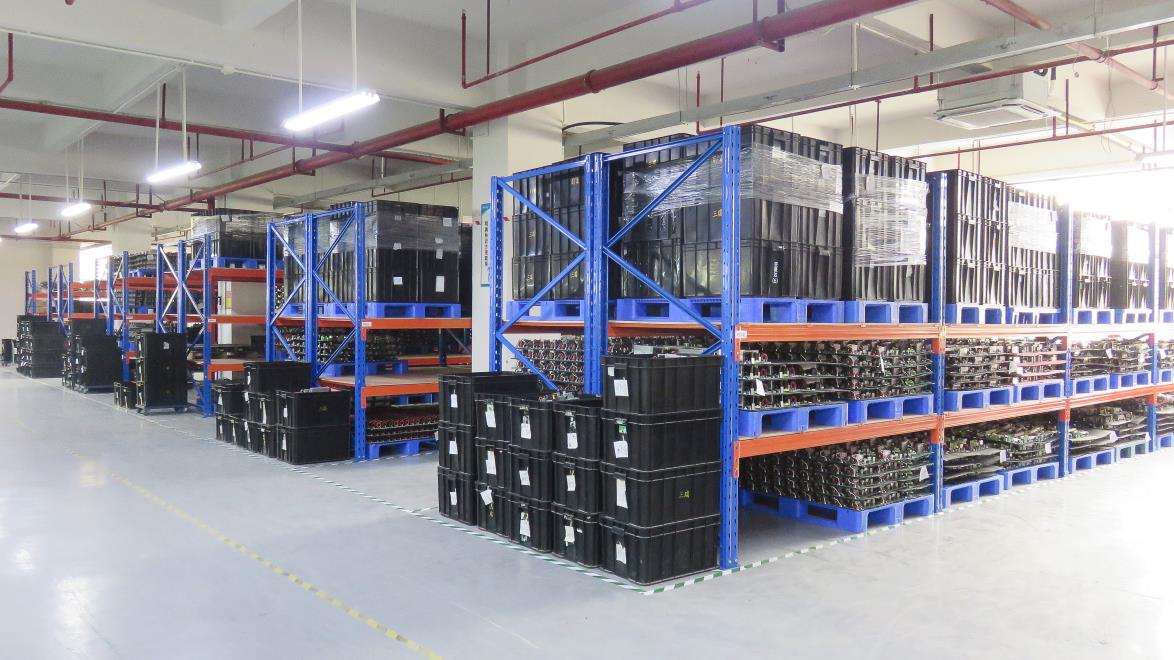

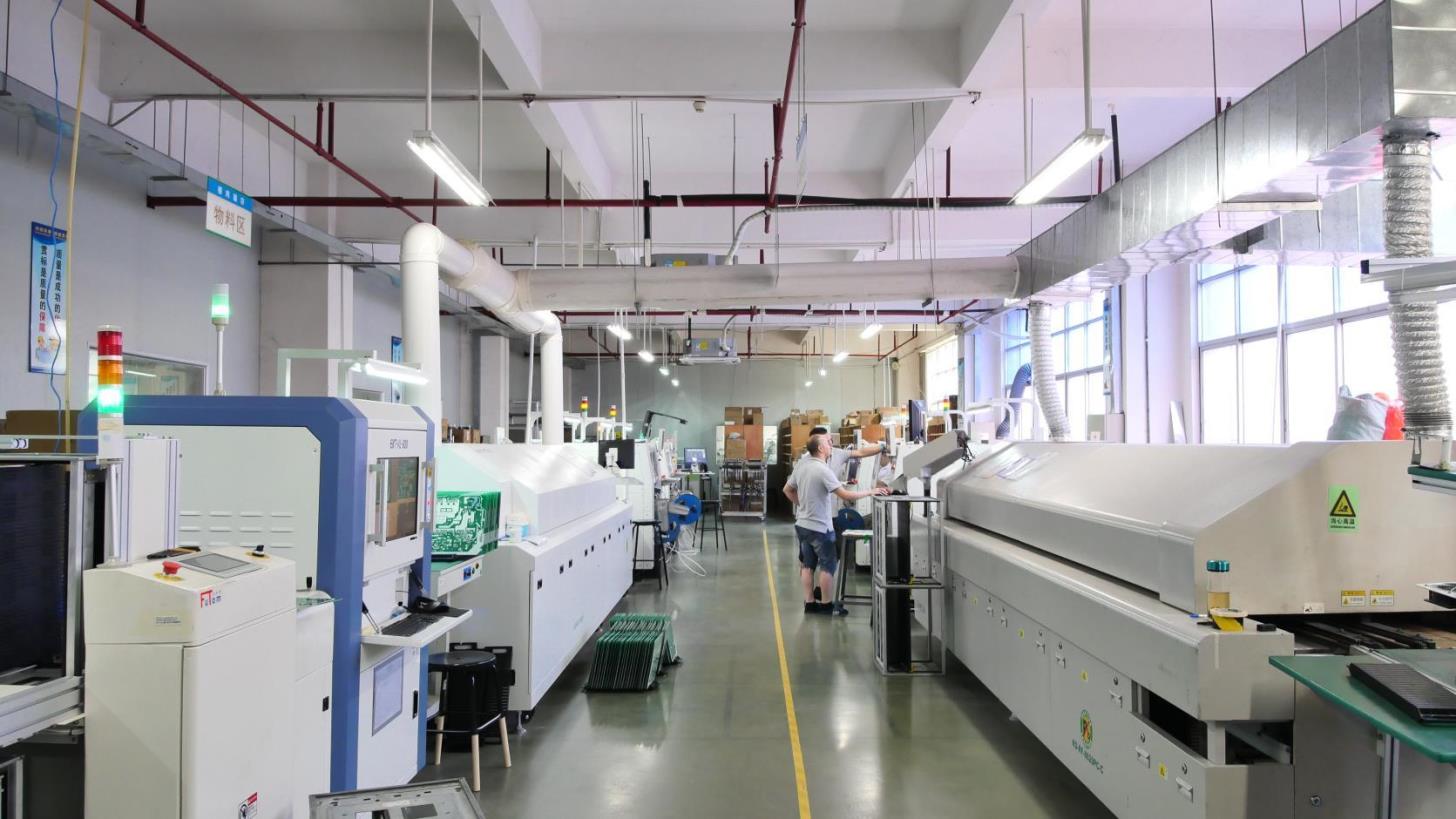

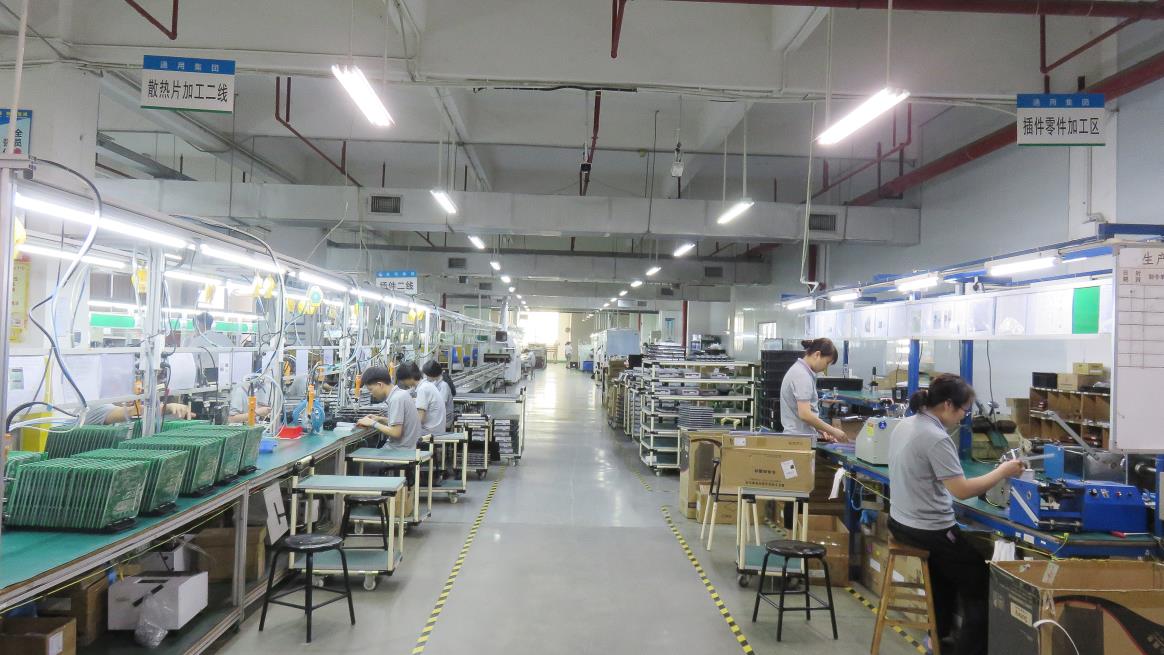

Facility & Production

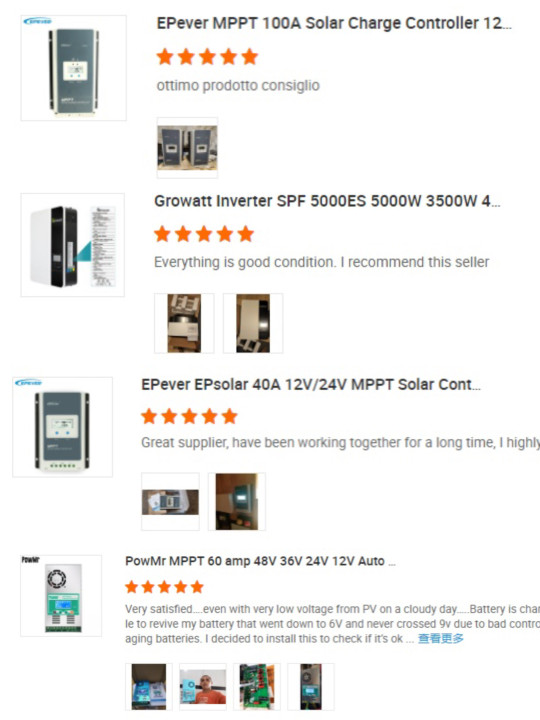

Recommend Products

Frequently Asked Questions

Q1How to install and use the solar inverter?

We have English teaching manuals and videos. All videos covering assembly, disassembly, and operational steps will be provided to guide you through the process.

Q2What if I don't have export experience?

We work with reliable shipping agents who can deliver items directly to your doorstep via sea, air, or express delivery. We will assist you in selecting the most suitable shipping solution.

Q3What is the monthly production capacity?

Our monthly production capacity is approximately 20,000 to 30,000 pieces.

Q4How is your technical support structured?

We provide lifetime online support. Should you encounter any issues post-delivery, we are available to offer assistance and troubleshoot via online video calls at your convenience.

Q5How can I make sure it is a secure transaction?

All transactions can be processed through secure platforms that protect buyers' interests, ensuring that your payments remain safe and guaranteed throughout the order fulfillment process.

Q6Can you customize the solar inverter for us?

Yes, we support customization options including brand name application, machine outer casing color selection, and unique customized patterns.
