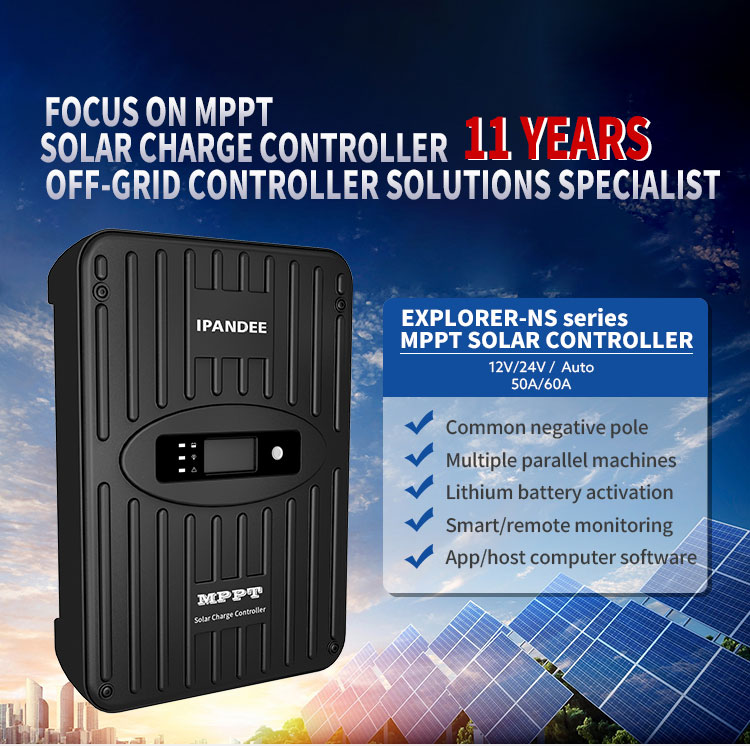

| Explorer-NS series | NS24L30 | NS24L40 | NS24H50 | NS24H60 | ||
| Product Category | MPPT efficiency | 99.5% | ||||
| Standby power | 1W-1.8W | |||||
| Heat-Dissipating method | All aluminum alloy shell self-heating | |||||
| Battery system | 12V System: 9VDC-15VDC 24V System: 18VDC-30VDC |
|||||
| Settable lithium-ion battery system | 8VDC-30VDC | |||||
| Input characteristics | Max.PV input voltage(Voc) | 100VDC | 150VDC | |||
| Min.Vmpp Voltage | Battery voltage + 2V | |||||
| start charging voltage | Battery voltage + 3V | |||||
| Start-up charging voltage | Battery voltage + 2V | |||||
| Low input voltage protection | 100VDC/95VDC | 150VDC/145VDC | ||||
| Rated input | 12V Lead acid battery system | 420W | 560W | 700W | 840W | |
| 24V Lead acid battery system | 840W | 1120W | 1400W | 1680W | ||
| Lithium-ion battery system | 432W-864W | 576W-1152W | 720W-1440W | 864W-1728W | ||
| Charging characteristics | Activation for lithium battery | Standard | ||||
| Battery types | Sealed(SEL), Gel(GEL), Flooded(FLD), User-defined(USER) AGM, LiFePO4 (4 Strings / 7 Strings / 8 strings), Ternary lithium battery (3 Strings / 6 strings / 7 strings), Custom lithium ion battery (Lit) | |||||
| Rated charge current | 30A | 40A | 50A | 60A | ||
| Temperature compensation | -3mV/°C/2V | |||||
| Charge method | 3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge) | |||||
| Output voltage stability accuracy | ≤±0.2V | |||||
| Load characteristics | Load voltage | Same as battery voltage | ||||
| Rated load current | 20A | 30A | ||||
| Load control mode | On/Off, PV voltage control mode, Dual-time control mode, PV + Time control mode | |||||
| Low voltage protection | Settable | |||||
| Setting method | PC software / APP / Controller | |||||

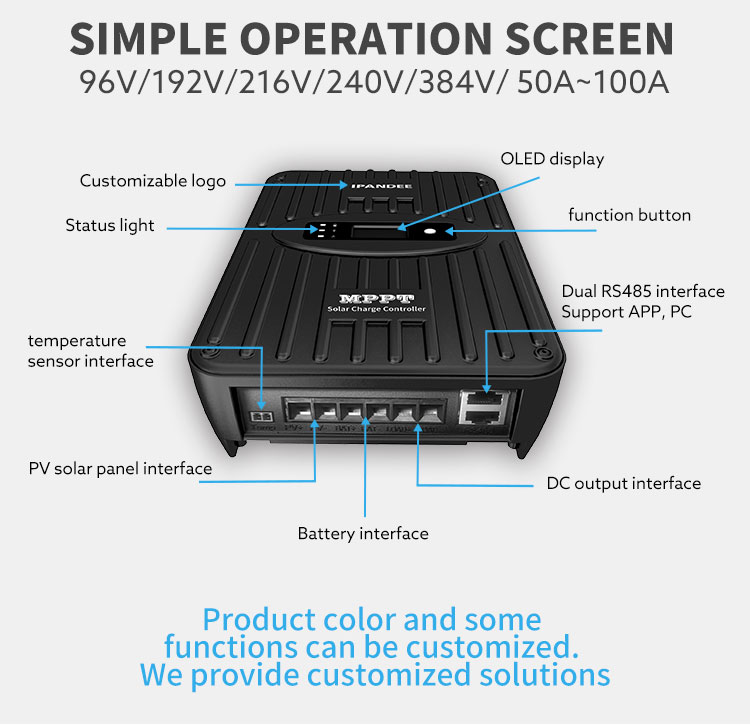

| Display & Communication | Display | Blue OLED display | ||||
| Communication | Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized parallel monitoring | |||||
| Other properties | Protections | Input & output over-volt / low-voltage protection, reverse polarity protection, over-heating protection, battery shedding protection etc. | ||||
| Operating ambient temperature | -20℃ ~ +50℃ | |||||
| Storage temperature | -40℃ ~ +75℃ | |||||
| IP(Ingress protection) | IP21 | |||||
| Altitude | 0-3000m | |||||
| Max. connection size | 28mm² | |||||
| Recommended breaker | ≥63A | ≥63A | ≥100A | ≥100A | ||
| Net Weight/Gross Weight (kg) | 1.5/1.9 | 2.2/2.6 | ||||

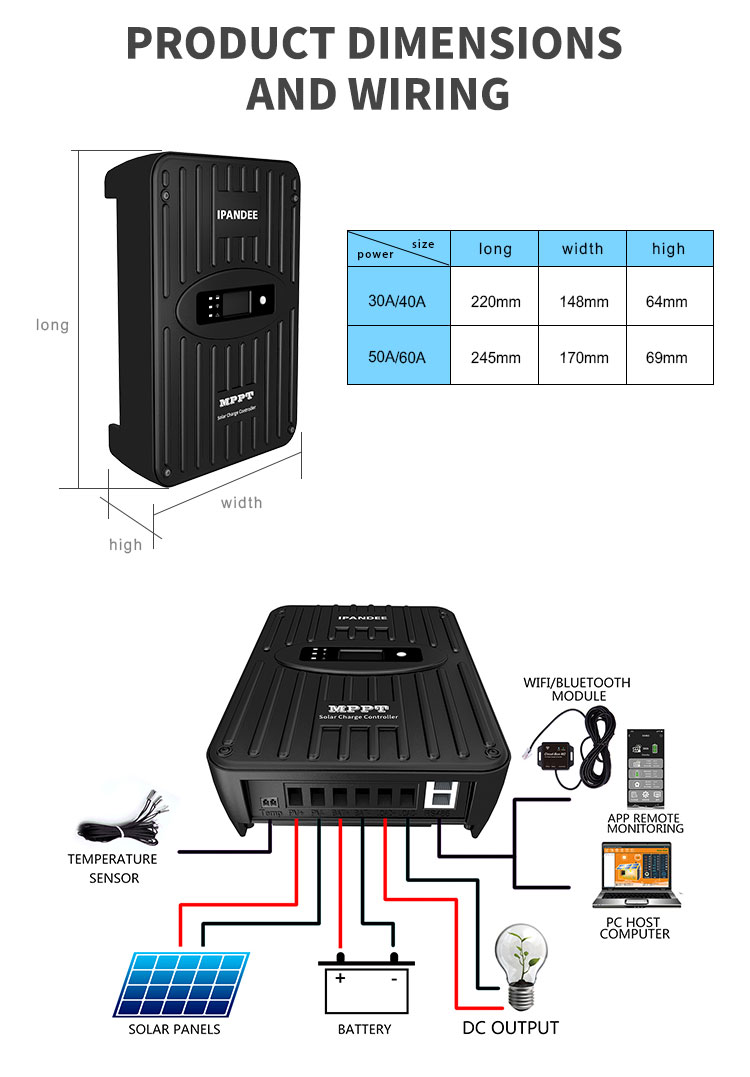

| Product size /Packing size (mm) | 220x148x64 / 275x176x70 | 245x170x69 / 300x198x75 | ||||
