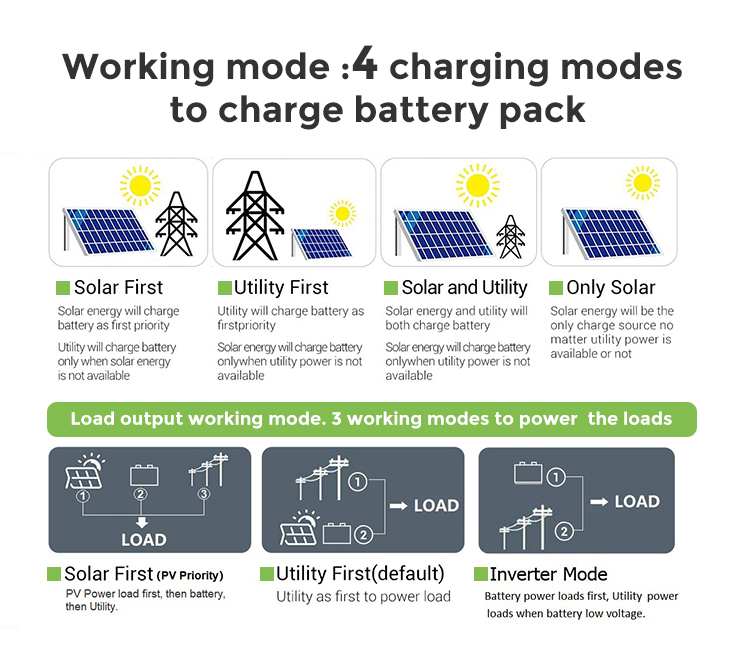

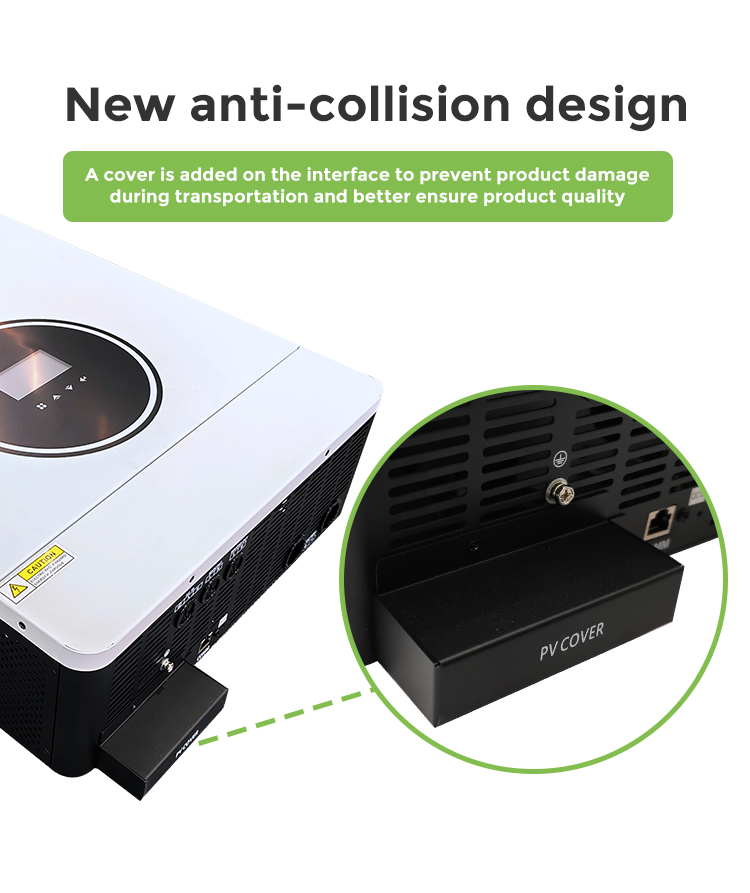

| MODEL | JSY-H2436E120-D | JSY-H4862E120-D |
|---|---|---|
| Maximum PV Input Power | 450VDC | |
| Rated Output Power | 3600W | 6200W |
| Maximum Solar Charging Current | 120A | |
| GRID-TIE OPERATION | ||
| PV Input(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |
| Maximum DC Voltage | 90~450VDC | |
| Number of MPPT Trackers/Maximum Input Current | 1/27A | |
| GRID OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Voltage Range | 195.5~253VAC | |
| Nominal Output Current | 15.7A | 30A |
| Power Factor | >0.99 | |
| Feed-in Grid Frequency Range | 49~51±1Hz | |
| EFFICIENCY | ||
| Maximum Conversion Efficiency | 98% | |
| TWO LOAD OUTPUT POWER | ||
| Full Load | 3600W | 6200W |
| Maximum Main Load | 3600W | 6200W |
| Maximum Second Load (battery mode) | 1200W | 2067W |
| Main Load Cut Off Voltage | 22VDC | 44VDC |
| Main Load Return Voltage | 27VDC | 54VDC |
| OFF-GRID OPERATION | ||
| AC INPUT | ||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |
| Maximum AC Input Current | 30A | 40A |
| Nominal operating frequency | 50/60Hz | |
| Surge power | 7200VA | 12400VA |
| BATTERY MODE OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Waveform | Pure sine wave | |
| Efficiency(DC to AC) | 94% | |
| BATTERY & CHARGER | ||
| Nominal DC Voltage | 24VDC | 48VDC |
| Maximum Charging Current(Solar to AC) | 120A | |
| Maximum AC Charging Current | 100A | |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 420*310*110 | |
| Net Weight (kgs) | 10 | 11 |
| INTERFACE | ||
| Communication Port | RS232/RS485/WIFI/GPRS | |
| ENVIRONMENT | ||
| Operating Temperature | -10~50°C | |

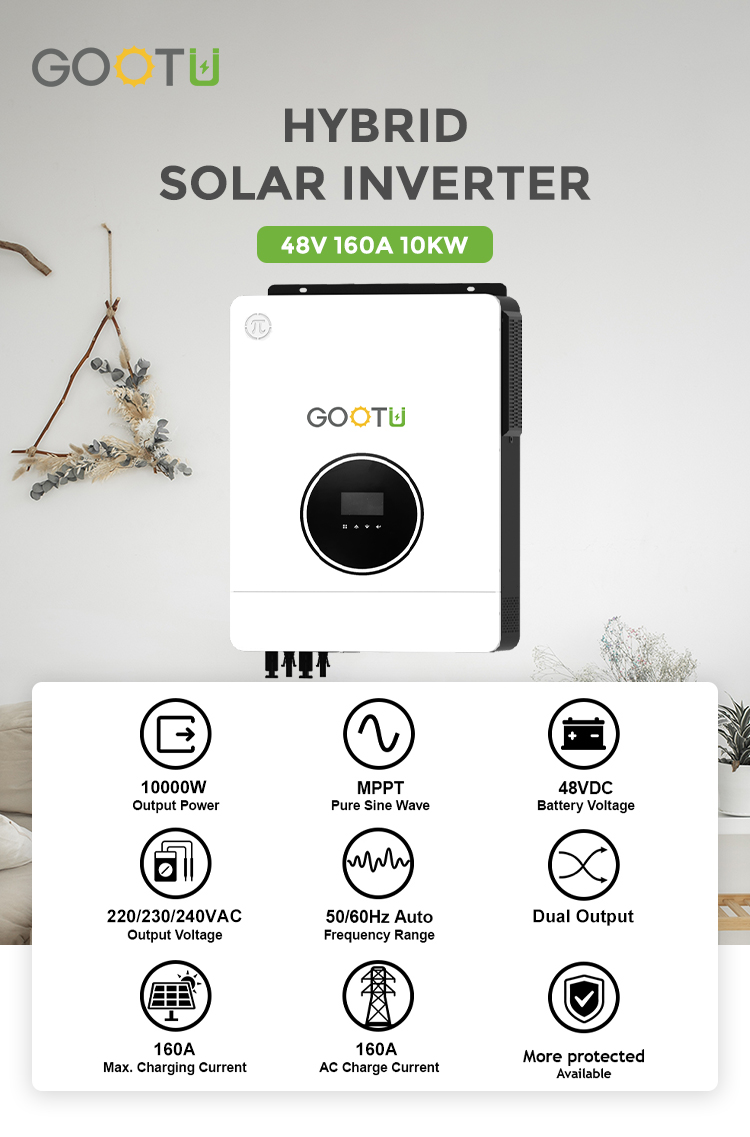

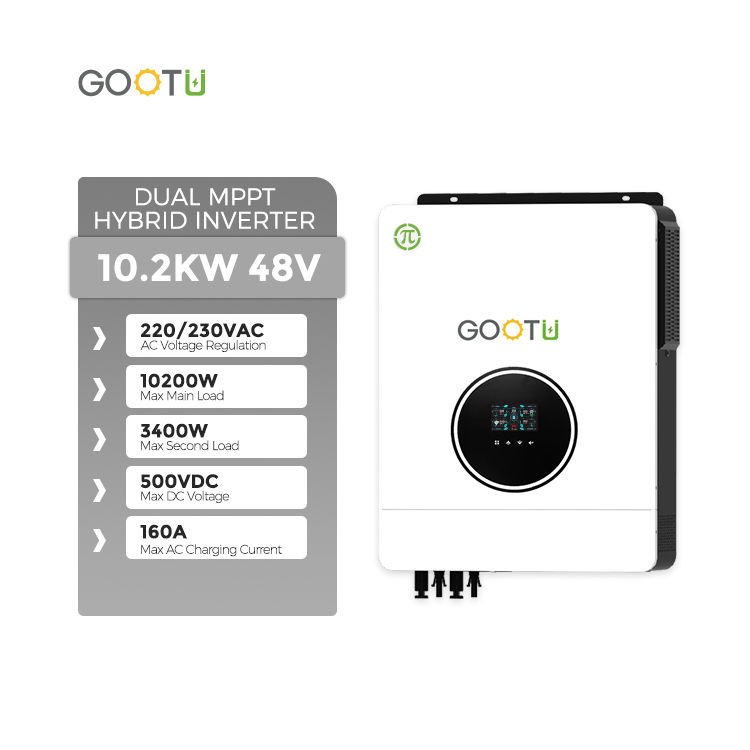

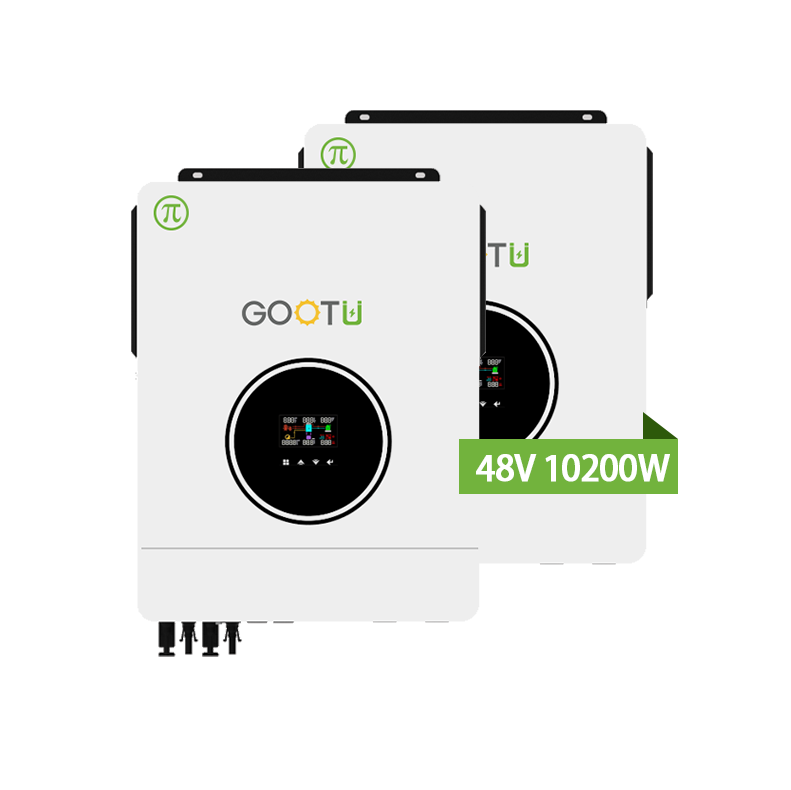

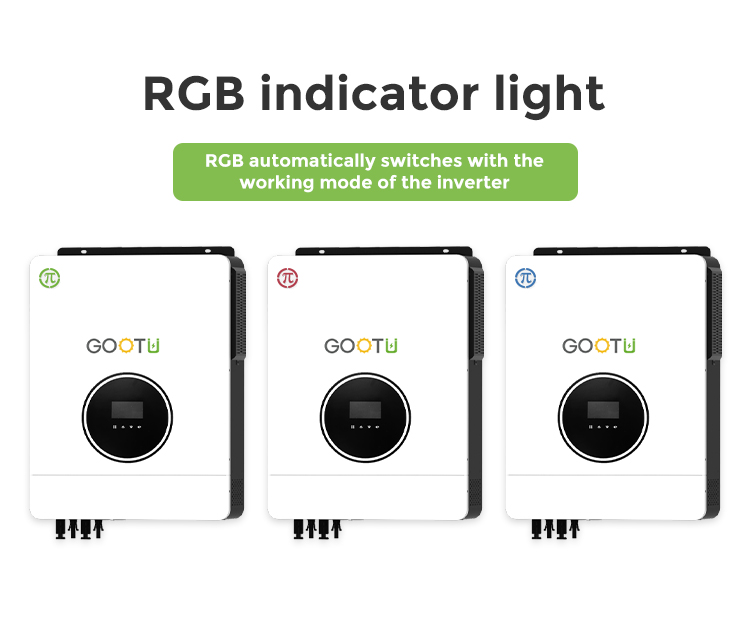

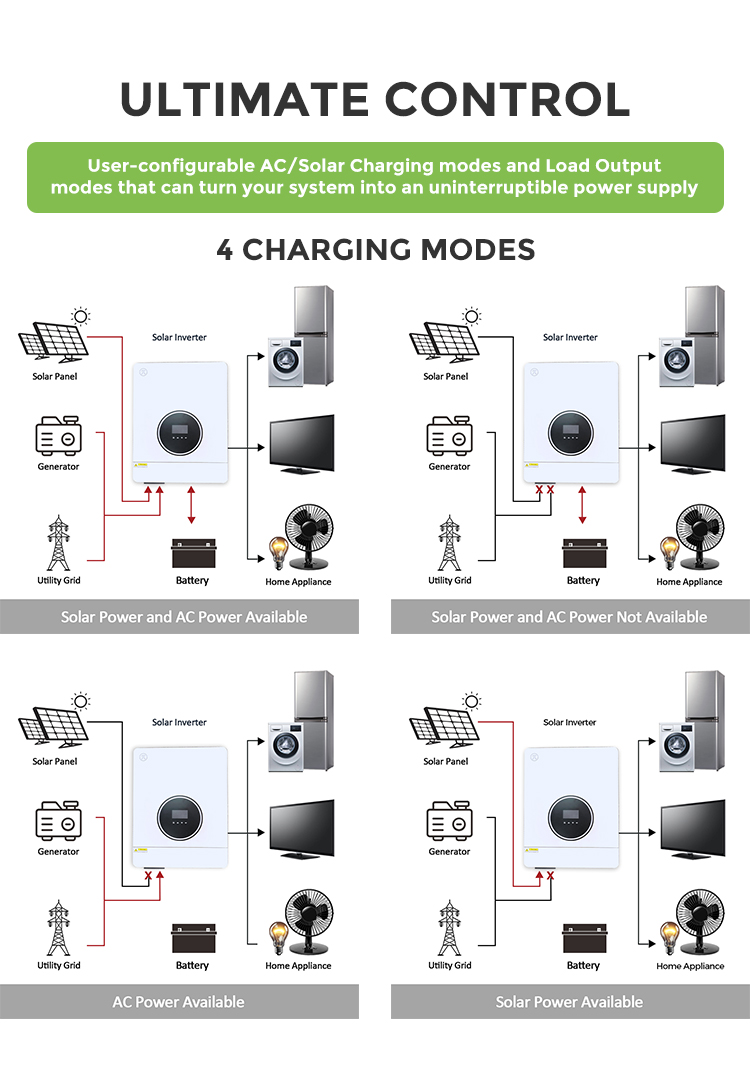

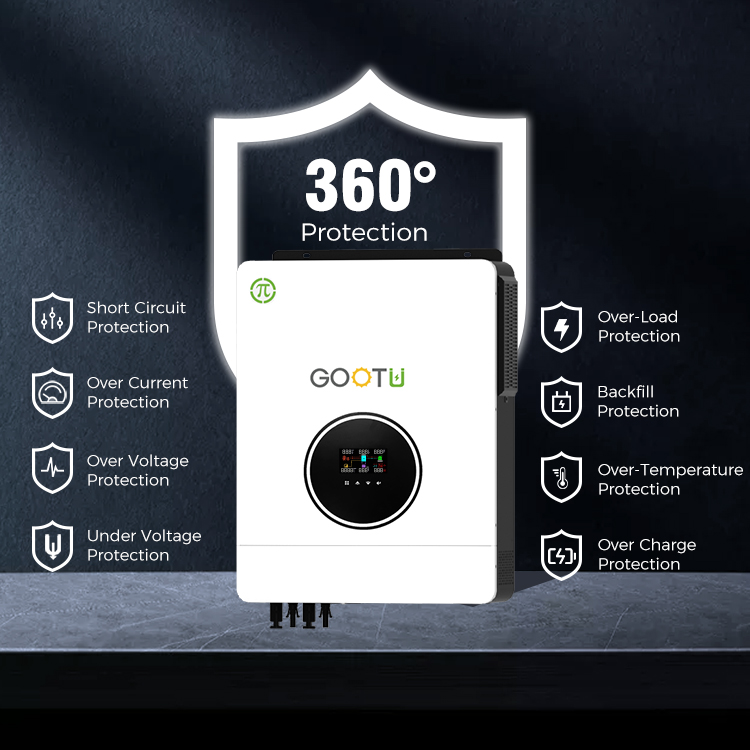

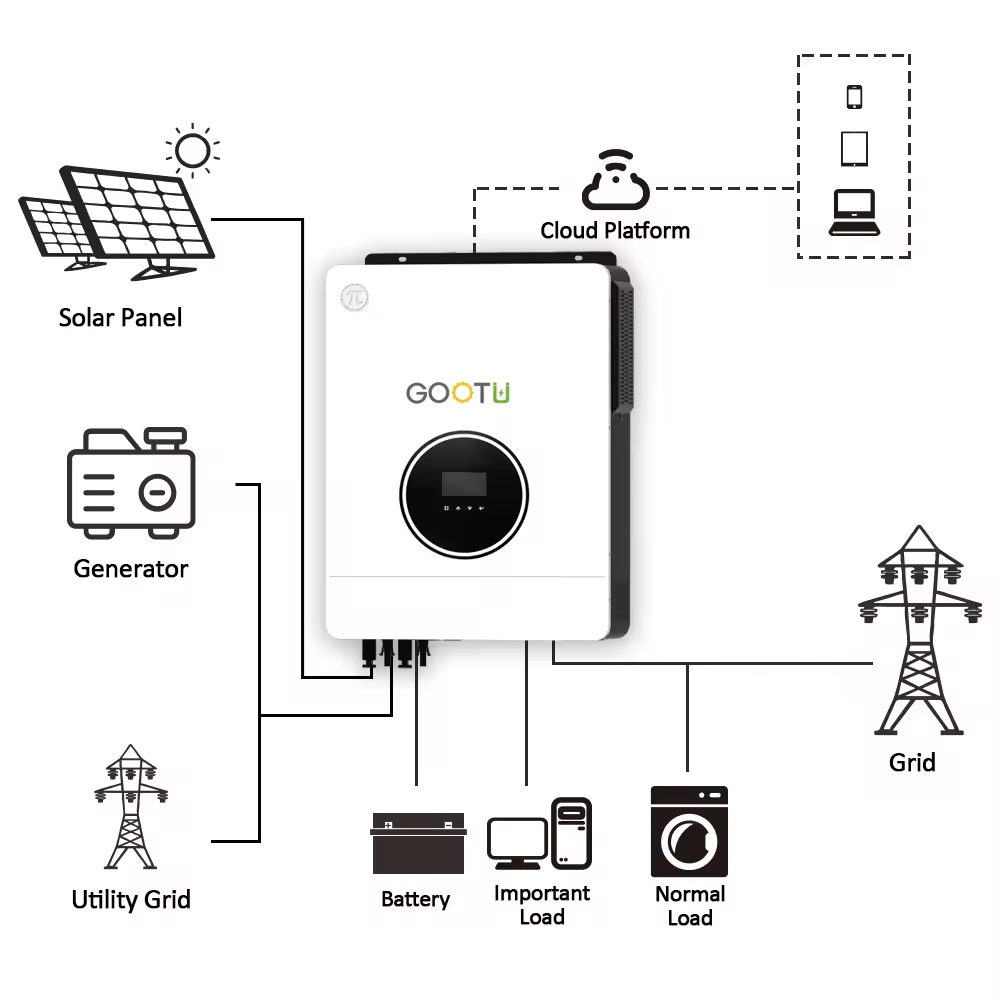

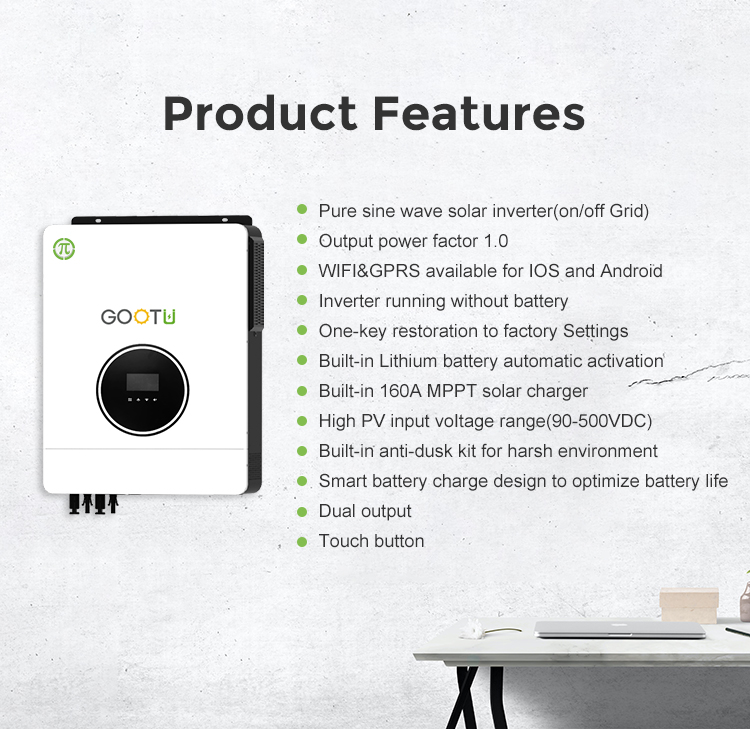

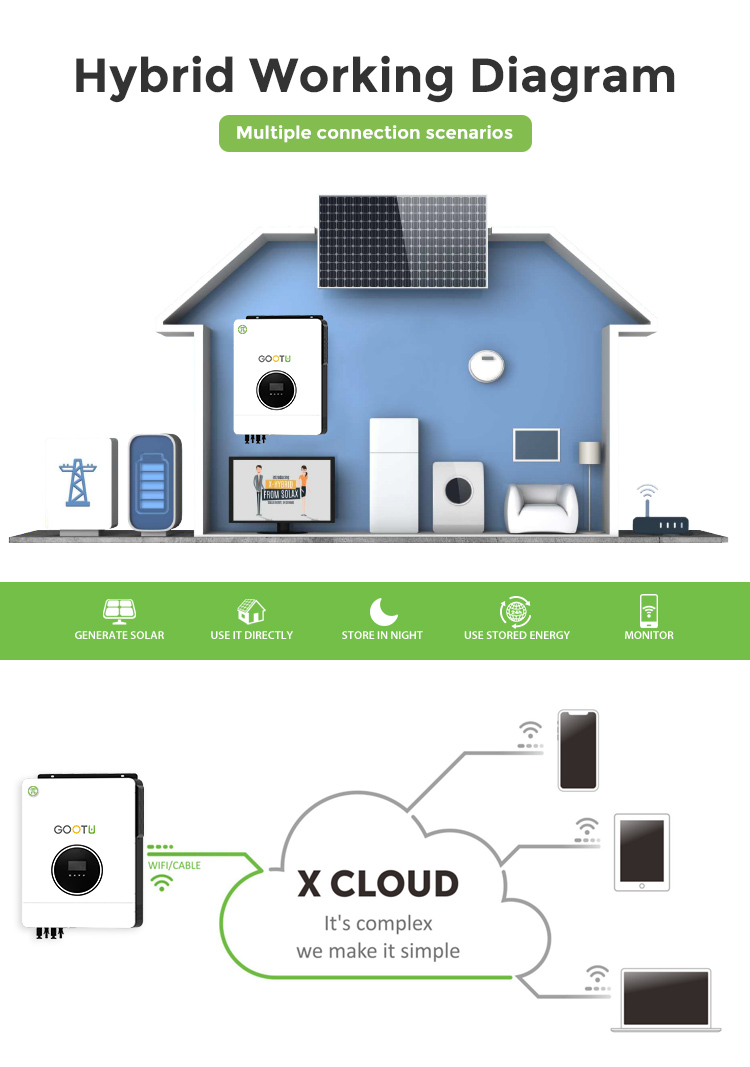

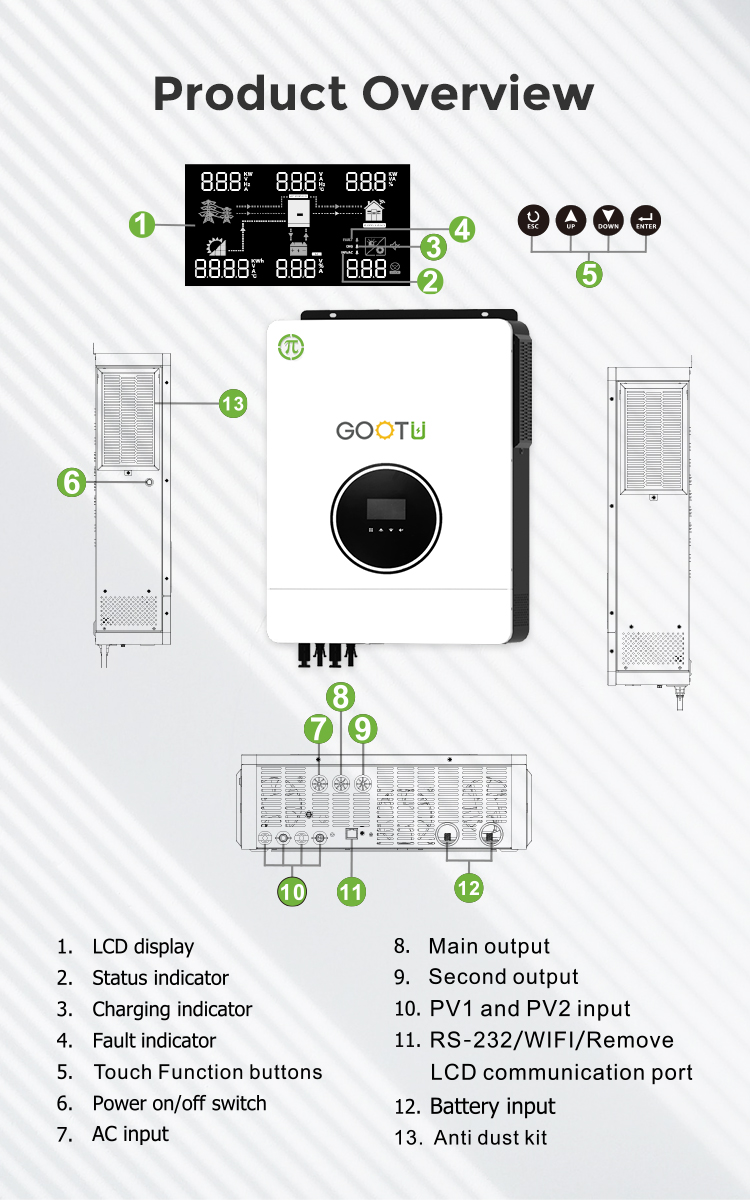

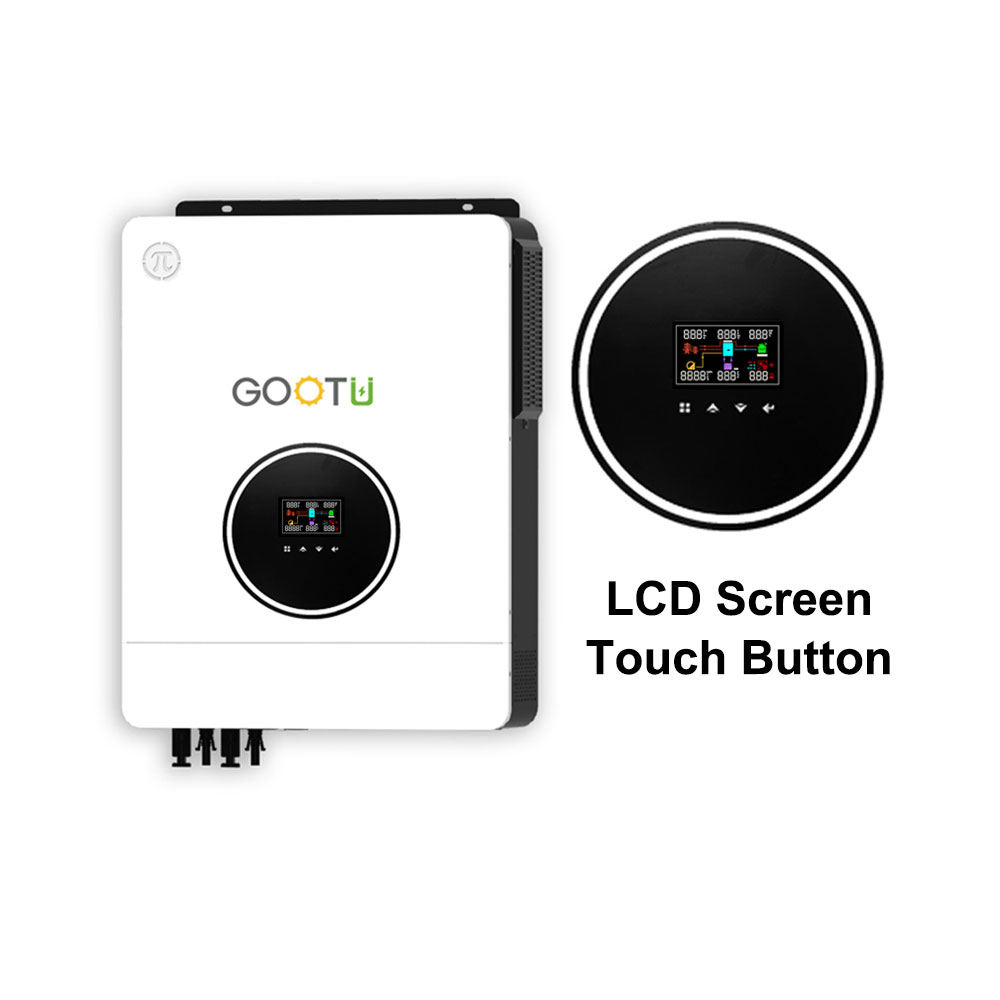

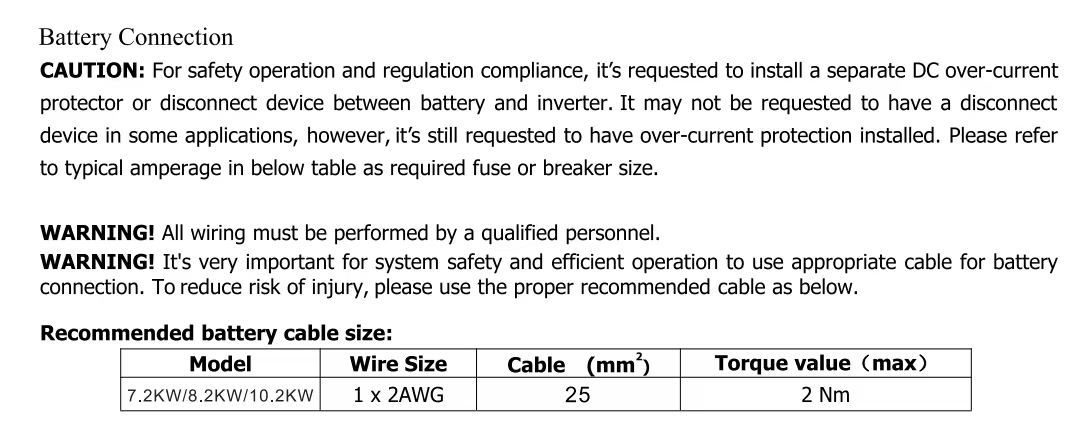

| Model | JSY-H4872E140-D | JSY-H4882E160-D | JSY-H48102E160-D |
|---|---|---|---|
| Rated Output Power | 7200W/7200VA | 8200W/8000VA | 10200W/10200VA |
| Max. PV Input Power | 8200W | 8200W | 10200W |
| Max. Solar Charging Current | 160A | 160A | 160A |
| Grid Tie Operation | |||
| PV Input(DC) | |||
| Normal DC Voltage / Max. DC Voltage | 360VDC/500VDC | ||
| Start-up Voltage / Initial Feeding Voltage | 90VDC/120VDC | ||
| MPPT Voltage Range | 90VDC~450VDC | ||
| Number of MPPT Tracker / Max. Input Current | 1/27A | ||
| Grid Output(AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Voltage Range | 195~253VAC | ||
| Nominal Output Current | 31.3A | 35.6A | 44.3A |
| Power Factor | >0.99 | ||
| Feed-in Grid Frequency Range | 49~51±1HZ | ||
| Efficiency | |||
| Max. Conversion Efficiency(DC/AC) | 98% | ||
| Two Load Output Power | |||
| Full Load | 7200W | 8200W | 10200W |
| Max. Main Load | 7500W | 8200W | 10200W |
| Max. Second Load (Battery Mode) | 2400W | 2733W | 3400W |
| Main Load Cut Off Voltage | 44VDC | 44VDC | 44VDC |
| Main Load Return Voltage | 48VDC | 48VDC | 48VDC |
| Off Grid Operation | |||
| AC Input | |||
| AC Start-up Voltage / Auto Restart Voltage | 120-140VAC/180VAC | ||
| Acceptable Input Voltage Range | 90-280VAC/170-280VAC | ||
| Max. AC Input Current | 40A | 40A | 50A |
| Nominal Operating Frequency | 50/60HZ | ||
| Super Power | 14400W | 16400W | 20400W |
| PV Input(DC) | |||
| Max. DC Voltage | 500VDC | ||
| MPPT Voltage Range | 90VDC~450VDC | ||
| Number Of MPPT Tracker/Max. Input Current | 1/27A | ||
| Battery Mode Output(AC) | |||
| Normal Output Voltage | 48VDC | ||
| Output Waveform | Pure Sine Wave | ||
| Efficiency(DC to AC) | 94% | ||
| Battery & Charger | |||
| Nominal DC Voltage | 48VDC | ||
| Max. Solar Charging Current | 160A | 160A | 160A |
| Max. AC Charging Current | 120A | 140A | 140A |
| Physical | |||
| Product Dimension | 420*310*110mm | ||
| Carton Dimension | 588*463*205mm | ||
| Net Weight | 14.2KGS | 14.2KGS | 14.5KGS |
| Gross Weight | 15.7KGS | 15.7KGS | 16KGS |
| Interface | |||
| Communication Port | RS232 / WIFI / RS485 /GPRS | ||
| Environment | |||
| Operating Temperature | -10~50°C | ||
