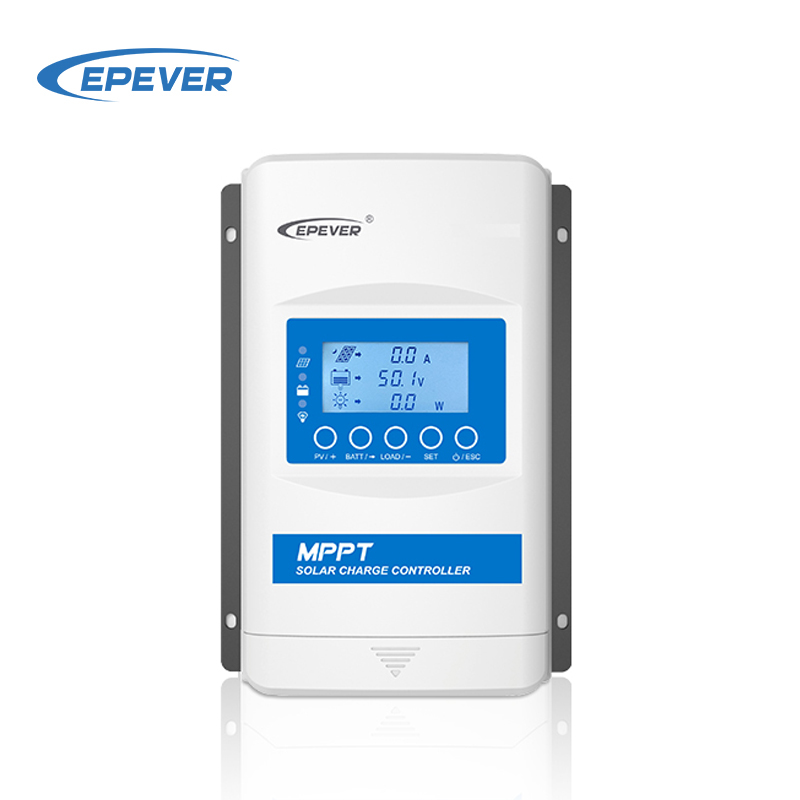

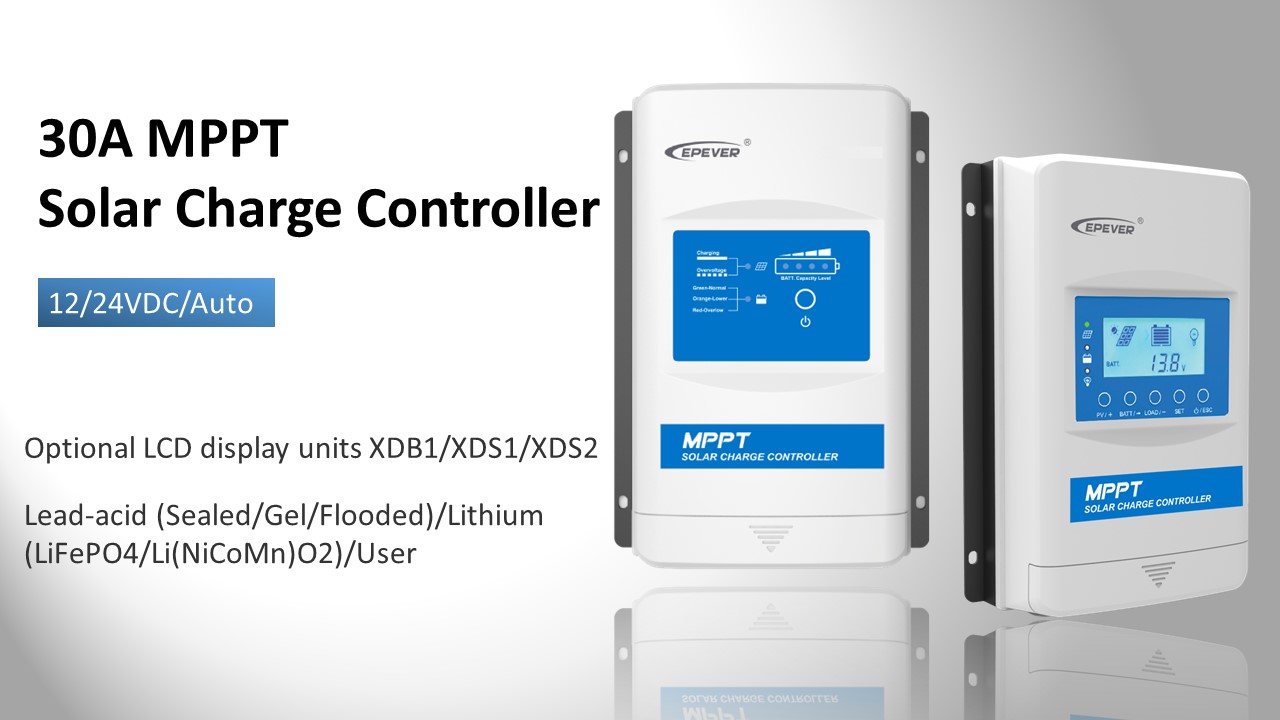

| Model | XTRA 3210N |
| Nominal system voltage | 12/24VDC/ Auto |

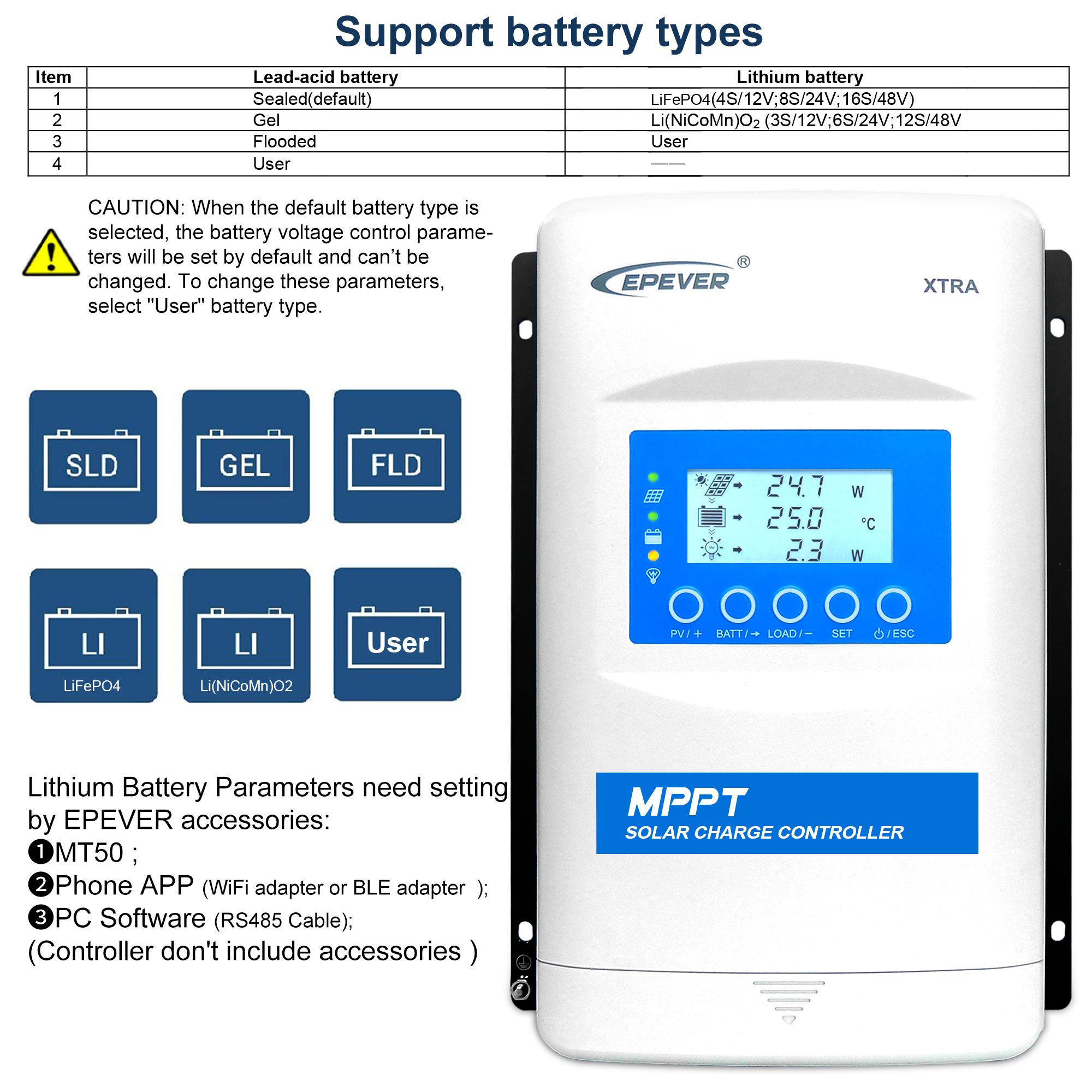

| Battery type | Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User |
| Battery input voltage range | 8~32V |
| Rated charge current | 30A |
| Rated discharge current | 30A |
| Rated charge power | 390W/12V 780W/24V |
| Max. conversion efficiency | 98.60% |
| Tracking efficiency | ≥99.5% |
| Max. PV open circuit voltage | 100V (At minimum operating environment temperature) 92V (At 25°C environment temperature) |
| MPP voltage range | (Battery voltage+2V) ~72V |
| Equalization voltage | Sealed:14.6V,Flooded:14.8V,User-defined:9-17V |
| Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V |
| Float voltage | Gel/Sealed/Flooded:13.8V,User-defined:9-17V |
| Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V,User-defined:9-17V |
| Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V,User-defined:9-17V |
| Self-consumption | ≤30mA(12V) ≤16mA(24V) |
| Temperature compensation (for lead-acid battery) | -3mV/°C/2V (Default) |
| Relative humidity | ≤95%, N.C |
| Enclosure | IP33 |
| Communication interface | RS485(RJ45) |
| Grounding | Common negative |
| Operating temperature range | -25°C~+50°C (LCD); -30°C~+50°C (No LCD) |
| Dimensions(LxWxH)(mm) | 230×165×63 |
| Net weight | 1.31kg |
Note 1: The controller cannot automatically identify system voltage if lithium batteries are connected.
Note 2: The voltage point is for a 12V system. Please multiply by 2 for a 24V system, multiply by 3 for a 36V system, and multiply by 4 for a 48V system.

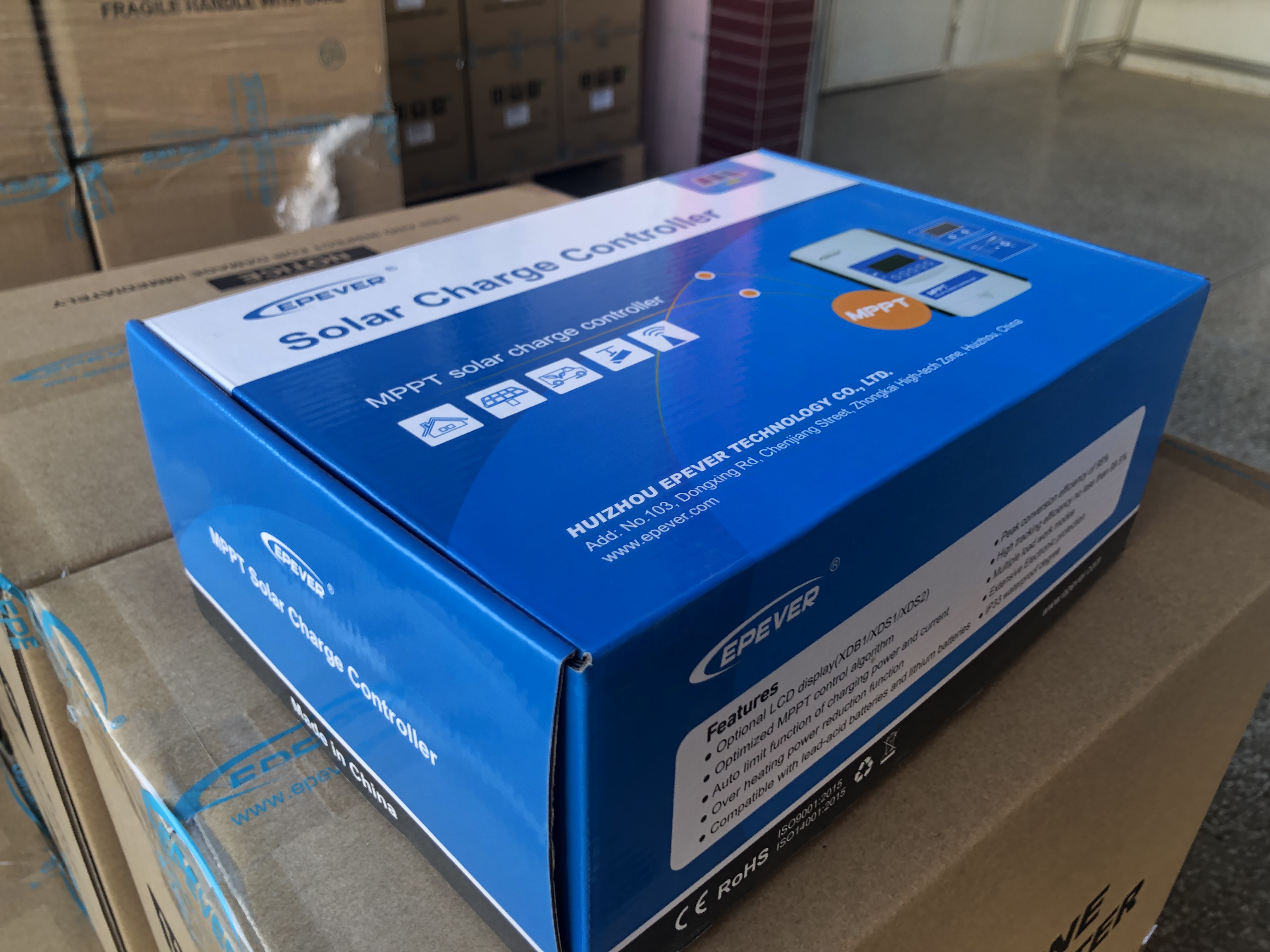

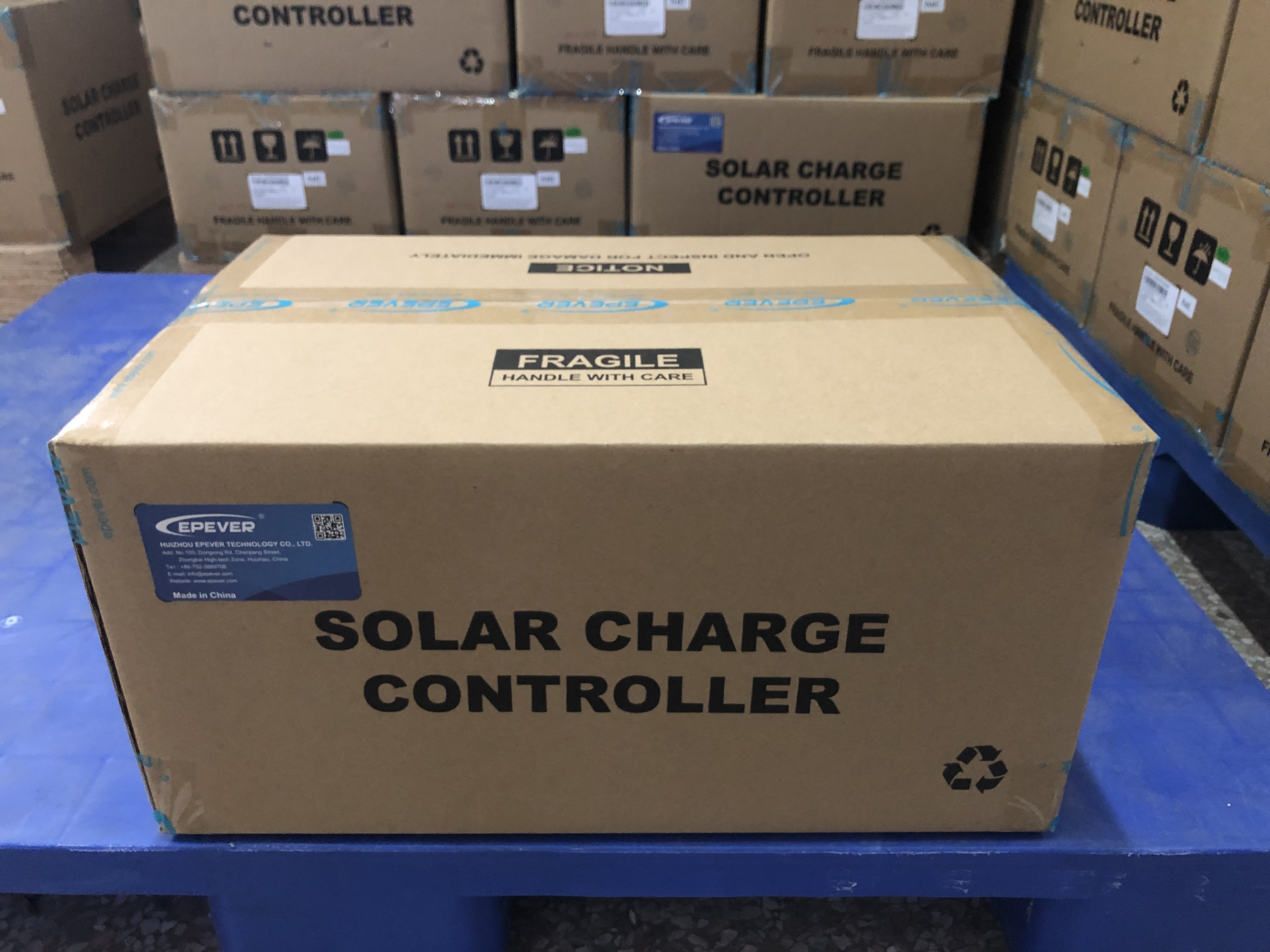

12PCS/CARTON
Weight: 19.3 KGS/CARTON
Dimensions: 52.5 * 37.5 * 27.5 CM
Welcome to Inquiry for Technology Info and Factory Price.
Since 2007, the manufacturer has been at the forefront of the solar industry, providing innovative tools for efficient and reliable energy harvesting from the sun. The focus centers on pioneering technologies that make solar power accessible everywhere.
Product Portfolio: Solar Charge Controllers (MPPT and PWM), Inverters and Inverter Chargers, Lithium Batteries and Energy Storage.
Global Reach & Distribution: Supported by over 120 partners worldwide, aiming to ensure that every individual and community can utilize solar energy to its fullest potential.

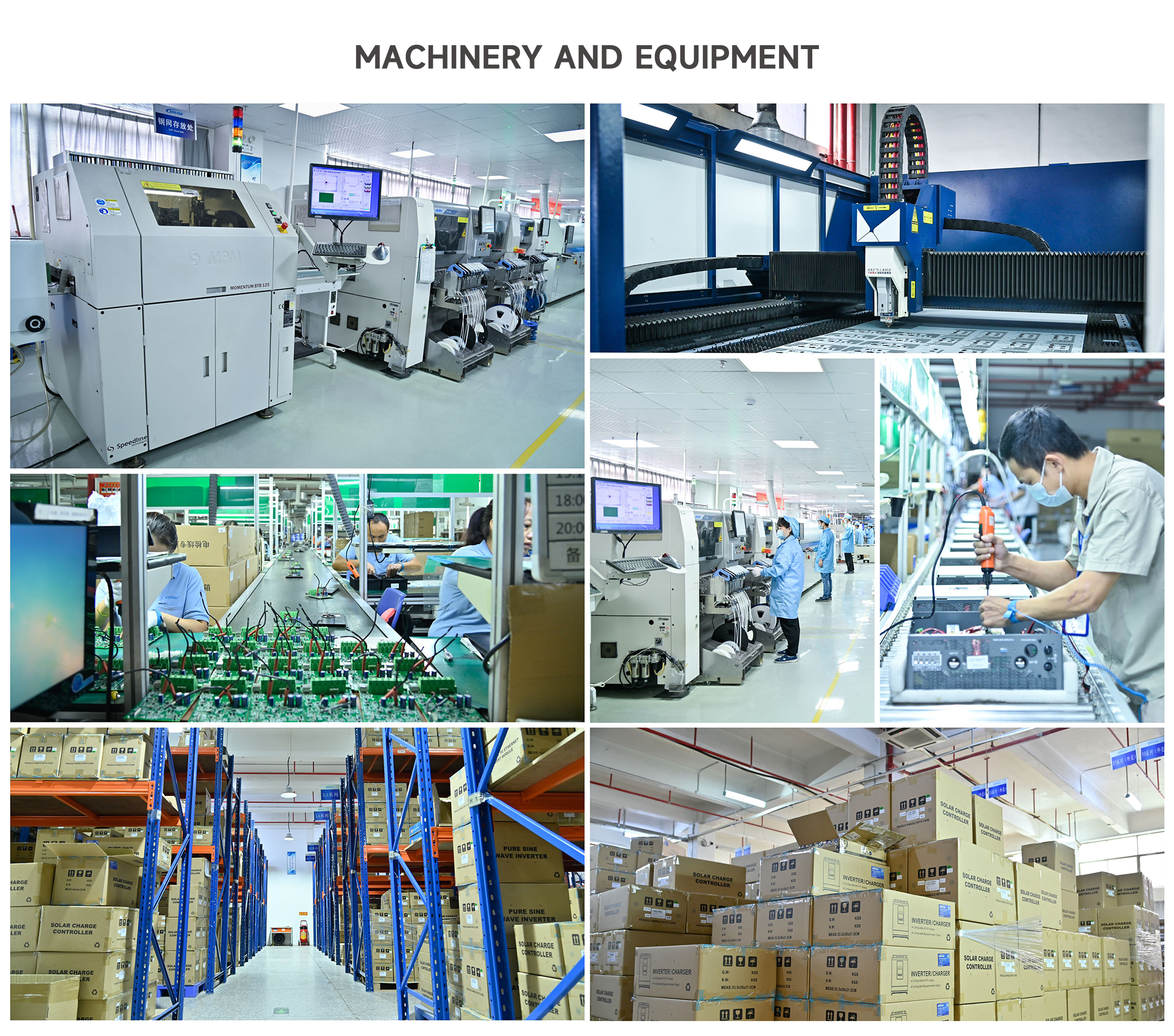

Quality & Standards: Products are manufactured according to strict international quality standards, backed by certifications including ISO9001, ISO14001, and ISO45001, alongside compliance approvals for CGC-SOLAR, CE, ROHS, FCC, ETL, and UL.
