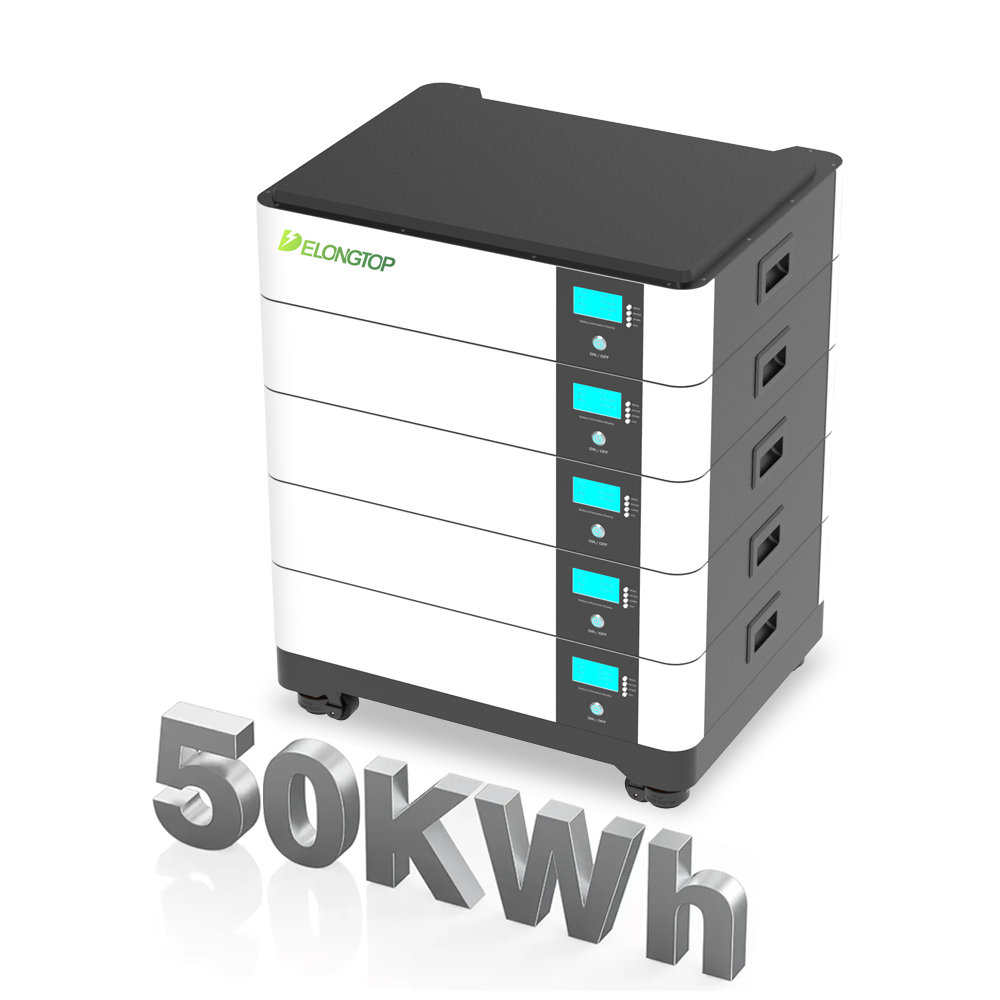

All In One Stacked Lifepo4 Battery Solar Energy Storage Power System Home 48v 51.2v 50kwh Stacked Lifepo4 Battery

Product Description

Certifications
Certifications Grid
Products Description
All In One Smart Communication Function
SUPPORT ALL IN ONE SMART COMMUNICATION FUNCTION

Our BMS is a complete set of communication functions, supporting RS485, RS232 and CAN-BUS communication protocols.

We can also customize the communication content according to the protocol information which customers provide. Customers can through the host computer software to monitor the batteries, and check the working status of each cells and set specific parameters on the computer.

WHAT BATTERY CELL WE USE:

As a over 10-year-old store engaged in the battery business, we are responsible for our customers and our brand. Using only A grade cells, the cycle life can up to 6000-8000 times: 10AH/ 25AH/ 30AH/ 50AH/ 100AH/ 200AH...

  • Our batteries are the primary source of supply from the original cells manufacturer, battery cells are paired and distributed before outgoing, and can be assembled directly.
  • Through a number of certification and testing, quality assurance.
  • There are two types of pouch cells and prismatic cells. The pouch cells: lighter, cheaper, and easy to customized in special sizes. The prismatic cells: not easily deformed , stable performance, mature market, more popular at present.
Battery Cells Presentation
A Grade Lithium Cells Highlight

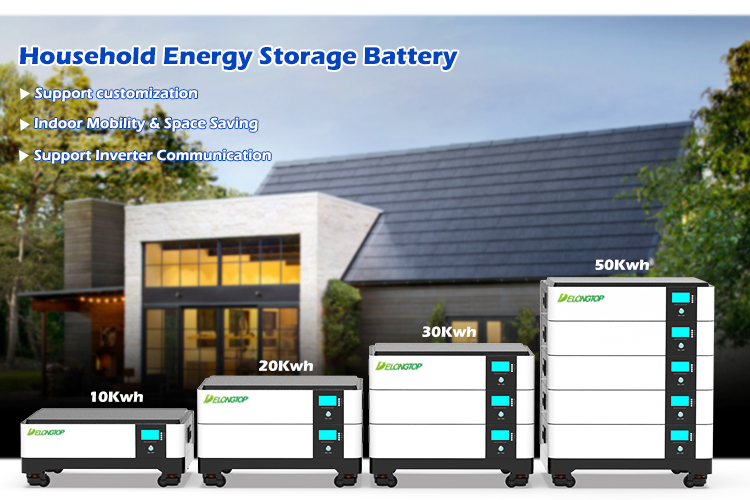

Cabinet View 1

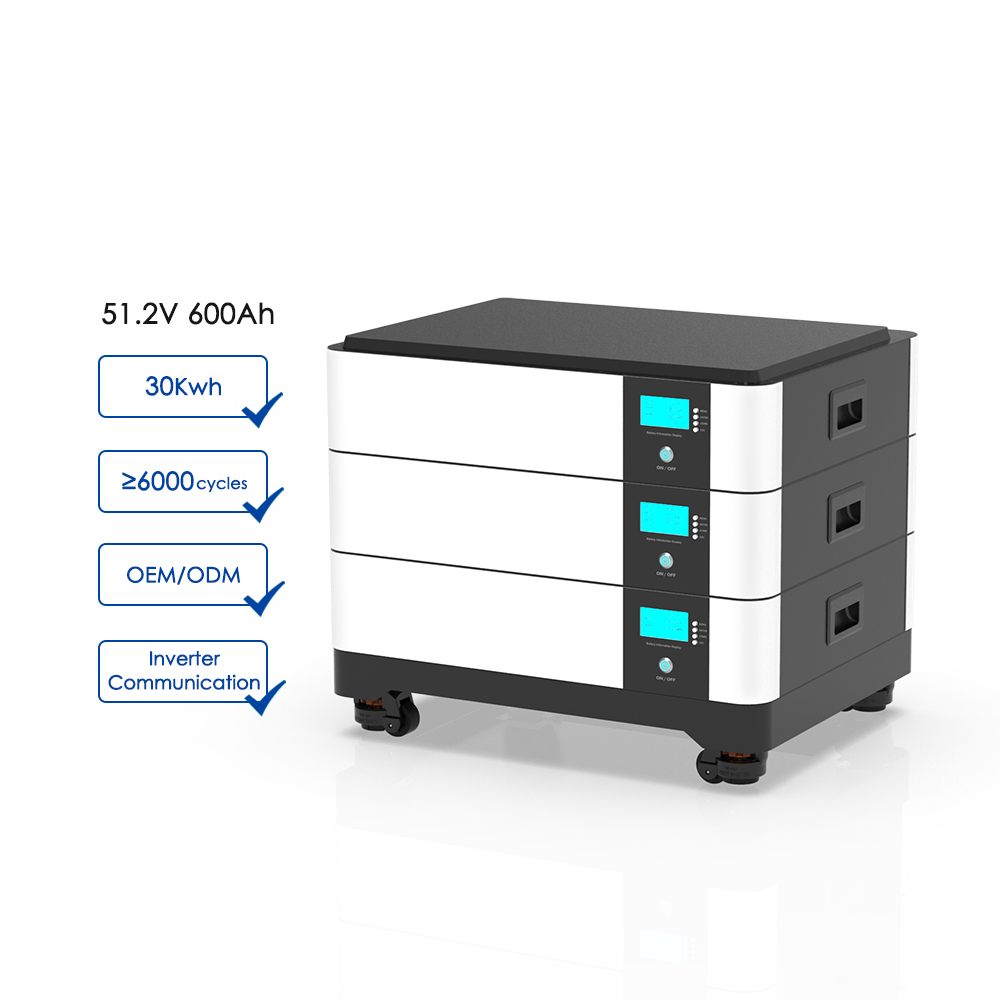

Cabinet View 2
Cabinet View 3
Cabinet View 4
Product Name Solar Energy Storage Battery Cabinet 10KWH 20KWH 30KWH 40KWH 50KWH 48V 51.2V Home Battery Power Energy Storage Bank

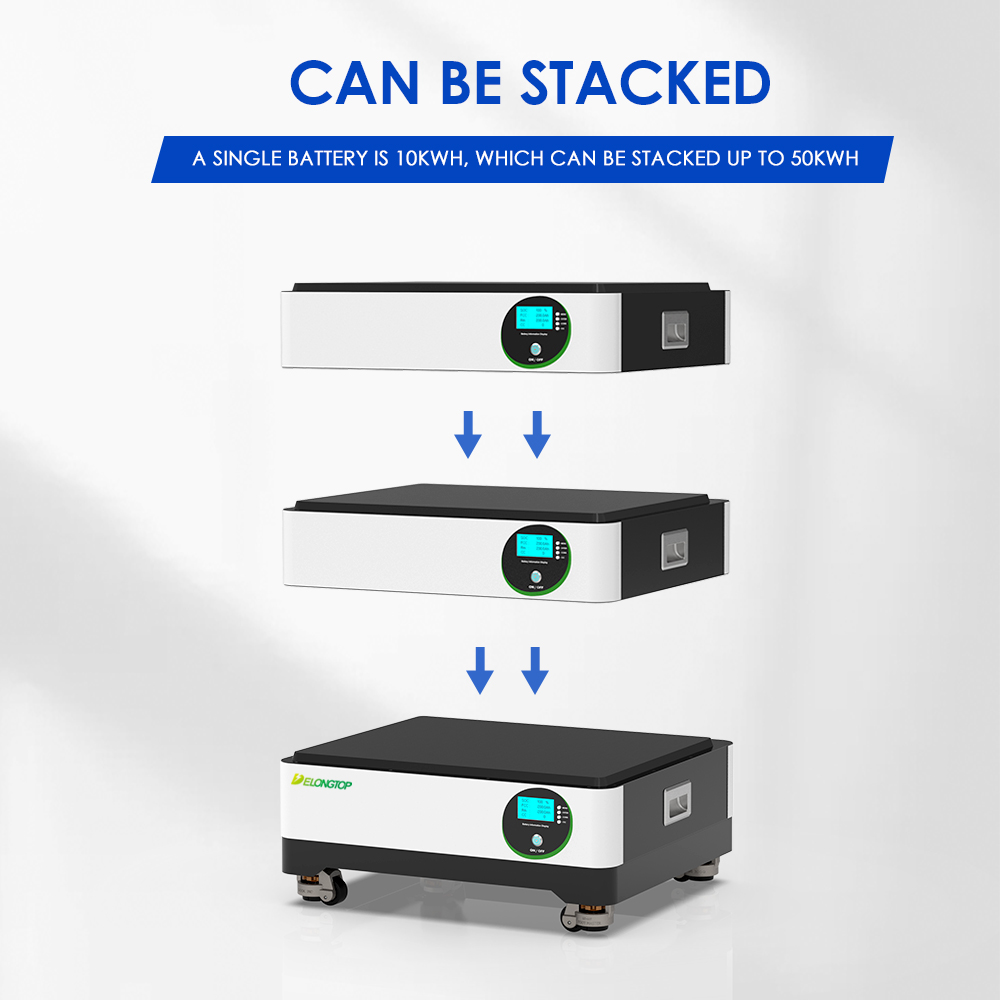

Free Stackable It can be stacked to 10KWH/ 20KWH/ 30KWH /40KWH/ 50KWH or more
Single Pack 51.2V 200AH 10KWH
Single Pack Specs
Nominal Voltage 51.2V
Nominal Capacity 200AH(10KWH)
Charge Cut-off 58.4V
Disharge Cut-off 38.4V
Max. Cont. Charge Current <100A
Max. Cont. Disharge Current 200A
Battery Cell Prismatic Cell 16S1P
Dimension Metal Case 690*590*280mm(with Pulley Base)
Weight 93KG
Cycle Life 6000+ times
BMS Built in smart BMS supported RS485/CAN/RS232 Communication function
LED Display Built accuracy power meter
Battery Case IP IP65
Accessories Pulley base, parallel cables, communication cables, user manual
Product images

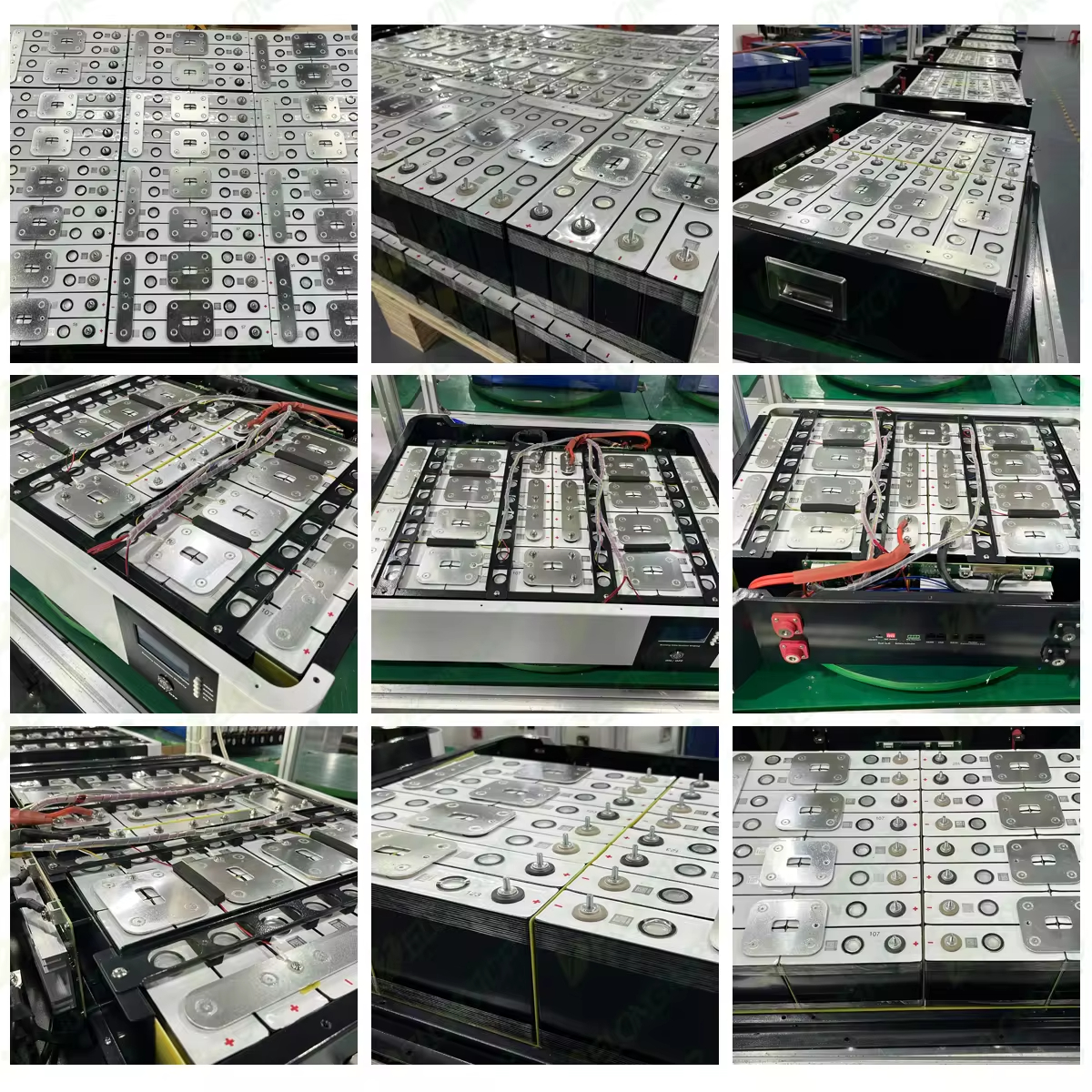

Cabinet Showcase 1

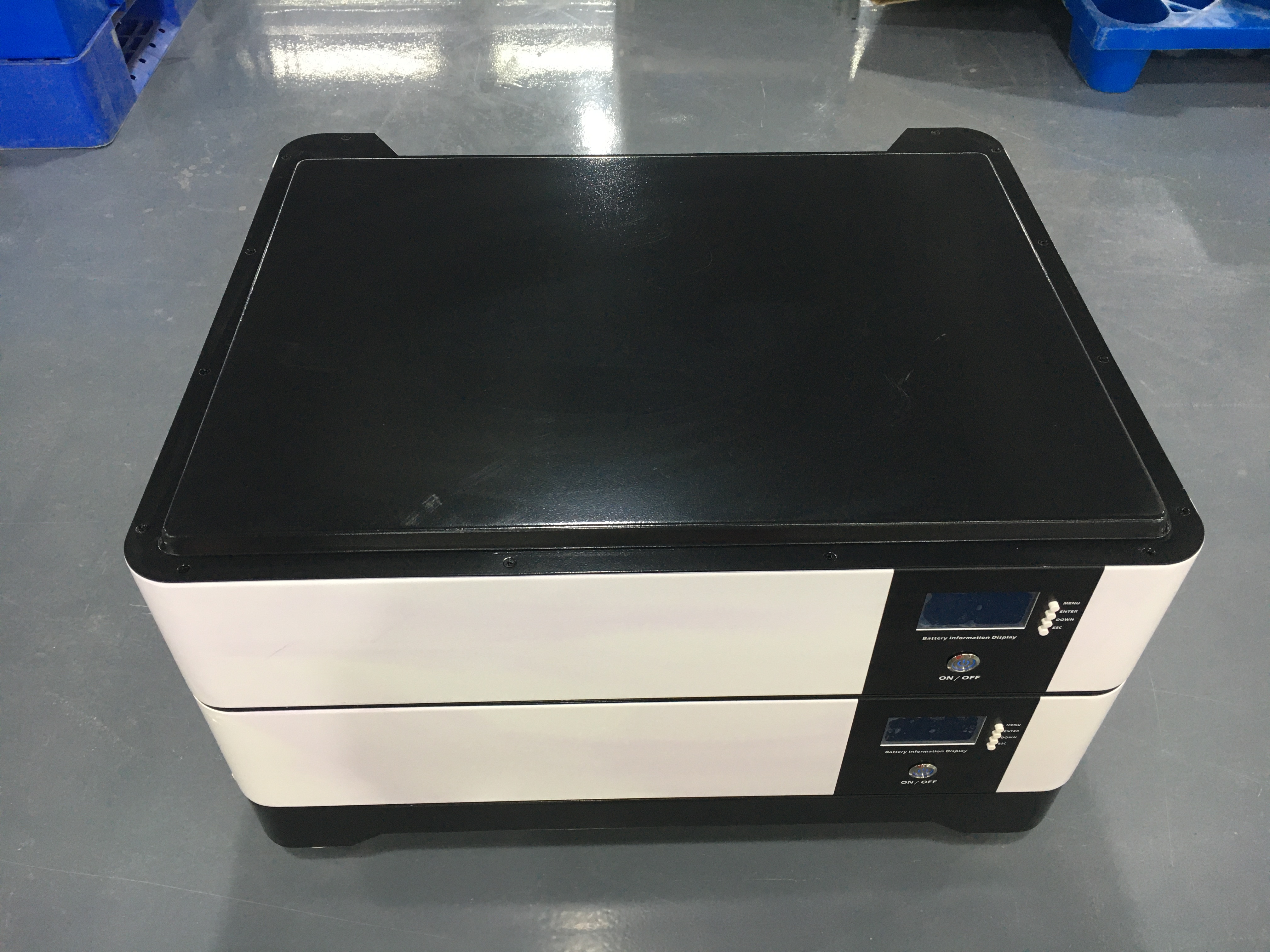

Cabinet Showcase 2

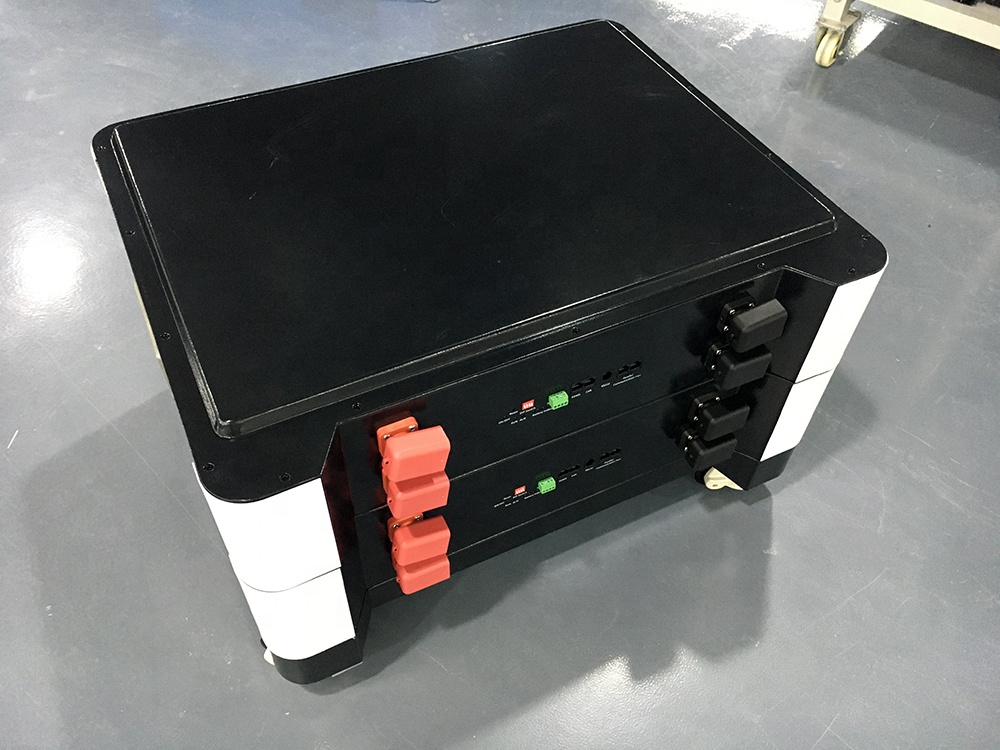

Cabinet Showcase 3
Cabinet Showcase 4
Cabinet Showcase 5
Call to Action Banner

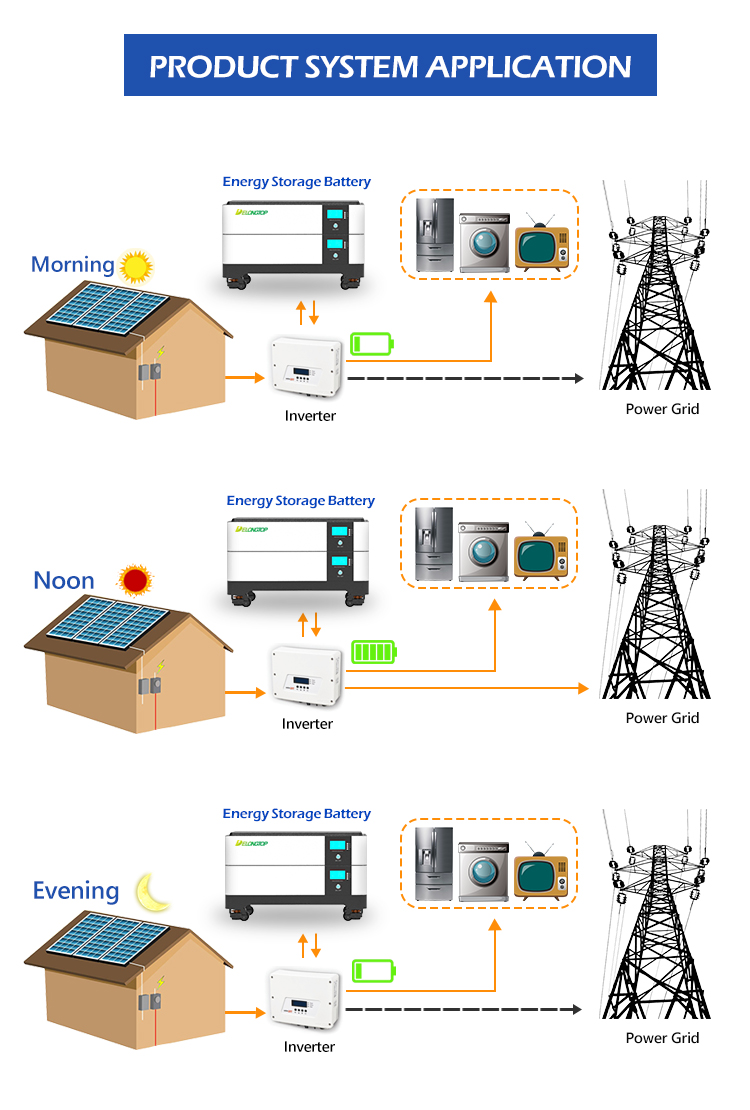

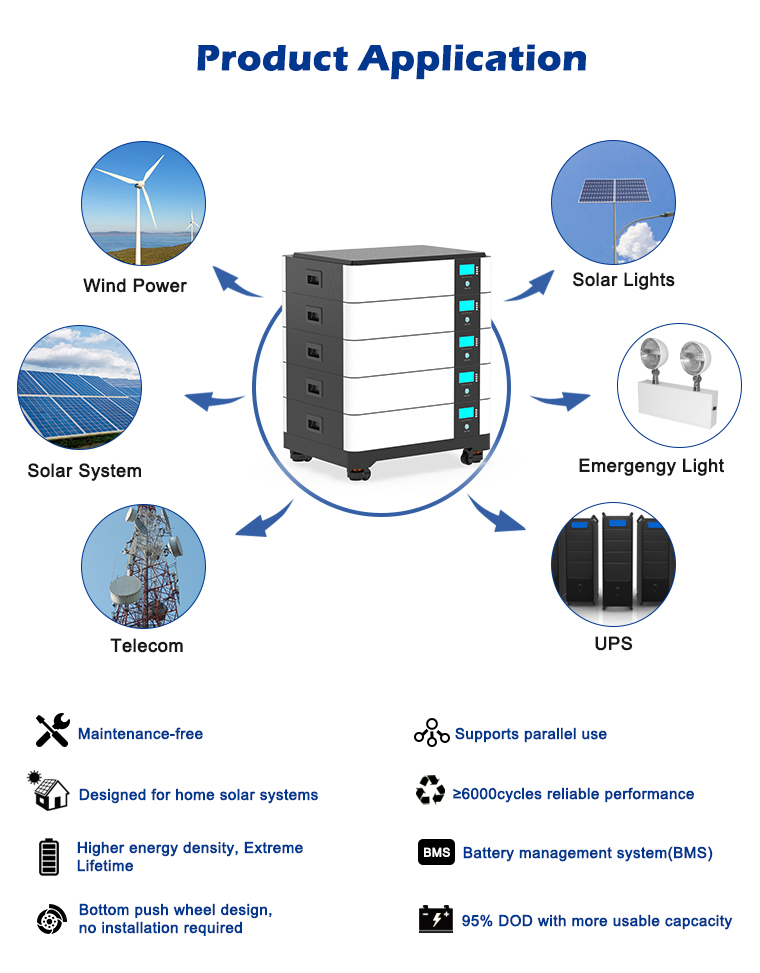

Product Application
Battery Applications
Why Choose Us
Why Choose Us Point 1
Why Choose Us Point 2
Why Choose Us Point 3
Call to Action Banner
Customers reviews
Customer Reviews Graphic
Frequently Asked Questions
Q What is included in a battery or pack? May I buy a charger from you?
A battery case, BMS, and battery pack are included. You can also purchase customized connectors and chargers from us.
Q How often should the battery be recharged?
Usually, it is recommended to recharge the battery pack every 2 months. The time to reach full charge depends on the charger current you use: a 20A charger can fully charge a 12V 100Ah battery in 5 hours, while a fast 50A charger can do it in 2 hours.
Q What is the sample lead time and bulk order delivery? How long does shipping take?
Fast delivery: Small quantities can be completed in 3-5 days after payment. Bulk orders take 10-25 days depending on quantity.
Shipping: For sample orders or small packs, we ship via express courier (FedEx, UPS, TNT, etc.). If the total parcel is over 50KG, we can ship by sea, which is more cost-efficient. You can share your nearest airport or seaport details to check the best options.
Q What is your warranty policy?
We offer a 10-year warranty for all our LiFePO4 battery packs for different situations. We ensure at least 6,000 cycle lives for the pack, meaning you can use it for at least 10 years under normal daily 1-time charge and discharge operations.
Q Can I customize the size of the battery?
Of course, yes, provided your quantity meets our workable MOQ.
Q Can we connect different LiFePO4 battery packs in parallel or series by ourselves?
Yes, the battery packs can be connected in parallel or series. However, please pay attention to these guidelines:
1. Ensure the voltage of each battery is the same before connecting. Charge them to the same rate if they differ.
2. Do not mix charged and discharged batteries, as it can reduce the capacity of the entire pack.
3. Advise us of your target capacity requirements before ordering so we can supply the suitable BMS.
4. If you are not a professional with parallel/series configurations, please avoid handling it yourself to prevent danger and maintain battery cycle life.
