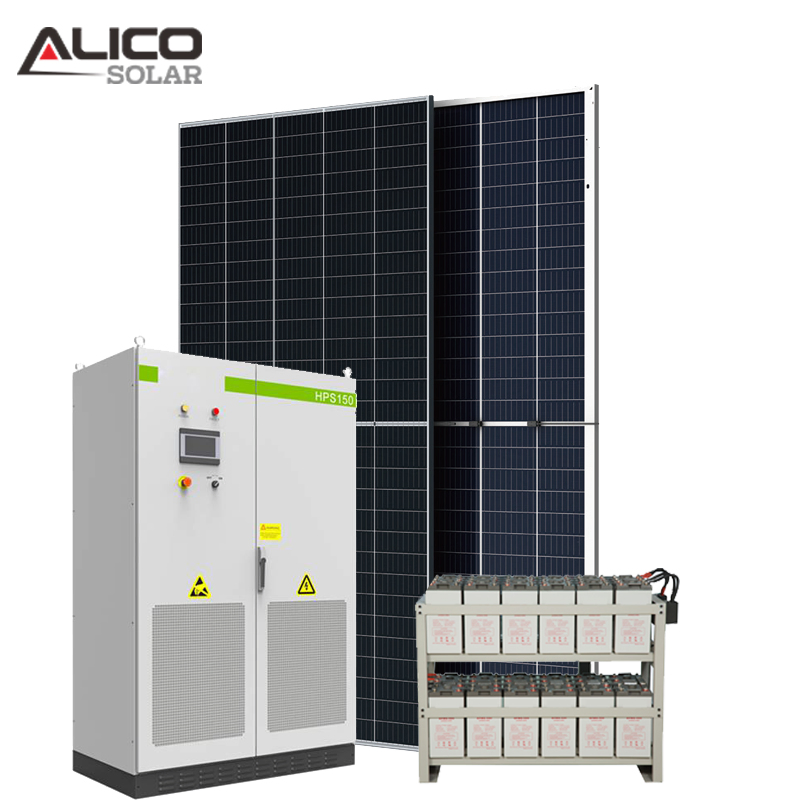

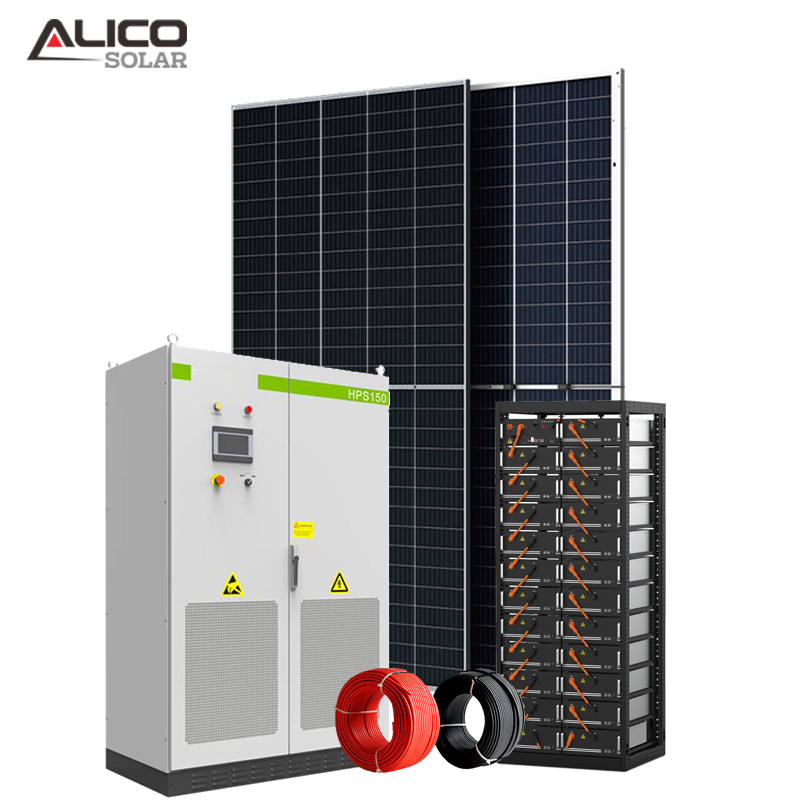

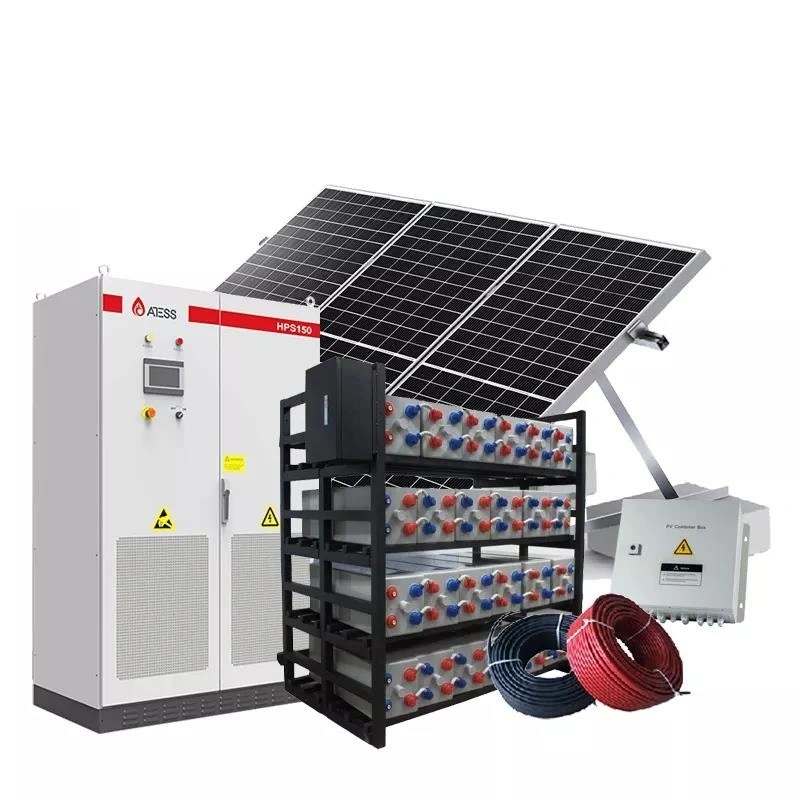

1385 Solar Renewable Energy Hot Selling Install 5kw on-Grid Solar Systems 500kw 1000kw 1MW Grid-Tied Solar Panel Kit for Solar Power Plant

1 / 5

1385 Solar Renewable Energy Hot Selling Install 5kw on-Grid Solar Systems 500kw 1000kw 1MW Grid-Tied Solar Panel Kit for Solar Power Plant

Send Inquiry

Product Description

Product Parameters

Name	500KW On-grid Description	Quantity
Solar Panel	Mono Half Cell 650 Watt PV Module	770 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	Few Sets
On-Grid Inverter	500KW Three Phase 380/400Vac	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	Few Sets
DC Cable	4mm2	1000 Meters
MC4 Connector	4mm2 1000VDC	100 Pairs
Mounting System	Standards Pitched Roof (Customized Optional)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	5 Sets

Note: Product dimensions and physical appearance in this data sheet are nominal. The manufacturer reserves the right to make the product changes from time to time, without prior notification, which may change the dimensions and/or physical appearance shown.

On Grid System Configuration

On-Grid Solar System configuration flowchart detailing solar panels, grid inverter, switch box, and power meter.

1. Solar Panel

2. On Grid Inverter

3. Switch Box

4. Power Meter

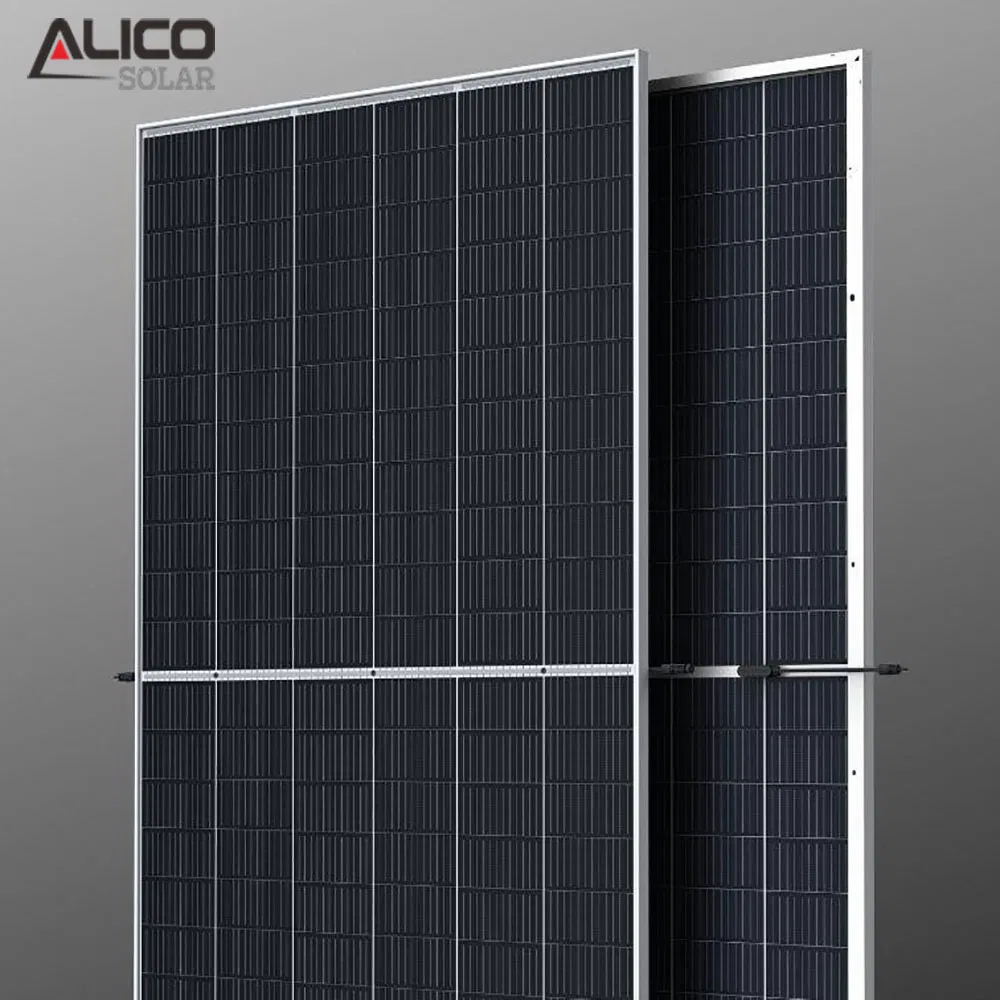

Mono Solar Panels

Peak Power Watts: 380-690W
Maximum Power Voltage: 32.2-45V
Maximum Power Current: 9.02-18A
Open Circuit Voltage: 39.5-55V
Short Circuit Current: 9.55-19A
Weight: 18.6 kg - 35 kg
Tier 1 Standard
12 years quality warranty
30 years power warranty

On-Grid Inverter

Max.DC Input Power: 500KW
Max. DCInput Voltage: 1500V
MPPT Voltage Range: 120-1200V
Rated Grid Voltage: 208/240V(US); 230V(EU); 380/400V
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.
Support parallel.

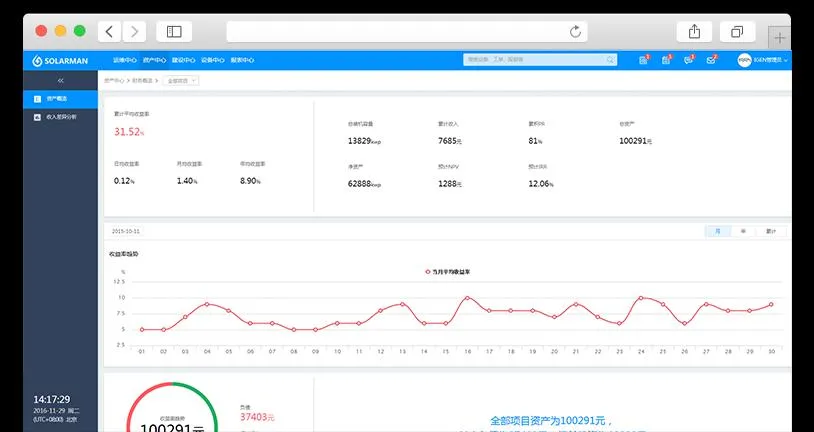

Remote Monitoring System

Data Logging Stick allows you to receive information from the solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi, Lan, or GPRS.
App Available for PC, IOS & Android

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

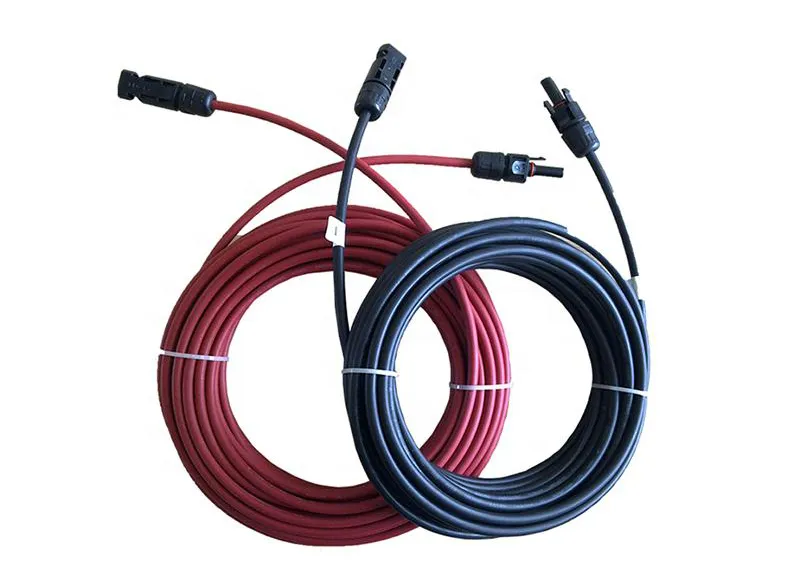

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC/1000VDC(TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 Years

PV Tools

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

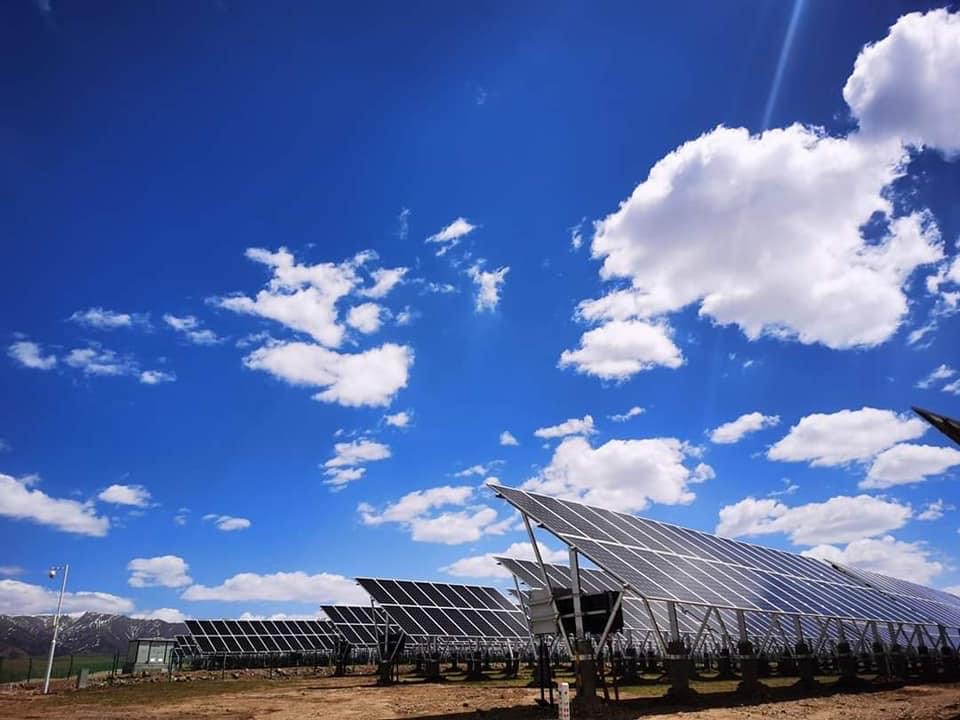

Projects Shown

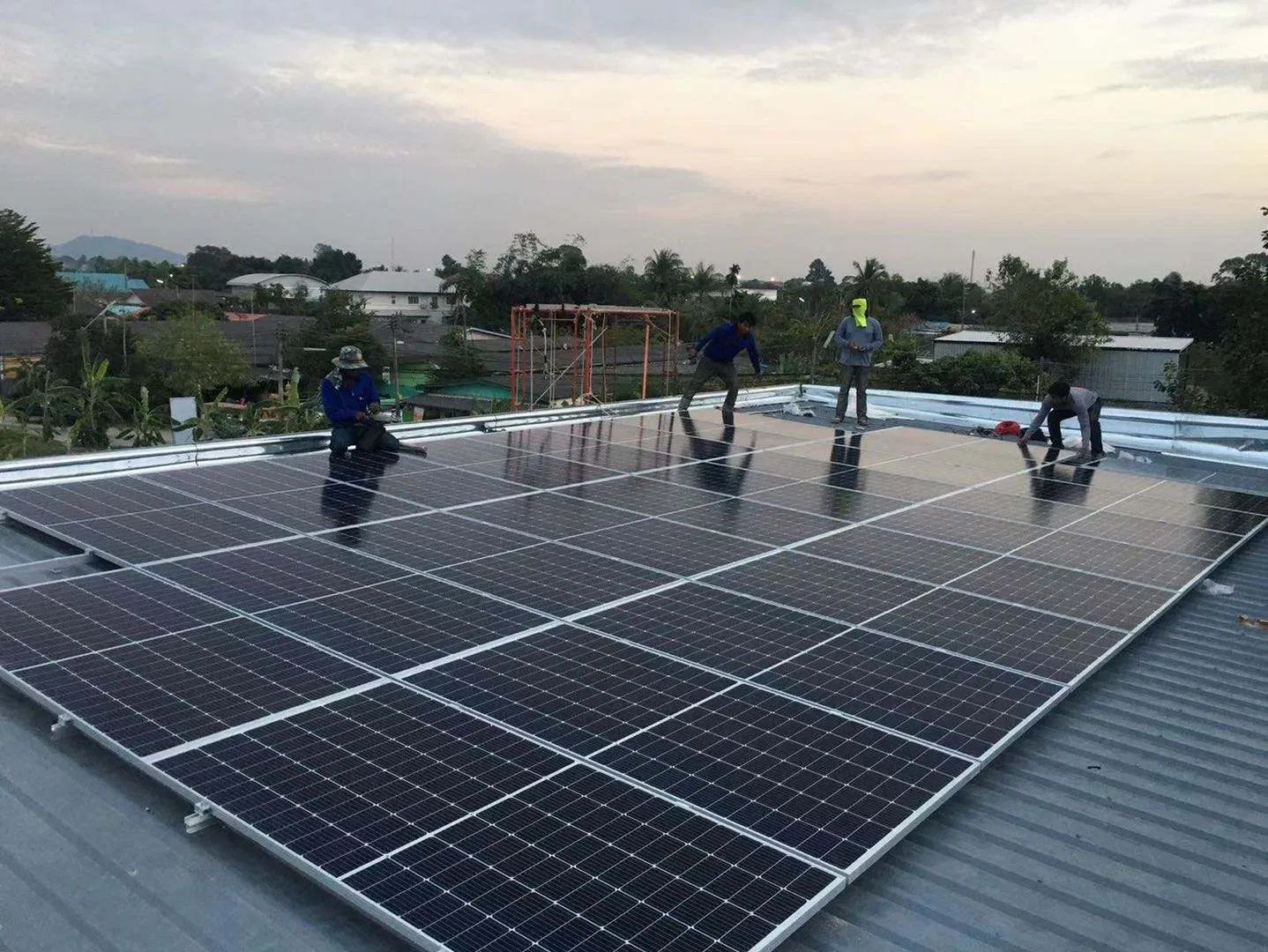

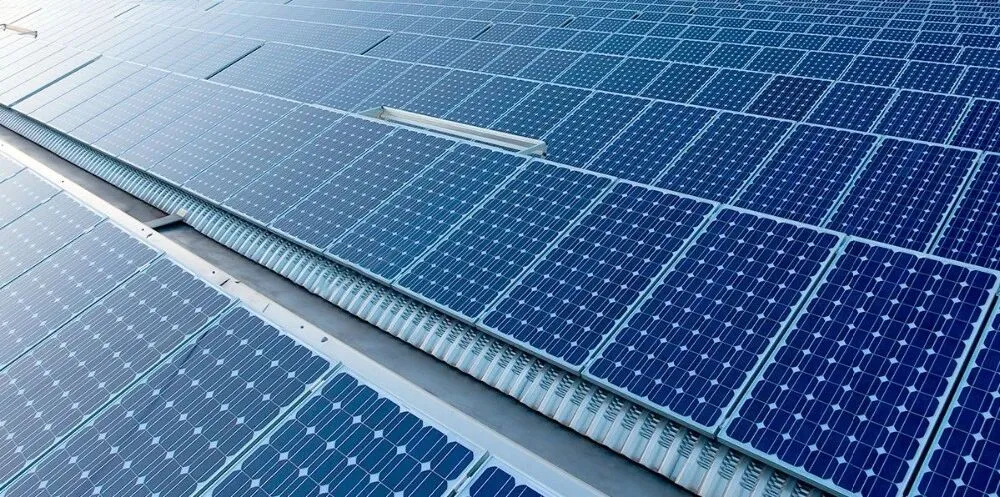

12MW Commercial Metal Roof Solar Plant in Changzhou City, Jiangsu Province, Finished in Nov, 2015

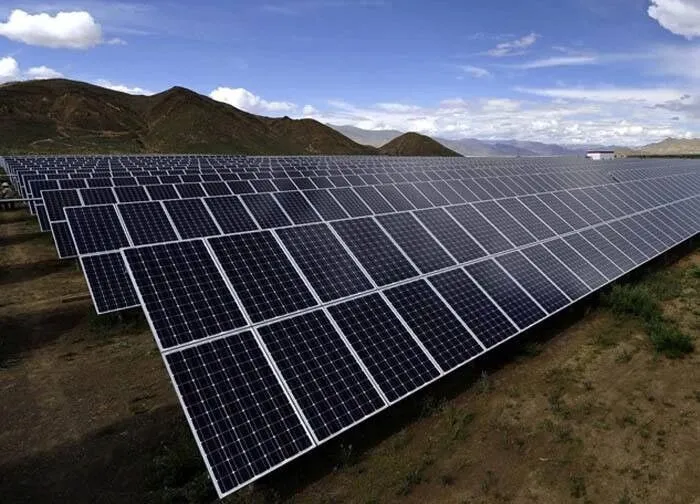

20MW Ground Solar Plant in USA

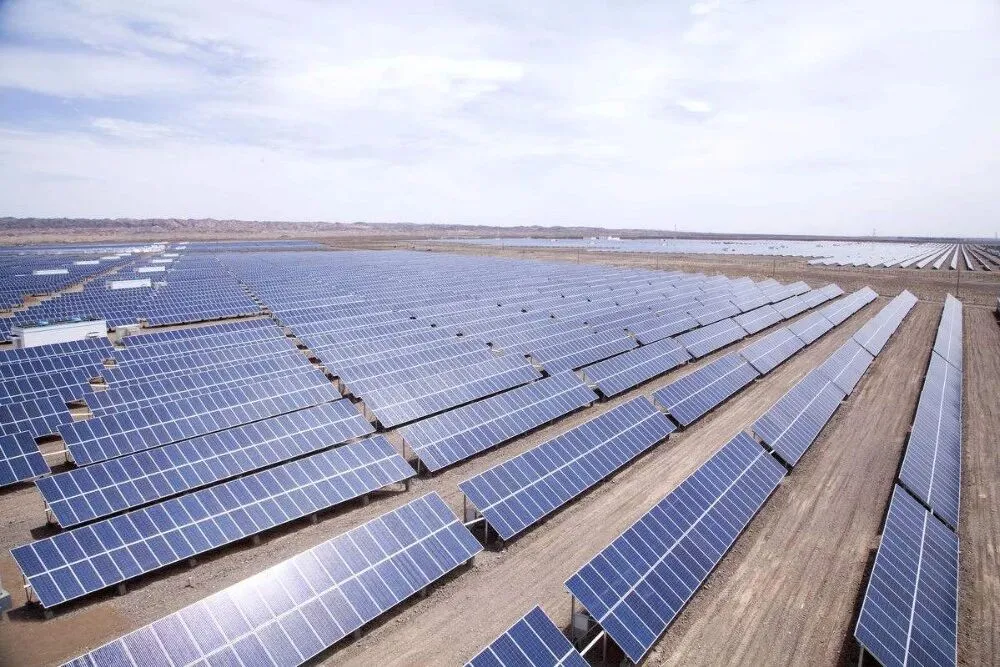

50MW Solar Plant in Brazil

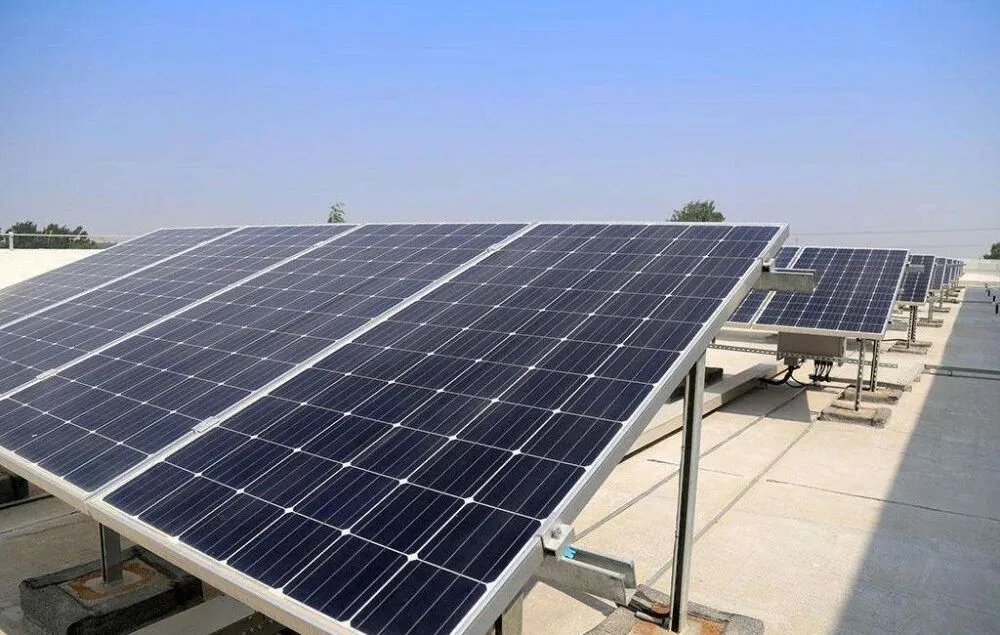

20KW Solar Plant in Mexico

Frequently Asked Questions

Q1: What is the power range and warranty for the Mono Solar Panels?

The Mono Solar Panels have a peak power range of 380W to 690W. They feature a Tier 1 standard configuration, backed by a 12-year quality warranty and a 30-year power warranty.

Q2: What parameters apply to the 500KW On-Grid Inverter?

The inverter supports a maximum DC input power of 500KW and maximum input voltage of 1500V. The MPPT voltage range is 120-1200V. It offers 380/400V grid configurations and supports parallel installation.

Q3: How does the Remote Monitoring System function?

The system utilizes a data logging stick connected via Wi-Fi, LAN, or GPRS to upload system operations and ambient conditions to a web server. System information can be accessed at any time through dedicated apps for PC, iOS, and Android.

Q4: Is the PV Mounting System configurable for different roof types?

Yes, while our standard package provides a standard pitched roof mounting system, we offer customized options to match specific structural configurations including mid/end clamps ranging from 35mm to 50mm, and optional L-feet or hanger bolts.

Q5: What are the key properties of the DC cables and MC4 connectors?

The standard setup uses 4mm² cross-section DC cables (6mm² optional) rated at 600VDC/1000VDC (TUV) with a working lifetime of up to 25 years. They are supplied alongside high-performance MC4 connectors.

Q6: What PV installation tools are included in this solar plant kit?

The kit includes 5 sets of specialized PV tools, featuring wire cable cutters, wire strippers, MC3/MC4 crimpers, and MC4 connector assembly/disassembly tools to support proper, secure installation.
