Grid Tied Solar Energy System 10kw 12kw 14kw Home Use Portable Solar System

Basic Information

Model NO. ES10K-ON

Condition New

Certification ISO, CE, TUV

Application Home, Industrial, Commercial

Specification Normal, 2cbm

Product Name Grid-Tie Solar System

Product Output Power 10kw

Product Output Voltage 220V/280V; 230V/300V; 240V/415V

Solar Panel Type Mono Perc, Topcon, Hjt

Solar Panel Power 5W to 800W, Optional

Inverter Brand Growatt, Solis, Deye, SMA, Sungrow, Huawei

Inverter Type Grid-Tied

Inverter Power 10kw, 220V/380V, Single Phase or Three Phase

PV Cable 4mm2, 6mm2, 10mm2, 16mm2, Optional

Mounting Structure Type Customized for Roof/Ground

Battery Type Not Applicable

Mounting Structure Material Steel, Iron, Aluminum

Design Life 30 Years

Pre-Sales Project Design Available

Monitor WiFi, Bluetooth, RS485, Can

Origin China

HS Code 850132000

Production Capacity 1000000watt Per Day

Package Size 200.00cm * 100.00cm * 200.00cm

Package Gross Weight 600.000kg

Transport Package Carton Box in Pallet or Customized Wooden Box

Product Description

Grid Tied Solar Energy System 10kw 12kw 14kw Home Use Portable Solar System

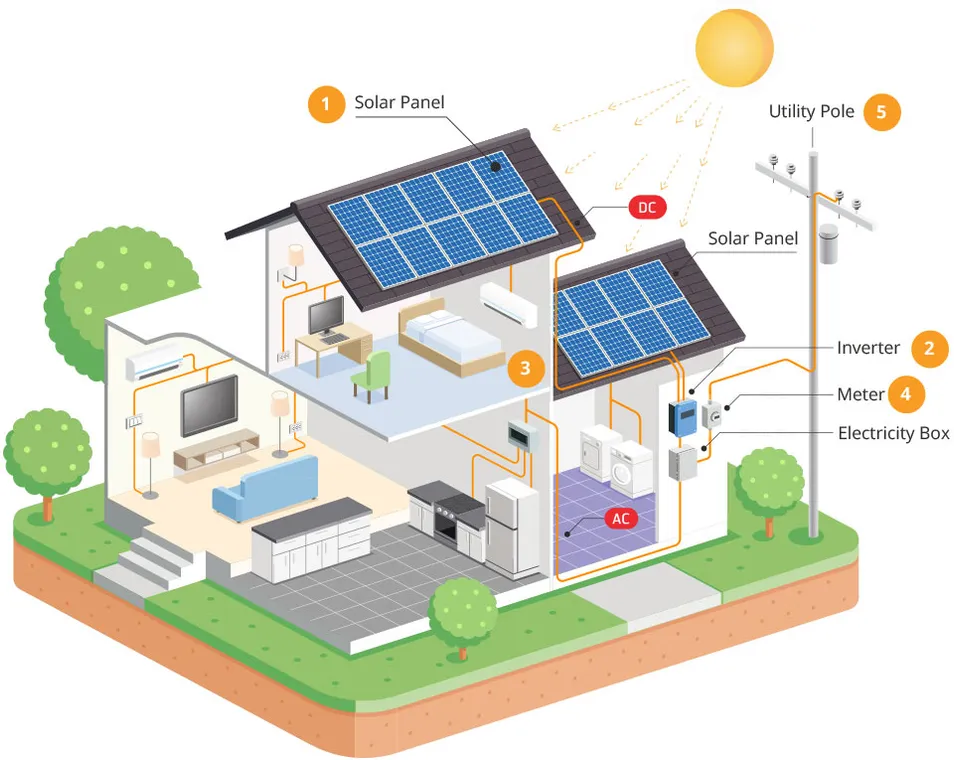

How an On Grid Solar System Works?

1. Solar Panel Generation: Solar panels convert sunlight into direct current (DC) electricity.
2. Inverter Conversion: An inverter converts the DC electricity into alternating current (AC), which is standard for household electrical systems.
3. Grid Connection: AC electricity feeds home electrical systems; excess generated power is automatically sent to the utility grid.
4. Net Metering: A net meter tracks both energy pulled from the grid and energy sent back, allowing owners to receive credits for excess generation.

Specification

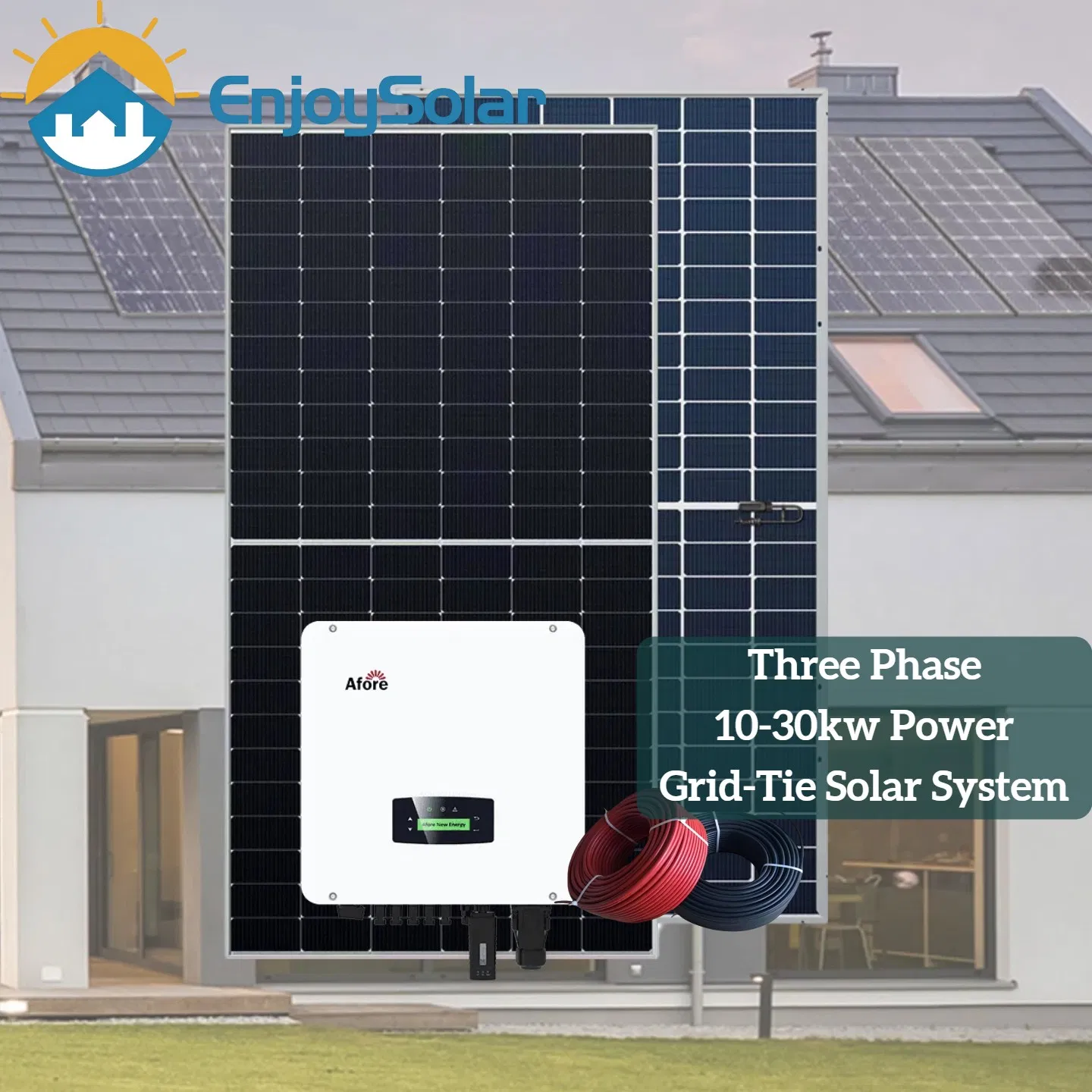

System Configurations for 10KW-30KW Grid-Tie Solar System Solutions
System Model	ES10KW-ON	ES20KW-ON	ES30KW-ON
System AC output Power	10KW	20KW	30KW
Solar Panels	610W Panel* 18Units	610W Panel* 34Units	610W Panel* 50Units
Grid-Tie Inverter	10KW3P	20KW3P	30KW3P
PV Cables	100Mtr 4mm2 Cable* 2units	100Mtr 4mm2 Cable* 4units	100Mtr 4mm2 Cable* 6units
PV Connectors	4 Pairs	8 Pairs	12 Pairs
Solar Panel Mounting Kits	Customized base on installation Site
Remarks: Above are typical Grid-Tie Solar System Solution configurations. We can also customize solutions upon client's request.

Product Introduction

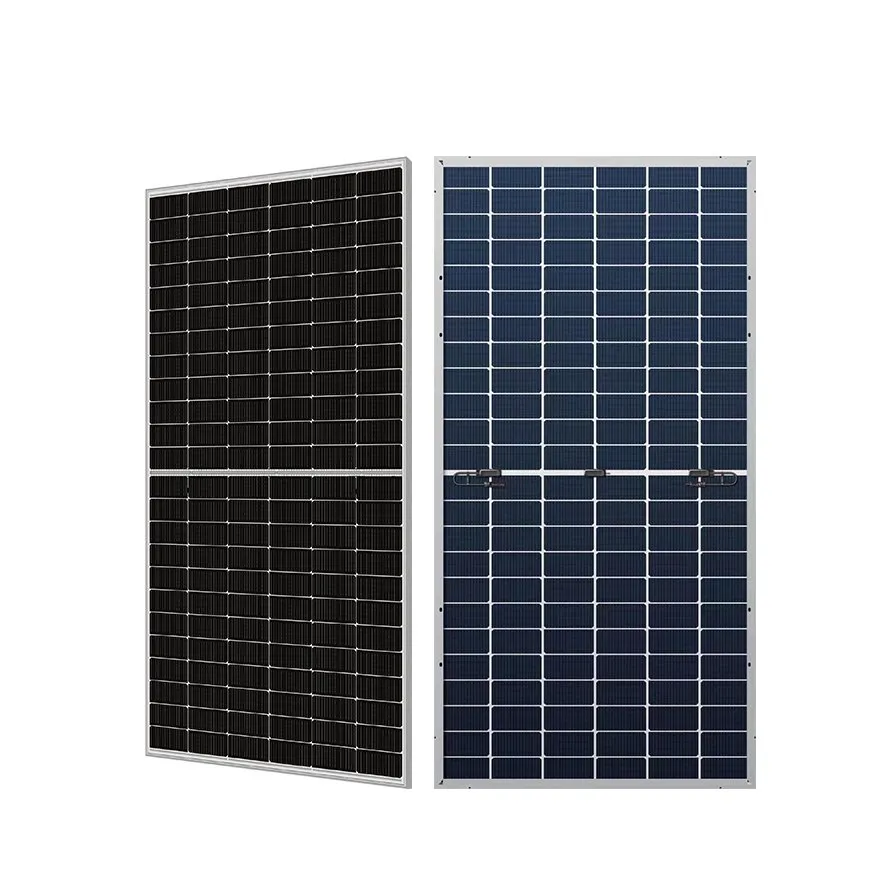

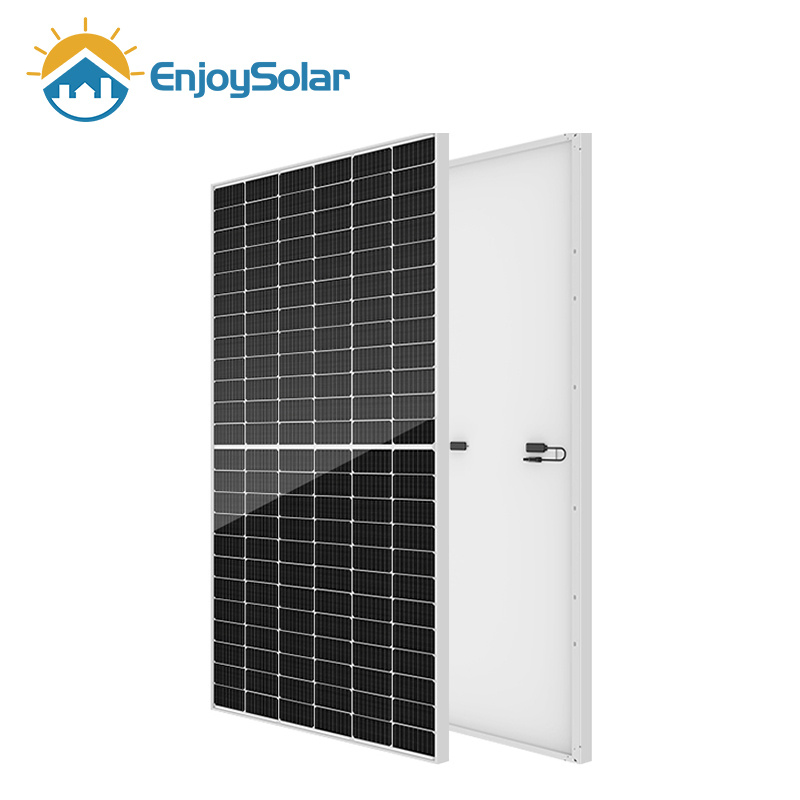

Topcon Solar Panel

Model: ES610M-72PH
Peak Power Watts: 610Wp
Open Circuit voltage (Voc/v): 51.32v
Short Circuit Current (Isc/A): 15.86A
Voltage at Maximum Power (Vmp/V): 42.78v
Current at Maximum Power (Imp/A): 14.26A
Dimensions: 2278*1134*30mm
Weight: 31.5kg

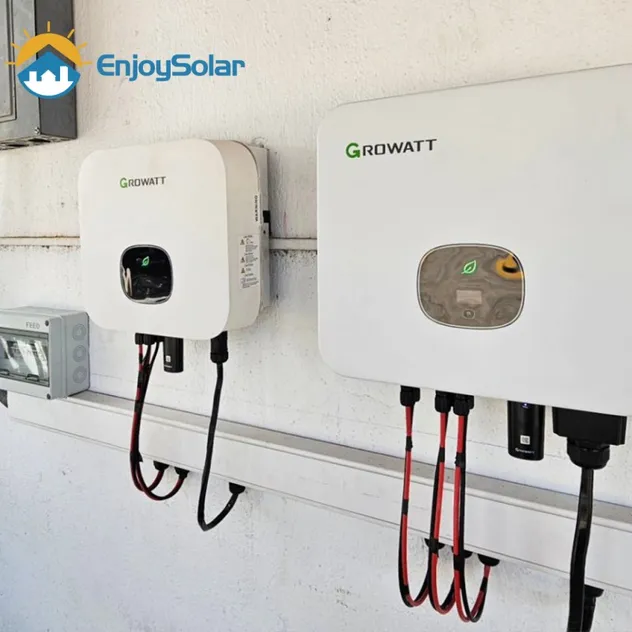

Grid-Tie Solar Inverter

Max. efficiency: 99.75%
Up to 10 MPPTs
Wide voltage range and low startup voltage
Remote firmware upgrade with simple operation
Overvoltage load reduction and leakage current suppression technology (low failure rate)

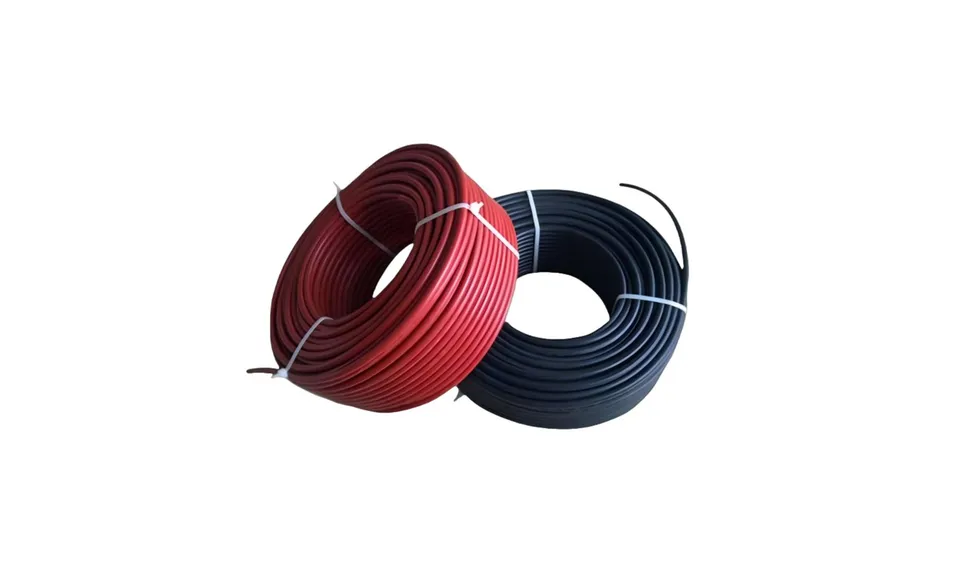

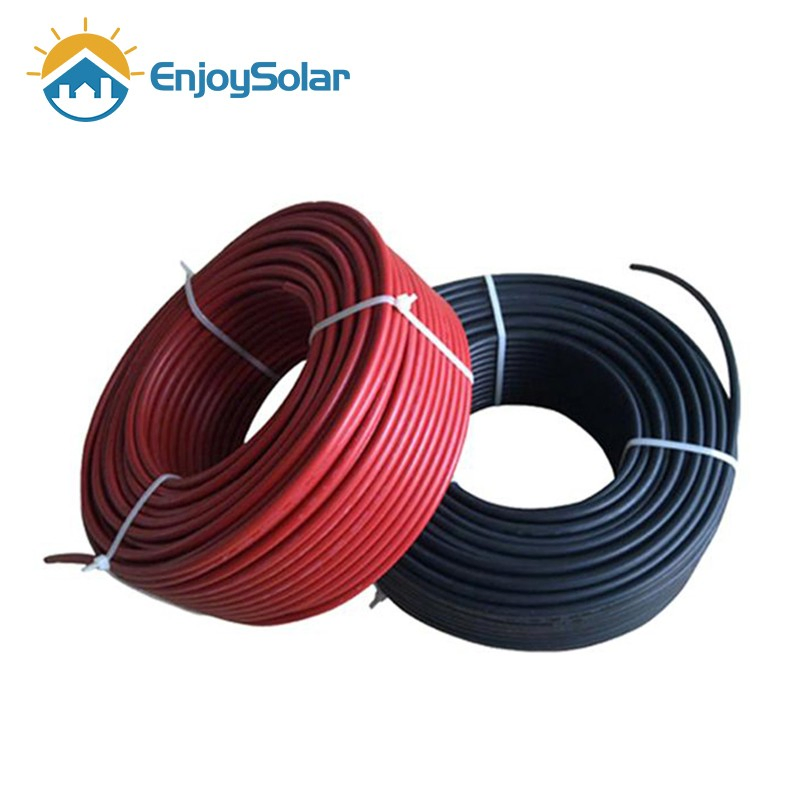

PV Cables

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600vDC/1000vDc (TUV)
Rated Current: 55A, 70A
Colors: Black standard, Red optional
Lifetime: ≤25 Years

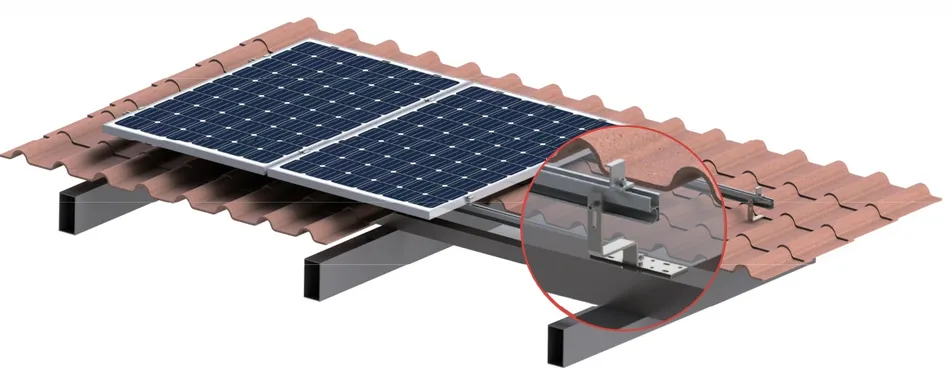

Solar Panel Mounting Kits

Mounting Rail & Railsplice Kit: AI6005 & SUS304 Bolt
MID & END Clamps: 30, 35, 40mm
L Foot Asphalt Shingle Mount & Hanger Bolt optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

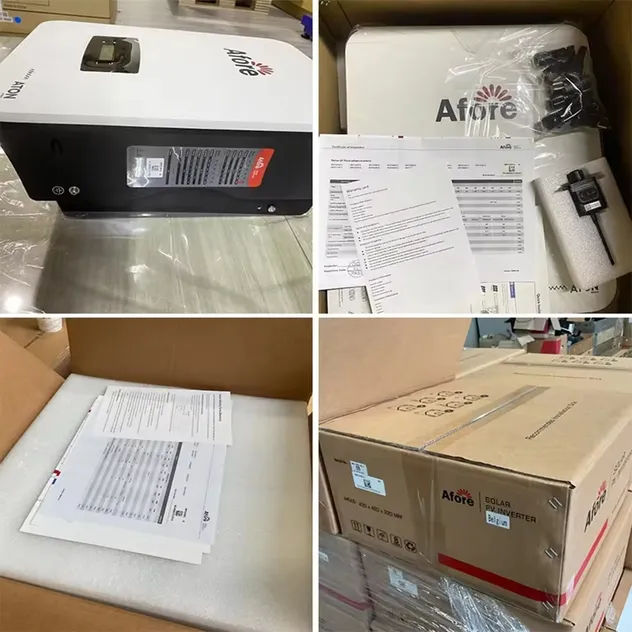

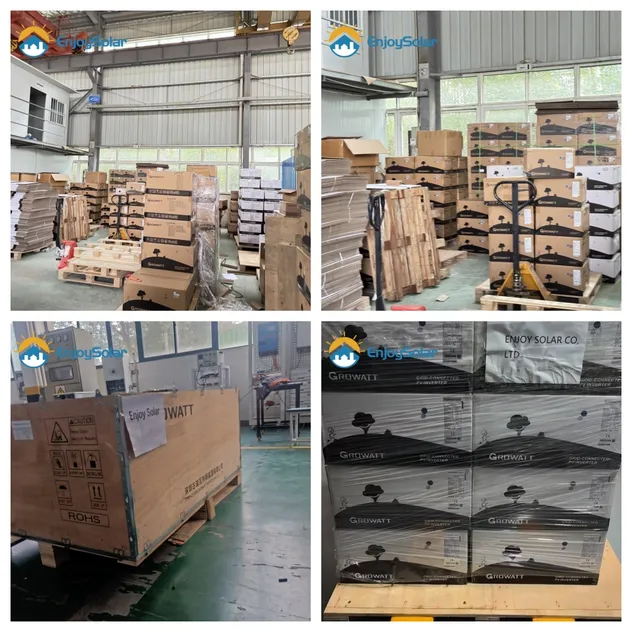

Packaging & Shipping

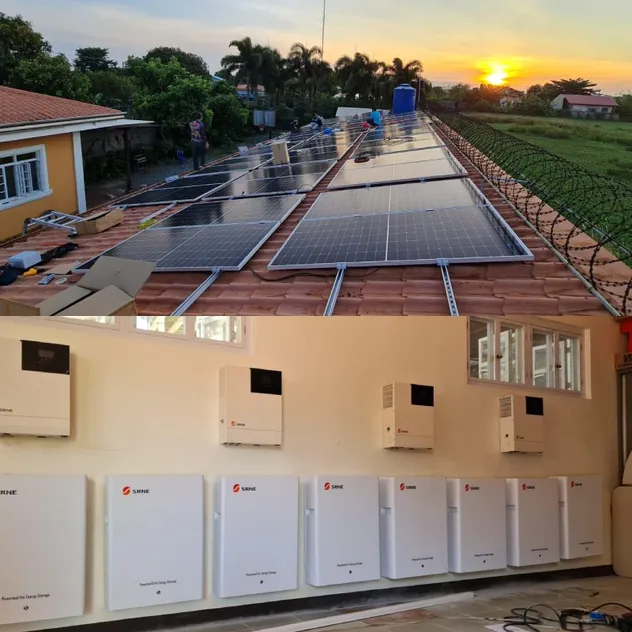

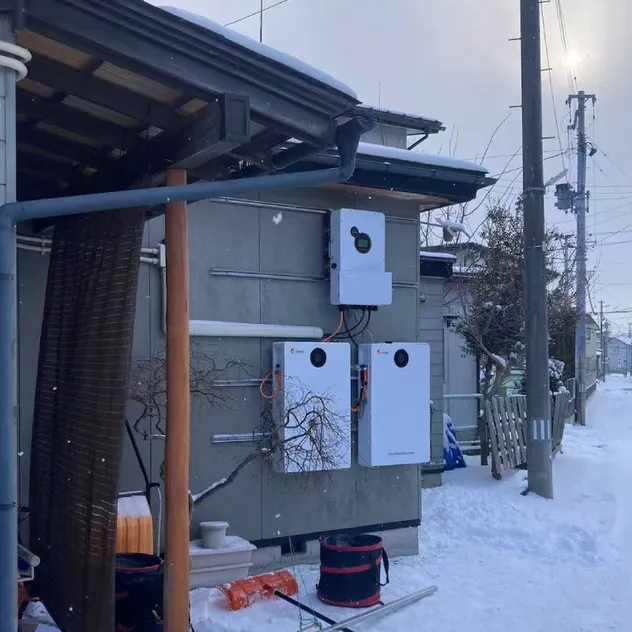

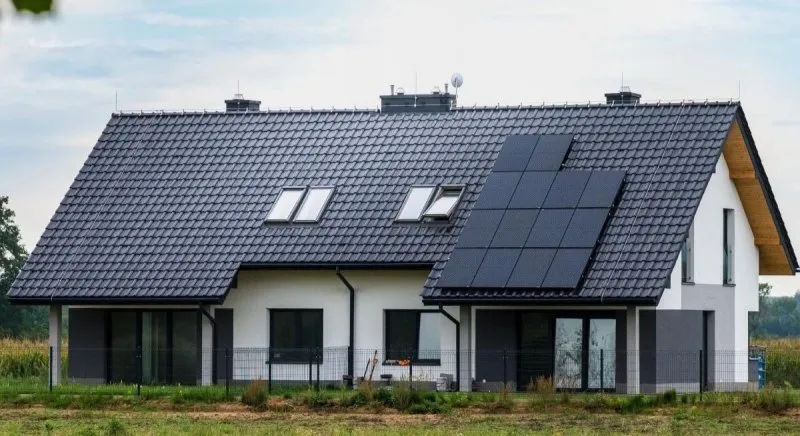

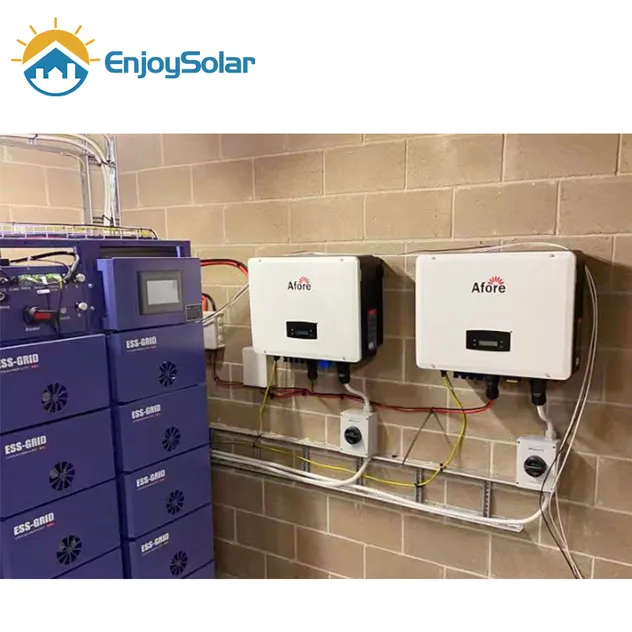

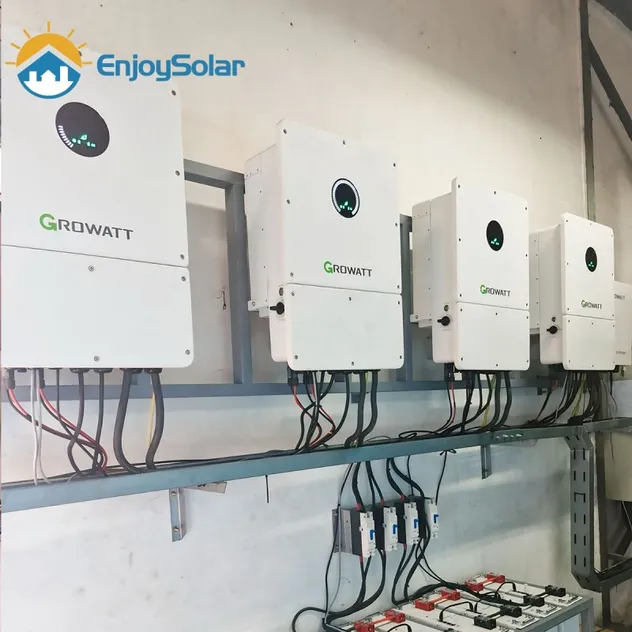

Projects Overview

Other Hot-sale Products

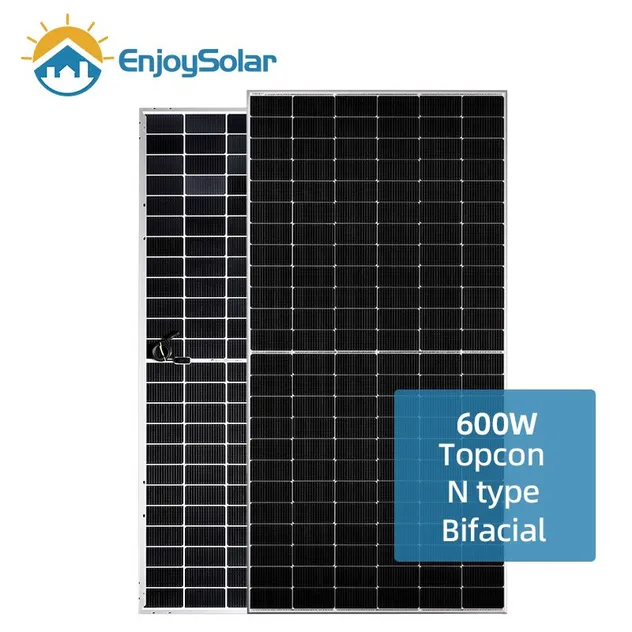

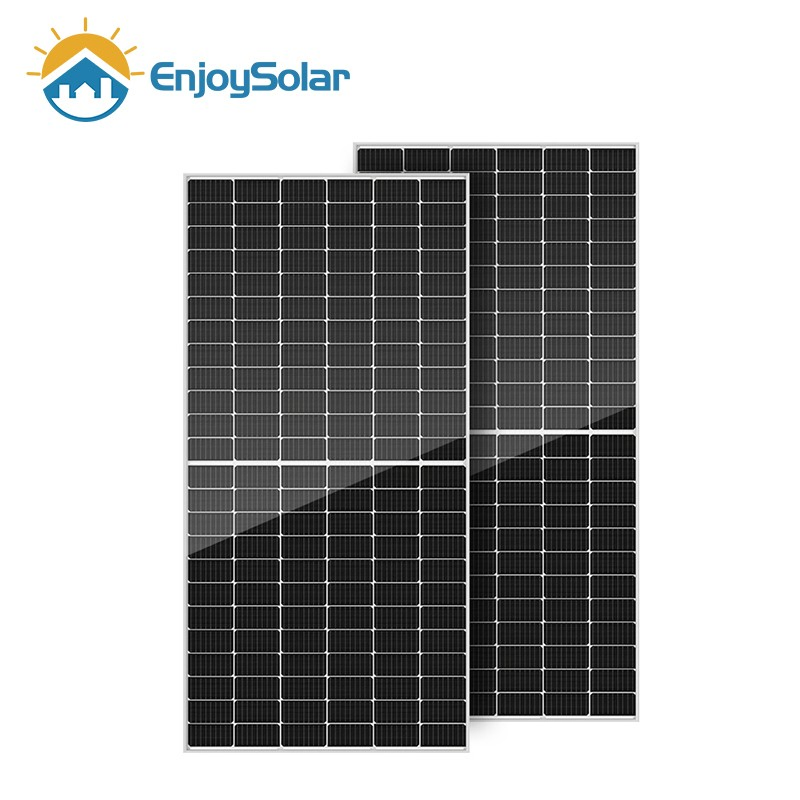

Bifacial Monocrystalline Solar Panel Module

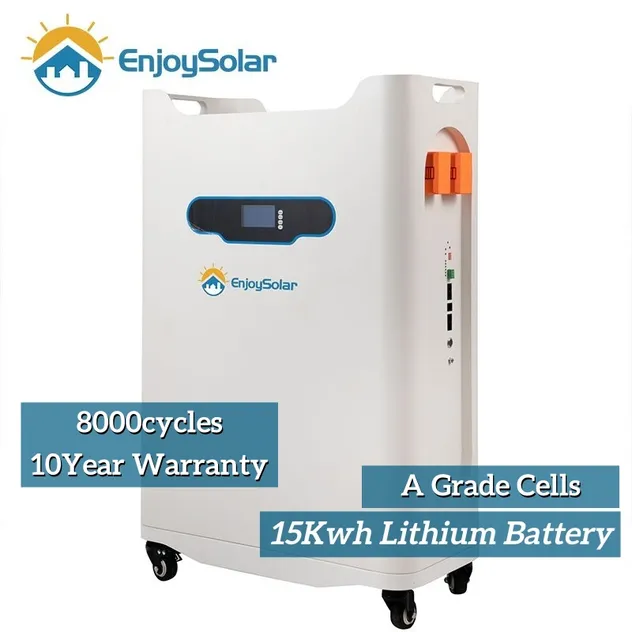

Lithium Ion Cell Solar Battery Pack with BMS

Frequently Asked Questions (FAQ)

1. What is an On-Grid Solar System?

An on-grid (or grid-tied) solar system is connected directly to the local utility grid. It generates electricity using solar panels and feeds excess energy back into the power grid, typically earning you utility credits via net metering.

2. Does this system require battery storage?

No, grid-tie systems do not require batteries. They rely on the utility grid for power storage and supply when solar production is low, saving substantial equipment cost compared to off-grid configurations.

3. What happens during a power outage?

For safety reasons, grid-tied inverters automatically shut down during power outages. This prevents electricity from feeding back into the lines while utility workers are performing repairs.

4. Can the system capacity be customized?

Yes, our system configurations can be fully customized based on your roof or ground installation area, regional utility guidelines, and specific energy requirements.

5. What is the expected design life?

The solar system has a design life of up to 30 years. The panels usually carry a long-term efficiency warranty, and the grid-tied inverter is designed for durable, continuous service.
