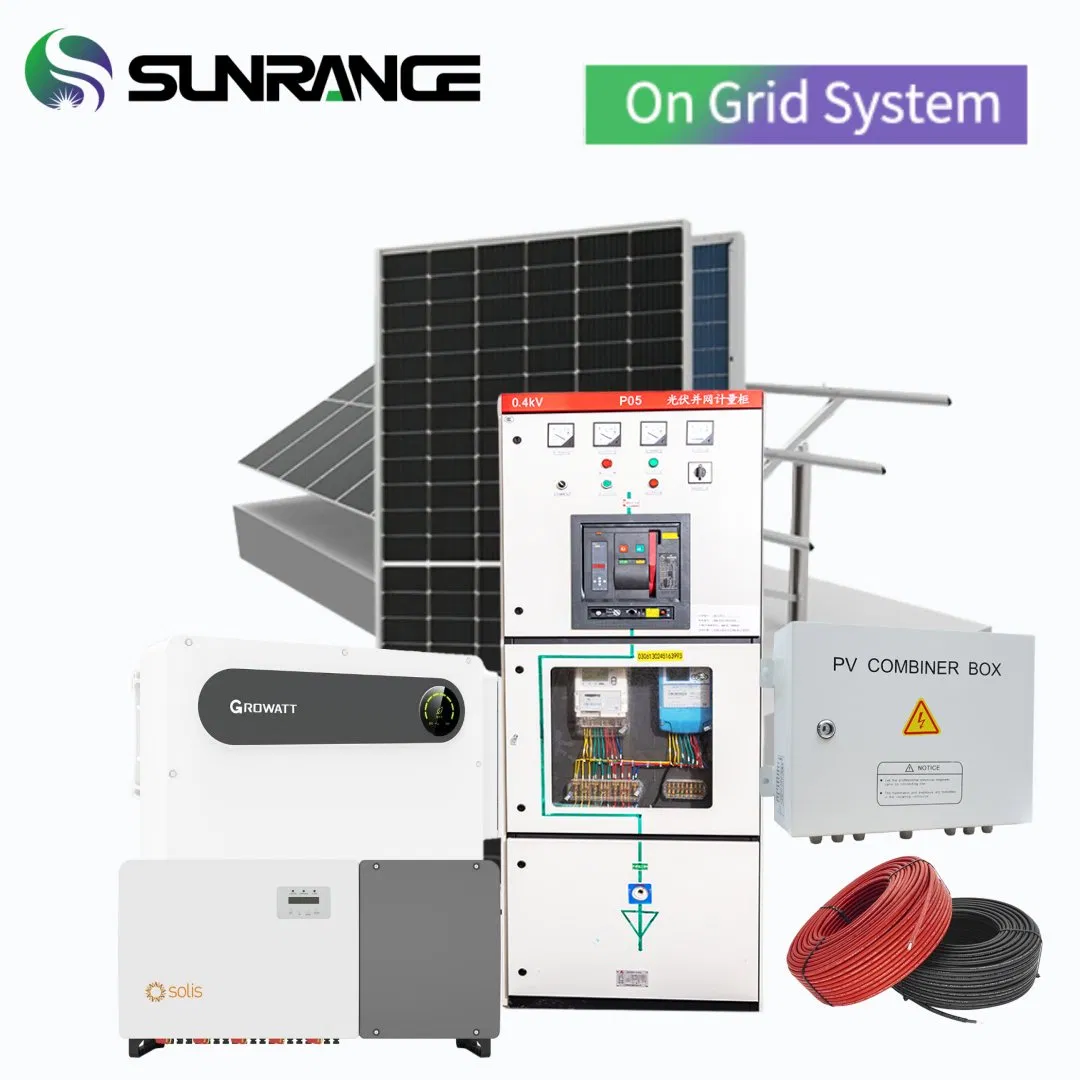

100kw 50kVA Solar Power System Full Complete on Grid Solar Station 500kw 1MW Grid Tied Growatt All in One Commercial Solar Energy System
100kw 50kVA Solar Power System Full Complete on Grid Solar Station 500kw 1MW Grid Tied Growatt All in One Commercial Solar Energy System
100kw 50kVA Solar Power System Full Complete on Grid Solar Station 500kw 1MW Grid Tied Growatt All in One Commercial Solar Energy System
100kw 50kVA Solar Power System Full Complete on Grid Solar Station 500kw 1MW Grid Tied Growatt All in One Commercial Solar Energy System
100kw 50kVA Solar Power System Full Complete on Grid Solar Station 500kw 1MW Grid Tied Growatt All in One Commercial Solar Energy System
1 / 5
100kw 50kVA Solar Power System Full Complete on Grid Solar Station 500kw 1MW Grid Tied Growatt All in One Commercial Solar Energy System
100kw 50kVA Solar Power System Full Complete on Grid Solar Station 500kw 1MW Grid Tied Growatt All in One Commercial Solar Energy System
100kw 50kVA Solar Power System Full Complete on Grid Solar Station 500kw 1MW Grid Tied Growatt All in One Commercial Solar Energy System
100kw 50kVA Solar Power System Full Complete on Grid Solar Station 500kw 1MW Grid Tied Growatt All in One Commercial Solar Energy System
100kw 50kVA Solar Power System Full Complete on Grid Solar Station 500kw 1MW Grid Tied Growatt All in One Commercial Solar Energy System

100kw 50kVA Solar Power System Full Complete on Grid Solar Station 500kw 1MW Grid Tied Growatt All in One Commercial Solar Energy System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview Product Description Product Parameters Technical Support Packaging & Shipping Partner Brands Brand Profile FAQ
Basic Info.
Model NO.SR-100KW-ON
ConditionNew
CertificationISO, CB, CE
ApplicationCommercial
SpecificationNormal, customize
Pre-Sales Project DesignYes
Output Voltage380V/400/480V, 208V/230V/240V 3phase
Load PowerNo Limited
Battery TypeNone
on Grid Inverter30-100kw
Output Frequency50/60Hz
ControllerMPPT
Installation SiteEasily
Solar Panel400-700W
Technical SupportComplete Technical Support
Transport PackageCartons and Wooden Boxes
Production Capacity50000 Sets/Year
Product Description
Solar Power System Configuration Banner
On Grid Solar System Configuration (Three Phase 50KW-1MW)
Components SR50KW-ON SR100KW-ON SR500KW-ON SR1MW-ON
580W Solar Panel 90 Pieces 180 Pieces 900 Pieces 1800 Pieces

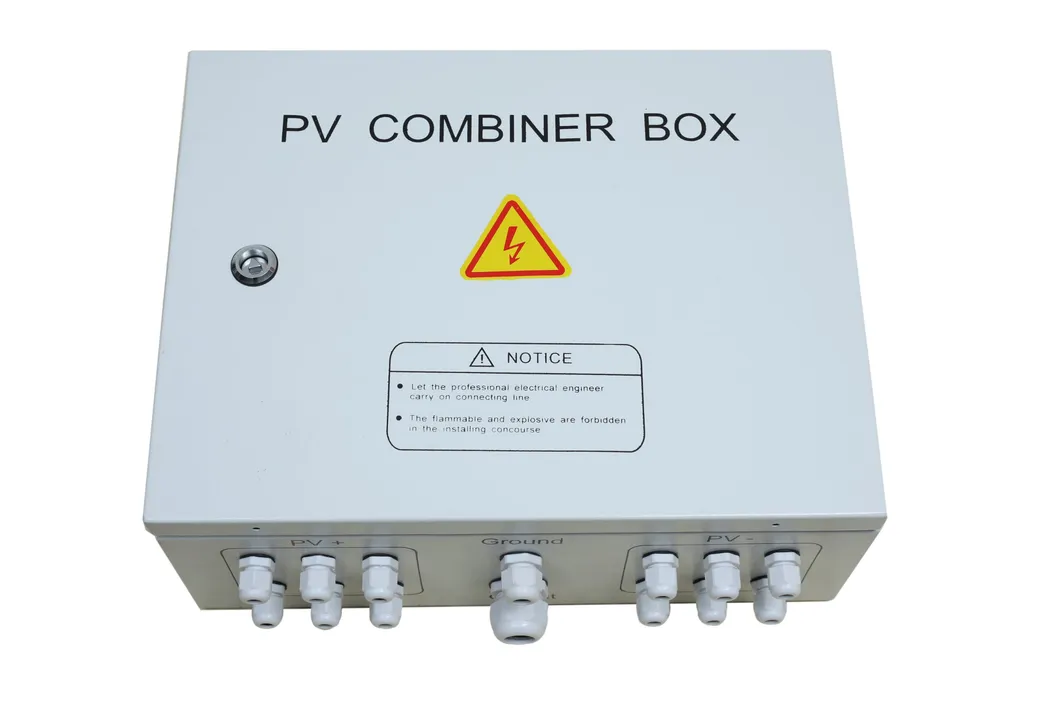

DC Combiner Box 1 Piece 1 Piece 5 Pieces 10 Pieces
Grid Tied Inverter 1pcs 50KW 1pcs 100KW 5pcs 100KW 10pcs 100KW
DC Cable 4mm2 600 Meters 1200 Meters 6000 Meters 12000 Meters
MC4 Connector 30 Pairs 50 Pairs 250 Pairs 500 Pairs
Mounting System Customized Product Based On Installation Roof/Ground
PV Installation Tools 1 Set 1 Set 1 Set 1 Set
Product Parameters

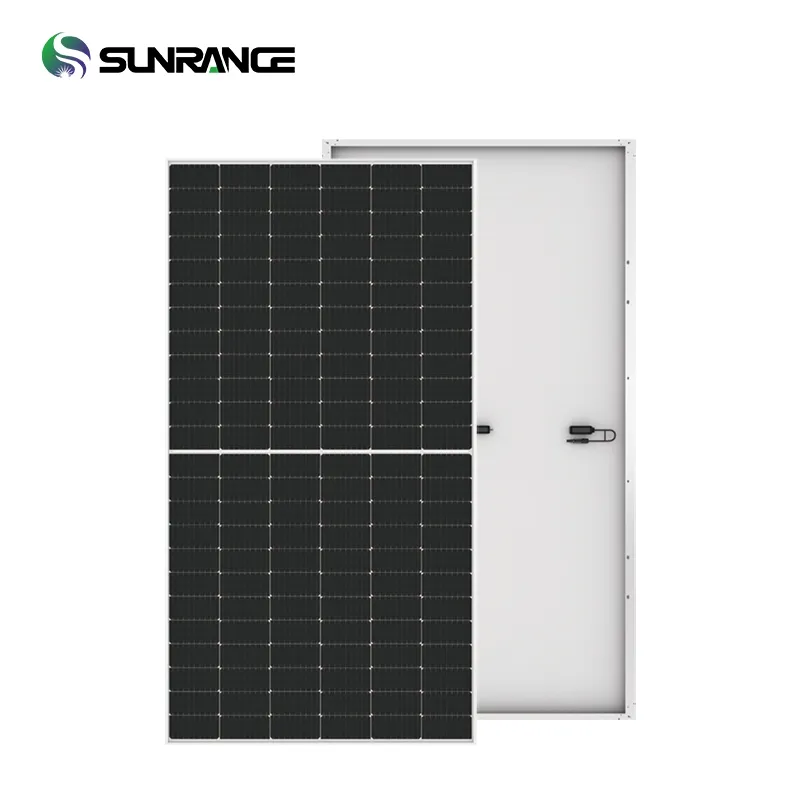

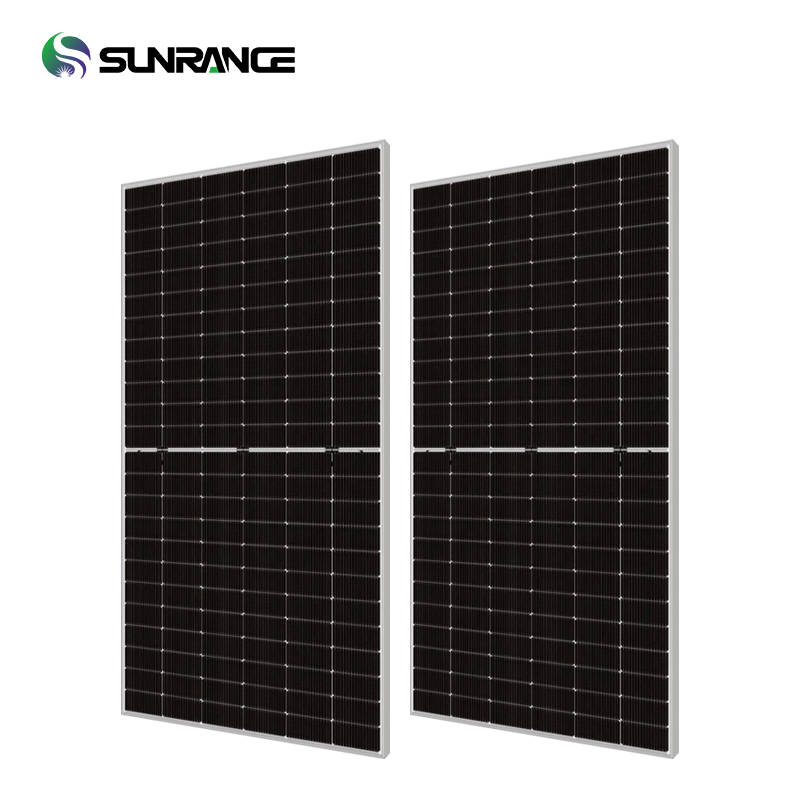

N-Type Topcon Solar Panel
N-Type Topcon Solar Panel
Model: SR72P-580N
Maximum power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Short Circuit Current (Isc): 14.33A
Voltage at Maximum power (Vmpp): 43.09V
Current Maximum Power (Impp): 13.46A
MODULE EFFICIENCY(%): 22.44%

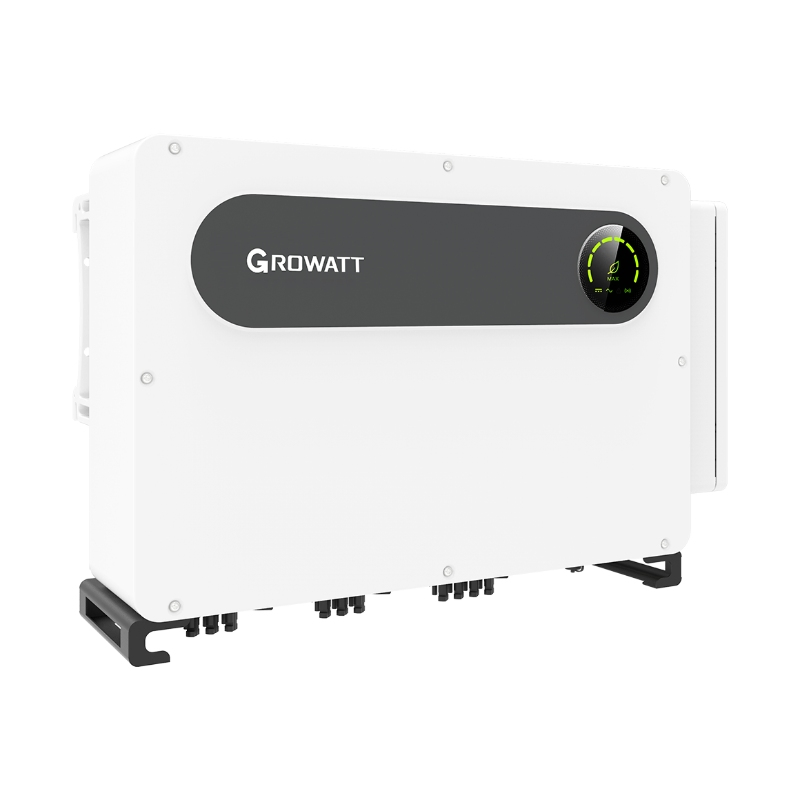

On Grid Inverter
On Grid Inverter
Support PV, DG, grid, and load connections in one system.
System capacity can be easily expanded.
Dynamic power distribution to fulfill load demand.

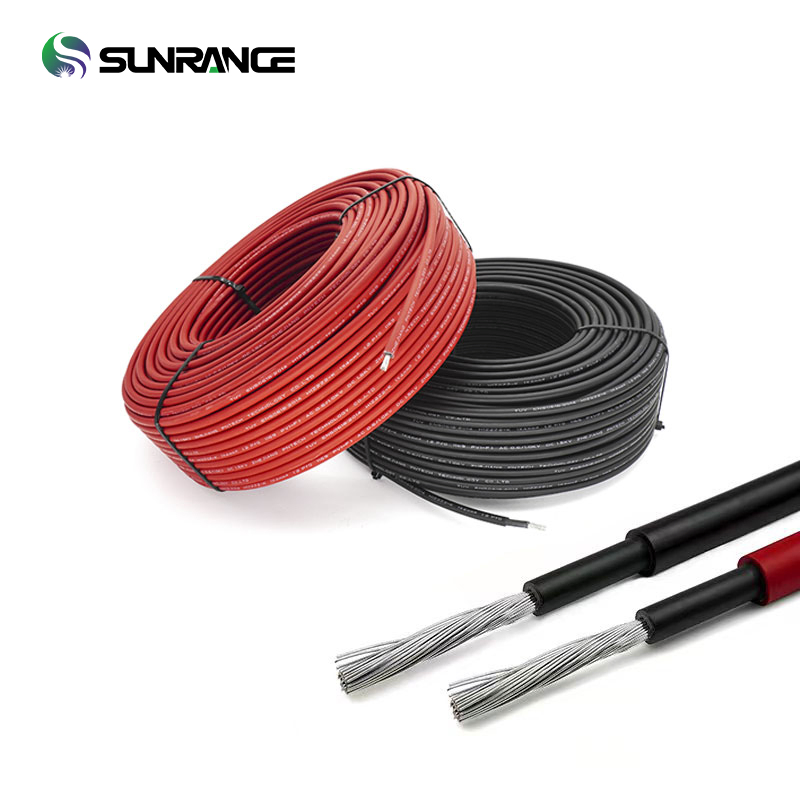

DC Cable & MC4 Connector
DC Cable & MC4 Connector
Cross Section: 4mm2; 6mm2; 10mm2 Optional
Rated Voltage: 600vDC/1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 Years
DC & AC Disconnect Switch
DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 1000vDc
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A

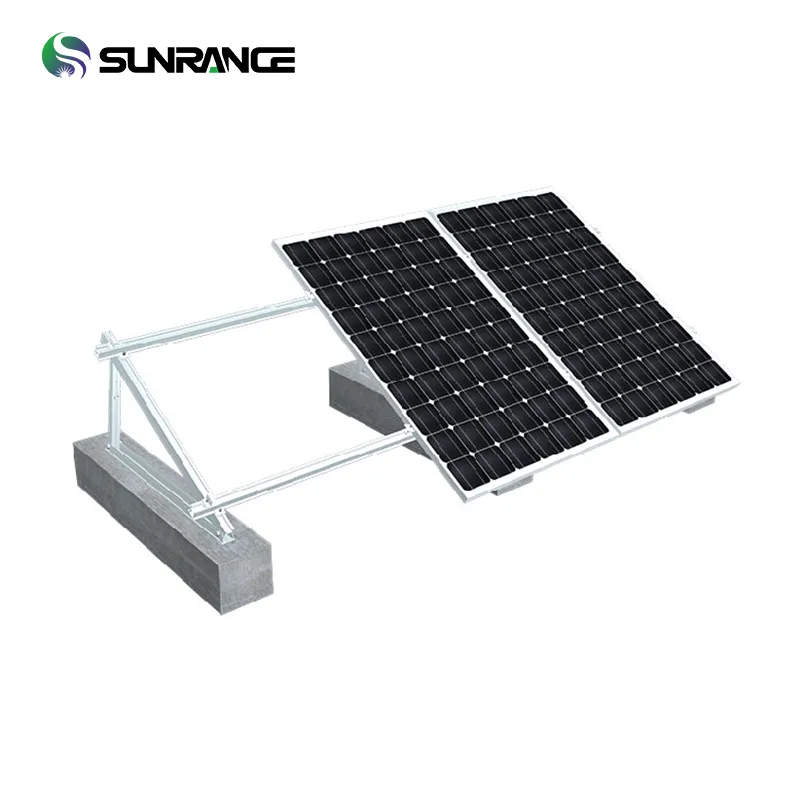

PV Mounting System
PV Mounting System
Mounting Rail & Rail Splice Kit: Al6005 & Sus304
Boltmid & End Clamps: 30, 35, 40mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clips & Tie Optional
Ground Clips & Lugs Optional
Complete Technical Support

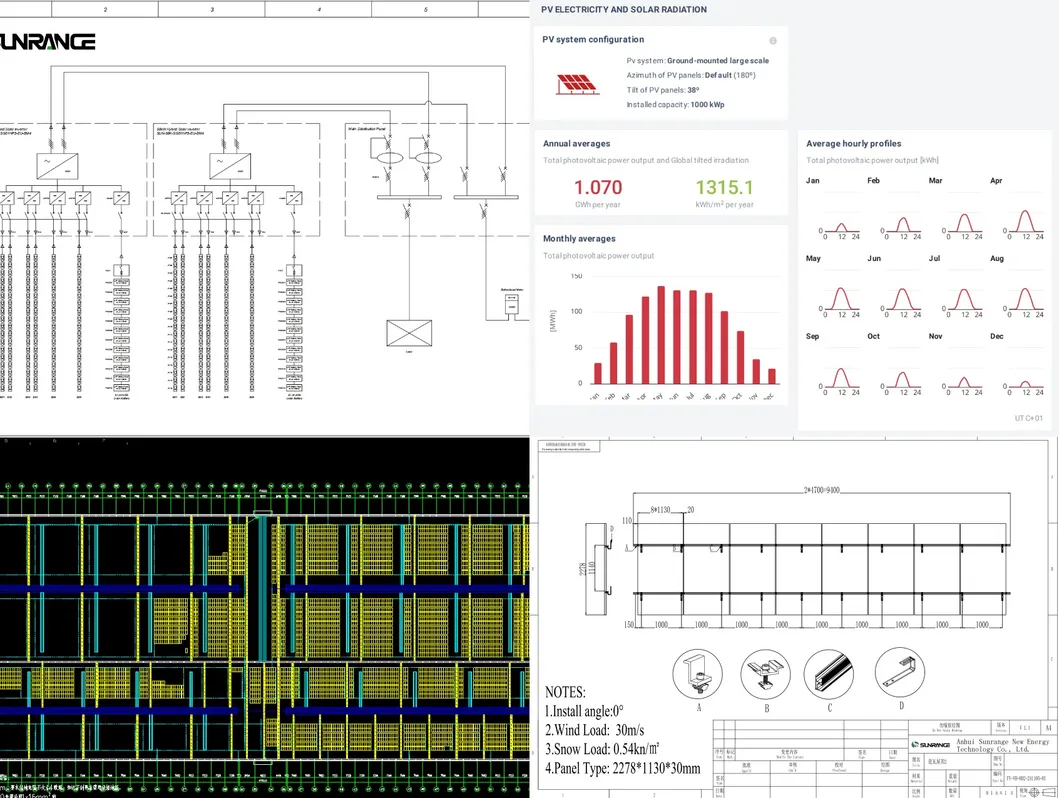

Technical Support Framework
Packaging & Shipping
Packaging Procedures and Methods
Partner Brands
Partner Brands Portfolio
Brand Profile
Production Facility Showroom
We are an emerging brand in the photovoltaic industry. Our customers are located on all continents.

We provide the highest quality products and the most professional services. We provide different design solutions for large, medium and small customers.

We continue to develop and improve technology to bring a better experience to our users.
FAQ
Q How much power solar energy systems can you provide?
Home solar energy systems 5-30KW, and we also provide higher wattage 30KW-1MW+ commercial and industrial solar power systems.
Q Can you offer On Grid and Off Grid solar power systems?
Yes, we produce OnGrid solar power systems, Off Grid solar power systems and also provide Hybrid solar power systems.
Q Who is your service customer?
Individual client for house solar systems; distributor; importer and solar energy system installer.
Q What certificate do you offer?
CE, IEC, CEC, ISO, INMETRO, SGS
Q What is your warranty and after-sales policy?
Your order products will be guaranteed for 10 years, and solar panel warranty is 25-30 years.
