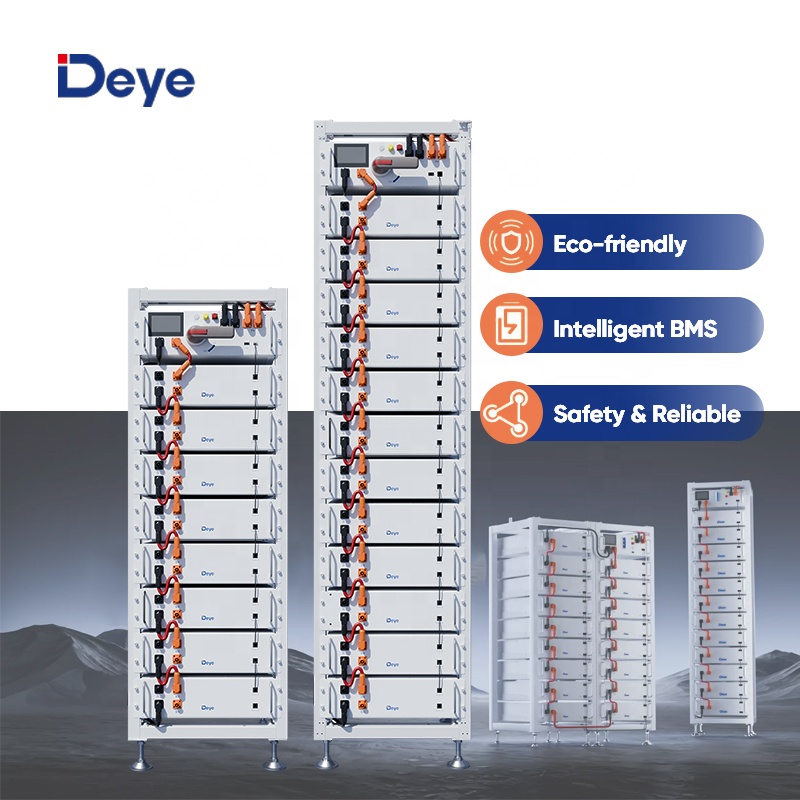

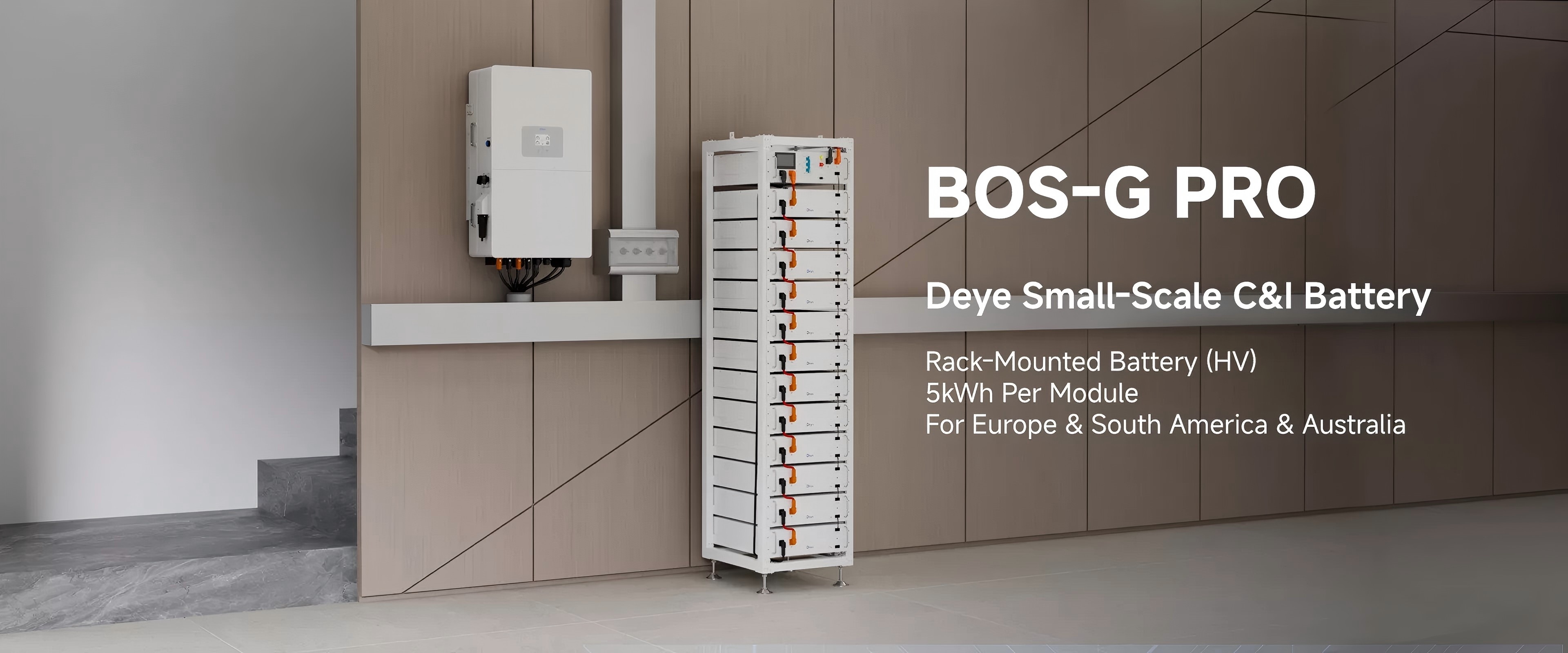

Quick installation, standard of 19-inch embedded designed module is comfortable for installation and maintenance.
Cathode material is made from LiFePO4 with safety performance and long cycle life. The module has less self-discharge, up to 6 months without charging on shelf, no memory effect, and excellent performance of shallow charge and discharge.
It has protection functions including over-discharge, over-charge, overcurrent and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell.
The whole module is non-toxic, non-polluting and environmentally friendly.

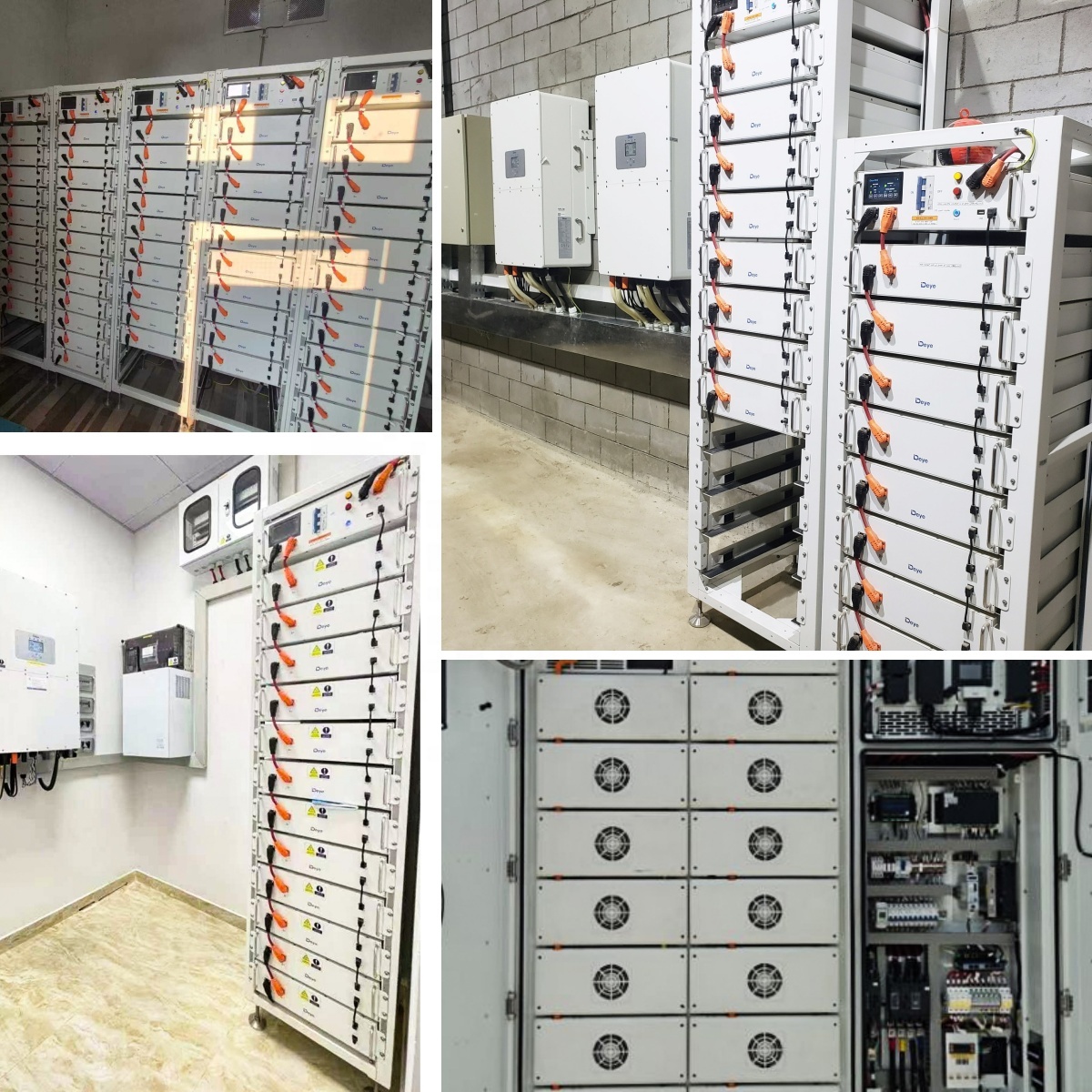

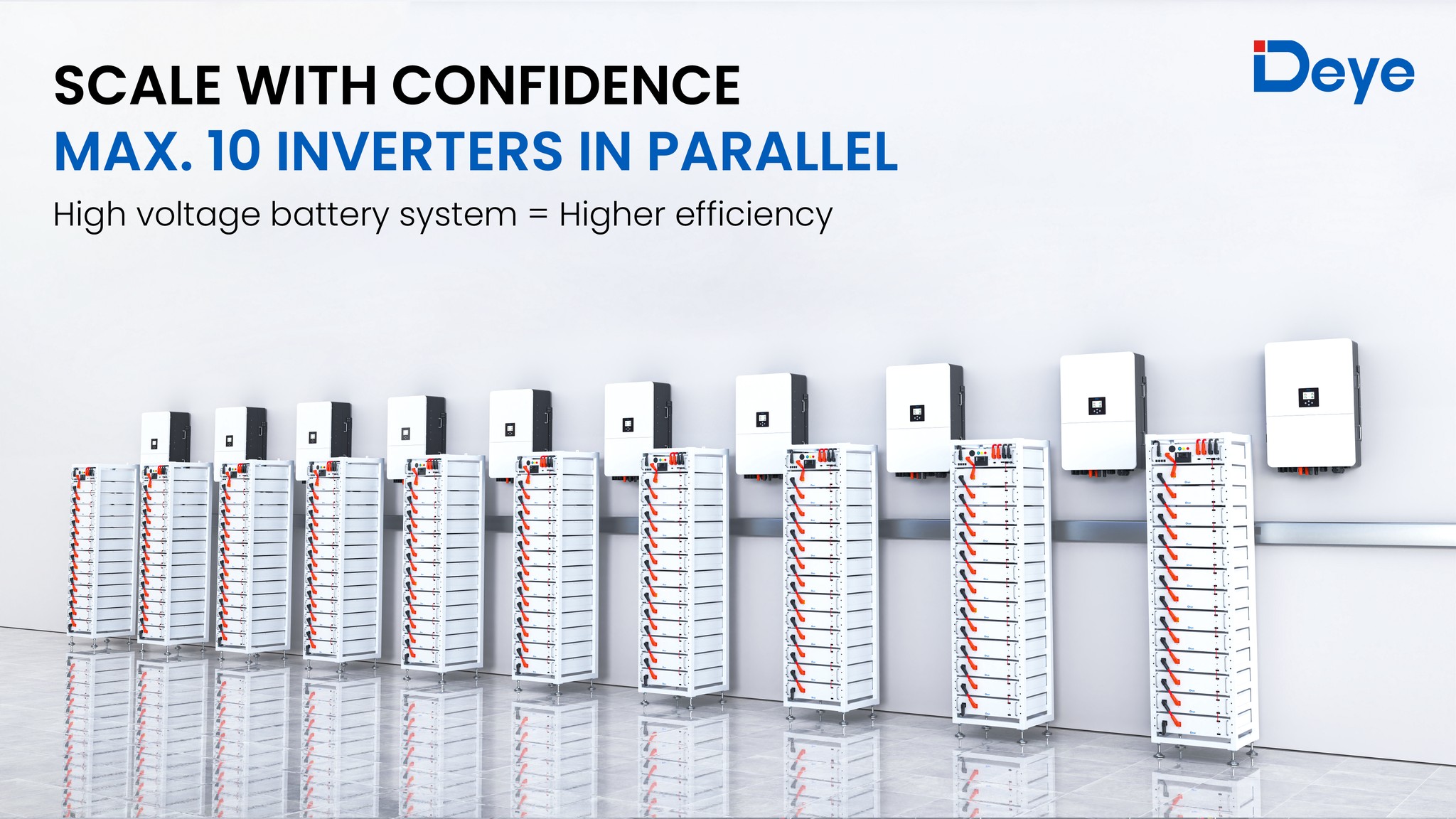

Multiple battery modules can be in parallel for expanding capacity and power. Supports USB upgrade, wifi upgrade (optional), and remote upgrade (compatible with compatible inverter systems).
Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.

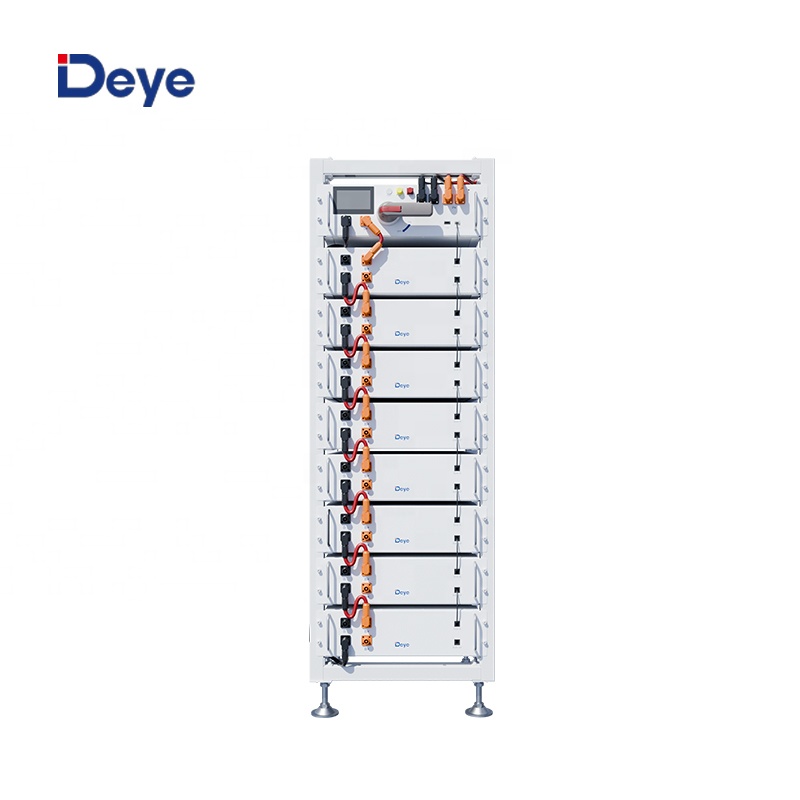

| Model | BOS-G-Pro |
| Battery Chemistry | LiFePO₄ |
| Capacity | 100 Ah |
| Nominal Voltage | 51.2 V |
| Battery Module Number | BOS-G-Pack5.1 |
| Charge/Discharge Current – Maximum Continuous | 100 A |
| Charge/Discharge Current – Peak | 125 A (10 seconds) |
| Dimensions | 530 × 602× 1629mm |
| Weight | Approximately 290 kg |
| IP Rating | IP20 (suitable for indoor use) |
| Operating Temperature Range – Charge | 0°C to 55°C |
| Operating Temperature Range – Discharge | -20°C to 55°C |
| Relative Humidity | 95% (maximum) |
| Installation | Rack Mounting |
| Warranty Period | 10 years warranty |
The number of battery packs in each cluster must be the same in each group, and the number of battery packs in group A and Group B can be different.

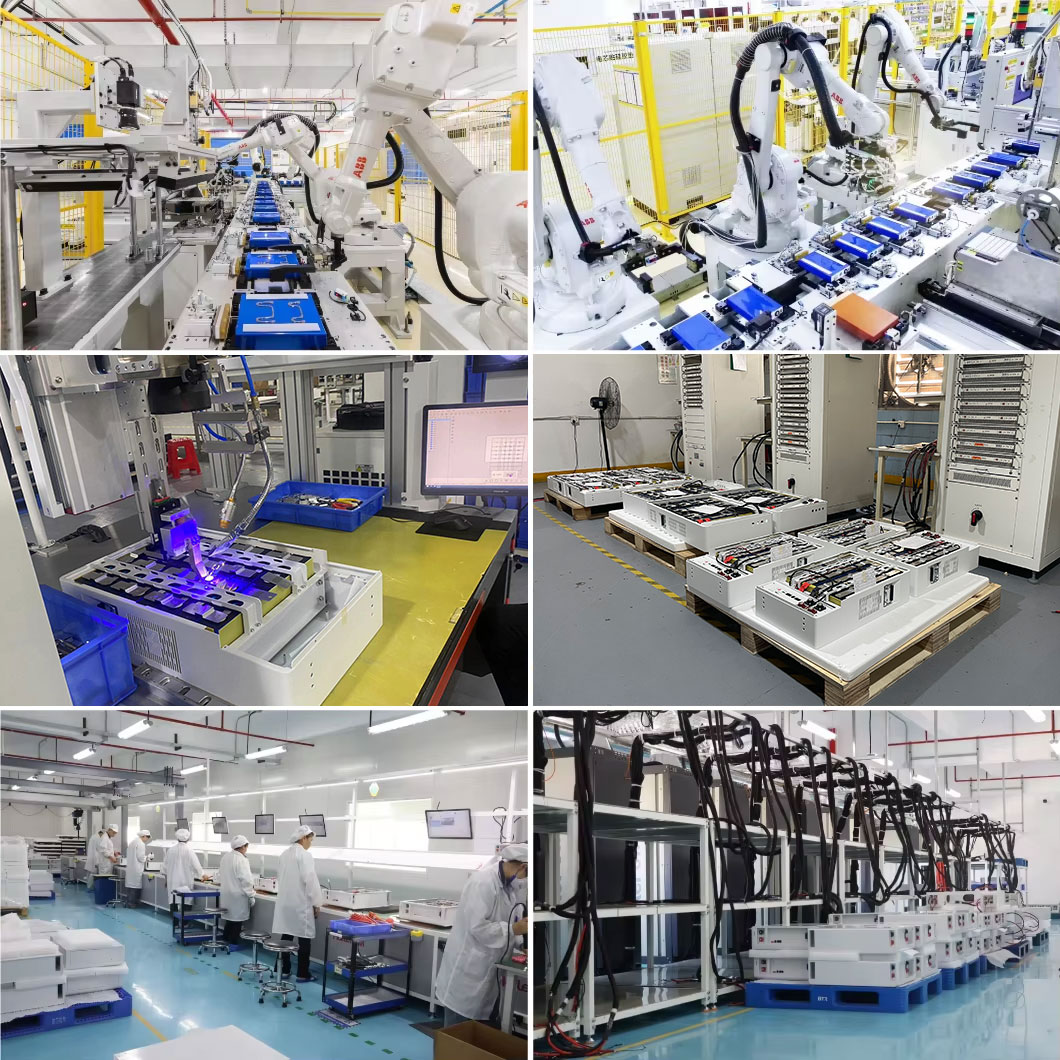

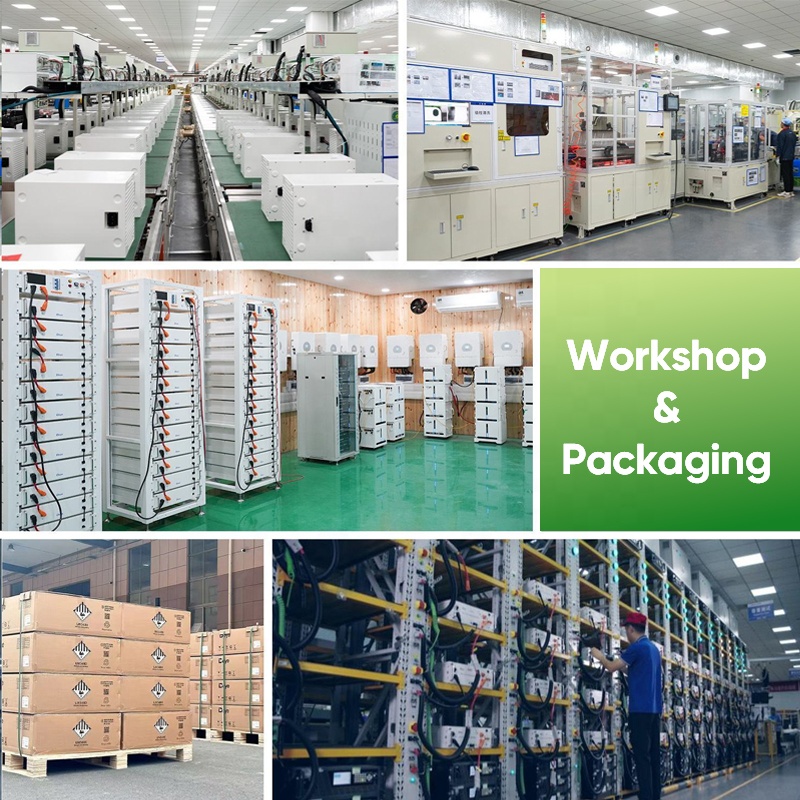

Our facility has developed an industry-leading intelligent manufacturing system, and constantly leads innovation in equipment and technology with the independent R&D of a top-notch technical team. With world-class production automation, intelligence, and production efficiency, our efficient intelligent factory employs new technologies such as AI, image recognition, machine learning, predictive algorithms and 5G.
Our products have passed IEC62619, IEC/EN60730, UL1973, CE-EMC etc testing, and got certification.

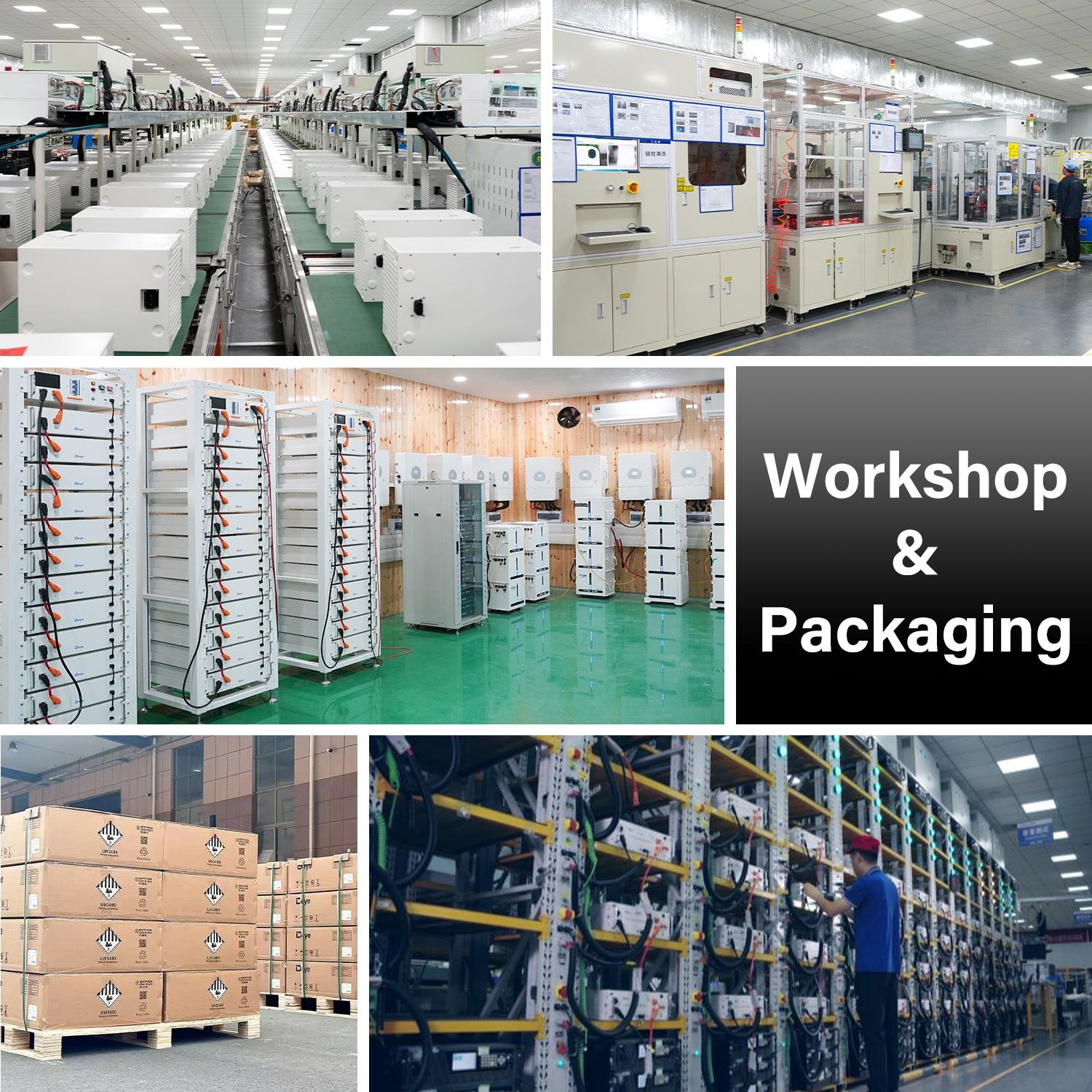

Professional packaging is implemented to ensure the safe transit and storage of all high-voltage battery modules, conforming to international shipping standards for dangerous goods class 9.
We participate in more than 20 exhibitions worldwide each year, spanning Asia, Europe, the Americas etc.

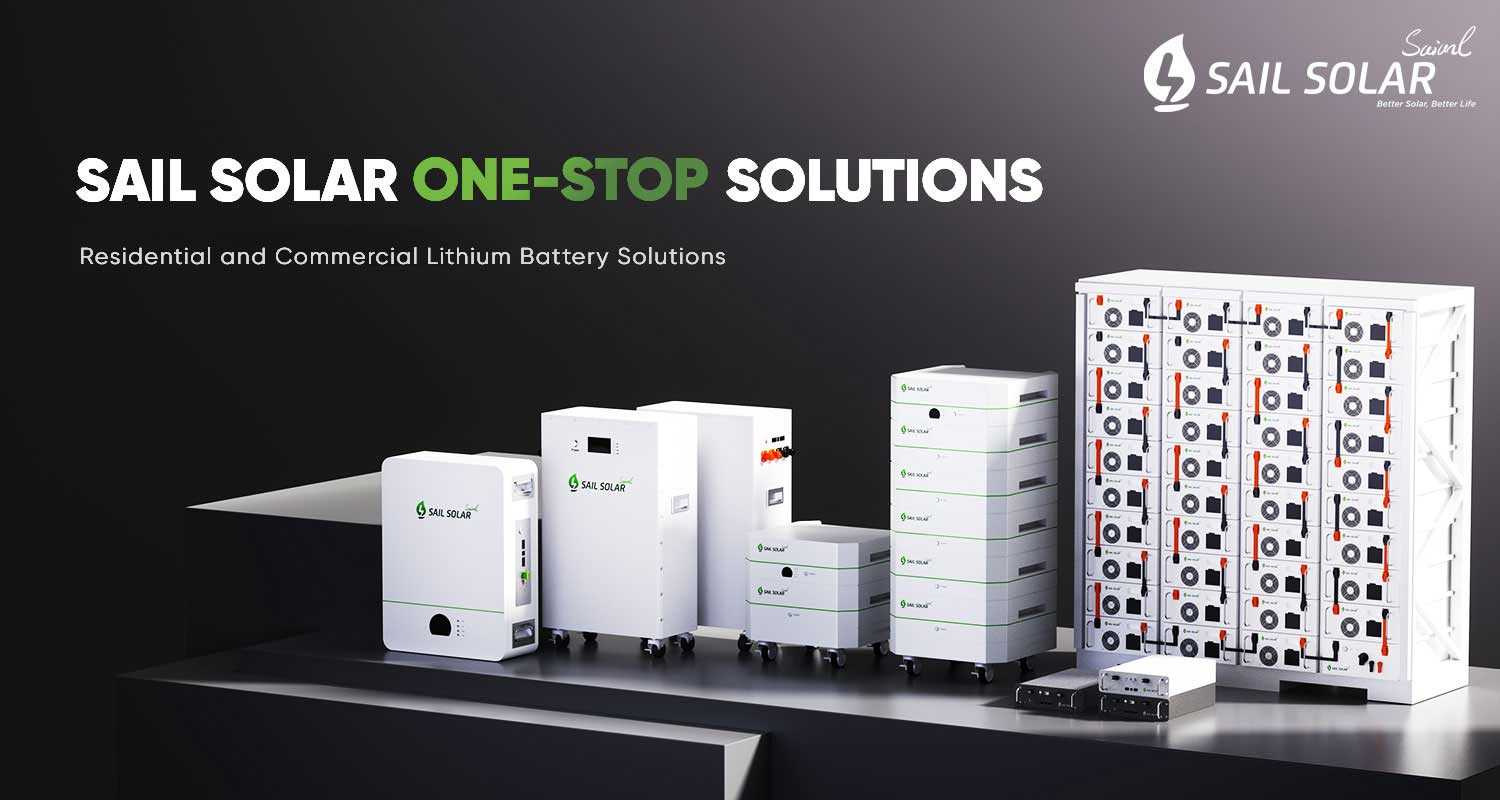

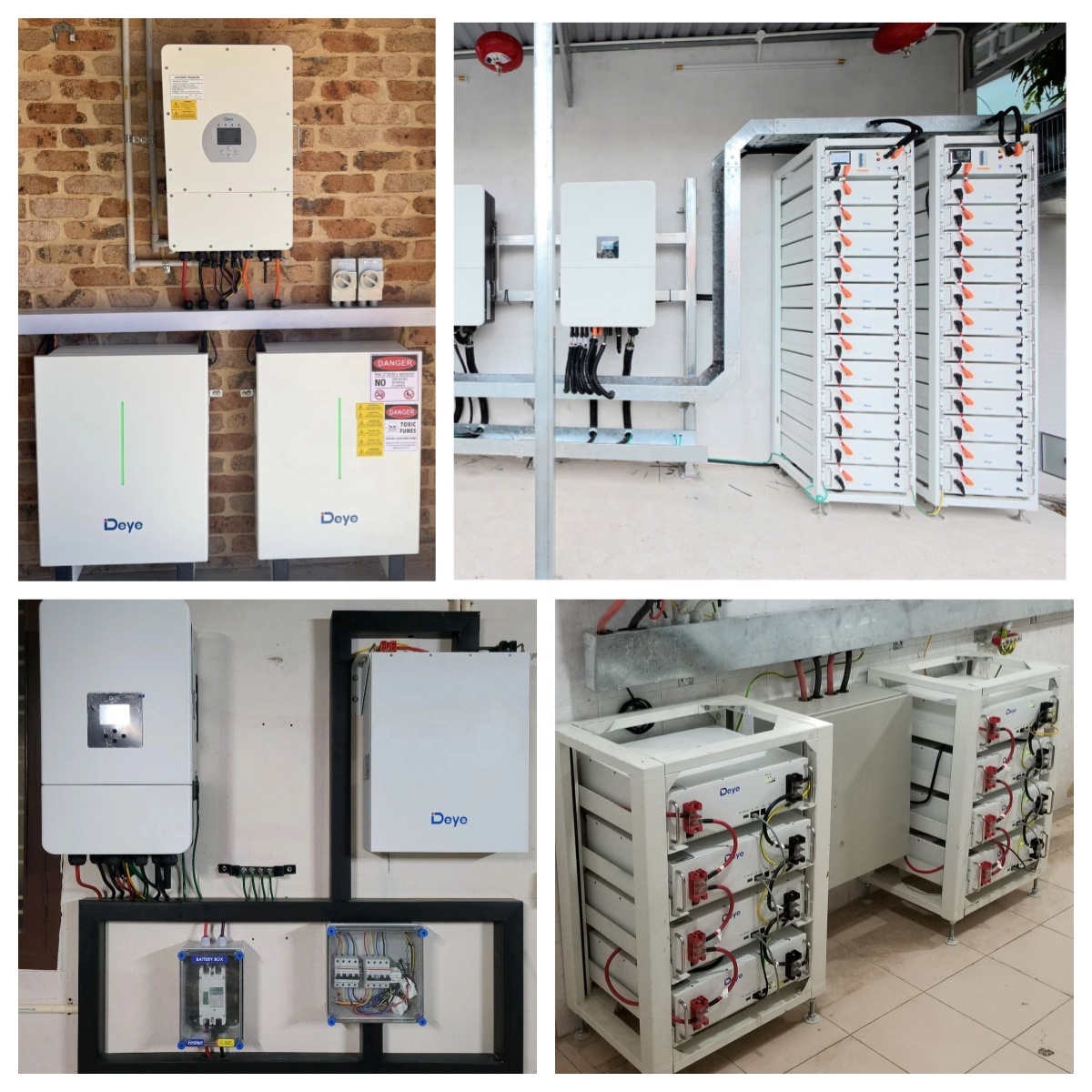

We can supply residential and commercial use lithium battery solution and BESS solution, from 5kwh to 1000mwh.
