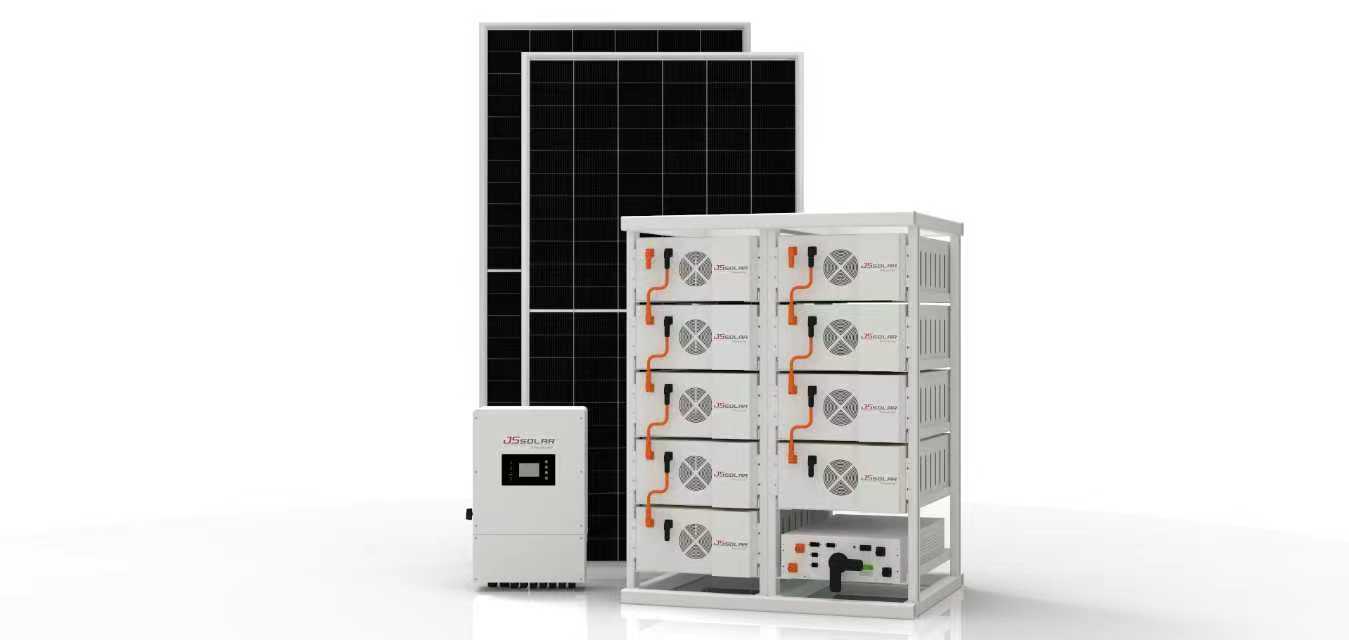

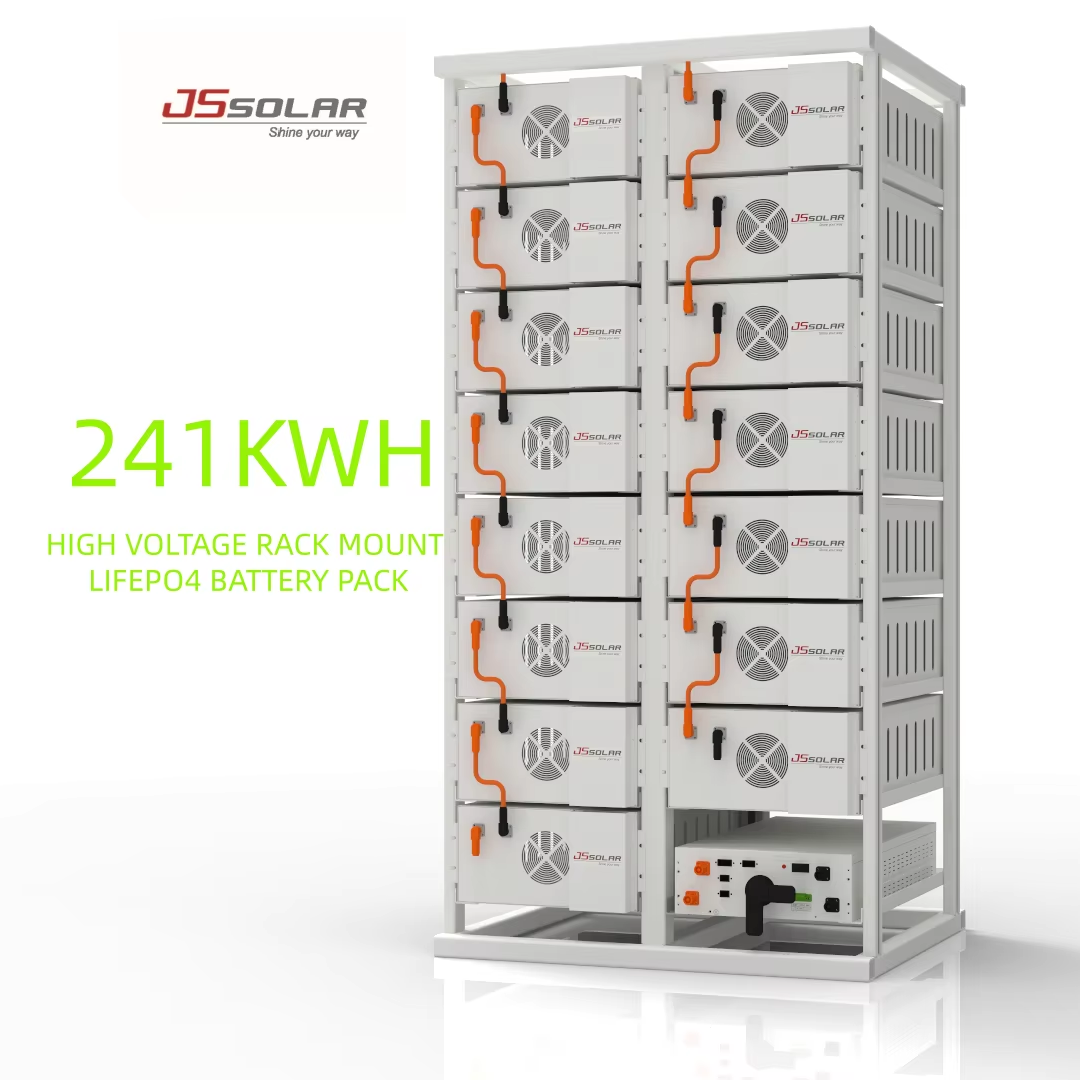

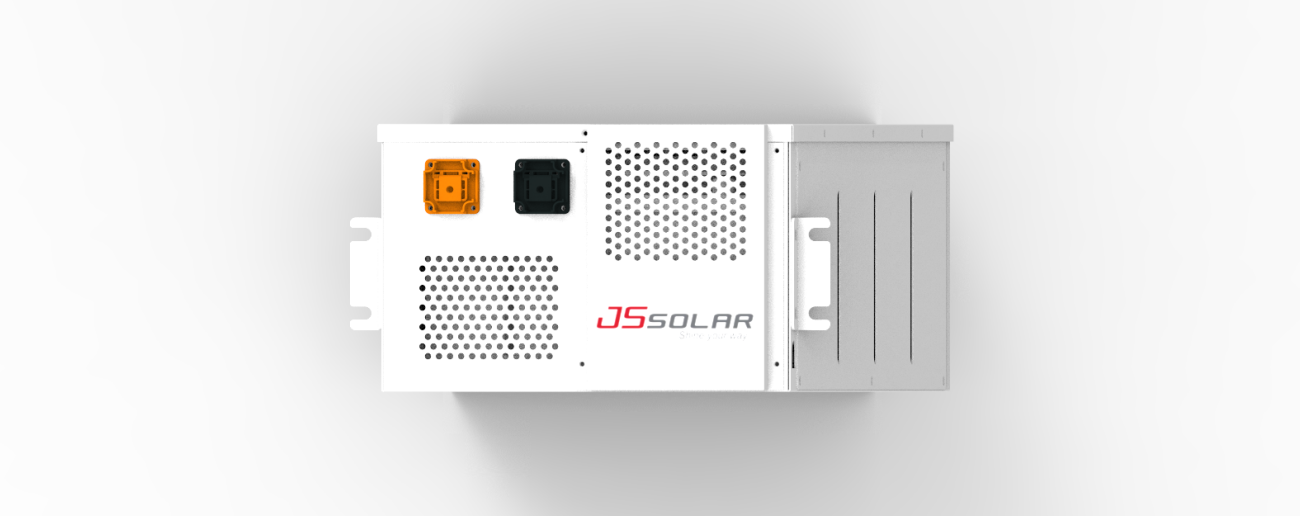

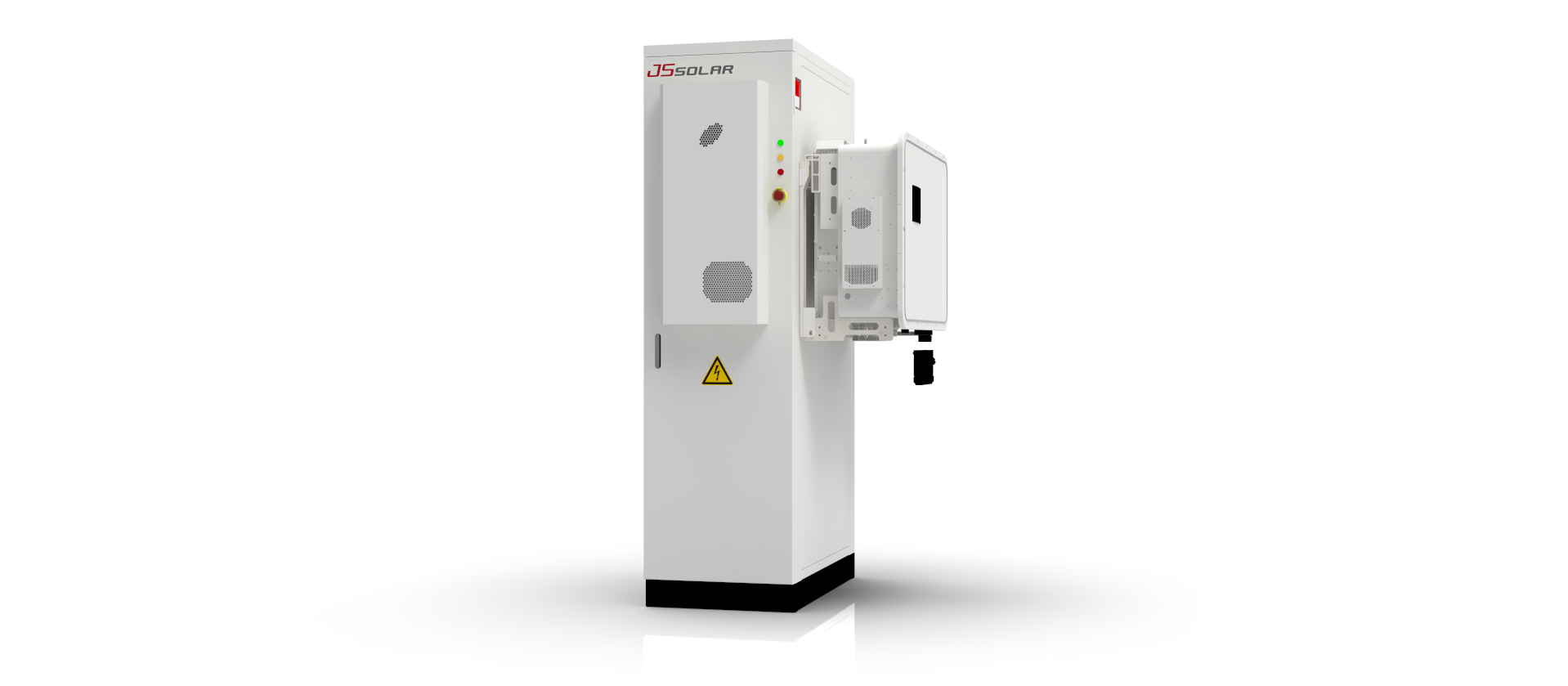

Lifepo4 Battery Pack 314Ah 100Kwh 200Kwh Container ESS Solar Wholesale Lithium Battery Energy Storage System for Industrial

Products & Details

Product Parameters

Specification Parameter
Model	LFP51280	LFP51314
Nominal voltage	51.2V	51.2V
Nominal capacity	14336Wh	16076.8Wh
Usable capacity	12902Wh	14469Wh
Design life	10+ years	10+ years
Dimension	885434238.2 (MM)	885434238.2 (MM)
Weight	108KG	108KG
Cycle life	≥ 6000 @ 25°C	≥ 6000 @ 25°C
Discharge voltage	44.8V	44.8V
Charge voltage	57.6V	57.6V
Charge/Discharge Current	140A (Recommended) / 280A (3S)	157A (Recommended) / 314A (3S)
Internal resistance	≤ 50mΩ	≤ 50mΩ
Power consumption	≤ 10W	≤ 10W
Monitoring	System voltage, Cell voltage, Cell temperature, System current, SOC	System voltage, Cell voltage, Cell temperature, System current, SOC
Communication	CAN / RS485	CAN / RS485
Operation temperature	0 ~ 40°C	0 ~ 40°C
Storage temperature	-20 ~ 70°C	-20 ~ 70°C
Humidity	15% ~ 80%	15% ~ 80%

✔ Compatible with Deye, ATESS, Megarevo, Sinexcel, KELONG, Growatt and more.

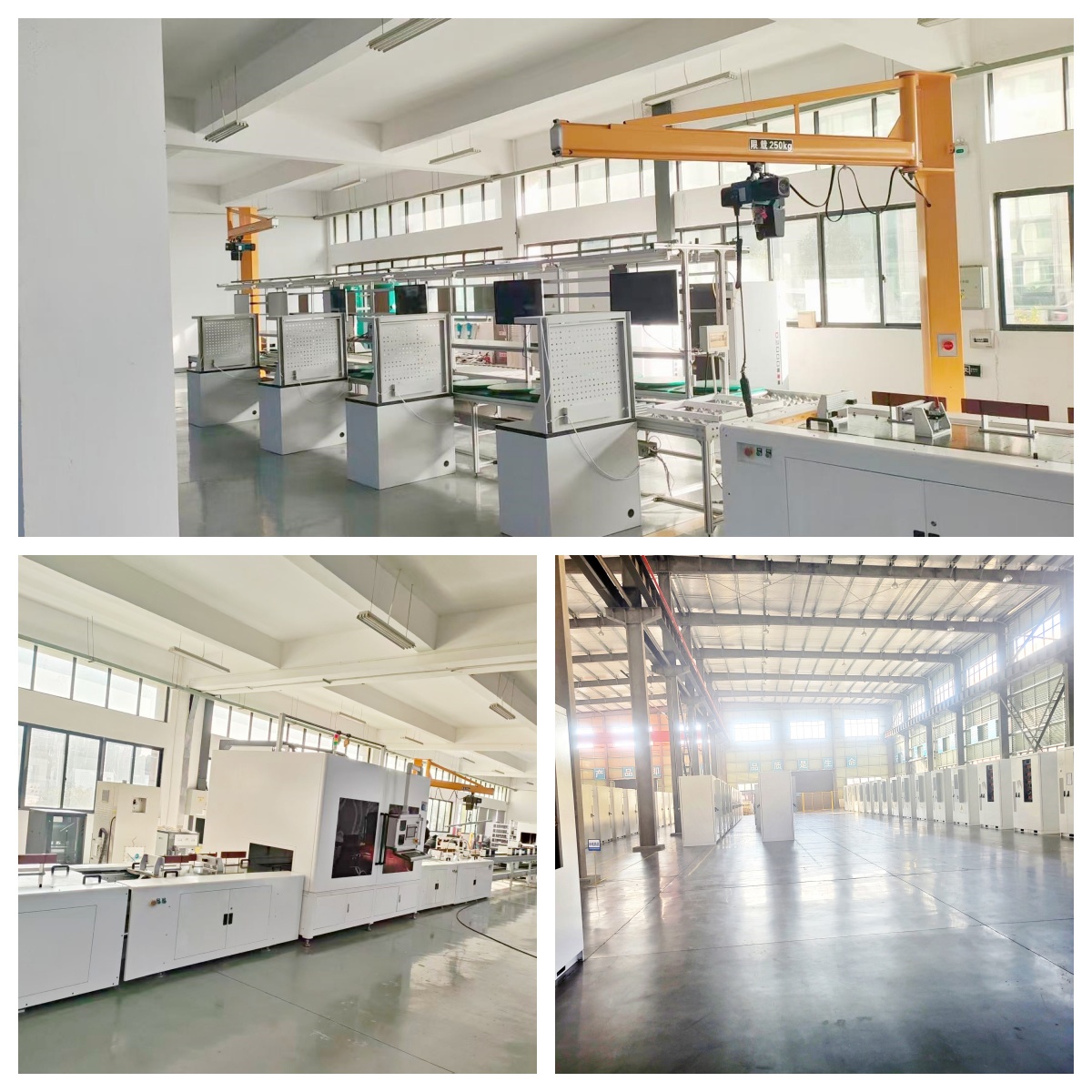

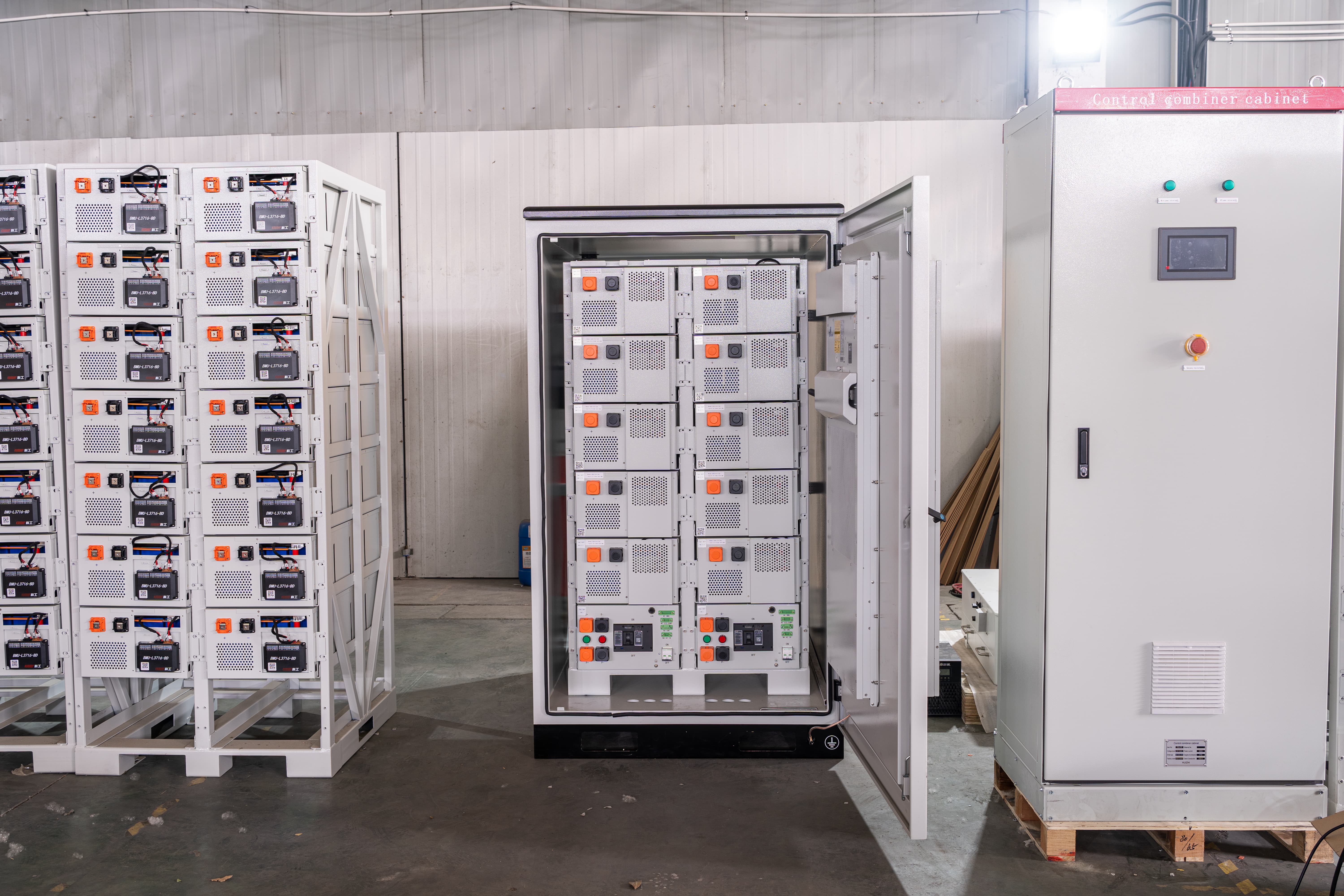

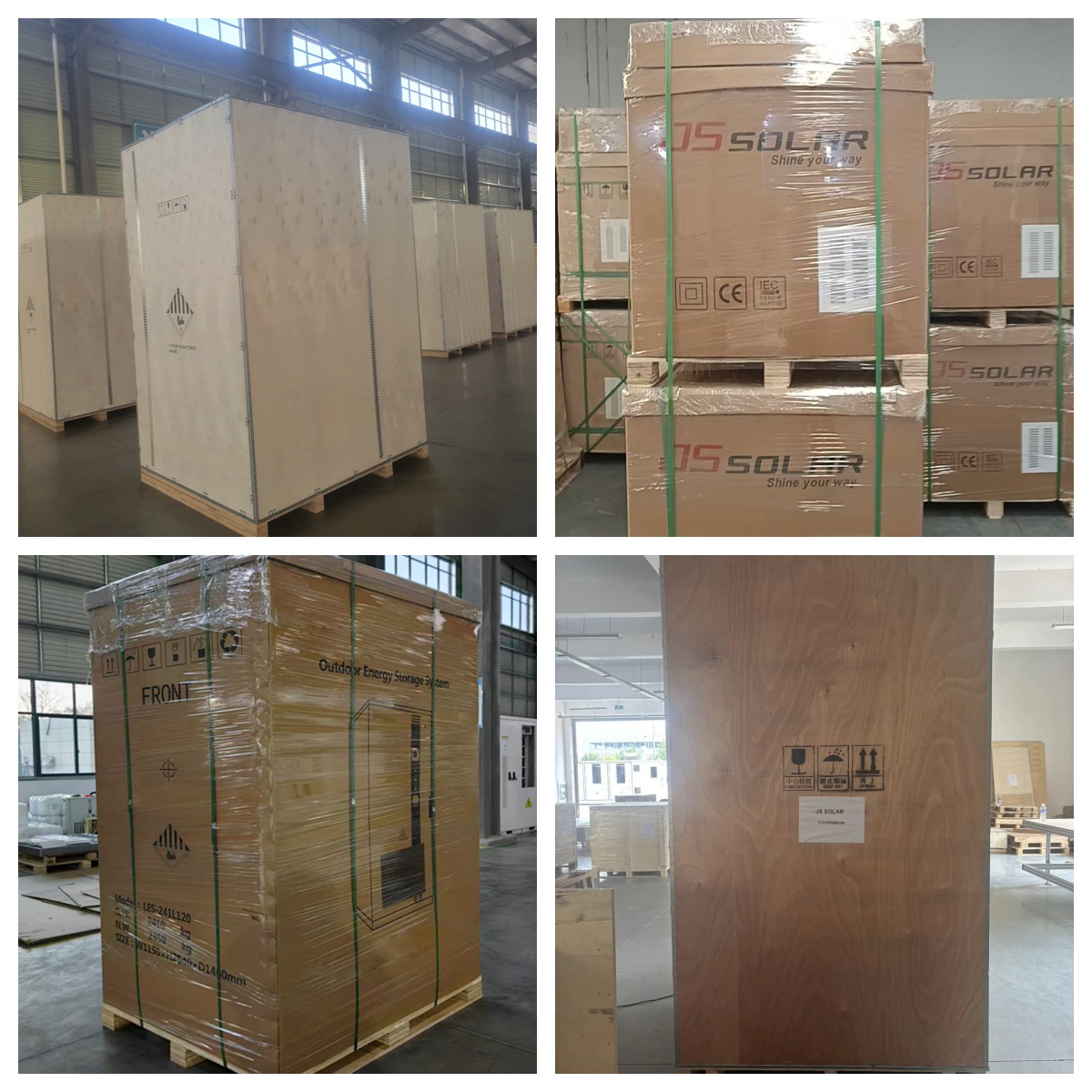

Packaging & Workshop

Company Profile

Entered the photovoltaic industry in 2004. After nearly 20 years of rapid development, it has become a photovoltaic enterprise focusing on the production of photovoltaic cells, high-efficiency photovoltaic modules, and the construction and operation of photovoltaic power stations. Since establishment, the enterprise has kept far ahead in R&D innovation, intelligent production, and other fields. Supported by a world-class manufacturing engineering and management team, the products align with rigorous global standards, holding certifications such as CE, RoHS, MCS, IEC 61215, and IEC 61730. Utilizing advanced technology, strict quality control, and professional service, products are exported to more than 100 countries and regions worldwide, establishing distributor channels in Chile, Mexico, and the Middle East, winning strong recognition across domestic and international markets. In recent years, the company has focused on the design of high-quality products and the research and development of energy storage systems, committing to provide premium solutions for global new energy applications to build a sustainable future.

Exhibition

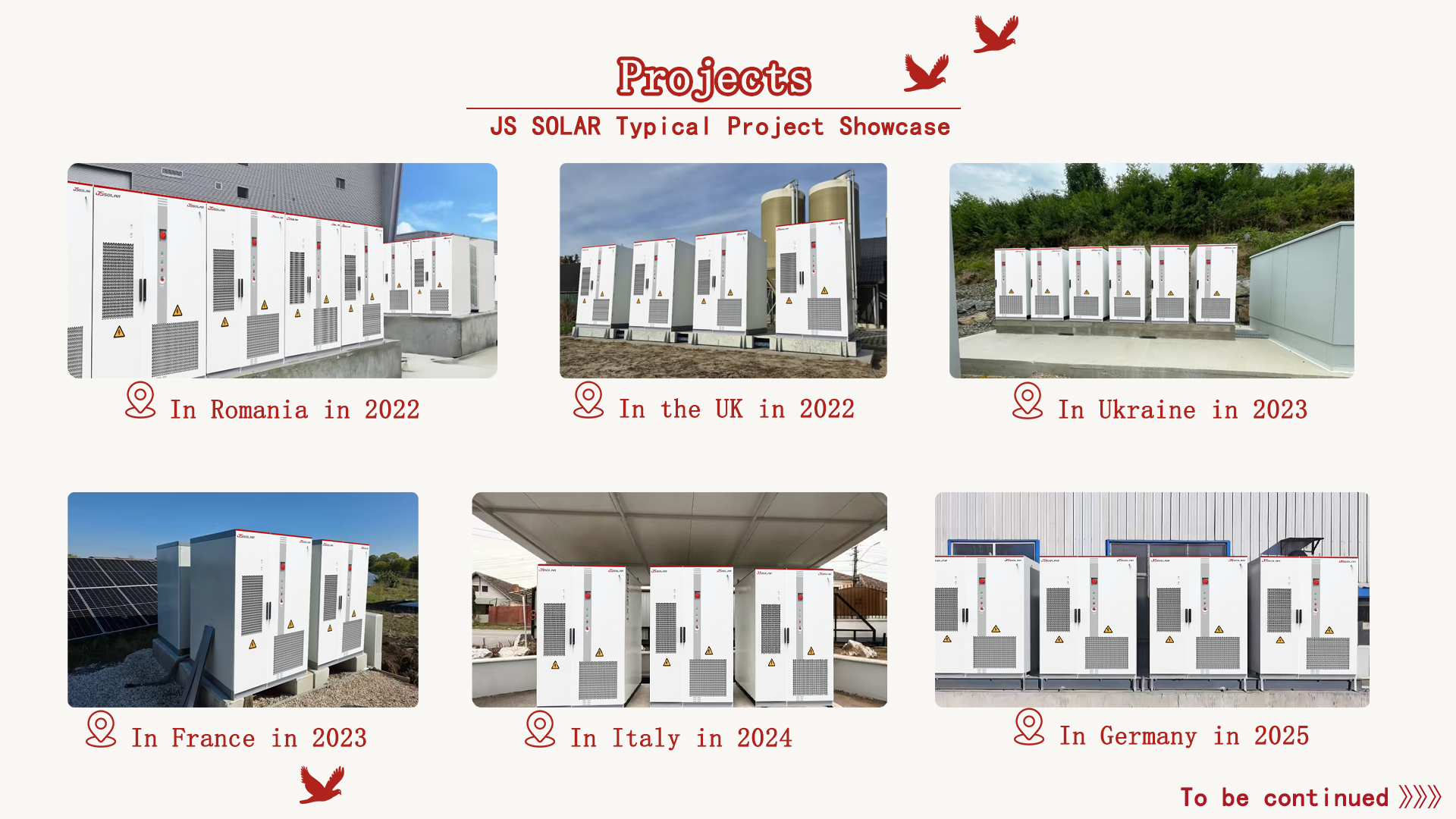

Projects

Frequently Asked Questions

Q1: What is included in a battery or pack? Can I buy a charger?

A1: A standard pack includes the battery case, BMS, and battery pack. Customized connectors and chargers are also available for purchase.

Q2: How often should the battery be recharged?

A2: Usually, it is recommended to recharge the battery pack every 2 months. The duration required to reach a full charge depends on the output current of your charger (e.g., a 20A charger can fully charge a 12V 100Ah battery in 5 hours, while a fast 50A charger takes 2 hours).

Q3: What are the lead times for samples and bulk orders, and how is shipping handled?

A3: For small quantities or samples, orders can be finished in 3-5 days post-payment. Bulk orders typically take 10-25 days depending on total quantity. Small battery packs are shipped by express courier (FedEx, UPS, TNT, etc.). If the weight exceeds 50KG, air or sea shipping can be selected, with sea shipping being the most cost-efficient option.

Q4: What is the warranty and expected cycle life of the battery pack?

A4: We offer a 10-year warranty for our battery packs under various application situations. The LiFePO4 battery pack ensures at least 6000 cycles, providing a reliable service life of at least 10 years with standard daily charge and discharge cycles.

Q5: Can we put different LiFePO4 battery packs in parallel or series by ourselves?

A5: Yes, the batteries can be placed in parallel or series. However, please follow these precautions: 1) Ensure the voltage of each battery is identical before setting up. 2) Do not connect a fully discharged battery with a charged battery in parallel. 3) Consult with us about the target capacity of the entire pack so we can match the appropriate BMS. 4) If you are not a professional, avoid handling parallel or series connections manually to ensure safety.

Q6: Can the battery pack be used for a car engine?

A6: The battery pack contains a BMS and can be used for low-speed electric vehicles or as auxiliary power in standard cars. Do not use it directly for starter engine power of standard cars, as this requires a more specialized BMS design.
