| System | Model | Description | Qty | Unit |
|---|---|---|---|---|

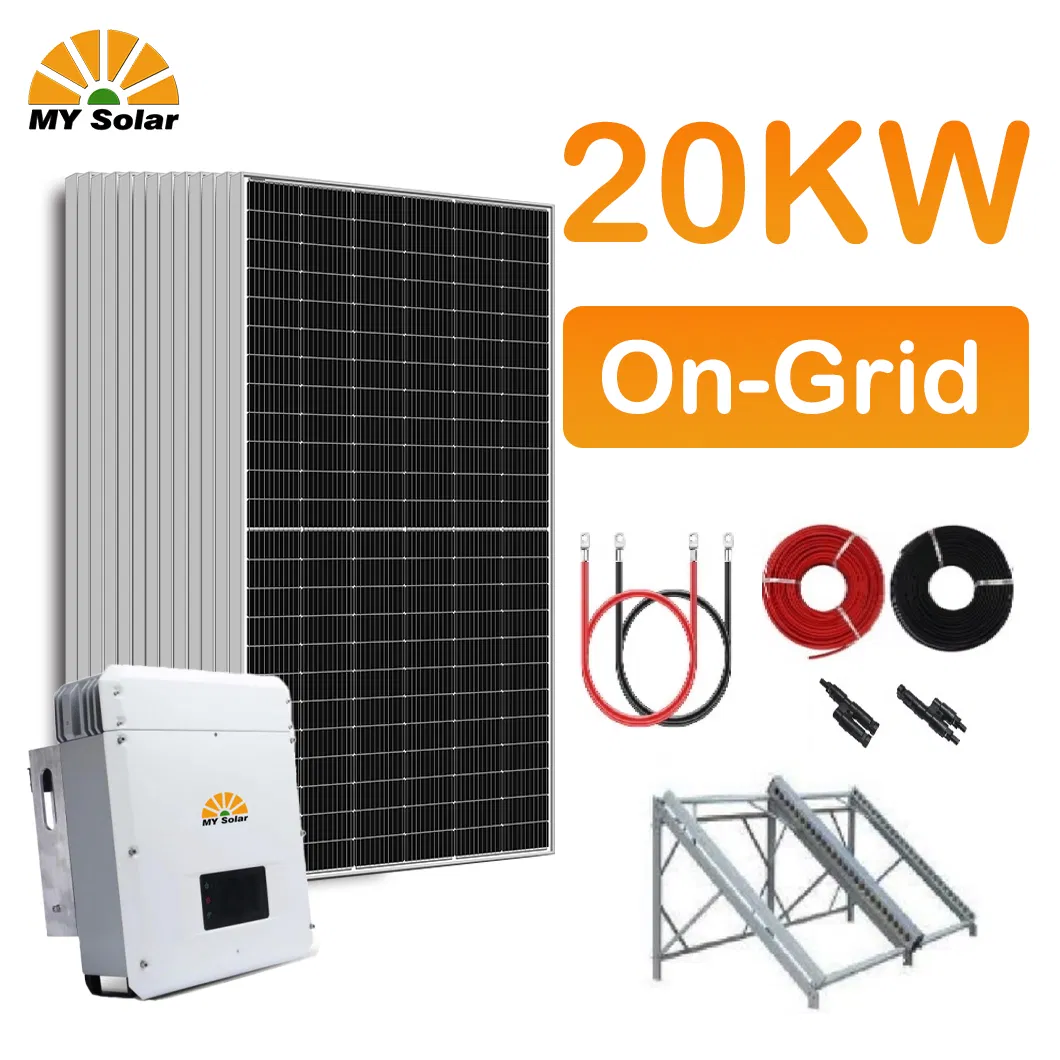

| 20KW Solar power system | XD-20KW |

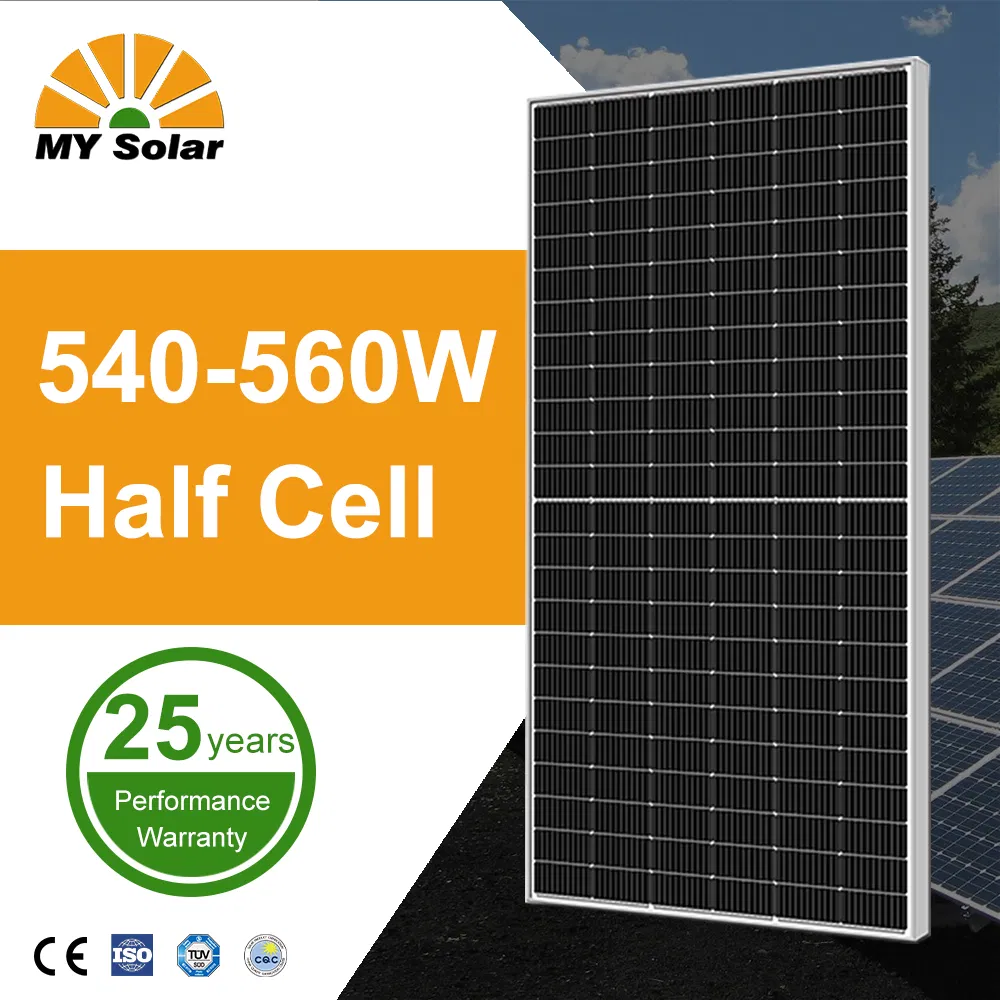

PV solar panel 550W Working Voltage(Vmp): 42.28V Working Current(Imp): 13.01A Weight: 27.5kg Dimension: 2279*1134*35mm |
36 | pcs |
|
20KW Three phase Solar Grid Tied Inverter Efficiency: Max. 98.6% Interfaces: RS485/WIFI Nominal AC voltage range: 280V~490V(Adj) Working Temp: -25ºC ~ 60ºC IP65 protection degree |
1 | set | ||
|
DC Cables Area(mm²): 1*4mm (Red+Black) PV1-F-1*4 TUV certificates |
200 | meters | ||
|
Tile roof: Aluminium Type Wind Load Resistance: 45m/s Snow Load: 2KN/m² |
1 | set | ||
|
MC4 Connector High current and voltage carrying: 30A, 1000DC Low transition resistance, IP67 Excellent plastic material, 94-V0 Wide temperature range: -40ºC - 90ºC Weather and UV resistant for long-time outdoor application approved by TUV |
1 | pairs | ||
|
Package Wooden case protect goods while shipping |
1 | set |

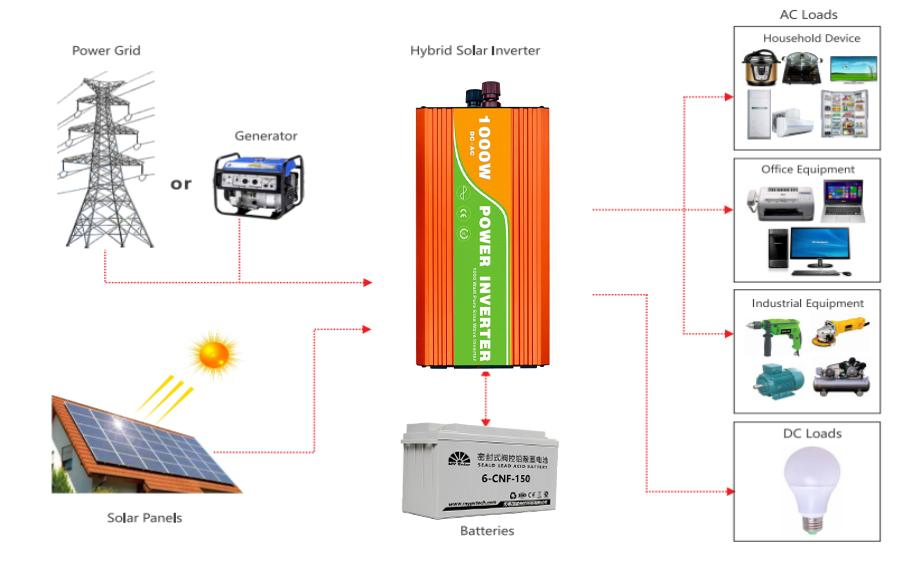

An off-grid solar energy system is not connected to the utility grid, whereas an on-grid (aka grid-tied) solar energy system is connected to the utility grid. Whether off-grid or on-grid system will determine your access to electricity, what equipment is needed for excess production, what happens when the grid goes down, and how you're billed for electricity.

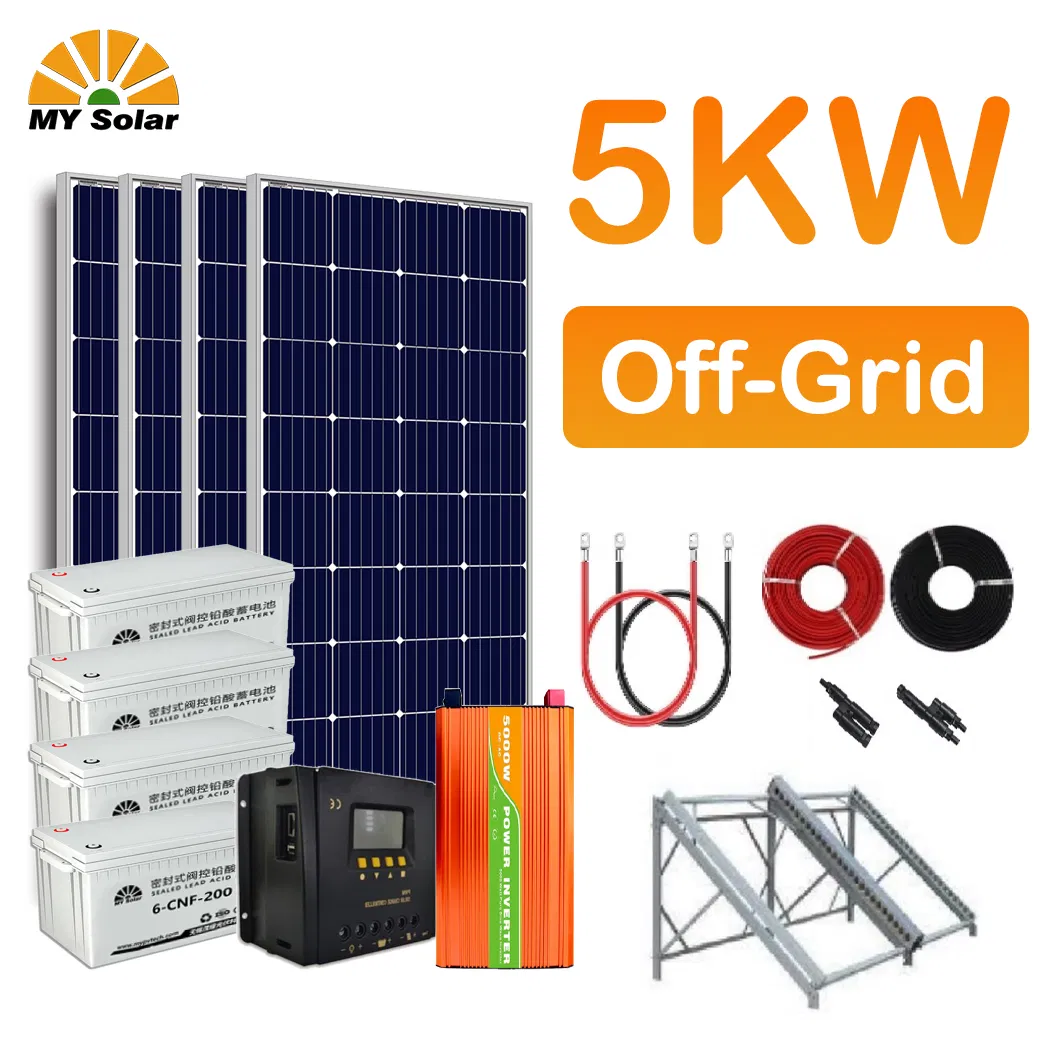

Load Time of Off-Grid System for your reference:
| Specification of Off-Grid System | Load Reference |
|---|---|
| 1KW | 50W Fan - 11 Hours / 200W Computer - 2.5 Hours / 60W TV - 9 Hours |
| 1.5KW | 50W Fan - 15 Hours / 200W Computer - 3.5 Hours / 60W TV - 12.5 Hours |
| 2KW | 50W Fan - 20 Hours / 200W Computer - 4.5 Hours / 60W TV - 16.5 Hours |
| 3KW | 50W Fan - 30 Hours / 200W Computer - 7.5 Hours / 60W TV - 27 Hours |
| 4KW | 50W Fan - 63 Hours / 200W Computer - 12 Hours / 60W TV - 48 Hours / 2KW Air Conditioner - 1 Hour |
| 5KW | 50W Fan - 92 Hours / 200W Computer - 16 Hours / 60W TV - 68 Hours / 2KW Air Conditioner - 1.5 Hour |

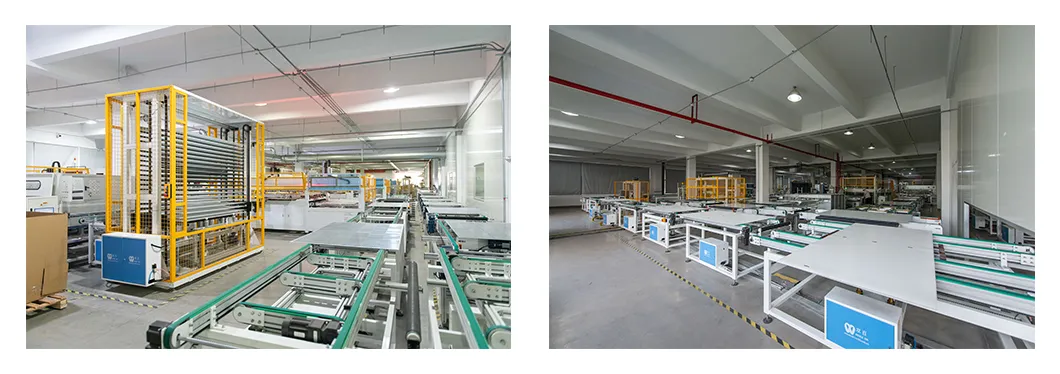

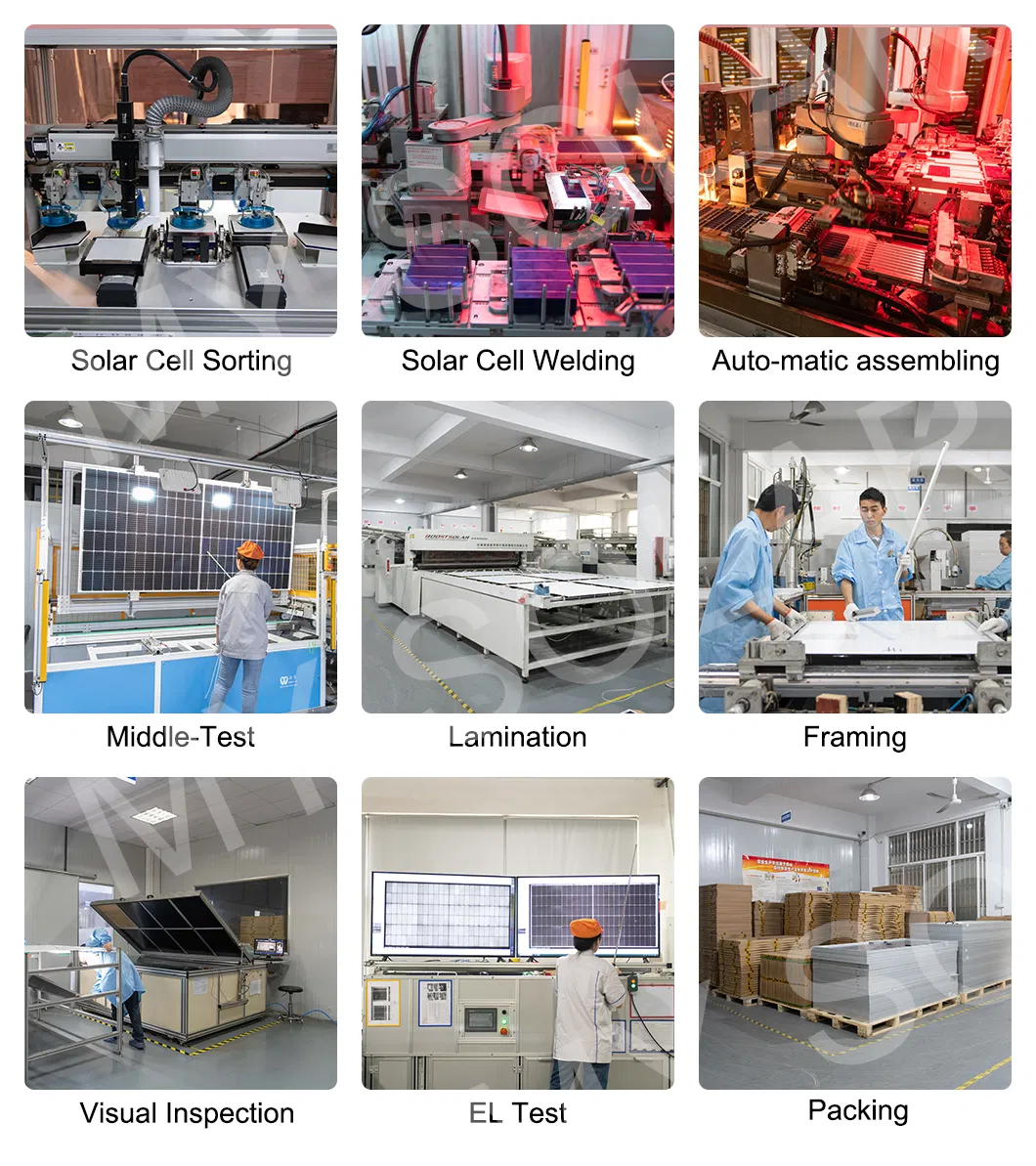

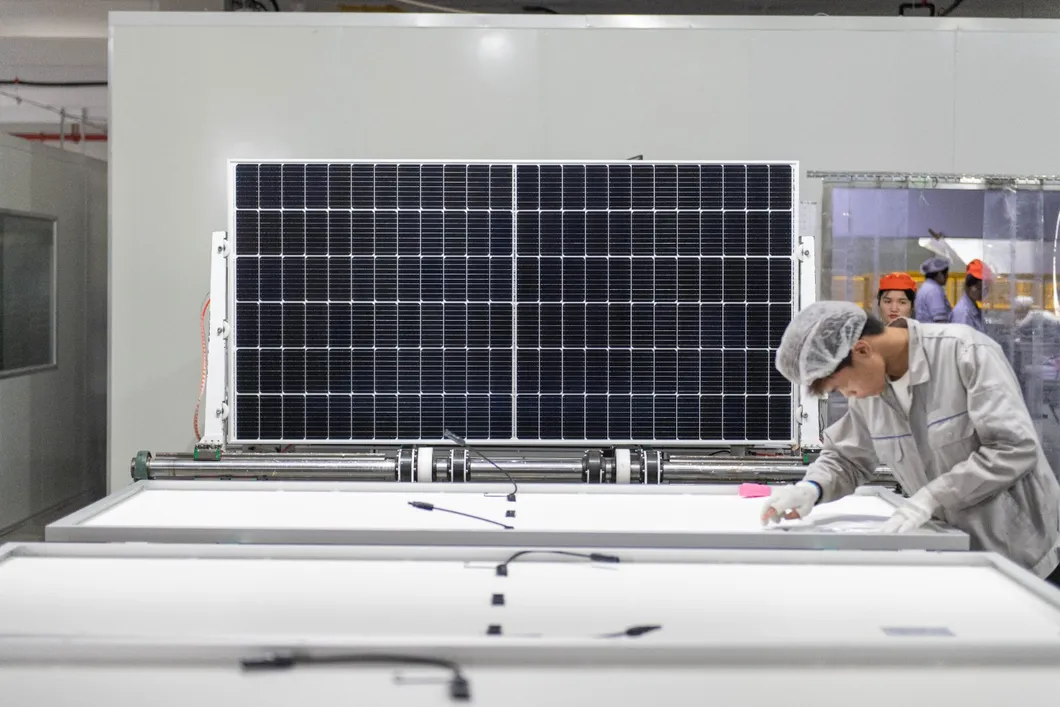

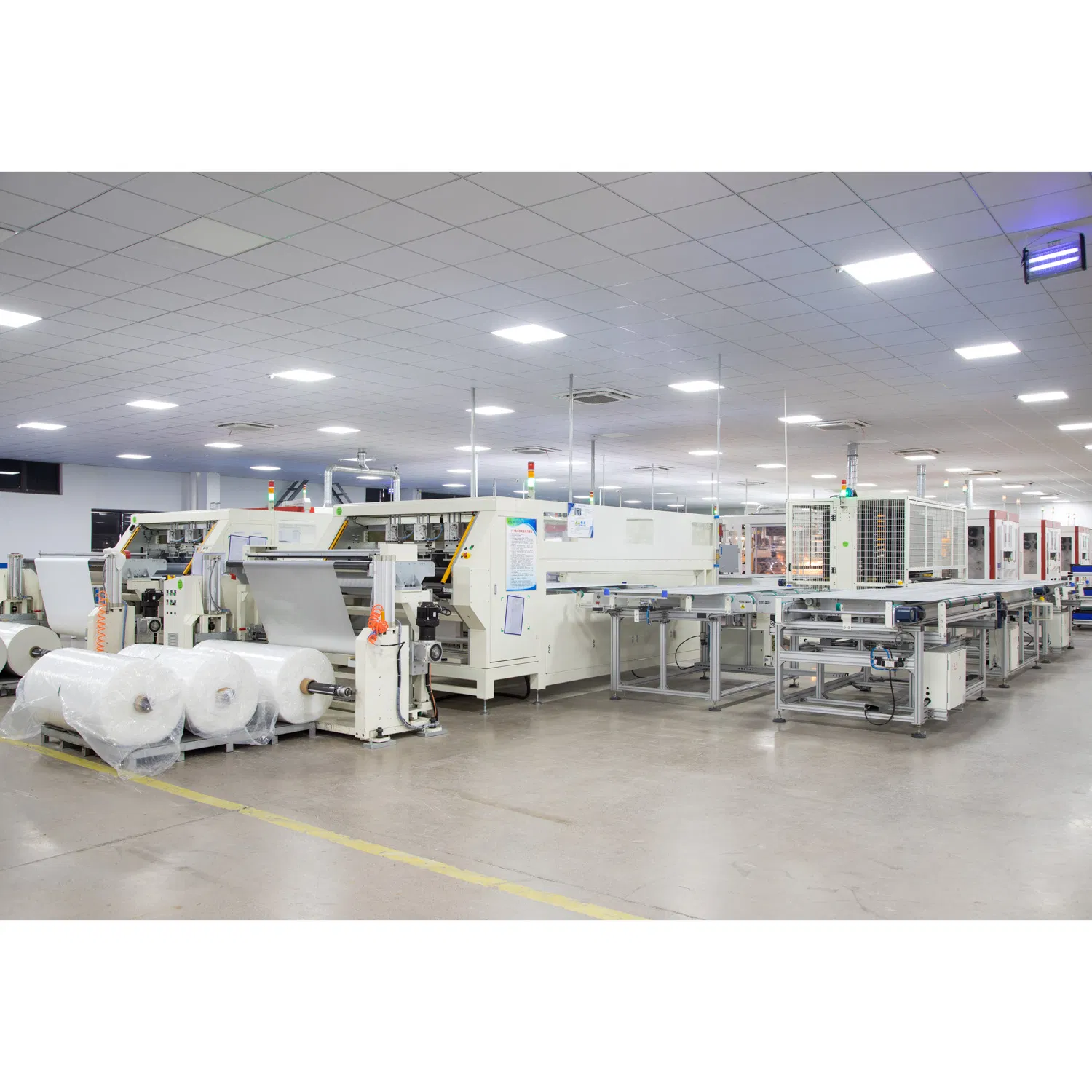

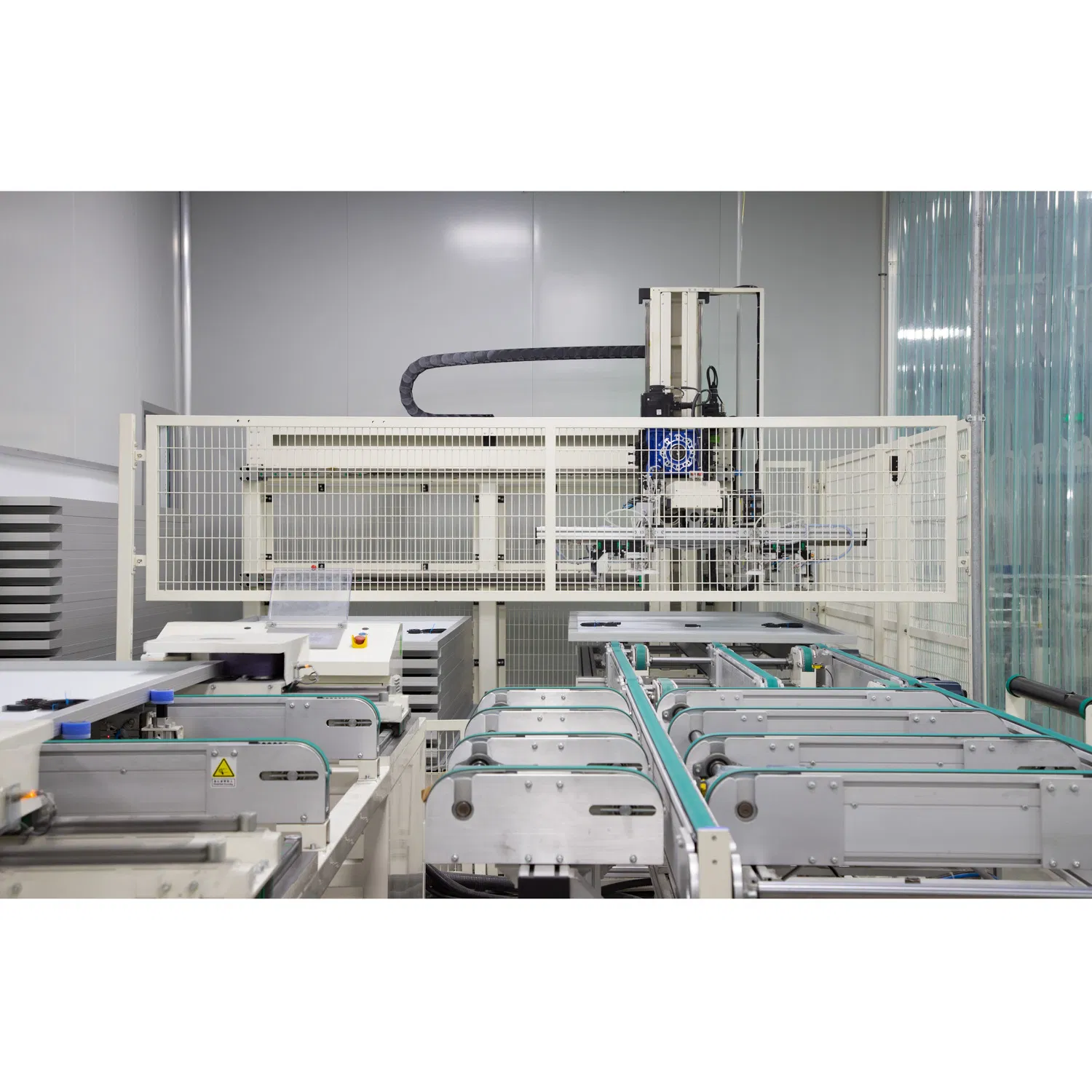

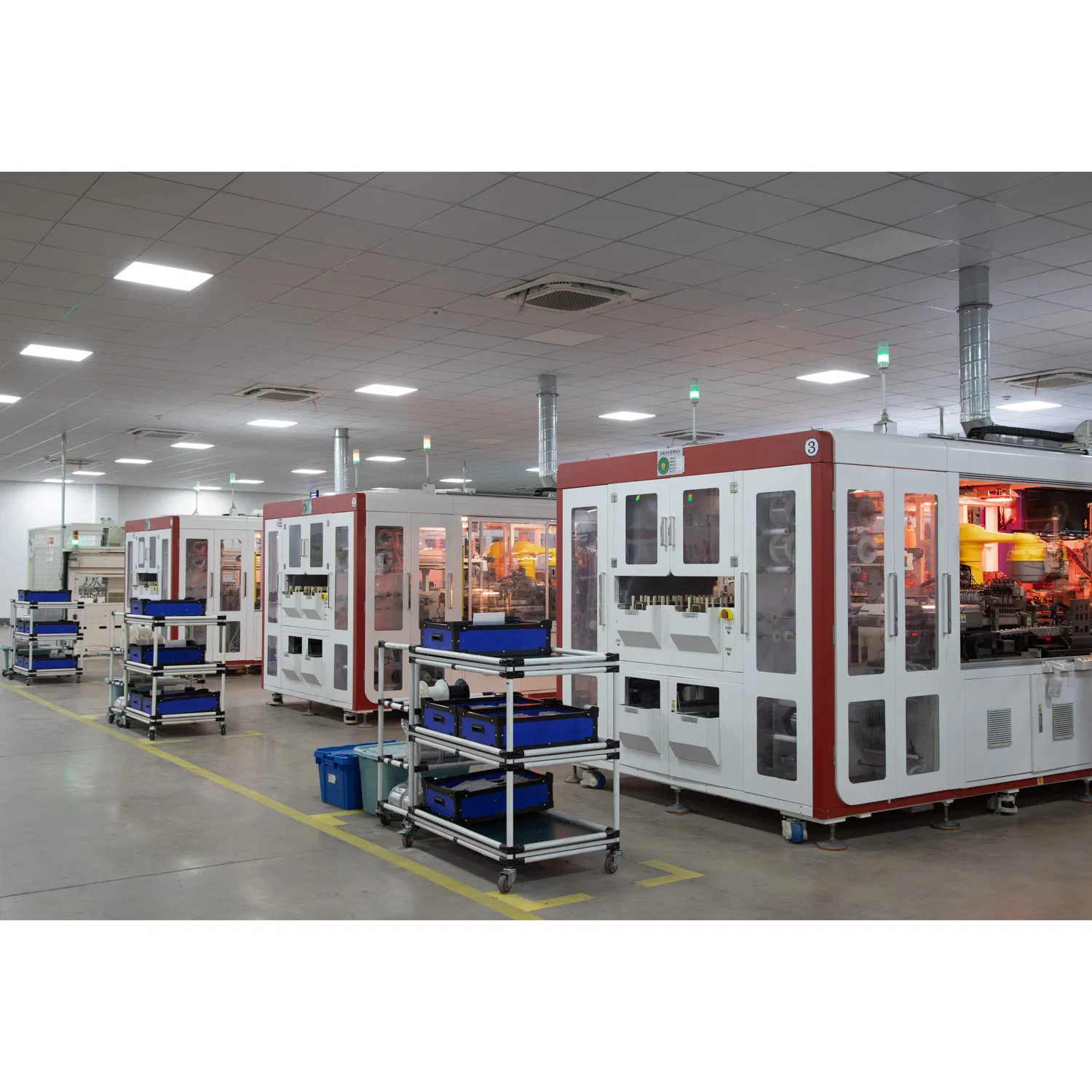

Founded in 2010, the company is a professional manufacturer engaged in the research & development, manufacturing & sales business of solar modules, inverters, energy storage batteries, solar power systems and supporting products for solar power stations.
Our products are deeply trusted by new and old professional customers around the world for their reasonable design, sophisticated technology, rich categories, and reliable quality, as well as professional, high-efficiency, and refined service characteristics.
The annual production and sales of new energy products include: 3GW solar modules, 250,000 solar systems, and 1.2GW solar power plant equipment. Customers are located in Europe, America, Asia, Africa, and other regions. We have reached brand, product, and channel cooperation with many well-known manufacturers in the industry, providing stable OEM and ODM services for relevant well-known manufacturers, and providing more cost-effective Tier1 brand product sales services for our customers simultaneously.
We support T/T, L/C, Paypal, Western Union, etc.
We are a factory, and we also cooperate with other major industry brands, such as Longi, JA solar, Jinko, Trina, Canadian Solar, GCL, SUNTECH, Yingli, etc., to provide customers with competitive prices and broader options.
Yes, you are welcome to place a sample test order to check product quality and run trial evaluations.
Usually 15-20 days after receiving your payment. The specific delivery time depends heavily on your ordered items and the final quantity.
Our main ports of loading are Shanghai and Ningbo.
Yes, we support comprehensive OEM and ODM services according to our clients' demands.
