Complete 5kw to 15kw Grid-Tied Solar Energy Systems

Basic Info

Model NO. KMS-10KW

Cycle Life 5000 Cycles

Nominal Capacity 5kwh-10kwh

Pre-Sales Project Design Yes

Controller Type MPPT

Battery Type Lithium Ion

Output Frequency 50/60Hz

Battery Capacity 5kwh 10kwh 15kwh 20kwh

Communication Interface WiFi/4G/RS485/Can

Transport Package Wooden Package

Specification 180X120X60 cm

Origin China

HS Code 8541430000

Production Capacity 1000 PCS/Day

Product Description

Complete 5kw to 15kw Grid-Tied Solar Energy Systems

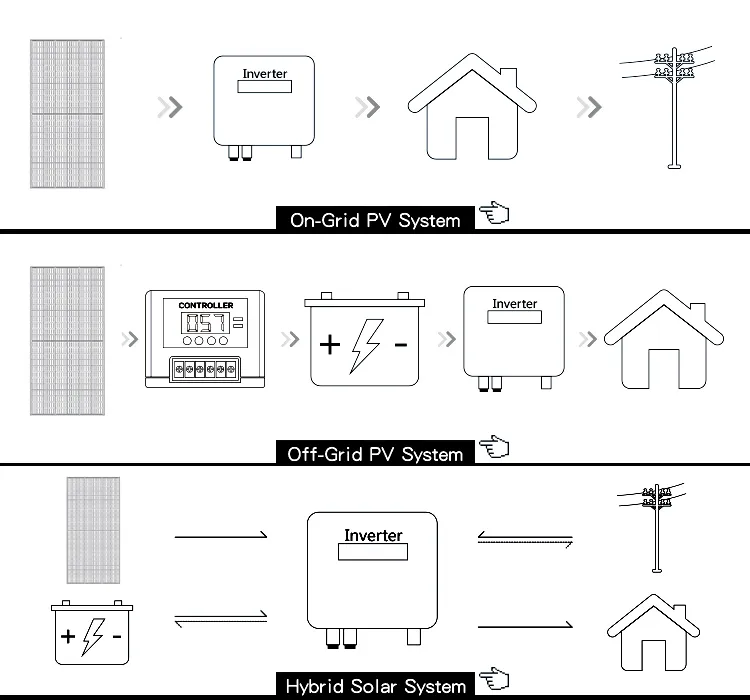

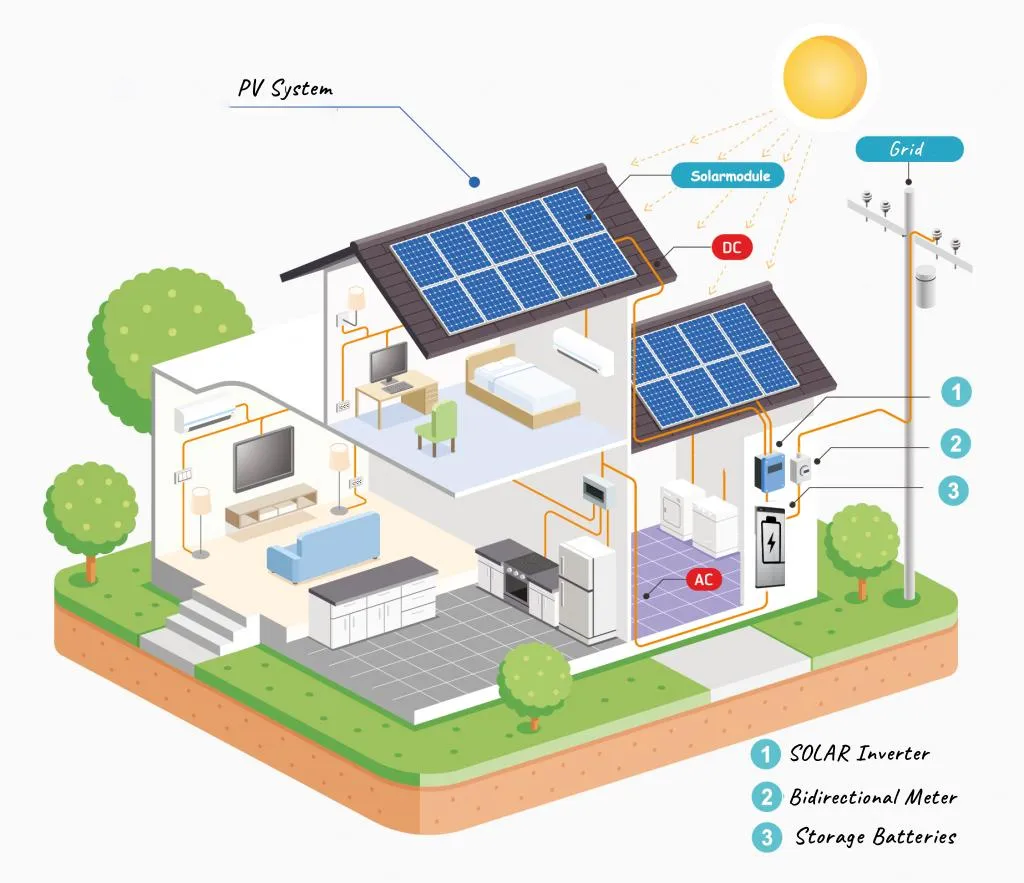

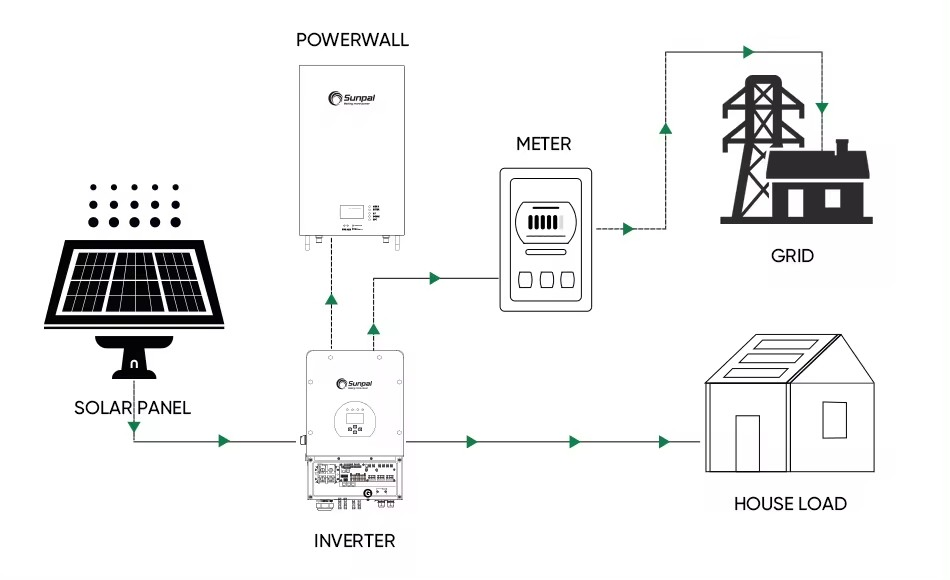

Application

Specifications

Parameter Item	Technical Value
Warranty	25 years
Free installation service	NO
Place of Origin	China
Model Number	EC-O5ELS
Application	Home
Solar Panel Type	Monocrystalline Silicon
Battery Type	Lithium Ion
Controller Type	MPPT
Mounting Type	Roof Mounting
Load Power (W)	20KW, 5kW, 10KW, 40KW
Output Voltage (V)	230V
Output Frequency	50/60Hz
Work Time (h)	24
Certificate	CE IEC TUV
Pre-sales project design	Y
Battery Type	Lithium Ion Battery
Solar Panel	Mono 182mm
Inverter Type	Pure Sine Wave Off Grid Inverter
Warranty	25 Years Life Time
Battery Capacity	5KWH 10KWH 15KWH 20KWH
Controller	MPPT Solar Charge Controller
Communication Interface	WiFi/4G/RS485/CAN
Mounting Structure	Roof Customized
AC Output	230V/380V
Packing	Standard Wooden Box

Key Components

Solar Cell

Module efficiency up to 17.2% achieved through advanced cell technology and manufacturing capabilities.
Color sorting ensures consistent appearance on each module.
High Efficiency PV Cells.
High PID resistant.

EVA

Excellent light transmittance and transparency.
Excellent long term adhesion to glass, metal and polymer backsheet.
Excellent durability, such as weather resistance, high-temperature, high-humidity and UV light resistance.

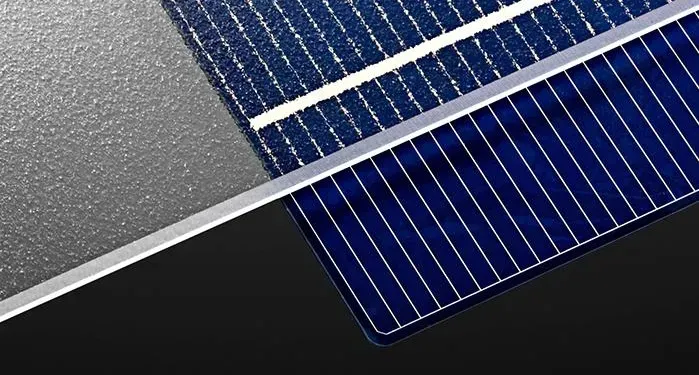

BACKSHEET

Good electrical insulation and breakdown resistance.
Excellent UV resistance and aging resistance.
Made-to-order backsheet with width up to 1300mm.
Double-side fluorocarbon structure (PVF / PET / PVF) with the integration of Tedlar (DuPont).

GLASS

Precise edge processing and cutting.
Minimal optical distortion and non-existent roller marks.
Physically tempered ultrathin glass presents the ideal combination of durability and flexibility.
Higher light transmittance ensures higher module power output.

JUNCTION BOX

The outer casting (junction box, connector) has a strong anti-aging capacity.
Product is designed appropriately for outdoor usage under any adverse weather conditions.
Ultrathin structure design with internal irrigation rubber seal.

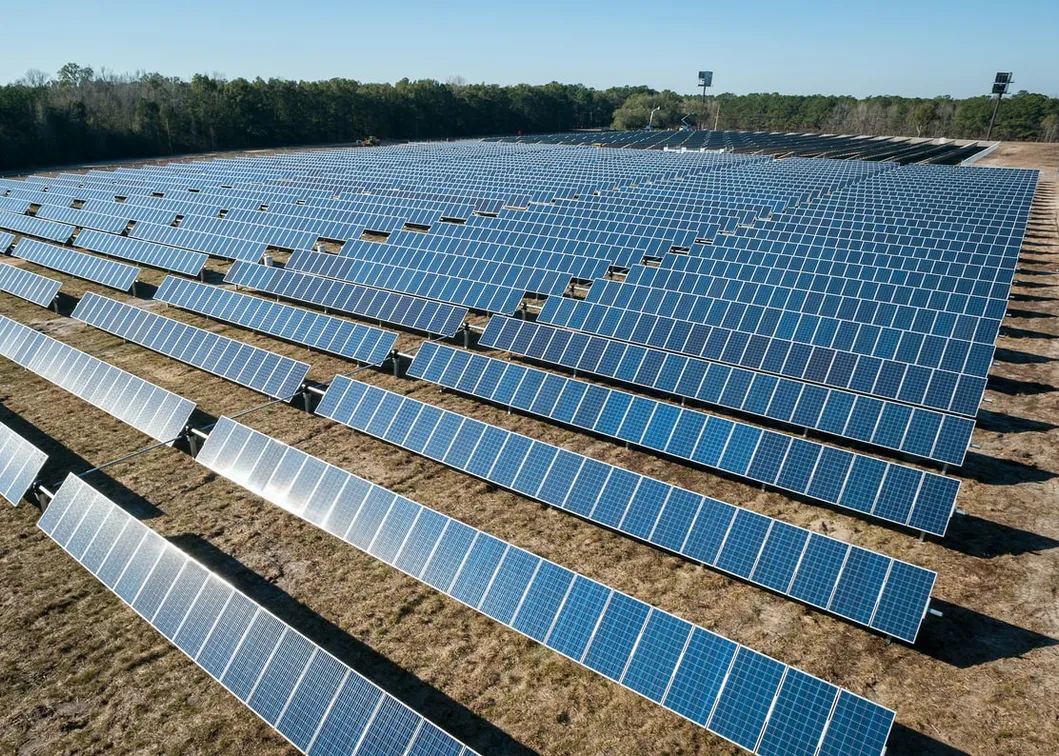

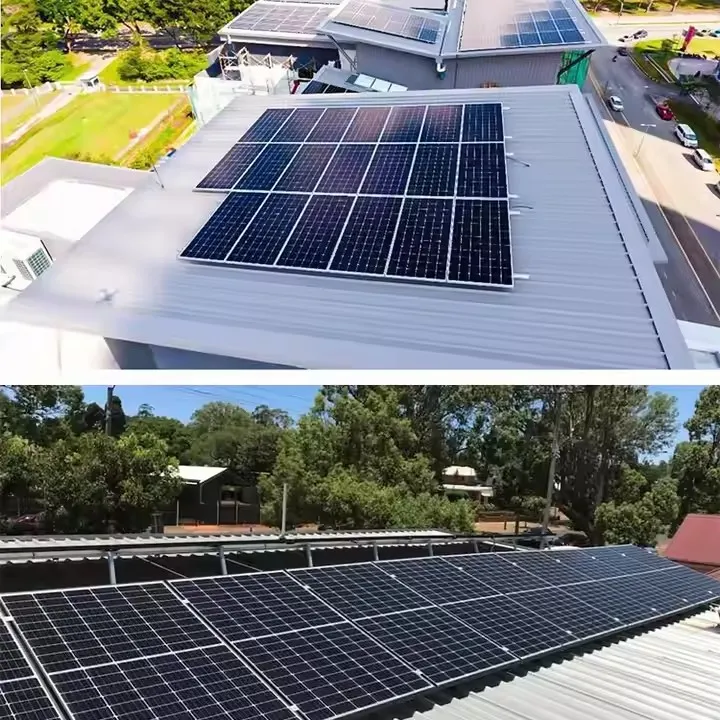

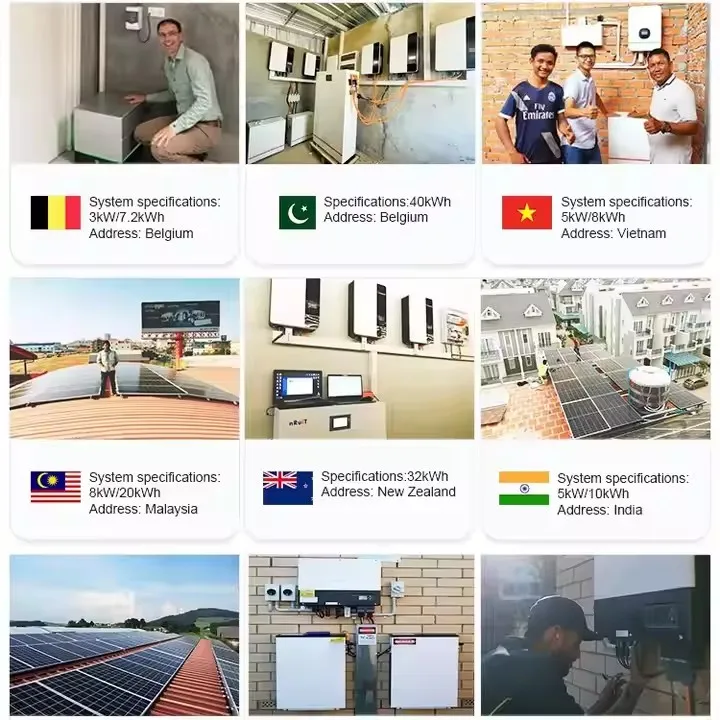

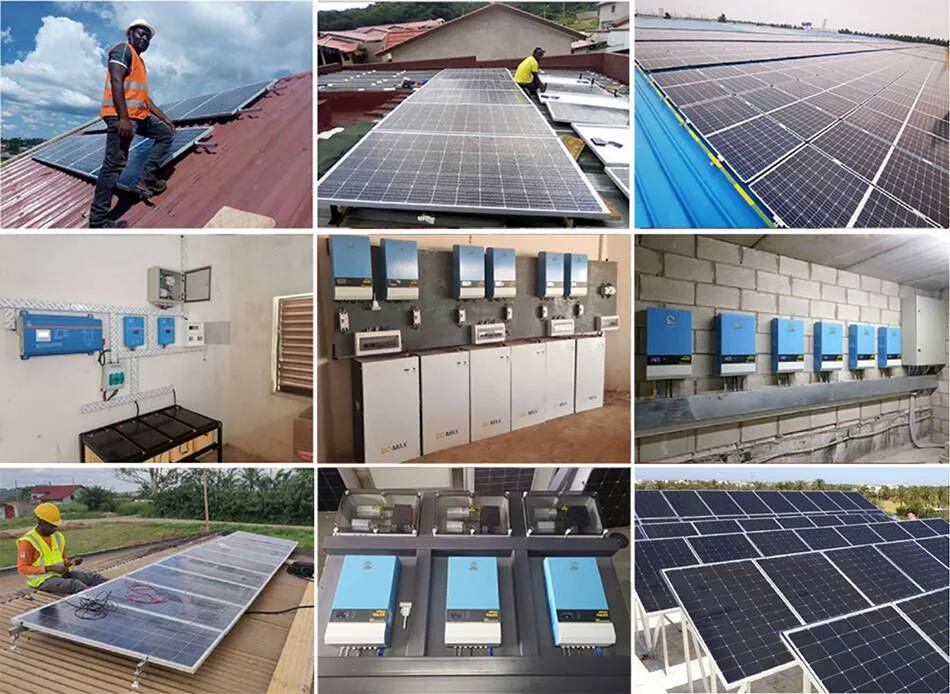

Project Pictures on Site

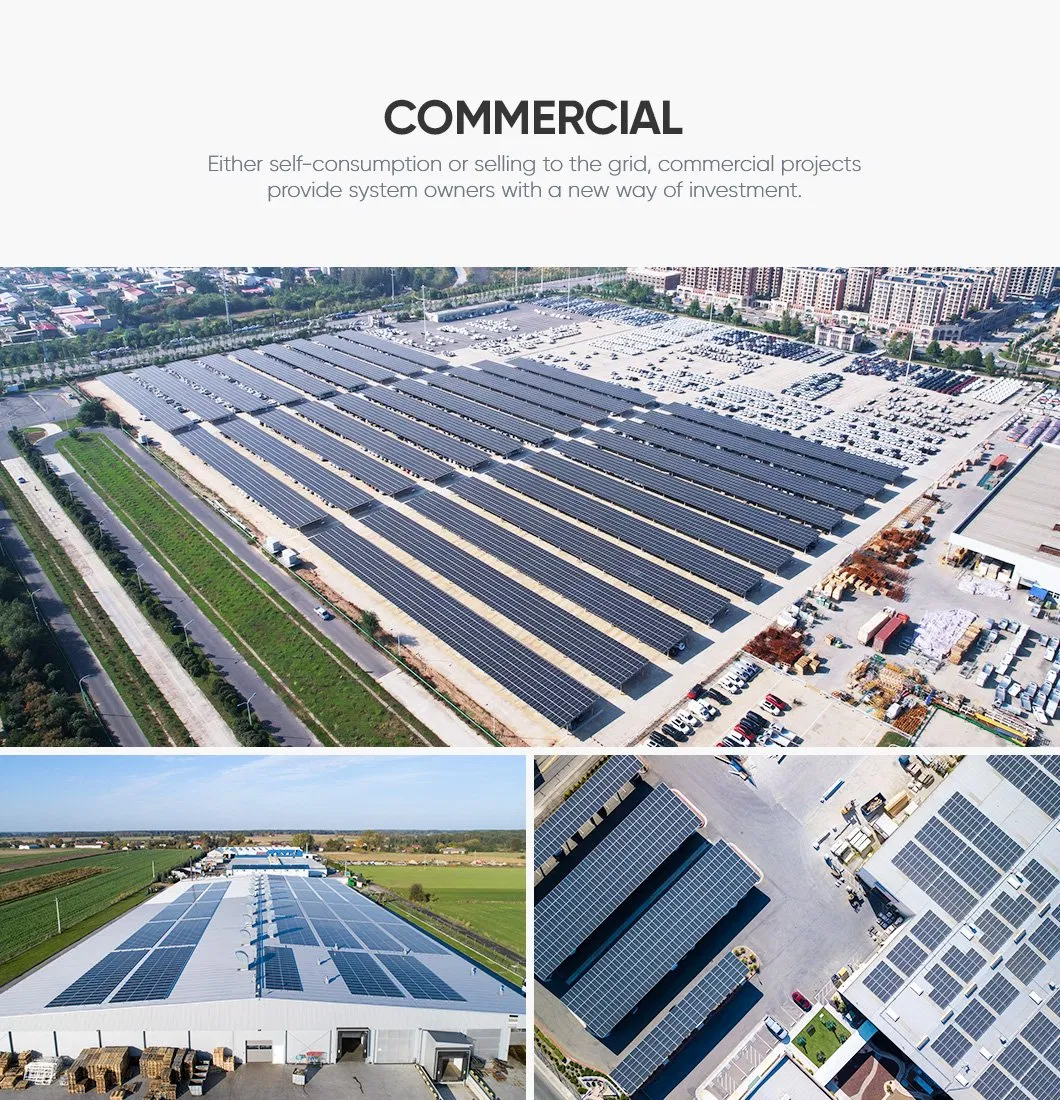

Completed residential solar system project

Product Packing

Why Choose Us

Professional Solar Industry Partner

We stand as a professional manufacturer with over 15 years of expertise in the Solar Panel industry, crafting quality and innovation.

Our diverse product lineup includes poly and mono solar panels, solar batteries, power systems, charger controllers, inverters, lights, and even solar air-conditioning. We excel in bespoke solar system solutions, reaching clients across more than 60 countries in Europe, Asia, the Americas, and Africa.

Align your business with a trusted partner. Our global footprint spans Australia, Africa, Russia, the Middle East, South America, Asia, and beyond. Join us for a prosperous business journey!

Frequently Asked Questions

How can we guarantee quality?

We employ the latest state-of-the-art fully automatic production equipment to maintain the highest quality standards. Our rigorous, step-by-step final inspection system ensures every product is thoroughly vetted before shipment.

What can you buy from us?

Explore our diverse offerings including premium-grade Solar Panels and complete solar system sets custom-tailored to meet your domestic or industrial needs.

Are you a manufacturer or a trading company?

We are a dedicated manufacturer with specialized facility setups, fully committed to excellence, testing, and continuous innovation in solar technology.

What services and transaction terms do you provide?

We offer flexible delivery terms including FOB, CIF, EXW, and Express Delivery. We accommodate multi-currency payments in USD, EUR, HKD, and CNY via T/T and Cash. Communication is supported in English, Chinese, and French.

What is the typical lead time?

Standard orders are processed, quality checked, packed in secure wooden boxing, and ready for dispatch within 15 working days following receipt of the advance payment.

Do you offer customized pre-sales project design?

Yes, we provide comprehensive pre-sales project designs (Y) to assure that the system matching configurations such as mounting layout and load capacity align with your local system guidelines.
