| Equipment | Model | WV-100KW-ON-C | WV-300KW-ON-C | WV-500KW-ON-C | WV-1MW-ON-C |
|---|---|---|---|---|---|
| PV Module | WV-66KUN-720M | 144 pcs | 432 pcs | 720 pcs | 1394 pcs |

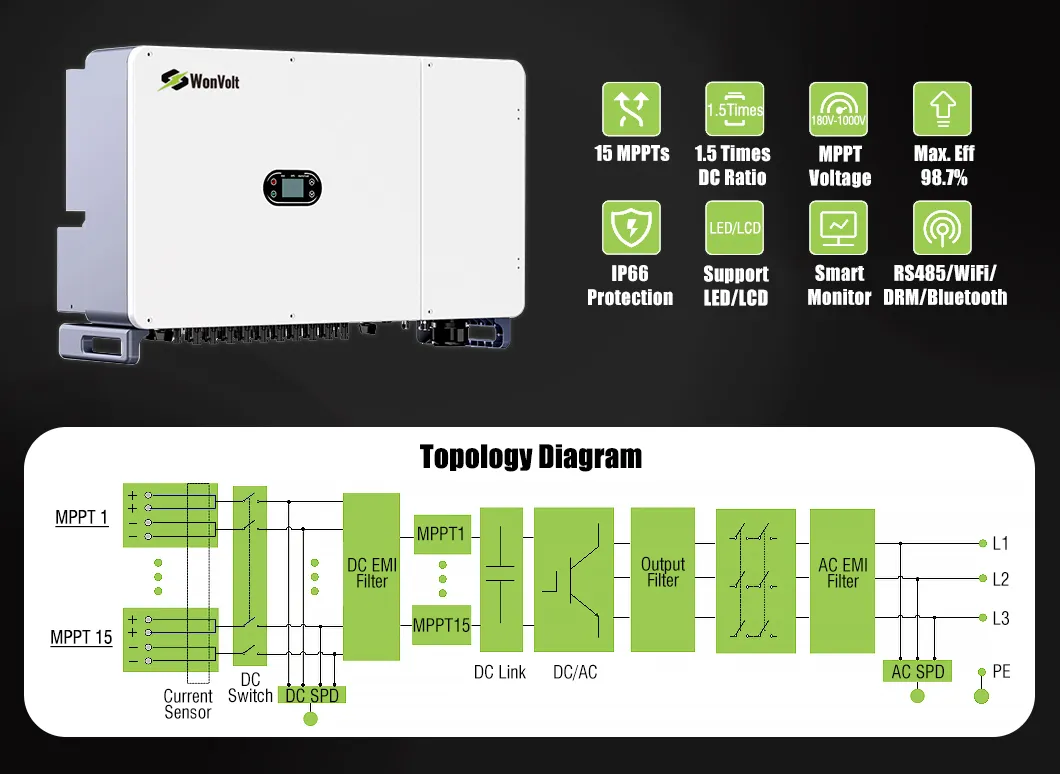

| Inverter | WV100KW | 1 pc | 3 pcs | 5 pcs | 10 pcs |
| Connector | MC4 | 60 pairs | 120 pairs | 250 pairs | 800 pairs |

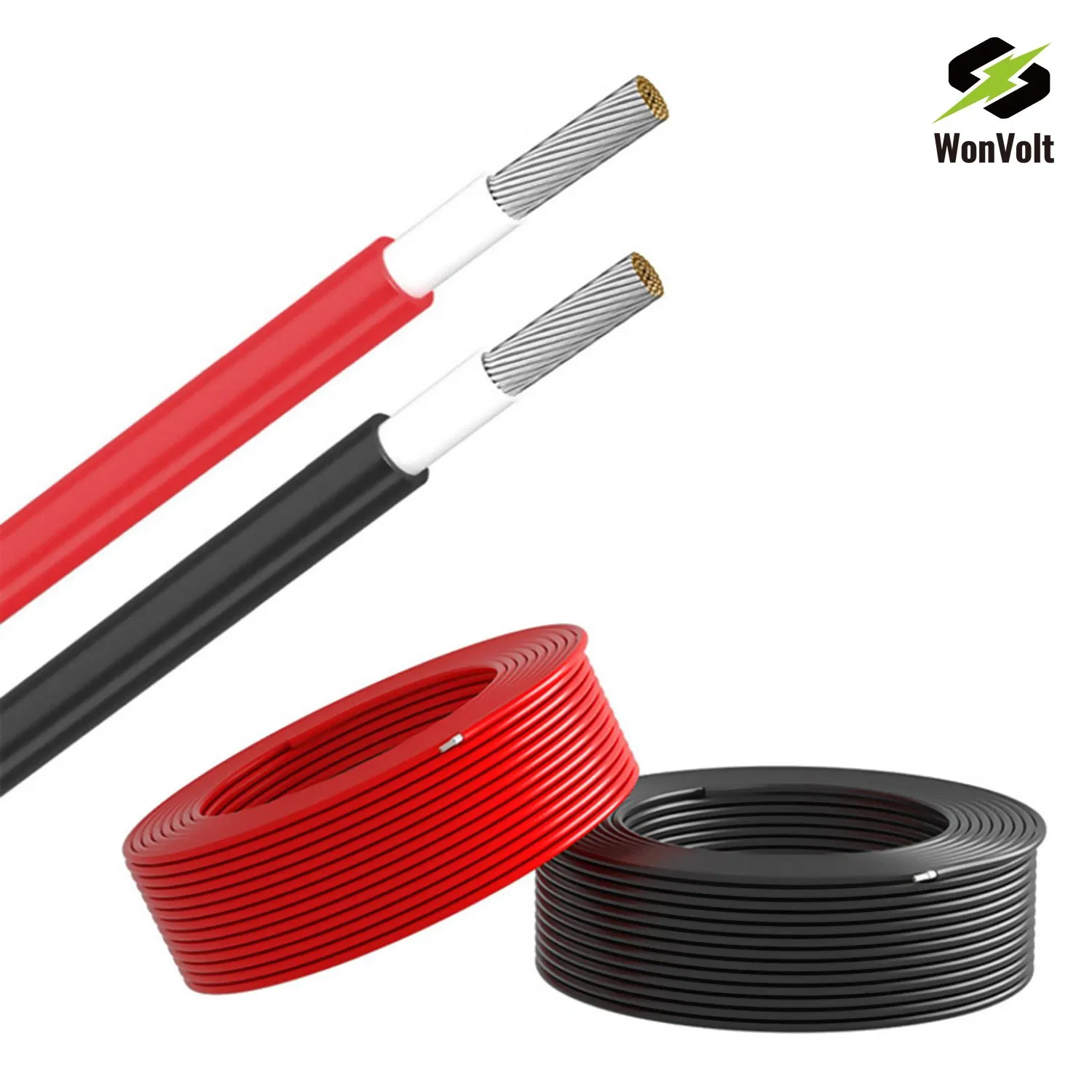

| PV cable | PV1-F 1*4mm2 | 600m | 1600m | 4000m | 10000m |
| Remote monitoring | RS485 / WIFI / DRM | ||||
| Mounting Structure | Roof/Ground | 1 | 1 | 1 | 1 |
| Remark: Due to space limitations, only capacities up to 1MW are shown. Inquiry for larger solutions. | |||||
The grid-tied system is available in standard configurations of 100KW, 300KW, 500KW, and 1MW. Larger capacity solutions can be designed and provided based on specific client requirements.

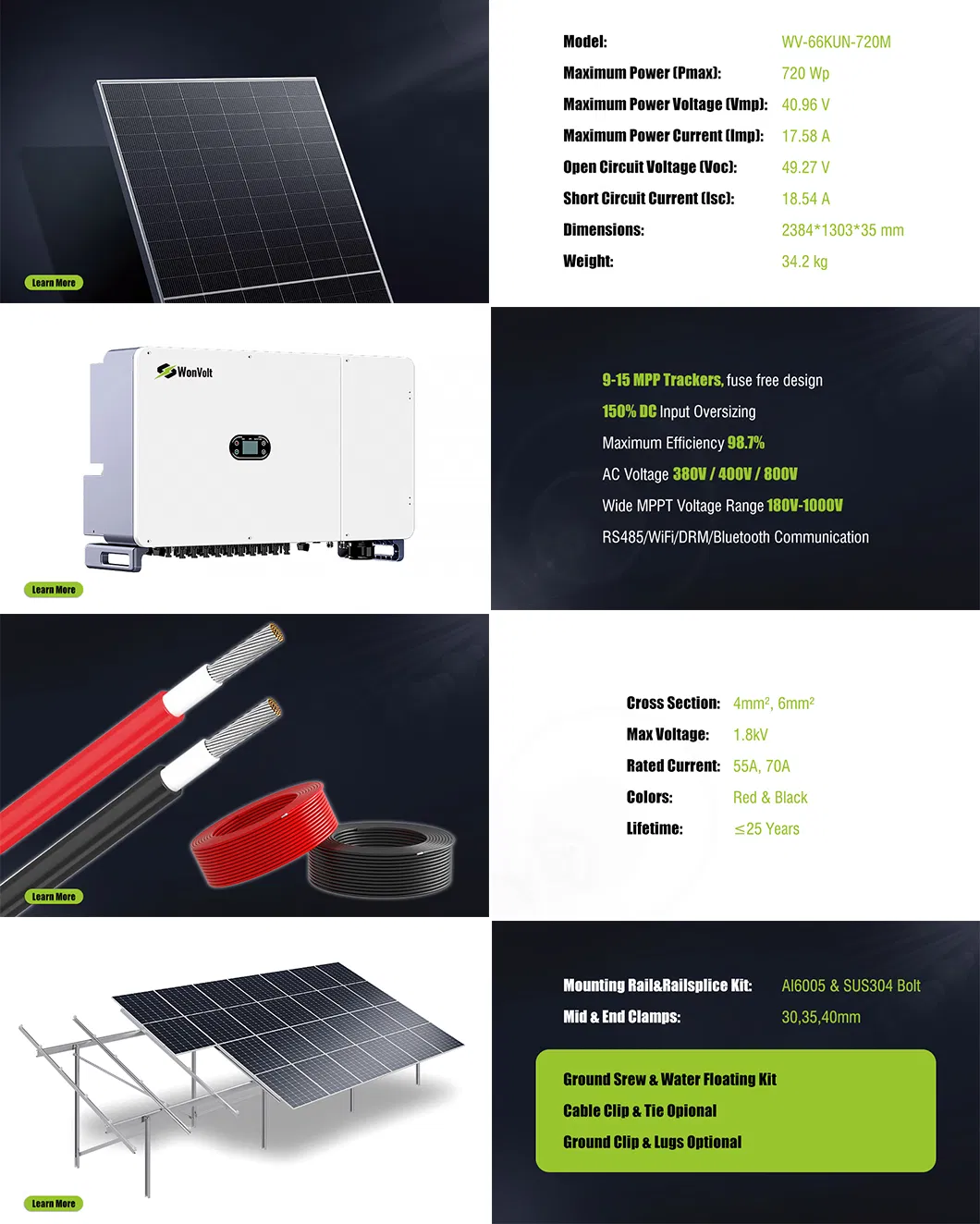

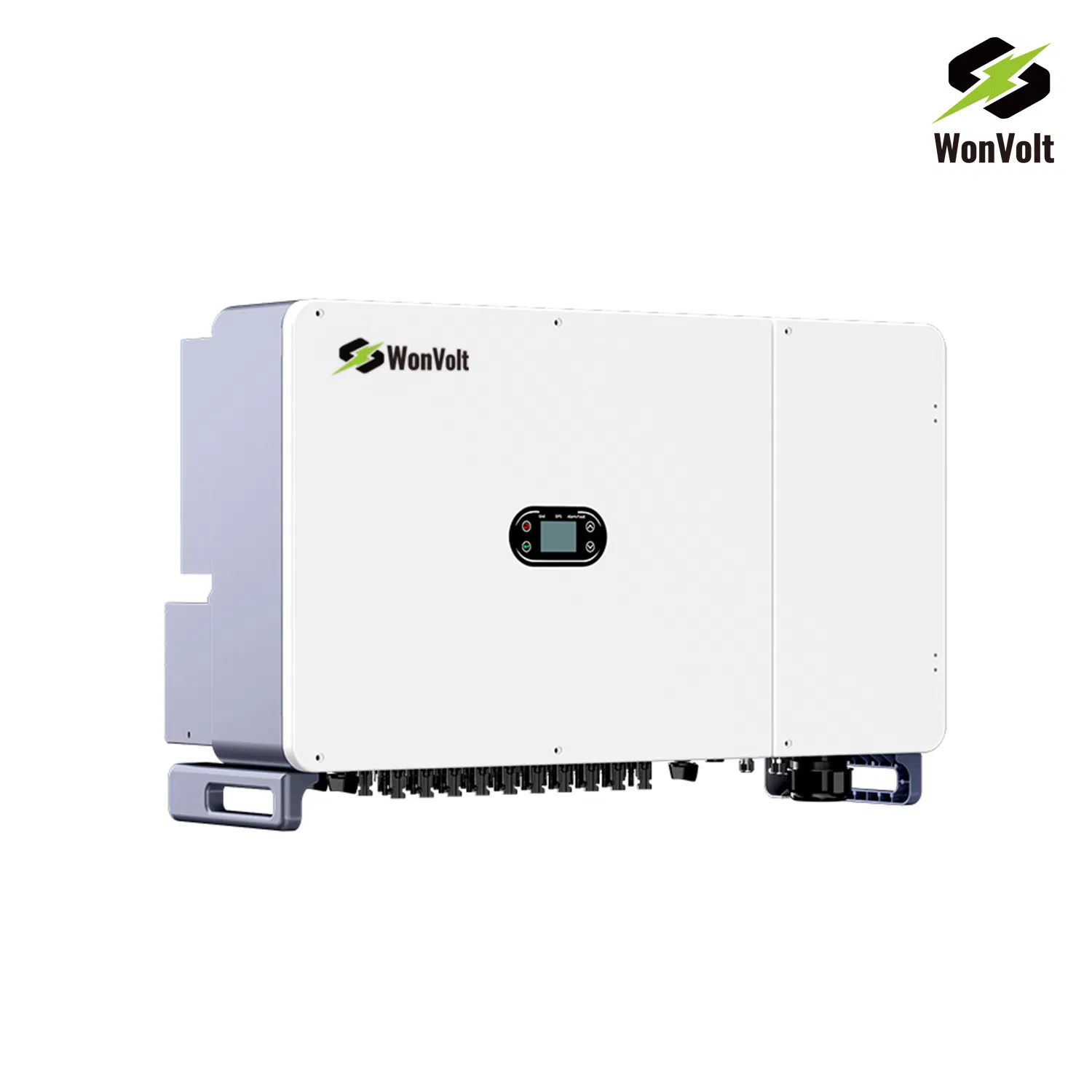

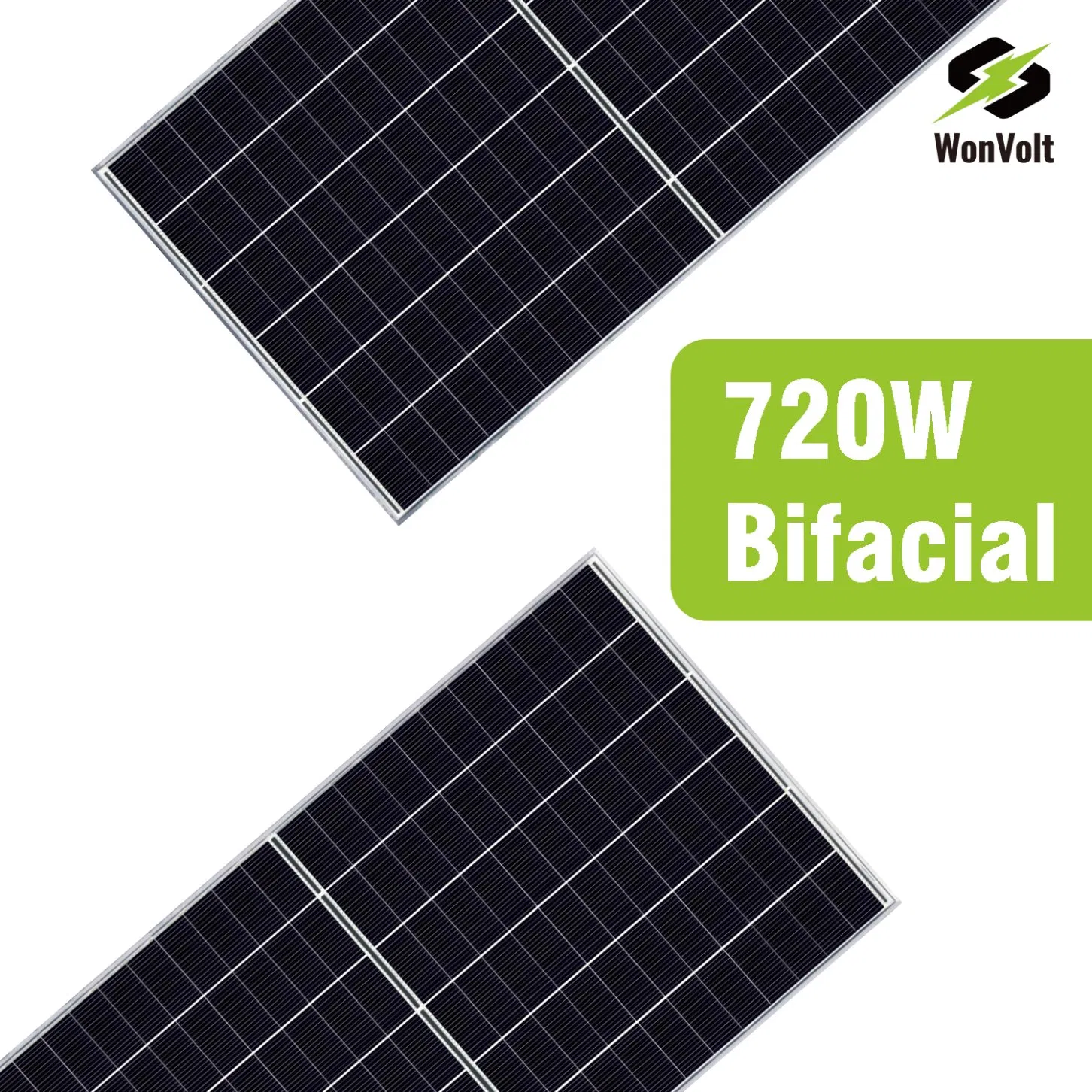

The complete kit includes high-efficiency 720W PV modules, high-performance grid-tied inverters, MC4 connectors, dedicated PV cables, and either roof or ground mounting structures depending on your installation needs.
Yes, remote monitoring is fully supported. The system features multiple connection interfaces including RS485, WIFI, and DRM to allow real-time tracking of energy generation and system health.

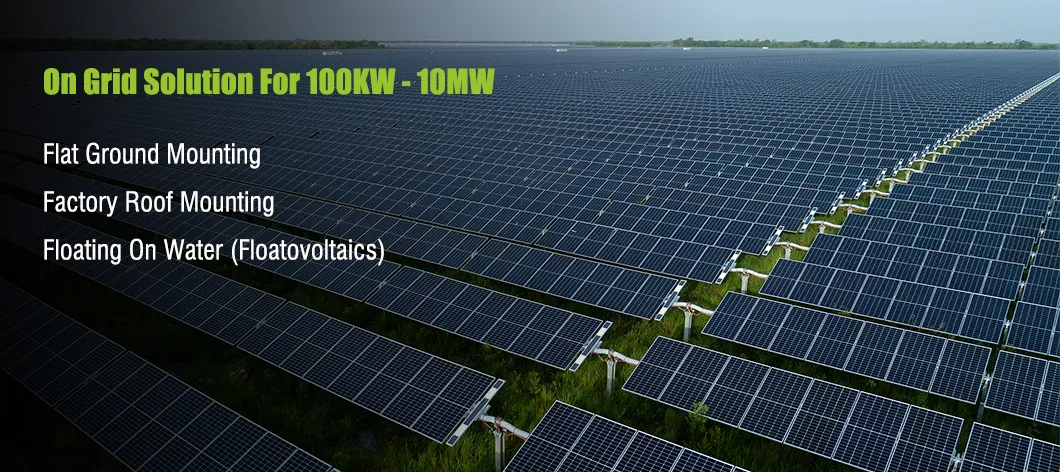

The solar power system supports versatile mounting options. The structures can be tailored for both flat/pitched roof configurations and ground-level setups to accommodate different site layouts.

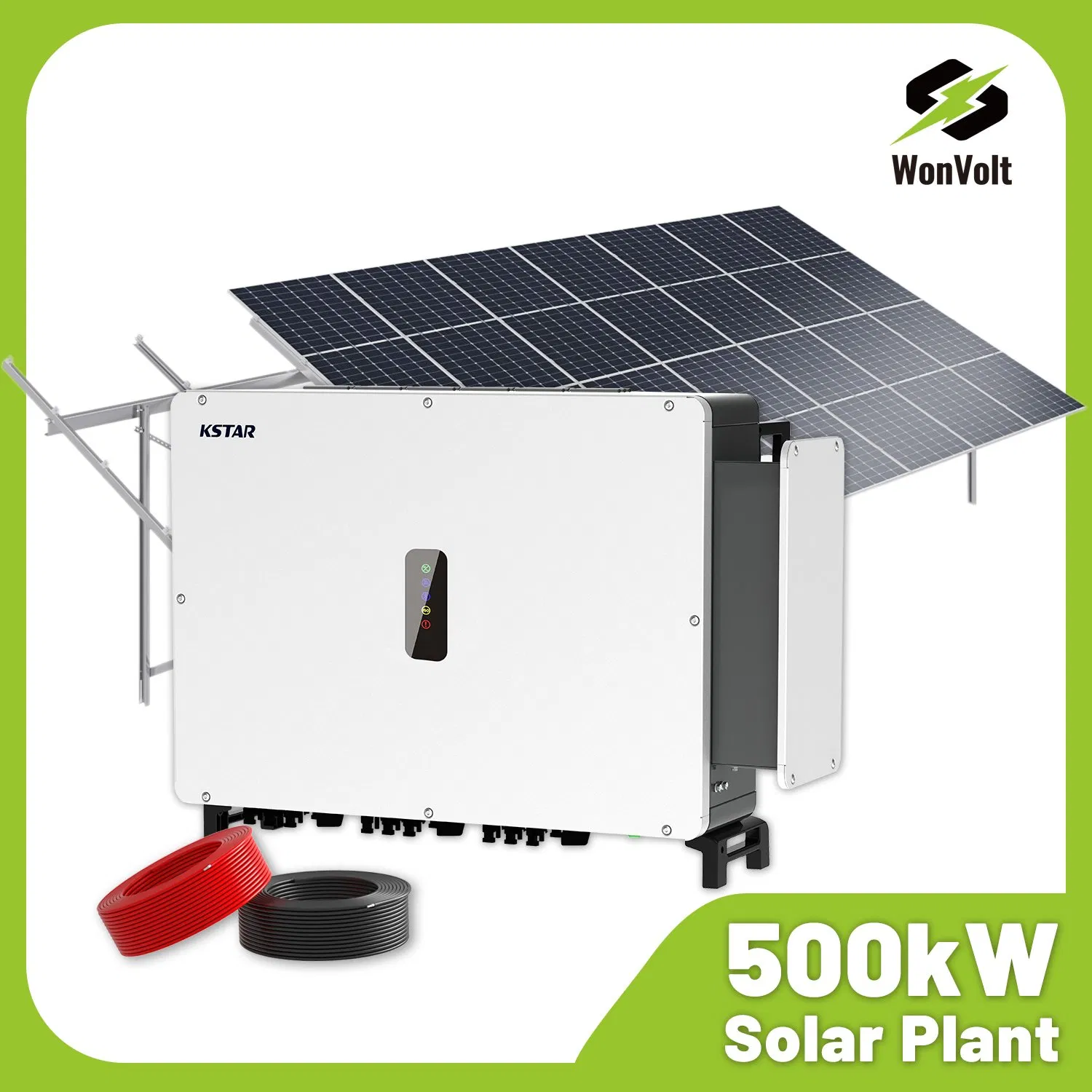

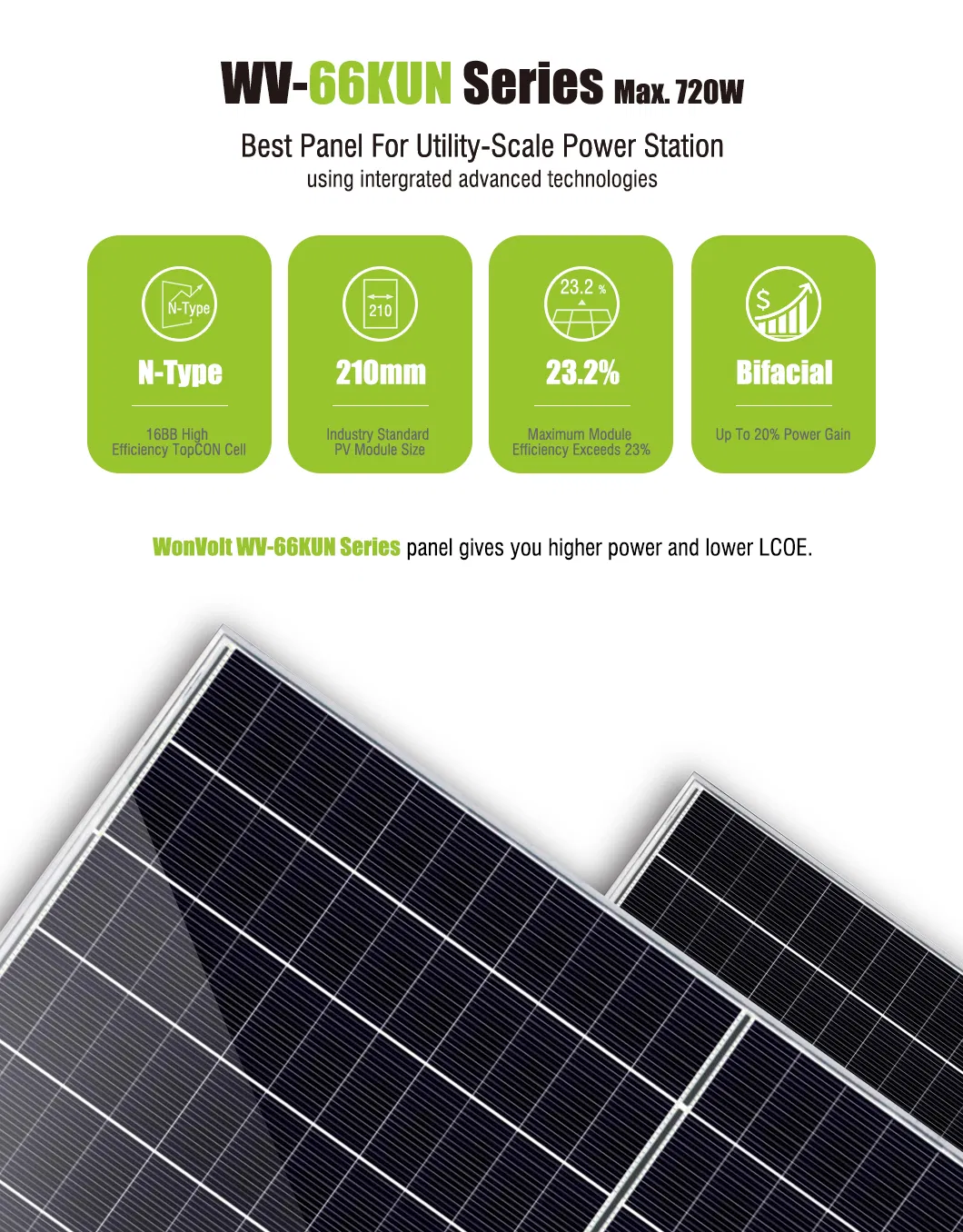

A standard 500KW grid-tied system uses 720 pieces of the WV-66KUN-720M high-efficiency PV modules to reach its target capacity.
Yes, the system layout is highly modular. While standard sheets list parameters up to 1MW, custom engineering designs can easily scale up to multi-megawatt systems.
