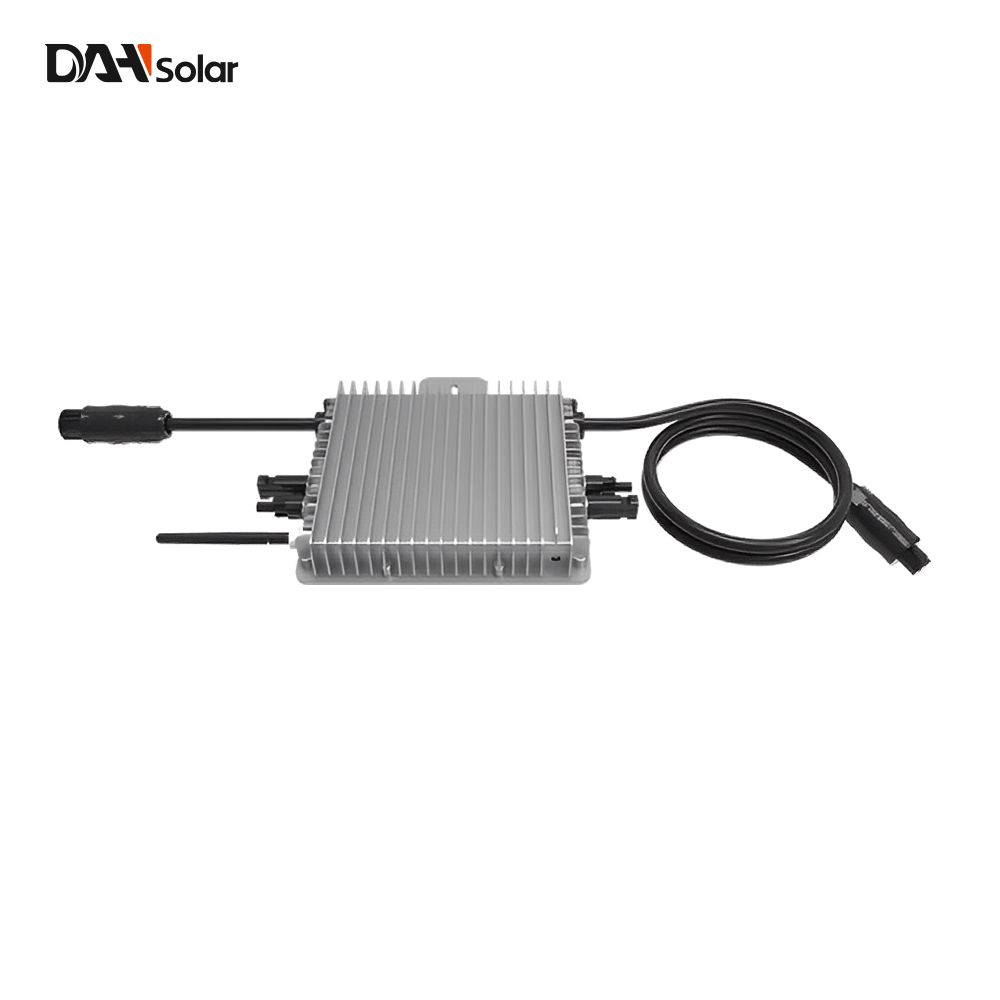

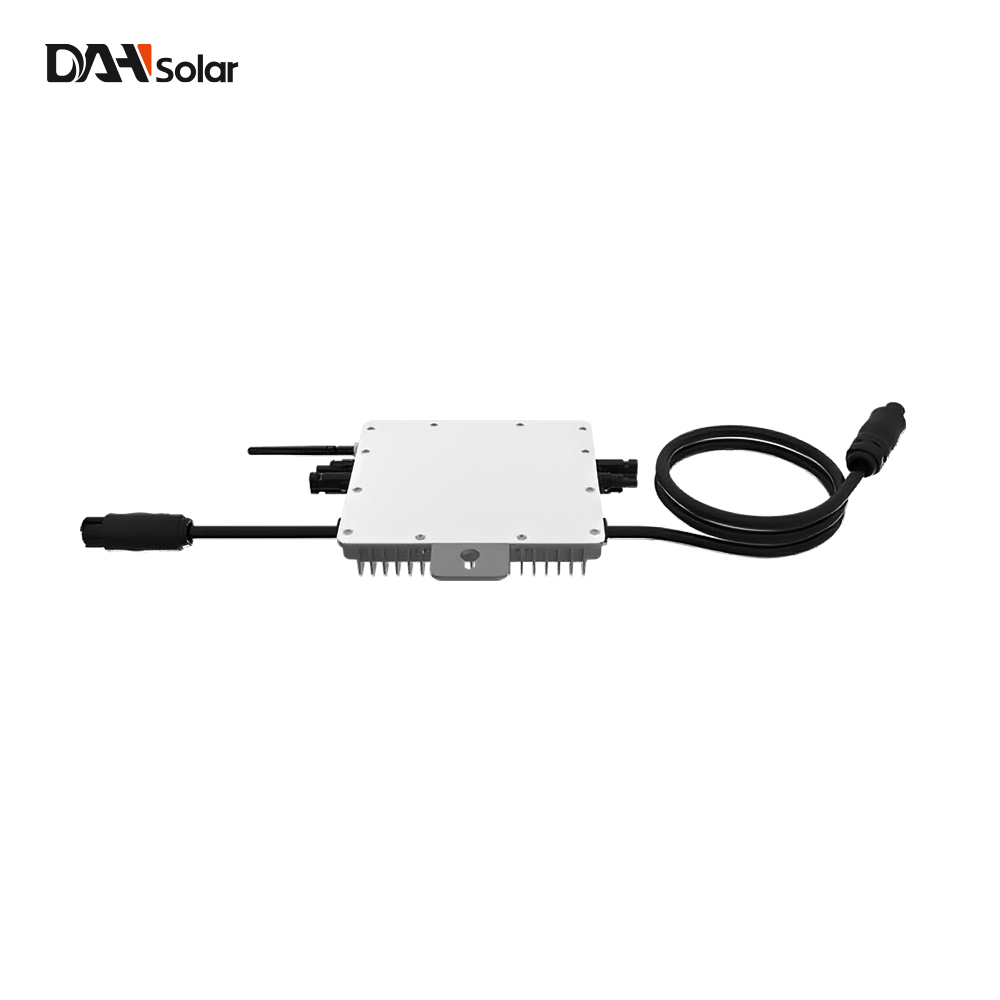

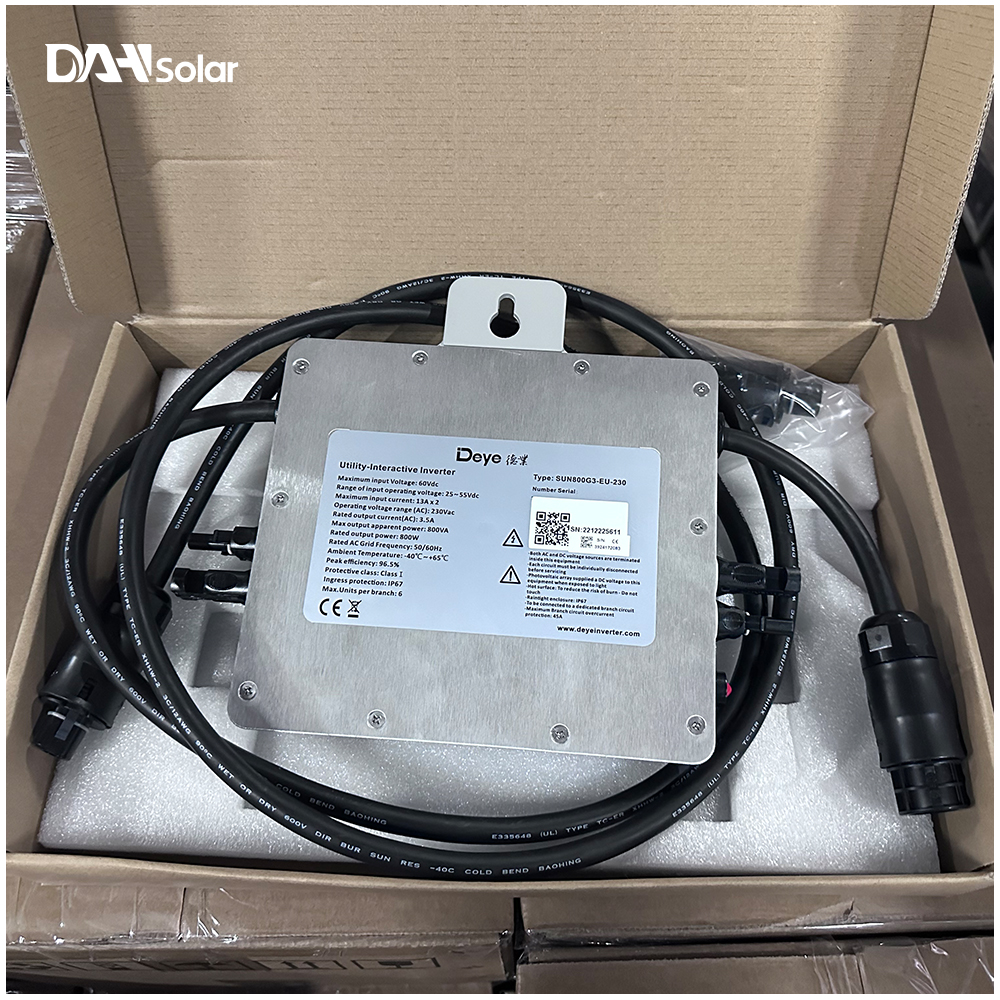

| Model | SUN600G3-US-220 | SUN600G3-EU-230 | SUN800G3-US-220 | SUN800G3-EU-230 | SUN1000G3-US-220 | SUN1000G3-EU-230 |
|---|---|---|---|---|---|---|
| Input Data (DC) | ||||||
| Recommended input Power (STC) | 210~400W (2 Pieces) | 210~500W (2 Pieces) | 210~600W (2 Pieces) | |||
| Maximum input DC Voltage | 60V | |||||
| MPPT Voltage Range | 25~55V | |||||
| Full Load DC Voltage Range (V) | 24.5~55V | 33~55V | 40~55V | |||
| Max. DC Short Circuit Current | 2×19.5A | |||||
| Max. input Current | 2×13A | |||||
| No.of MPP Trackers / Strings | 2 / 1 | |||||
| Output Data (AC) | ||||||

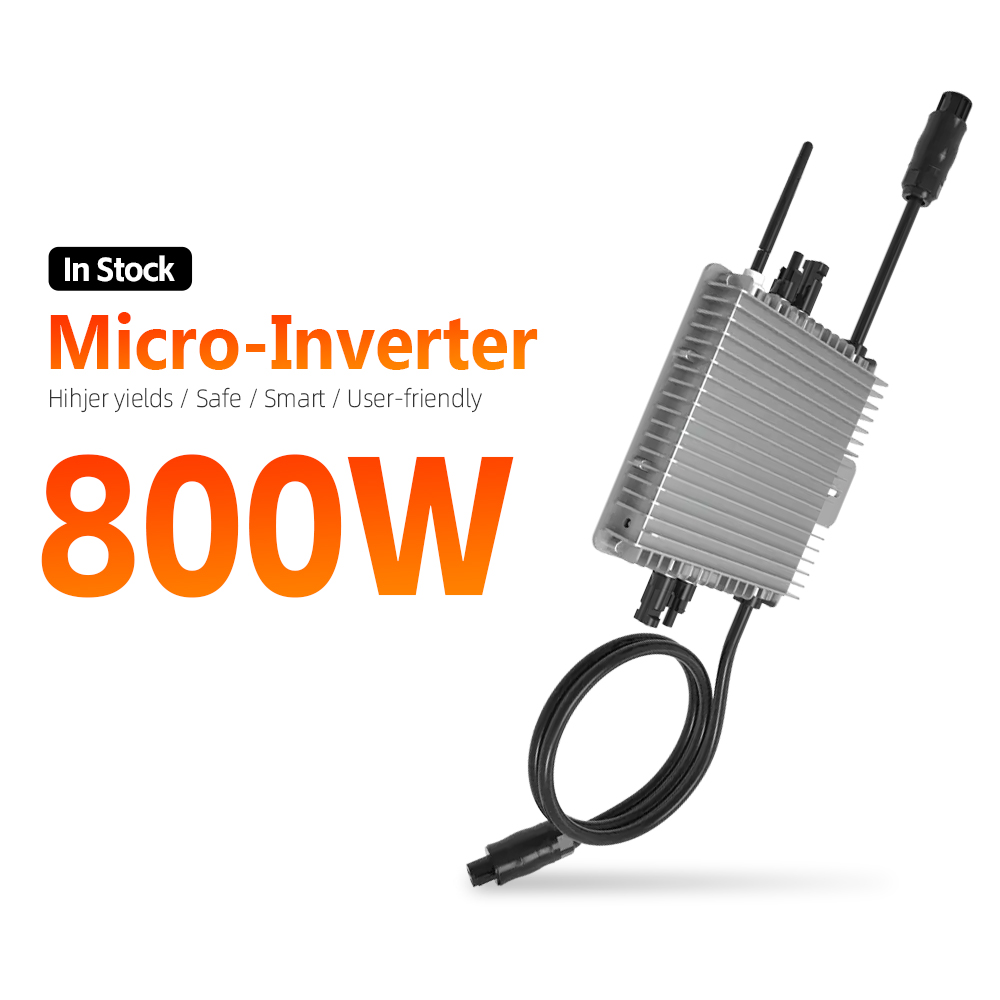

| Rated output Power | 600W | 800W | 1000W | |||
| Rated output Current | 2.7A | 2.6A | 3.6A | 3.5A | 4.5A | 4.4A |
| Nominal Voltage / Range | 220V/0.85Un-1.1Un | 230V/0.85Un-1.1Un | 220V/0.85Un-1.1Un | 230V/0.85Un-1.1Un | 220V/0.85Un-1.1Un | 230V/0.85Un-1.1Un |
| Nominal Frequency / Range | 50 / 60Hz (Extended: 45~55Hz / 55~65Hz) | |||||
| Maximum units per branch | 8 | 6 | 5 | |||
| Efficiency & Mechanical Data | ||||||
| Peak Inverter Efficiency | 96.5% (MPPT Efficiency 99%) | |||||
| Ambient Temperature Range | -40~65℃ | |||||
| Size (mm) | 212W×230H×40D (Without bracket) | |||||
| Weight (kg) / Cooling | 3.15kg / Natural cooling | |||||
| Enclosure Rating | IP67 | |||||
| Features & Standards | ||||||

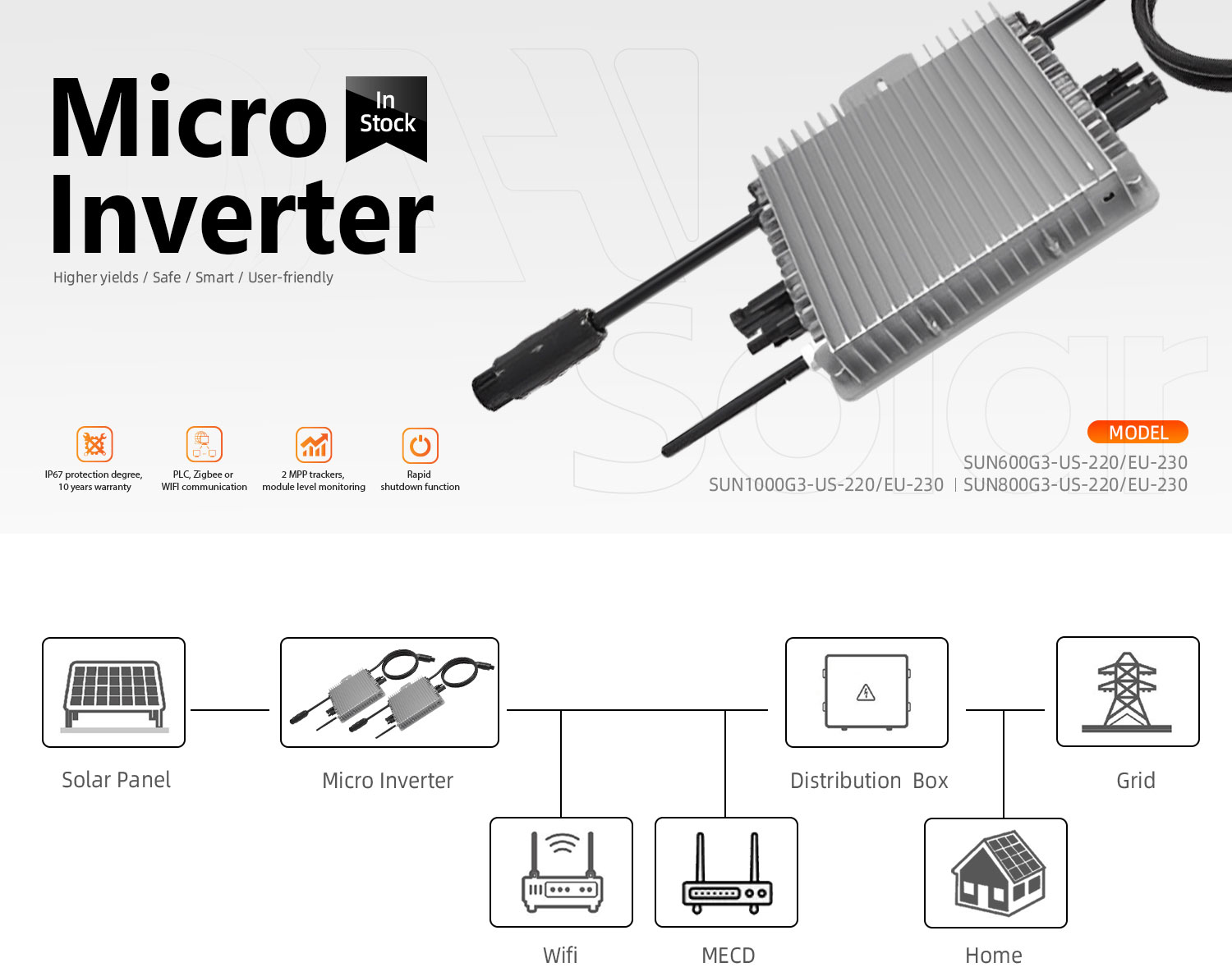

| Communication | Power line / WIFI / Zigbee | |||||
| Grid Connection Standard | EN50549-1, VDE0126-1-1, VDE 4105, ABNT NBR 16149, IEEE1547, RD1699 | |||||
| Safety EMC / Warranty | UL 1741, IEC62109-1/-2 / 10 Years Warranty | |||||
