Our microinverters are field-proven and guaranteed to perform from sunrise to sunset, year after year.
Our microinverters are built to plug-and-play, ready to get your solar ecosystem up and running sooner.
Configure your microinverters to match your installation and solar panel layout.
Our microinverters come with low failure rates and built-in surge protection.
Our microinverters are compliant with standards like EN50549-1:2019.
Looking to go off grid and power your house with a solar energy system? If you plan on using appliances and lights that use AC(Alternating Current) electricity, you will need an off-grid inverter. Solar panels convert sunlight directly into DC electricity,which is then stored in deep cycle batteries. In an off-grid solar system it’s the job of a solar inverter to convert the DC electricity to AC electricity.

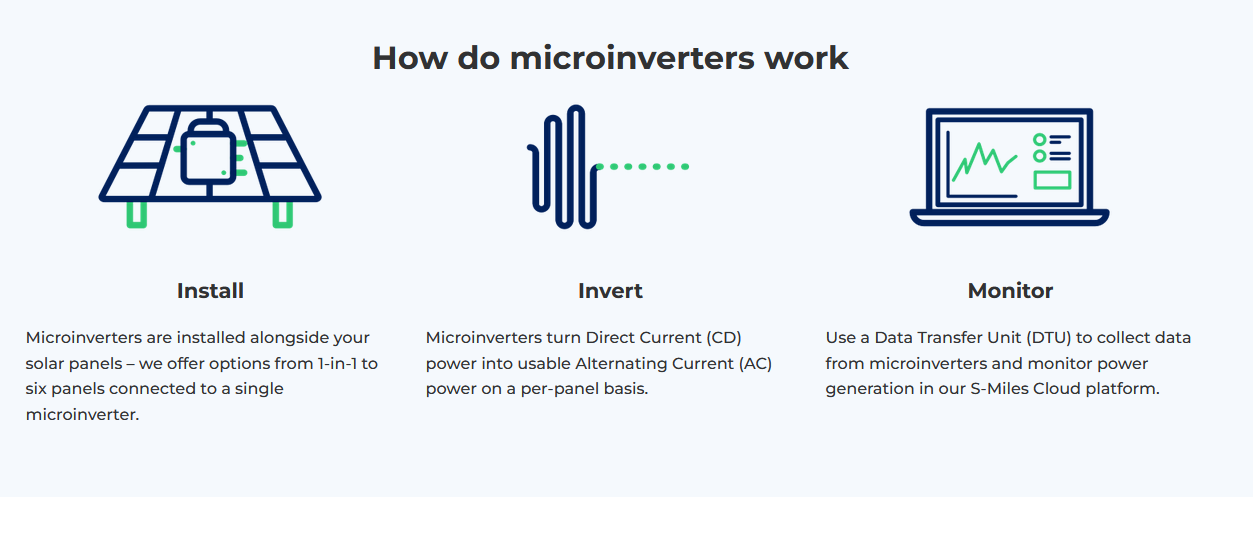

Microinverters turn the power from your solar panels into usable electricity. Single-phase microinverters are usually used in residential and small commercial environments. With us, get frustration-free, long-lasting performance with simple installation, premium quality and low failure rates.

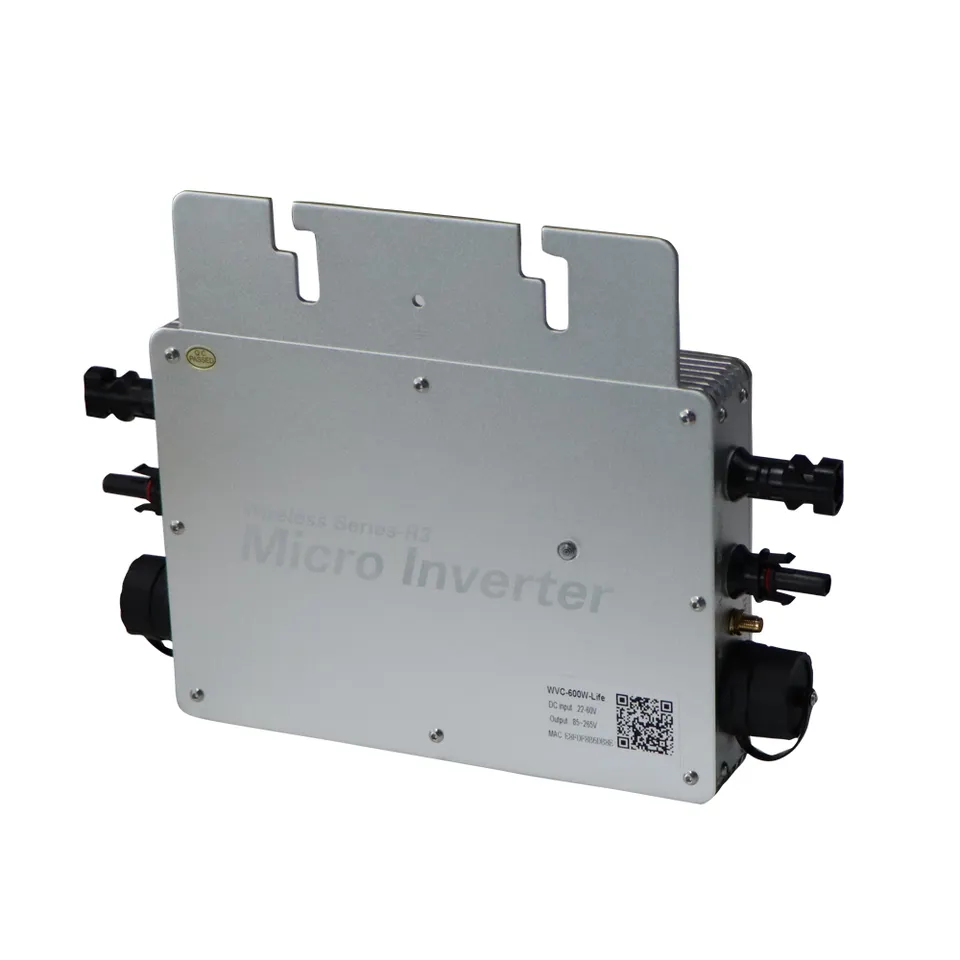

| Model# | WVC-600 |
| Input Data (DC) | |
| Recommended module power (W) | Max 2*375W |
| Peak power MPPT voltage range (V) | 30~60 |
| Start-up voltage (V) | 22 |
| Operating voltage range (V) | 22~60 |
| Maximum input voltage (V) | 60 |
| Maximum input current (A) | 2×12 |
| Nominal MPPT efficiency | 99.8% |
| Output Data (AC) | |
| Rated output power (VA) | 600 |
| Rated output current (A) | 5@120v 2.6@230v |
| Nominal output voltage/range (V) | @120v 85-160VAC, @230V 180-265VAC |
| Nominal frequency/range (V) | @120v 48-51HZ/58-61HZ @230v 48-51HZ/58-61HZ |
| Power factor(adjustable) | 0.8 leading…0.8 lagging |
| Maximum units per branch | 6@120v 12@230v |
| Efficiency | |
| CEC weighted efficiency | 92.50% |
| Nominal MPPT efficiency | 99.80% |
| Ambient temperature range (℃) | -20~+50 |

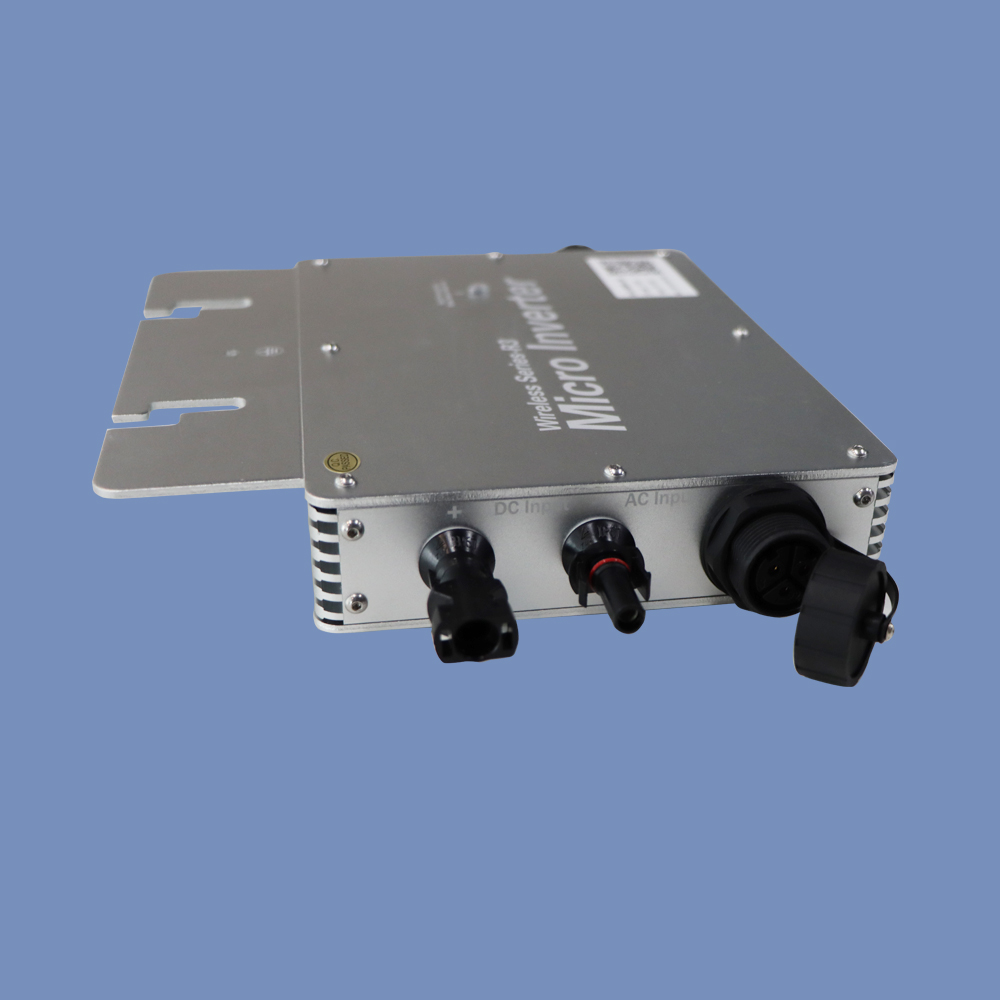

The daisy-chain 2-in-1 microinverter with reactive power control is designed for two solar panels with dual MPPT, applicable for modules up to 540W, targeting high-power residential and commercial solar applications.
To determine compatibility, please consider your location (country/state), average daily electricity kilowatt-hour demand, voltage requirements, and whether it is intended for a balcony solar panel system.
The standard lead time is approximately 30 days after payment is confirmed.
Support is active to respond to inquiries within 24 hours. The microinverters are field-proven and guaranteed to perform from sunrise to sunset, coming with a minimum 5-year warranty as standard.
Yes, satisfying solar panel mounting solutions can be provided after receiving your detailed requests.

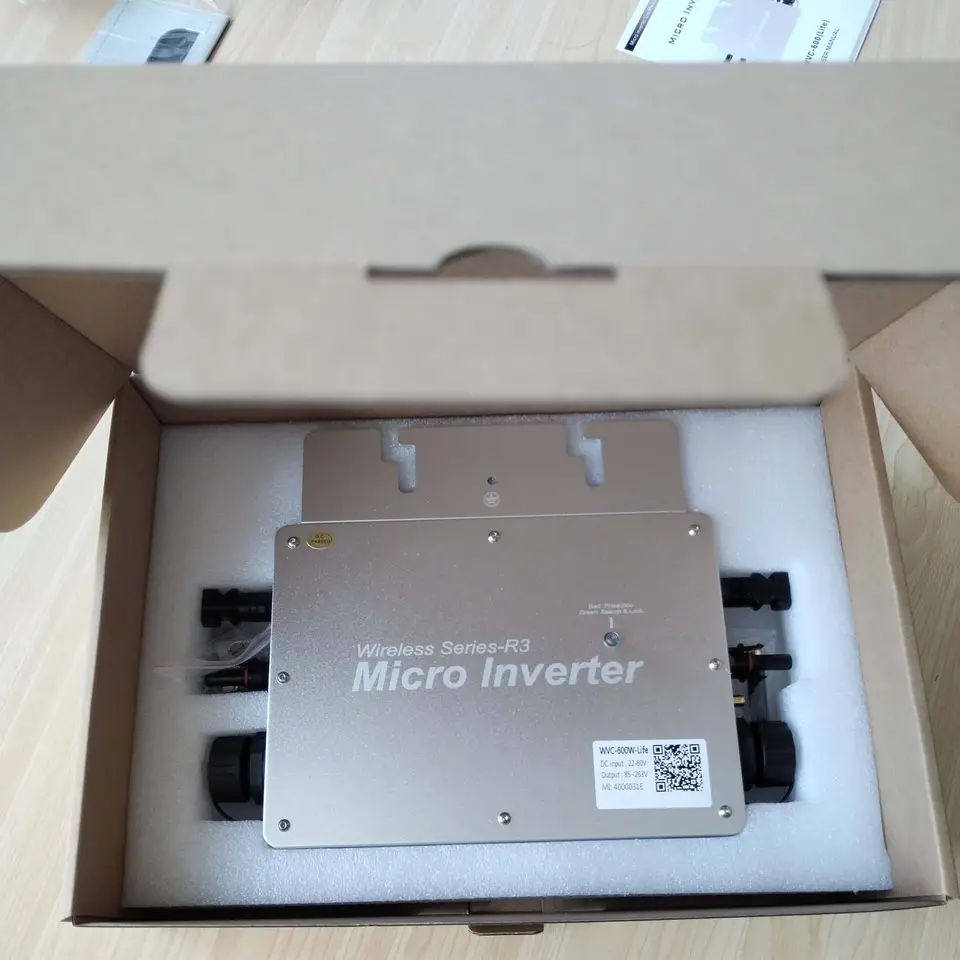

Yes, the packaging is handled with extreme care, ensuring products are packed securely for optimal protection during shipment.
