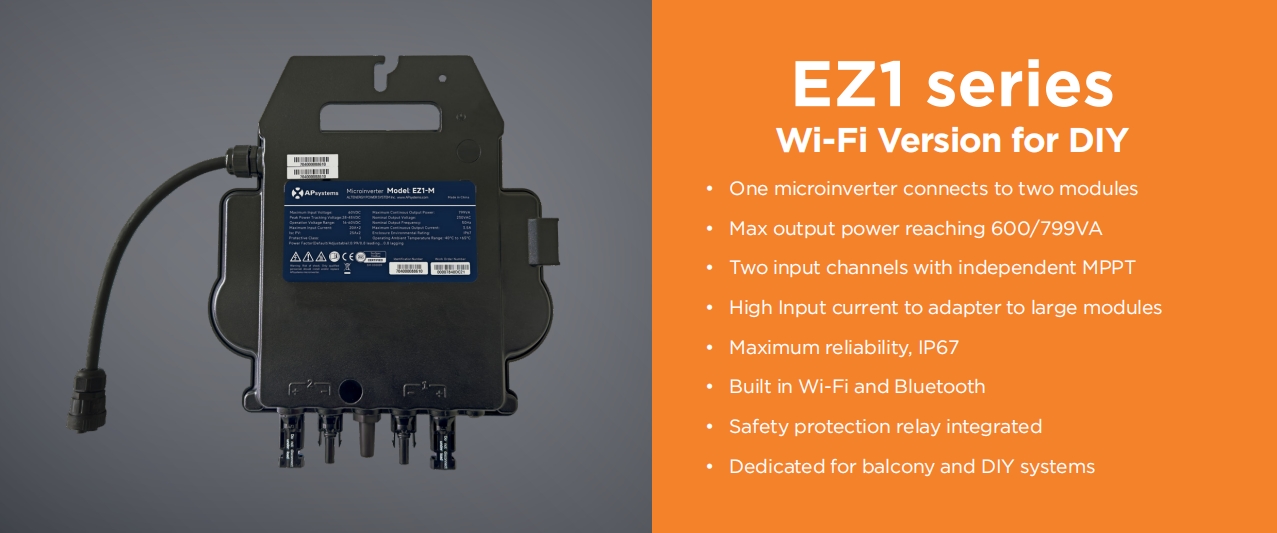

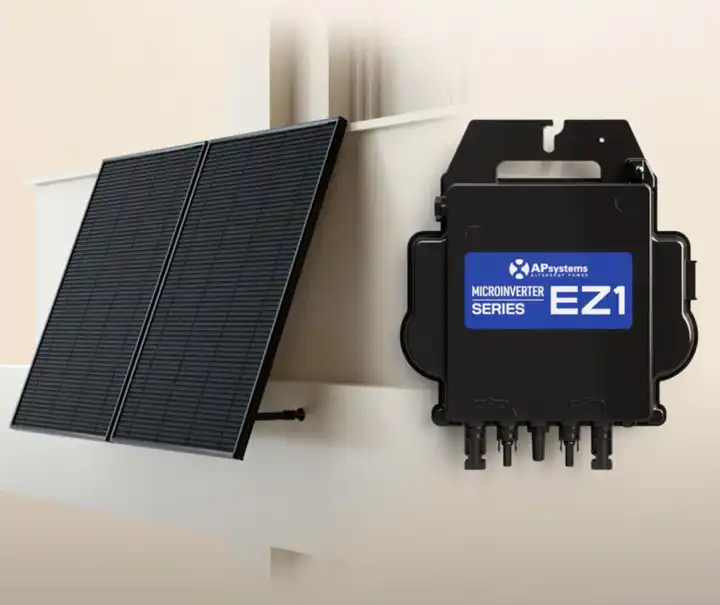

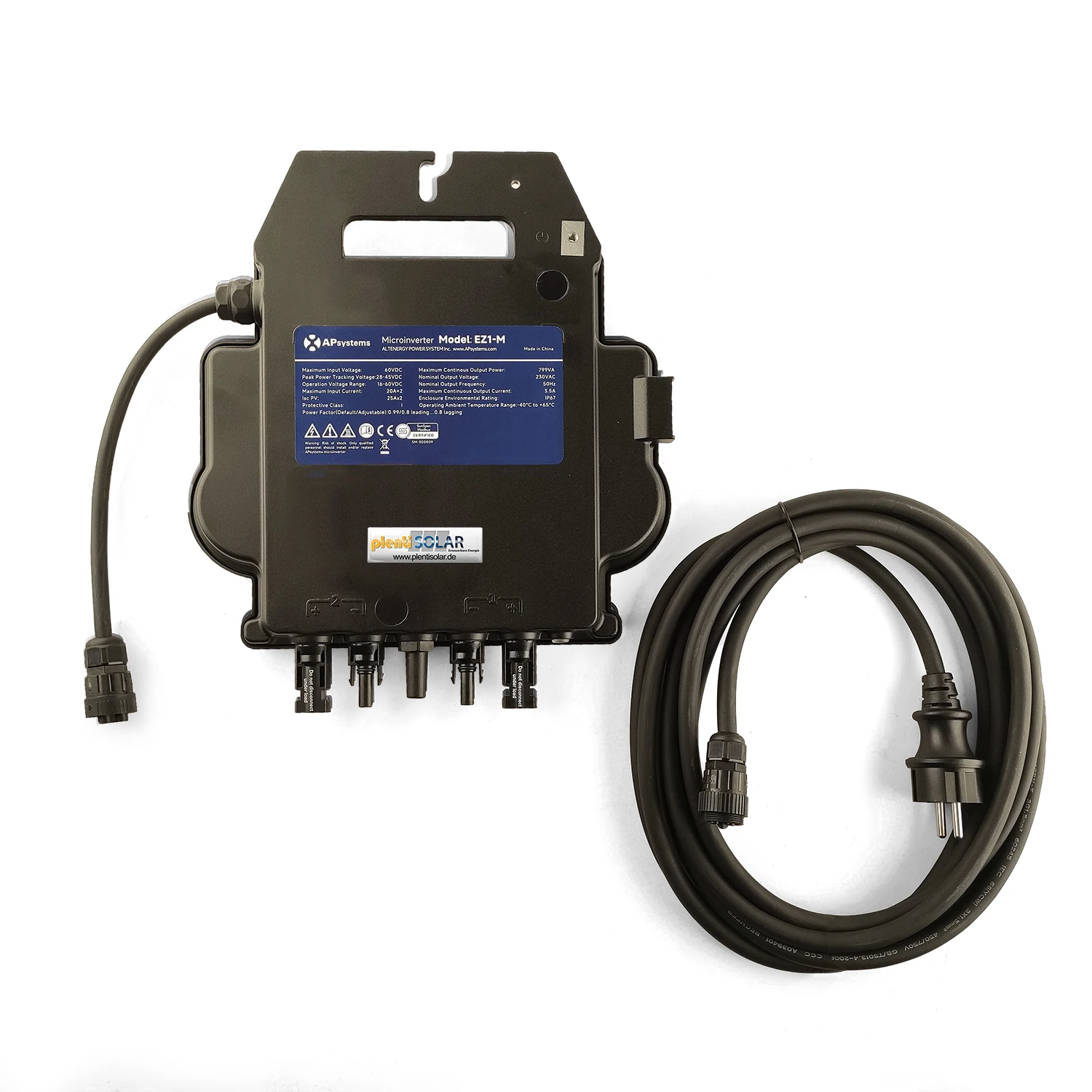

| Model | EZ1-S | EZ1-M |
|---|---|---|
| Input Data (DC) | ||
| Recommended PV Module Power (STC) Range | 255Wp-550Wp+ | 300Wp-730Wp+ |
| Peak Power Tracking Voltage | 28V-45V | |
| Operating Voltage Range | 16V-60V | |
| Maximum Input Voltage | 60V | |
| Maximum Input Current | 18A x 2 | 20A x 2 |
| Isc PV | 22.5A x 2 | 25A x 2 |
| Output Data (AC) | ||
| Maximum Continuous Output Power | 600VA | 600VA/799VA |
| Nominal Output Voltage/Range | 230V/184V-253V | |
| Nominal Output Current | 2.6A | 2.6A/3.5A |
| Nominal Output Frequency/ Range | 50Hz/48Hz-51Hz | |
| Default Power Factor | 0.99 | |
| Efficiency | ||
| Peak Efficiency | 97.3% | |
| Nominal MPPT Efficiency | 99.5% | |
| Night Power Consumption | 20mW | |
| Features | ||

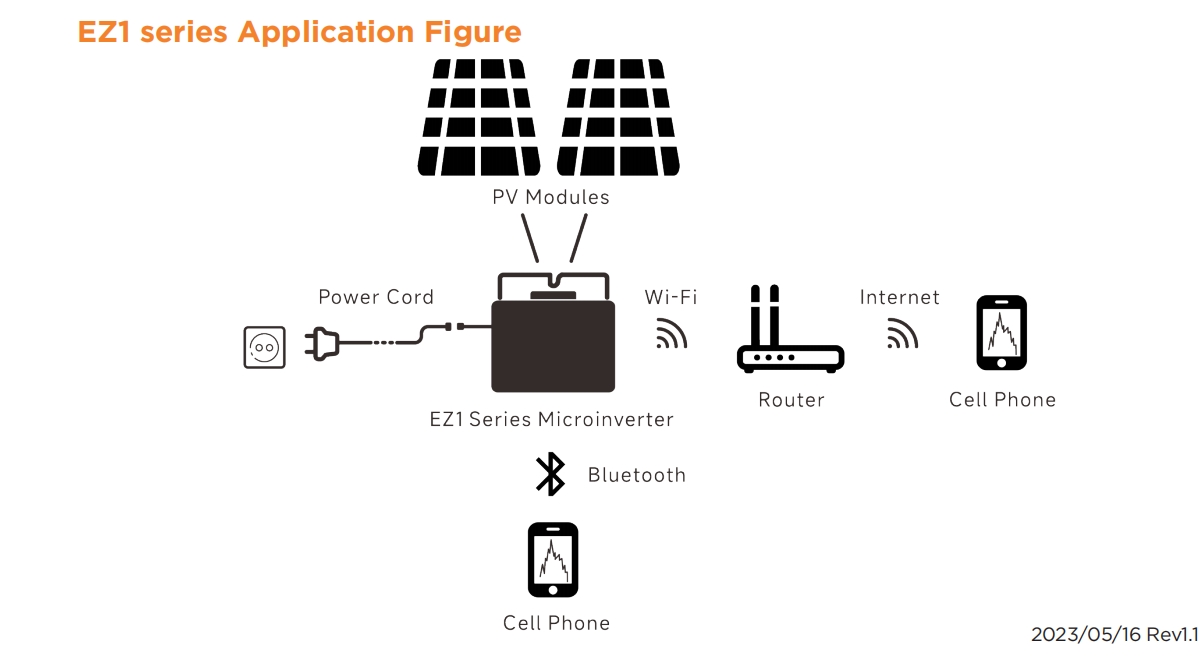

| Communication | Built-in Wi-Fi and Bluetooth | |
| Maximum Units Can Be Connected | 2 | |
| Isolation Design | High Frequency Transformers, Galvanically Isolated | |
| Energy Management | AP EasyPower APP | |
| Warranty | 12 Years Standard | |
| Compliances | ||
| Safety, EMC & Grid Compliances | EN 62109-1/-2; EN 61000-1/-2/-3/-4; EN 50549-1; DIN V VDE V 0126-1-1; VFR; UTE C15-712-1; CEI 0-21; UNE 217002; NTS; RD647; VDE-AR-N 4105 | |
