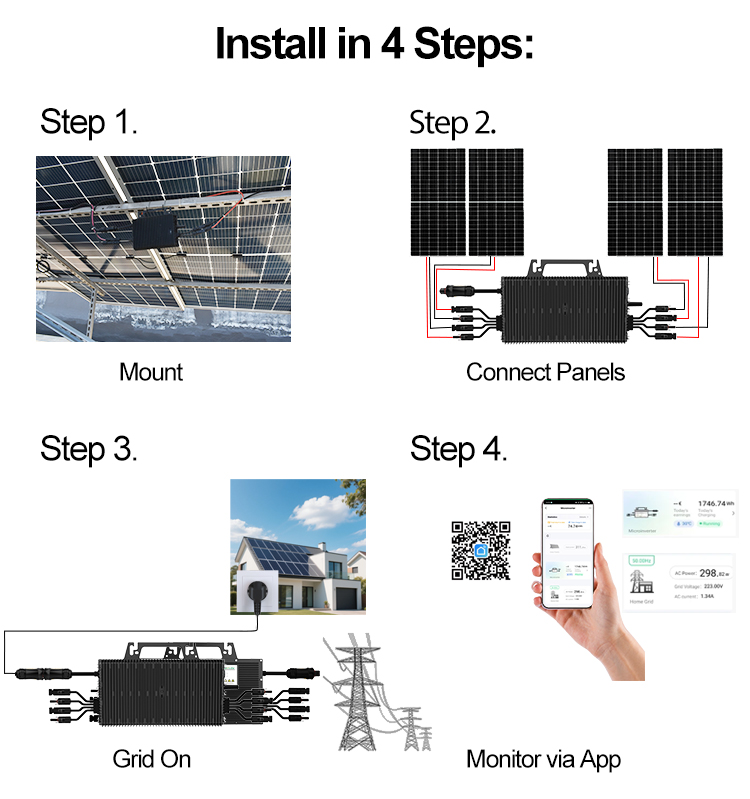

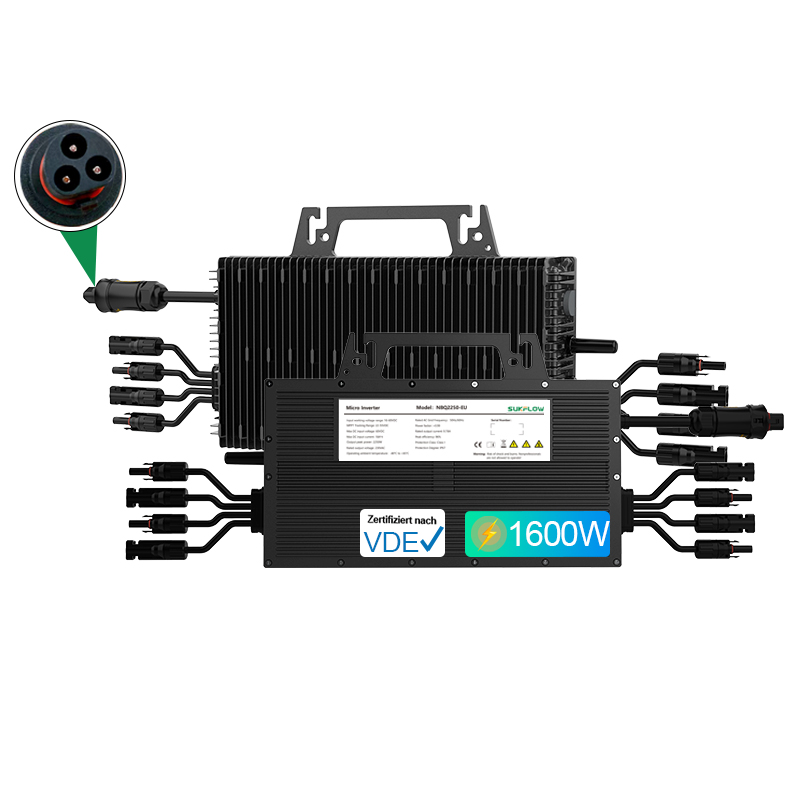

Simplify your solar installation. SUKFLOW 1600W Micro Inverter enables true plug-and-play setup.
With independent MPPT tracking for each channel, we ensure four connected panels are always performing at their absolute best, increasing total system generation.
| Max Output Power | 1600W | 2000W | 2250W |
| Max PV Input Voltage(DC) | 60V | 60V | 60V |
| Max Input Current(DC) | 14A X 4 | 16A X 4 | 18A X 4 |
| Start-up Voltage | 22V | 22V | 22V |
| Nominal Output Voltage(AC) | 230V | 230V | 230V |
| Operating Voltage Range | 190V-270V | 190V-270V | 190V-270V |
| Nominal Output Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Max AC Output Current | 6.95A | 8.69A | 9.78A |
| MPPT Tracking Accuracy | >99.5% | >99.5% | >99.5% |
| Peak Efficiency | 96.5% | 96.5% | 96.5% |
| THD | <5% | <5% | <5% |
| Inverter Topology | Grid-Tie Microinverter | ||
| Working environment | Indoor and Outdoor( IP67 Rating ) | ||
| Operating Temperature | -40°C to +65°C | ||
| Safety Certifications | EN50549; VDE4105; EN62109; IEC62321 CE, FCC, ROHS | ||
| Monitoring | Remote Monitoring via Mobile APP | ||
| Weight | 5.2KG | ||

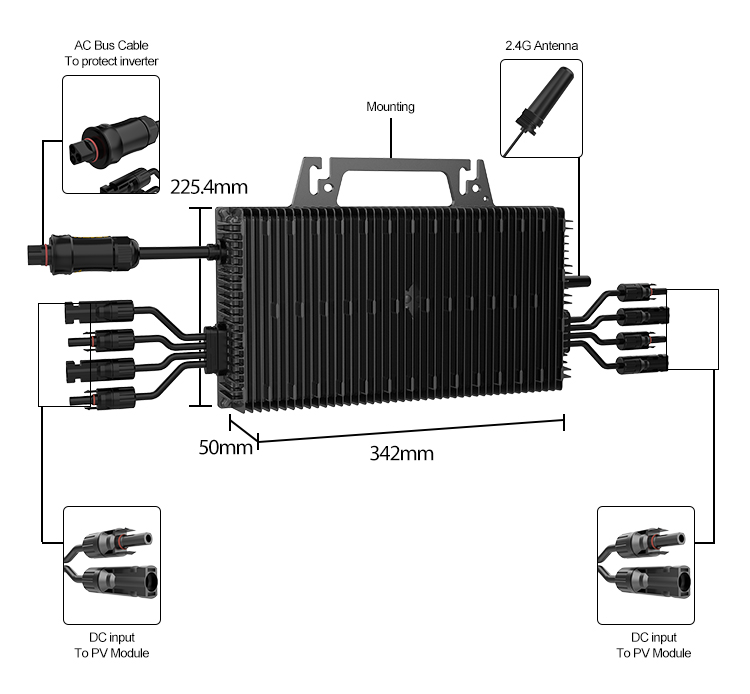

| Size (L*W*H) mm | 342*225.4*50mm (Easy DIY!) | ||
Guaranteed compliance with the strictest European safety and quality standards. Connect to the grid with complete confidence and peace of mind.
Built to withstand harsh outdoor elements—rain, dust, and extreme temperatures. Ensures reliable, year-round performance and long-term durability.
For samples and urgent needs, our EU warehouse in Germany enables 3-5 day delivery. For bulk orders, efficient shipping from our factory ensures cost-effectiveness without compromising on reliability.

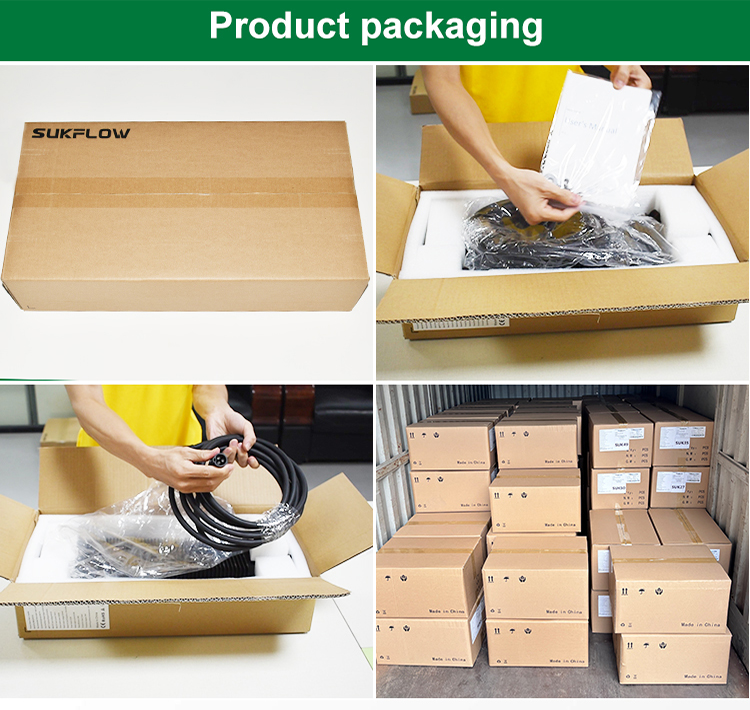

We offer custom Logo and packaging to strengthen your market presence.
The Professional's Choice for High Efficiency. Our micro inverters, with an efficiency rating of >96.5%, ensure optimal energy harvest for your projects. Partner with us to grow your business and capture a greater share of the expanding solar market.

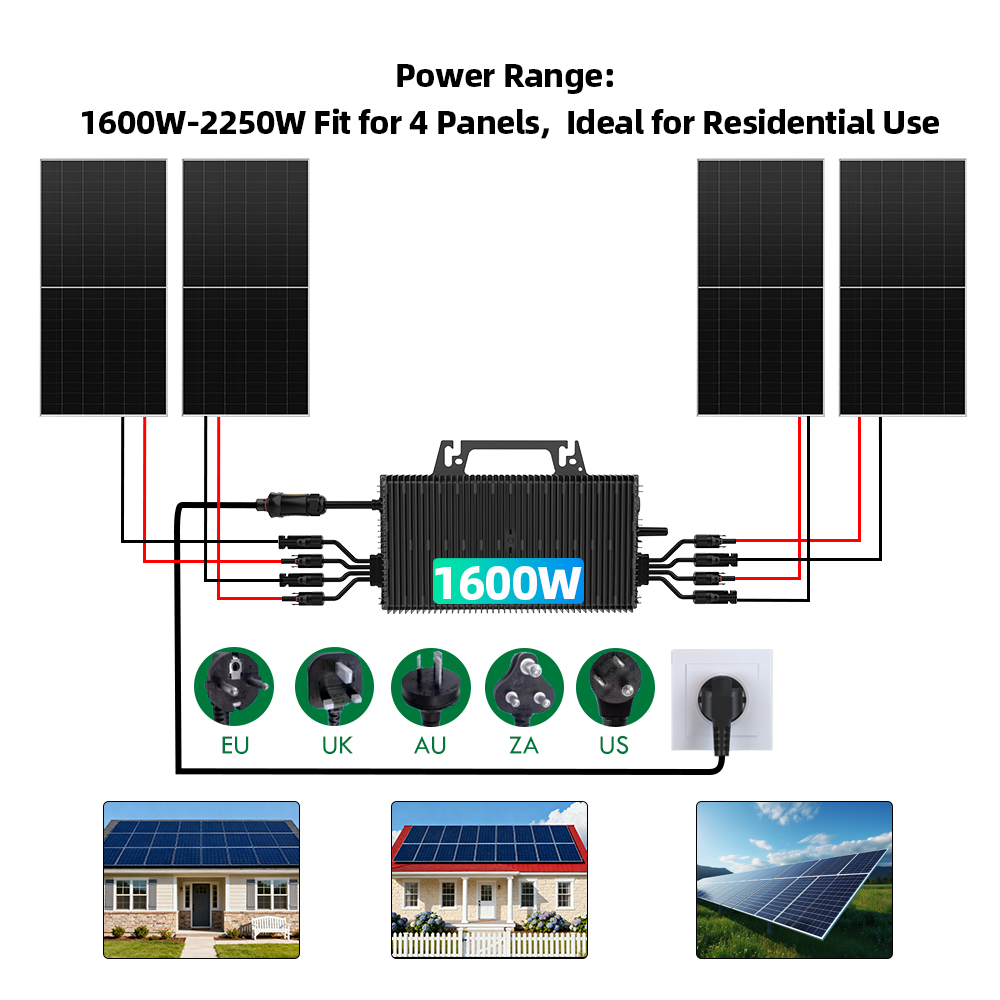

You can connect up to four solar panels. The microinverter is designed with independent MPPT tracking for each of the four channels, ensuring optimal performance for every single panel.
It features an IP67 rating, which provides total protection against dust and makes it highly resistant to harsh weather conditions, including heavy rain and extreme temperatures ranging from -40°C to +65°C.
The microinverter supports remote monitoring via a dedicated mobile app. You can track your energy production, monitor system health, and spot individual panel performance in real-time.
Yes, the microinverter holds key safety and quality certifications required for the EU market, including EN50549, VDE4105, EN62109, CE, FCC, and ROHS compliance.
We maintain stock in our EU warehouse in Germany. Urgent sample orders and local deliveries can arrive within 3 to 5 days, while container or bulk wholesale orders are shipped directly from the factory for maximum cost-effectiveness.
