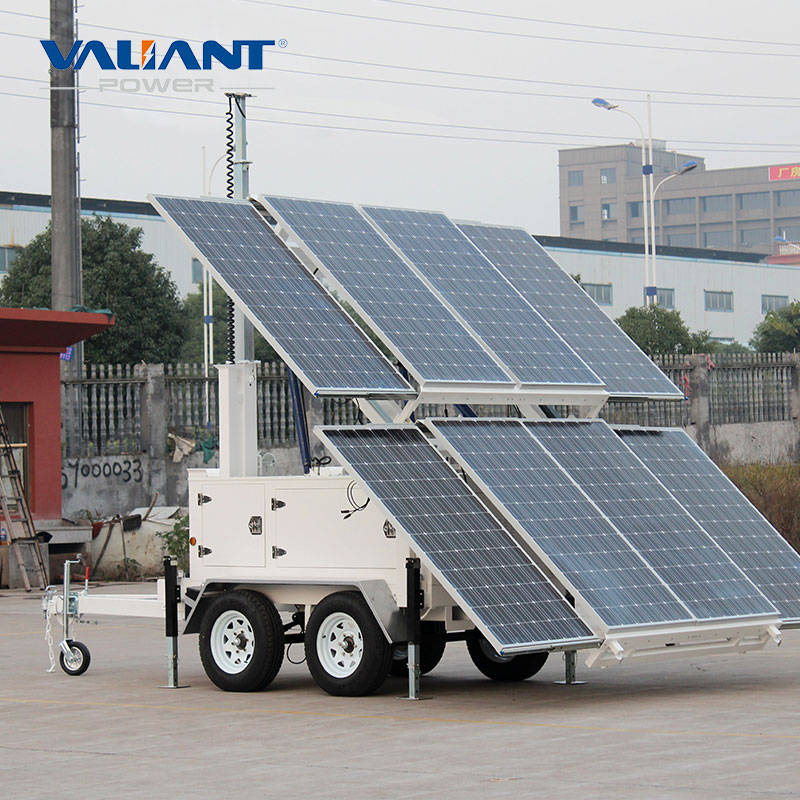

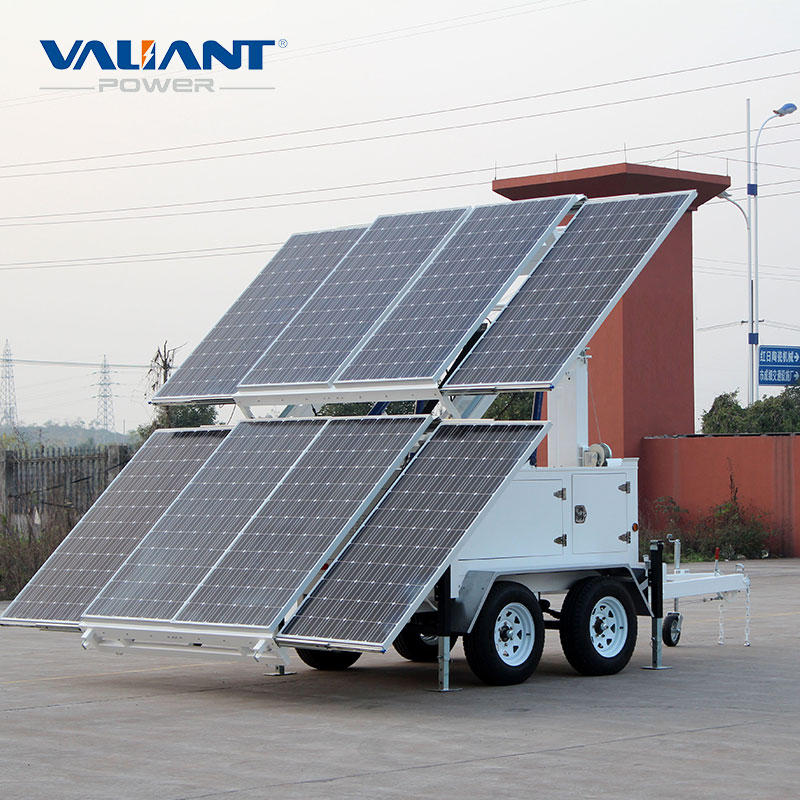

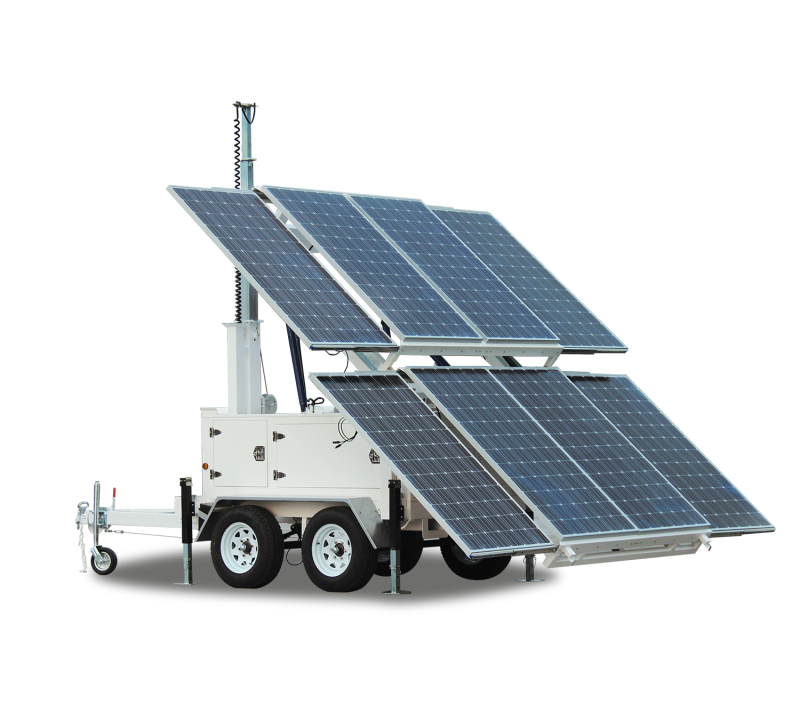

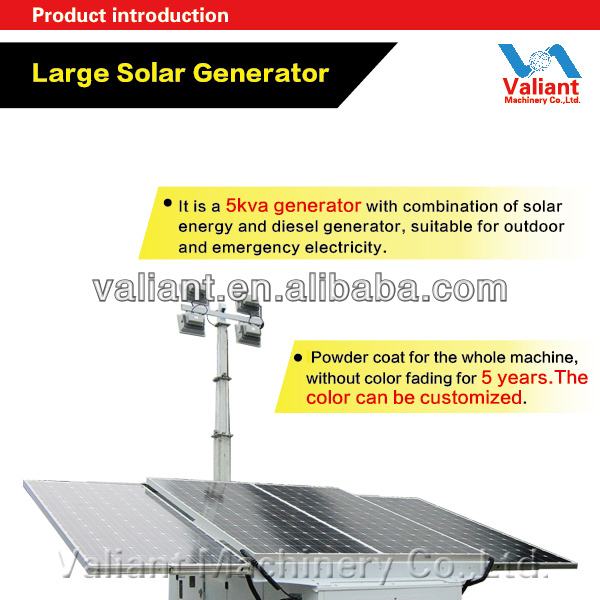

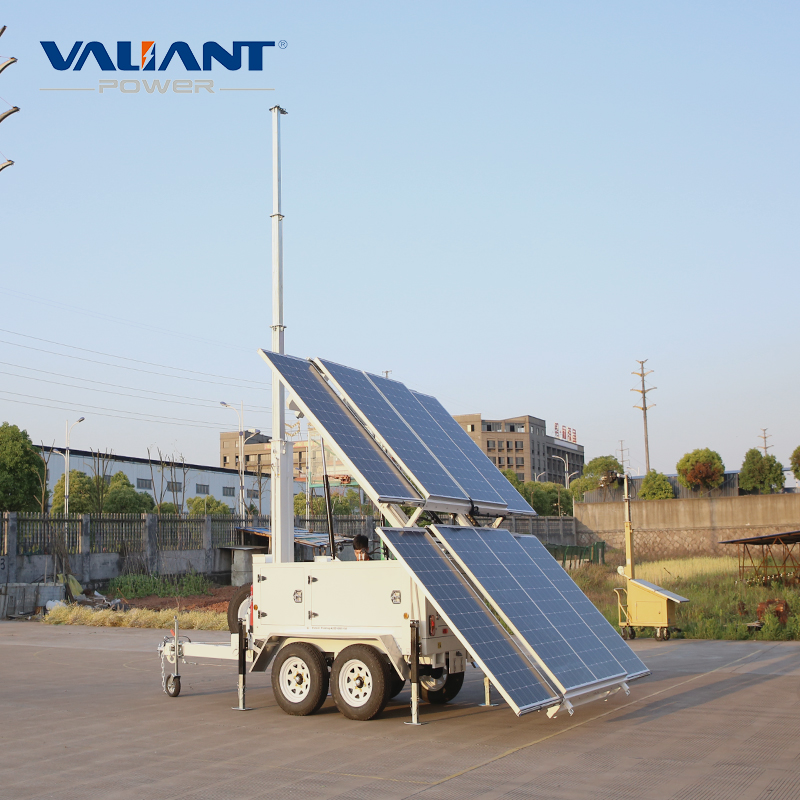

Solar power Light Tower is a green energy system and is widely used in construction sites, mining operations, airports, golf courses, squares, and various outdoor public spaces.
| Solar Panel and Solar Battery | |
| Solar panel | 3 × 300W Monocrystalline silicon solar panel |
| Solar battery | 6 × 150A solar battery (colloid battery), free maintenance |
| Rated Output | |
| Rated Power | - |
| Rated Voltage | DC12V or DC24V (inverter can be supplied upon request for AC requirements) |

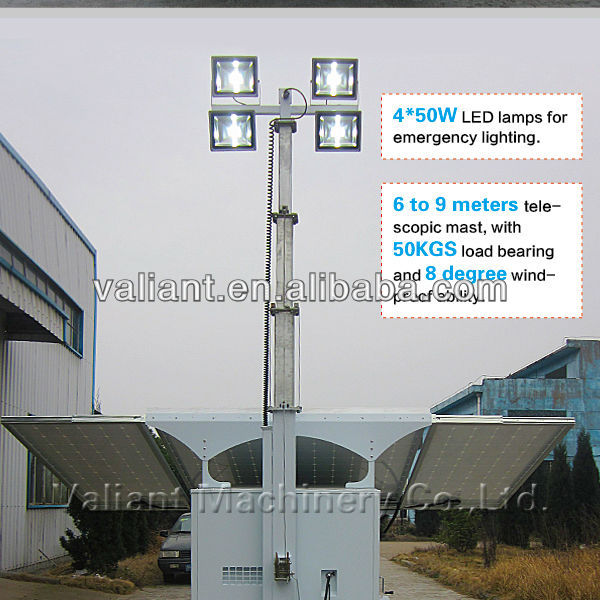

| Lamp Parameters | |
| Type of lamp | LED |
| Lamp quantity | 6 lamps |
| Lamp power | 40W |
| Lamp lumen | 90Lm to 130Lm Per Watt |
| Control Box System | |
| Solar charge controller | Controls the solar power system and protects the battery |
| Air compressor | Solenoid valve, for Pneumatic lifting lever |
| Remote control | Controls the pole elevation (up and down) and light operation (on and off) |
| Other electrical system | Relay, switch, button, key, etc. |
| Trailer and Pole Details | |

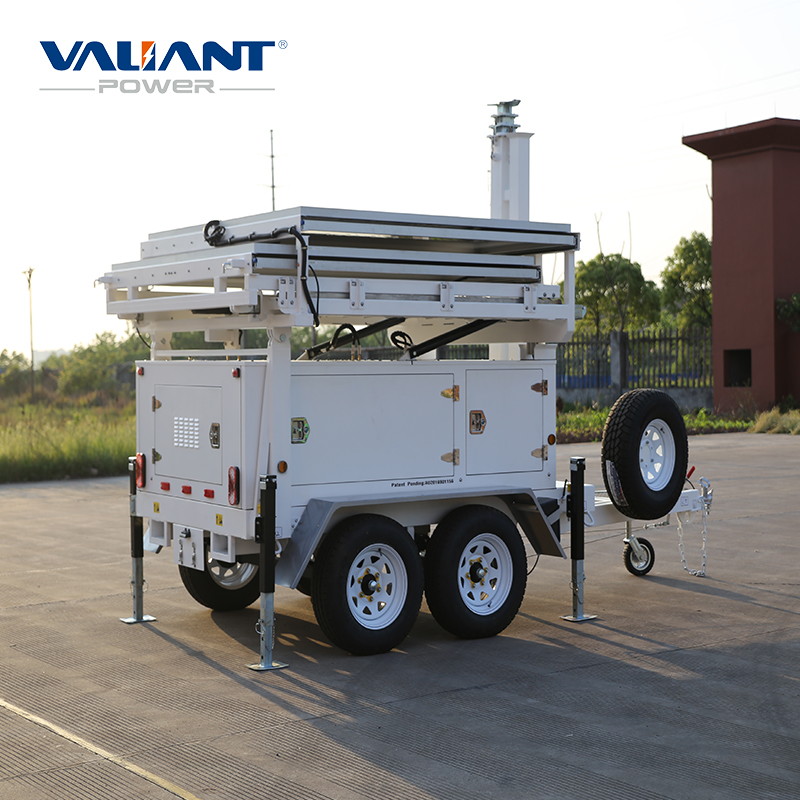

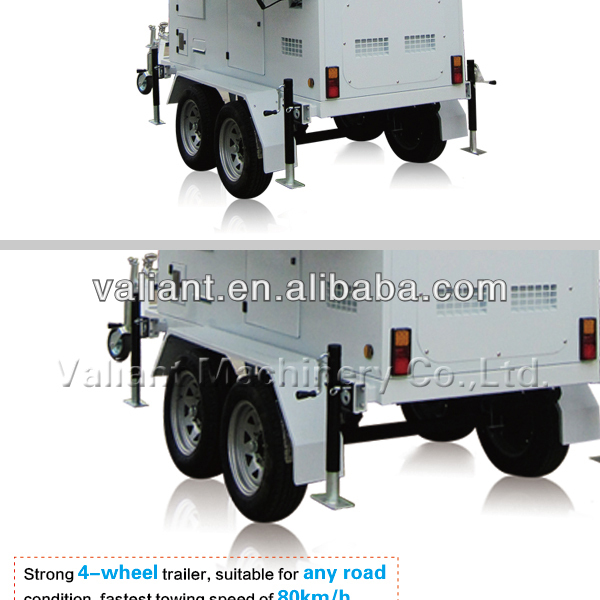

| Trailer | Two 13”, 15”, or 16” car tires |
| Pole | 4M/6M/9M Pneumatic mast, adjustable (up and down) |
| Dimension (Adjustable) | |
| L × W × H (No include Tire Size) | 2200 × 1000 × 1300mm |
| L × W × H (After packing) | 2250 × 1050 × 1350mm |
| CBM | 3.8CBM |
| 20 ft Container Capacity | 4-8 Sets |
| 40 ft Container Capacity | 8-16 Sets |
| Weight | |
| Net weight | 800KG |
| Gross weight | 900KG |
| Main Parts Lifespan | |
| Solar Panel | 20 Years |
| Solar Battery | 4 to 6 Years |
| LED light | 5 Years |
| Other Specifications | |

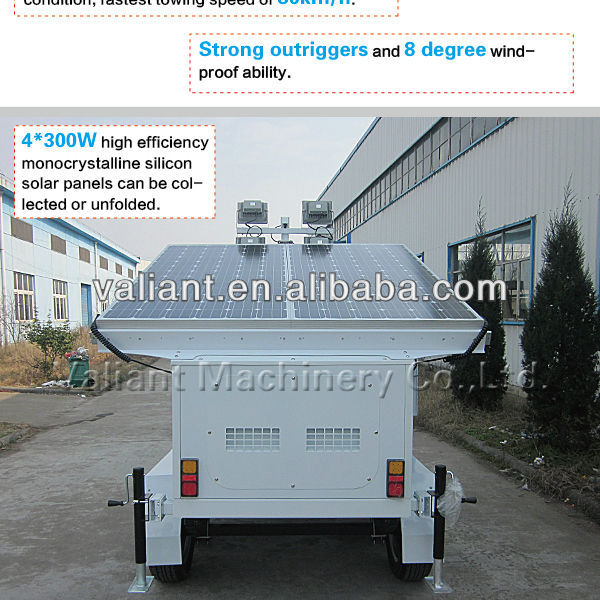

| Windproof ability | 8 Degree |
| Protection level | IP65 |
| Optional Parts | |
| Mechanical type Mast | 4M/6M/9M/12M/15M |
| Bump Brake | Standard |
| Tire Options | 16” |
| Lamp Options | HFED |
| Note: The rated output, lamp numbers, lighting coverage, and pole height can be adjusted according to customer request. | |
