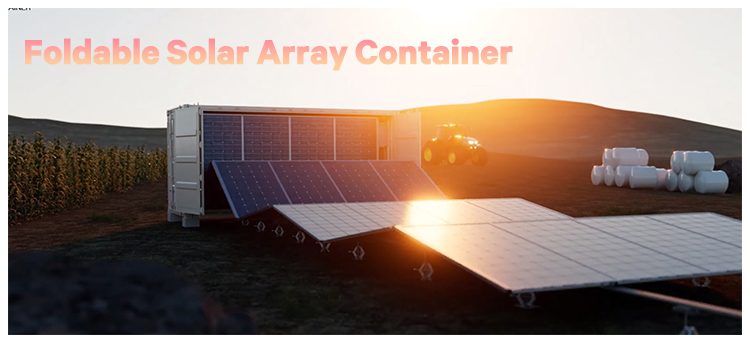

| Overall Configurations | |
|---|---|
| CS Package | |
| Package Products Model | CS20GP-M-84K |
| Solar Array Capacity (Pmax / kWp) | 84 |
| Total Weight (Tons) | 13 |
| Folding & Unfolding Time (Min.) | 30-45 |
| Operating Temperature (℃) | -40 ~ +85 |

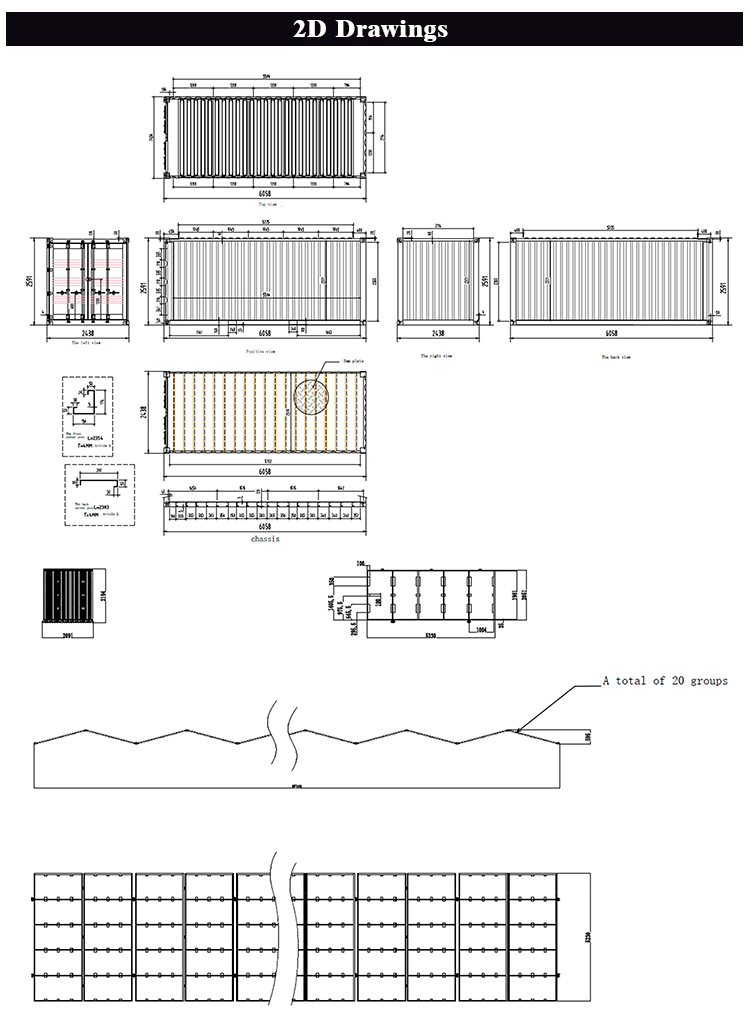

| Unfolded Footprint (L*W*H/m) | 87*5*1 |
| Folded Footprint (L*W*H/m) | 6*2.4*2.6 |
| Max. Slope Limit | 0.6% |
| Complete Installation Time (hrs) | 3 |
| Installation Persons | 4 |
| Compatibility (Option 1) | DC output without Inverter |
| Compatibility (Option 2) | with Lithium battery container |
| Orientation | Any azimuth |
| Container | |
| Type of Container | 20GP |
| External Dimensions (L*W*H/mm) | 6058*2438*2591 |
| Container Weight (Tons) | 6 |
| Solar | |
| Solar Panel Type | Monocrystalline |
| Solar Panel Power (Pmax / Wp) | 400 |
| Quantity of Solar Panels (pcs) | 210 |
| Inverter | |
| String Inverter Capacity (Pmax / kWp) | 40 |
| Output Power Volt. & Current (V / Hz) | 380/50 |
| Quantity of String inverters (sets) | 2 |

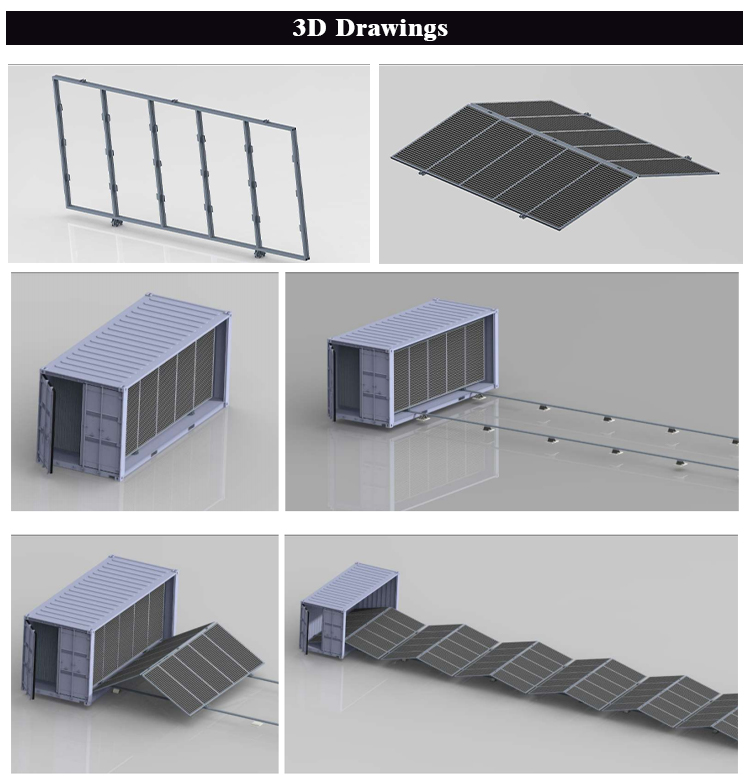

| Bracket | |
| Bracket Materials | Hot galvanized steel (ISO1461) |
| Single Bracket Dimension (mm) | 5230*2051*96 |
| Angle of Unfolding Bracket (°) | 15 |
| Length of Unfolding Bracket (m) | 87 |
| Projected area of Unfolding Bracket (m²) | 467 |
