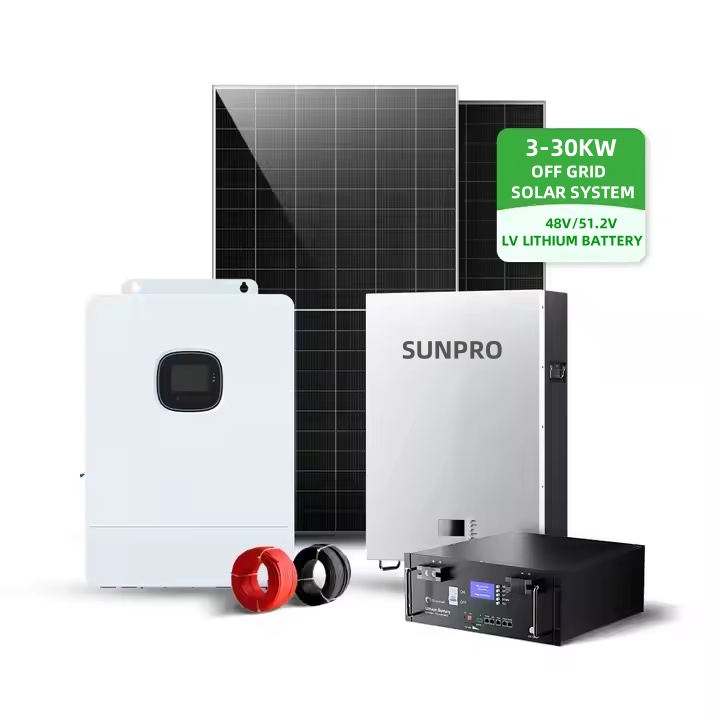

Solar System Off Grid 5kw 8kw 10kw 15kw 20kw 30kw With Battery And Inverter Complete Solar Kit For Home

1 / 5

Solar System Off Grid 5kw 8kw 10kw 15kw 20kw 30kw With Battery And Inverter Complete Solar Kit For Home

Send Inquiry

Product Description

Residential Off-Grid Solar System Banner

RESIDENTIAL OFF-GRID SOLAR SYSTEM 3-30KW HOME STORAGE

3KW to 10KW Off Grid Solar Power system with single phase 220v output

Model	SP3KW-OFF	SP5KW-OFF	SP6KW-OFF	SP8KW-OFF	SP10KW-OFF
595W Solar Panel	4pcs	8pcs	10	14	16
Off Grid Inverter	3KW*1	5KW*1	6KW*1	8KW*1	10KW*1
Operation Type	Support working without battery
MPPT range	120V~450V
NO. of MPPT	1		2
Battery	Lead Acid or Lithium battery. Capacity available 48V/51.2V 100AH 150AH 200AH 280AH 314AH
Battery Type	Rack Mounted/Floor Stand/Wall Mounted
DC Cable 4mm2	100meters	100meters	100meters	200meters	200meters
MC4 Connector	4 Pairs	6 Pairs	8 Pairs	10 Pairs	12 Pairs
Mounting System	Roof/Ground mounted, mounting design according to the installation site
PV Tools	Wire Cable Cutter & Stripper, Crimping Pliers for PV Connectors

Kindly Reminder:
* The Above System Configuration For Initial Designing.
* The System Configuration Are Subject to Changing Depends on Your Final Installation Conditions & Requirements.

12KW to 30KW Off Grid Solar Energy System

Model	SP12K-OFF	SP15K-OFF	SP20K-OFF	SP25K-OFF	SP30K-OFF
595W solar panel	20pcs	25pcs	32pcs	42pcs	50pcs
Off Grid Inverter with built-in MPPT	6KW*2	5KW*3	5KW*4	5KW*5	5KW*6
Battery	Lead Acid or Lithium battery. Capacity available 48V/51.2V 100AH 150AH 200AH 280AH 314AH
Battery Type	Rack Mounted/Floor Stand/Wall Mounted
DC Cable 4mm2	200meters	300meters	400 meters	500meter	600meters
MC4 Connector	16 Pairs	18 Pairs	20 Paris	24 Pairs	30Pairs
Mounting System	Roof/Ground mounted, mounting design according to the installation site
PV Installation Tools	PV Installation Tools

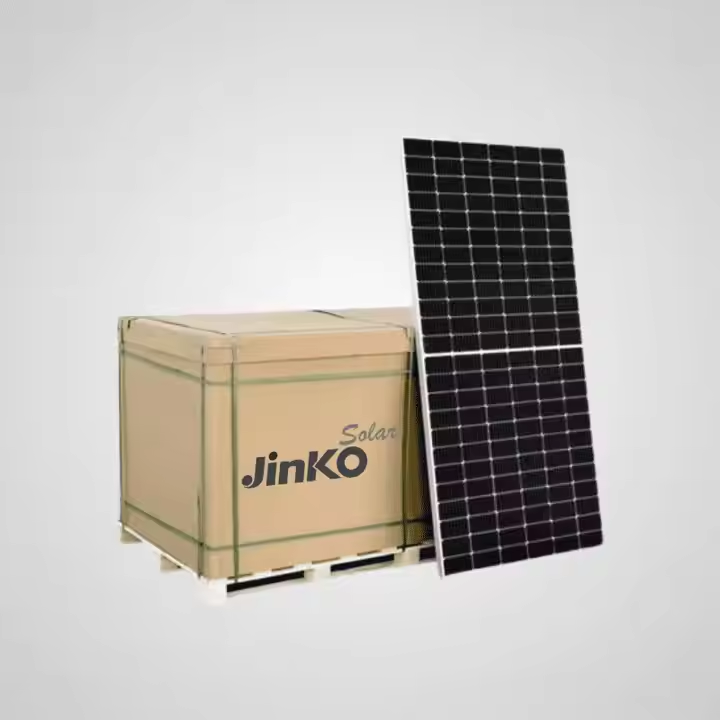

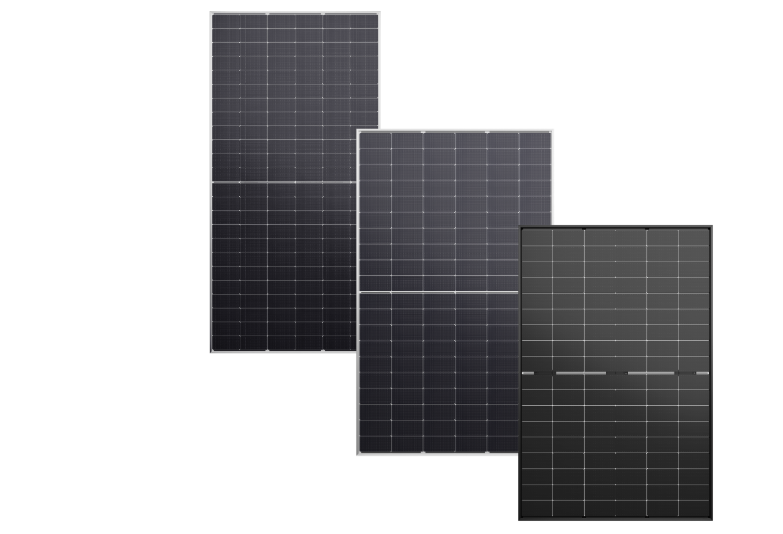

Solar Panel Options

Various panels to satisfy different needs:

Tier 1 brand quality
Power ranges from 430w~720w
Size range from 1722/1762*1134mm to 2383*1303*33mm
Silver frame / Black frame / Full black aesthetics
Mono-facial / Bifacial types available

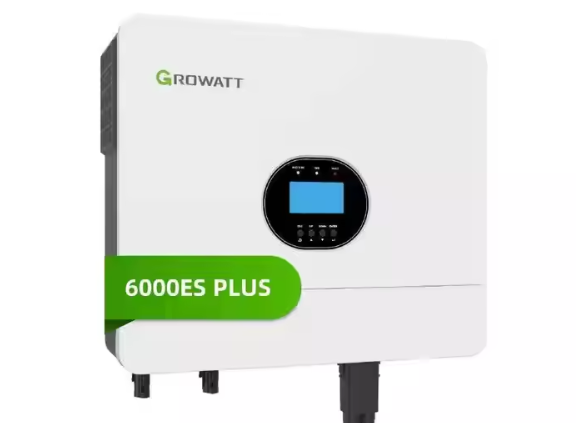

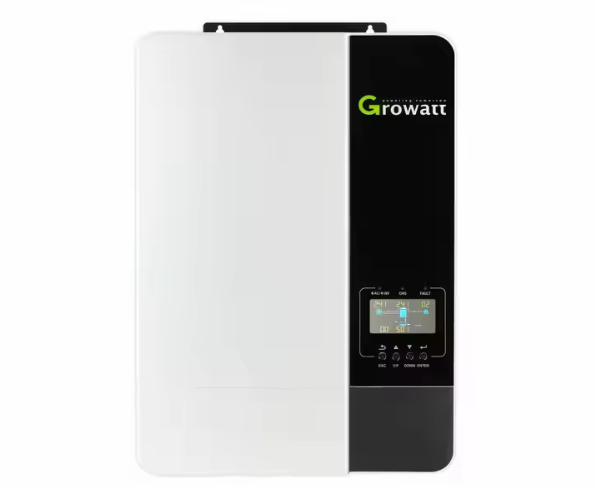

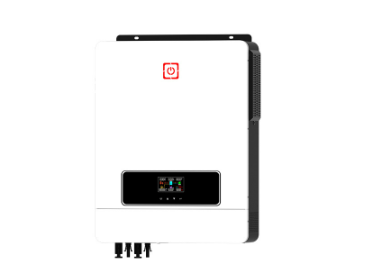

Solar Inverter with built-in MPPT Controller

Support charging by utility grid, Wide MPPT range: 120v~450v
Different brand inverter available. Power ranges from 3kw-50kw
Support working without battery
Support parallel connection (Pure Sine Wave)

Lead Acid (GEL battery) / Lithium Battery (Rack mounted / Wall Mounted / Floor Stand)

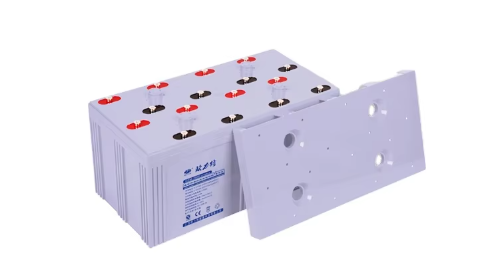

Lead Acid Battery

GEL battery type
2V 500AH ~ 2V 2500AH
12V 100AH ~ 12V 250AH
Maintenance-free setup

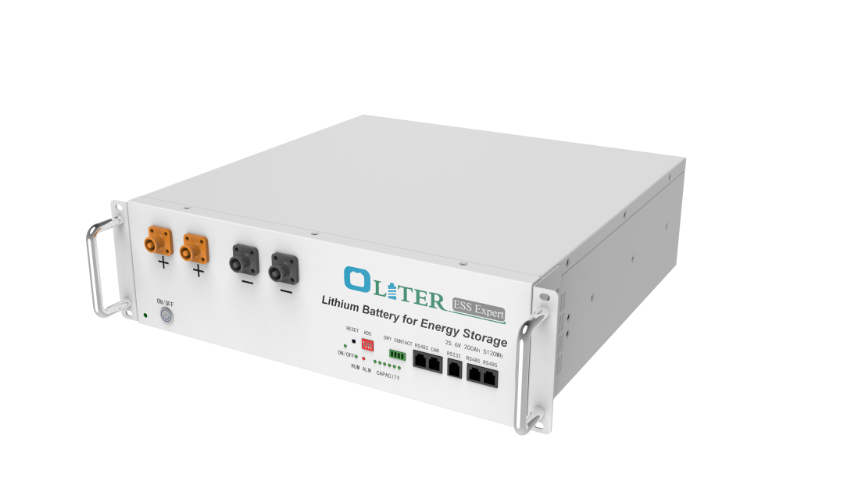

Lithium Battery Pack

25.6V 100AH / 200AH
48V / 51.2V (100AH/150AH/200AH/280AH/314AH)
Rack Mounted installation

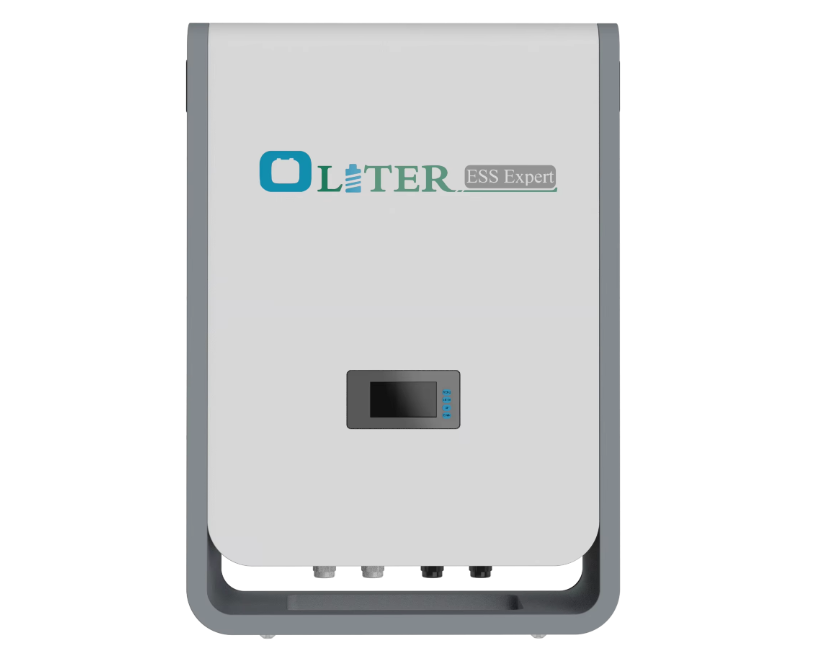

Wall Mounted Lithium Battery

Powerwall wall mounted type
51.2V (100AH/150AH/200AH/280AH/314AH)
Capacity configurations: 5KWH / 10KWH / 15KWH

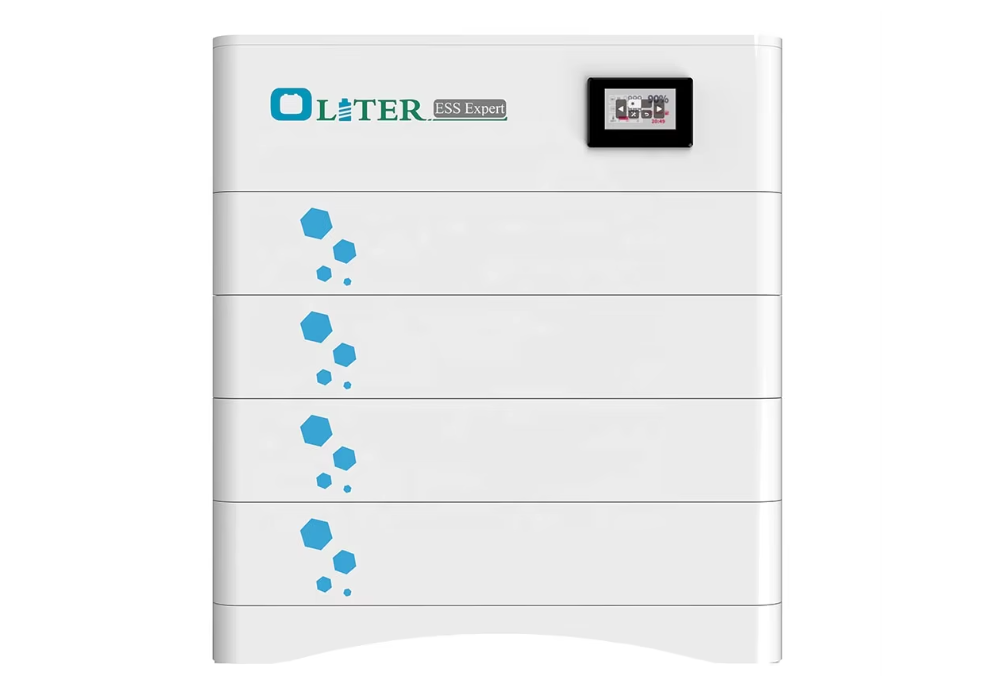

Stackable Lithium Battery

Stackable and Expandable system design
10KWH / 15KWH / 20KWH / 25KWH / 30KWH / 35KWH / 40KWH configurations
5 years warranty and 6000 cycles lifetime

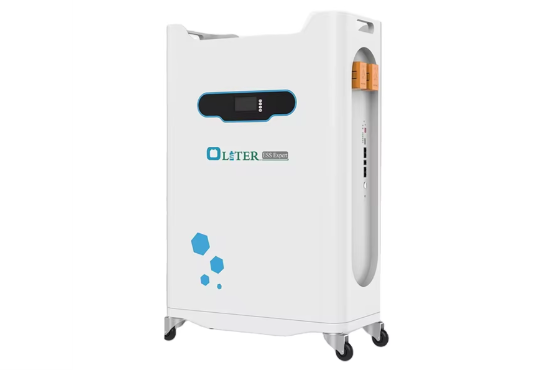

Wheel Type Lithium Battery

Stackable and Expandable configurations
10KWH / 15KWH / 20KWH / 25KWH / 30KWH / 35KWH / 40KWH
5 years warranty and 6000 cycles lifetime

Mounting, Protection & Monitoring Accessories

PV Mounting System

Roof mounted / Ground mounted brackets

Protection System

Rated Voltage: 1000VDC electrical protection

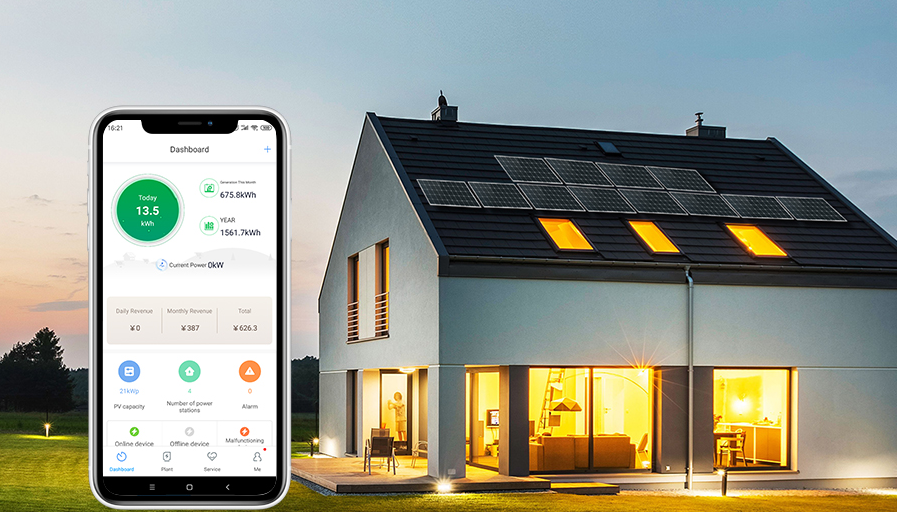

Monitoring System

Check real-time system status and metrics

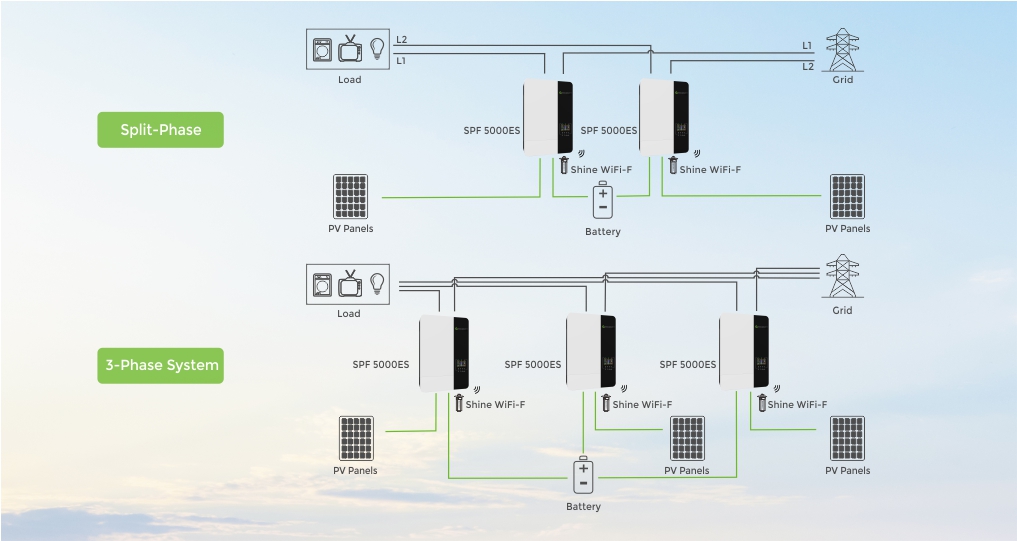

Supports Multiple Parallel Operation Modes

Up to 6 units in parallel for system capacity extension
Parallel operation to form split-phase or three-phase systems
Supports three-phase unbalanced power for the output

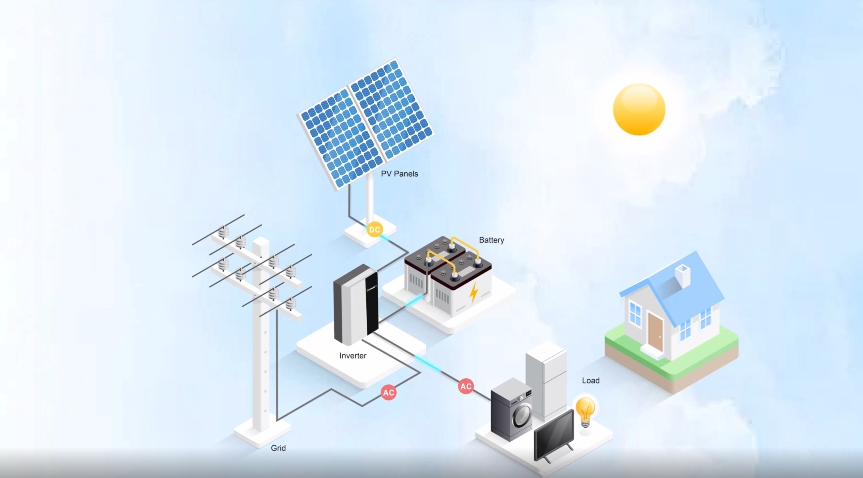

Customized System Modes for Diverse Scenarios

SOL mode to optimize and prioritize backup power
UTI mode for grid support during periods of insufficient sunlight
SBU mode to prioritize solar/battery utility to reduce bills

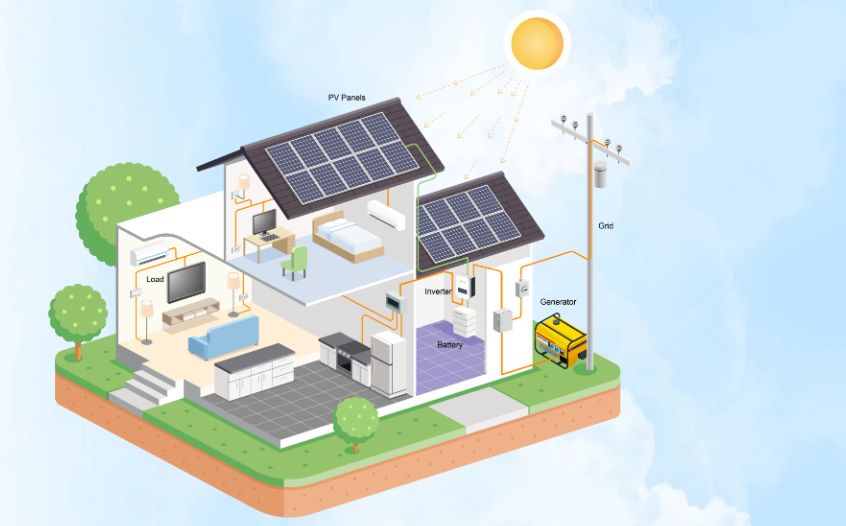

Multiple Input Power Sources

Supports PV, battery, diesel generator, and utility inputs
Compatible with Lithium, Lead-acid, and GEL batteries

Intelligent OS Management

Supports WiFi & GPRS communication for remote monitoring
PVkeeper platform for local diagnostic commissioning
Precise timing charging & output controls
Equalization charging to extend battery lifespan

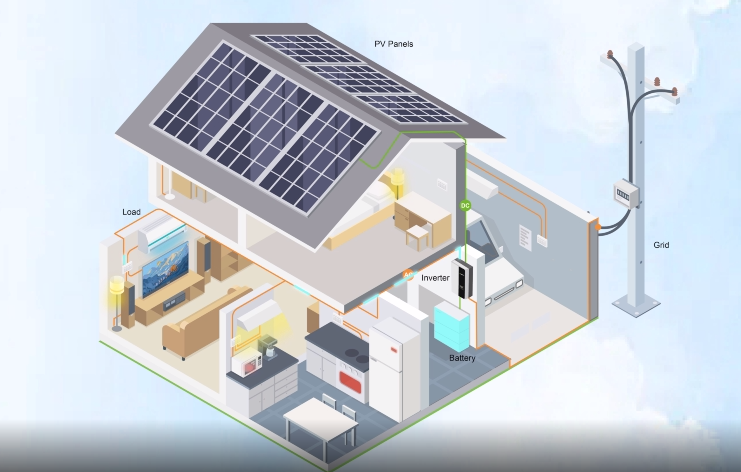

Diverse Protection Features

BLVD function to extend backup time for emergency loads
Manual maintenance bypass switch support

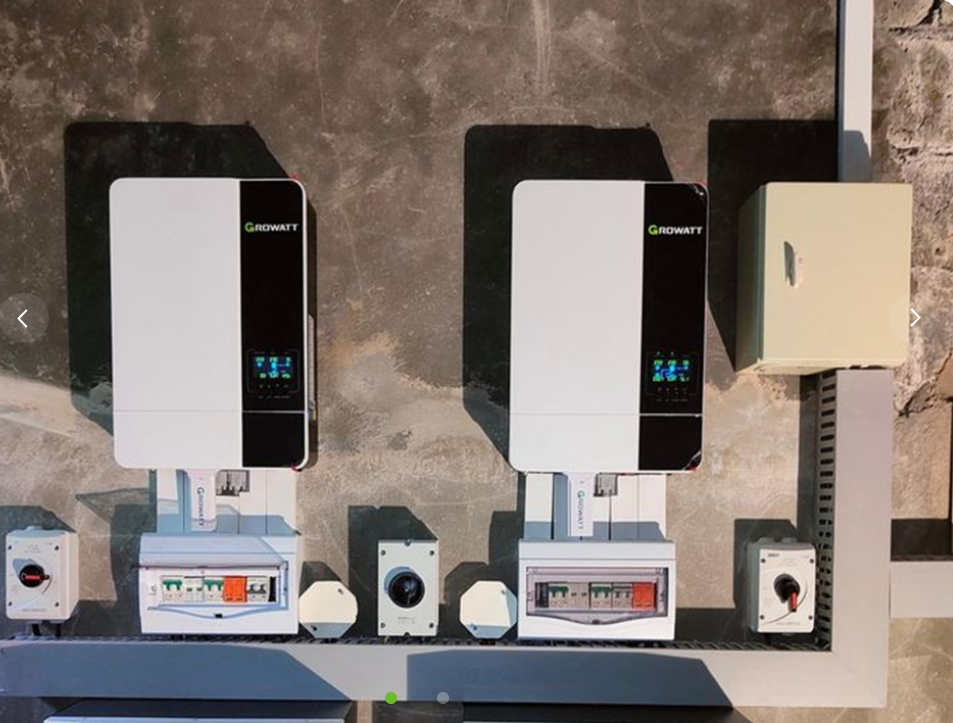

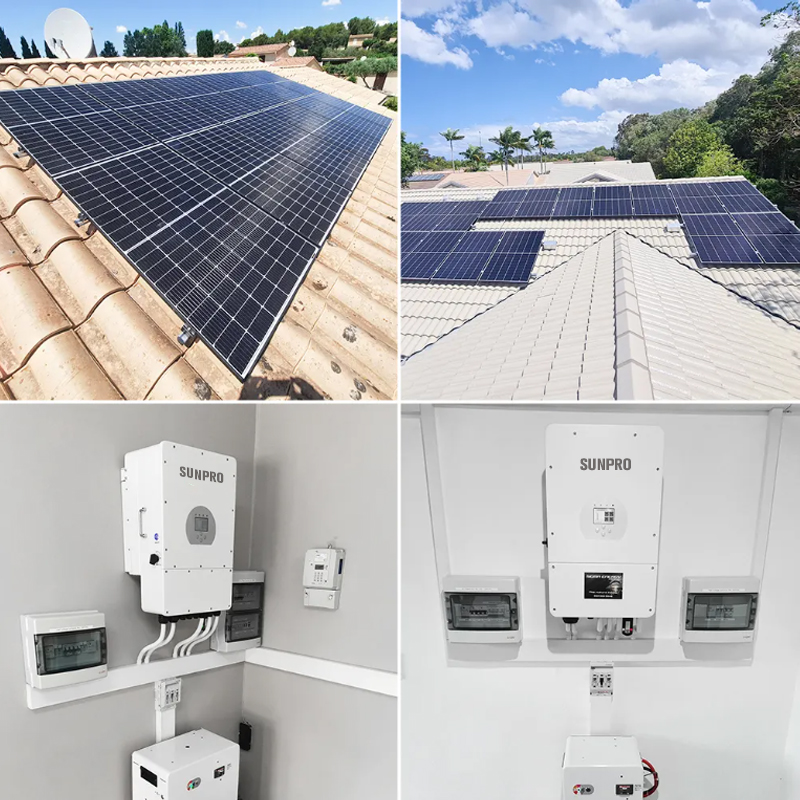

Global Solar Project Cases

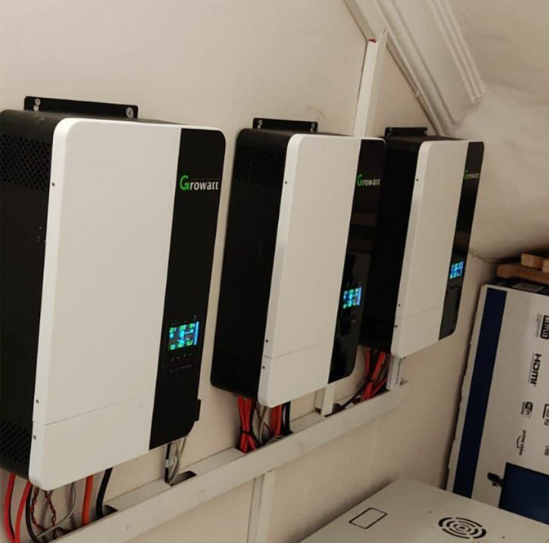

Lebanon 15kW Off-Grid Solar System

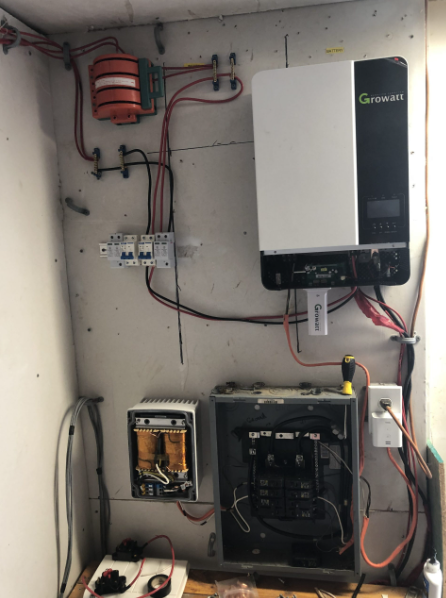

Germany 5kW Off-Grid Solar System

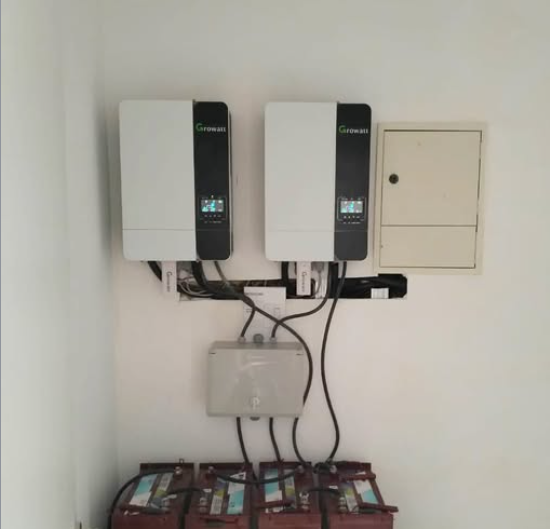

Belgium 10kW Off-Grid Solar System

Philippines, 20kWp Off-Grid Solar System

Frequently Asked Questions

Can an off-grid solar system operate without a battery bank?

Yes. Our advanced off-grid solar inverters support operating without batteries, direct-powering connected household appliances using PV energy or the utility grid when solar radiation is sufficient.

What is the range of system capacities available for home storage?

We offer structured off-grid power systems ranging from 3kW up to 30kW. Systems from 3kW to 10kW operate on a single-phase 220V output, while larger configurations of 12kW to 30kW are designed for high-capacity applications utilizing stacked parallel inverters.

What types of batteries are compatible with these off-grid systems?

Our systems are fully compatible with both GEL Lead-Acid batteries and Lithium (LiFePO4) batteries. You can choose from various setups, including Rack Mounted, Wall Mounted (Powerwall), Stackable Expandable, and portable Wheel Type battery units.

Is it possible to monitor the solar power system remotely?

Yes. The system supports WiFi and GPRS communication protocols. This enables users to track solar generation, battery status, and load consumption metrics remotely from any smart device via the monitoring platform.

Are the solar panel mounting brackets designed for specific roof types?

Our mounting solutions are highly adaptable. We engineer custom roof or ground-mounting structures engineered specifically to fit the physical conditions and wind loads of your target installation site.

Can I expand the capacity of my system by connecting multiple inverters?

Yes. The inverters support parallel connections for up to 6 units. This allows you to scale up system output power capacity as your electricity requirements grow, and supports forming three-phase or split-phase configurations.
