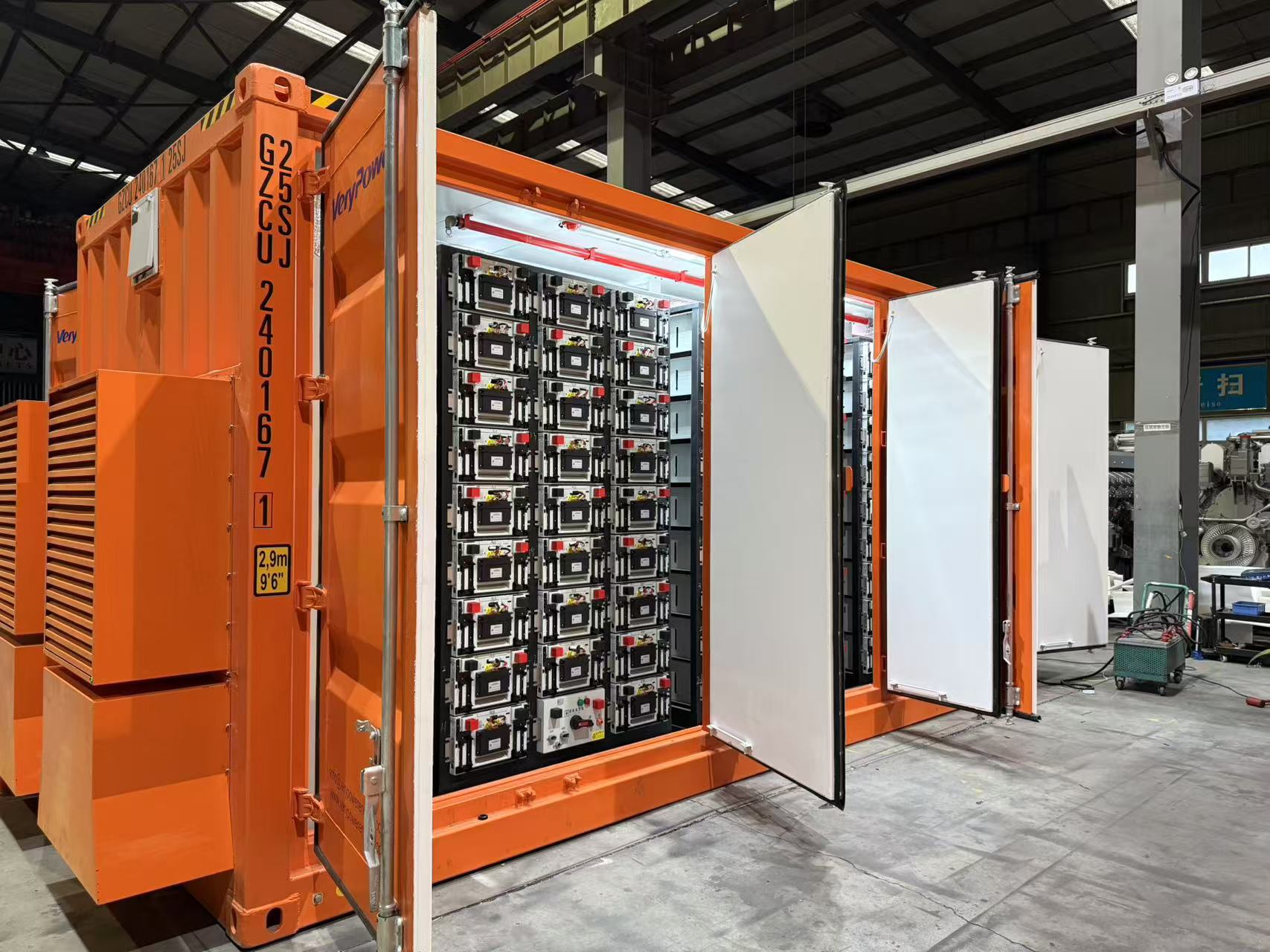

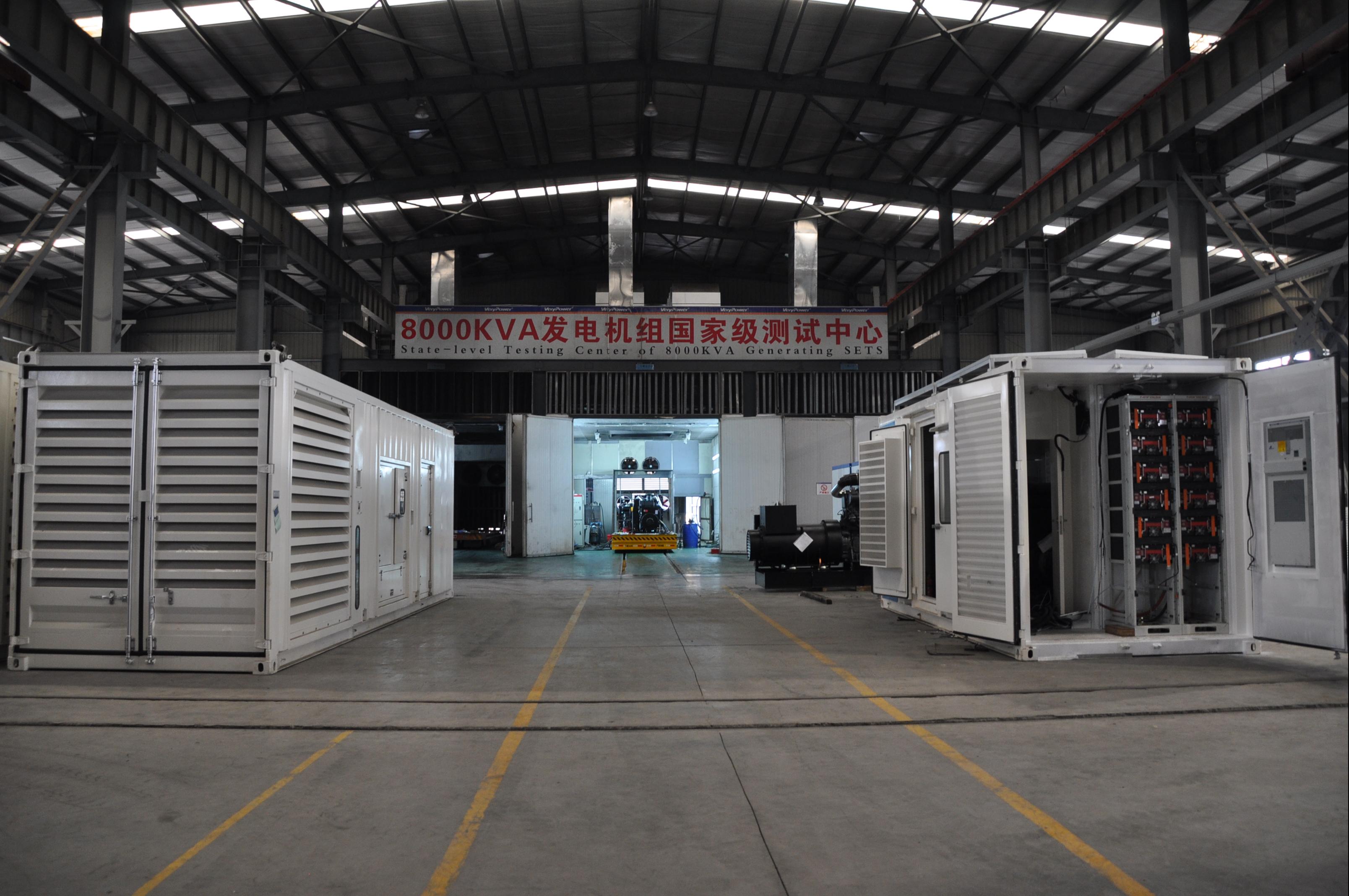

Containerized CE Standard Bess 500kWh 1MWh 2MWh 20ft 40ft Container Solar Battery Energy Storage System
Containerized CE Standard Bess 500kWh 1MWh 2MWh 20ft 40ft Container Solar Battery Energy Storage System
Containerized CE Standard Bess 500kWh 1MWh 2MWh 20ft 40ft Container Solar Battery Energy Storage System
Containerized CE Standard Bess 500kWh 1MWh 2MWh 20ft 40ft Container Solar Battery Energy Storage System
Containerized CE Standard Bess 500kWh 1MWh 2MWh 20ft 40ft Container Solar Battery Energy Storage System
1 / 5
Containerized CE Standard Bess 500kWh 1MWh 2MWh 20ft 40ft Container Solar Battery Energy Storage System
Containerized CE Standard Bess 500kWh 1MWh 2MWh 20ft 40ft Container Solar Battery Energy Storage System
Containerized CE Standard Bess 500kWh 1MWh 2MWh 20ft 40ft Container Solar Battery Energy Storage System
Containerized CE Standard Bess 500kWh 1MWh 2MWh 20ft 40ft Container Solar Battery Energy Storage System
Containerized CE Standard Bess 500kWh 1MWh 2MWh 20ft 40ft Container Solar Battery Energy Storage System

Containerized CE Standard Bess 500kWh 1MWh 2MWh 20ft 40ft Container Solar Battery Energy Storage System

Send Inquiry

Product Description

Products Description

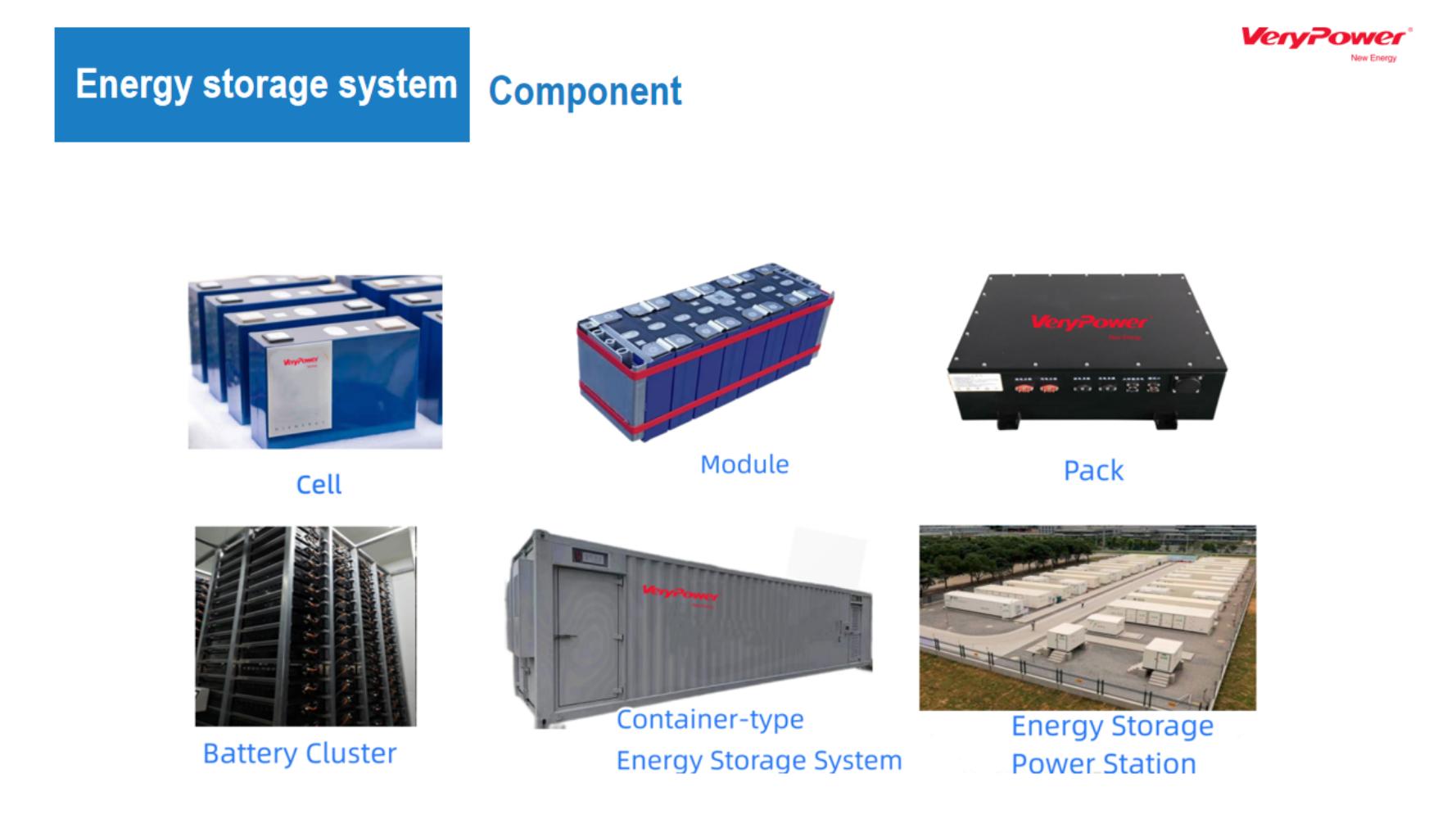

Product Image 1

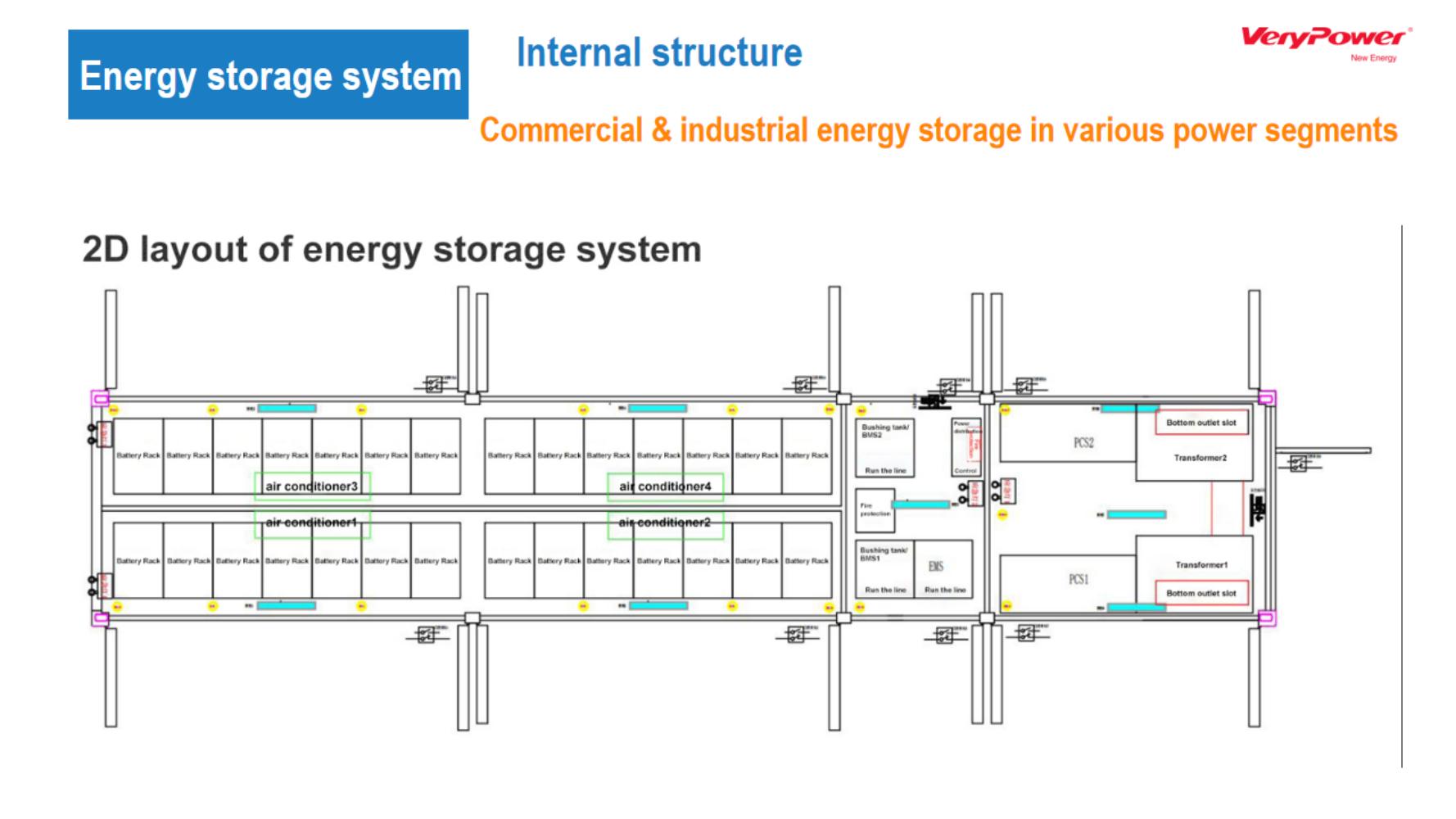

Product Image 2

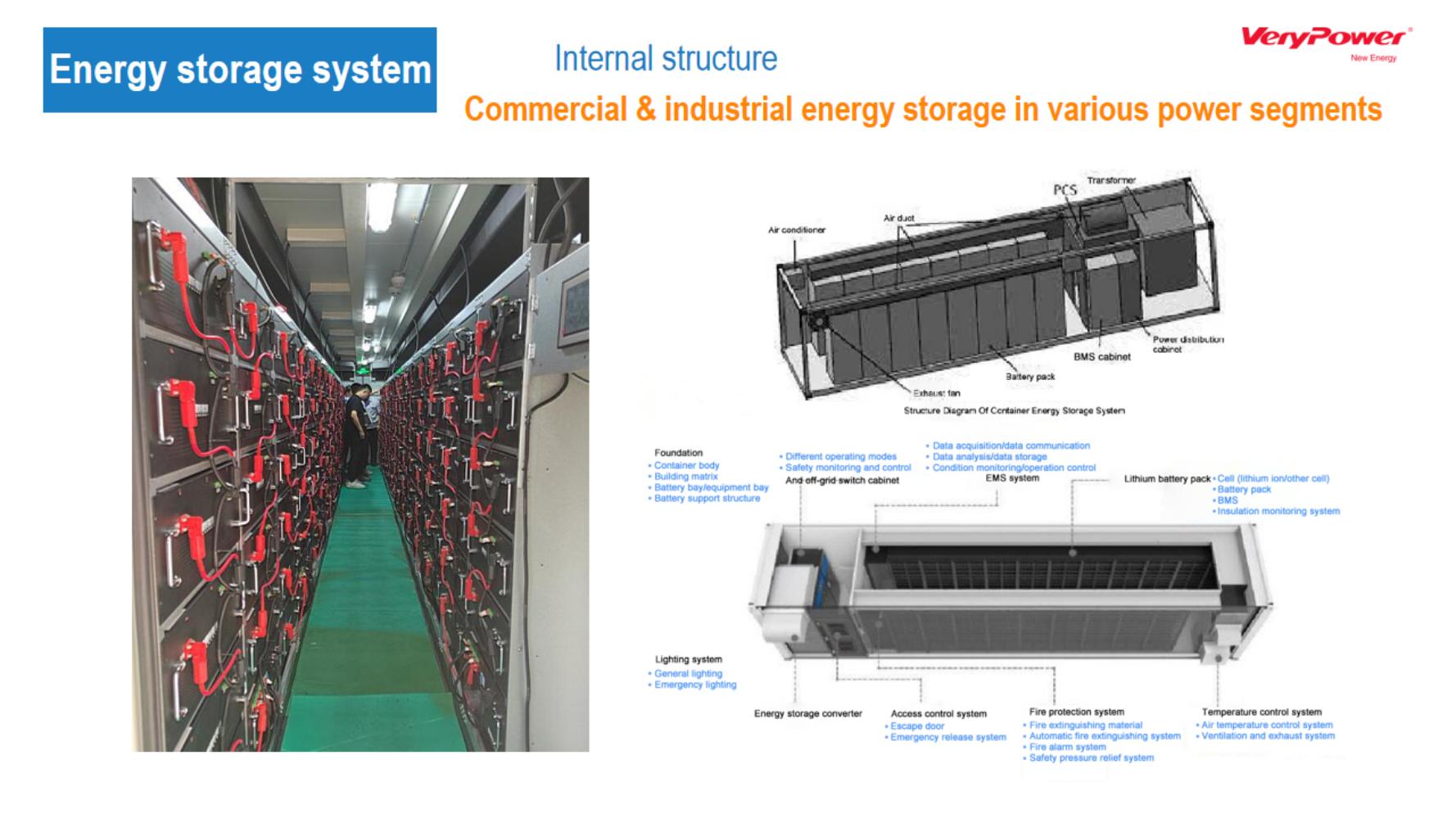

Product Image 3
Product Image 4

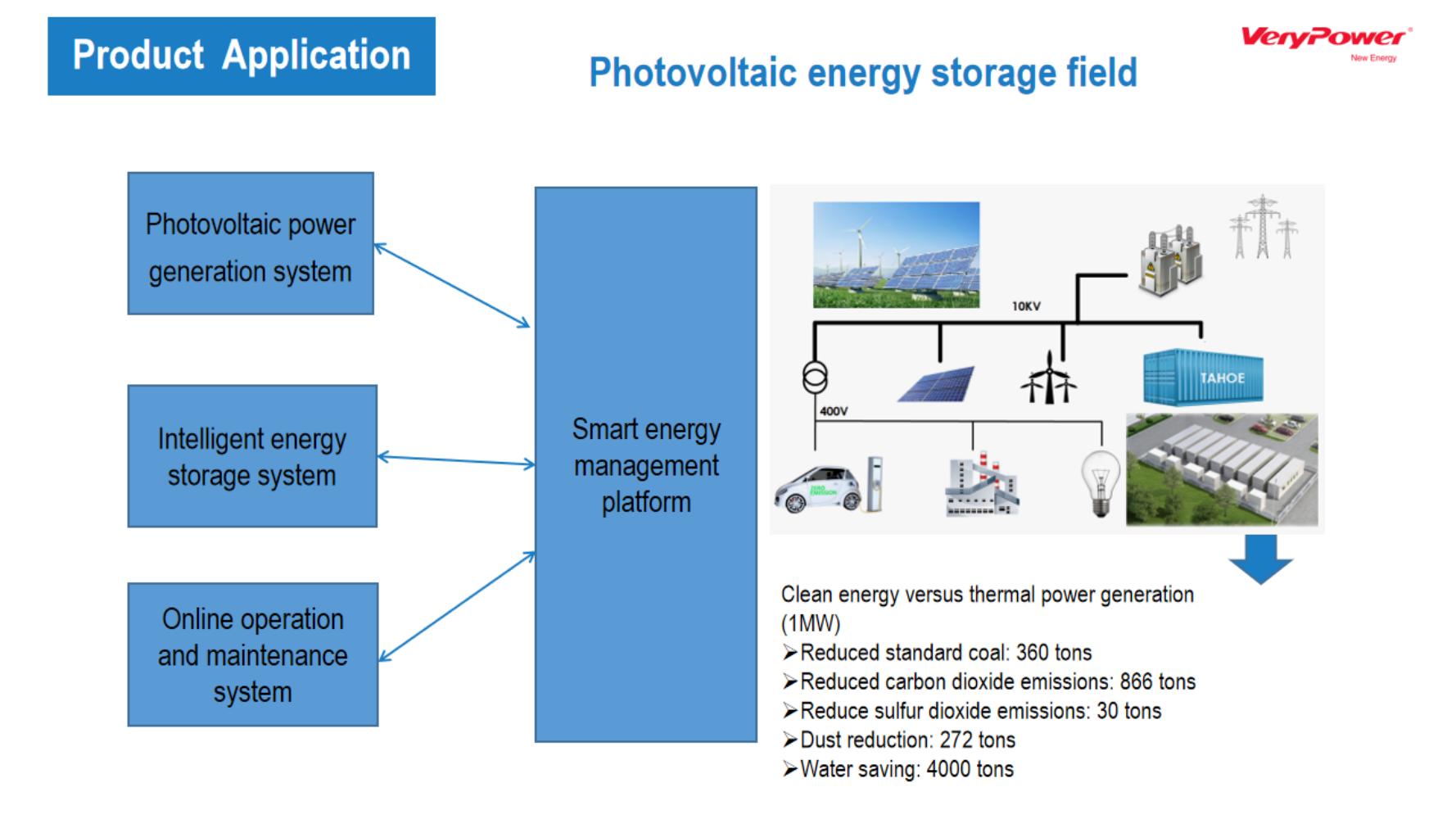

Product Image 5
Product Image 6
Product Specifications
Item Parameter
Battery System Battery Type LiFePO4 Battery Cell
Configration Of Battery Cluster 6P240S
Rated Voltage Of Battery System(V) 768
Battery Capacity(kWh) 1290
Voltage Range Of Battery System(V) 672~852
Capacity of PCS(kW) 500
AC Output Voltage(V) 400
Recommend Working Range Of SOC 5-100%
Cooling Mode Air conditioning/Forced cooling/Liquid cooling
Protection Level IP54
Total Weight(Kg) 20±0.5T
Dimension(mm) 6096*2438*2891mm
Operating Temperature Range Charge: 0~55℃, Discharge: -20~60℃
Project Case

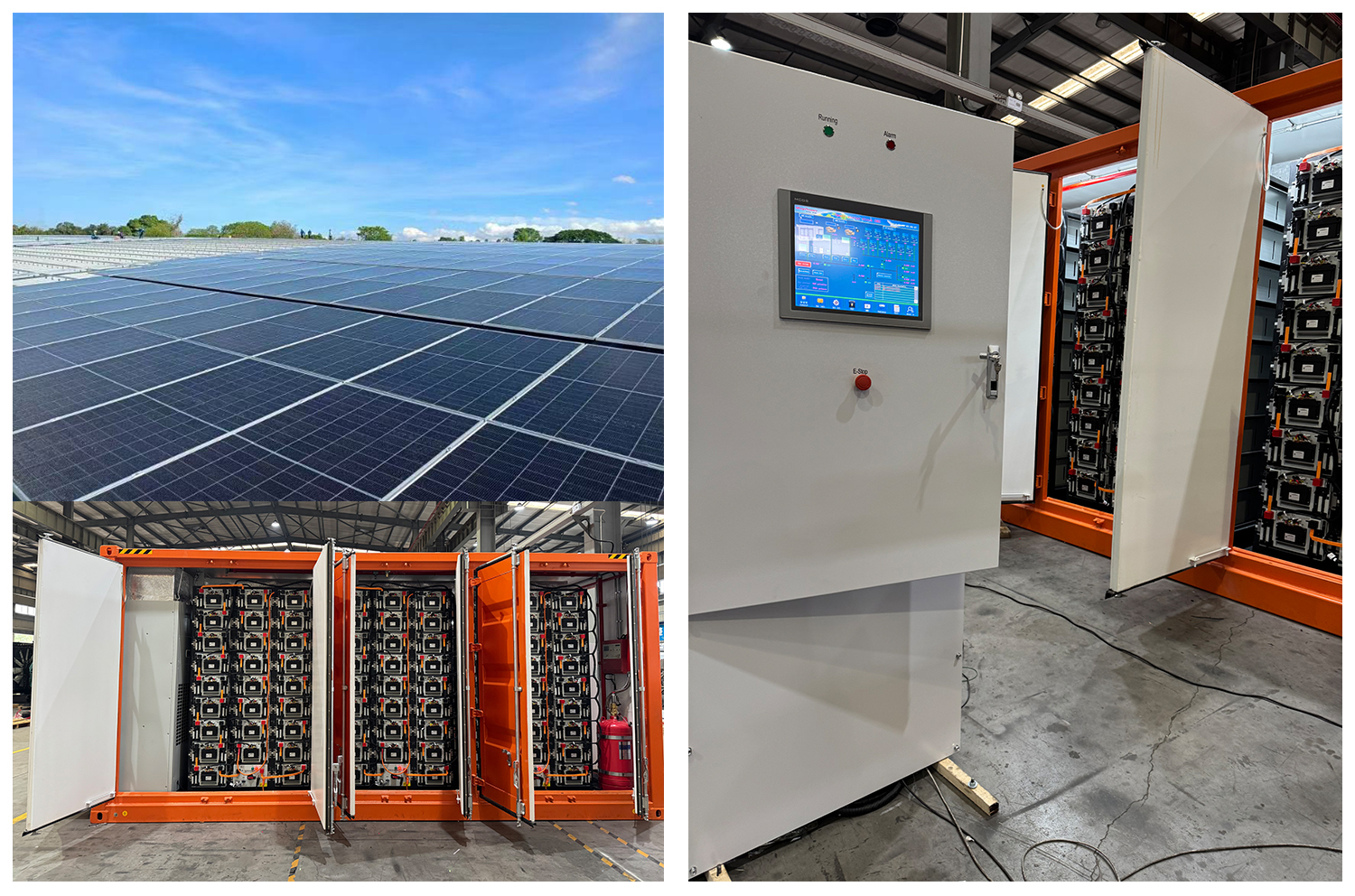

1.7MW PV+3MWh BESS+1.3MW Genset Southeast Asia

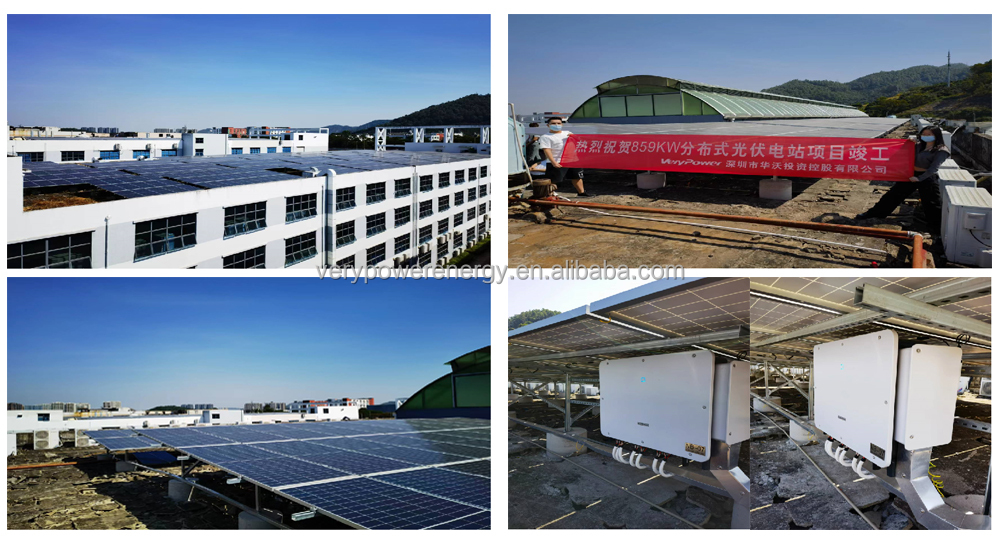

Project Case 1.7MW PV

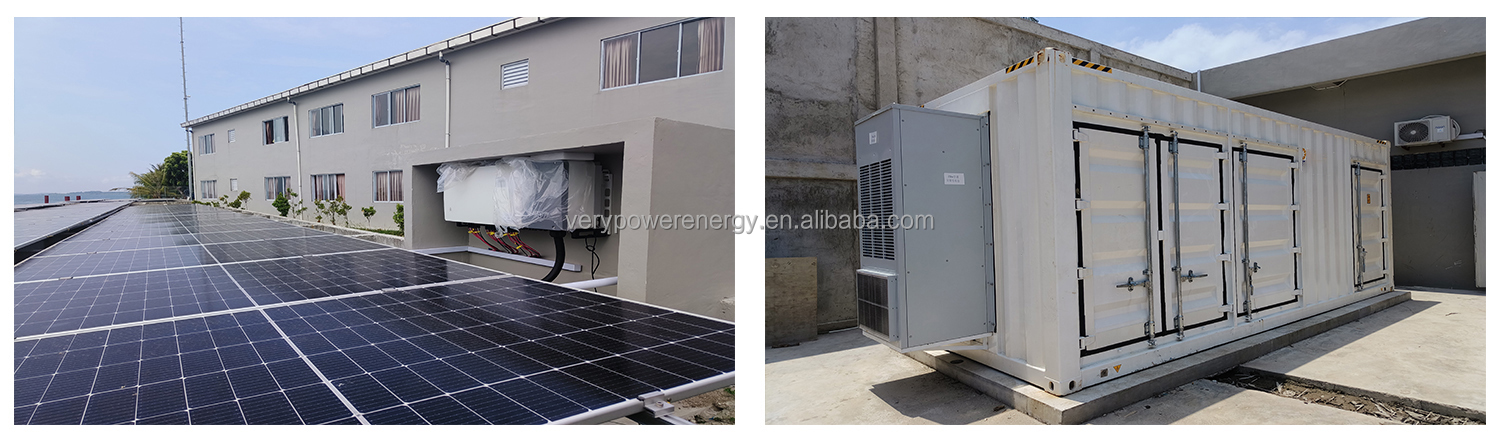

1250kW/1032kWh Southeast Asia
Project Case 1250kW Image 1
Project Case 1250kW Image 2
Company Profile
Company Image 1
Company Image 2
Company Image 3
Company Image 4
Company Image 5
Company Image 6
Company Image 7
Company Image 8
Frequently Asked Questions
What battery cell type is used in this energy storage system?
The system utilizes high-performance LiFePO4 (Lithium Iron Phosphate) battery cells, configured in a 6P240S array, ensuring outstanding thermal stability, safety, and a long operational lifespan.
What are the dimensions and total weight of the system?
The overall dimensions of the system container are 6096mm * 2438mm * 2891mm, and the total system weight is approximately 20±0.5 Tons.
Which cooling modes does this BESS support?
The system can be configured with air conditioning, forced air cooling, or liquid cooling systems depending on your local climate requirements, maintaining optimal performance and lifespan.
What is the recommended operational State of Charge (SOC) range?
For optimal safety and battery health, the recommended working range of the State of Charge (SOC) is between 5% and 100%.
What is the environmental protection level and operating temperature range?
The system achieves an IP54 protection level. It supports charging temperatures between 0°C to 55°C, and discharging temperatures between -20°C to 60°C.
