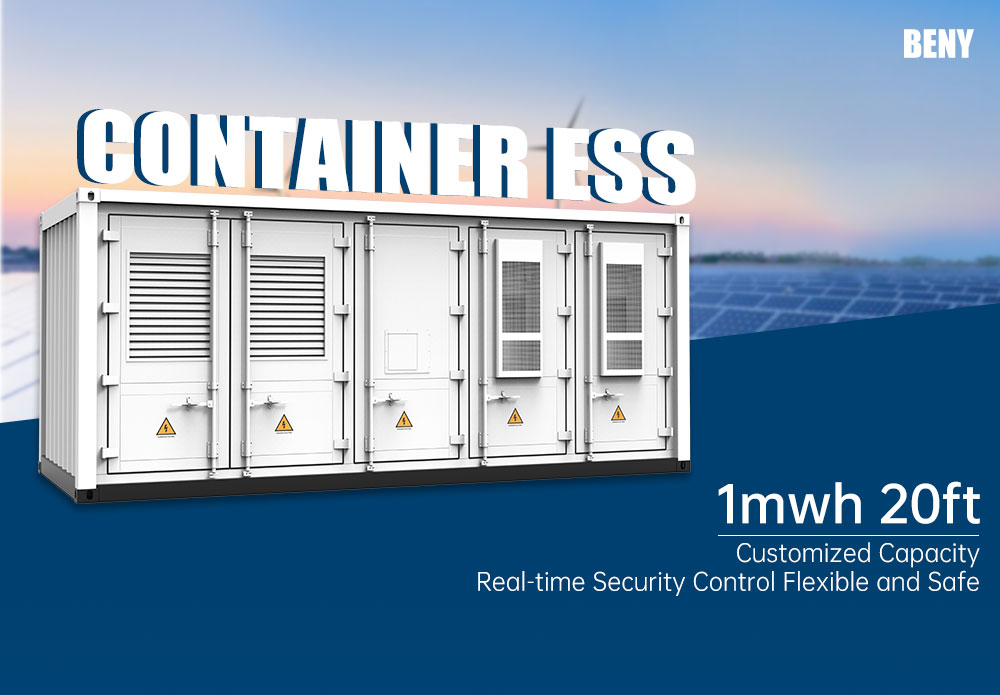

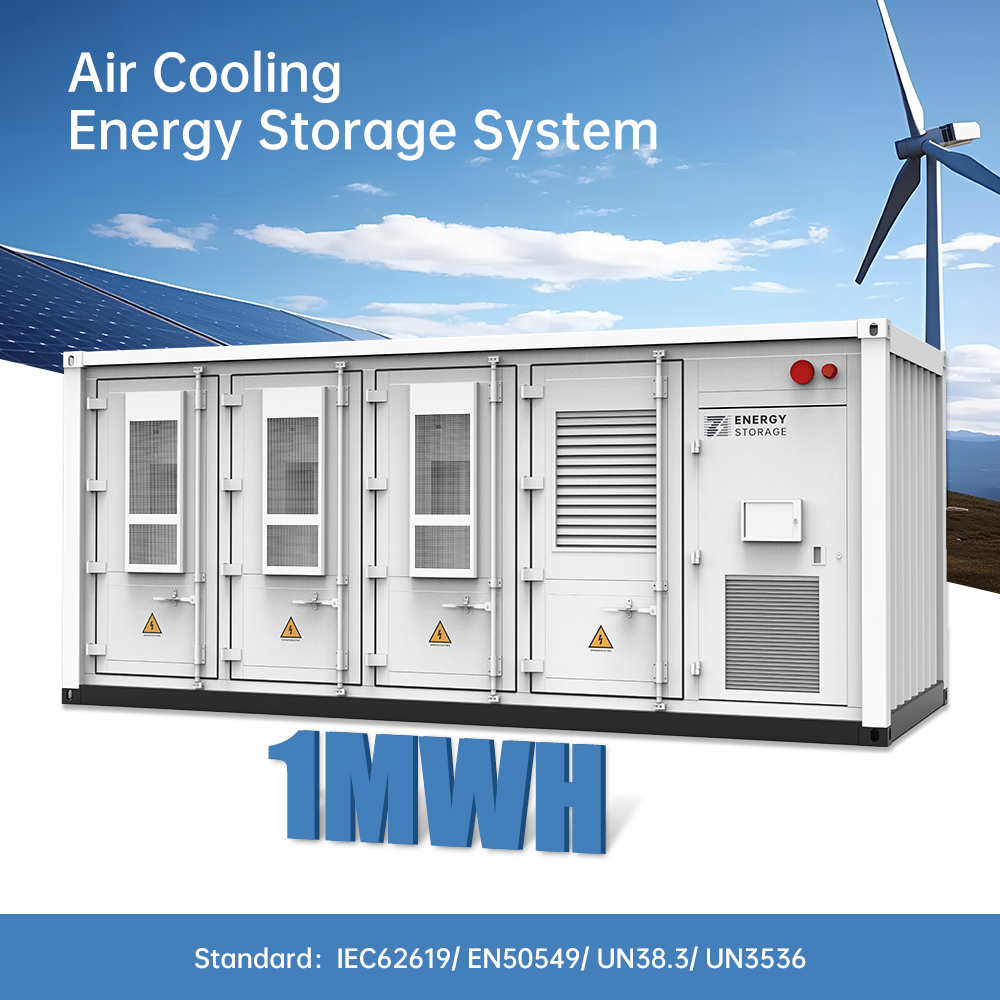

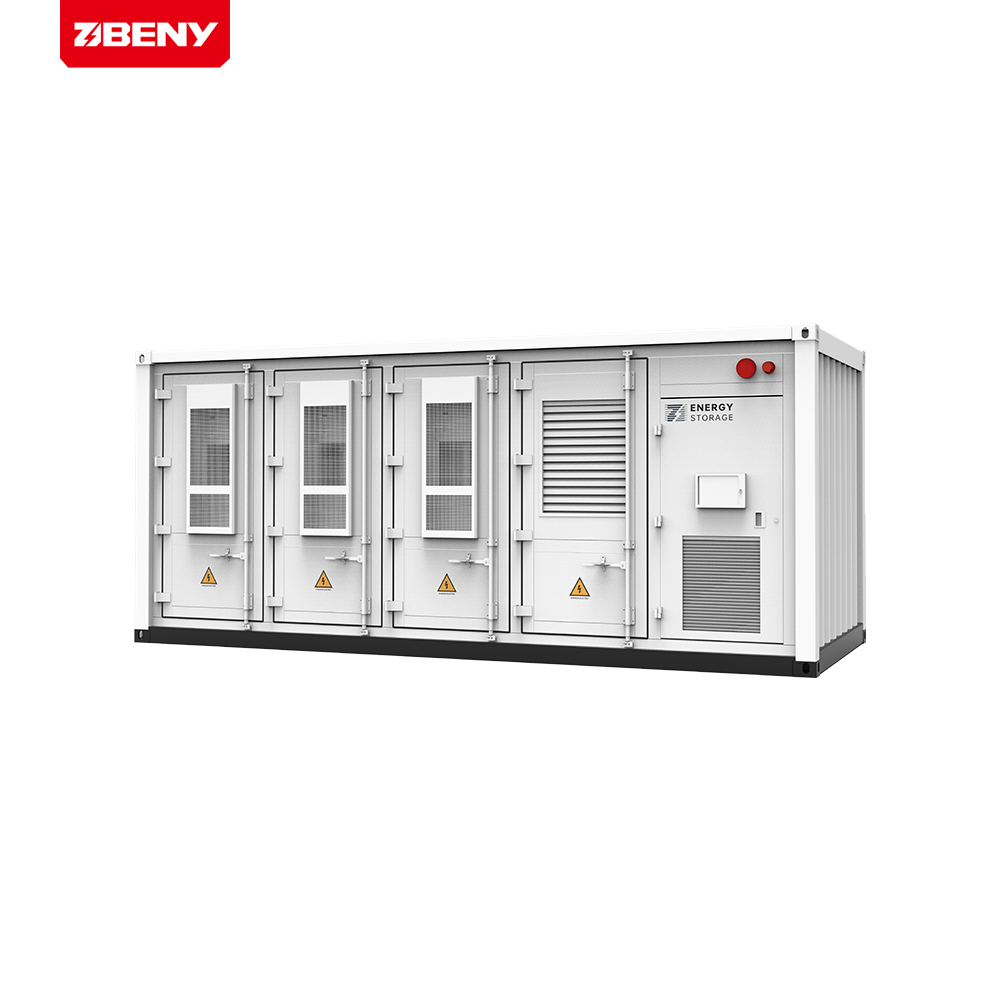

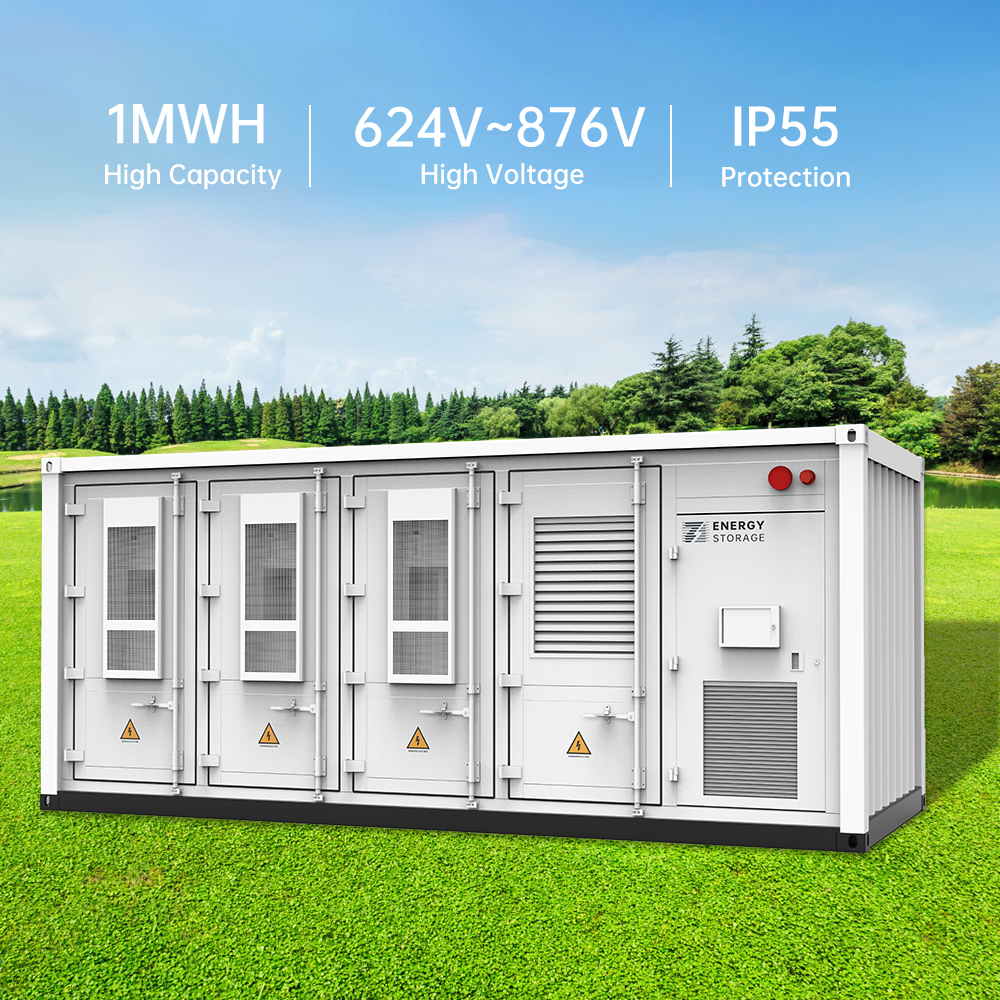

Voyager Power 2.0 is a container energy storage system, covering BESS from 1MWh-5MWh.
ESS adopts an "All-in-One" design concept, with ultra-high integration that combines energy storage batteries, BMS (Battery Management System), PCS (Power Conversion System), EMS (energy management system), fire protection, air conditioning, and more into a single unit making it adaptable to various scenarios.

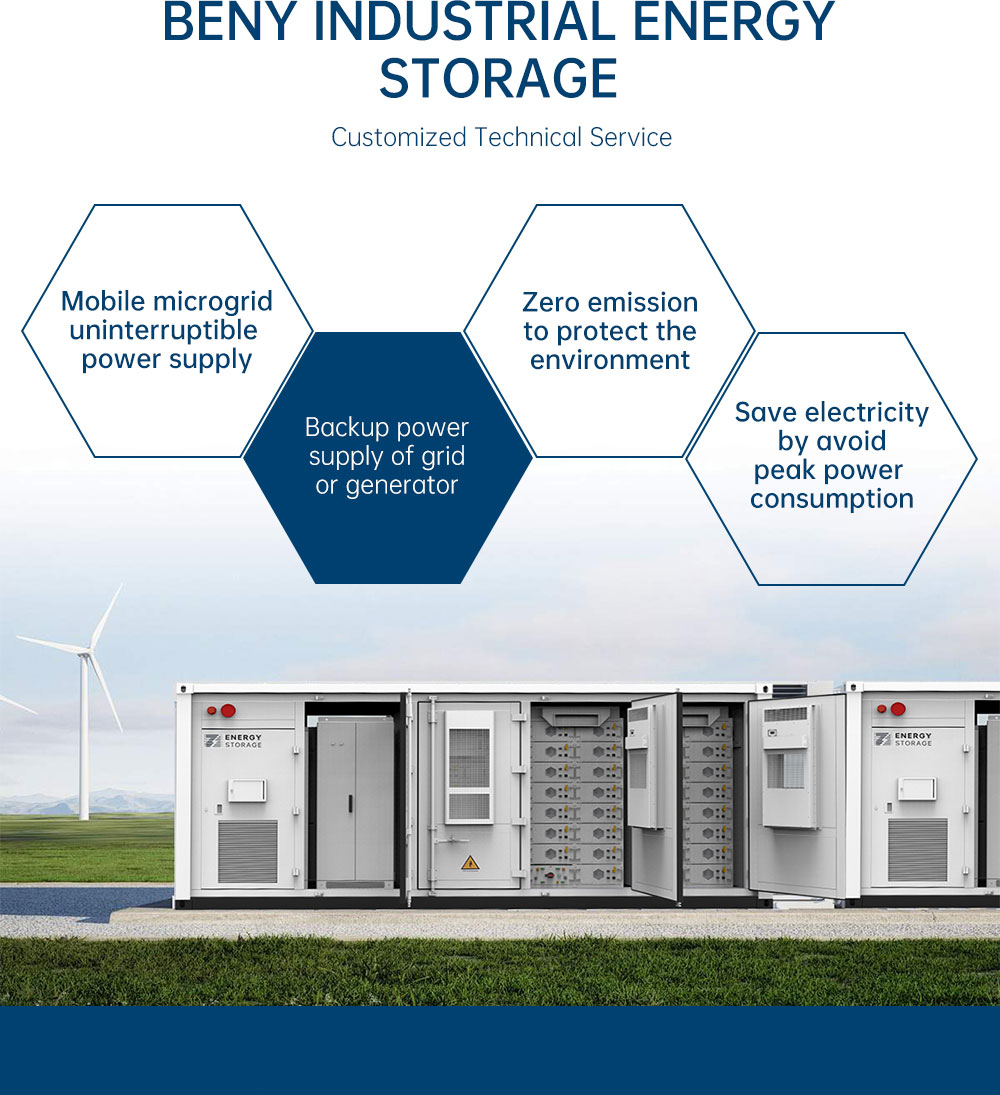

This product features a prefabricated cabin design, flexible deployment, convenient transportation, and no need for internal wiring and debugging. It responds quickly, boasts high reliability, and offers functions such as peak shaving, power capacity expansion, emergency backup power, grid balancing, capacity management, and multi-level parallel connection.
IP55 protection grade design, cluster level aerosol layout, BMS and AC/DC multi-layer protection Settings to ensure the safe operation of the system.
Small size, light weight, save floor space and installation costs. Can be pre-installed whole system transportation, long life, low failure rate, low operation and maintenance costs.

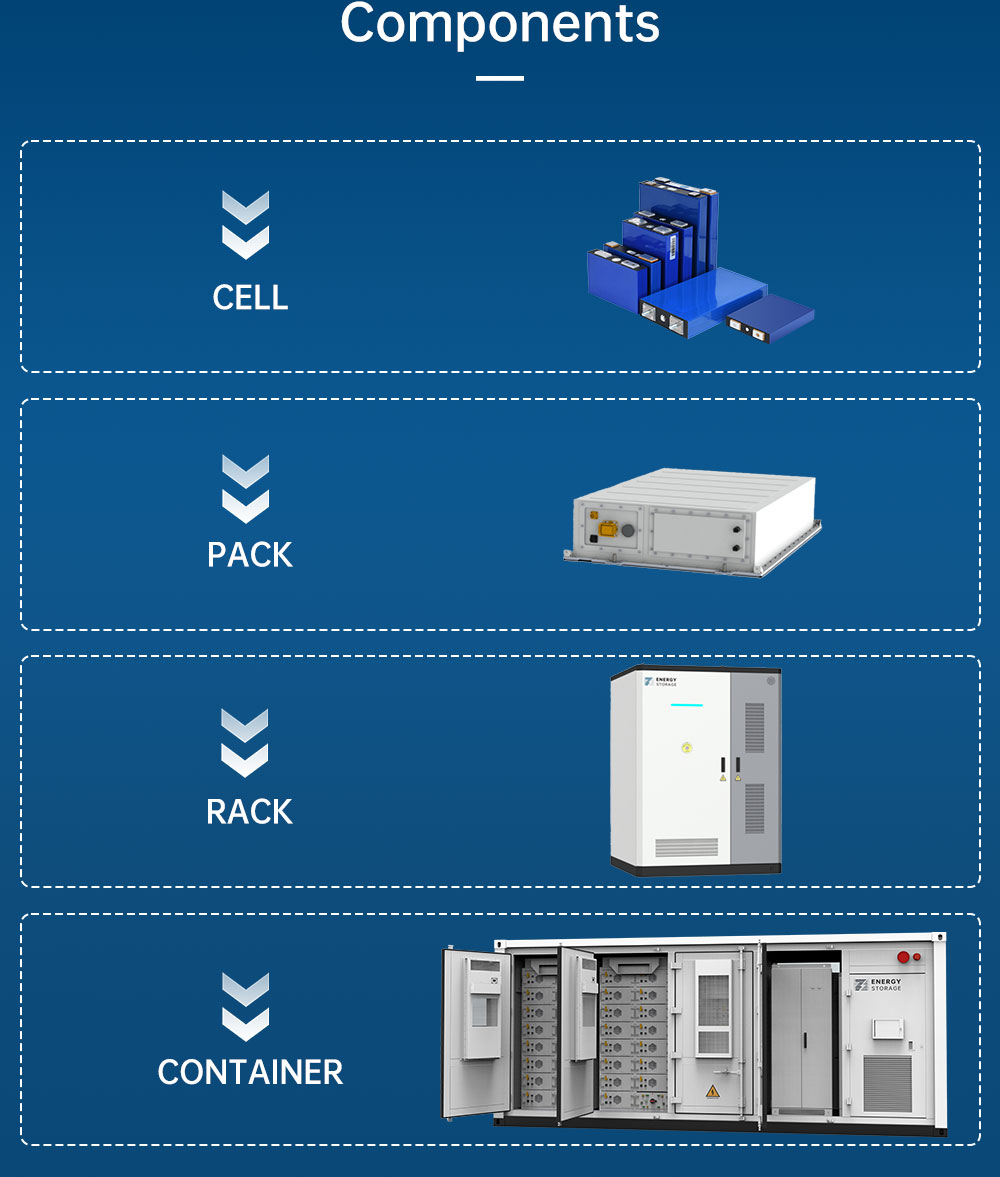

Batteries, PCS, etc., all adopt modular design for easy installation and transportation, and can remotely guide configuration, equipment management, data analysis, fault prediction, etc.

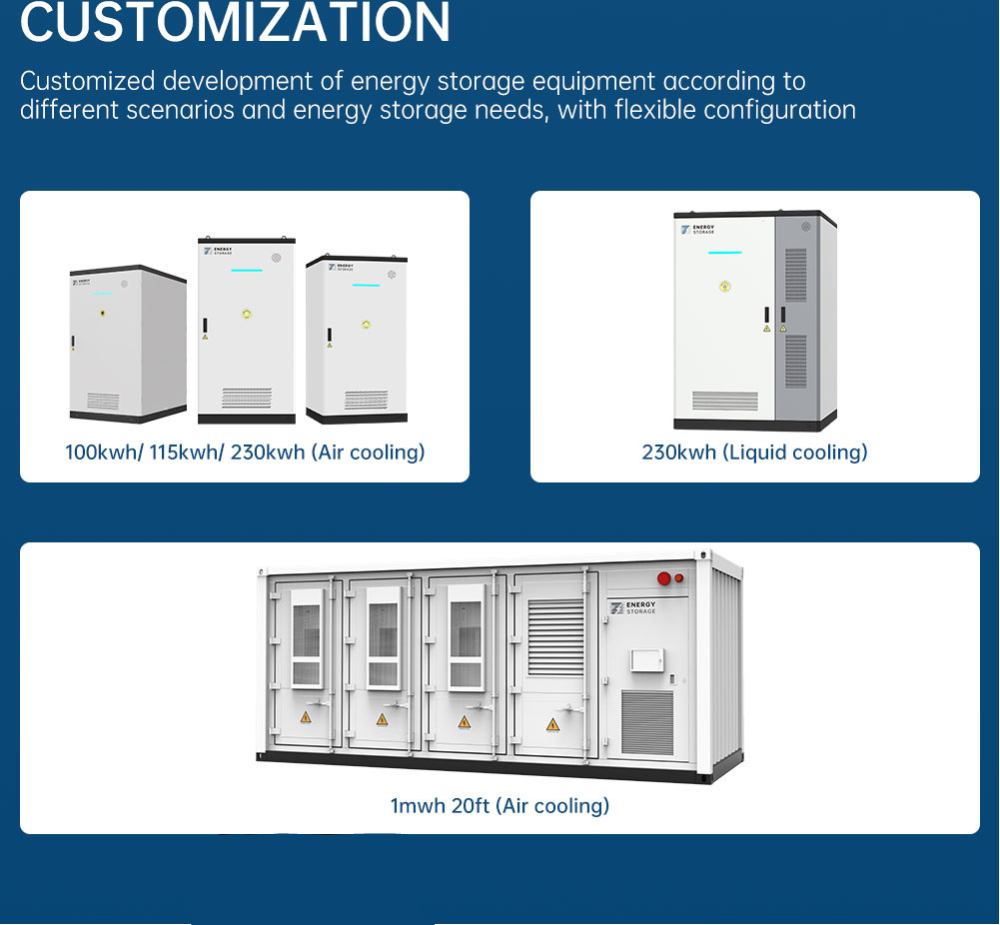

Application strategies can be customized in different environments to meet product requirements.

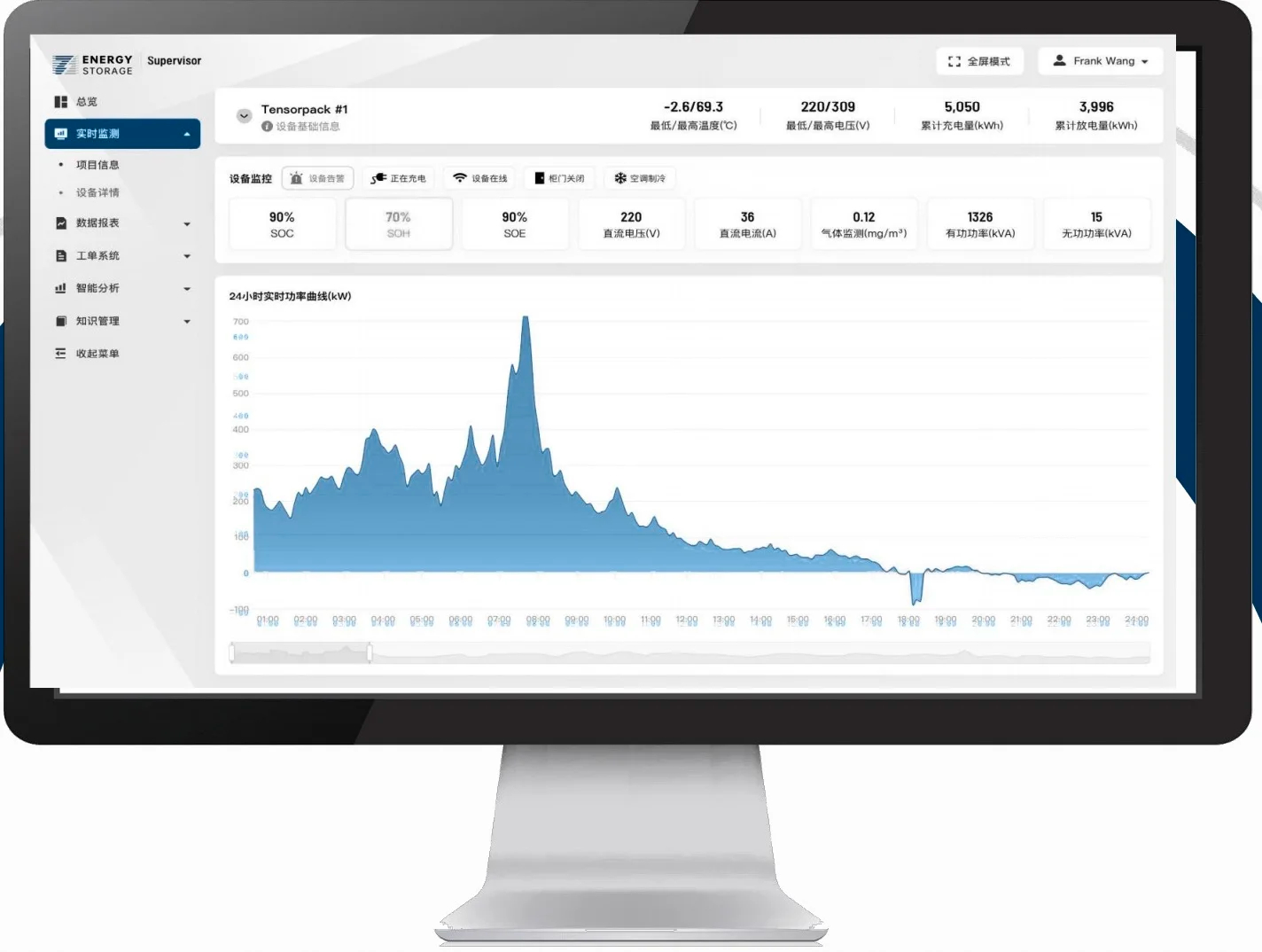

Client software that allows for real-time viewing of the operating status and parameters, economic benefits, product information, and historical data of energy storage system.
Intelligent operation and maintenance software that monitors the operation status of energy storage systems, manages operation and maintenance business, predicts maintenance needs 24/7, and provides worry-free system security.
AI data analysis software that uses a large amount of operational data, combined with battery electrochemical models and load operating conditions, to adjust the optimal operating strategy in real time.
Virtual power plant software that aggregates resources such as energy storage, charging stations, photovoltaics, and controllable loads, participates in power market trading, and improves asset investment return.

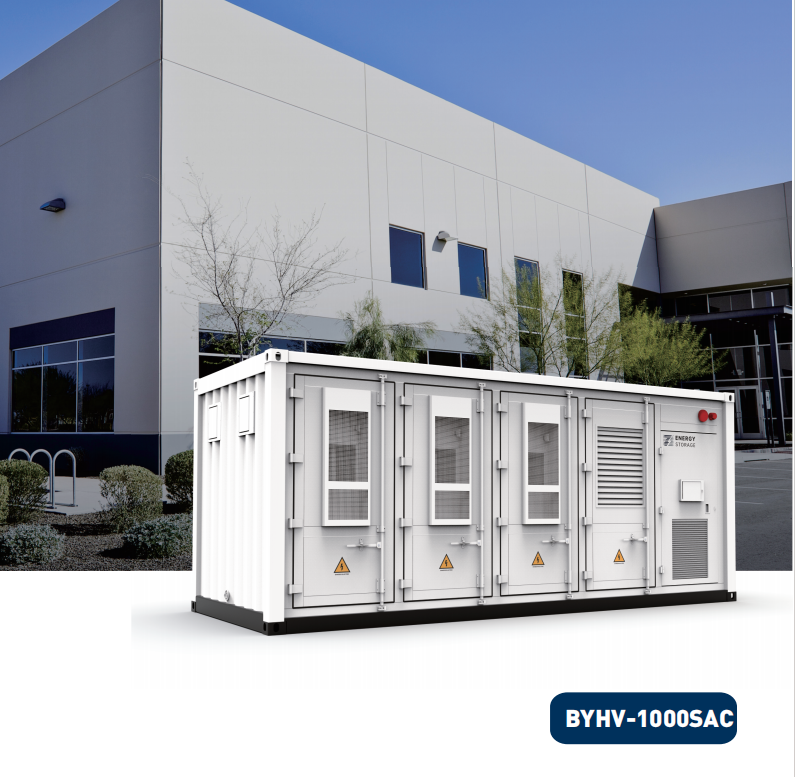

| Type designation | BYHV-1000SAC | BYHV-1000SAC-1H |
|---|---|---|
| Cell type | LFP 3.2V / 280Ah | |
| Battery configuration | (1P16*15)×5 | |
| Battery capacity | 1075.5kWh | |
| Battery current | 655A | 1310A |
| Battery voltage range | 624V~876V | |
| Nominal AC power | 500kW | 1MW |
| Nominal AC voltage | 400Vac 3P4W+PE/3P3W-PE | |
| Max. output current | 794A | 1588A |
| THDi | <3% (at rated power) | |
| Grid frequency range | 50Hz/60Hz (settable) | |
| AC voltage range | -15%~10% (settable) | |
| Power factor | >0.99 (at rated power) | |
| Rated AC output voltage | 400Vac | |
| Voltage accuracy | 1% | |
| Max. output current (Off-grid) | 794A | 1588A |
| THDi (Off-grid) | <3% (linear load) | |
| Rated output frequency | 50Hz /60Hz | |
| Overload capability | 110% overload | |
| Isolation method | Isolation Transformer (option) | |
| Automatic and off-grid | Support (option) | |
| Dimension (W*H*D) | 6058*2591*2438 | |
| Weight | 16000Kg | 16200Kg |
| IP grade | IP55 | |
| Anti-corrosion degree | C3 (Support C5) | |
| Operating temperature | -30 to 55ºC (>45ºC derating) | |
| Operating humidity | 0 ~ 95% (non-condensing) | |
| Working altitude | 3000m | |
| Temperature control | Intelligent air cooling | |
| Fire suppression system | NFPA 69 explosion prevention and Aerosol | |
| Communication protocol | Modbus TCP, MQTT | |
| Standard | IEC 62477, IEC 61000-6-2, IEC 61000-6-4, IEC 62619, EN 50549-1, NC RfG, EN 50549, VDE-AR-N4110, UN 38.3/UN 3536 | |
We are a manufacturer (Over 10 years), and we have more than 100 technical engineers.
Our batteries are built with grade A LiFePO4 cells, offering a cycle life of up to 8000+ at 80% DoD.
We offer a 5-year true warranty to provide after-sale service and technology support, including resending a new battery or replacement BMS.
Our BMS supports CANbus, RS485, and RS232 communications and is compatible with most famous inverters.
Usually, delivery is within 7-15 days, which may change depending on the quantity or other circumstances. Standard packing is 1 unit in a carton or 1 unit in a wooden box.
Yes, we do.
