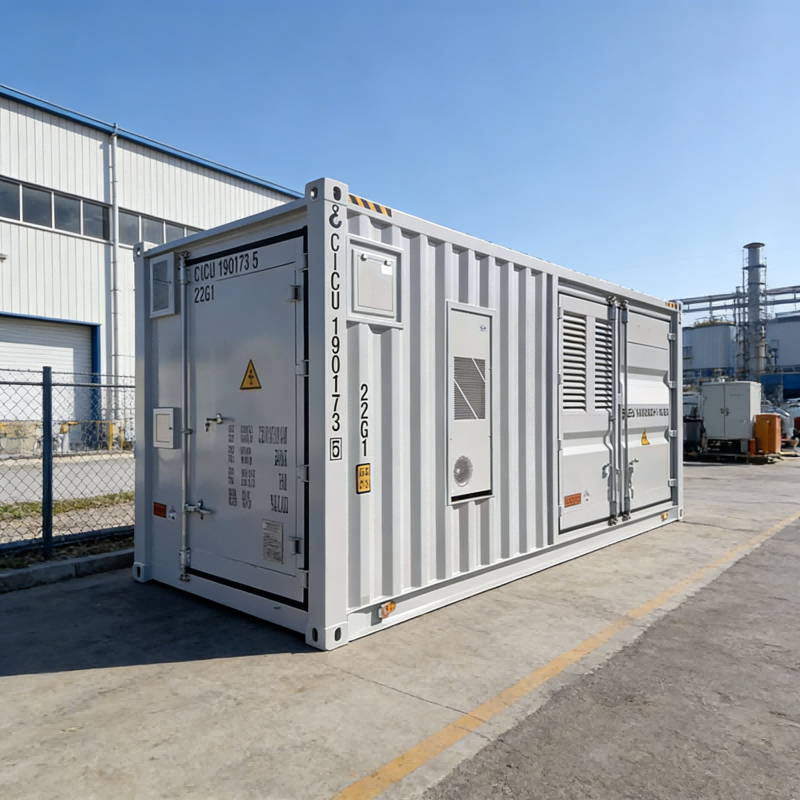

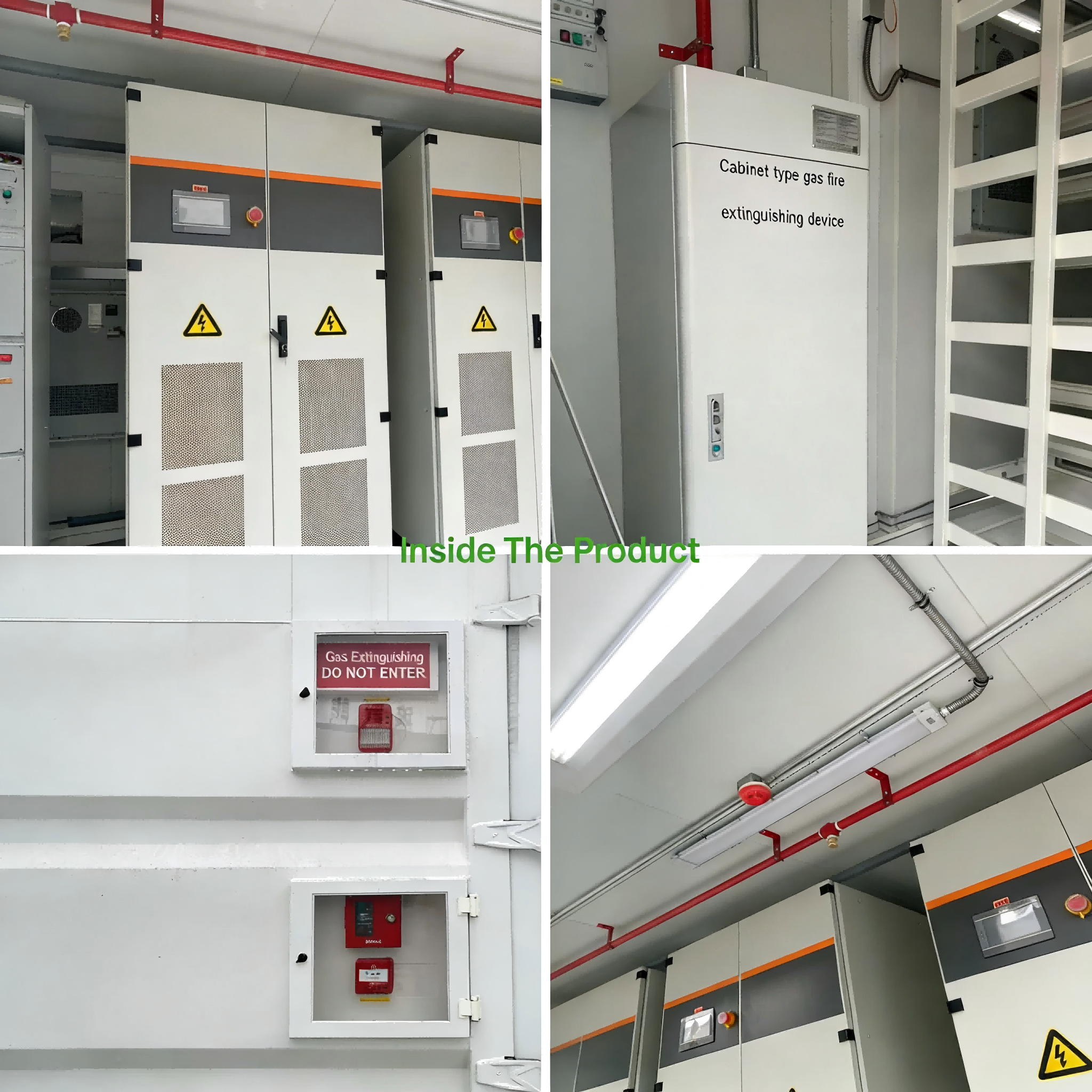

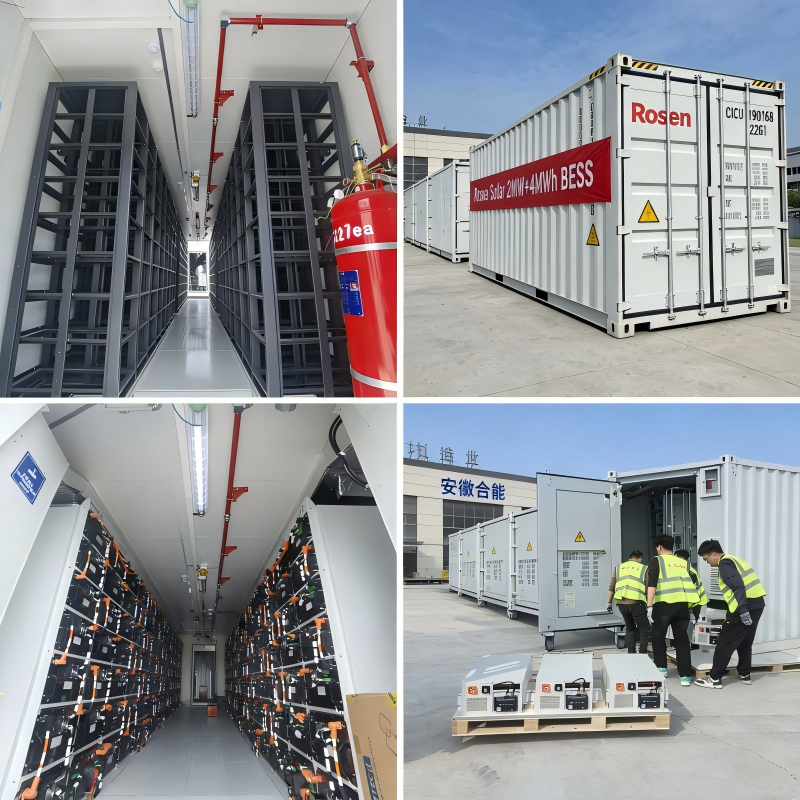

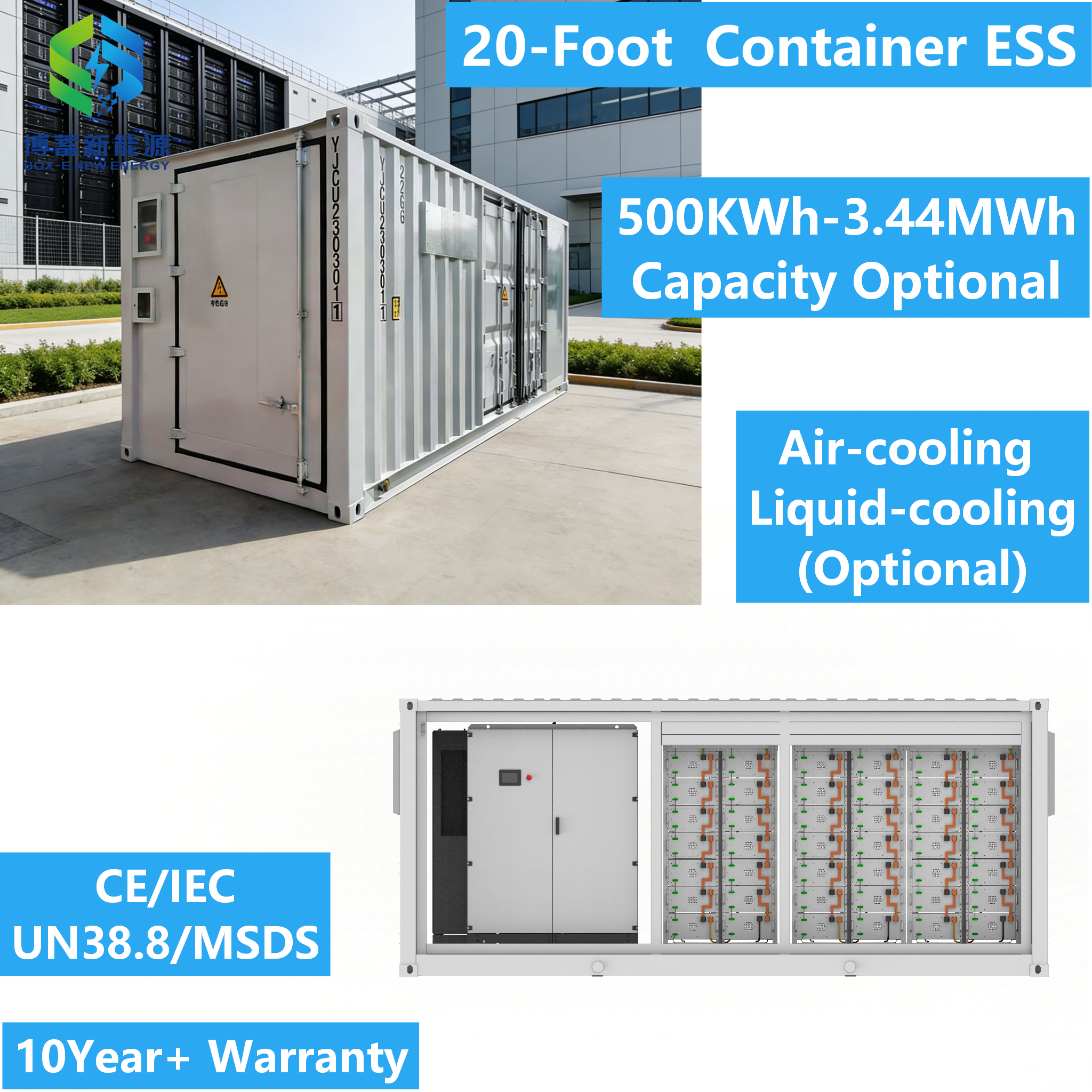

1Mwh Energy Storage 10ft 20gp 40hq Lithium Battery Container System 500kw 2mw Solar Lifepo4 All in One Bess

Product Description

Product Description

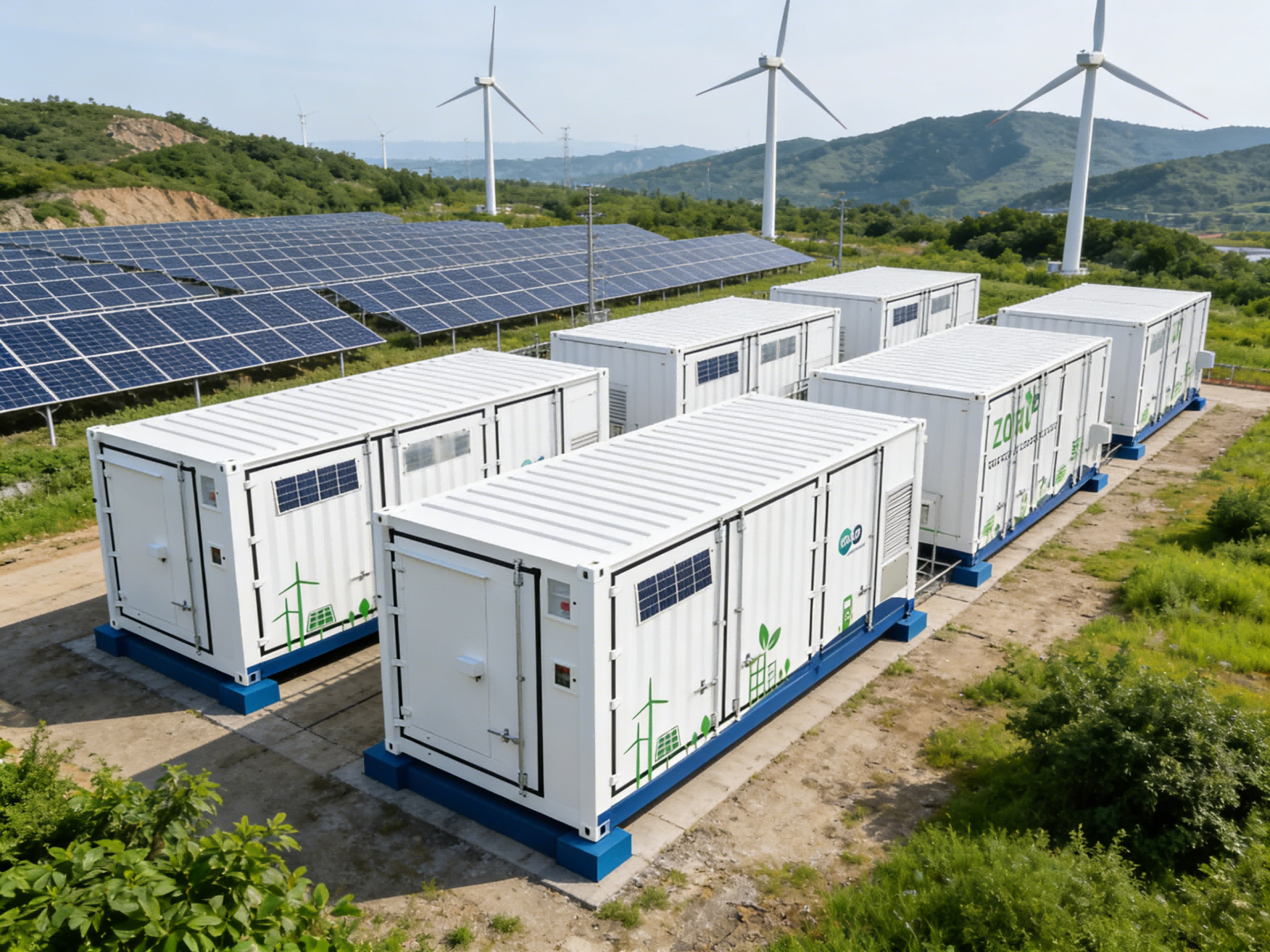

Product Banner

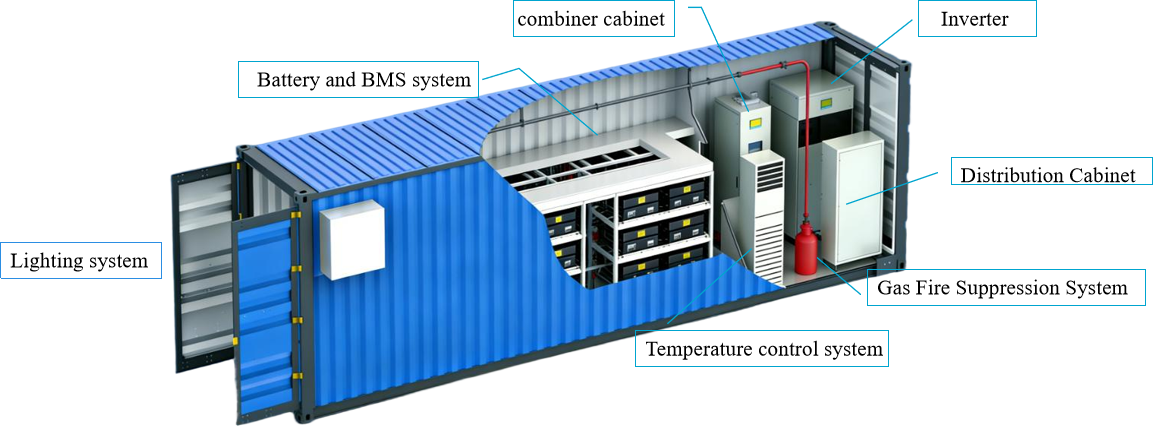

Product Specification View 1

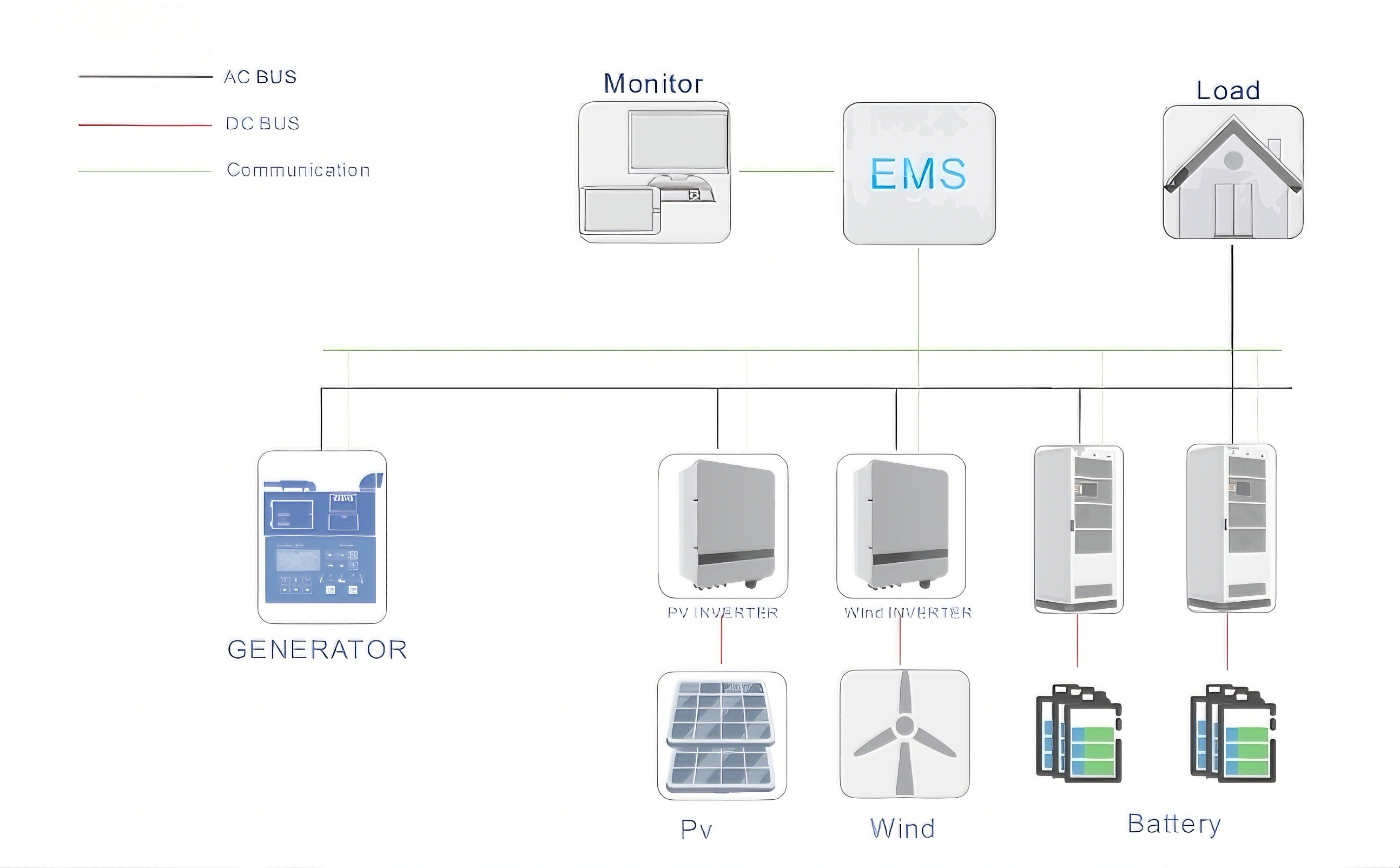

Product Specification View 2
Nominal Voltage 614~768V
Nominal Capacity 1000KWH
Cabinet Size 6058*2591*2438mm
Total Weight 23000KG
Box weight / Battery weight 9000KG / 14000KG
Cooling method Air-cooled
Protection class IP54
Type of firefighting Aerosol
BATTERY SPECIFICATIONS
Battery Types 51.2V-280AH
Nominal Capacity 1000KWh
Recommend Charge/Discharge Current 700A
Max. Charge/Discharge Current 700A
Communication RS485/CAN
Working Temperature 0°C~50°C Charge, -10°C ~50°C Discharge
Transport or Storage Temperature Range -20°C~60°C
Certification CE/IEC/UL/UN38.3/MSDS
Design Life 10years+
Cycle Life (0.5C/0.5C-80% DOD) >6000 times
Cooling method Air-cooled
Certification UN38.3/MSDS/ROHS
AC SPECIFICATIONS
Rating 500KW
Overloaded 110%
Rated AC Voltage 400V
Rated frequency 50/60Hz
Communication Ethernet/Modbus/TCP/IP
Inverter Type MPS / ATESS / Other

Company Profile

Corporate Overview
We are a comprehensive enterprise integrating design, research and development, and manufacturing, specializing in the production of energy storage containers, container modular houses, special containers, and standard containers. Our facilities cover an area of 20,000 square meters, with a well-organized factory layout including frame processing area, equipment assembly area, painting area, testing area, and office area. We are equipped with 55 advanced production machines from both domestic and international sources, achieving a fully automated production process from raw material cutting, forming, and welding to painting and assembly, greatly improving production efficiency and product quality.
Production Facility

Details Images

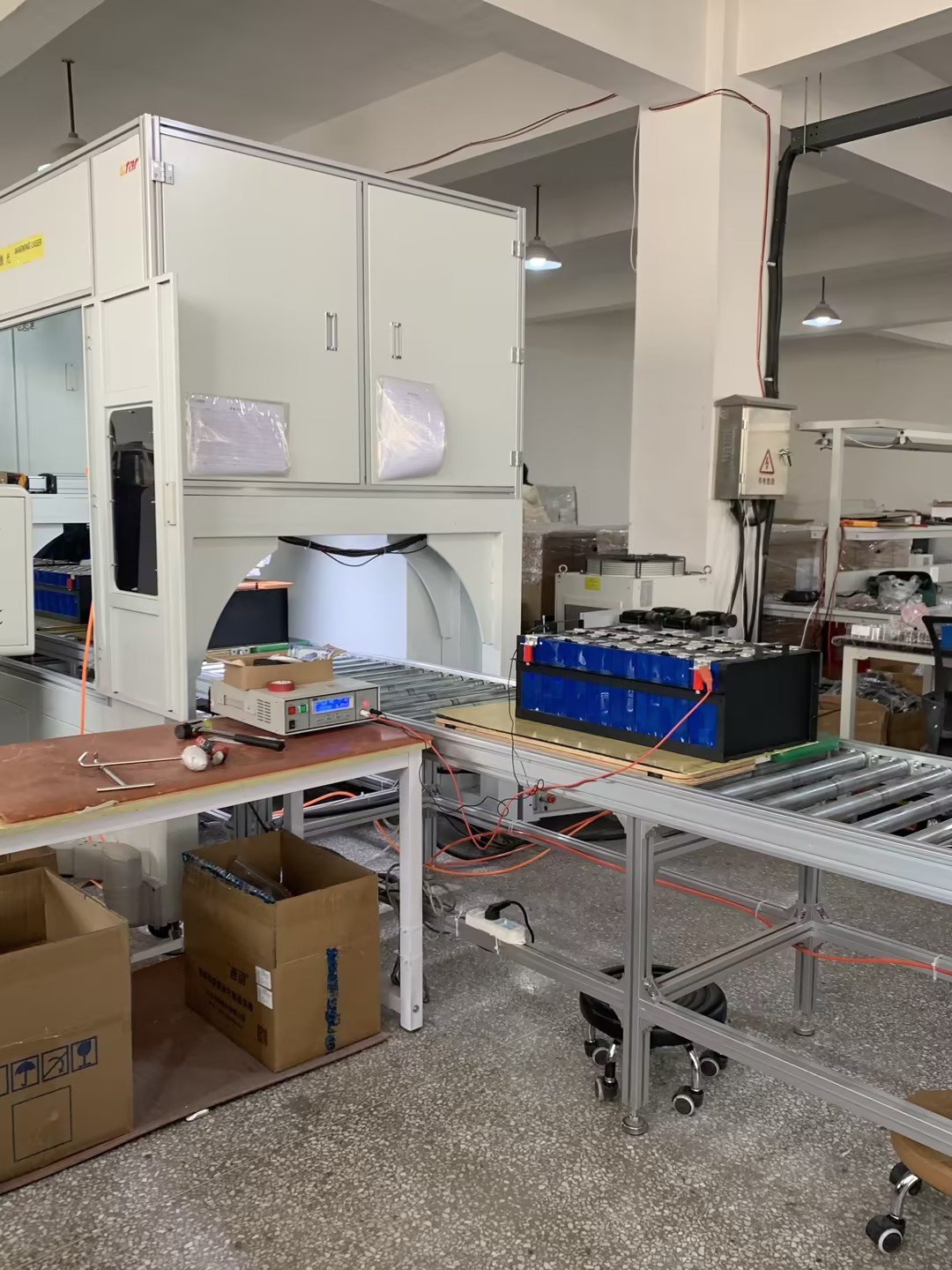

Detail 1

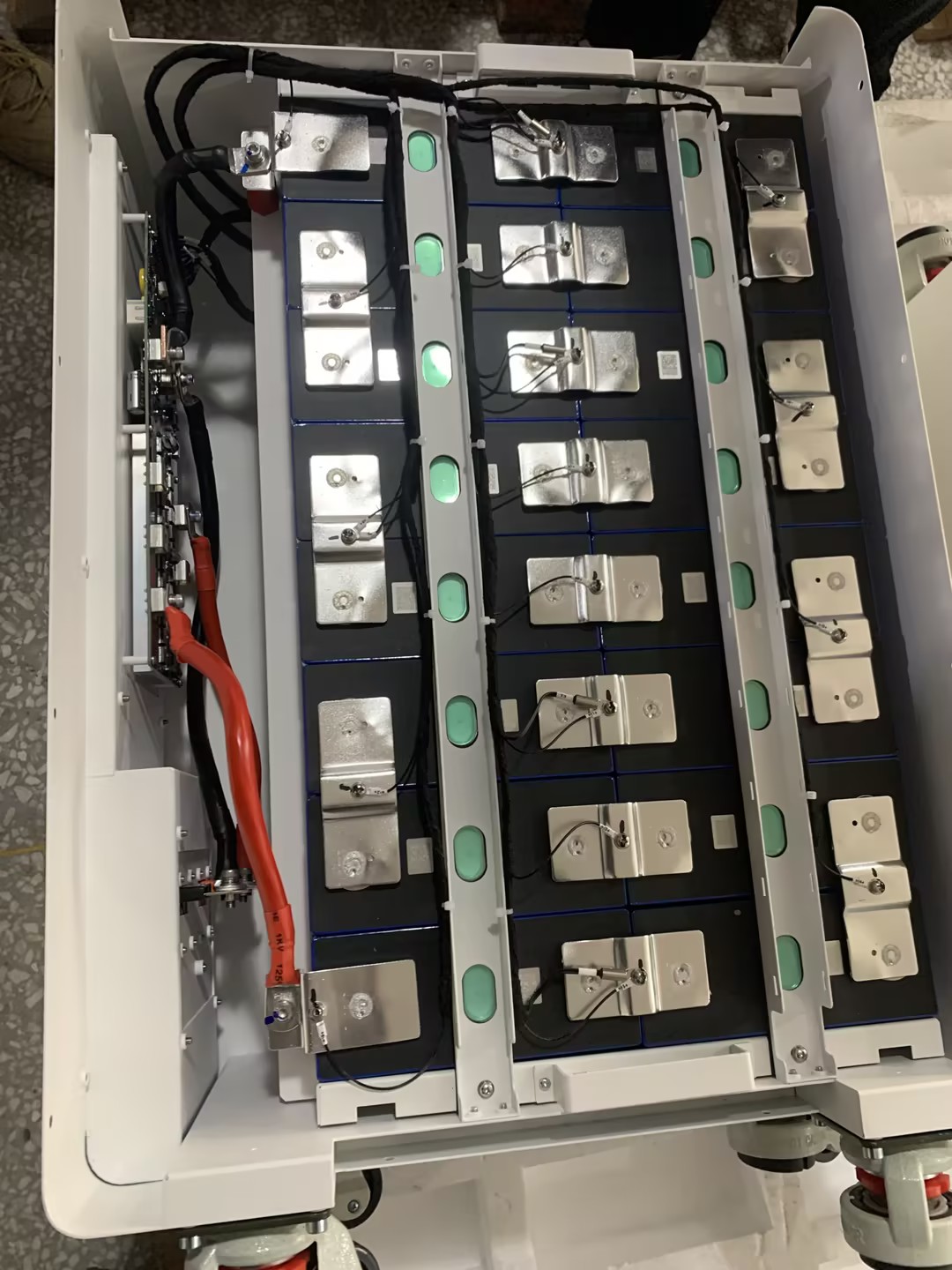

Detail 2

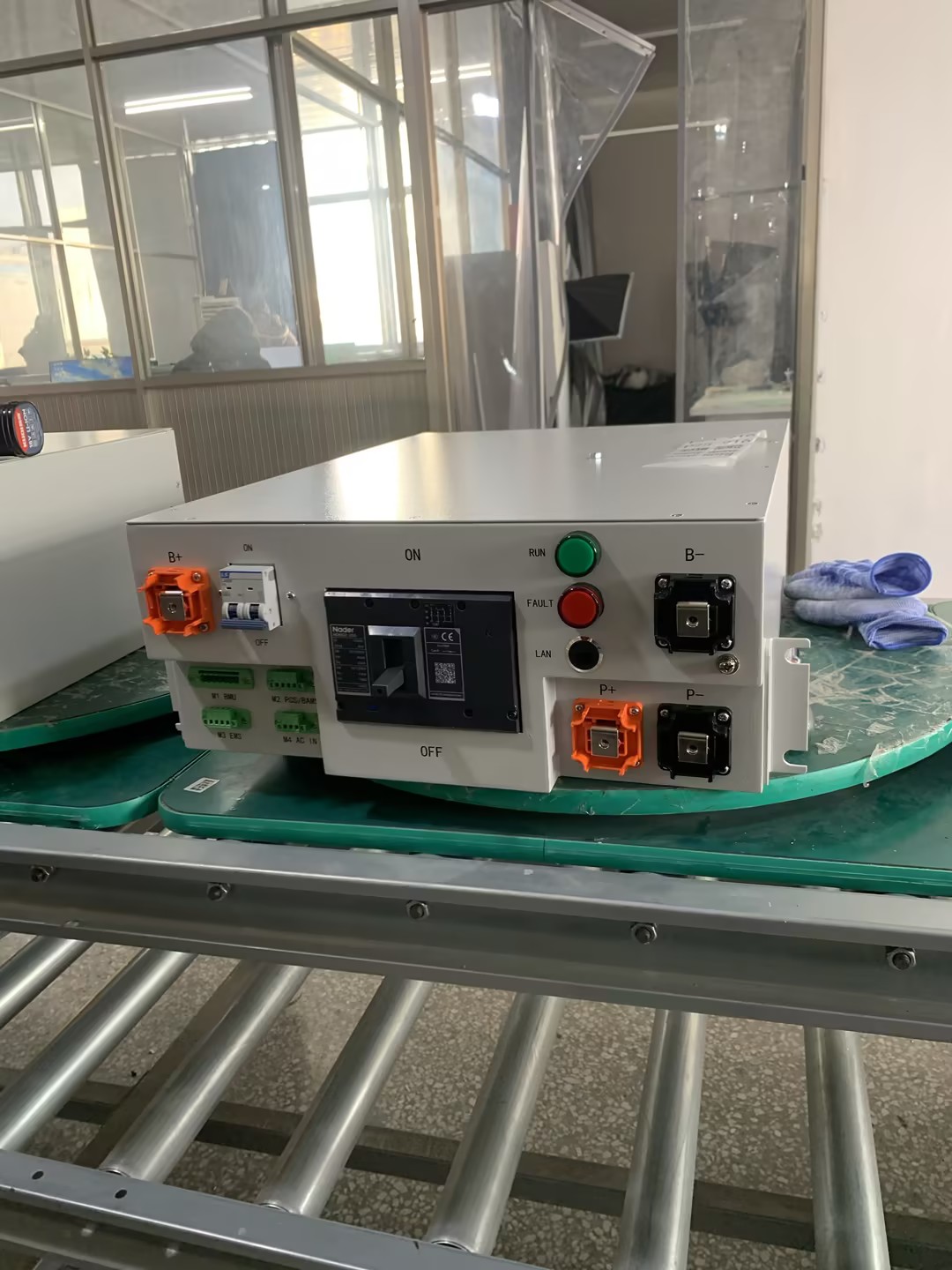

Detail 3

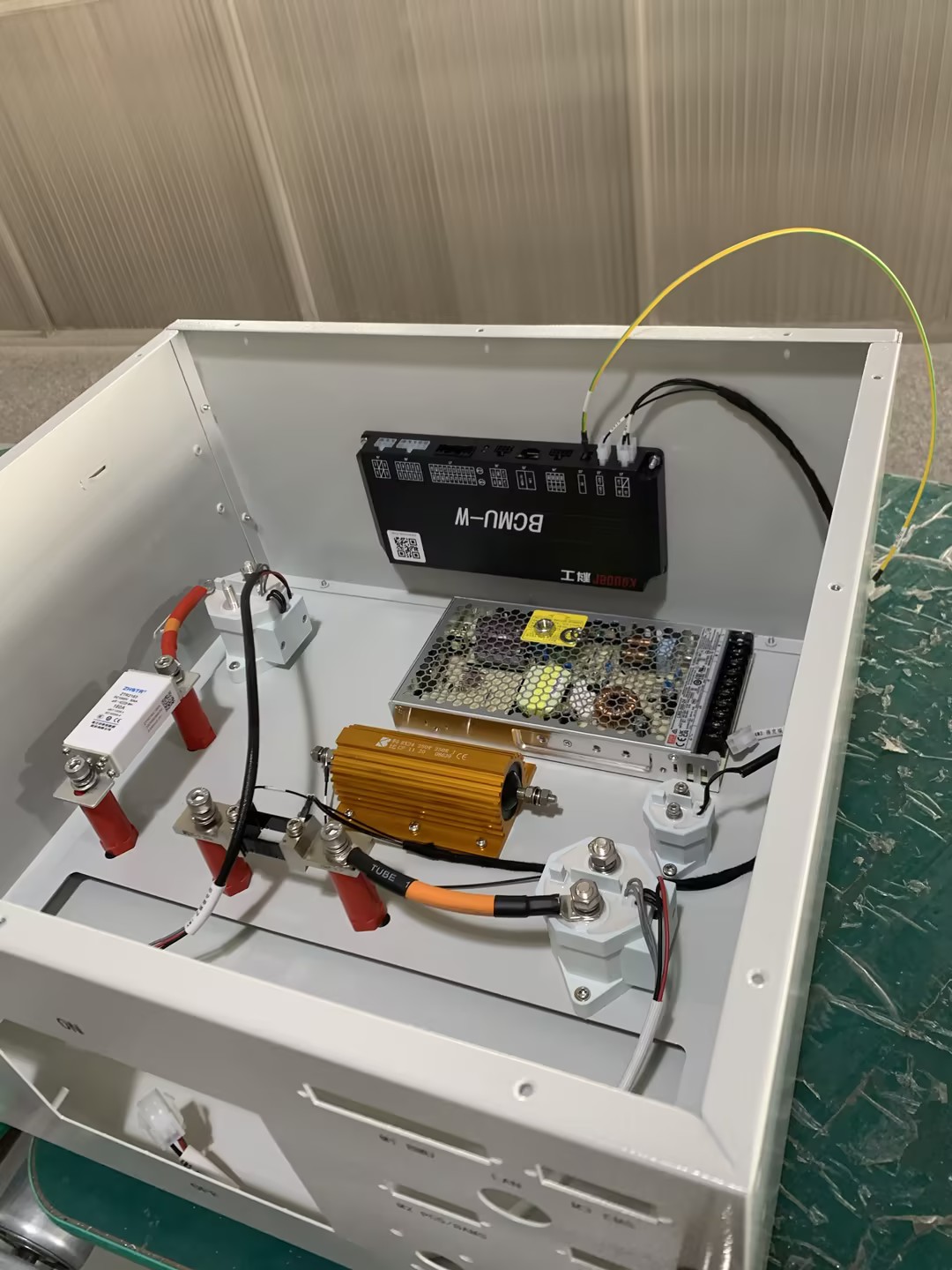

Detail 4

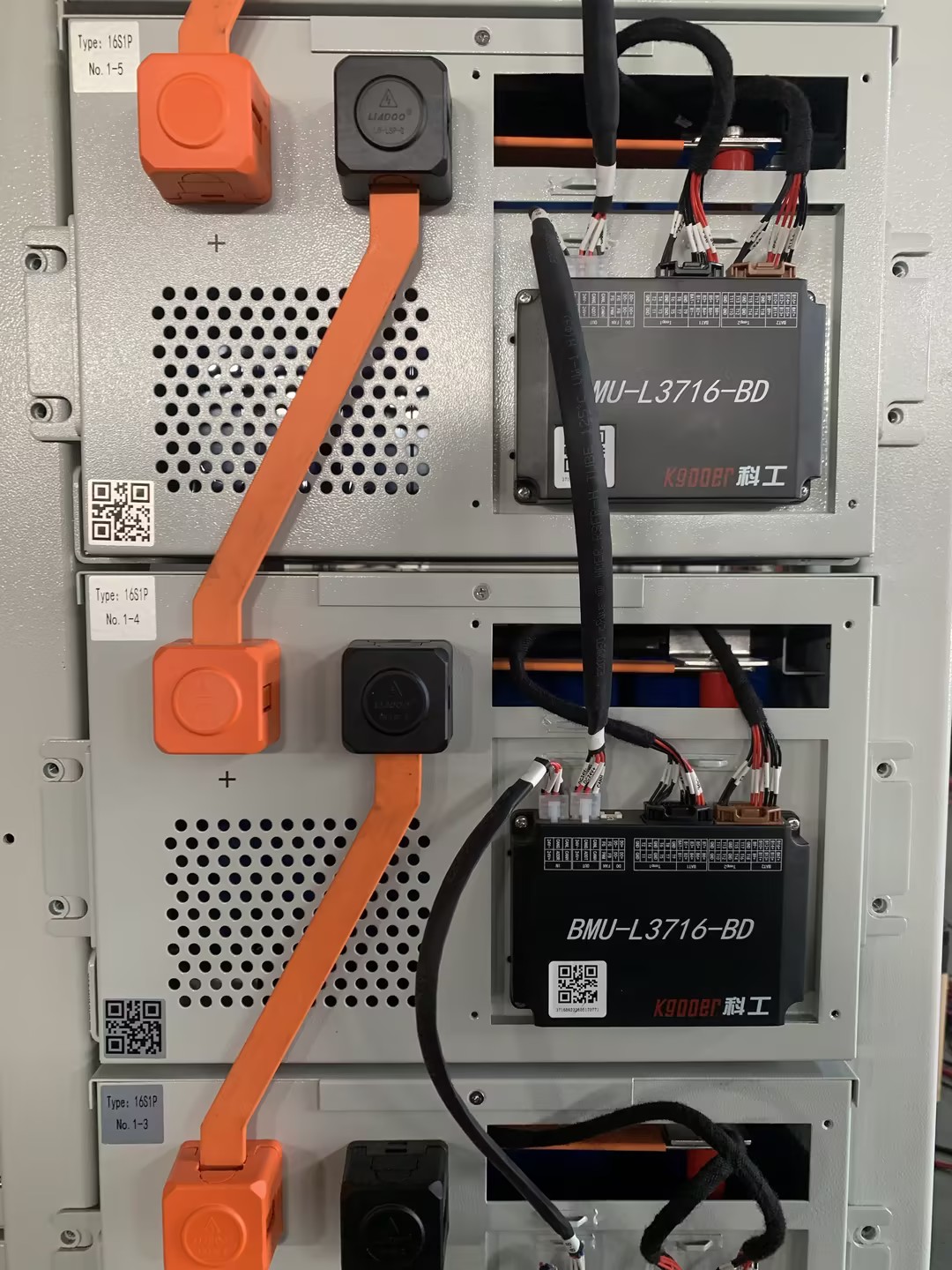

Detail 5

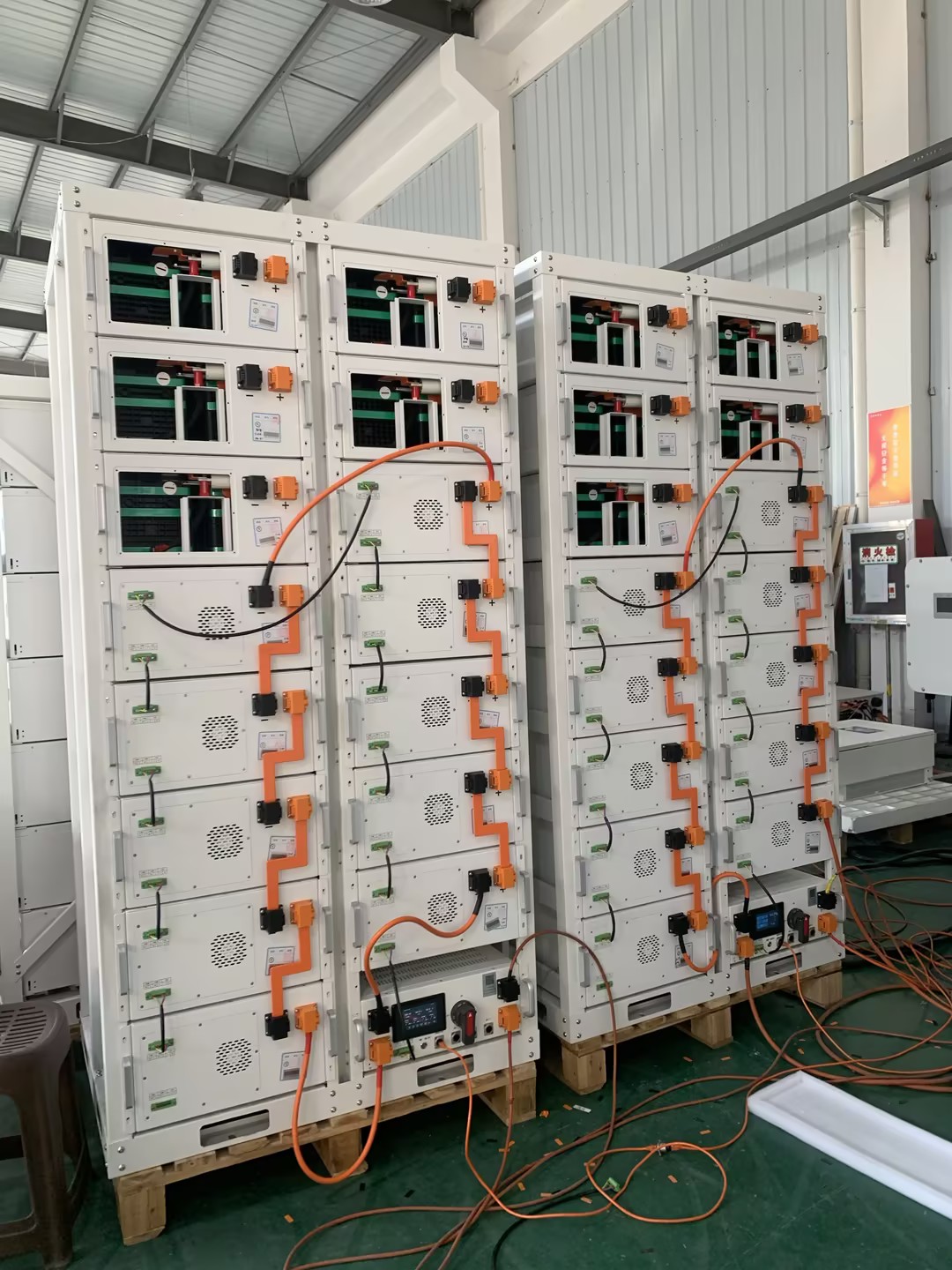

Detail 6

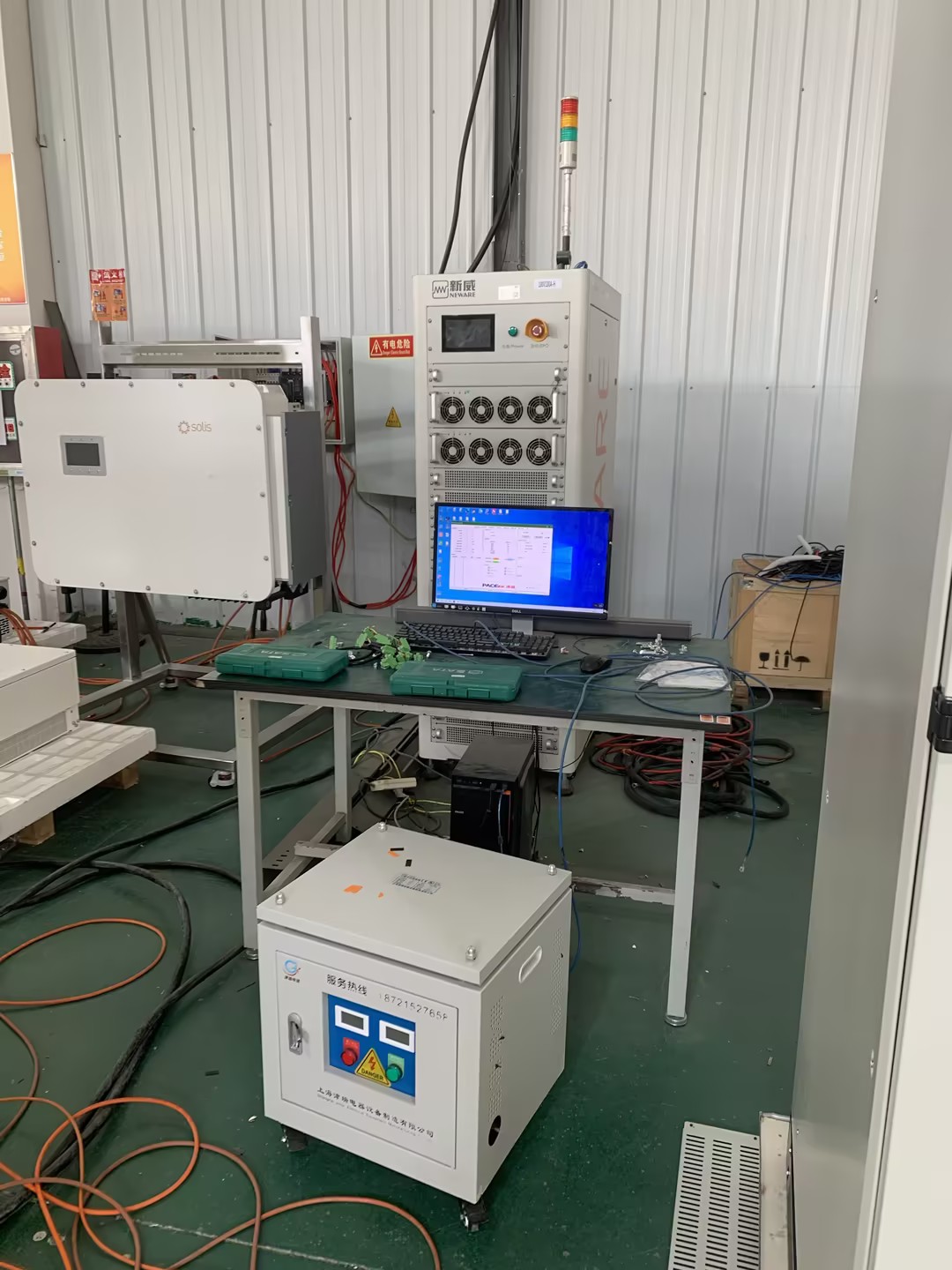

Detail 7

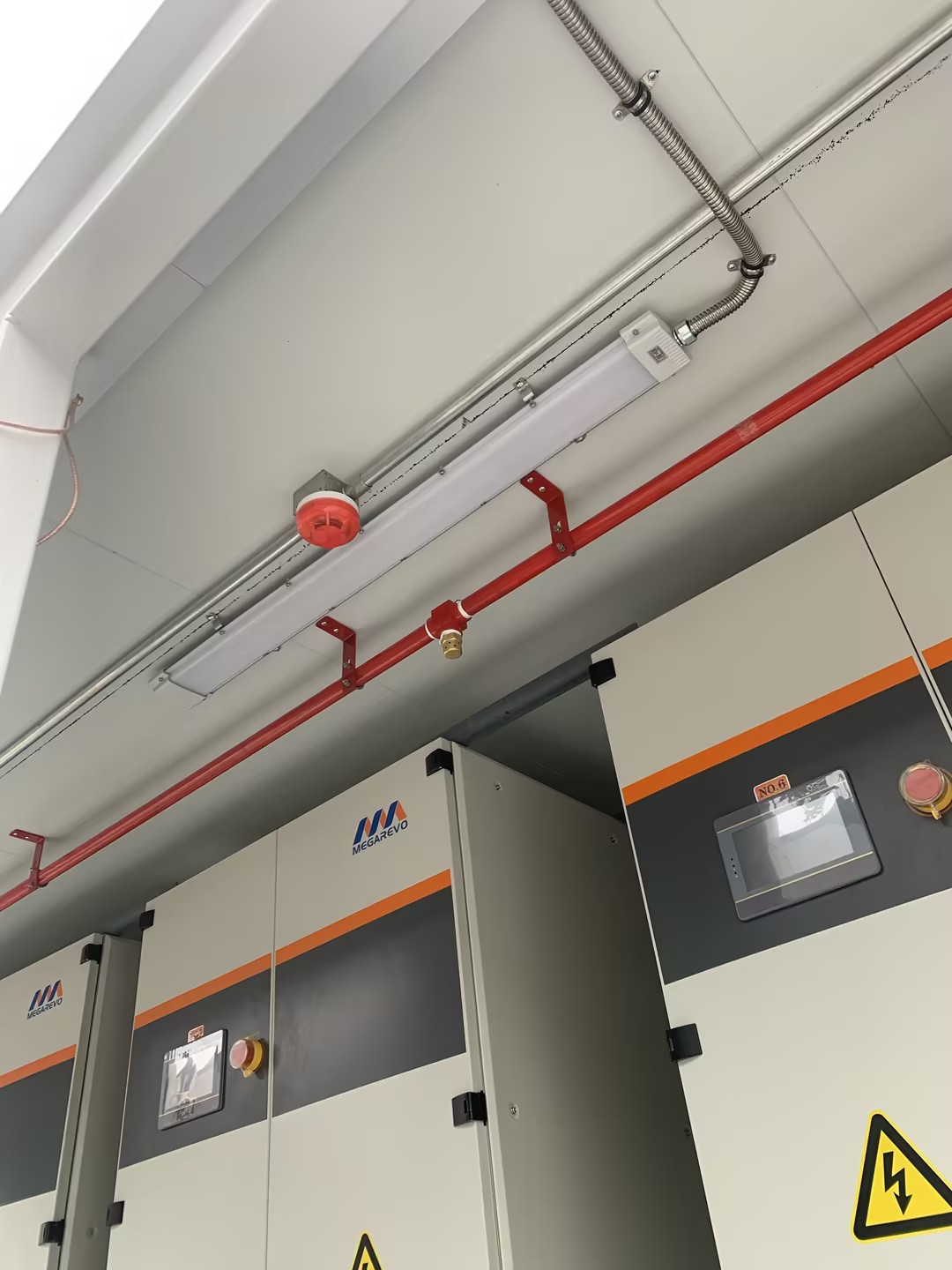

Detail 8

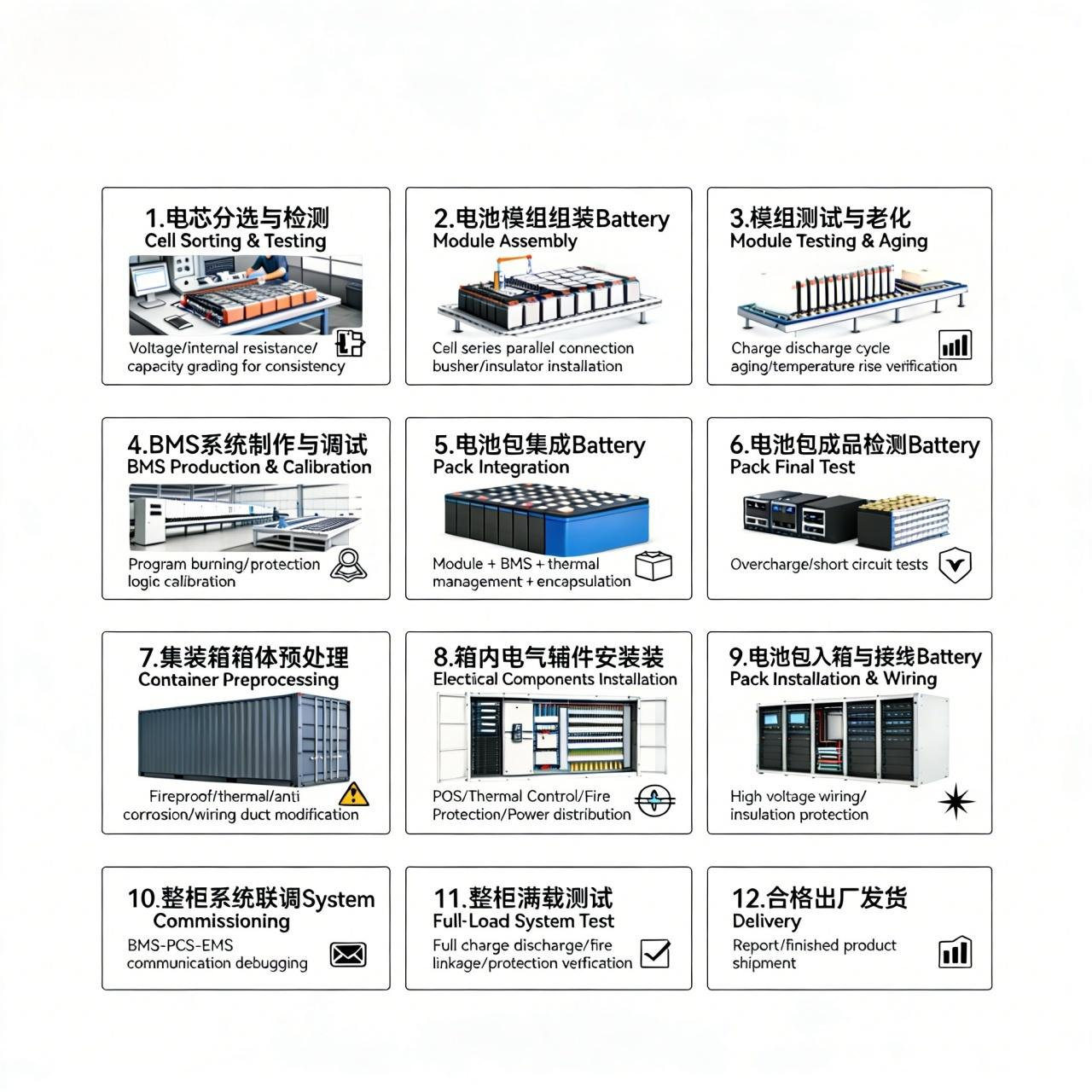

Technical Layout

Packing & Delivery

Packing Process
Delivery Prep 1
Delivery Prep 2

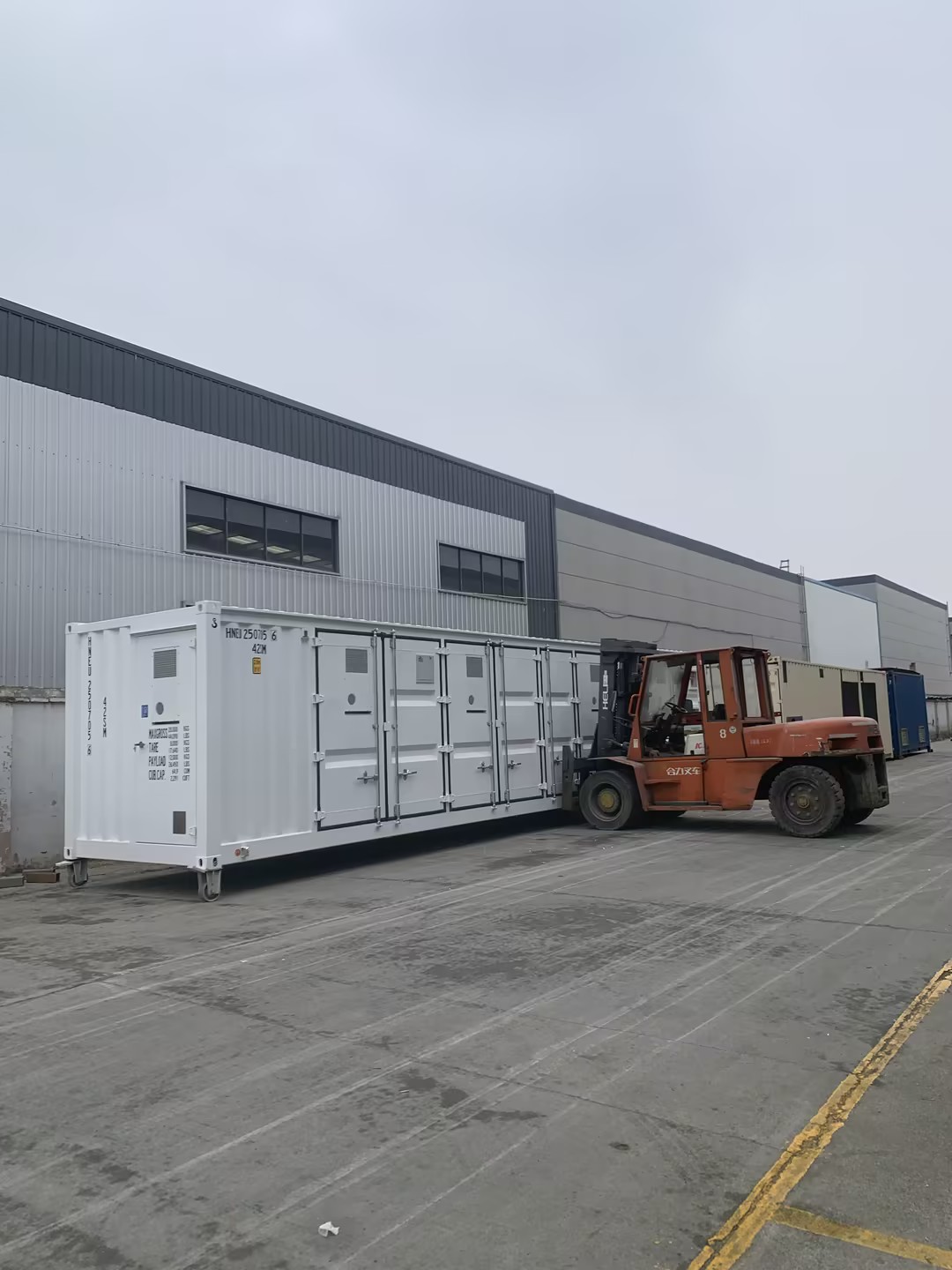

Shipping Load 1

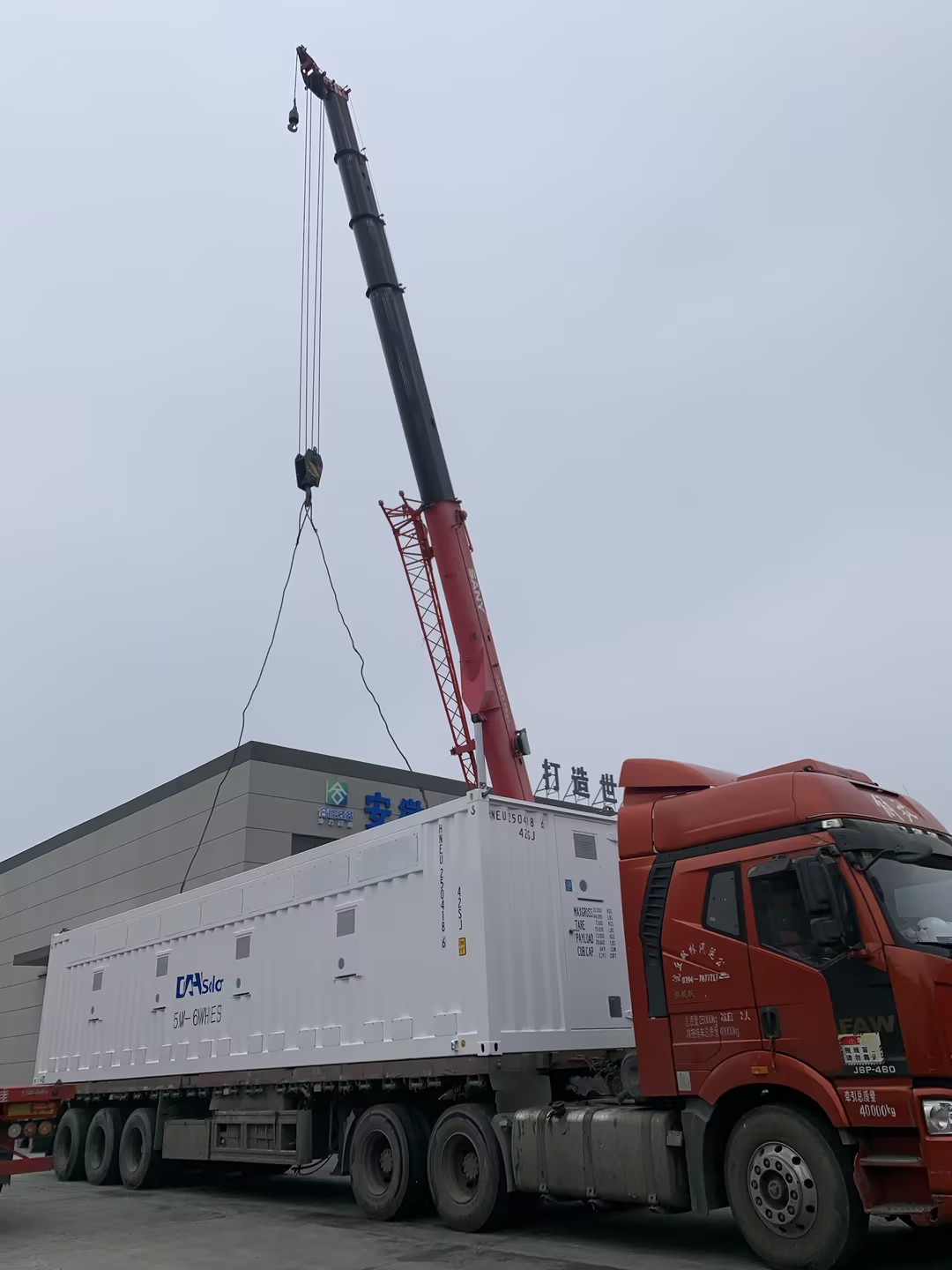

Shipping Load 2

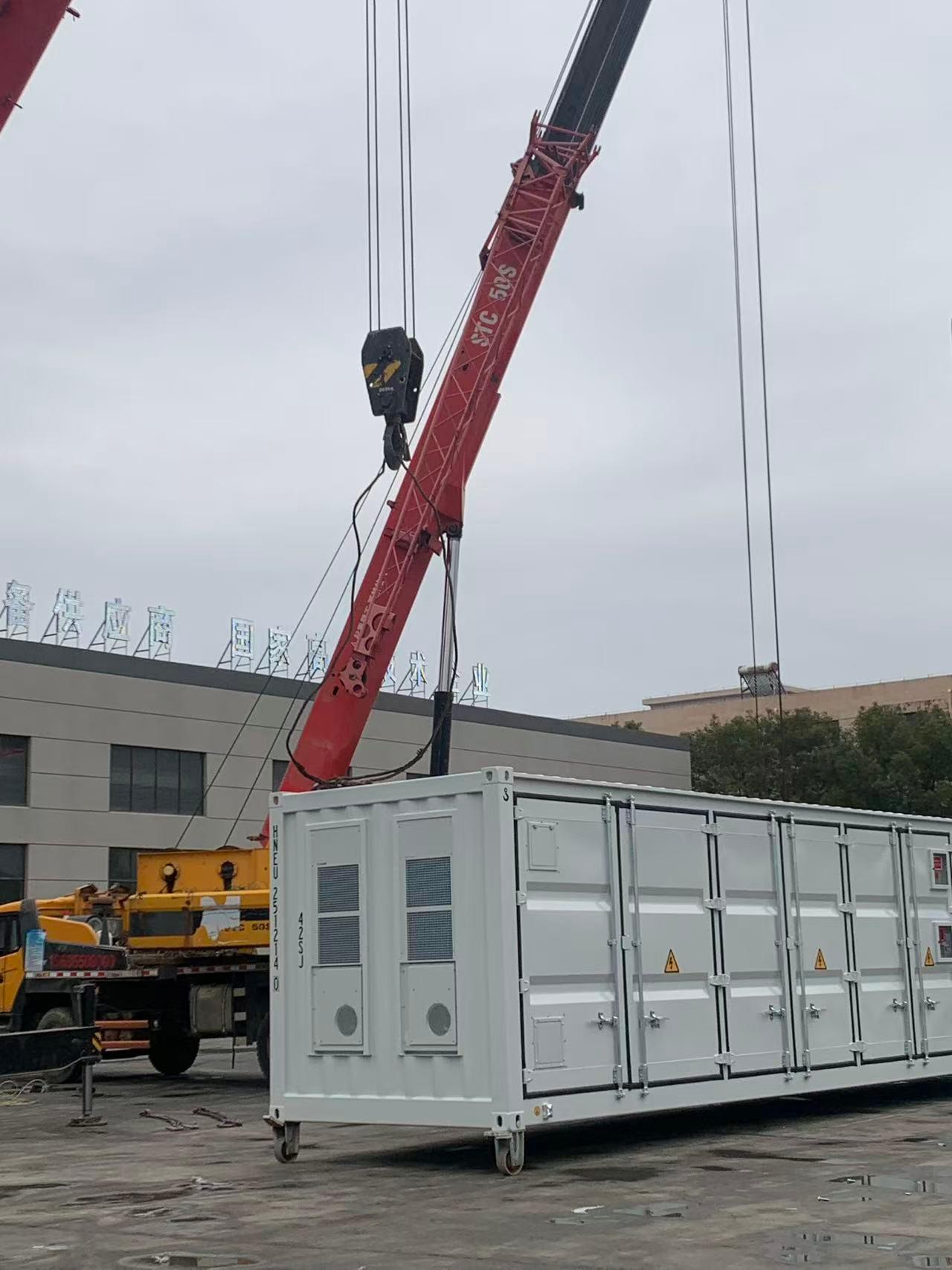

Container Transport 1

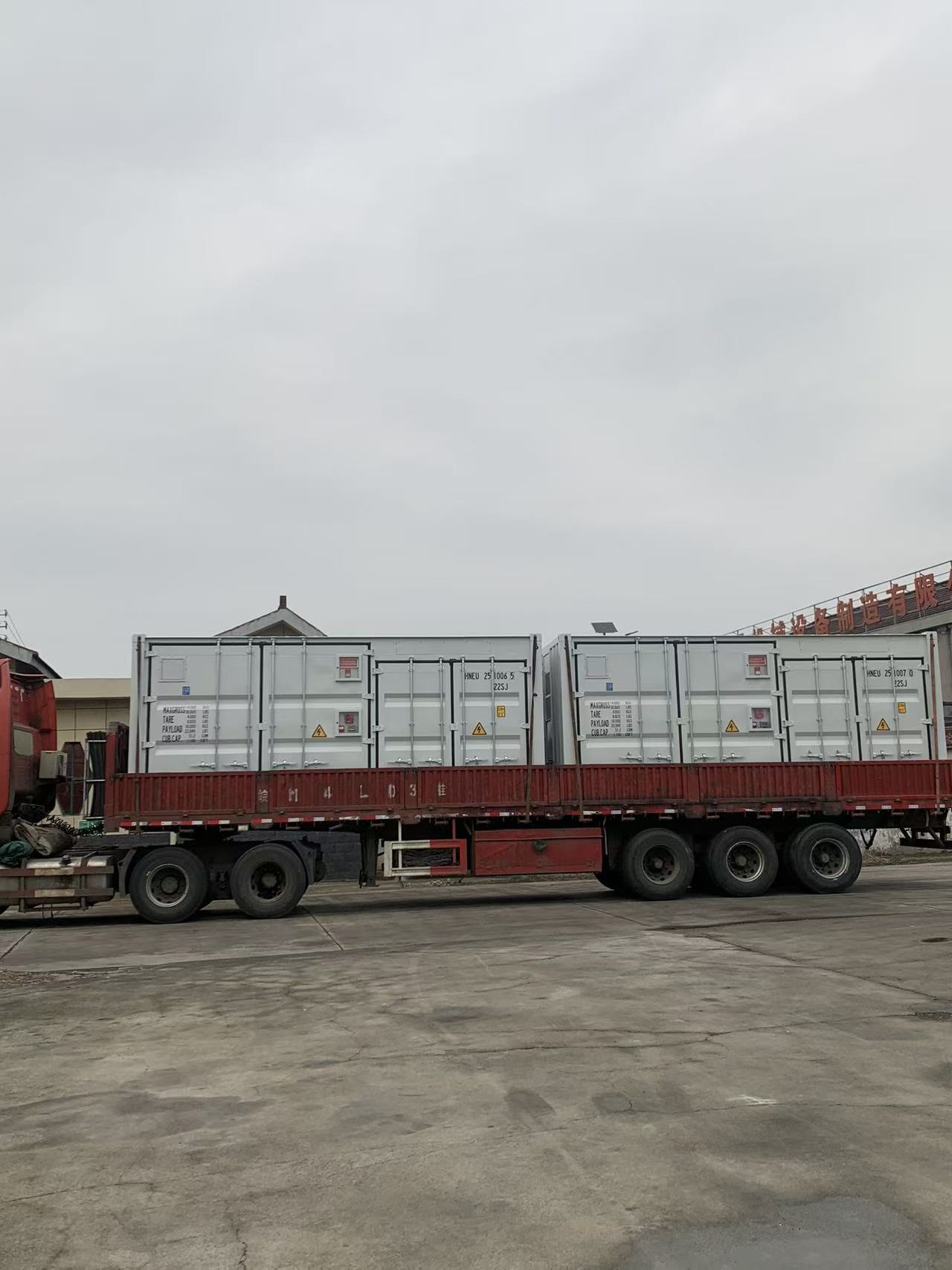

Container Transport 2

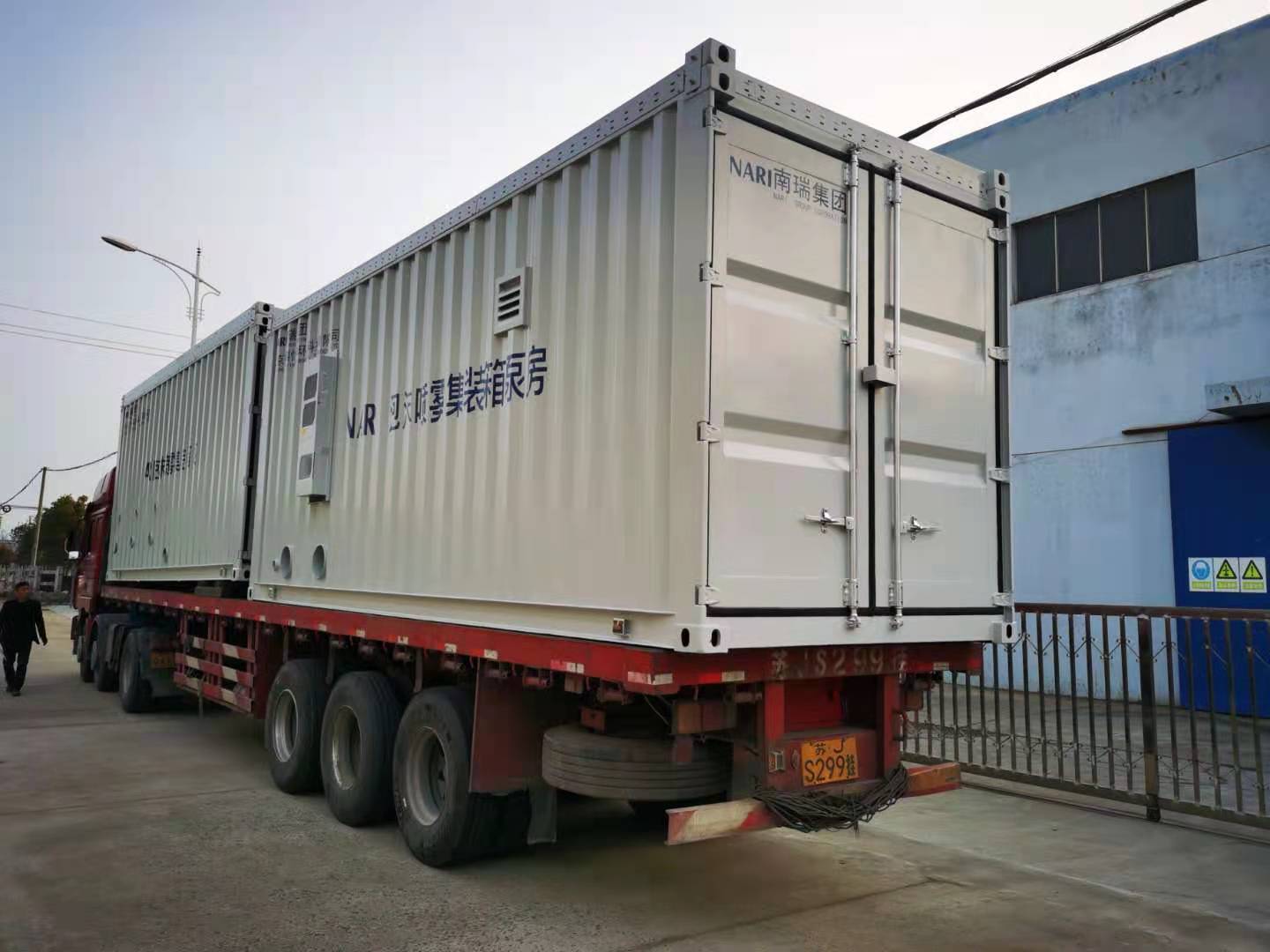

Logistic Stage 1

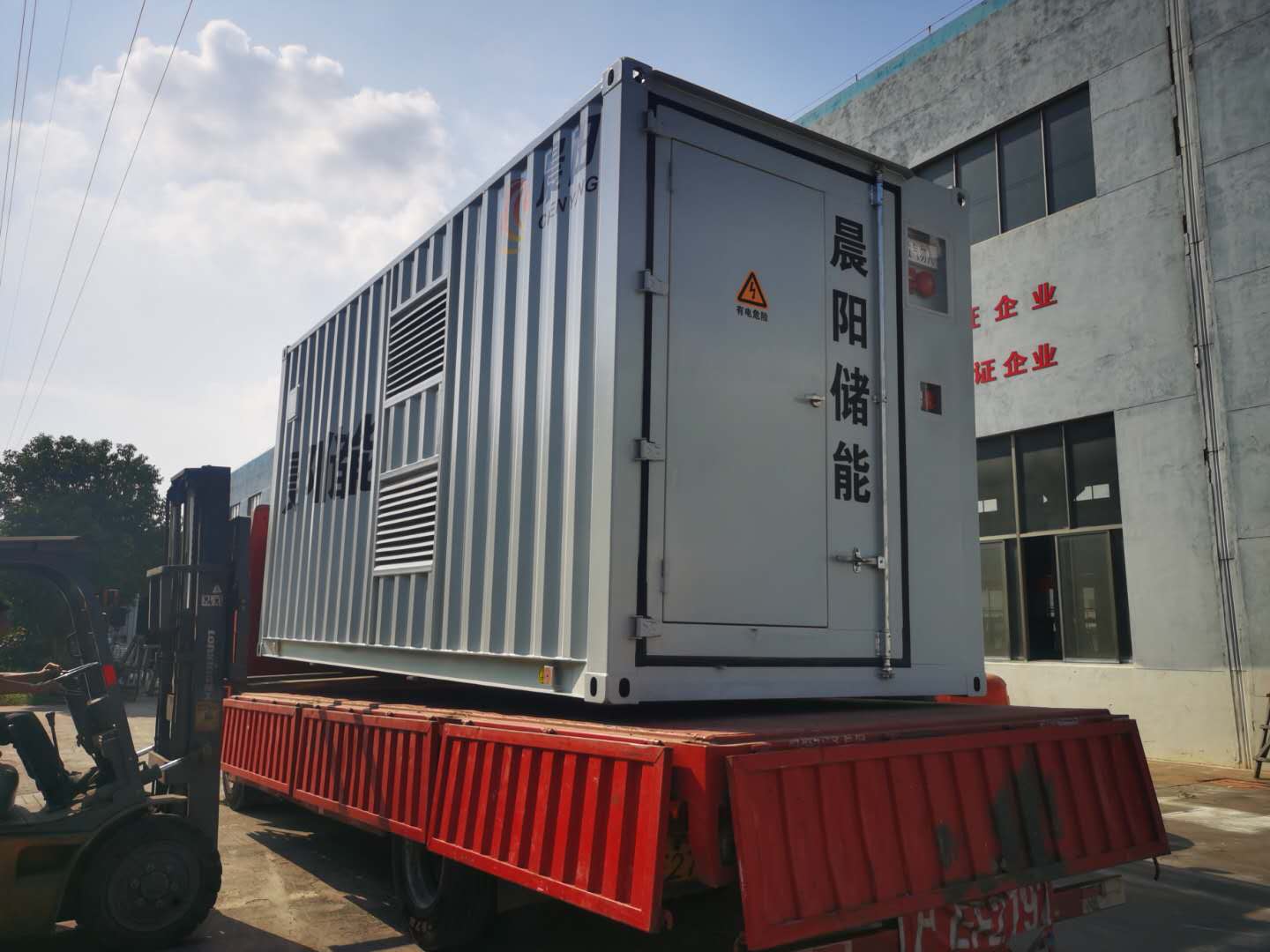

Logistic Stage 2

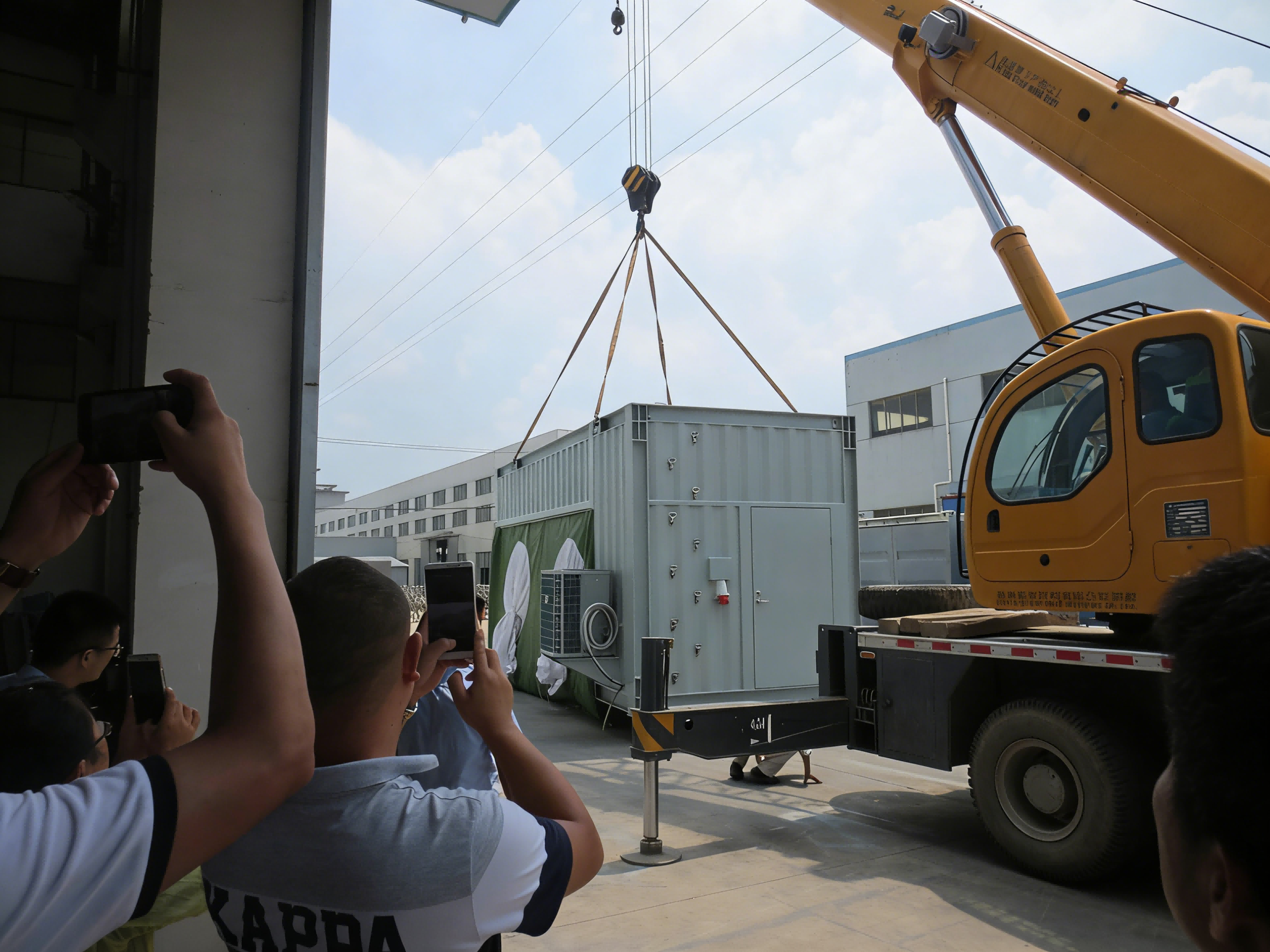

Logistic Stage 3

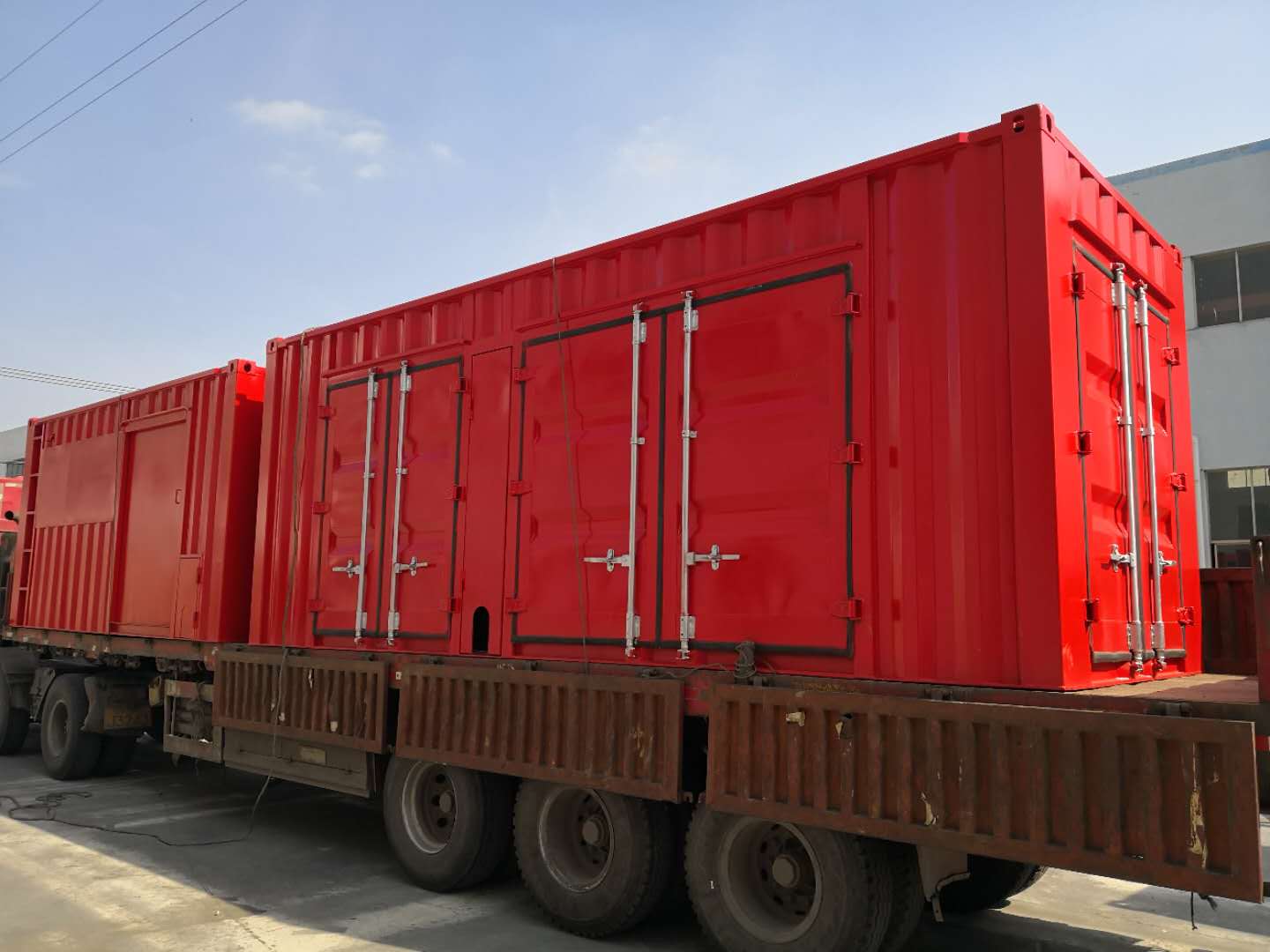

Logistic Stage 4

Certifications

Quality Certifications

Project Case

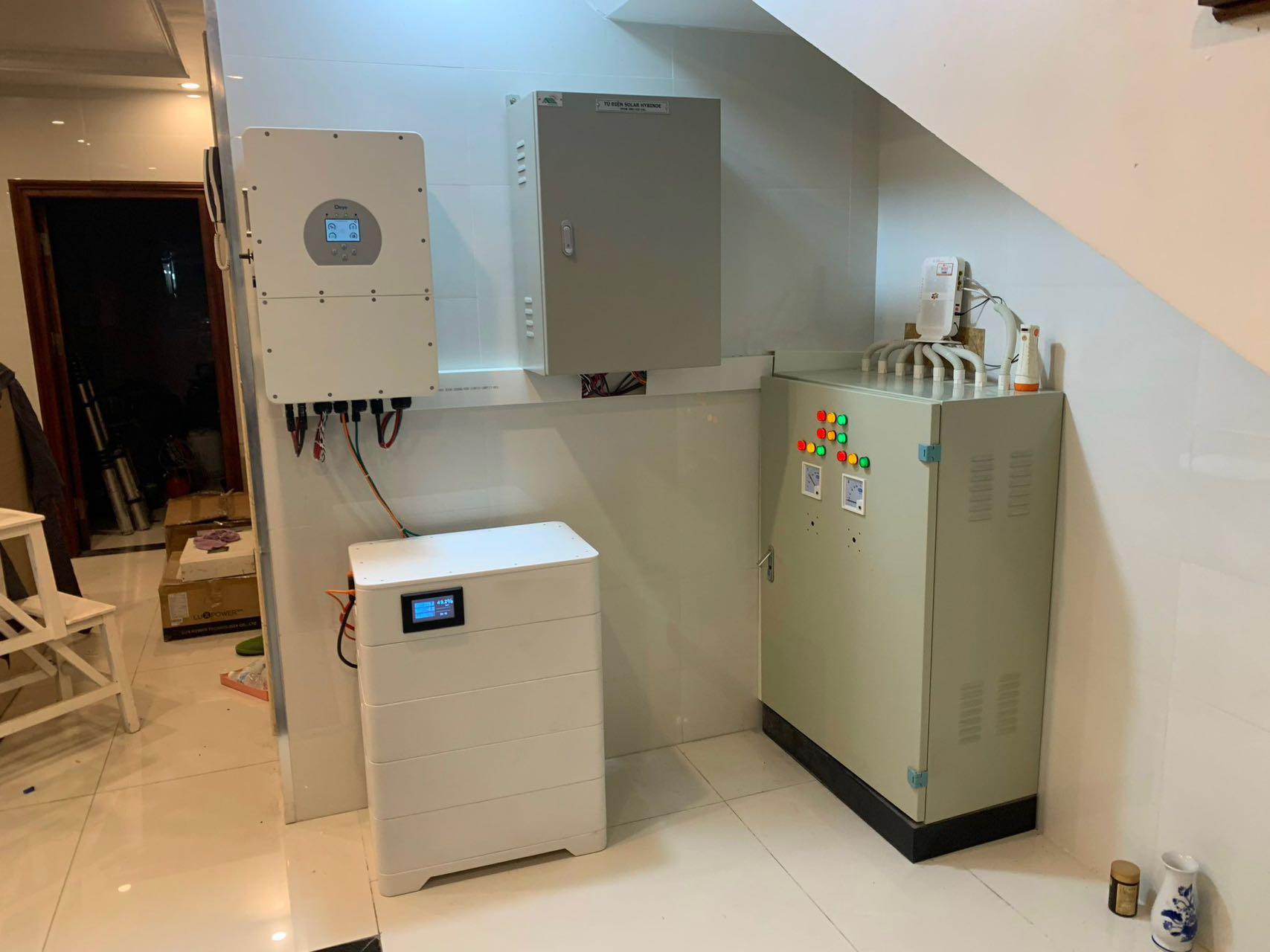

Vietnam Project

25kWh of Home Energy Storage in Vietnam

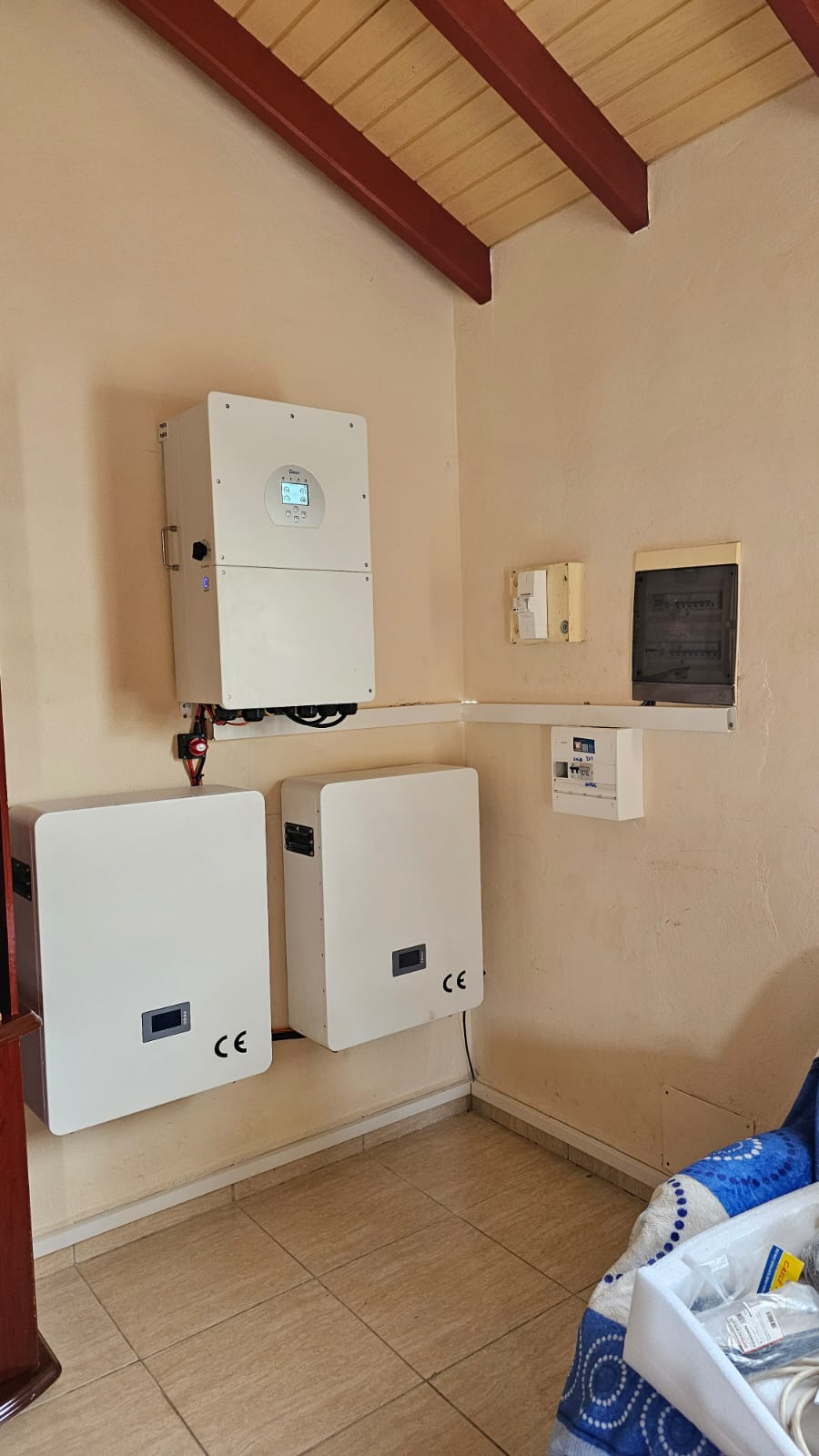

Southeast Asia Project

48kWh of Hybrid Grid Household Storage in Southeast Asia

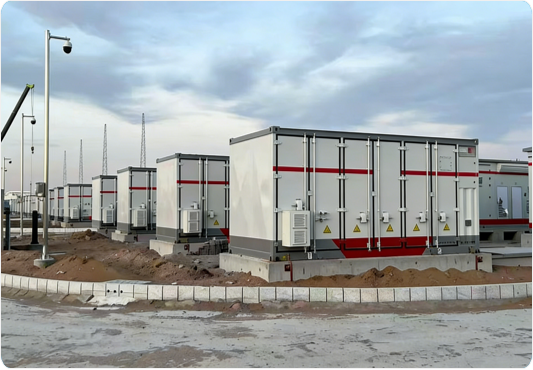

Shared energy storage power station

400MWh Shared energy storage power station

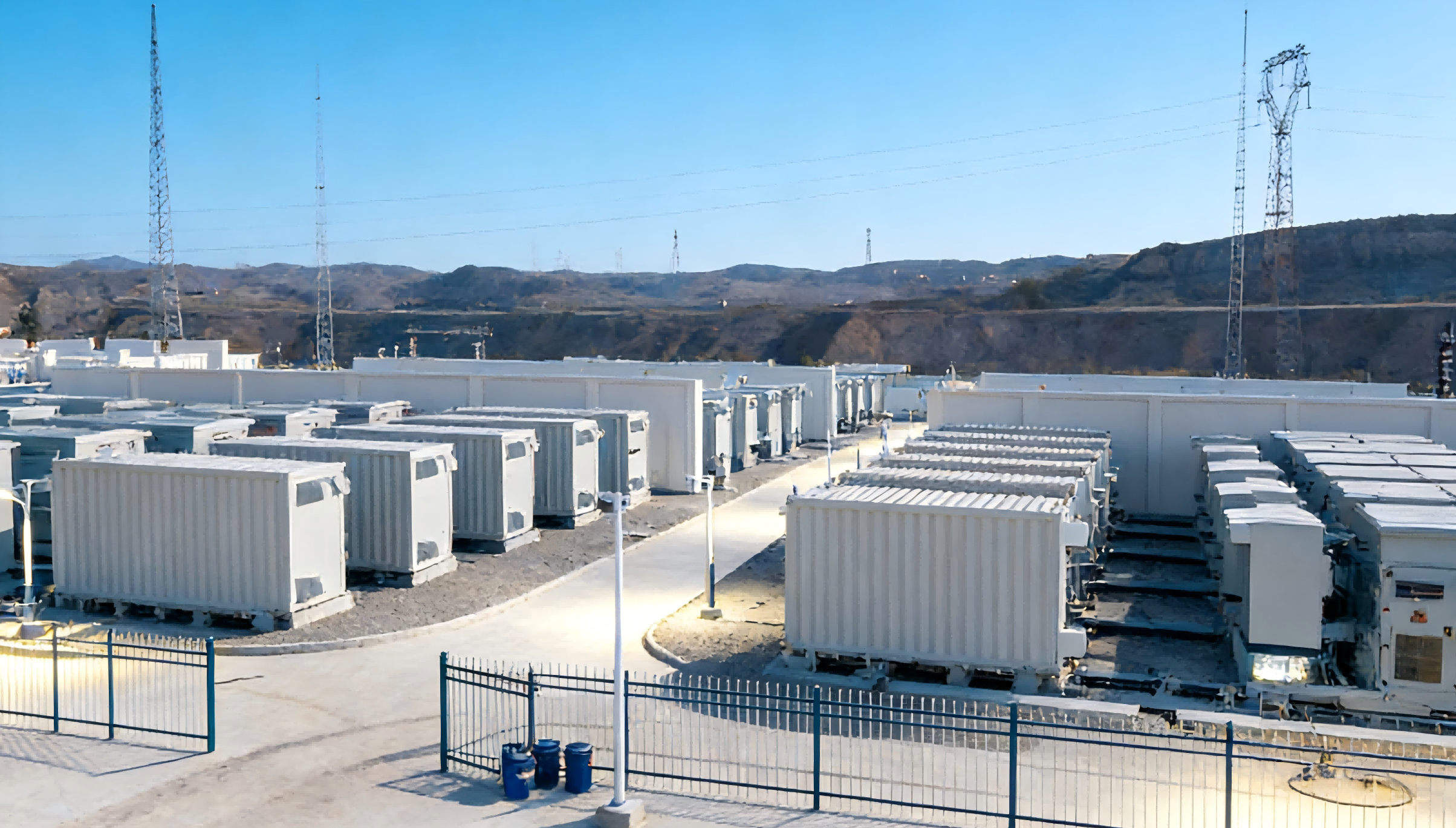

New Energy Storage Power Station

300MWh New Energy Storage Power Station

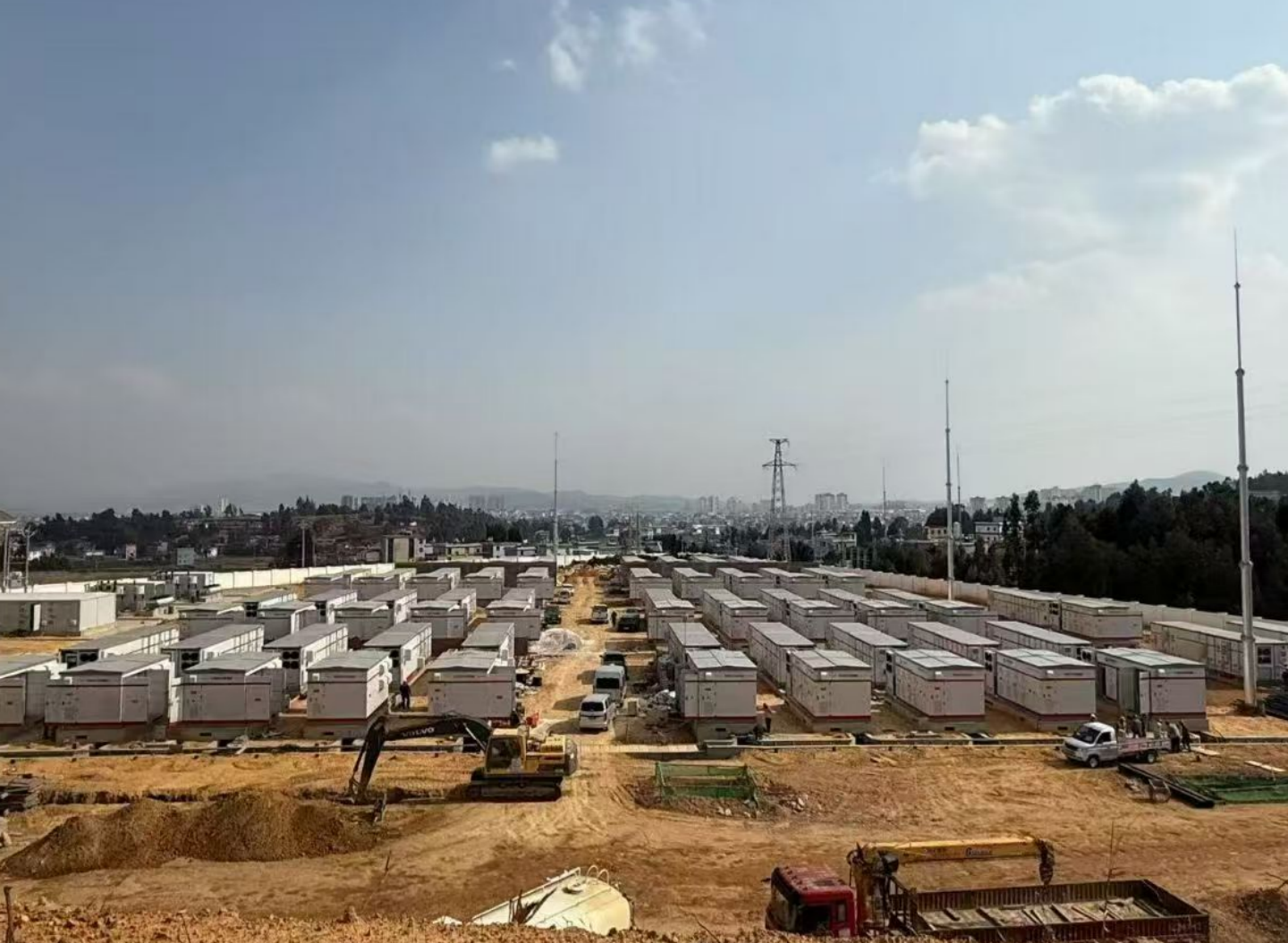

Independent Energy Storage Power Station

600 MWh Independent Energy Storage Power Station

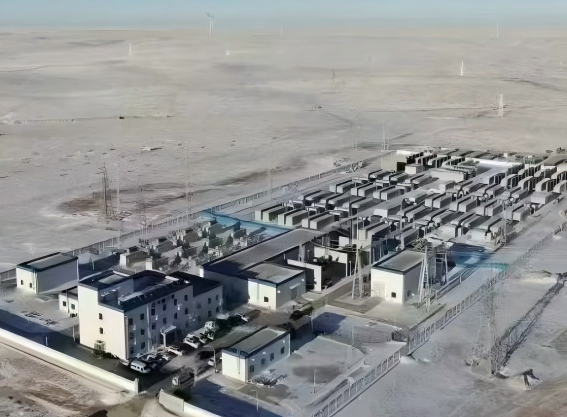

New energy transmission base

First 'Shago Desert' new energy transmission base

Our Service

Our Service Workflow

Pre-sales Services

  • Free consultation service
  • Project design service
  • Design drawings and technical specifications

On-sales Services

  • Visualized production process
  • Weekly production progress report
  • Equipment test and test report & certificate
  • Provide transportation solutions

After-sales Services

  • Installation and commissioning support
  • Equipment use and maintenance training
  • 24-hour response and solution commitment for after-sales issues

FAQ

QWhat is the warranty period for the storage containers?

The standard warranty period is 10 years, offering long-term reliability and support for your investment.

QHow do you handle technical support for international clients?

We provide lifetime online technical support through popular digital channels. If there are any performance or operational queries after delivery, our team is ready to assist you promptly.

QHow can we establish a business partnership or agent relationship?

Please reach out to us through the platform's messaging portal to initiate a conversation and discuss custom partnership opportunities.

QAre you a manufacturer or a trading company?

We are a direct manufacturer equipped with over 55 sets of advanced automated production systems and a dedicated workforce of over 100 professionals.

QWhat international standards and safety certifications do your batteries meet?

Our products are thoroughly certified and comply with CE, IEC, UL, UN38.3, MSDS, and ROHS quality and safety standards.

QDo you provide customized design drawings for specific project demands?

Yes. We provide complete pre-sales services including custom project designs, tailored drawings, and alignment of technical specifications to fit your local power setup.
