| DC Side | |
| Cell Type | LFP280Ah |
| PACK | 46.592kWh/1P52S |
| Battery System | 232.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| PACK Ingress Rating | IP65 |
| AC Side | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| THDi | < 3% |
| DC Ratio | < 0.5%Ip |
| Nominal Voltage | 400Vac/3P+N+PE |
| Nominal Frequency | 50/60 Hz |
| General | |

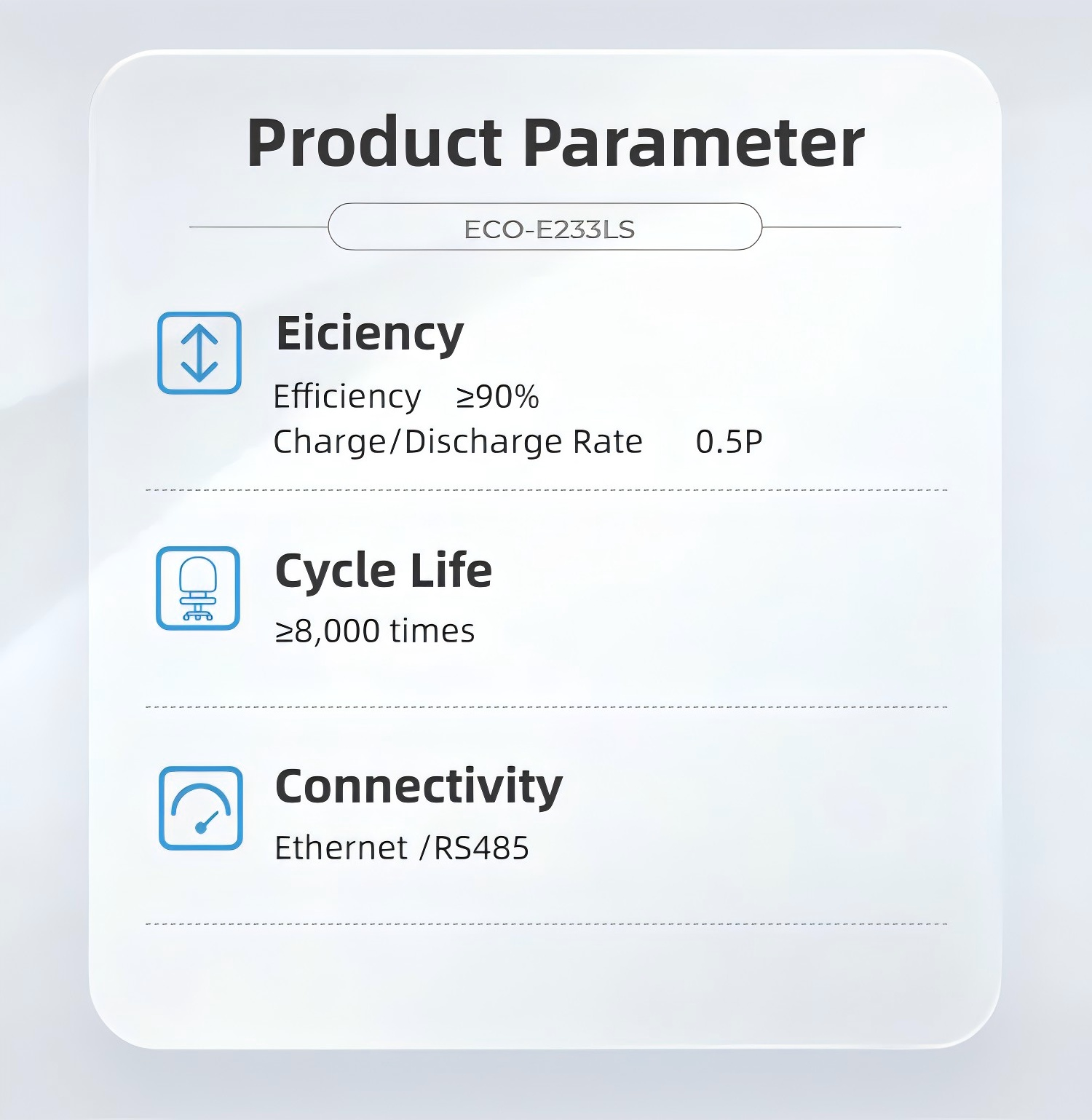

| System Efficiency | ≥90% |
| Charge/Discharge Rate | 0.5P |
| DoD | 95% |
| SOC Accuracy | < 3% |
| Cycle Life | ≥8,000 times |
| Switching Time | < 100ms |
| Connectivity | Ethernet / RS485 |
| Ingress Rating | IP55 |

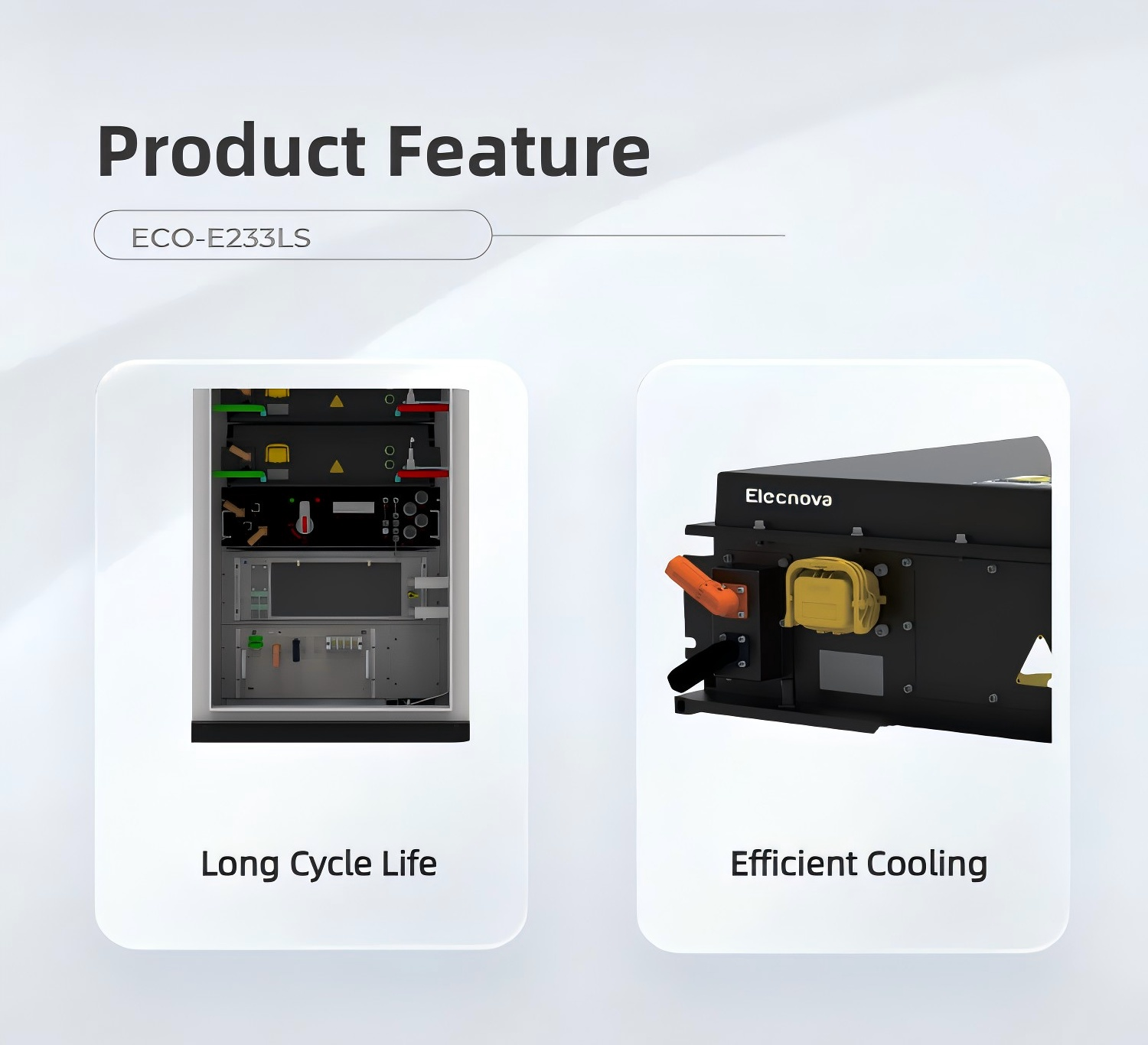

| Cooling | Active liquid cooling |
| Operating Temperature | -25℃ ~ 55℃ |
| Humidity | 5-95%RH, non-condensing |
| Noise | ≤75dB |
| Altitude | ≤2,000m (derating above 2,000m) |
| Fire Safety | Aerosol |
| Dimensions (W*D*H) | 1,050 * 1,350 * 2,400 (mm) |
| Weight | 2,570kg |
| Compliance | UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A, EN50549 |
Q: Are you a trading company or a manufacturer?

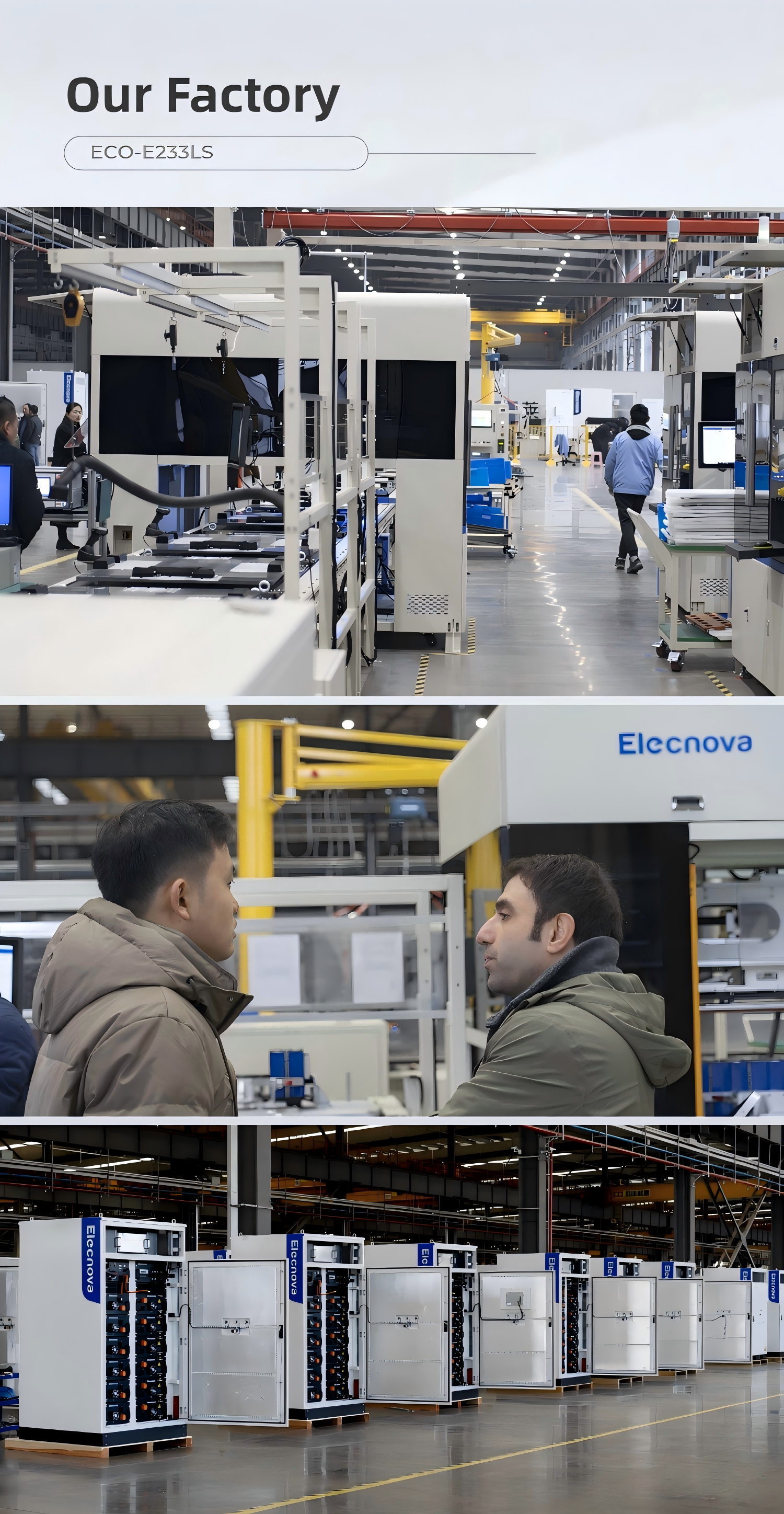

A: We are a manufacturer based in China, established in 1998, with a total team of about 600+ people.
Q: Can you supply OEM & ODM services?
A: Yes, we provide OEM & ODM services, subject to a minimum order quantity (MOQ) requirement.
Q: Can you ship battery products by sea or by air?
A: Yes, we work with long-term, professional forwarders who specialize in international battery transportation and safety compliance.
Q: How long is the product warranty?
A: Our products come with a warranty ranging from 3 to 10 years depending on the specific model and configurations.
Q: Why should we purchase from your team rather than other suppliers?
A: We are a professional energy storage system manufacturer specializing in the research and production of PCS, Battery PACKs, BMS, EMS, and fully integrated all-in-one cabinets.
Q: How is the after-sales service provided?
A: We maintain a local after-sales support center in Europe to facilitate efficient repair, maintenance, and replacement services.
